2AO5WROCK250Bluetooth True Wireless Headset

SACKit Rock 250 True Wireless Bluetooth Headset User’s manual FCC ID：2AO5WROCK250 Contents  Brief introduction..................................................... 1  Before use............................................................. 1 1. Overview..................................................................1 2. Charging for headset.....................................................2 2. Charging for charging case.........................................2  Getting started........................................................3 1. We a r i n g h e a d s e t . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2. One earbud connecting with cellphone......................................3 3. Two earbuds connecting with cellphone..........................................5 4. Earbuds pairing/connecting........................................................6 5. Function operation-use one earbud ....................................6 6. Function operation-use two earbuds ....................................8 7. Battery display........................................................................ ......8 8. Prompt tone...........................................................9 9. Factory Reset..............................................................9  Care and maintenance.............................................10  FAQs....................................................................11  Specification...........................................................11 Welcome to use this True Wireless Bluetooth headset, BTH177. Please read this user’s manual carefully before use.  Brief introduction BTH177 is a True Wireless Bluetooth Headset ,each ear piece comes with a Microphone that can be used individually or used together for stereo sound.The earbuds are equipped with a charging case, which is convenient to carry and charge. The charging case supports wireless charging, and you can charge the charging case with your wireless charger.  Before use 1. Overview 1 2. Charging for headset 1 MFB touch-button 6 Top case 2 Charging metal contact 7 Charging pins 3 LED indicator (white) 8 Charging indicator light 4 Microphone 9 Type-C 5 LED indicator (red) 10 Wireless charge induction area When the headset is low on power, the red Led flashes three times every 1 minute. Please recharge the battery of the headset. The way of charging for the earbuds as following: 1. Put the earbuds into the charging case to ensure that the charging pins connect well, and start charging when you see the red indicator light of the earbuds flashes slowly. Red LED flashes slowly: Charging Red LED off: Finish charging 2. Charging should be completed in roughly 1.5 hours. Remarks:  When charging the headset , please put the left earbud and the right earbud in the corresponding charging position according to the L and R mark, otherwise it will not be able to charge the headset.  Please cover the top case, so that the earbuds and the charging case connect well when they are charging. 3. Charging for charging case When any of the following situations occurs, it indicates that the charging case will be low power. You need to charge the charging case: 1) Put the earbuds into the charging case, and find that the white indicator light of the charging case flashes once every 2 seconds. It means that the charge case is low power. 2) When the indicator light of the charging case doesn’t turn on and the earphone cannot be charged, it means that the battery of the charging case has been used up The charging case supports USB cable charging and wireless charging. The way of charging for the charging case as following: Using USB cable 1) Plug the Type-C charging cable into the case’s charging jack. 2) Plug the USB cable into a USB port of PC or a 5Volt USB charge. Wireless charging 1) Connect the wireless charger to the power cable. (some wireless chargers with built-in batteries may not need to be connected to the power cable) 2) Put the charging case in the center of the wireless charger as far as possible for maximum efficiency charging. White LED flashes: Charging White LED on: Finish charging 3) Charging should be completed in roughly 1.5 hours. 4) If the earbuds are in the charging case, it can charge the earbuds while charging the charging case. Type-C charging Wireless charging Remarks: 1) The battery is recyclable. 2) Batteries (battery pack or batteries installed) shall not be exposed to excessive heat place, such as sunshine, fire or the like. 3) Please make sure the charging jack is dry before charge. 2  Getting started 1. Wearing headset a. Choose the suitable size ear tips b. Ensure each earbuds is worn on the correct ear. “L” should be worn on the left ear and “R”worn on the right ear. Left ear Right ear 2.One earbud connecting with cellphone Each earbuds can be connected singly to the cellphone. 1. Power on 1)When charging, the earbuds will turn on automatically when they are taken out of the charging case.The earbuds emit Four Tone_Low Rising and the white LED light 1 second. 2)If the earbuds are power off, you should press touch-button for about 3s until white LED flashes as the same time the earbuds emits Four Tone_Low Rising. Then release. This is now in the “Power on”state. 2.Pairing 1) After the earbud is taken out of the charging case, it will be power on. Then it will connect back to the phone you paired with before.When the earbuds and the cellphone fails to connect back, the earbuds will automatically enter the matching state. 2) If the earbuds are power off, you should press touch-button for about 5s and release it when the red LED and white LED flash quickly and alternately. You will hear the Two Tone_Low Rising. The earbuds are in”Pairing”mode 3 3.Connecting To connecting your earbuds to a Bluetooth device, first ensure the device has Bluetooth enable and it is in pairing mode(See your device manual for setting…

Text truncated - open the document above for the full version.

SACKit ApS Agent Authorization Company: SACKit ApS Address: Lyngvej 1, 9000 Aalborg, Denmark Product Name: Bluetooth True Wireless Headset Model Number(s): SACKit Rock 250 Product Description: Bluetooth True Wireless Headset We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-04-20 Name: Peter Rasmussen Company: SACKit ApS

SACKit ApS Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-03-31 Subject; Request for Confidentiality FCC ID: 2AO5WROCK250 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely SACKit ApS Contact person: Peter Rasmussen

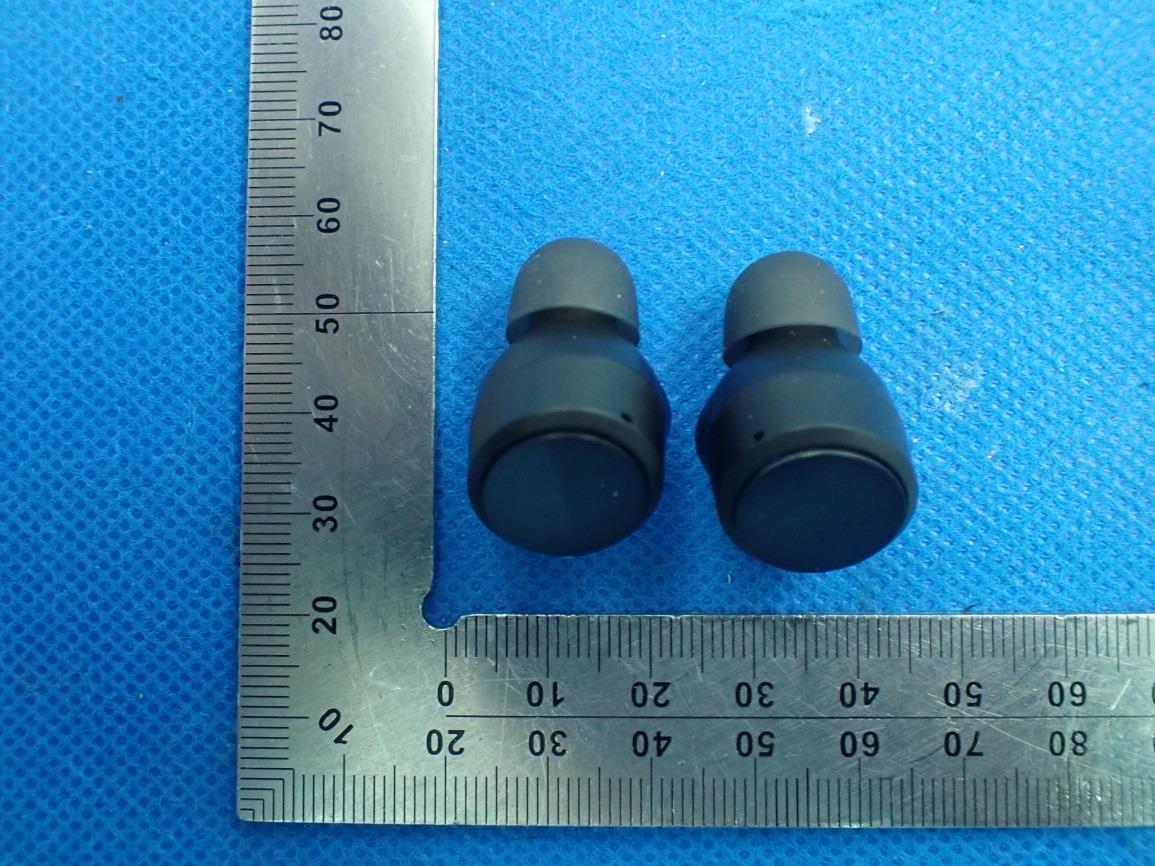

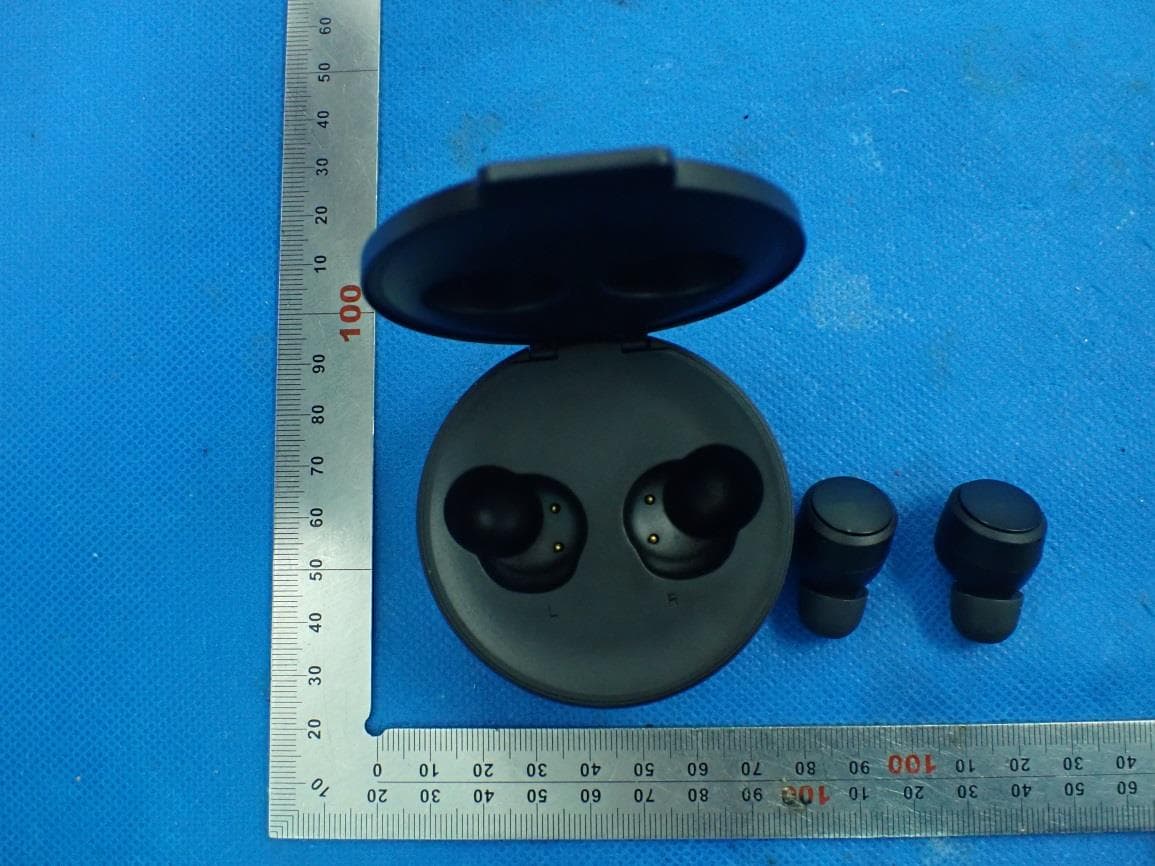

External Photos ALL VIEW-1 OF EUT ALL VIEW-2 OF EUT External VIEW-1 OF EUT External VIEW-2 OF EUT External VIEW-3 OF EUT External VIEW-4 OF EUT External VIEW-5 OF EUT External VIEW-6 OF EUT

FCC ID Label Location The product does not have enough space to place the label, and FCC ID label is reflected in the user manual and package, as below:

Internal Photos INTERNAL VIEW-1 OF EUT(Left earphone) INTERNAL VIEW-2 OF EUT(Left earphone) INTERNAL VIEW-3 OF EUT(Left earphone) INTERNAL VIEW-4 OF EUT(Left earphone) INTERNAL VIEW-5 OF EUT(Left earphone) INTERNAL VIEW-6 OF EUT(Left earphone) INTERNAL VIEW-7 OF EUT(Left earphone) INTERNAL VIEW-8 OF EUT(Left earphone) Left earphone Antenna INTERNAL VIEW-1 OF EUT(Right earphone) INTERNAL VIEW-2 OF EUT(Right earphone) INTERNAL VIEW-3 OF EUT(Right earphone) INTERNAL VIEW-4 OF EUT(Right earphone) INTERNAL VIEW-5 OF EUT(Right earphone) INTERNAL VIEW-6 OF EUT(Right earphone) INTERNAL VIEW-7 OF EUT(Right earphone) INTERNAL VIEW-8 OF EUT(Right earphone) Right earphone Antenna INTERNAL VIEW-9 OF EUT(Right earphone)

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Bluetooth True Wireless Headset Model Name SACKit Rock 250 FCC ID 2AO5WROCK250 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR&EDR P t =0.730dBm=1.183mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(1.183mW /5mm) .[√2.402GHz)]=0.367<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 83 FCC Test Report Report No.: AGC03061210304FE03 FCC ID : 2AO5WROCK250 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth True Wireless Headset BRAND NAME : SACKit MODEL NAME : SACKit Rock 250 APPLICANT : SACKit ApS DATE OF ISSUE : Mar. 30, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC03061210304FE03 Page 2 of 83 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 30, 2021 Valid Initial Release Report No.: AGC03061210304FE03 Page 3 of 83 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 2.10. ANTENNA REQUIREMENT .................................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. PEAK OUTPUT POWER ............................................................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 20DB BANDWIDTH ..................................................................................................................................... 20 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 21 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 27 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 27 Report No.: AGC03061210304FE03 Page 4 of 83 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 27 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 27 10. RADIATED EMISSION ............................................................................................................................... 40 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 40 10.2. TEST SETUP ....................................................................................................................................... 42 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 43 10.4. TEST RESULT ..................................................................................................................................... 43 11. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 53 11.1. MEASUREMENT PROCEDURE ................…

Text truncated - open the document above for the full version.

Report No.: AGC03061210304FE03 Page 49 of 83 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS EUT Bluetooth True Wireless Headset Model Name SACKit Rock 250 Temperature 21.8°C Relative Humidity 58% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC03061210304FE03 Page 50 of 83 EUT Bluetooth True Wireless Headset Model Name SACKit Rock 250 Temperature 21.8°C Relative Humidity 58% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical PK AV RESULT: PASS Report No.: AGC03061210304FE03 Page 51 of 83 EUT Bluetooth True Wireless Headset Model Name SACKit Rock 250 Temperature 21.8°C Relative Humidity 58% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC03061210304FE03 Page 52 of 83 EUT Bluetooth True Wireless Headset Model Name SACKit Rock 250 Temperature 21.8°C Relative Humidity 58% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. The GFSK modulation is the worst case and recorded in the report. Report No.: AGC03061210304FE03 Page 53 of 83 11. NUMBER OF HOPPING FREQUENCY 11.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. 2. RBW: To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. 3. VBW ≥ RBW. Sweep: Auto. Detector function: Peak. Trace: Max hold. 4. Allow the trace to stabilize. 11.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 11.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 11.4. LIMITS AND MEASUREMENT RESULT TOTAL NO. OF HOPPING CHANNEL LIMIT (NO. OF CH) MEASUREMENT (NO. OF CH) RESULT >=15 79 PASS TEST PLOT FOR NO. OF TOTAL CHANNELS Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC03061210304FE03 Page 54 of 83 12. TIME OF OCCUPANCY (DWELL TIME) 12.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Zero span, centered on a hopping channel. 2. RBW shall be≤channel spacing and where possible RBW should be set >> 1 / T, where T is the expected dwell time per channel. 3. Sweep: As necessary to capture the entire dwell time per hopping channel; where possible use a video trigger and trigger delay so that the transmitted signal starts a little to the right of the start of the plot. The trigger level might need slight adjustment to prevent triggering when the system hops on an adjacent channel; a second plot might be needed with a longer sweep time to show two successive hops on a channel. 4. Detector function: Peak. Trace: Max hold. 5. Use the marker-delta function to determine the transmit time per hop. 6. Repeat the measurement using a longer sweep time to determine the number of hops over the period specified in the requirements. The sweep time shall be equal to, or less than, the period specified in the requirements. Determine the number of hops over the sweep time and calculate the total number of hops in the period specified in the requirements, using the following equation: (Number of hops in the period specified in the requirements) = (number of hops on spectrum analyzer) × (period specified in the requirements / analyzer sweep time) 7. The average time of occupancy is calculated from the transmit time per hop multiplied by the number of hops in the period specified in the requirements. 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 12.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 12.4. LIMITS AND MEASUREMENT RESULT Channel Time of Pulse for DH5 (ms) Number of hops in the period specified in the requirements Sweep Time (ms) Limit (ms) Low 2.895 30*4 347.343 400 Middle 2.895 21*4 243.139 400 High 2.894 21*4 243.135 400 Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC03061210304FE03 Page 55 of 83 TEST PLOT OF LOW CHANNEL Report No.: AGC03061210304FE03 Page 56 of 83 TEST PLOT OF MIDDLE CHANNEL Report No.: AGC03061210304FE03 Page 57 of 83 TEST PLOT OF HIGH CHANNEL Report No.: AGC03061210304FE03 Page 58 of 83 13. FREQUENCY SEPARATION 13.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Wide enough to capture the peaks of two adjacent channels. 2. RBW: Start with the RBW set to approximately 30% of the channel spacing; adjust as necessary to best identify the center of each individual channel. 3. Video (or average) bandwidth (VBW) ≥ RBW. 4. Sweep: Auto. e) Detector function: Peak. f) Trace: Max hold. g) Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. 13.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 6.2 13.3. MEASUREMENT EQUIPMENT USED The same as described in section 6.3 13.4. LIMITS AND MEASUREMENT RESULT TEST MODE CHANNEL SEPARATION LIMIT RESULT MHz Pass Hopping Mode 1.001 >= 2/3 20 dB BW TEST PLOT FOR FREQUENCY SEPARATION Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC03061210304FE03 Page 59 of 83 14. FCC LINE CONDUCTED EMISSION TEST 14.1. LIMITS OF LINE CONDUCTED EMISSION TEST Frequency Maximum RF Line Voltage Q.P. (dBμV) Average (dBμV) 150kHz~500kHz 66-56 56-46 500kHz~5MHz 56 46 5MHz~30MHz 60 50 Note: 1. The lower limit shall apply at the transition frequency. 2. The limit decreases linearly with the logarithm of the frequency in the …

Text truncated - open the document above for the full version.

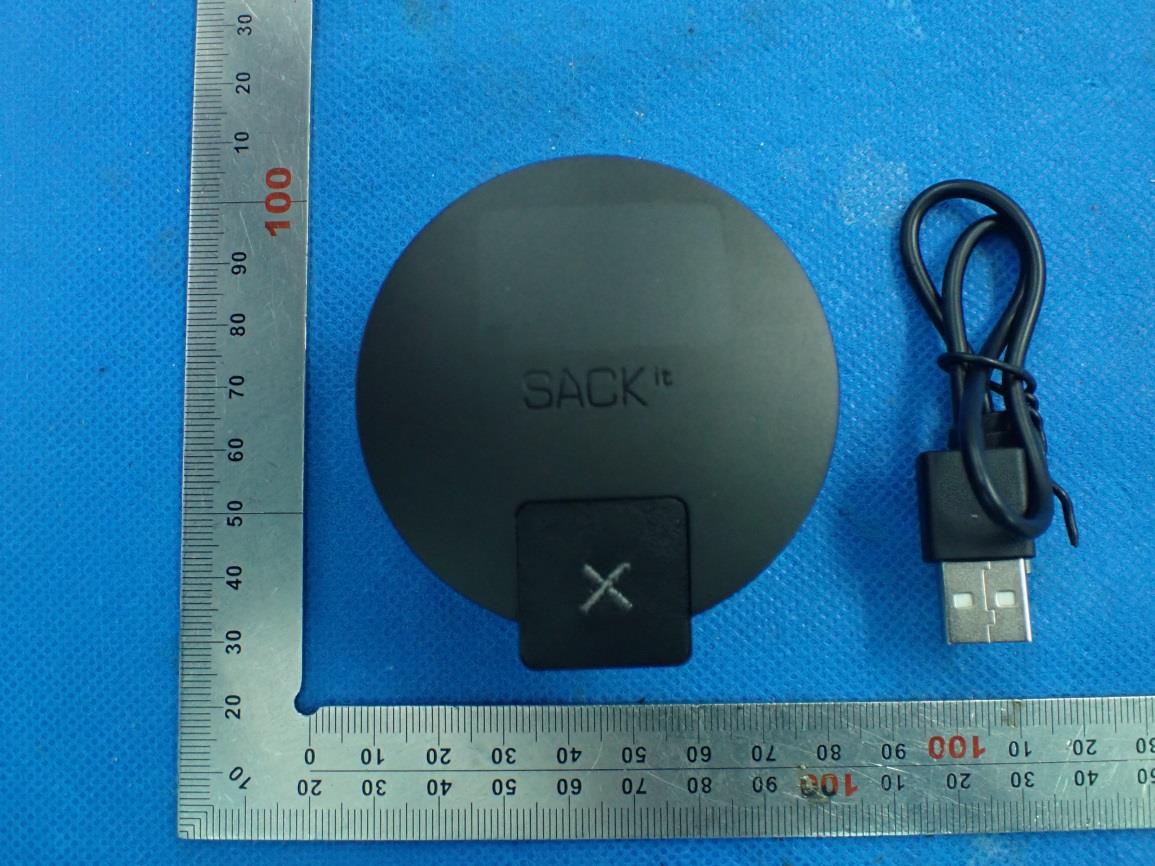

Report No.: AGC03061210304FE03 Page 71 of 83 INTERNAL VIEW-5 OF EUT(Left earphone) INTERNAL VIEW-6 OF EUT(Left earphone) Report No.: AGC03061210304FE03 Page 72 of 83 INTERNAL VIEW-7 OF EUT(Left earphone) INTERNAL VIEW-8 OF EUT(Left earphone) Left earphone Antenna Report No.: AGC03061210304FE03 Page 73 of 83 INTERNAL VIEW-1 OF EUT(Right earphone) INTERNAL VIEW-2 OF EUT(Right earphone) Report No.: AGC03061210304FE03 Page 74 of 83 INTERNAL VIEW-3 OF EUT(Right earphone) INTERNAL VIEW-4 OF EUT(Right earphone) Report No.: AGC03061210304FE03 Page 75 of 83 INTERNAL VIEW-5 OF EUT(Right earphone) INTERNAL VIEW-6 OF EUT(Right earphone) Report No.: AGC03061210304FE03 Page 76 of 83 INTERNAL VIEW-7 OF EUT(Right earphone) INTERNAL VIEW-8 OF EUT(Right earphone) Right earphone Antenna Report No.: AGC03061210304FE03 Page 77 of 83 INTERNAL VIEW-9 OF EUT(Right earphone) EXTERNAL VIEW-1 OF Charging case Report No.: AGC03061210304FE03 Page 78 of 83 EXTERNAL VIEW-2 OF Charging case EXTERNAL VIEW-3 OF Charging case Report No.: AGC03061210304FE03 Page 79 of 83 EXTERNAL VIEW-4 OF Charging case EXTERNAL VIEW-5 OF Charging case Report No.: AGC03061210304FE03 Page 80 of 83 EXTERNAL VIEW-6 OF Charging case EXTERNAL VIEW-7 OF Charging case Report No.: AGC03061210304FE03 Page 81 of 83 PORT VIEW OF Charging case INTERNAL VIEW-1 OF Charging case Report No.: AGC03061210304FE03 Page 82 of 83 INTERNAL VIEW-2 OF Charging case INTERNAL VIEW-3 OF Charging case

Report No.: AGC03061210304FE03 Page 83 of 83 INTERNAL VIEW-4 OF Charging case INTERNAL VIEW-5 OF Charging case ----END OF REPORT---- Coil Antenna Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED EMISSION TEST SETUP CONDUCTED TEST SETUP
