Orb Pro Quick Guide NI-3231 1. Warning 2. What’s In The Box 3. Camera Structure 4. Read Before Installing 5. Set Up With Netvue App 6. Mount Your Orb Pro 7. Status Light 8. Netvue Protect Plan 9. Contact Us P. 1 P. 2 P. 3-4 P. 5 P. 6 P. 7-10 P. 11 P. 12 P. 13 Catalogue FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. FCC ID 2AO8RNI-3231 CE RED This product can be used across EU member states. Drilling Template Orb Pro Mounting Screws Mounting Bracket X 2 What’s In The Box Quick Guide Anchors X 2 Power Adapter 2 Orb Pro Quick Guide Light Sensor Status Light Lens Microphone Camera Structure Micro SD Card Slot 3 SET Heat Emission Hole Power Port Speaker 4 Wi-Fi Configuration Button Read Before Installing 1. Keep Orb Pro and all accessories out of reach of children and pets. 2. Orb Pro comes with a power adapter. If you prefer other power adapters, please make sure that they allow a DC5V power supply voltage, and an electric current not less than 1A . 3. Working temperature: -10°C to 50°C (14°F to 122°F) Working relative humidity: 0-95% 4. Please do not expose the camera lens to direct sunlight. Note: 1. Netvue Orb Pro only works with 2.4GHz Wi-Fi. 2. Strong lights may interfere with the device’s ability to scan QR code. 3. Avoid placing the device behind furniture or near microwaves. Try to keep it within range of your Wi-Fi signal. 5 Download Netvue App from App Store or Google Play. Follow the in-app instruction to complete the entire set up process. 6 Set Up With Netvue App 7 Mount Your Orb Pro You can choose to install it against the wall, under the ceiling, or directly on the desktop. 1. Use the provided drilling template to mark the position of holes on your wall. Use drill bit (15/64", 6mm) to drill two holes, and then install anchors to hold screws. 1 2 8 2. Install the Mounting Bracket on your wall with the Screws provided. 2 1 9 3. Put the bottom of Orb Pro against the mounting bracket in the direction as shown above, and then rotate counterclockwise to secure it. 10 355° 355° 105° 105° 4.Now you can turn around your Orb Pro horizontally and vertically using Netvue App. Status Light 11 DescriptionStatus Light Solid Blue Rapidly Flashing Blue Solid Red Online Wi-Fi Configuration Mode Offline Netvue Protect Plan provides optional advanced features for those with higher security needs, and each plan supports multiple devices. Netvue Protect Plan Visit my.netvue.com to learn more. 12 Continuous Video Recording Event Video Recording Human Detection ... Contact Us [email protected] Netvue Forum in-App Chat @NetvueTech 1(866)749-0567 Feel free to contact us for additional help: 13 www.netvue.com 240 W Whitter Blvd Ste A, La Habra, CA 90631 © 2010-2020 NETVUE, INC Netvue Web Client

Netvue Technologies Co., Ltd. Add: Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Dear Sir/Madam, We, Netvue Technologies Co., Ltd. Hereby declares the following statement for FCC, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product Name: Orb Pro FCC ID: 2AO8RNI-3231 Model Number(s): NI-3231, NI-3230, NI-3232, NI-3233, NI-3234, NI-3235, NI-3236, NI-3237, NI-3238, NI-3239 Sincerely, Name: Stone feng/Manager Company: Netvue Technologies Co., Ltd. Address: Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Phone: +86-0755-86227808 Fax: +86-0755-86227808 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-08-03> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID 2AO8RNI-3231 Model name NI-3231, NI-3230, NI-3232, NI-3233, NI-3234, NI-3235, NI-3236, NI-3237, NI-3238, NI- 3239 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Stone feng/Manager Company: Netvue Technologies Co., Ltd. Address: Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Phone: +86-0755-86227808 Fax: +86-0755-86227808 E-Mail: [email protected]

Netvue Technologies Co., Ltd. Add: Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Date: Aug. 03, 2020 FCC ID: 2AO8RNI-3231 Model Number: NI-3231, NI-3230, NI-3232, NI-3233, NI-3234, NI-3235, NI-3236, NI-3237, NI-3238, NI-3239 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Netvue Technologies Co., Ltd., declare that this EUT (FCC ID: 2AO8RNI-3231) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Stone feng/Manager Company: Netvue Technologies Co., Ltd. Address: Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Phone: +86-0755-86227808 Fax: +86-0755-86227808 E-Mail: [email protected]

Netvue Technologies Co., Ltd. Add: Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/08/03 To whom it may concern: We, Netvue Technologies Co., Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AO8RNI-3231 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Stone feng/Manager Company: Netvue Technologies Co., Ltd. Address: Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Phone: +86-0755-86227808 Fax: +86-0755-86227808 E-Mail: [email protected]

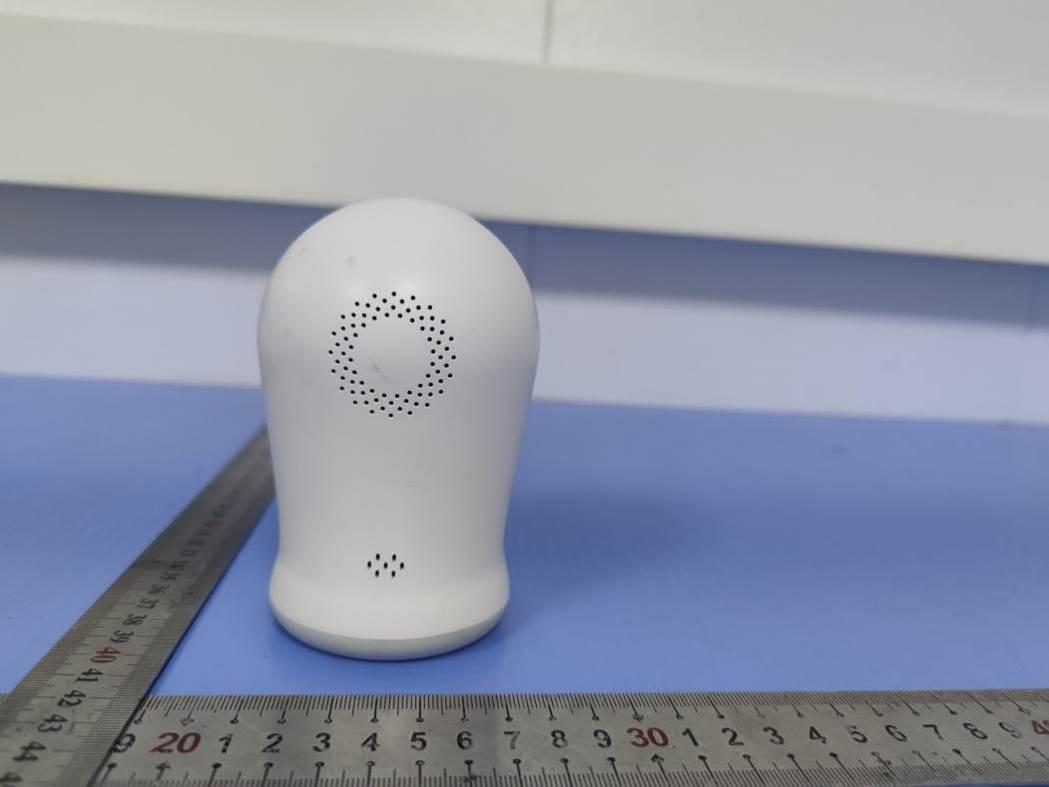

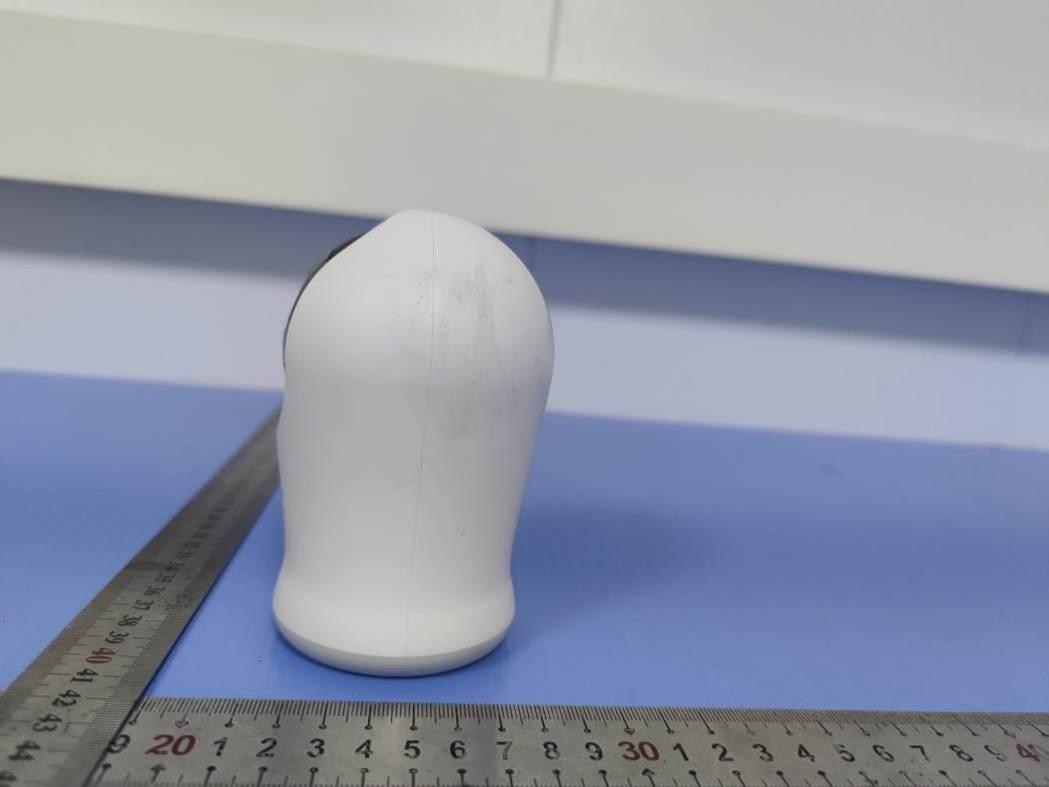

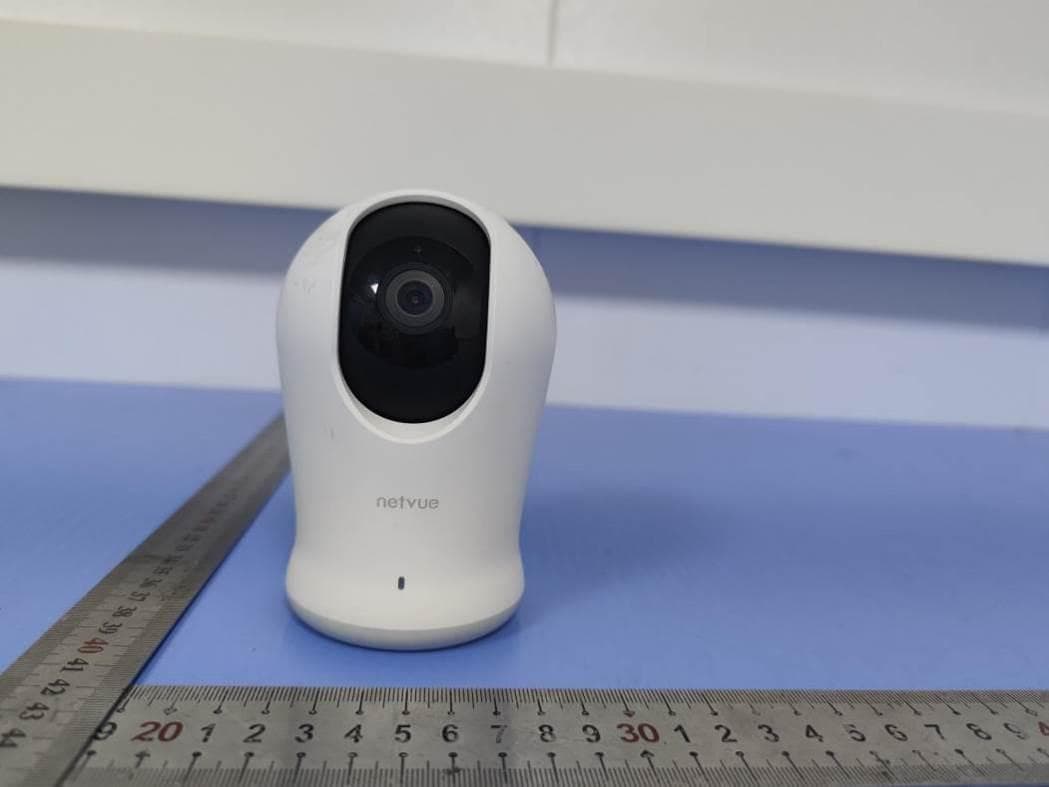

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 8.EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Fig.5 Fig.6

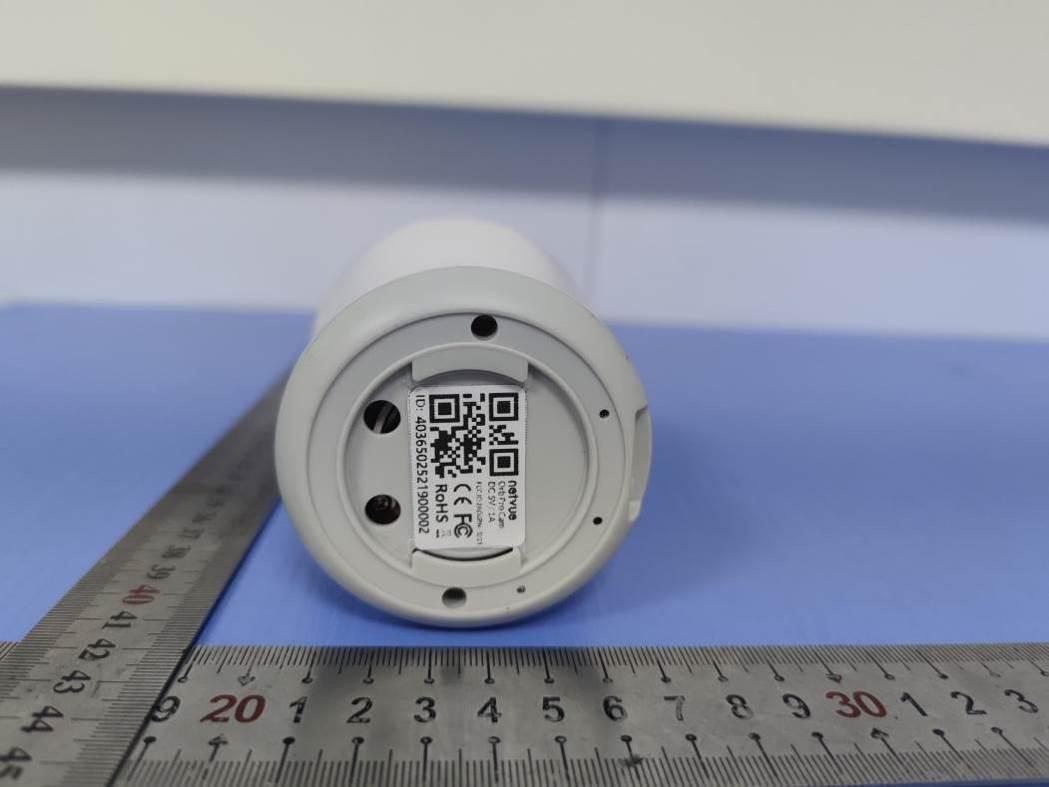

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 1.4.0cm*W: 3.5cm Label Location Orb Pro Model No.: NI-3231 FCC ID: 2AO8RNI-3231 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 9.INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Fig.11 Fig.12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Fig.13 Fig.14 WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Fig.15 Fig.16

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID 2AO8RNI-3231 Product name Orb Pro Model number NI-3231 Additional Model No NI-3230, NI-3232, NI-3233, NI-3234, NI-3235, NI-3236, NI-3237, NI-3238, NI-3239 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply Input:100-240V~, 50/60Hz, 0.2A Output:5.0V1000mA Modulation Type IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Type Internal Antenna, Antenna Gain 3.2dBi(Max.) Hardware version J18IPC Software version 4403611369 FCC Operation frequency 2412 – 2462 MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Artemis Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna Internal Antenna, 2412MHz-2462MHz 3.2dBi WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) 11B 1 2412 14.56 6 2437 14.1 11 2462 13.45 11G 1 2412 14.09 6 2437 13.47 11 2462 13.65 11N20SISO 1 2412 16.99 6 2437 16.43 11 2462 16.95 11N40SISO 3 2422 15.26 6 2437 15.62 9 2452 17.31 7. Manufacturing Tolerance 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 14.0 14.0 13.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 14.0 13.0 13.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 16.0 16.0 16.0 Tolerance ±(dB) 1.0 1.0 1.0 11N40SISO (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 15.0 15.0 17.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 1 of 46 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Orb Pro Trade Mark: netvue Test Model: NI-3231 Environmental Conditions Temperature: 23.8 C Relative Humidity: 53.6% ATM Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 4 of 46 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 14.56 30 PASS MCH 14.1 30 PASS HCH 13.45 30 PASS 11G LCH 14.09 30 PASS MCH 13.47 30 PASS HCH 13.65 30 PASS 11N20SISO LCH 16.99 30 PASS MCH 16.43 30 PASS HCH 16.95 30 PASS 11N40SISO LCH 15.26 30 PASS MCH 15.62 30 PASS HCH 17.31 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 5 of 46 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -11.597 8 PASS MCH -11.551 8 PASS HCH -12.233 8 PASS 11G LCH -15.617 8 PASS MCH -15.389 8 PASS HCH -16.926 8 PASS 11N20SISO LCH -16.245 8 PASS MCH -15.317 8 PASS HCH -16.149 8 PASS 11N40SISO LCH -15.914 8 PASS MCH -14.955 8 PASS HCH -16.578 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 12 of 46 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 8.586 ≥0.5 PASS MCH 9.074 ≥0.5 PASS HCH 8.587 ≥0.5 PASS 11G LCH 16.56 ≥0.5 PASS MCH 16.55 ≥0.5 PASS HCH 16.57 ≥0.5 PASS 11N20SISO LCH 16.37 ≥0.5 PASS MCH 16.31 ≥0.5 PASS HCH 16.36 ≥0.5 PASS 11N40SISO LCH 36.49 ≥0.5 PASS MCH 36.48 ≥0.5 PASS HCH 36.43 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 19 of 46 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 3.127 -36.908 -16.873 PASS MCH 2.409 -37.352 -17.591 PASS HCH 2.595 -38.247 -17.405 PASS 11G LCH -2.575 -37.948 -22.575 PASS MCH -3.253 -38.061 -23.253 PASS HCH -3.638 -38.228 -23.638 PASS 11N20 SISO LCH -0.869 -38.735 -20.869 PASS MCH -1.565 -38.122 -21.565 PASS HCH -0.835 -38.297 -20.835 PASS 11N40 SISO LCH -1.93 -37.142 -21.930 PASS MCH -1.717 -37.816 -21.717 PASS HCH -4.882 -38.156 -24.882 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA Page 29 of 46 11N40SISO_LC…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 39 FCC TEST REPORT For Netvue Technologies Co., Ltd. Orb Pro Test Model: NI-3231 Additional Model No.: Please Refer to Page 6 Prepared for : Netvue Technologies Co., Ltd. Address : Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : July 06, 2020 Number of tested samples : 2 Sample number : 200608265A-1, 200608265A-2 Serial number : Prototype Date of Test : July 06, 2020 ~ July 20, 2020 Date of Report : July 22, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 39 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200608265AEA Date of Issue .................................. : July 22, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Netvue Technologies Co., Ltd. Address .......................................... : Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Orb Pro Trade Mark ..................................... : netvue Test Model ...................................... : NI-3231 Ratings ........................................... : Input:100-240V~, 50/60Hz, 0.2A Output:5.0V1000mA Result ............................................ : Positive Compiled by: Supervised by: Approved by: Linda He/ File administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 39 FCC -- TEST REPORT EUT......................................... : Orb Pro Test Model............................... : NI-3231 Applicant............................... : Netvue Technologies Co., Ltd. Address.................................. : Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Netvue Technologies Co., Ltd. Address................................... : Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200608265AEA July 22, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 39 Revision History Revision Issue Date Revisions Revised By 000 July 22, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 Report No.: LCS200608265AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 39 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CABLE .....................................................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 _______________________________________________________________________________________________ 7. TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Below 1 GHz Above 1 GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-3231 _______________________________________________________________________________________________ Power Line Conducted Emission
