2AO94-B2Smart Wearable Badge

B2a smart bluetooth badge with SOS button and high-capacity battery, in the form of a holder so that you can combine the ID card and BLE communication in all-in-one fit. Additionally, remote reminder and alerts response can also be acheived to interact with the varied LED notification and buzzer mechanism, thus realizing the Geo-fence alerts and restriction entrance alerts. Connectivity: BLE 5.0 Dimensions: 98x65.18x8.55mmwith button 98x65.18x7.95mm Color: Body - White I Button - Blue (color customizable) Weight: 50g Battery capacity: 800mAh | Non-replaceable Sensor: Accelerometer sensor | Buzzer Transmission range: 150m (In open area without obstacles) RFID: HF | LF/UHF (customizable) Material: PC IP Rating: IP66 Operating temperature: -20°C/+60°C Installation: Lanyard Suitable card size: CR80 IC Card Staff Duress & Panic Alerting General specs Application scenarios Smart Wearable Badge B2 Key selling points 4-year battery life Enlarged textured Button IP66 waterproof Instant SOS alerts Buzzer notification Pull-out type Healthcare · Duress calling · Restriction access · Location awareness Smart office · Visitor flow management · Access control Constructions · Detect near-misses · Geo-fence alerts · Instant SOS alerts FCC STATEMENT RF warning statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. MOKO TECHNOLOGY LTD.

Phuntion LLC * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter May 22, 2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AO94-B2 Per section 2.911(d)(7) of the FCC rules, MOKO TECHNOLOGY Ltd certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: Phuntion LLC Physical U.S. Company Address: 25214 Spectrum, Irvine, CA92618 Agent name: Jun.Tian Agent Email Address: [email protected] FRN: 0033422403 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: jinghui.chen Printed name: Jun.Tian Title: SEO Title: CEO Company Name: MOKO TECHNOLOGY Ltd Company Name: Phuntion LLC Date: May 22, 2023Date: May 22, 2023

MOKO TECHNOLOGY Ltd Covered Equipment Certification Attestation Letter 5/15/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AO94-B2 MOKO TECHNOLOGY Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. MOKO TECHNOLOGY Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Jinghui.Chen Title: SEO Company Name: MOKO TECHNOLOGY Ltd Date: 5/15/2023

MOKO TECHNOLOGY Ltd Model difference statement EUT : Smart Wearable Badge Model No.：B2,B2-BNDAX-ZNF, B2-BNDA-ZNF, B2-BNDA-ZLF, B2-BNDNX-ZNF, B2-BNDN-ZNF, B2-PNDAX-ZNF, B2-PNDA-ZNF, B2-PNDA-ZLF, B2-PNDNX-ZNF, B2-PNDN-ZNF, B2-BNDAX-Z, B2-BNDA-Z, B2-BNDA-Z, B2-BNDNX-Z, B2-BNDN-Z, B2-CNCAX-Z _AC34 (The differences between product models only depends on the appearance , firmware. Other power supply methods, safety structure and key components are the same, which do not affect the RF, safety and electromagnetic compatibility performance.) FCC ID:2AO94-B2 Signed: Printed name:Jinghui.Chen Address: Factory 201, 107 Pinshun Rd Guixiang community, Guanlan Street, Longhua, Shenzhen, China 518110

MOKO TECHNOLOGY Ltd 5/23/2023 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2AO94-B2 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT LONG-TERM CONFIDENTIALITY: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Signed: Printed name:Jinghui.Chen Title:SEO

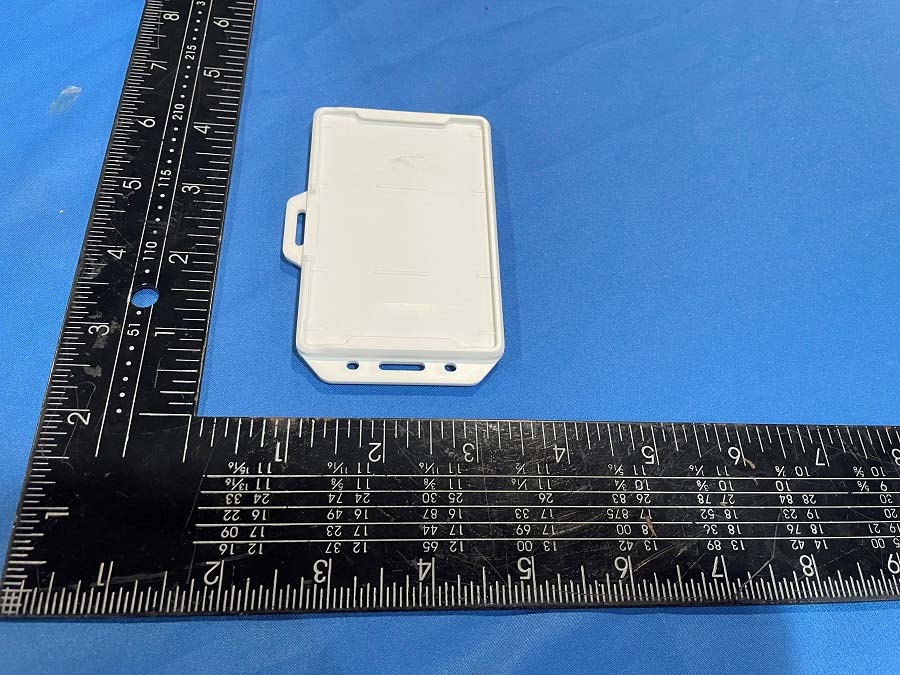

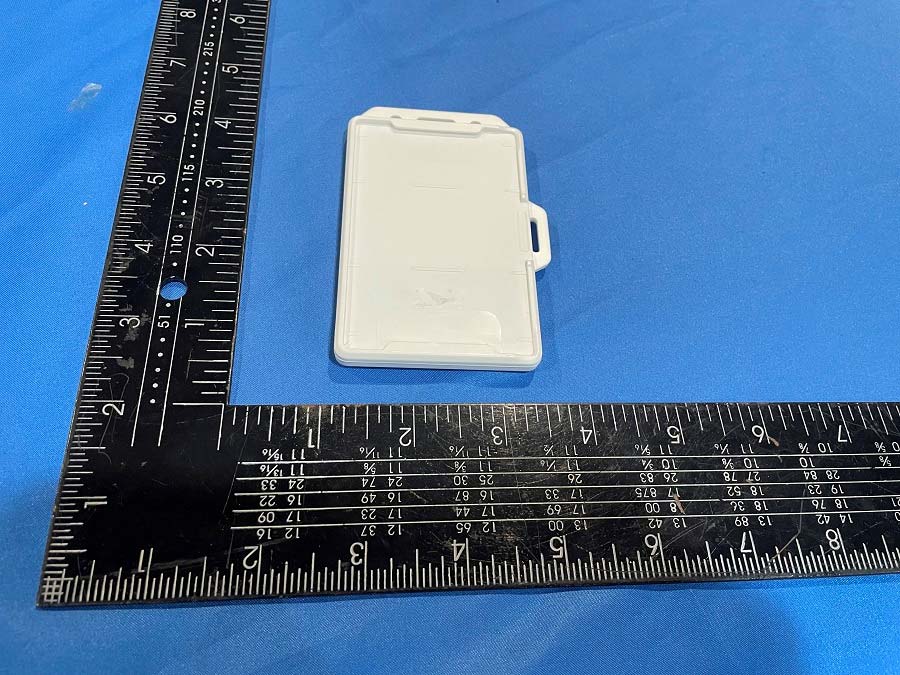

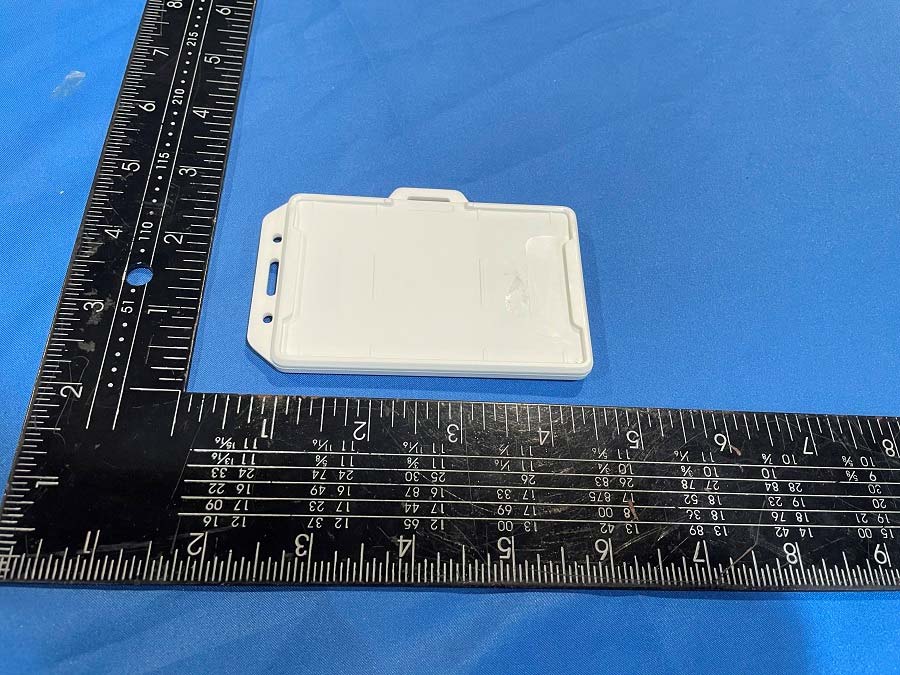

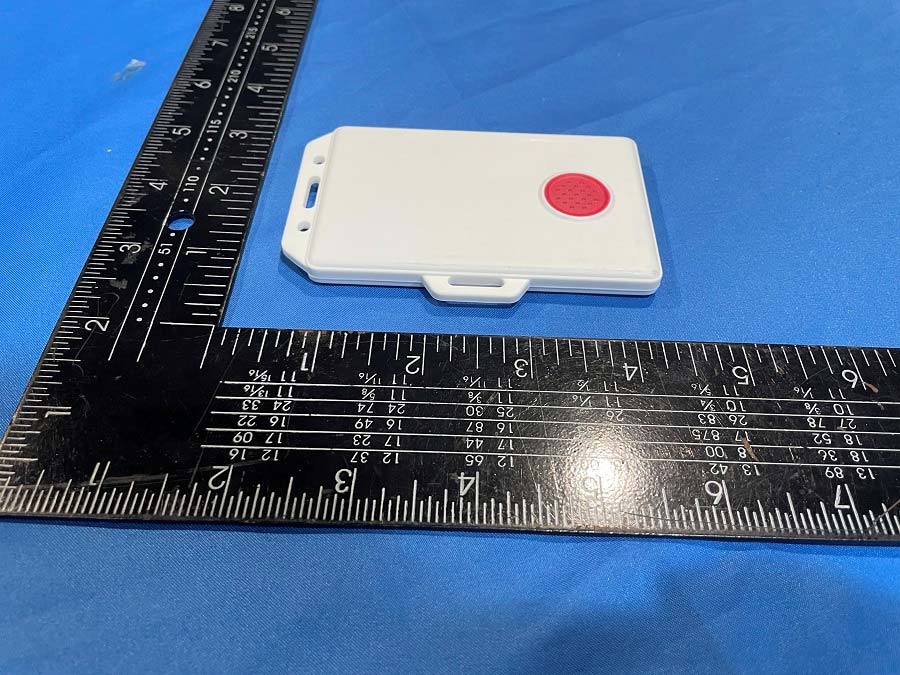

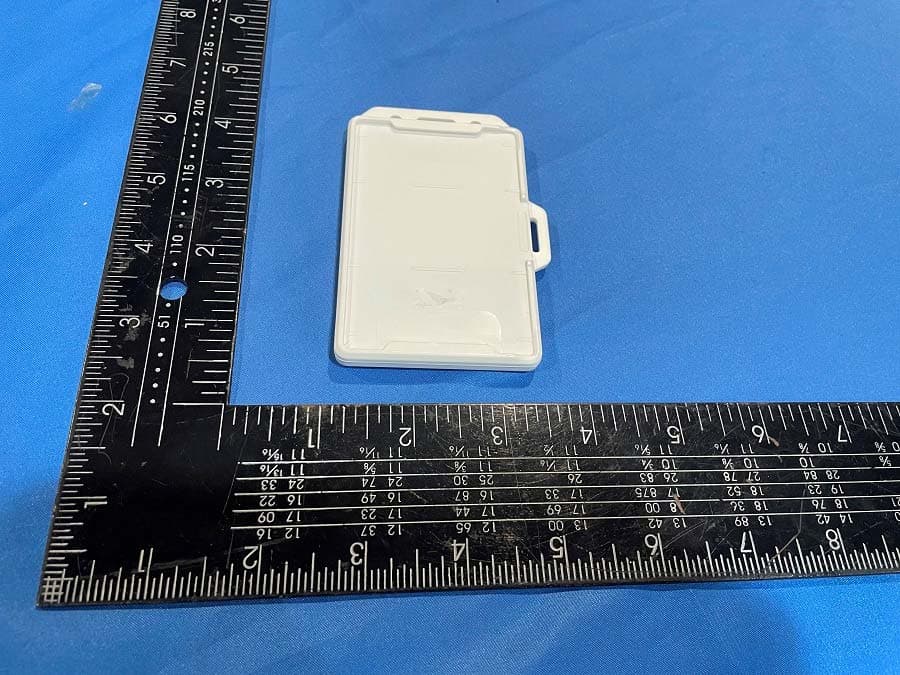

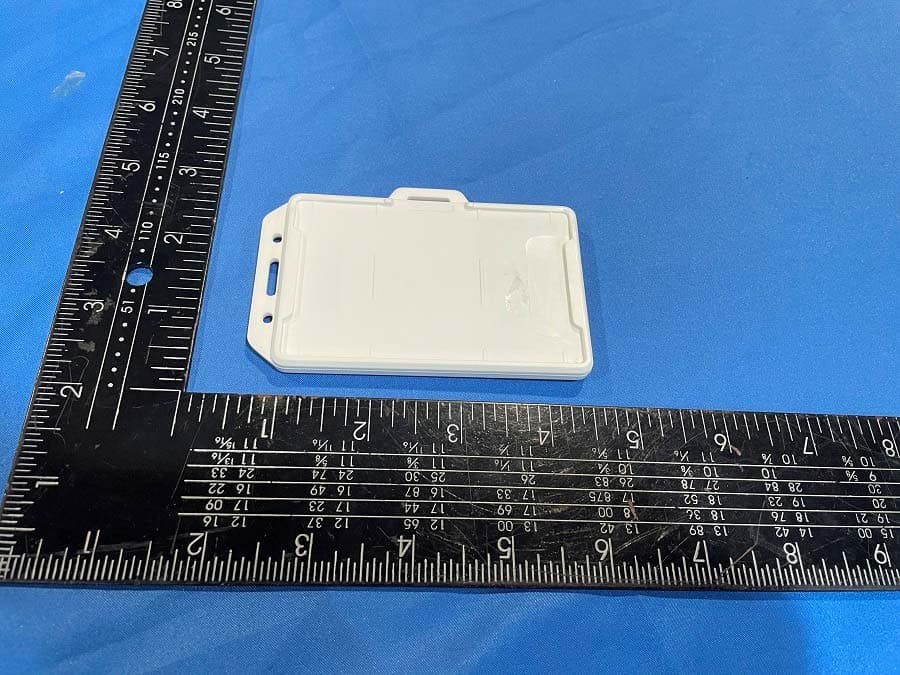

FCC ID: 2AO94-B2 Page 1/4 External photo FCC ID: 2AO94-B2 Page 2/4 FCC ID: 2AO94-B2 Page 3/4 FCC ID: 2AO94-B2 Page 4/4 --END---

Label Location

FCC ID: 2AO94-B2 Page 1/2 Internal photo FCC ID: 2AO94-B2 Page 2/2 ---END--- 2402-2480MHz BT Antenna

Page 1 of 2 Address: No.11, WuSong Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 GuangdongProvince,China523117 http://www.cpcteam.com RF EXPOSURE EVALUATION EUT Specification EUT Smart Wearable Badge Model Number B2 Series Model： B2-BNDAX-ZNF, B2-BNDA-ZNF, B2-BNDA-ZLF, B2-BNDNX-ZNF, B2-BNDN-ZNF, B2-PNDAX-ZNF, B2-PNDA-ZNF, B2-PNDA-ZLF, B2-PNDNX-ZNF, B2-PNDN-ZNF, B2-BNDAX-Z, B2-BNDA-Z, B2-BNDA-Z, B2-BNDNX-Z, B2-BNDN-Z, B2-CNCAX-Z _AC34 FCC ID 2AO94-B2 Antenna gain (Max) 2.86dBi Operation Frequency 2402-2480MHz Input Rating DC 3V Standard 47 CFR Part 1.1307 47 CFR Part 1.1310 KDB447498D01 General RF Exposure Guidance v06 Modulation BLE Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation17 • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 90323-23-72-23-PP002 Page 2 of 2 Address: No.11, WuSong Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 GuangdongProvince,China523117 http://www.cpcteam.com Calculated Result and Limit Operation Mode: GFSK, 8DPSK Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) GFSK -Lowest (2402MHz) 8.02 8±1 9 7.94 2.46 3.0 GFSK -Middle (2440MHz) 7.89 8±1 9 7.94 2.48 GFSK -Highest (2480MHz) 7.70 8±1 9 7.94 2.50 Conclusion: the calculated value ≤3.0, SAR is exempted. Remark: The Max Conducted Peak Output Power data refer to report Report No.: 90323-23-72-23-PP001.

Page 1 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com TEST REPORT Report Number. ........................ : 90323-23-72-23-PP001 Date of issue ............................ : 2023.05.22 Tested by (+signature) ............ : Duke Chen Approved by (+signature) ....... : Jason Gao Testing Laboratory name ........ : SLG-CPC Testlaboratory Co., Ltd. Address .................................... : No. 11, Wu Song Road, Dongcheng District, Dongguan, Guangdong Province, China 523117 Applicant’s name ..................... : MOKO TECHNOLOGY LIMITED Address .................................... : Factory 201, 107 Pinshun Rd Guixiang community, Guanlan Street, Longhua, Shenzhen, China 518110 Manufacturer’s name ............. : MOKO TECHNOLOGY Ltd Address .................................... : Factory 201, 107 Pinshun Rd Guixiang community, Guanlan Street, Longhua, Shenzhen, China 518110 Factory’s name ....................... : MOKO TECHNOLOGY Ltd Address .................................... : Factory 201, 107 Pinshun Rd Guixiang community, Guanlan Street, Longhua, Shenzhen, China 518110 Standard(s) ............................... : FCC 47 CFR Part 15, Subpart C EUT ............................................ : Smart Wearable Badge Model/Type reference .............. : B2 Series Model ............................. : B2-BNDAX-ZNF, B2-BNDA-ZNF, B2-BNDA-ZLF, B2-BNDNX-ZNF, B2-BNDN-ZNF, B2-PNDAX-ZNF, B2-PNDA-ZNF, B2-PNDA-ZLF, B2-PNDNX-ZNF, B2-PNDN-ZNF, B2-BNDAX-Z, B2-BNDA-Z, B2-BNDA-Z, B2-BNDNX-Z, B2-BNDN-Z, B2-CNCAX-Z _AC34 FCC ID ....................................... : 2AO94-B2 Date of receipt of test item ..... : 2023.04.27 Date (s) of performance of test: 2023.04.28 - 2023.05.12 Summary of Test Results ........ : Pass The Summary of Test Results based on a technical opinion belongs to the standard(s). General disclaimer: This report shall not be reproduced except in full, without the written approval of SLG-CPC Testlaboratory Co., Ltd. The test results in the report only apply to the tested sample. 90323-23-72-23-PP001 Page 2 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com Table of Contents 1 EUT TECHNICAL DESCRIPTION ............................................................................................. 4 2 SUMMARY OF TEST RESULT ................................................................................................. 5 3 TEST METHODOLOGY ............................................................................................................ 6 3.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................... 6 3.2 MEASUREMENT EQUIPMENT USED .............................................................................. 6 3.3 DESCRIPTION OF TEST MODES ..................................................................................... 7 4 FACILITIES AND ACCREDITATIONS ....................................................................................... 8 4.1 FACILITIES ........................................................................................................................ 8 4.2 LABORATORY ACCREDITATIONS AND LISTINGS .......................................................... 8 5 TEST SYSTEM UNCERTAINTY ............................................................................................... 9 6 SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 RADIO FREQUENCY TEST SETUP 1 ............................................................................ 10 6.2 RADIO FREQUENCY TEST SETUP 2 ............................................................................ 10 7 TEST REQUIREMENTS ......................................................................................................... 12 7.1 DTS 6DB BANDWIDTH ................................................................................................... 12 7.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER ....................................................... 15 7.3 MAXIMUM POWER SPECTRAL DENSITY ..................................................................... 17 7.4 RADIATED SPURIOUS EMISSION ................................................................................. 20 7.5 ANTENNA APPLICATION ................................................................................................ 30 90323-23-72-23-PP001 Page 3 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com Modified Information Version Report No. Revision Data Summary Ver.1.0 90323-23-72-23-PP001 2023-05-22 Original Version 90323-23-72-23-PP001 Page 4 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com 1 EUT TECHNICAL DESCRIPTION Product: Smart Wearable Badge Model Number: B2 Series Model： B2-BNDAX-ZNF, B2-BNDA-ZNF, B2-BNDA-ZLF, B2-BNDNX-ZNF, B2-BNDN-ZNF, B2-PNDAX-ZNF, B2-PNDA-ZNF, B2-PNDA-ZLF, B2-PNDNX-ZNF, B2-PNDN-ZNF, B2-BNDAX-Z, B2-BNDA-Z, B2-BNDA-Z, B2-BNDNX-Z, B2-BNDN-Z, B2-CNCAX-Z _AC34 Power supply: : DC 3V :Adapter information Modulation: BLE Frequency Range: 2402MHz～2480MHz Number of Channels: 40channels Channel Space: 1MHz Antenna Gain: 2.86dBi Antenna: PCB Antenna Temperature Range: -20°C ~ +60°C Note: for more details, please refer to the User’s manual of the EUT. 90323-23-72-23-PP001 Page 5 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com 2 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Verdict Remark 15.247(a)(2) DTS (6dB) Bandwidth PASS 15.247(b)(3) Maximum Peak Co…

Text truncated - open the document above for the full version.

深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. MOKO TECHNOLOGY LTD M/N:B2 Antenna Test Report Tester :Yang Shihai Approval :LiuFeng Date : 2023/ 05/ 4 Address: Factory 201, 107 Pinshun Rd Guixiang community, Guanlan Street, Longhua, Shenzhen, China 518110 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. 1. Device Profile 2.BTAntenna Test Antenna: integrated PCB antenna Frequency:2.4GHz 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. DeviceBTAntenna 1. Device Profile 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. Agilent E5071CS-Parameter Test -BT 2. BTAntenna Test 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. Antenna Passive Test X Y Z X Y Z 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. Passive Test For BT Frequency/MhzEfficiency/%Efficiency/dBMaxGain/dBi 2400 40.09-3.972.3 2410 42.76-3.692.33 2420 40.18-3.962.23 2430 40.55-3.922.21 2440 35.89-4.451.9 2450 41.02-3.872.46 2460 36.31-4.41.94 2470 37.93-4.212.45 2480 39.26-4.062.16 2490 41.11-3.862.86 2500 39.17-4.071.83 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. 3D-Etotal (2400Mhz) 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. 2D-Etotal (2400Mhz) Phi 0 2DPhi 90 2DTheta 90 2D 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. 3D-Etotal (2440Mhz) 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. 2D-Etotal (2440Mhz) Phi 0 2DPhi 90 2DTheta 90 2D 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. 3D-Etotal (2480Mhz) 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. 2D-Etotal (2480Mhz) Phi 0 2DPhi 90 2DTheta 90 2D 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. THANK YOU!

FCC ID: 2AO94-B2 Test photo Radiated emission FCC ID: 2AO94-B2
