2AO94-H2-BBluetooth Beacon

H2-BeaconX Pro Datasheet MOKO TECHNOLOGY LTD. www.mokosmart.com 1. Description The H2-BeaconX Pro is a portable tag with 3-axis accelerometer sensor ①① ，which can advertise iBeacon, Eddystone and Sensor datas. It has a portable case shape, waterproof structure, accurate hardware, robust firmware and external push button . All the parameters of H2-BeaconX Pro can be modified and all the sensor datas can be checked. Please check out our BeaconX Pro app, available for iOS and Android. ① 3-axis accelerometer Sensor: STMicroelectronics® LIS3DH 2. Features Firmware and chipset Programmed MOKO standard MkBeaconX firmware; Ultra-low power consumption chipset Nordic ® nRF52 series with 32 bit ARM ® Cortex-M4 CPU. Compatibility Compatible with Apple iBeacon and Google Eddystone; Compatible with standard Eddystone Configuration GATT Service; Compatible with all Bluetooth ® 5.0 devices. Replaceable Battery and Battery Level High quality replaceable CR2477 coin battery(1100mAh); Up to 5 years battery lifetime (at default settings); Easy to get the real-time battery level notification. Configurable SLOTs and parameters Up to 6 configurable SLOTs; Each SLOT can be set to iBeacon，UID，URL，TLM，Device Info and 3-axis Sensor data; Device Name, Password, Connection Mode, Advertising Interval, Tx Power and 3-axis Sensor Parameters all are configurable; Special Configuration APP ( BeaconX Pro), available for iOS and Android. Flexible sensor function 3-axis accelerometer has dynamically user-selectable full scales of ±2g/±4g/±8g/±16g and the paremeter is configurable ； 3-axis accelerometer is capable of measuring accelerations with output data rates from 1 Hz to 100 Hz and the paremeter is configurable； User can get the raw data of the 3-axis sensor sampling data from the device in real time； Trigger function Support button trigger and motion trigger; Control the device to start advertising all the time, stop advertising, or advertise for a while. Transmission Power Levels 9 adjustable grades; Transmission power range: -40dBm to +4dBm. Long Range The max. Range 150 meters in the open space; The range depends on the physical environment. Security Configurable password (1-16 characters); With or without password (Lock/Unlock parameters); AES-128-ECB. encrypt. LED reminder Press and hold the button for 3s, the red LED flashes for 3s, indicating that the device is turned on, and the red LED stays on for 3s, indicating that the device is turned off. LED flashes every 10 seconds if the battery capcity is under 5%; LED lights up indicate successful button trigger； LED flashes when the device is connected； LED falshes when the device is upgraded. Connection Mode Advertising mode, non-connectable; Configuration mode, connectable. Custom made mounting Keychain / neck chain; 3M sticker; Logo and color customizable; Provided with your own configuration. OTA and DFU Supported upgrade via Over-The-Air; Nordic ® official Device Firmware Upgrade(DFU); Reserved J-Link port on the board for programming. 3. Physical Characteristics ItemValueRemarks Case ColorWhiteOther colors can be customized Main MaterialABS- Battery ModelCR2477Coin battery, 1pc, 1100mAh Battery LifetimeUp to 5 years At default settings ② and without selfdischarge factor Operation Voltage1.8~3.6VDC Waterproof LevelIP65- Average Current26.8 uA At default settings ③ Transmission Range150m(+4dBm)Maximum，in the open space Antenna50ohmOn board/PCB Antenna SizeΦ48*14.7mmRefer to mechanical draws for details Net Weight24gWith battery Operating Temperature-25 to +60ºC- Storage Temperature20 to +30ºC- CertificationsFCC/CE- ②③ Default setting: 1 Active SLOT(Device Info)，0dBm TX power and 1000ms Advertising Interval. 4. Configurable Parameters ItemValueDefault SettingRange and Remarks iBeaconUUID-16bytes Major-0~65535 Minor-0~65535 UIDNamespace-10bytes Instance ID-6bytes URLEncoded Scheme Prefix-4types: http://www. https://www. http:// https:// Encoded URL-2-17 bytes TLM--TLM shows only one in the broadcast. Device Name-BeaconX ProUp to 20 characters Advertising Interval-1000ms100~10000ms, Unit:100ms Tx Power-0dBm-40dBm to 4dBm, 9 adjustable grades Password-Moko43211-16 characters or NO password Connection Mode-ConnectableConnectable/Unconnectable Trigger1.Button double tap-Always advertise Start advertising for a while（1~65535s） Stop advertising for a while（1~65535s） 2.Button triple tap-Always advertise Start advertising for a while（1~65535s） Stop advertising for a while（1~65535s） 3.Device moves-Always advertise Start advertising after a static period time（1~65535s） Stop advertising after a static period time（1~65535s） 3-axis accelerometer SensorScale±2g±2g，±4g，±8g，±16g Output data rate10 Hz1 Hz，10 Hz，25 Hz，50 Hz，100 Hz Sensitivity77 to 255 5. mechanical draws **All units is mm ** 6.FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the fo…

Text truncated - open the document above for the full version.

MOKO TECHNOLOGY LIMITED Agent Authorization Company: MOKO TECHNOLOGY LIMITED Address: 2F, Building1,No.37 Xiaxintang Xintang village, Fucheng Street, Longhua District, Shenzhen,Guangdong Province 518100, China ProductType: Bluetooth Beacon Model Number(s): H2-i5201NN,H2-i5201D3,H2-X5201NN,H2-P5201NN, H2-P5201D3,H2-P5201NC,H2A-i5201NN，H2A-i5201D3，H2A-X5201NN，H2A- P5201NN，H2A-P5201NC， H2A-P5201D3 Product Description: Bluetooth Beacon We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-03-12 Name: Jinghui Chen Title: Manager Company: MOKO TECHNOLOGY LIMITED

Differences Declaration To whom concern, We company MOKO TECHNOLOGY LIMITED hereby declares: The product models H2-i5201NN,H2-i5201D3,H2-X5201NN,H2-P5201NN, H2-P5201D3,H2-P5201NC,H2A-i5201NN，H2A-i5201D3，H2A-X5201NN， H2A-P5201NN，H2A-P5201NC，H2A-P5201D3 are identical in the same PCB layout, interior structure and electrical circuits, The differences are the appearance shape(it’s not effect various parameters) and model name for commercial purpose. Authorized signature: Date: 2021-03-12

MOKO TECHNOLOGY LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-03-12 Subject; Request for Confidentiality FCC ID: 2AO94-H2-B To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 dayspursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jinghui Chen Title: Manager

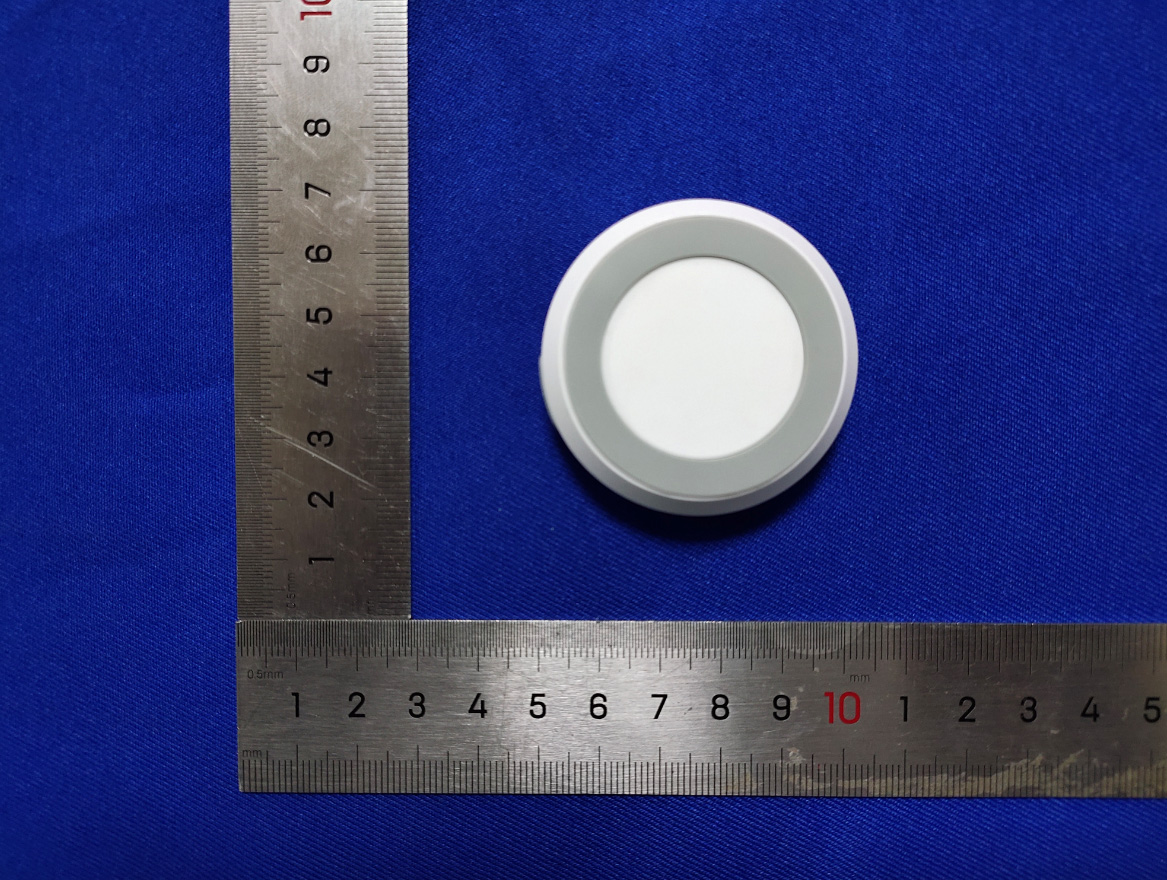

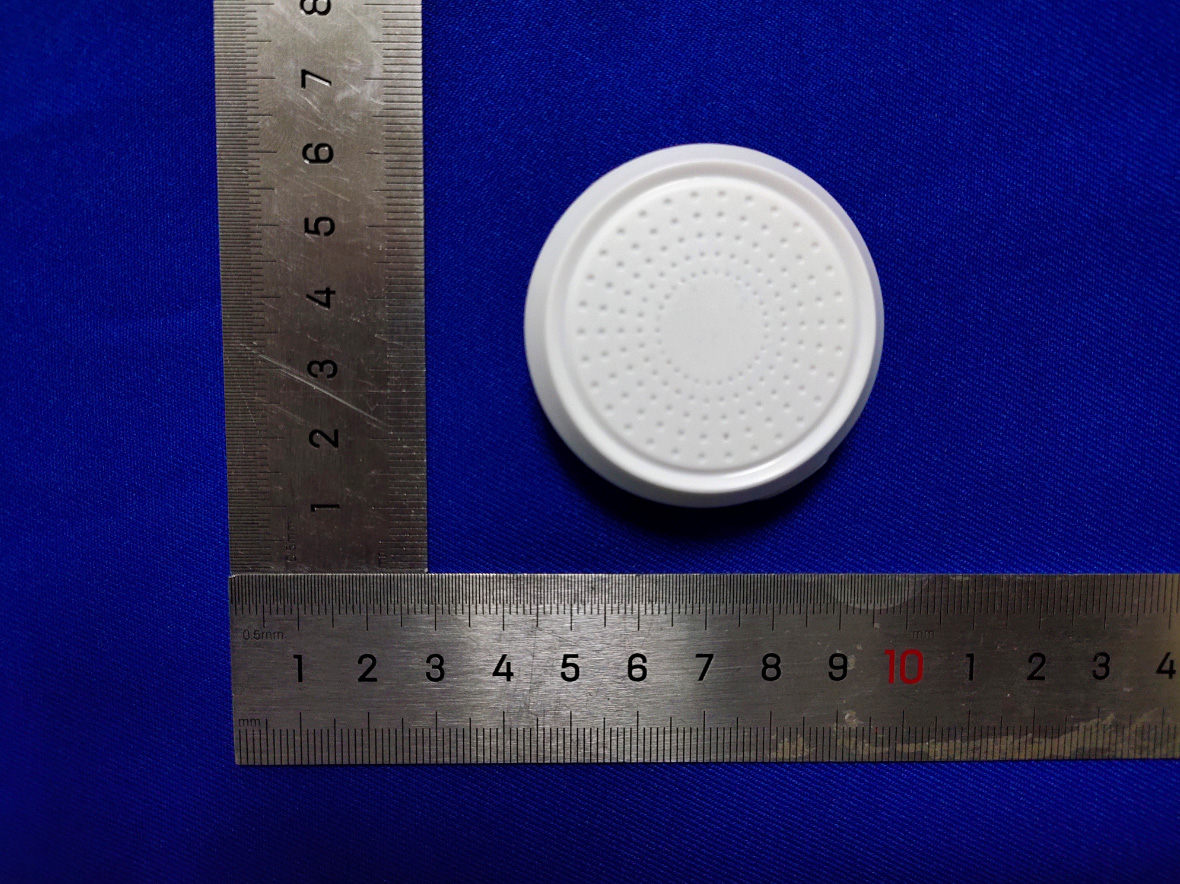

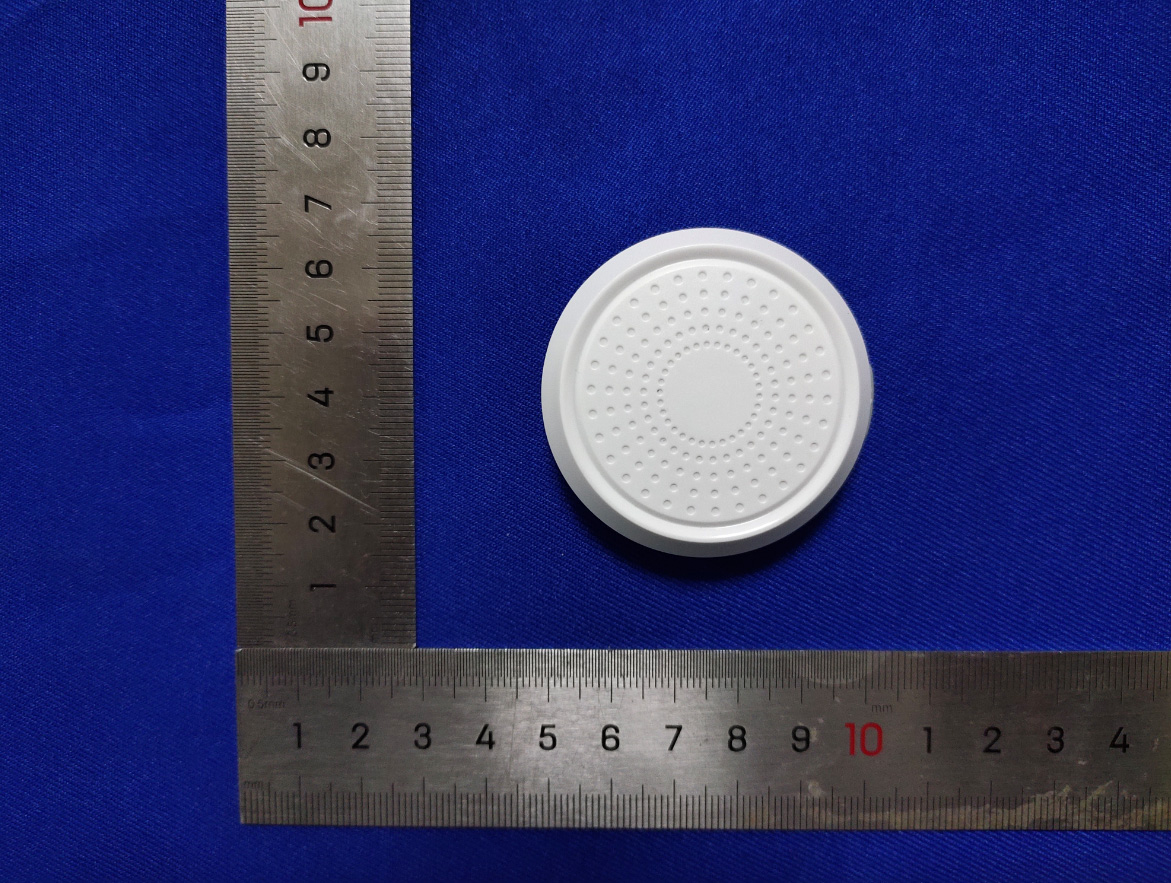

Test Model No.: H2‐i5201NN H2: H2A:

Test Model No.: H2‐i5201NN BT Antenna

FCC ID: 2AO94-H2-B RF Exposure Evaluation According to KDB 447498 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, For BLE Max Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 3.944 2.48 2402 5 0.769 3.0 So a SAR test is not required

Global United Technology Services Co., Ltd. Report No.: GTSL202012000136F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 36 TEST REPORT Applicant: MOKO TECHNOLOGY LIMITED Address of Applicant: 2F, Building1,No.37 Xiaxintang Xintang village, Fucheng Street, Longhua District, Shenzhen,Guangdong Province 518100, China Manufacturer/Factory: MOKO TECHNOLOGY LIMITED Address of Manufacturer/Factory: 2F, Building1,No.37 Xiaxintang Xintang village, Fucheng Street, Longhua District, Shenzhen,Guangdong Province 518100, China Equipment Under Test (EUT) Product Name: Bluetooth Beacon Model No.: H2-i5201NN,H2-i5201D3,H2-X5201NN,H2-P5201NN, H2-P5201D3,H2-P5201NC,H2A-i5201NN，H2A-i5201D3， H2A-X5201NN，H2A-P5201NN，H2A-P5201NC， H2A-P5201D3 Trade Mark: N/A FCC ID: 2AO94-H2-B Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: Dec. 01, 2020 Date of Test: Dec. 01 - Dec. 31, 2020 Date of report issued: Dec. 31, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSL202012000136F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 36 2 Version Version No. Date Description 00 Dec. 31, 2020 Original Prepared By: Date: Dec. 31, 2020 Project Engineer Check By: Date: Dec. 31, 2020 Reviewer Report No.: GTSL202012000136F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 36 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED OUTPUT POWER ........................................................................................................... 11 7.3 CHANNEL BANDWIDTH ...................................................................................................................... 14 7.4 POWER SPECTRAL DENSITY ............................................................................................................. 17 7.5 BAND EDGES .................................................................................................................................... 20 7.5.1 Conducted Emission Method ..................................................................................................... 20 7.5.2 Radiated Emission Method ........................................................................................................ 22 7.6 SPURIOUS EMISSION ......................................................................................................................... 25 7.6.1 Conducted Emission Method ..................................................................................................... 25 7.6.2 Radiated Emission Method ........................................................................................................ 28 8 TEST SETUP PHOTO ............................................................................................................................ 36 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 36 R…

Text truncated - open the document above for the full version.

Test Model No.: H2‐i5201NN Radiated Emission
