2AO94-H3BEACONBluetooth Beacon

Model:H3 MOKO TECHNOLOGY LTD. MOKO TECHNOLOGY LIMITED www.mokosmart.com 1. Description The H3 is a portable tag with 3-axis accelerometer sensor ①① ，which can advertise iBeacon, Eddystone and Sensor datas. It looks like a bank/RFID card and has packed a soft-packed Li-MnO2 battery. H3 uses ultrasonic welding structure design, with portable case shape, waterproof structure, accurate hardware, robust firmware and external push button. All the parameters of H3 can be modified and all the sensor datas can be checked. Please check out our BeaconX Pro app, available for iOS and Android. ① 3-axis accelerometer Sensor: ST Microelectronics® LIS3DH 2. Features Firmware and chipset Programmed MOKO standard MkBeaconX firmware; Ultra-low power consumption chipset Nordic ® nRF52 series with 32 bit ARM ® Cortex-M4 CPU. Compatibility Compatible with Apple iBeacon and Google Eddystone; Compatible with standard Eddystone Configuration GATT Service; Compatible with all Bluetooth ® 5.2 devices. High quality and long life battery Soft-packed Li-MnO2 battery(CP224248/850mAh); Up to 4 years battery lifetime (at default settings); Easy to get the real-time battery level notification. Configurable SLOTs and parameters Up to 6 configurable SLOTs; Each SLOT can be set to iBeacon，UID，URL，TLM，Device Info and 3-axis Sensor data; Device Name, Password, Connection Mode, Advertising Interval, Tx Power and 3-axis Sensor Parameters all are configurable; Special Configuration APP ( BeaconX Pro), available for iOS and Android. Flexible sensor function 3-axis accelerometer has dynamically user-selectable full scales of ±2g/±4g/±8g/±16g and the paremeter is configurable ； 3-axis accelerometer is capable of measuring accelerations with output data rates from 1 Hz to 100 Hz and the paremeter is configurable； User can get the raw data of the 3-axis sensor sampling data from the device in real time； Trigger function Support button trigger and motion trigger; Control the device to start advertising all the time, stop advertising, or advertise for a while. Transmission Power Levels 9 adjustable grades; Transmission power range: -40dBm to +0.56dBm. Long Range The max. Range 150 meters in the open space; The range depends on the physical environment. Security Configurable password (1-16 characters); With or without password (Lock/Unlock parameters); AES-128-ECB. encrypt. LED reminder Press and hold the button for 3s, the red LED flashes for 3s, indicating that the device is turned on, and the red LED stays on for 3s, indicating that the device is turned off. LED flashes every 10 seconds if the battery capcity is under 5%; LED lights up indicate successful button trigger； LED flashes when the device is connected； LED falshes when the device is upgraded. Connection Mode Advertising mode, non-connectable; Configuration mode, connectable. Custom made mounting Card design and easy to carry; Keychain / neck chain; 3M sticker; Logo and color customizable; Provided with your own configuration. OTA and DFU Supported upgrade via Over-The-Air; Nordic ® official Device Firmware Upgrade(DFU); Reserved J-Link port on the board for programming. 3. Physical Characteristics ItemValueRemarks Case ColorWhiteOther colors can be customized Main MaterialABS- Battery ModelCP224248Li-MnO2 battery/Not replaceable/850mAh Battery LifetimeUp to 4 years At default settings ② and without selfdischarge factor Operation Voltage1.8~3.6VDC Waterproof LevelIP68- Average Current24.1 uA At default settings ③ Transmission Range150m(+4dBm)Maximum，in the open space Antenna50ohmOn board/PCB Antenna Size85.59x54.13x4.2mmRefer to mechanical draws for details Net Weight18gWith battery Operating Temperature-25 to +75ºC- Storage Temperature-5 to +35ºC- CertificationsFCC/CE- ②③ Default setting: 1 Active SLOT(Device Info)，0dBm TX power and 1000ms Advertising Interval. 4. Configurable Parameters ItemValueDefault SettingRange and Remarks iBeaconUUID-16bytes Major-0~65535 Minor-0~65535 UIDNamespace-10bytes Instance ID-6bytes URLEncoded Scheme Prefix-4types: http://www. https://www. http:// https:// Encoded URL-2-17 bytes TLM--TLM shows only one in the broadcast. Device Name-BeaconX ProUp to 20 characters Advertising Interval-1000ms100~10000ms, Unit:100ms Tx Power-0dBm -40dBm to 0.56dBm, 9 adjustable grades Password-Moko43211-16 characters or NO password Connection Mode-ConnectableConnectable/Unconnectable Trigger1.Button double tap-Always advertise Start advertising for a while（1~65535s） Stop advertising for a while（1~65535s） 2.Button triple tap-Always advertise Start advertising for a while（1~65535s） Stop advertising for a while（1~65535s） 3.Device moves-Always advertise Start advertising after a static period time（1~65535s） Stop advertising after a static period time（1~65535s） Stop advertising after a static period time（1~65535s） 3-axis accelerometer SensorScale±2g±2g，±4g，±8g，±16g Output data rate10 Hz1 Hz，10 Hz，25 Hz，50 Hz，100 Hz Sensitivity77 to 255 5. mechanical draws **All units is mm ** 6.FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: Thi s equipment ha s bee n tested an d foun d to comply wit h th e limit s fo r a Class B digital device, pursuant to Par t 15 of th e FC C Rules. These limit s ar e designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses an d ca n radiate radi o frequency energy and , if no t installed an d use d in accordance wit h th e instructions, ma y cause harmful interference to radio communications. However, ther e is no guarantee tha t interference wil l no t occur in a particular installati…

Text truncated - open the document above for the full version.

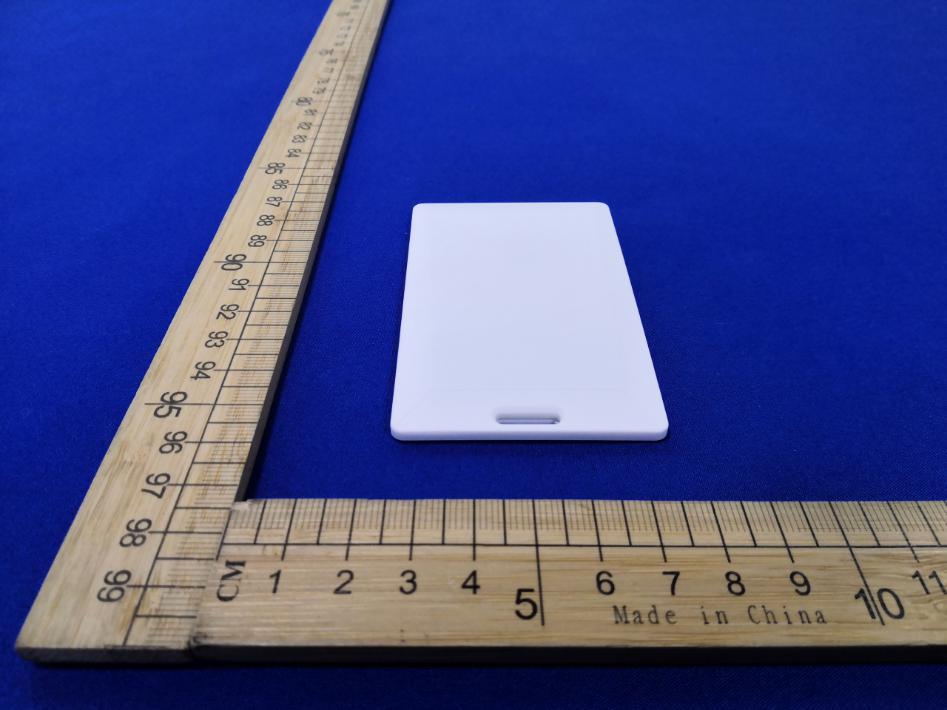

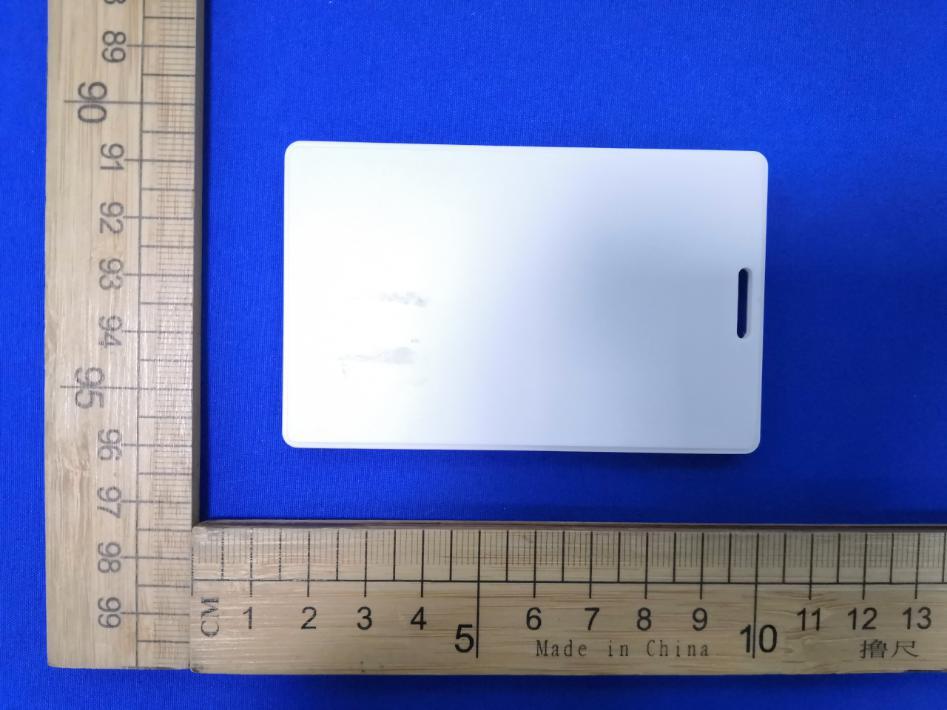

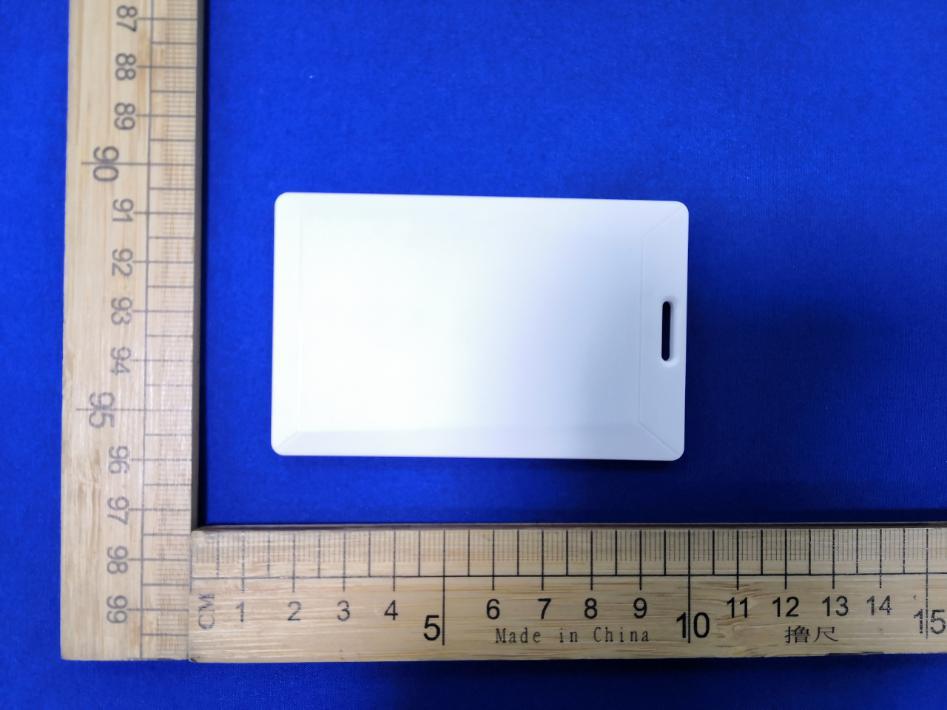

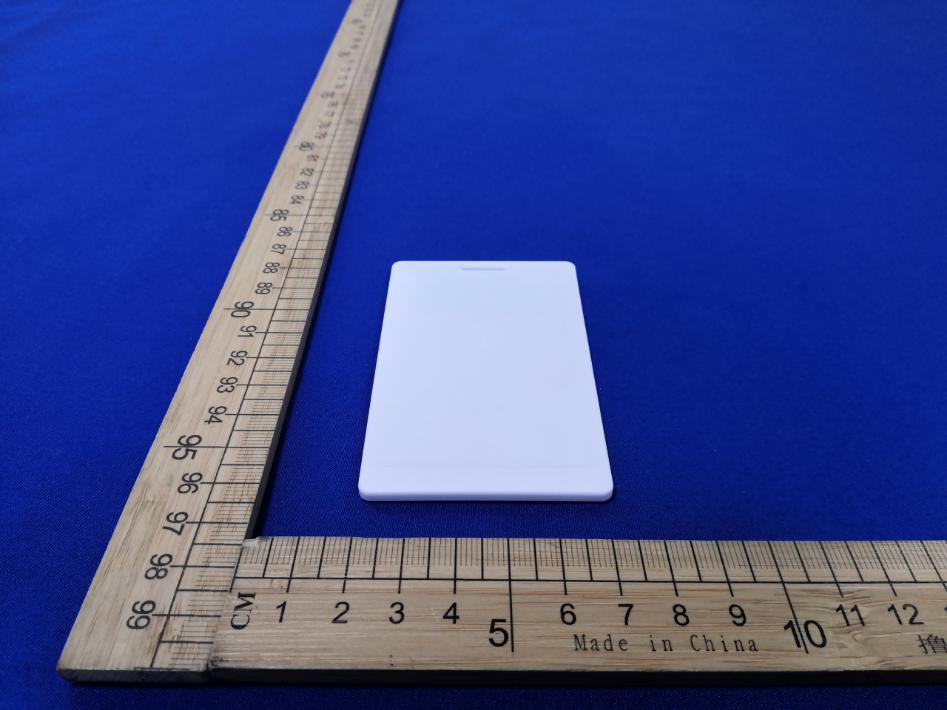

Mode:H3 ExternalPhotographs

Lable

Mode:H3 InternalPhotographs ANT

version01 MOKOTECHNOLOGYLIMITED DeclarationconcerningAntennaSpecification It is hereby declared that the product Model No.: H3,H3-INDN,H3-INDA,H3-XNDN,H3-PNDN,H3-PNDA,H3-PNDNX,H3-PNDAX,H3-INDN- HF,H3-INDA-HF,H3-XNDN-HF,H3-PNDN-HF,H3-PNDA-HF,H3-PNDNX-HF,H3-PNDAX-HF,H3- P5201DT3,H3-i5201NT3,H3-X5201N1 FCC ID:2AO94-H3BEACON fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: ModelNo. of antenna:N/A Type of antenna:PCB Antenna Gain of the antenna:1.70 dBi Frequencyrange: 24 02 -2 480 MHz ModelNo. of antenna:N/A Type of antenna:/ Gain of the antenna:/ Frequencyrange: / The mountingof the antennais fixed to the radio moduleand no other antennashouldbe used. Sincerely, Signature [jinghuichen ] [MarketingManager] [MOKOTECHNOLOGYLIMITED]

KSIGN(Guangdong)TestingCo., Ltd. West Side of 1/F., BuildingC, Zone A, FuyuanNew Factory,Jiujiu IndustrialPark, Minzhu,Shatou,Shajing,Bao'anDistrict,Shenzhen,Guangdong,People’s Republicof China Tel.: + (86)755-29852678Fax: + (86)755-29852397E-mail:[email protected]:www.gdksign.com KSIGN(Guangdong)TestingCo., Ltd. RF ExposureEvaluation FCC ID: 2AO94-H3BEACON REQUIREMENT KDB447498D01 GeneralRF ExposureGuidancev06, Clause4.3.1(a) [(max.powerof channel,includingtune-uptolerance,mW)/ (min.test separationdistance, mm)] · [√f(GHz)]≤ 3.0 Where -f(GHz)is the RF channeltransmitfrequencyin GHz -Powerand distanceare roundedto the nearestmW and mm beforecalculation -The test exclusionsare applicableonly when the minimumtest separationdistanceis ≤ 50 mm, and for transmissionfrequenciesbetween100 MHz and 6 GHz. Whenthe minimumtest separationdistanceis < 5 mm, a distanceof 5 mm accordingto 4.1 f) is appliedto determineSAR test exclusion. TEST RESULT PassedNot Applicable BLE Test mode Channel Frequency (MHz) Max. Measured Power (dBm) Max. Tune up tolerance Power (dBm) Max. Tune up tolerance Power (mW) Calculatin g data LimitResults GFSK_1M 2402 0.560.56±1 1.4320.44 3.00Pass 244 0 0.450.45±1 1.3960.44 2480 0.050.05±1 1.2740.40 GFSK_2M 2402 0.53 0.53±1 1.4220.44 244 0 0.35 0.35±1 1.3650.43 2480 0.1 00.1 0±1 1.2880.40 Note: -The exposuresafetydistanceis less than 5mm. **********************THEEND**********************

l( KSIGN ® KS刷（Gu叫dong）百sting Co., Ltd. ‘West Side of 1/F., Building C, Zone A, Fuyuan New Factory, Jiujiu Industrial Park, 一Minzhu,Shatou, Shajing, Bao ’ an Dist「ict, Shenzhen, Guangdong, People ’ s Republic of China Tel.: + (86)755-29852678 Fax: + (86)755-29852397巳mail:[email protected]:www.gdksign.com Report No .................. FCC I D ·· ··· ·· ·· · · Applicant.....－ Address .... Manufacturer ...........· Address .. Factory .... Address .......... . Product Name ............. . Trade Mark .............. . Model/Type reference ........... . Listed Model(s) ............. . Standard.............................................. : Date of Receipt.............. Date of Test Date ............. Date of issue............. Test result... ............ TEST REPORT KS2101 S00235E MOKO TECHNOLOGY LIMITE D 2F, Building1, No. 37 Xiaxintang Xintang village, Fucheng Street, Longhua Dist「ict, Shenzhen, Guangdong P「ovince, China MOKO T ECHNOLOHY Ltd 2F, Building1, No. 37 Xiaxintang Xintang village, Fucheng Street, L onghua Dist「ict, Shenzhen, Guangdong Province, China MOKO TECHNOLOHY Ltd 2F, Building1, No. 37 Xiaxintang Xintang village, Fucheng Street, Longhua District, Shenzhen, Guangdong Province, China Bluet。。th Beac。n ／ H3 H3 -INDN,H3-INDA,H3-XNDN,H3-PNDN,H3-PNDA,H3-PNDNX,H3- PNDAX,H3-INDN-HF,H3-INDA-HF,H3-XNDN-HF,H3-PNDN-HF,H3- P NDA-HF,H3-PNDNX-HF, H3-PNDAX-HF,H3- P5201DT3, H3-i5201 NT3 H3-X5201 N1 FCC CFR Title 47 Part 15 Subpart C Section 15.247 Jan. 11, 2021 Jan. 11, 2021 ～ Jan. 18, 2021 Jan. 20, 2021 P a s s 、‘．，， ev－－ HU AVK an川 ng s ＋ e VJT b a AU nH 怡 d － m俨 怡 m － m o r C 伊 ） evt HU a，E、 a n川同uu quv ＋ y 陪 －D T Au a 白』 nH m旧 d w怡en nv ． nH unr cu rt ） e v－－ HU ATK a nou s ＋ e VI m －hu2u n川 AU 且M AU ve 〉 t mn nvnH nvDE A （ Rory Huang EderZhan Ca「yLuo e m... 『a u N 可。 且，‘－ a· ”’ 。 u hMH a ELu g 冶 m a Hh 川 U 酌， ．． sd ed TA KSIGN(Guangdong) Testing c。.， Ltd. West Side of 1/F., Building C, Zone A, Fuyuan New Factory, Jiujiu lndust「ial Park, Minzhu,Shatou, Sh句ing,Bao ’ an District, Shenzhen, Guanqdonq, People ’ s Republic of China This test report may be duplicated completely for legal use with the approval of the applicant. It should not be rep「oducedexcept in full, without the written approval of our labo「atory.The client should not use it to claim product endorsement by KSIGN. The test results in the repo「tonly apply to the tested sample. The test report shall be invalid without all the signatu「es of testing engineers ， 「eviewerand approver. Any objections must be 「aisedto KSIGN within 15 days since the date when the 「eportis received. It will not be taken into consideration beyond this Ii『nit. The test report merely co「respondto the test sample. 2AO94-H3BEACON Page 2 of 56 ReportNo.:KS2101S00235E KSIGN(Guangdong)TestingCo.,Ltd. TABLEOFCONTENTSPage 1.TESTSUMMARY ....................................................................................................................................................................... 3 1.1. TESTSTANDARDS ................................................................................................................................................................... 3 1.2.REPORTVERSION ................................................................................................................................................................... 3 1.3.TESTDESCRIPTION ................................................................................................................................................................. 4 1.4.TESTFACILITY .................................................................................................................................................................. 5 1.5.MEASUREMENTUNCERTAINTY ................................................................................................................................................. 6 1.6.ENVIRONMENTALCONDITIONS ................................................................................................................................................. 6 2.GENERALINFORMATION ......................................................................................................................................................... 7 2.1. GENERALDESCRIPTIONOFEUT ............................................................................................................................................... 7 2.2.OPERATIONSTATE .................................................................................................................................................................. 8 2.3.MEASUREMENTINSTRUMENTSLIST .......................................................................................................................................... 9 2.5.TESTSOFTWARE ..................................................................................................................................................................... 9 3.TESTITEMANDRESULTS ........................................................................................................................................................ 10 3.1.ANTENNAREQUIREMENT ...................................................................................................................................................... 10 3.2. PEAKOUTPUTPOWER ......................................................................................................................................................... 11 3.3. POWERSPECTRALDENSITY ................................................................................................................................................... 16 3.4.6DBBANDWIDTH ................................................................................................................................................................ 21 3.5.BANDEDGEANDSPURIOUSEMISSION(CONDUCTED) ........................................................................................................…

Text truncated - open the document above for the full version.

H3 RadiatedMeasurement(Below1GHz) RadiatedMeasurement(Above1GHz) RFConducted
