H4 Series Beacon （（H4） Datasheet MOKO TECHNOLOGY LIMITED www.mokosmart.com [TOC] 1. Description H4 is a portable tag with temperature & humidity sensor ①① and 3-axis accelerometer sensor ②② . It can advertise iBeacon, Eddystone and Sensor datas and also can transfer and store temperature & humidity sensor datas. H4 has a portable case shape, waterproof structure, accurate hardware, robust firmware and external push button. It has a long lifetime with 2 high quality replaceable AAA lithium batteries. All the parameters of H4 can be modified and all the sensor datas can be checked. Please check out our BeaconX Pro app, available for iOS and Android. ① Temperature & Humidity Sensor: Sensirion® SHT30-DIS ② 3-axis accelerometer Sensor: STMicroelectronics® LIS3DH [========] 2. Features Firmware and chipset Programmed MOKO standard MkBeaconX firmware; Ultra-low power consumption chipset NORDIC ® nRF52 series with 32 bit ARM ® Cortex-M4 CPU. Compatibility Compatible with Apple iBeacon and Google Eddystone; Compatible with standard Eddystone Configuration GATT Service; Compatible with all Bluetooth ® 5.2 devices. Replaceable Battery and long lifetime High quality replaceable AAA lithium battery（1.5V/1100mAh）; More than 3 years battery lifetime (At default settings); Easy to get the real-time battery level notification. Configurable SLOTs and parameters Up to 6 configurable SLOTs; Each SLOT can be set to iBeacon，UID，URL，TLM，Device Info and Sensor data; Device Name, Password, Connection Mode, Advertising Interval, Tx Power and Sensor Parameters all are configurable; Special Configuration APP ( BeaconX Pro), available for iOS and Android. Flexible sensor function 3-axis accelerometer has dynamically user-selectable full scales of ±2g/±4g/±8g/±16g and the paremeter is configurable ； 3-axis accelerometer is capable of measuring accelerations with output data rates from 1 Hz to 100 Hz and the paremeter is configurable； User can get the raw data of the 3-axis sensor sampling data from the device in real time； Temperature and humidity sampling frequency is configurable; User can get the temperature and humidity from the device in real time； User can set the conditions for storing temperature and humidity data, and the device can store up to 4000 data. Trigger function Support button trigger，temperature trigger，humidity trigger and motion trigger; Control the device to start advertising all the time, stop advertising, or advertise for a while. Transmission Power Levels 9 adjustable grades; Transmission power range: -40dBm to +0.59dBm. Long Range The max. Range 120 meters in the open space; The range depends on the environment where the H4 series Beacon is placed. Security Configurable password (1-16 characters); With or without password (Lock/Unlock parameters); AES-128-ECB. encrypt. LED reminder Green LED means power on and red LED means power off; LED flashes every 10 seconds if the battery capcity is under 5%; LED lights up indicate successful button trigger； LED flashes when the device is connected； LED falshes when the device is upgraded. Connection Mode Advertising mode, non-connectable; Configuration mode, connectable. Custom made mounting Color customizable; Easy to print a customization logo/branding on the case. Provided with your own configuration； Customizable software, hardware and structure. Tips：If NFC function is added, only NFC tag is supported(The signalling type is NFC-A). You can wake up the Beacon from NFC(The Beacon will be turned on after touching NFC reader). OTA and DFU Supported upgrade via Over-The-Air; Nordic ® official Device Firmware Upgrade(DFU); Reserved J-Link port on the board for programming. [========] 3. Physical Characteristics ItemValueRemarks Case ColorWhiteOther colors can be customized Main MaterialABS- Battery Model2xAAA BatteryLithium battery，1.5V，1100mAh Battery LifetimeAbout 36 mouths At default settings ③ and without selfdischarge factor Operation Voltage1.8~3.6VDC Waterproof LevelIP66- Static Current11.7 uADevice is power off Average Current41.2 uA At default settings ④ Transmission Range120mMaximum，in the open space Antenna50ohmOn board/PCB Antenna Size69.90mmx32.15mmx18.15mmRefer to mechanical draws for details Net Weight33.8gWith battery Operating Temperature-20 ~ +60ºC- Storage Temperature20 ~ +30ºC- ③④ Default setting: 1 Active SLOT(Device Info)，0dBm TX power and 1000ms Advertising Interval. [========] 4. Configurable Parameters ItemValueDefault SettingRange and Remarks iBeaconUUID-16bytes Major-0~65535 Minor-0~65535 UIDNamespace-10bytes Instance ID-6bytes URL Encoded Scheme Prefix -4types: http://www. https://www. http:// https:// Encoded URL-2-17 bytes TLM--TLM shows only one in the broadcast. Device Name-BeaconX ProUp to 20 characters Advertising Interval-1000ms100~10000ms, Unit:100ms Tx Power-0dBm -40dBm to 0.59dBm, 9 adjustable grades Password-Moko43211-16 characters or NO password Connection Mode-ConnectableConnectable/Unconnectable Trigger1.Button double tap-Always advertise Start advertising for a while（1~65535s） Stop advertising for a while（1~65535s） 2.Button triple tap-Always advertise Start advertising for a while（1~65535s） Stop advertising for a while（1~65535s） 3.Temperature above -Start advertising Stop advertising 4.Temperature below -Start advertising Stop advertising 5.Humidity above-Start advertising Stop advertising 6.Humidity below-Start advertising Stop advertising 7.Device moves-Always advertise Start advertising after a static period time（1~65535s） Stop advertising after a static period time（1~65535s） 3-axis accelerometer Sensor Scale±2g±2g，±4g，±8g，±16g Output data rate10 Hz1 Hz，10 Hz，25 Hz，50 Hz，100 Hz Sensitivity77 to 255 Temperature & Humidity Sensor Sampling period ⑤ 1 second1s~65535s T&H storage condition ⑥ Temperature 1°C and humidity 5% Only temperature0~100°CInterval：0.5°C Only humidity 0~100%Interval：1% Temperature and humidityRefer to above Time1~255minutesInterval：1min ⑤ Sampling period: Time interval for sampling temper…

Text truncated - open the document above for the full version.

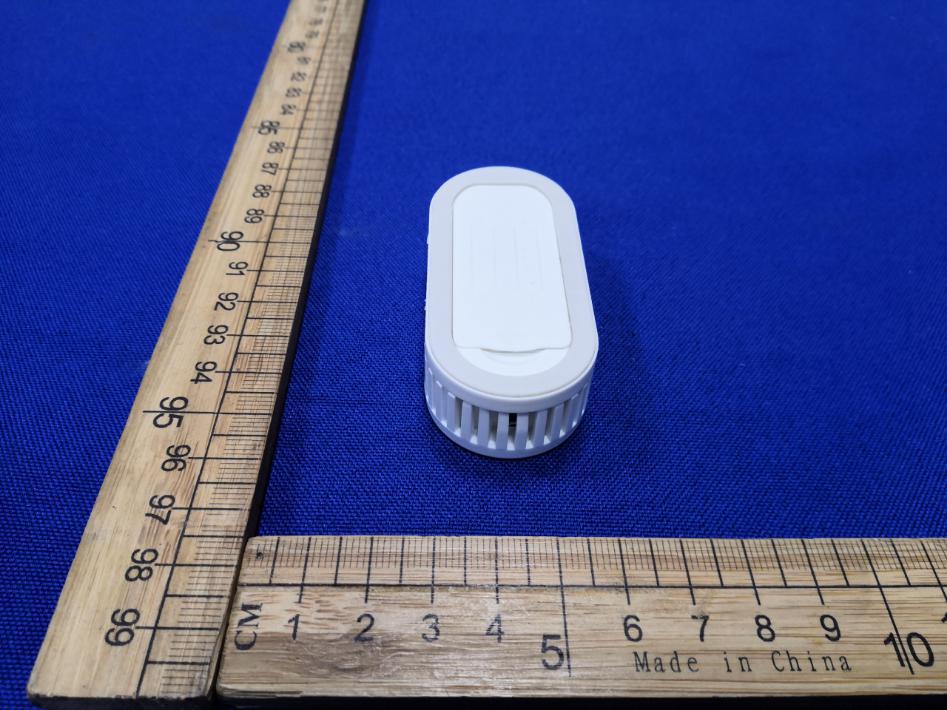

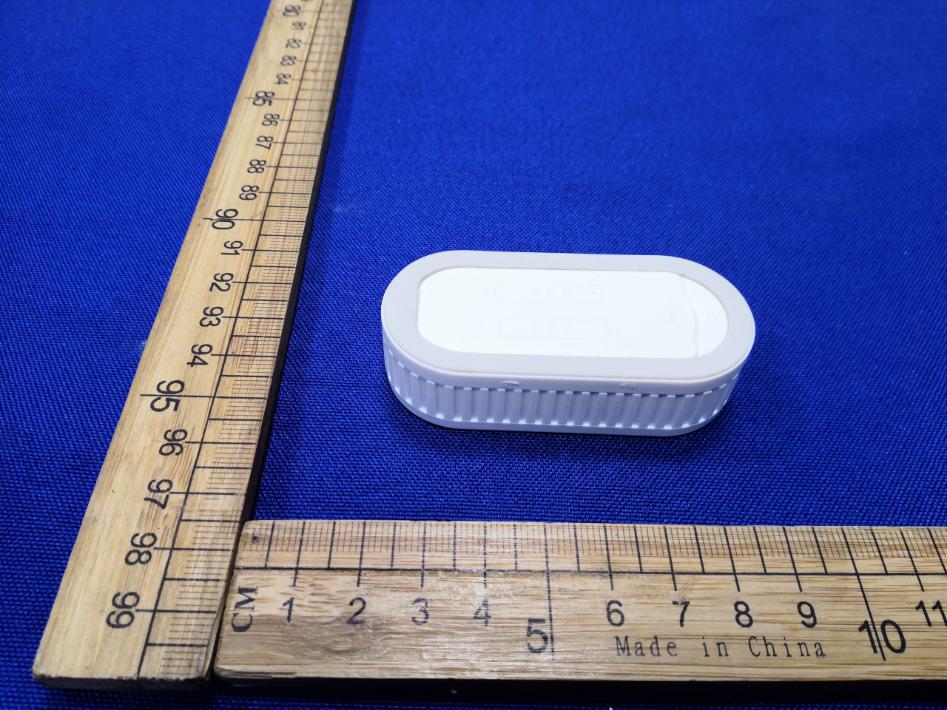

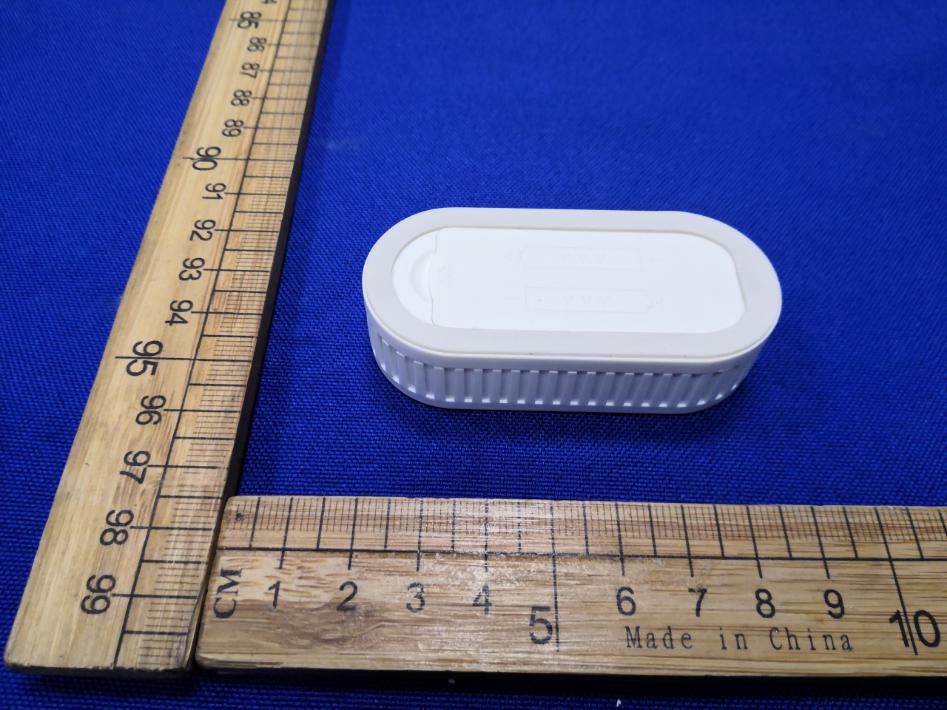

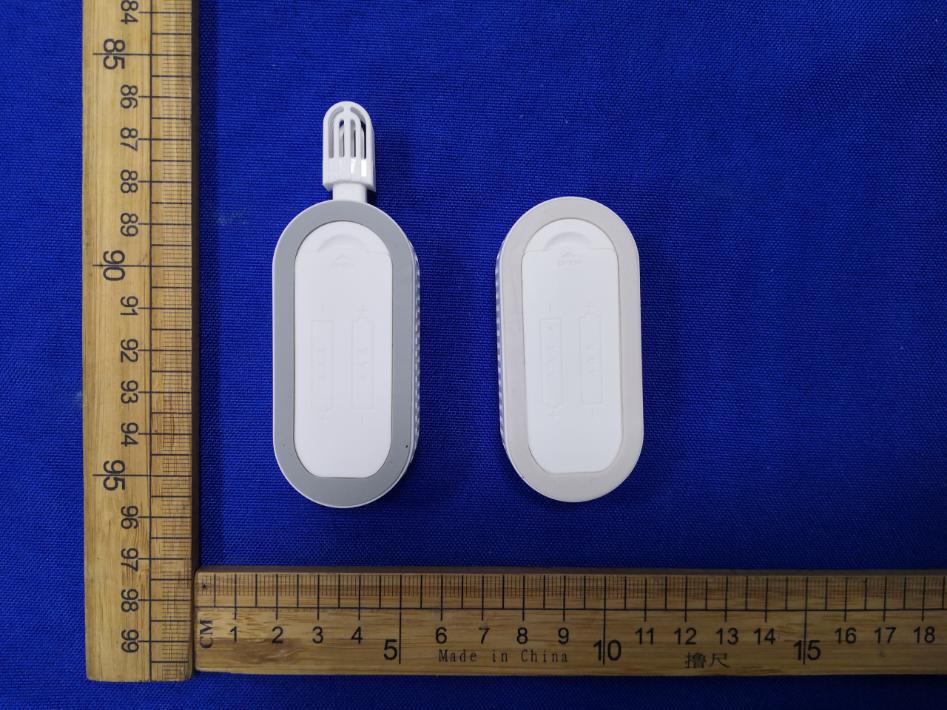

ExternalPhotographs Model:H4,H4pro H4

Lable

Internalphotos H4 Antenna

version01 MOKOTECHNOLOGYLIMITED DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:H4,H4pro FCCID:2AO94-H4 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:PCBAntenna Gainoftheantenna:-0.10dBi Frequencyrange:2402-2480MHz ModelNo.ofantenna:N/A Typeofantenna:/ Gainoftheantenna:/ Frequencyrange:/ Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Sincerely, Signature [jinghuichen] [MarketingManager] [MOKOTECHNOLOGYLIMITED]

KSIGN(Guangdong)TestingCo.,Ltd. WestSideof1/F.,BuildingC,ZoneA,FuyuanNewFactory,JiujiuIndustrialPark, Minzhu,Shatou,Shajing,Bao'anDistrict,Shenzhen,Guangdong,People’sRepublicofChina Tel.:+(86)755-29852678Fax:+(86)755-29852397E-mail:[email protected]:www.gdksign.com KSIGN(Guangdong)TestingCo.,Ltd. RFExposureEvaluation FCCID:2AO94-H4 REQUIREMENT KDB447498D01GeneralRFExposureGuidancev06,Clause4.3.1(a) [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]·[√f(GHz)]≤3.0 Where -f(GHz)istheRFchanneltransmitfrequencyinGHz -PoweranddistanceareroundedtothenearestmWandmmbeforecalculation -Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm,andfortransmission frequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5mm,adistanceof5mm accordingto4.1f)isappliedtodetermineSARtestexclusion. TESTRESULT PassedNotApplicable BLE Testmode Channel Frequency (MHz) Max. Measured Power (dBm) Max. Tuneup tolerance Power (dBm) Max. Tuneup tolerance Power (mW) Calculatin gdata LimitResults GFSK_1M 24020.570.57±11.4350.45 3.00Pass2440-0.07-0.07±11.2390.39 2480-0.76 -0.76±1 1.0570.33 GFSK_2M 24020.59 0.59±1 1.4420.45 3.00Pass2440-0.07-0.07±11.2390.39 2480-0.78-0.78±11.0520.33 Note: -Theexposuresafetydistanceislessthan5mm. **********************THEEND**********************

Page 2 of 57 Report No.: KS2012S02697E KSIGN(Guangdong) Testing Co., Ltd. TABLE OF CONTENTS Page 1. TEST SUMMARY .............................................................................................................................................................. 3 1.1. TEST STANDARDS ................................................................................................................................................................. 3 1.2. REPORT VERSION ................................................................................................................................................................. 3 1.3. TEST DESCRIPTION ............................................................................................................................................................... 4 1.4. TEST FACILITY ................................................................................................................................................................. 5 1.5. MEASUREMENT UNCERTAINTY ............................................................................................................................................... 6 1.6. ENVIRONMENTAL CONDITIONS ................................................................................................................................................ 6 2. GENERAL INFORMATION ................................................................................................................................................. 7 2.1. GENERAL DESCRIPTION OF EUT .............................................................................................................................................. 7 2.2. OPERATION STATE ................................................................................................................................................................ 8 2.3. MEASUREMENT INSTRUMENTS LIST ......................................................................................................................................... 9 2.5. TEST SOFTWARE ................................................................................................................................................................... 9 3. TEST ITEM AND RESULTS ............................................................................................................................................... 10 3.1. ANTENNA REQUIREMENT ..................................................................................................................................................... 10 3.2. PEAK OUTPUT POWER ........................................................................................................................................................ 11 3.3. POWER SPECTRAL DENSITY .................................................................................................................................................. 16 3.4. 6DB BANDWIDTH .............................................................................................................................................................. 21 3.5. BAND EDGE AND SPURIOUS EMISSION (CONDUCTED) ................................................................................................................ 28 3.6. BAND EDGE EMISSIONS(RADIATED) ................................................................................................................................... 32 3.7. SPURIOUS EMISSION (RADIATED) .......................................................................................................................................... 37 3.8. CONDUCTED EMISSION ....................................................................................................................................................... 48 4. EUT TEST PHOTOS ......................................................................................................................................................... 49 5. PHOTOGRAPHS OF EUT CONSTRUCTIONAL ................................................................................................................... 51 Page 3 of 57 Report No.:KS2012S02697E KSIGN(Guangdong) Testing Co., Ltd. 1. TEST SUMMARY 1.1. Test Standards The tests were performed according to following standards: FCC Rules Part 15.247: Operation within the bands of 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz. KDB 558074 D01：The measurement guidance provided herein is applicable only to Digital Transmission System (DTS) devices operating in the 902-928 MHz. 2400-2483.5 MHz and/or 5725-5850 MHz bands under §15.247 of the FCC rules (Title 47 of the Code of Federal Regulations) ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. 1.2. Report version Revised No. Date of issue Description 01 Jan. 15, 2021 Original Page 4 of 57 Report No.:KS2012S02697E KSIGN(Guangdong) Testing Co., Ltd. 1.3. Test Description FCC Part 15 Subpart C(15.247) Test Item Standard Section Result Test Engineer FCC Antenna Requirement 15.203 Pass Rory Huang Conducted Emission 15.207 N/A N/A Restricted Bands 15.205 Pass Rory Huang Peak Output Power 15.247(b) Pass Rory Huang Band Edge Emissions 15.247(d) Pass Rory Huang Power Spectral Density 15.247(e) Pass Rory Huang Radiated Emission 15.205&15.209 Pass Rory Huang 6dB Bandwidth 15.247(a)(2) Pass Rory Huang Spurious RF Conducted Emission 15.247(d) Pass Rory Huang Note: The measurement uncertainty is not included in the test result. Page 5 of 57 Report No.:KS2012S02697E KSIGN(Guangdong) Testing Co., Ltd. 1.4. Test Facility Address of the report laboratory KSIGN(Guangdong) Testing Co., Ltd. West Side of 1/F., Building C, Zone A, Fuyuan New Factory, Jiujiu Industrial Park, Minzhu,Shatou, Shajing, Bao'an District, Shenzhen, Guangdong, People’s Republic of China Laboratory accreditation The test facility is recognized, certified, or accredited by the following organizations: CNAS-Lab Code: L13261 KSIGN(Guang…

Text truncated - open the document above for the full version.

H4 RadiatedMeasurement(Below1GHz) RadiatedMeasurement(Above1GHz) RFConducted
