2AO94-H5Bluetooth Beacon

H5-BeaconX Pro Datasheet MOKO TECHNOLOGY LIMITED www.mokosmart.com 1. Description The H5-BeaconX Pro is a portable tag with RFID ①① and 3-axis accelerometer sensor ②② ，which can advertise iBeacon, Eddystone and Sensor datas. It has a compact and thin structure design, accurate hardware and robust firmware, which can be used for employee attendance, access control, identity identification, location tracking, etc, and can realize remote cloud data management. All parameters of H5-BeaconX Pro can be modified, and all sensor data can be checked to meet different application requirements. Please check out our BeaconX Pro app, available for iOS and Android. ① 3-axis accelerometer Sensor: STMicroelectronics® LIS3DH. ② RFID: NXP ® MIFARE Plus ® EV1 2k 7b. 2. Features Firmware and chipset Programmed MOKO standard MkBeaconX firmware; Ultra-low power consumption chipset NORDIC ® nRF52 series with 32 bit ARM ® Cortex-M4 CPU. Compatibility Compatible with Apple iBeacon and Google Eddystone; Compatible with standard Eddystone Configuration GATT Service; Compatible with all Bluetooth ® 5.2 devices. Replaceable Battery and Battery Level High quality replaceable CR3032 coin battery(500mAh); Up to 2 years battery lifetime (at default settings); Easy to get the real-time battery level notification. Configurable SLOTs and parameters Up to 6 configurable SLOTs; Each SLOT can be set to iBeacon，UID，URL，TLM，Device Info and 3-axis Sensor data; Device Name, Password, Connection Mode, Advertising Interval, Tx Power and 3-axis Sensor Parameters all are configurable; Special Configuration APP ( BeaconX Pro), available for iOS and Android. Flexible sensor function 3-axis accelerometer has dynamically user-selectable full scales of ±2g/±4g/±8g/±16g and the paremeter is configurable ; 3-axis accelerometer is capable of measuring accelerations with output data rates from 1 Hz to 100 Hz and the parameter is configurable; User can get the raw data of the 3-axis sensor sampling data from the device in real time. Trigger function H5-BeaconX Pro Supports button trigger and motion trigger; Control the device to start advertising all the time, stop advertising, or advertise for a while. Transmission Power Levels 9 adjustable grades; Transmission power range: -40dBm to +0.71dBm. Long Range The max. Up to 120m without RFID, up to 80m with RFID. The range depends on the physical environment. Security Configurable password (1-16 characters); With or without password (Lock/Unlock parameters); AES-128-ECB. encrypt. Connection Mode Advertising mode, non-connectable; Configuration mode, connectable. Custom made mounting Keychain / neck chain; Logo and color customizable; RFID customizable； NFC customizable； Provided with your own configuration. OTA and DFU Supported upgrade via Over-The-Air; Nordic ® official Device Firmware Upgrade(DFU); Reserved J-Link port on the board for programming. 3. Physical Characteristics ItemValueRemarks Case ColorWhiteOther colors can be customized Main MaterialABS- Battery Model CR3032Coin battery, 1pc, 500mAh Battery Lifetime Up to 2 years At default settings ② and without selfdischarge factor Operation Voltage 1.8~3.6VDC Waterproof Level IP65- Average Current 23.18uA At default settings ③ Transmission Range 120m(+4dBm,With RFID distance up to 80m)Maximum，in the open space Antenna50ohmCeramic Antenna Size65.38mm×42.98mm×5.7mmRefer to Dimensions for details Net Weightpending upgradeWith battery Operating Temperature -25 to +75ºC- Storage Temperature -5 to +35ºC- RFID sensing distance Under the sensing distance of the card reader, the maximum can reach about 40mm, and the sensing distance of the mobile phone can reach about 5mm. The distance depends on the model and sense of the reader and the model of the mobile phone. ②③ Default setting: 1 Active SLOT(Device Info)，0dBm TX power and 1000ms Advertising Interval. 4. Configurable Parameters ItemValueDefault SettingRange and Remarks iBeaconUUID-16bytes Major-0~65535 Minor-0~65535 UIDNamespace-10bytes Instance ID-6bytes URLEncoded Scheme Prefix-4types: http://www. https://www. http:// https:// Encoded URL-2-17 bytes TLM--TLM shows only one in the broadcast. Device Name-BeaconX ProUp to 20 characters Advertising Interval-1000ms100~10000ms, Unit:100ms Tx Power-0dBm -40dBm to 0.71dBm, 9 adjustable grades Password-Moko43211-16 characters or NO password Connection Mode-ConnectableConnectable/Unconnectable Trigger1.Button double tap-Always advertise Start advertising for a while（1~65535s） Stop advertising for a while（1~65535s） 2.Button triple tap-Always advertise Start advertising for a while（1~65535s） Stop advertising for a while（1~65535s） 3.Device moves-Always advertise Start advertising after a static period time（1~65535s） Stop advertising after a static period time（1~65535s） 3-axis accelerometer SensorScale±2g±2g，±4g，±8g，±16g Output data rate10 Hz1 Hz，10 Hz，25 Hz，50 Hz，100 Hz Sensitivity77 to 255 5. Dimensions **All units is mm ** 6.FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or te…

Text truncated - open the document above for the full version.

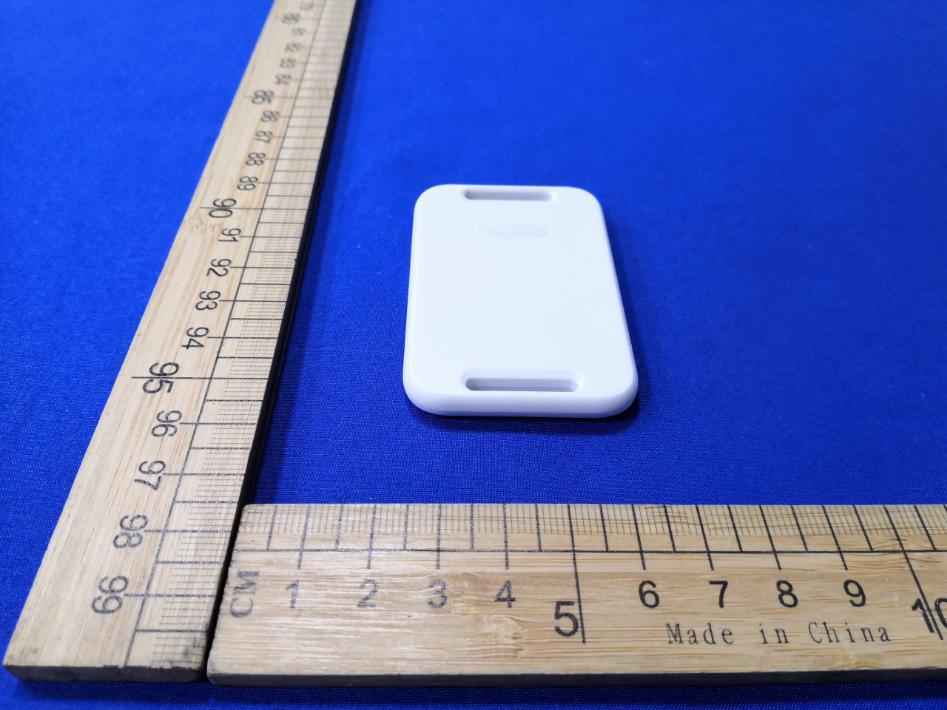

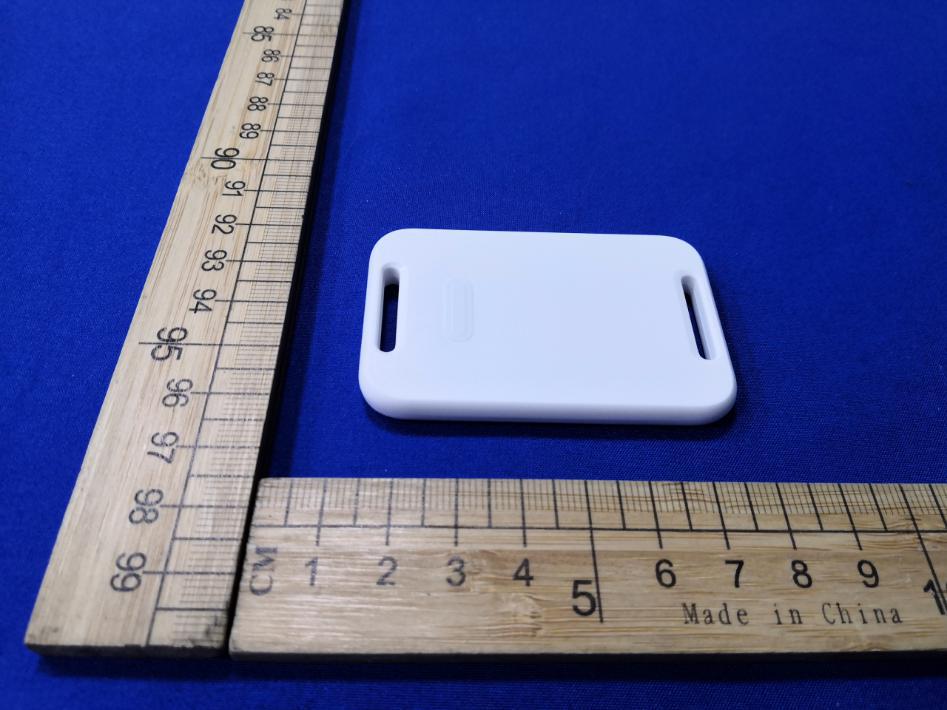

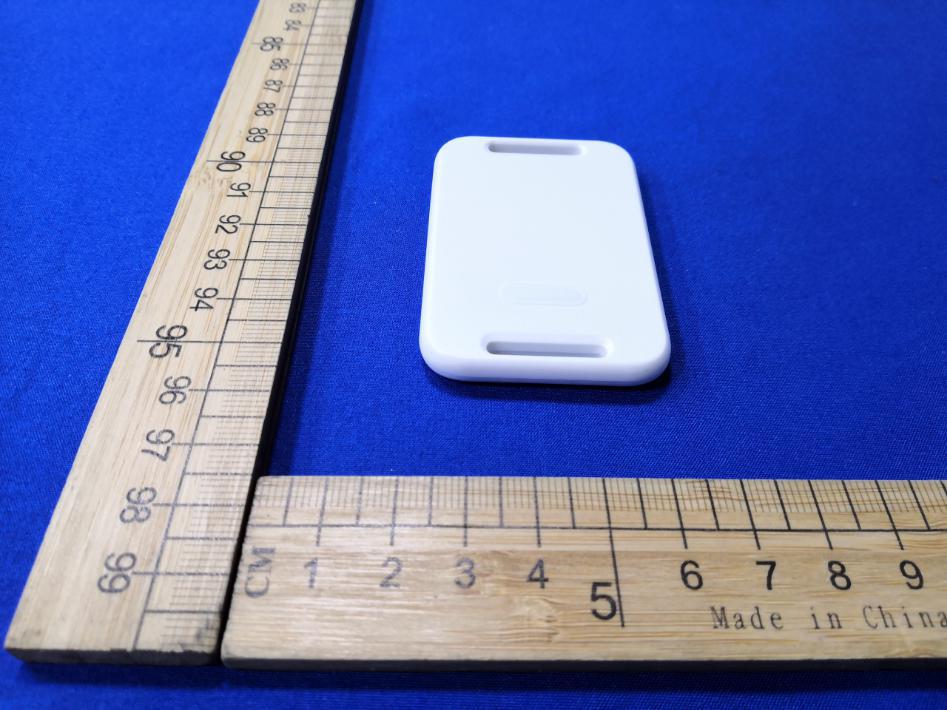

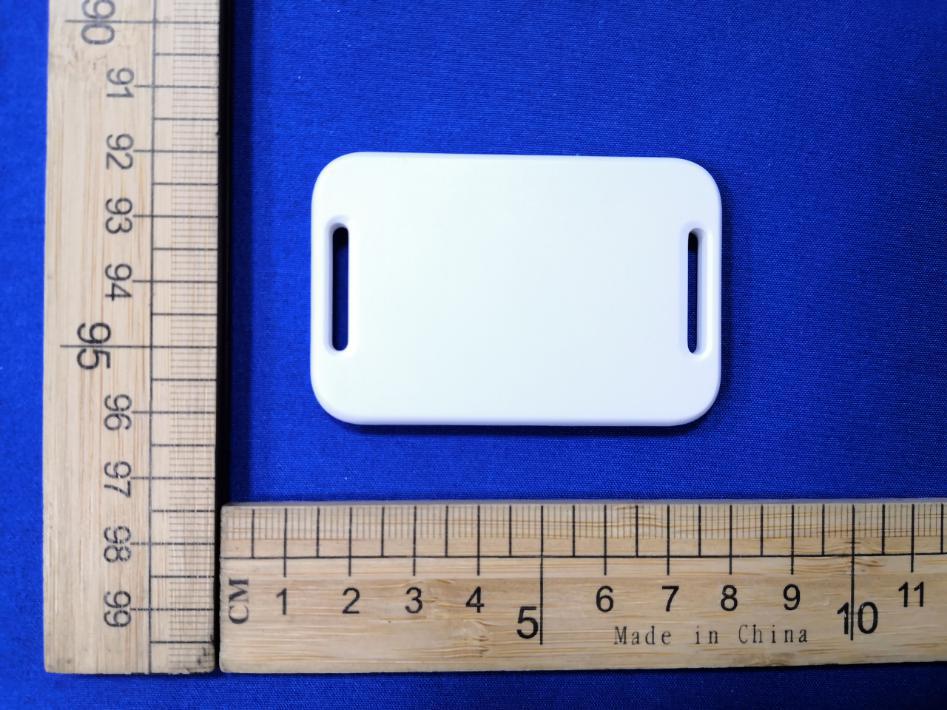

ExternalPhotographs Mode:H5

Lable

Model:H5 Internalphotos Antenna NFCANT

version01 MOKOTECHNOLOGYLIMITED DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:H5,H5-INDN-HF,H5-INDA-HF,H5-XNDN-HF,H5-PNDN-HF,H5-PNDNX-HF,H5-PNDA- HF,H5-PNDAX-HF,H5-INDN,H5-INDA,H5-XNDN,H5-PNDN,H5-PNDNX,H5-PNDA,H5-PNDAX FCCID:2AO94-H5 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: Antenna1 ModelNo.ofantenna:N/A Typeofantenna: CeramicAntennaForBLE Gainoftheantenna: 0.50dBi Frequencyrange: 2402-2480MHz Antenna2 ModelNo.ofantenna:N/A Typeofantenna:CoilAntennaForNFC Gainoftheantenna:0dBi Frequencyrange:13.56MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Sincerely, Signature [jinghuichen] [MarketingManager] [MOKOTECHNOLOGYLIMITED]

KSIGN(Guangdong)TestingCo.,Ltd. WestSideof1/F.,BuildingC,ZoneA,FuyuanNewFactory,JiujiuIndustrialPark, Minzhu,Shatou,Shajing,Bao'anDistrict,Shenzhen,Guangdong,People’sRepublicofChina Tel.:+(86)755-29852678Fax:+(86)755-29852397E-mail:[email protected]:www.gdksign.com KSIGN(Guangdong)TestingCo.,Ltd. RFExposureEvaluation FCCID:2AO94-H5 REQUIREMENT KDB447498D01GeneralRFExposureGuidancev06,Clause4.3.1(a) [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]·[√f(GHz)]≤3.0 Where -f(GHz)istheRFchanneltransmitfrequencyinGHz -PoweranddistanceareroundedtothenearestmWandmmbeforecalculation -Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm,andfortransmission frequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5mm,adistanceof5mm accordingto4.1f)isappliedtodetermineSARtestexclusion. TESTRESULT PassedNotApplicable BLE Testmode Channel Frequency (MHz) Max. Measured Power (dBm) Tuneup tolerance Power (dBm) Max. Tuneup tolerance Power (dBm) Max. Tuneup tolerance Power (mW) Calculatin gdata LimitResults GFSK_1M 24020.710.71±11.711.4830.46 3.00Pass 24400.620.62±11.621.4520.45 24800.230.23±11.231.3270.42 GFSK_2M 24020.660.66±11.661.4660.45 24400.600.60±11.601.4450.45 24800.130.13±11.131.2970.41 Note: -Theexposuresafetydistanceislessthan5mm. KSIGN(Guangdong)TestingCo.,Ltd. WestSideof1/F.,BuildingC,ZoneA,FuyuanNewFactory,JiujiuIndustrialPark, Minzhu,Shatou,Shajing,Bao'anDistrict,Shenzhen,Guangdong,People’sRepublicofChina Tel.:+(86)755-29852678Fax:+(86)755-29852397E-mail:[email protected]:www.gdksign.com KSIGN(Guangdong)TestingCo.,Ltd. NFC AntennaGain=0dBi (Numeric1.0) ,π=3.14 Accordingtothefollowtransmitteroutputpower（P t ）formula： P t =（Exd） 2 /（30xg t ） P t =transmitteroutputpowerinwatts g t =numericgainofthetransmittingantenna(unitess) E=electricfieldstrengthinV/m d=measurementdistanceinmeters(m) Accordingtotheformuladescribedabove: Emax=82.40dBuV/m=0.01318V/m,d=3m,g t =1.0 P t =（Exd） 2 /（30xg t ）=(0.01318x3) 2 /(30x1.0)=0.000052W=0.052mW=-13.01dBm Note: 1.Onlytheworstcaserecorded. 2.The2.4GBLEandNFCcantransmitsimultaneouslyand MPERatio(BLE+NFC)=0.46/3+0.001466/3=0.1538<3 anditsatisfytheRFexposurerequirementsforsimultaneoustransmissionthatthesumoftheMPE radios<3 **********************THEEND********************** Frequency Max. MeasuredPower (dBm) Max. Tuneup tolerance Power Max. Tuneup tolerance Power Calculati ngdata LimitResults MHzdBm (dBm)(mW) 0.001466 3.00Pass 13.56 -13.01-13.01±1 0.0629

Page 2 of 24 ReportNo.:KS2012S02702EC KSIGN(Guangdong)TestingCo.,Ltd. TABLEOFCONTENTSPage 1.TESTSUMMARY ....................................................................................................................................................................... 3 1.1.TESTSTANDARDS ................................................................................................................................................................... 3 1.2. REPORTVERSION ................................................................................................................................................................... 3 1.3.TESTDESCRIPTION ................................................................................................................................................................. 4 1.4.TESTFACILITY ........................................................................................................................................................................ 5 1.5. MEASUREMENTUNCERTAINTY ................................................................................................................................................. 6 1.6.ENVIRONMENTALCONDITIONS ................................................................................................................................................. 6 2.GENERALINFORMATION ......................................................................................................................................................... 7 2.1.CLIENTINFORMATION ............................................................................................................................................................ 7 2.2. GENERALDESCRIPTIONOFEUT ............................................................................................................................................... 7 2.3. TESTMODE .......................................................................................................................................................................... 7 2.4.MEASUREMENTINSTRUMENTSLIST .......................................................................................................................................... 8 2.5.TESTSOFTWARE ..................................................................................................................................................................... 8 3.TESTITEMANDRESULTS .......................................................................................................................................................... 9 3.1.ANTENNAREQUIREMENT ........................................................................................................................................................ 9 3.2.OCCUPIEDBANDWIDTH ........................................................................................................................................................ 10 3.3.FREQUENCYSTABILITY .......................................................................................................................................................... 12 3.4. SPURIOUSEMISSION(RADIATED) ........................................................................................................................................... 14 3.5.CONDUCTEDEMISSION ......................................................................................................................................................... 20 4.EUTTESTPHOTOS .................................................................................................................................................................. 22 5.PHOTOGRAPHSOFEUTCONSTRUCTIONAL .......................................................................................................................... 24 Page 3 of 24 ReportNo.:KS2012S02702EC KSIGN(Guangdong)TestingCo.,Ltd. 1.TESTSUMMARY 1.1.TestStandards Thetestswereperformedaccordingtofollowingstandards: FCCRulesPart15.225:Operationwithintheband13.110-14.010MHz. ANSIC63.10-2013:AmericanNationalStandardforTestingUnlicensedWirelessDevices. 1.2.Reportversion RevisedNo.DateofissueDescription 01Apr.08,2021Original Page 4 of 24 ReportNo.:KS2012S02702EC KSIGN(Guangdong)TestingCo.,Ltd. 1.3.TestDescription FCCRulesPart15.225 TestItem StandardSection ResultTestEngineer FCC AntennaRequirement 15.203PassRoryHuang ConductedEmissions15.207N/AN/A RadiatedSpuriousEmissionsFCCPart15.225&15.205&15.209PassRoryHuang FrequencyToleranceFCCPart15.225ePassRoryHuang OccupiedBandwidthFCCPart15.215cPassRoryHuang Note:1.Themeasurementuncertaintyisnotincludedinthetestresult. 2.N/A:meansthistestitemisnotapplicable Page 5 of 24 ReportNo.:KS2012S02702EC KSIGN(Guangdong)TestingCo.,Ltd. 1.4.TestFacility Addressofthereportlaboratory KSIGN(Guangdong)TestingCo.,Ltd. WestSideof1/F.,BuildingC,ZoneA,FuyuanNewFactory,JiujiuIndustrialPark,Minzhu,Shatou,Shajing, Bao'anDistrict,Shenzhen,Guangdong,People’sRepublicofChina Laboratoryaccreditation Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: CNAS-LabCode:L13261 KSIGN(Guangdong)TestingCo.,Ltd.hasbeenassessedandprovedtobeinCompliancewithCNAS-CL01 AccreditationCriteriaforTestingandCalibrationLaboratories(identicaltoISO/IEC17025:2017General Requirements)fortheCompetenceofTestingandCalibrationLaboratories. A2LA-LabCert.No.:5457.01 KSIGN(Guangdong)TestingCo.,Ltd.EMCLaboratoryhasbeenaccreditedbyA2LAfortechnicalcompetence inthefieldofelectricaltesting,andprovedtobeincompliancewithISO/IEC17025:2017GeneralRequirements fortheCompetenceofTestingandCalibrationLaboratoriesandanyadditionalprogramrequirementsinthe identifiedfieldoftesting. ICRegistrationNo.:CN0096 The3malternatetestsiteofKSIGN(Guangdong)TestingCo.,Ltd.EMCLaboratoryhasbeenregisteredby CertificationandEngineerBureauofIndustryCanadafortheperformanceofwithRegistrationNO.:CN0096 FCC-RegistrationNo.:CN1272 KSIGN(Guangdong)TestingCo.,Ltd.EMCLaboratoryhasbeenregisteredandfullyde…

Text truncated - open the document above for the full version.

ForBLETest RadiatedMeasurement(Below1GHz) H5 RadiatedMeasurement(Above1GHz) RFConducted ForNFCTest RadiatedMeasurement(9KHz~30MHz) RadiatedMeasurement(30MHz~1GHz) RadiatedMeasurement(Above1GHz)
