M1-P5201DC-BeaconX Pro Datasheet MOKO TECHNOLOGY LTD. MOKO TECHNOLOGY LIMITED www.mokosmart.com 1. Description The M1-P5201DC-BeaconX Pro is a portable tag with 3-axis accelerometer sensor ①① ，which can advertise iBeacon, Eddystone and Sensor datas. It has a portable case shape, accurate hardware and robust firmware . All the parameters of M1-P5201DC-BeaconX Pro can be modified and all the sensor datas can be checked. Please check out our BeaconX Pro app, available for iOS and Android. ① 3-axis accelerometer Sensor: STMicroelectronics® LIS3DH 2. Features Firmware and chipset Programmed MOKO standard MkBeaconX firmware; Ultra-low power consumption chipset Nordic ® nRF52 series with 32 bit ARM ® Cortex-M4 CPU. Compatibility Compatible with Apple iBeacon and Google Eddystone; Compatible with standard Eddystone Configuration GATT Service; Compatible with all Bluetooth ® 5.0 devices. Replaceable Battery and Battery Level High quality replaceable CR2032 coin battery(225mAh); Up to 1 year battery lifetime (at default settings); Easy to get the real-time battery level notification. Configurable SLOTs and parameters Up to 6 configurable SLOTs; Each SLOT can be set to iBeacon，UID，URL，TLM，Device Info and 3-axis Sensor data; Device Name, Password, Connection Mode, Advertising Interval, Tx Power and 3-axis Sensor Parameters all are configurable; Special Configuration APP ( BeaconX Pro), available for iOS and Android. Flexible sensor function 3-axis accelerometer has dynamically user-selectable full scales of ±2g/±4g/±8g/±16g and the paremeter is configurable ； 3-axis accelerometer is capable of measuring accelerations with output data rates from 1 Hz to 100 Hz and the paremeter is configurable； User can get the raw data of the 3-axis sensor sampling data from the device in real time； Trigger function Support motion trigger; Control the device to start advertising all the time, stop advertising, or advertise for a while. Transmission Power Levels 9 adjustable grades; Transmission power range: -40dBm to +0.37dBm. Long Range The max. Range 40 meters in the open space; The range depends on the physical environment. Security Configurable password (1-16 characters); With or without password (Lock/Unlock parameters); AES-128-ECB. encrypt. Connection Mode Advertising mode, non-connectable; Configuration mode, connectable. Custom made mounting 3M sticker; Logo and color customizable; Provided with your own configuration. OTA and DFU Supported upgrade via Over-The-Air; Nordic ® official Device Firmware Upgrade(DFU); Reserved J-Link port on the board for programming. 3. Physical Characteristics ItemValueRemarks Case ColorWhiteOther colors can be customized Main MaterialABS- Battery ModelCR2032Coin battery, 1pc, 225mAh Battery LifetimeUp to 1 year At default settings ② and without selfdischarge factor Operation Voltage1.8~3.6VDC Average Current27.52 uA At default settings ③ Transmission Range40m(+4dBm)Maximum，in the open space Antenna50ohmOn board/PCB Antenna SizeΦ26x7.1mmRefer to mechanical draws for details Net Weight5.4gWith battery Operating Temperature-25 to +60ºC- Storage Temperature20 to +30ºC- CertificationsFCC/CE- ②③ Default setting: 1 Active SLOT(Device Info)，0dBm TX power and 1000ms Advertising Interval. 4. Configurable Parameters ItemValueDefault SettingRange and Remarks iBeaconUUID-16bytes Major-0~65535 Minor-0~65535 UIDNamespace-10bytes Instance ID-6bytes URLEncoded Scheme Prefix-4types: http://www. https://www. http:// https:// Encoded URL-2-17 bytes TLM--TLM shows only one in the broadcast. Device Name-BeaconX ProUp to 20 characters Advertising Interval-1000ms100~10000ms, Unit:100ms Tx Power-0dBm -40dBm to 0.37dBm, 9 adjustable grades Password-Moko43211-16 characters or NO password Connection Mode-ConnectableConnectable/Unconnectable TriggerDevice moves-Always advertise Start advertising after a static period time（1~65535s） Stop advertising after a static period time（1~65535s） 3-axis accelerometer SensorScale±2g±2g，±4g，±8g，±16g Output data rate10 Hz1 Hz，10 Hz，25 Hz，50 Hz，100 Hz Sensitivity77 to 255 5. mechanical draws **All units is mm ** 6.FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 5mm between the radiator & your body 7. Technical support ItemFile NameLink Configure APP for IOS&AndroidBeaconX Pro-- User ManualBeaconX Pro User Manualhttp://doc.mokotechnology.co…

Text truncated - open the document above for the full version.

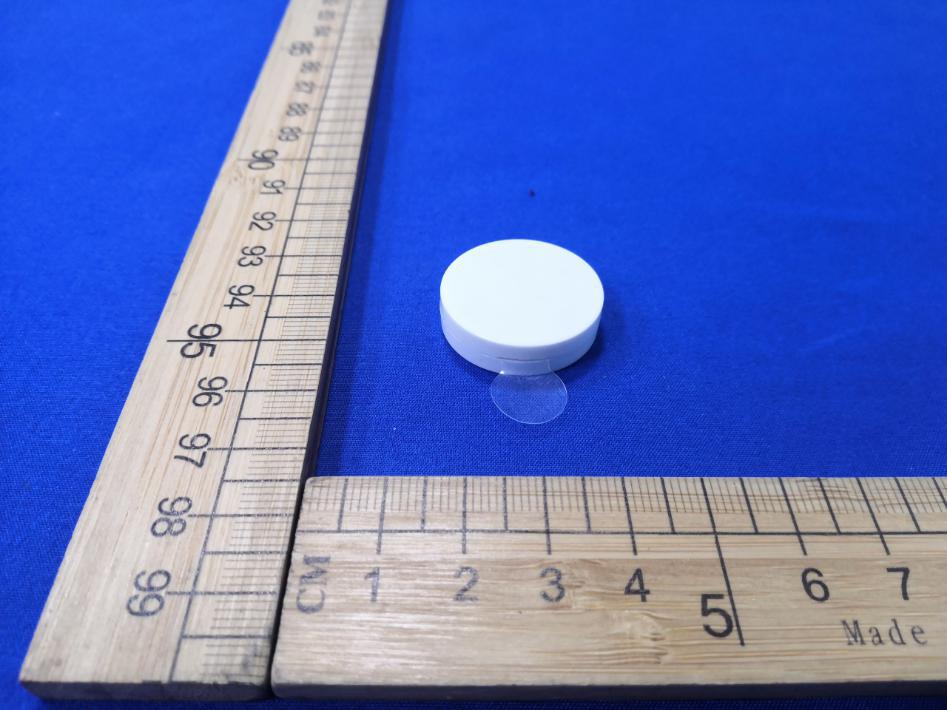

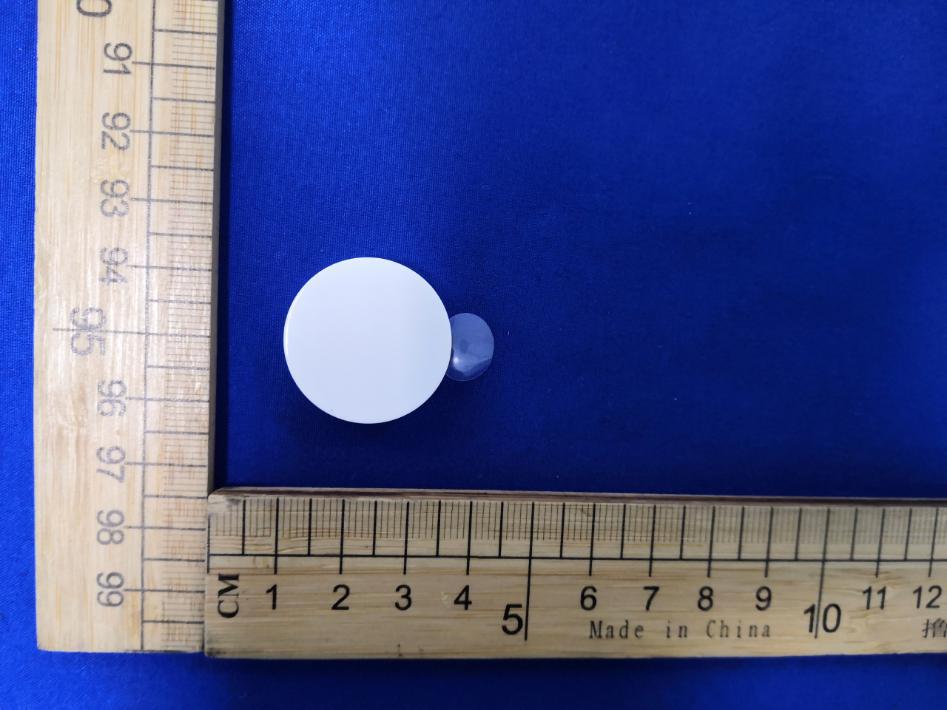

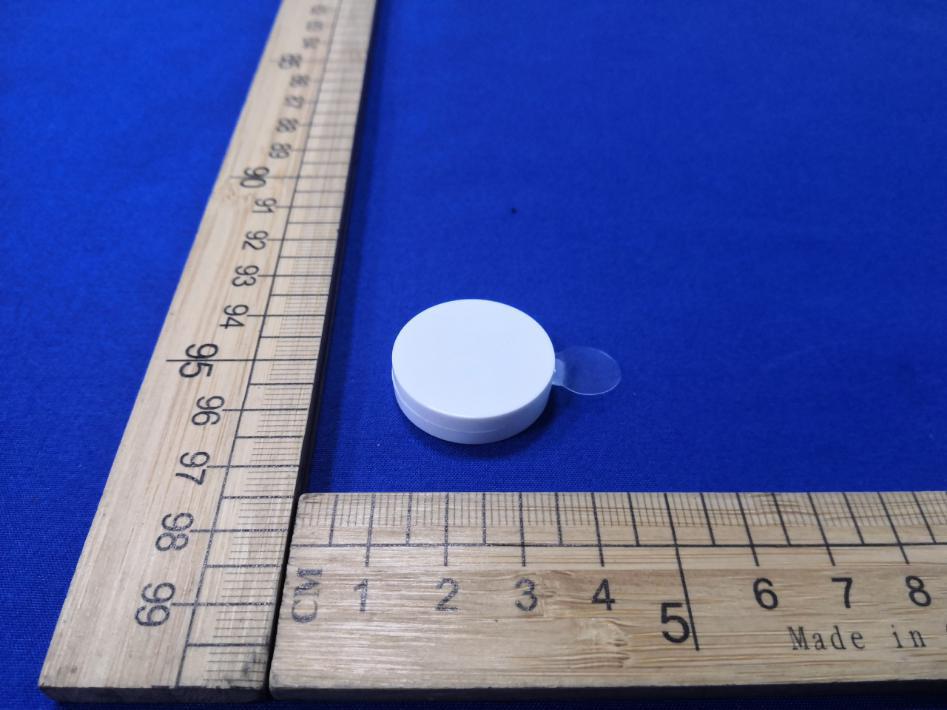

ExternalPhotographs Model:M1-P5201DC

Lable

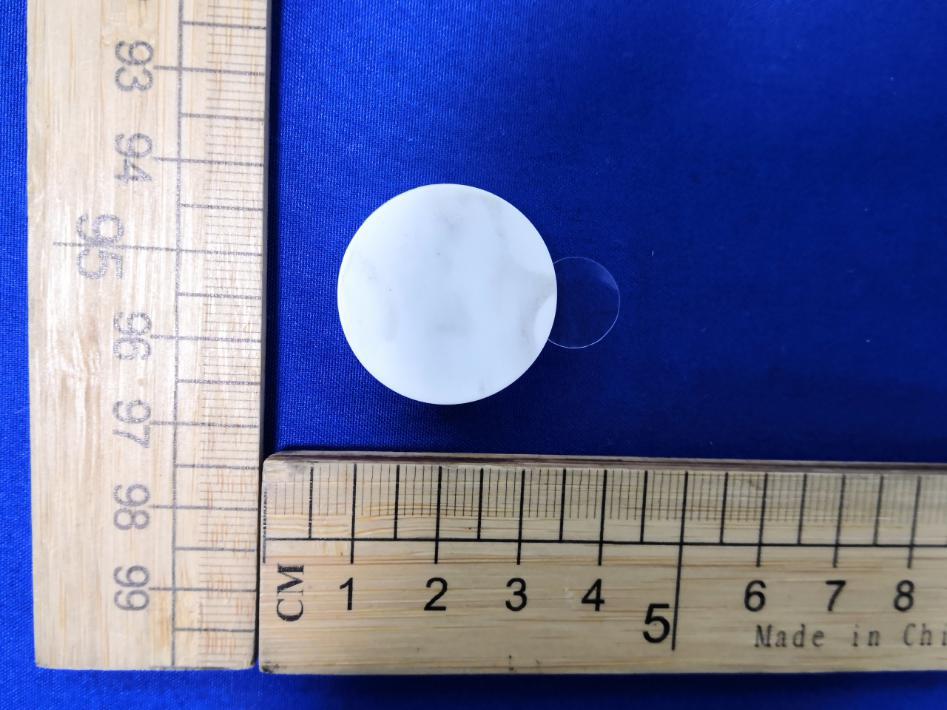

Model：M1-P5201DC InternalPhotographs ANT

version01 MOKOTECHNOLOGYLIMITED DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:M1-P5201DC,M1-i5201NN,M1-i5201D3,M1-X5201NN,M1-P5201NN,M1- P5201NC,M1-P5201D3,M1-P5201DC FCCID:2AO94-M1-P5201DC fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforinternalantennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:PCBAntenna Gainoftheantenna:-13.5dBi Frequencyrange:2402-2480MHz ModelNo.ofantenna:N/A Typeofantenna:/ Gainoftheantenna:/ Frequencyrange:/ Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Sincerely, Signature [jinghuichen] [MarketingManager] [MOKOTECHNOLOGYLIMITED]

KSIGN(Guangdong)TestingCo.,Ltd. WestSideof1/F.,BuildingC,ZoneA,FuyuanNewFactory,JiujiuIndustrialPark, Minzhu,Shatou,Shajing,Bao'anDistrict,Shenzhen,Guangdong,People’sRepublicofChina Tel.:+(86)755-29852678Fax:+(86)755-29852397E-mail:[email protected]:www.gdksign.com KSIGN(Guangdong)TestingCo.,Ltd. RFExposureEvaluation FCCID:2AO94-M1-P5201DC REQUIREMENT KDB447498D01GeneralRFExposureGuidancev06,Clause4.3.1(a) [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0 Where -f(GHz)istheRFchanneltransmitfrequencyinGHz -PoweranddistanceareroundedtothenearestmWandmmbeforecalculation -Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm,andfor transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5 mm,adistanceof5mmaccordingto4.1f)isappliedtodetermineSARtestexclusion. TESTRESULT PassedNotApplicable BLE Testmode Channel Frequency (MHz) Max. Measured Power (dBm) Max. Tuneup tolerance Power (dBm) Max. Tuneup tolerance Power (mW) Calculating data LimitResults GFSK_1M 24020.370.891.230.38 3.00Pass 2440-0.120.891.230.38 2480-0.710.891.230.39 GFSK_2M 24020.090.891.230.38 2440-0.260.891.230.38 2480-0.80.891.230.39 Note: -Theexposuresafetydistanceislessthan5mm. **********************THEEND**********************

l(KSIG旷 KSIGN (Guang d 叫）刊sti ng Co., Ltd. ‘West Side of 1/F., Building C, Zone A, Fuyuan New Factory, Jiujiu Industrial Park, - Minzhu,Shatou, Shajing, Bao ’ an District, Shenzhen, Guangdong, People ’ s Republic of China Tel.: + (86)755-29852678 Fax:+ (86)755-29852397 E-mail: [email protected]:www.gdksign.com Rep。 rt No .............. . FCC I D ············ Applicant....·－ Address .. Manufacturer ..... Address .... Factory .............. . Address .... Product Name ............ Trade Mark .... Model/Type reference .......... . Listed Model(s) ..... Standard .........................................·： Date of Receipt ... Date of Test Date .... Date of issue ............ Test result ............ . TEST REPORT KS2101S00240E MOKO TECHNOLOGY LIMITE D 2F, Building1, No. 37 Xiaxintang Xintang village, Fucheng Street, Longhua Di strict, Shenzhen, Guangdong Province, China MOKO TECHNOLOHY Ltd 2 F, Building 1, No. 37 Xiaxintang Xintang village, Fucheng Street, L onghua District, Shenzhen, Guangdong Province, China MOKO TECHNOLOHY Ltd 2F, Building1, No. 37 Xiaxintang Xintang village, Fucheng Street, Longhua District, Shenzhen, Guangdong Province, China Bluetooth Beacon M 1-P5201DC M1-i5201NN, M1-i5201D3, M1-X5201NN, M1-P5201NN, M1-P5201NC, M1-P5201D3, M1-P5201DC FCC CFR Title 47 Part 15 Subpart C Section 15.247 Jan. 11 2021 Jan. 11 2021 ～ Jan . 18 2021 J an. 20 2021 Pass ） ert HU ＋k a nH nuu s ＋ e VJ T ba －Hu n川 怡 d 阳恒mm nu re DE C ／飞 Supervised by: ( Printed name+signature) 、‘，，， e ，『E U 盒，， ．． an nHM quv ＋ e r卜 m ba n －HU ed ve 〉 t HHnH nv － n nFDE A （ Testing Laboratory Name ........ . Address .. Rory Huang EderZhan Cary Luo KSIGN(Guangd。ng) Testing Co., Ltd. West Side of 1/F., Building C, Zone A, Fuyuan New Factory, Jiuj1u Industrial Park, Minzhu,Shatou, Sh句ing,Bao ’ an District, Shenzhen, Guanqdonq, People ’ s Republic of China This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written app「ovalof our laboratory. The client should not use it to claim P「oductendorsement by KSIGN. The test results in the report only apply to the tested sample. The test 「eport shall be invalid without all the signatu「es of testing engineers, reviewer and approver. Any objections must be raised to KSIGN within 15 days since the date when the repo「tis received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. 2A094-M1-P5201DC Page 2 of 56 Report No.: KS2101S00240E KSIGN(Guangdong) Testing Co., Ltd. TABLE OF CONTENTS Page 1. TEST SUMMARY .............................................................................................................................................................. 3 1.1. TEST STANDARDS ................................................................................................................................................................. 3 1.2. REPORT VERSION ................................................................................................................................................................. 3 1.3. TEST DESCRIPTION ............................................................................................................................................................... 4 1.4. TEST FACILITY ................................................................................................................................................................. 5 1.5. MEASUREMENT UNCERTAINTY ............................................................................................................................................... 6 1.6. ENVIRONMENTAL CONDITIONS ................................................................................................................................................ 6 2. GENERAL INFORMATION ................................................................................................................................................. 7 2.1. GENERAL DESCRIPTION OF EUT .............................................................................................................................................. 7 2.2. OPERATION STATE ................................................................................................................................................................ 8 2.3. MEASUREMENT INSTRUMENTS LIST ......................................................................................................................................... 9 2.5. TEST SOFTWARE ................................................................................................................................................................... 9 3. TEST ITEM AND RESULTS ............................................................................................................................................... 10 3.1. ANTENNA REQUIREMENT ..................................................................................................................................................... 10 3.2. PEAK OUTPUT POWER ........................................................................................................................................................ 11 3.3. POWER SPECTRAL DENSITY .................................................................................................................................................. 16 3.4. 6DB BANDWIDTH .............................................................................................................................................................. 21 3.5. BAND EDGE AND SPURIOUS EMISSION (CONDUCTED) ................................................................................................................ 28 3.6. BAND EDGE EMISSIONS(RADIATED) ................................................................................................................................... 32 3.7. SPURIOUS E…

Text truncated - open the document above for the full version.

M1-P5201DC RadiatedMeasurement(Below1GHz) RadiatedMeasurement(Above1GHz) RFConducted
