2AO94-M2Bluetooth Beacon

M2 iBeacon Eddystone High performance Beacon for assets tracking ⚫Long and stable advertising signal make it easy to trace your assets ⚫Ruggedized design with IP67 waterproof can be used in the harshest indoor and outdoor environments ⚫Various installation methods make it possible to deploy anywhere Smart hardware and software enables M2 to join your solution easily ⚫Supports Apple iBeacon, Google Eddystone(UID, URL, TLM) and MokoBeaconX Pro Beacon protocols ⚫Hardware is compatible with Bluetooth 5.1 ⚫Integrated accelerometer and magnetic (Hall-effect sensor) switch sensors ⚫G-sensor for motion detection can identify whether the Beacon is moving ⚫Large-capacity and replaceable CR2477 battery ensures up to 5 years lifetime ⚫Smartphone app (iOS & Android, and provide SDK) easily configure all parameters All-round service to save your time and costs to market quickly ⚫Certified for USA (FCC), Europe (CE) including REACH and RoHS environmental regulation ⚫All other worldwide certifications can be customized ⚫Branding, Logo, Label, Packaging, Manufacture parameters, even hardware and firmware are all customizable Product Brief M2 is mainly used for Assets Tracking, Indoor Navigation, Wayfinding, Proximity Marketing, etc. Its IP67 enclosure ensures robust protection for even the harshest of environments and it can be deployed in factory, warehouse, building and other indoor or outdoor places by its multi installation methods. 70 mm (2.76 in) 46 mm (1.81 in) 21 mm (0.83 in) General Features Main Chip Bluetooth Range Dimension Weight Material Waterproof Color Installation Button LED Sensor Operational temperature Humidity (non-condensing) Nordic nRF52811 Bluetooth 5.1 Up to 160 meters (in the open area and no obstacles) 70mm x 46mm x 21mm 33.5g (With battery) ABS+PC IP67 Grey Lanyard, Hang, Sticker, Screw Inner mechanical button (mounted on PCBA) Single red led Omnipolar Hall-effect sensor for magnetic switch 3-axis accelerometer sensor (optional) -20°C / + 60°C 0% ~ 95% Function Advertising Apple iBeacon Google Eddystone (UID, URL, TLM) MOKO BeaconXPro sensor data ( with 3-axis Acc sensor) Multi-advertising Support up to 6 active slots (Beacon can broadcasts different advertising packets separately) Power on/off Press inner mechanical button Magnet approaching to pull-down hall effect sensor Configuration Advertising format and data/ Beacon Name Tx Power/ Advertising interval Connection password/Trigger options/ Sensor parameters Sensor collection Broadcast or notify the 3-axis acc data in real time (with 3-axis Acc sensor) Motion detection 3-axis Acc sensor identify whether the Beacon is moving to change the advertising status and data Power saving mode Motion detection stops Beacon broadcasting and make Beacon to sleep Firmware updateNordic DFU OTA/ J-link Configuration APP BeaconXPro APP for iOS and Android Open APP SDK for customer to develop Power Power supply Replaceable 1000mAh lithium coin CR2477 battery Average current 21uA (1 active slot, 1000ms ADV interval and 0 dBm Tx power, no 3-axis Acc sensor) 28 uA（1 active slot,1000ms ADV interval and 0 dBm Tx power, motion detection always active） Lifetime 5 years (no 3-axis Acc sensor) 3.5 years (with 3-axis Acc sensor and motion detection always active) Service and Customization Certification USA (FCC), Europe (CE-RED, CE-LVD, CE-EMC, REACH, RoHS ) Other certifications or approvals can be customized Manufacture customization MP Pre-configuration parameters Package/ Laser logo/ Label Development Custom firmware development Customer firmware programing Custom hardware design and layout MOKO TECHNOLOGY LTD. Add：4F, Building2, GuanghuiTechnology Park, MinQingRd, Longhua, Shenzhen, Guangdong, China Tel: 86-75523573370 Fax:86-75523573370-808 E-mail:[email protected] Website:www.mokoblue.com www.mokosmart.com Contact Us FCC STATEMENT 1.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 5mm between the radiator & your body.

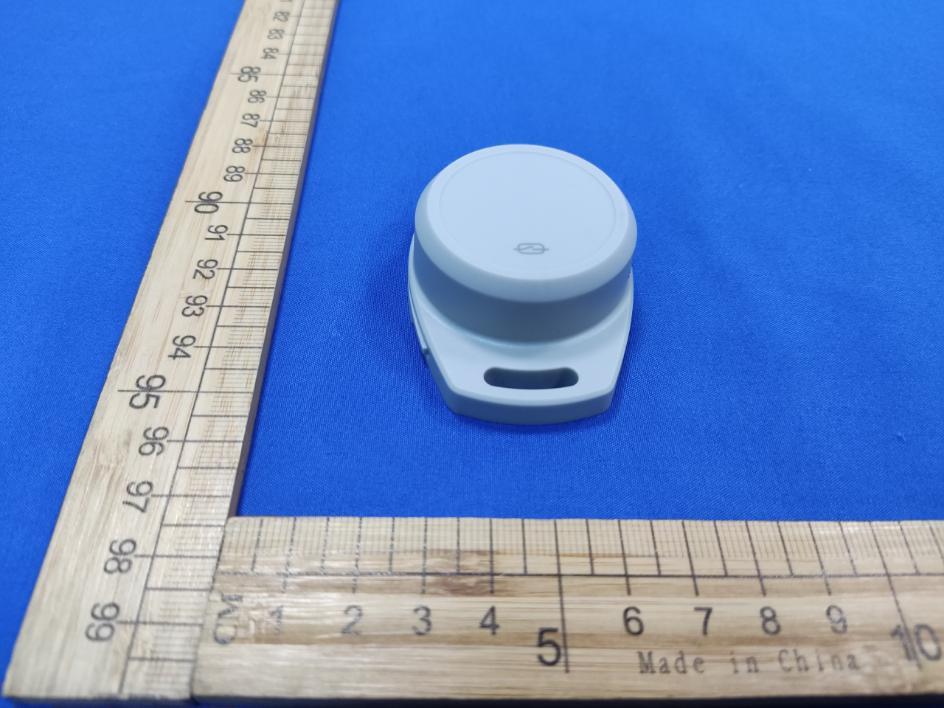

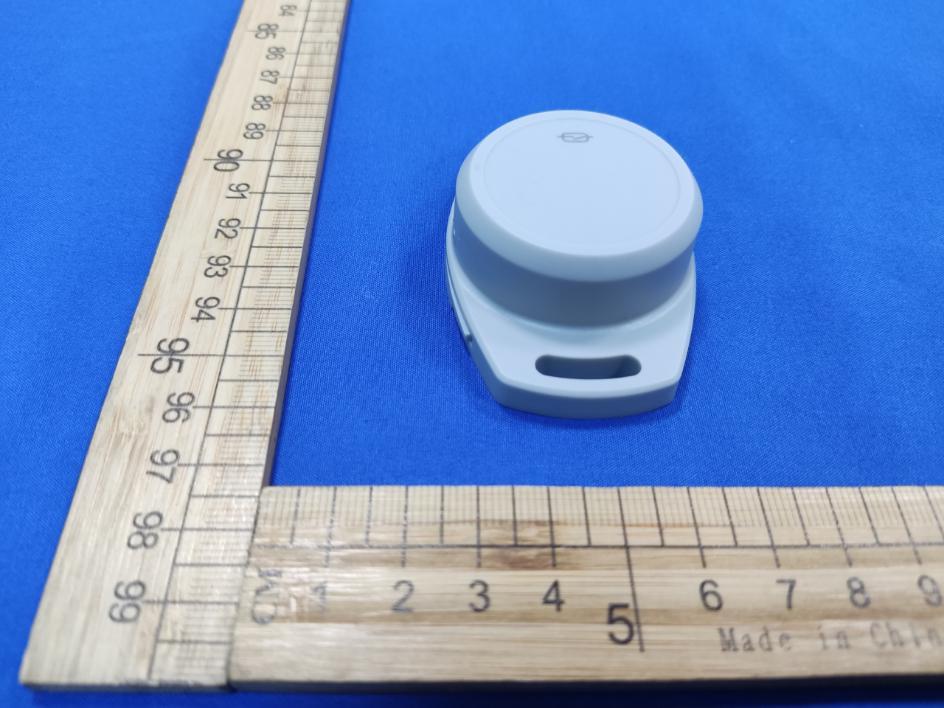

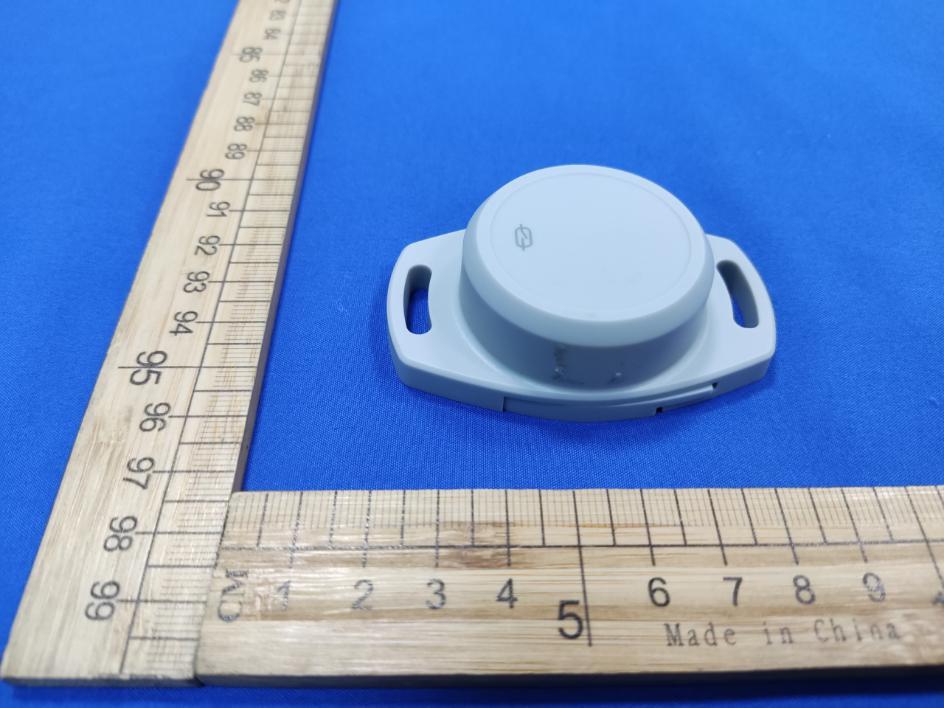

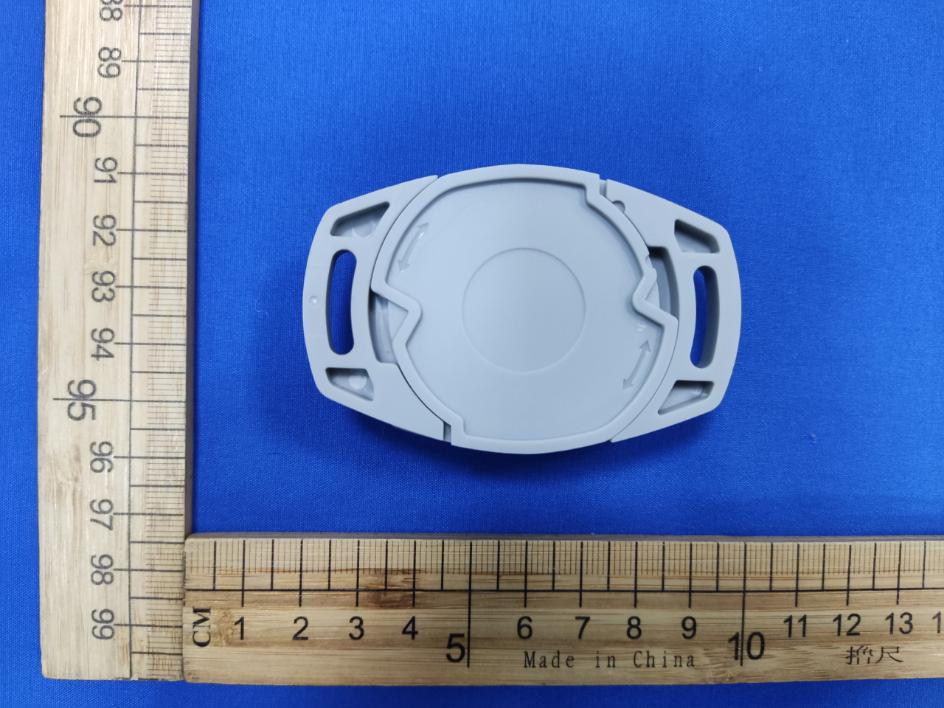

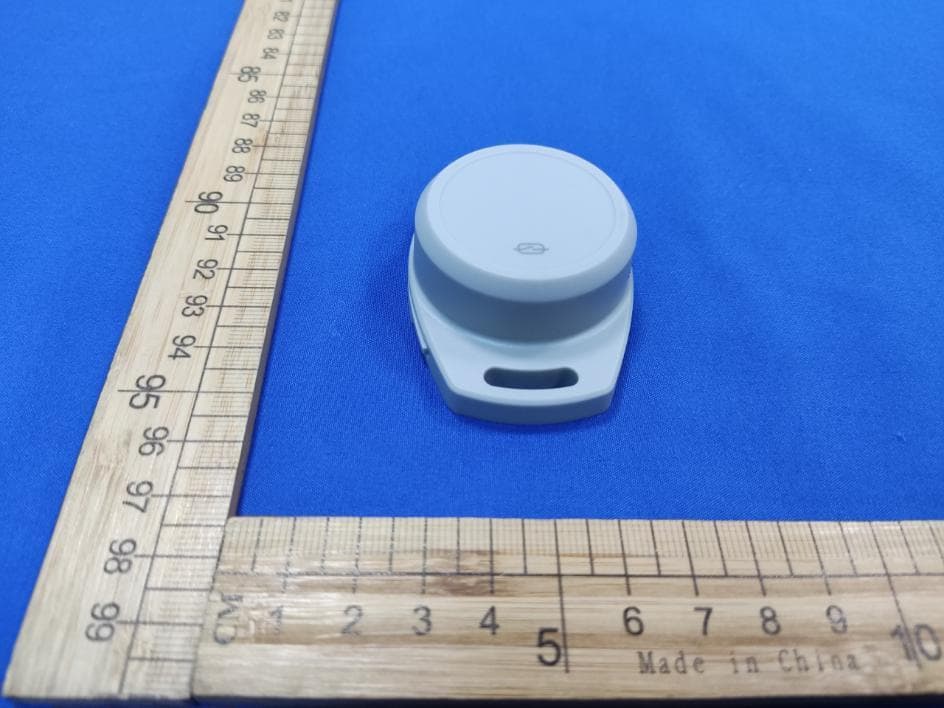

Model:M2 ExternalPhotographs Model:M2 Model:M2

LabelPosition FCCID:2AO94-M2

Model:M2 Internalphotos Model:M2 Model:M2 Model:M2 ANT Model:M2

version01 MOKOTECHNOLOGYLIMITED DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct FCCID:2AO94-M2 ModelNo.:M2,M2-PNFAX-HA,M2-PNFA-HA,M2-PNFN-HA,M2-PNFNX-HA,M2-PNFA, M2-PNFN,M2-PNFAX,M2-PNFNX fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforinternalantennatype(s) describedbelow: Antenna1 ModelNo.ofantenna:N/A Typeofantenna:PCBAntenna Gainoftheantenna:2.46dBi Frequencyrange:2402-2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Sincerely, Signature [jinghuichen] [MarketingManager] MOKOTECHNOLOGYLIMITED 2F,Building1,No.37XiaxintangXintangvillage,FuchengStreet,LonghuaDistrict,Shenzhen, GuangdongProvince,China

KSIGN(Guangdong)TestingCo.,Ltd. WestSideof1/F.,BuildingC,ZoneA,FuyuanNewFactory,JiujiuIndustrialPark, Minzhu,Shatou,Shajing,Bao'anDistrict,Shenzhen,Guangdong,People’sRepublicofChina Tel.:+(86)755-29852678Fax:+(86)755-29852397E-mail:[email protected]:www.gdksign.com KSIGN(Guangdong)TestingCo.,Ltd. RFExposureEvaluation FCCID:2AO94-M2 REQUIREMENT KDB447498D01GeneralRFExposureGuidancev06,Clause4.3.1(a) [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0 Where -f(GHz)istheRFchanneltransmitfrequencyinGHz -PoweranddistanceareroundedtothenearestmWandmmbeforecalculation -Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm,andfor transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5 mm,adistanceof5mmaccordingto4.1f)isappliedtodetermineSARtestexclusion. TESTRESULT PassedNotApplicable BLE Testmode Channel Frequency (MHz) Max. Measured Power (dBm) Tuneup tolerance (dBm) Max. Tuneup Power (dBm) Maximum Output Power (mW) Calculating data LimitResults GFSK_1M 2402-2.05-2.05±1-1.050.790.24 3.00Pass 2440-2.17-2.17±1-1.170.760.24 2480-2.68-2.68±1-1.680.680.21 GFSK_2M 2402-1.96-1.96±1-0.960.800.25 2440-2.09-2.09±1-1.090.780.24 2480-2.8-2.8±1-1.80.660.21 Note: Theexposuresafetydistanceislessthan5mm. **********************THEEND**********************

Page 2 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. TABLEOFCONTENTSPage 1.TESTSUMMARY ....................................................................................................................................................................... 3 1.1. TESTSTANDARDS ................................................................................................................................................................... 3 1.2.REPORTVERSION ................................................................................................................................................................... 3 1.3.TESTDESCRIPTION ................................................................................................................................................................. 4 1.4. TESTFACILITY ........................................................................................................................................................................ 5 1.5.MEASUREMENTUNCERTAINTY ................................................................................................................................................. 6 1.6.ENVIRONMENTALCONDITIONS ................................................................................................................................................. 6 2.GENERALINFORMATION ......................................................................................................................................................... 7 2.1. GENERALDESCRIPTIONOFEUT ............................................................................................................................................... 7 2.2.OPERATIONSTATE .................................................................................................................................................................. 8 2.3.MEASUREMENTINSTRUMENTSLIST .......................................................................................................................................... 9 2.5.TESTSOFTWARE ..................................................................................................................................................................... 9 3.TESTITEMANDRESULTS ........................................................................................................................................................ 10 3.1.ANTENNAREQUIREMENT ...................................................................................................................................................... 10 3.2. PEAKOUTPUTPOWER ......................................................................................................................................................... 11 3.3. POWERSPECTRALDENSITY ................................................................................................................................................... 16 3.4.6DBBANDWIDTH ................................................................................................................................................................ 21 3.5.BANDEDGEANDSPURIOUSEMISSION(CONDUCTED) ................................................................................................................ 28 3.6. BANDEDGEEMISSIONS(RADIATED) ........................................................................................................................................ 32 3.7.SPURIOUSEMISSION(RADIATED) ........................................................................................................................................... 37 3.8.CONDUCTEDEMISSION ......................................................................................................................................................... 48 4.EUTTESTPHOTOS .................................................................................................................................................................. 49 5.PHOTOGRAPHSOFEUTCONSTRUCTIONAL .......................................................................................................................... 51 Page 3 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. 1.TESTSUMMARY 1.1.TestStandards Thetestswereperformedaccordingtofollowingstandards: FCCRulesPart15.247:Operationwithinthebandsof902-928MHz,2400-2483.5MHz,and 5725-5850MHz. KDB558074D01：ThemeasurementguidanceprovidedhereinisapplicableonlytoDigital TransmissionSystem(DTS)devicesoperatinginthe902-928MHz.2400-2483.5MHzand/or 5725-5850MHzbandsunder§15.247oftheFCCrules(Title47oftheCodeofFederal Regulations) ANSIC63.10-2013:AmericanNationalStandardforTestingUnlicensedWirelessDevices. 1.2.Reportversion RevisedNo.DateofissueDescription 01May.19,2021Original Page 4 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. 1.3.TestDescription FCCPart15SubpartC(15.247) TestItem StandardSection ResultTestEngineer FCC AntennaRequirement 15.203PassRoryHuang ConductedEmission 15.207N/AN/A RestrictedBands 15.205PassRoryHuang PeakOutputPower 15.247(b)Pass RoryHuang BandEdgeEmissions 15.247(d)PassRoryHuang PowerSpectralDensity15.247(e) Pass RoryHuang RadiatedEmission 15.205&15.209PassRoryHuang 6dBBandwidth 15.247(a)(2)Pass RoryHuang SpuriousRFConductedEmission15.247(d) PassRoryHuang Note: Themeasurementuncertaintyisnotincludedinthetestresult. Page 5 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. 1.4.TestFacility Addressofthereportlaboratory KSIGN(Guangdong)TestingCo.,Ltd. WestSideof1/F.,BuildingC,ZoneA,FuyuanNewFactory,JiujiuIndustrialPark,Minzhu,Shatou,Shajing, Bao'anDistrict,Shenzhen,Guangdong,People’sRepublicofChina Laboratoryaccreditation Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: CNAS-LabCode:L13261 KSIGN(Guangdong)TestingCo.,Ltd.hasbeenassessedandprovedtobeinCompliancewithCNAS-CL01 AccreditationCriteriaforTestingandCalibrationLaboratories(identicaltoISO/IEC17025:2017General Requirements)fo…

Text truncated - open the document above for the full version.

Page 26 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. 2440MHz 6dBBandwidth 99%Bandwidth Page 27 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. 2480MHz 6dBBandwidth 99%Bandwidth Page 28 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. 3.5.BandedgeandSpuriousEmission(Conducted) Limit FCCCFRTitle47Part15SubpartCSection15.247(d): Inany100kHzbandwidthoutsidethefrequencybandinwhichthespreadspectrumintentionalradiatoris operating,theradiofrequencypowerthatisproducedbytheintentionalradiatorshallbeatleast20dBbelow thatinthe100kHzbandwidthwithinthebandthatcontainsthehighestlevelofthedesiredpower,basedon eitheranRFconductedoraradiatedmeasurement. TestConfiguration TestProcedure 1.ConnectEUTRFOutputporttotheSpectrumAnalyzerthroughanRFattenuator. 2.SpectrumSetting: RBW=100KHz VBW=300KHz. Detectorfunction:Peak. Trace:Maxhold. Sweep=Autocouple. Allowthetracetostabilize. TestMode Pleaserefertotheclause2.2. Page 29 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. TestResults GFSK_1M CH00-BandedgeCH39-Bandedge GFSK_2M CH00-BandedgeCH39-Bandedge Page 30 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. GFSK_1M CH00-SE CH19-SE CH39-SE Page 31 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. GFSK_2M CH00-SE CH19-SE CH39-SE Page 32 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. 3.6.BandEdgeEmissions (Radiated) Limit RestrictedFrequencyBand (MHz) (dBuV/m)(at3m) PeakAverage 2310~23907454 2483.5~25007454 Note:Allrestrictionbandshavebeentested,onlytheworstcaseisreported. TestConfiguration TestProcedure 1.TheEUTwassetupandtestedaccordingtoANSIC63.10:2013requirements. 2.TheEUTisplacedonaturntablewhichis1.5meteraboveground.Theturntableisrotated360degreesto determinethepositionofthemaximumemissionlevel. 3.TheEUTwaspositionedsuchthatthedistancefromantennatotheEUTwas3meters. 4.Theantennaisscannedfrom1meterto4meterstofindoutthemaximumemissionlevel.Thisisrepeated forbothhorizontalandverticalpolarizationoftheantenna.Inordertofindthemaximumemission,allofthe interfacecablesweremanipulatedaccordingtoANSIC63.10:2013onradiatedmeasurement. 5.Thereceiversetasfollow: RBW=1MHz,VBW=3MHzPEAKdetectorforPeakvalue. RBW=1MHz,VBW=10HzwithPEAKDetectorforAverageValue. TestMode Pleaserefertotheclause2.2. TestResults Note: (1)Measurement=Readinglevel+CorrectFactor (2)CorrectFactor=AntennaFactor+CableLoss-PreamplifierFactor (3)Allmodulationmodesweretested,andonlytheworstdataofGFSK_2Mwasrecordedinthereport. Page 33 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. TestVoltage DC3.0V Ant.Pol.:Horizontal TestMode:TXBLEMode2402MHz EmissionLevel=ReadLevel+CorrectFactor Page 34 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. TestVoltage DC3.0V Ant.Pol.Vertical TestMode:TXBLEMode2402MHz EmissionLevel=ReadLevel+CorrectFactor Page 35 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. TestVoltage DC3.0V Ant.Pol.Horizontal TestMode:TXBLEMode2480MHz EmissionLevel=ReadLevel+CorrectFactor Page 36 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. TestVoltage DC3.0V Ant.Pol.Vertical TestMode:TXBLEMode2480MHz EmissionLevel=ReadLevel+CorrectFactor Page 37 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. 3.7.SpuriousEmission(Radiated) Limit RadiatedEmissionLimits(9kHz~1000MHz) Frequency (MHz) FieldStrength (microvolt/meter) MeasurementDistance (meters) 0.009~0.4902400/F(KHz)300 0.490~1.70524000/F(KHz)30 1.705~30.03030 30~881003 88~2161503 216~9602003 Above9605003 RadiatedEmissionLimit(Above1000MHz) Frequency (MHz) DistanceMeters(at3m) PeakAverage Above10007454 Note: (1)Thetighterlimitappliesatthebandedges. (2)EmissionLevel(dBuV/m)=20logEmissionLevel(uV/m). TestConfiguration Below30MHzTestSetup Page 38 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. Below1000MHzTestSetup Below1000MHzTestSetup Above1GHzTestSetup TestProcedure 1.TheEUTwassetupandtestedaccordingtoANSIC63.10:2013 2.TheEUTisplacedonaturntablewhichis0.8meterabovegroundforbelow1GHz,and1.5mforabove1 GHz.Theturntableisrotated360degreestodeterminethepositionofthemaximumemissionlevel. 3.TheEUTwasset3metersfromthereceivingantenna,whichwasmountedonthetopofavariableheight antennatower. 4.Foreachsuspectedemission,theEUTwasarrangedtoitsworstcaseandthentunetheAntennatower (from1mto4m)andturntable(from0degreeto360degrees)tofindthemaximumreading.Apre-amp andahighpassfilterareusedforthetestinordertogetbettersignalleveltocomplywiththeguidelines. 5.SettothemaximumpowersettingandenabletheEUTtransmitcontinuously. 6.Usethefollowingspectrumanalyzersettings (1)Spanshallwideenoughtofullycapturetheemissionbeingmeasured; (2)Below1GHz: RBW=120kHz,VBW=300kHz,Sweep=auto,Detectorfunction=peak,Trace=maxhold; IftheemissionleveloftheEUTmeasuredbythepeakdetectoris3dBlowerthantheapplicablelimit,the peakemissionlevelwillbereported.Otherwise,theemissionmeasurementwillberepeatedusingthe quasi-peakdetectorandreported. (3)From1GHzto10 th harmonic: RBW=1MHz,VBW=3MHzPeakdetectorforPeakvalue. RBW=1MHz,VBW=10HzPeakdetectorforPeakvalue. Page 39 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. TestMode Pleaserefertotheclause2.2. TestResult 9KHz~30MHzand18GHz~25GHz From9KHz~30MHzand18GHz~25GHz:Conclusion:PASS Note: 1)Measurement=Readinglevel+CorrectFactor CorrectFactor=AntennaFactor+CableLoss-PreamplifierFactor 2)Thepeaklevelislowerthanaveragelimit(54dBuV/m),thisdataisthetooweakinstrumentofsignalis unabletotest. 3)Theemissionlevelsofotherfrequenciesareverylowerthanthelimitandnotshowintestreport. 4)Theamplitudeofspuriousemissionswhichareattenuatedbymorethan20dBbelowthepermissiblevalue hasnoneedtobereported. 5)Pre-scanCH00,CH19andCH49modulation,andfoundtheGFSK_2M_CH00whichitisworsecasefor 30MHz-1GHz,Soonlyshowthetestdataforworsecase. BELOW30MHZ Noemissionfoundbetweenlowestinternalused/generatedfrequenciesto30MHz. Page 40 of 58 ReportNo.:KS2104S1022E KSIGN(Guangdong)TestingCo.,Ltd. 30MHz-1GHz testvoltageDC3.0V Ant.Pol.Horizontal EmissionLevel=ReadLevel+CorrectFactor Page 41 of 58…

Text truncated - open the document above for the full version.

Model:M2 RadiatedMeasurement(Below1GHz) RadiatedMeasurement(Above1GHz) Model:M2 RFConducted
