2AO94-M4PROBluetooth Beacon

1 Copyright © 2023 MOKO TECHNOLOGY LTD. Product Specification M4/M4 Pro Series Products Version 2.0 MOKO TECHNOLOGY LTD. M4/M4 Pro Series Products Specification V2.0 1 Copyright © 2024 MOKO TECHNOLOGY LTD. Revision History Version Data Notes Contributor(s) V2.0 Nov 30, 2023 Initial version Daniel About document This product specification was designed to help users to know the hardware overview and feature instructions of M4/M4 Pro Series Products. Through this document, users will be initial to understand the application scenarios, hardware specifications, basic instructions as well as packaging information of product. M4/M4 Pro Series Products Specification V2.0 2 Copyright © 2024 MOKO TECHNOLOGY LTD. Table of Contents 1. Overview ............................................................................................................................................ 3 2. Product brief ....................................................................................................................................... 4 3. General specifications ......................................................................................................................... 5 3.1 Hardware specifications .................................................................................................................................. 5 3.2 Lifecycle estimation ......................................................................................................................................... 5 3.3 LED functionality .............................................................................................................................................. 6 4. Basic instructions ................................................................................................................................ 7 4.1 How to power ON/OFF device? ........................................................................................................................ 7 4.2 How to restore factory settings? ...................................................................................................................... 7 4.3 How to replace battery? .................................................................................................................................. 8 5. Ordering information .......................................................................................................................... 9 6. Package information ......................................................................................................................... 10 M4/M4 Pro Series Products Specification V2.0 3 Copyright © 2024 MOKO TECHNOLOGY LTD. 1. Overview This Product specification is mainly applicable for MOKO M4/M4 Pro Series Products, which contains:  M4 – M4 Asset Tag, Silicon Labs MCU, without temperature sensor, without waterproof  M4S – M4 Sensor Tag, Silicon Labs MCU, with temperature sensor, without waterproof  M4P – M4 Pro Asset Tag, Silicon Labs MCU, without temperature sensor, with IP67 waterproof  M4PS – M4 Pro Sensor Tag, Silicon Labs MCU, with temperature sensor, with IP67 waterproof M4/M4 Pro Series Products - Overview Product model M4/M4S M4P/M4PS ID Appearance Table 1: Overview of M4/M4 Pro Series Products All above product models have the similar casing and only main difference on the hardware, which dedicated to different use cases, so the product specifications shall be similar and mainly contained below parts: ➢ Product brief ➢ General specifications ➢ Basic instructions ➢ Ordering information ➢ Package information For more information about user guidance of product functions and configuration APP, please contact our sales team directly for official document. M4/M4 Pro Series Products Specification V2.0 4 Copyright © 2024 MOKO TECHNOLOGY LTD. 2. Product brief The M4/M4 Pro Series Products have two different use cases regarding of several hardware models, which are all Bluetooth Low Energy technology based. M4/M4P product model, are mainly dedicated for asset tracking with its compact design and up to 350m transmission distance based on BLE 5.0 Coded PHY settings. M4S/M4PS product model, are mainly dedicated for asset tracking as well as the additional temperature monitoring in the warehouse or logistics, with its built-in temperature sensor and memory logger. Figure 1: Appearance overview of M4 Series Products (Left) and M4 Pro Series Products (Right) M4/M4 Pro Series Products Specification V2.0 5 Copyright © 2024 MOKO TECHNOLOGY LTD. 3. General specifications 3.1 Hardware specifications General Specifications Item Specs M4 M4S M4P M4PS Casing ID Appearance Dimension (L*W*H) 36.5*23.5*5.2mm 42.0*26.0*6.0mm Material PC Nylon Waterproof No IP67 Color White White Installation 3M tape | Zip tie 3M tape | Zip tie Electronic Bluetooth BLE 5.1 BLE 5.1 BLE 5.1 BLE 5.1 MCU Silicon Labs Silicon Labs Silicon Labs Silicon Labs Maximum Tx Power +6dBm +6dBm +6dBm +6dBm Long range mode Yes Yes Yes Yes Transmission range* 150m (Legacy mode) 350m (Long range mode) 150m (Legacy mode) 350m (Long range mode) Accelerometer sensor Yes Yes Yes Yes Temperature sensor No Yes No Yes Temperature accuracy - ±0.5 °C - ±0.5 °C Temperature logger - 50000 groups - 50000 groups External memory No Yes 512K Bytes No Yes 512K Bytes LED Red Red Red Red Battery Capacity 220mAh 220mAh Replaceable battery Yes Yes Environmental Operating temperature -20°C/+60°C -20°C/+60°C Regulatory Certifications FCC | CE | RoHS | REACH FCC | CE | RoHS | REACH Table 2: Hardware specifications of M4/M4 Pro Series Products *Transmission range tested in the open area and no obstacles in the route. 3.2 Lifecycle estimation Please refer to documents – “MOKO Beacon_Battery Lifecycle summary” for more details on battery lifecycle. Remark: M4/M4 Pro Series Products can be applicable for different series firmware, please double check before battery lifecycle calculations. M4/M4 Pro Series Products Specification V2.0 6 Copyrig…

Text truncated - open the document above for the full version.

MOKO TECHNOLOGY Ltd Covered Equipment Certification Attestation Letter 11/26/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AO94-M4PRO MOKO TECHNOLOGY Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. MOKO TECHNOLOGY Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Jinghui.Chen Title: SEO Company Name: MOKO TECHNOLOGY Ltd Date: 11/26/2024

* MOKO TECHNOLOGY Ltd the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 303 River Road Ottawa K1V 1H2 Nov 25, 2024 Nemko North America, Inc. Canada Per section 2.911(d)(7) of the FCC rules, Wuhan Yixin Technology Co., Ltd.certifies that the equipment for which authorization is sought is designated to the following U.S. Designated ATTN.: Reviewing Engineer FCC ID: 2AO94-M4PRO FRN:0027351667 agent* for service of process: Company Name: Phuntion LLC Physical U.S. Company Address: 25214 Spectrum, Irvine, CA92618 Agent name: Jun.Tian Agent Email Address: [email protected] FRN:0033422403 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Valid untilNov 24, 2025 Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Printed name: Title: Company Name: Signed: Printed name: Title: Company Name: Date: Jinghui.Chen SEO MOKO TECHNOLOGY Nov 25, 2024 Date: Jun.Tian CEO Phuntion Nov 25, 2024

MOKO TECHNOLOGY Ltd 11/26/2024 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2AO94-M4PRO Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT LONG-TERM CONFIDENTIALITY: Schematics Block Diagrams Theory of Operation The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Signed: Printed name:Jinghui.Chen Title:SEO

MOKO TECHNOLOGY Ltd statementdifferenceModel EUT: Bluetooth Beacon Model Number: M4P, eTA1, M4P-PNHAX, M4P-PNHNX, M4P-PNHN, M4P-PNHA ,M4 Pro FCC ID:2AO94- (It's just different model, appearance, temperature sensor, everything else is the same. ncluding product materials , circuits, antenna,RF modules are the same") M4PRO Sincerely, Address : Factory 201, 107 Pinshun Rd Guixiang community, Guanlan Street, Longhua, Shenzhen, Printed name: Jinghui.Chen China 518110

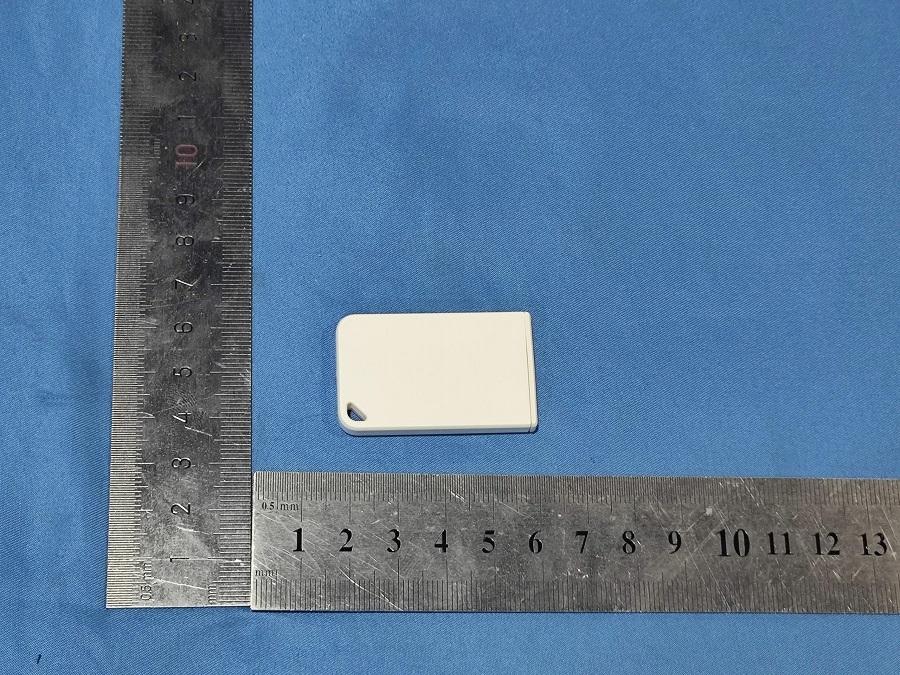

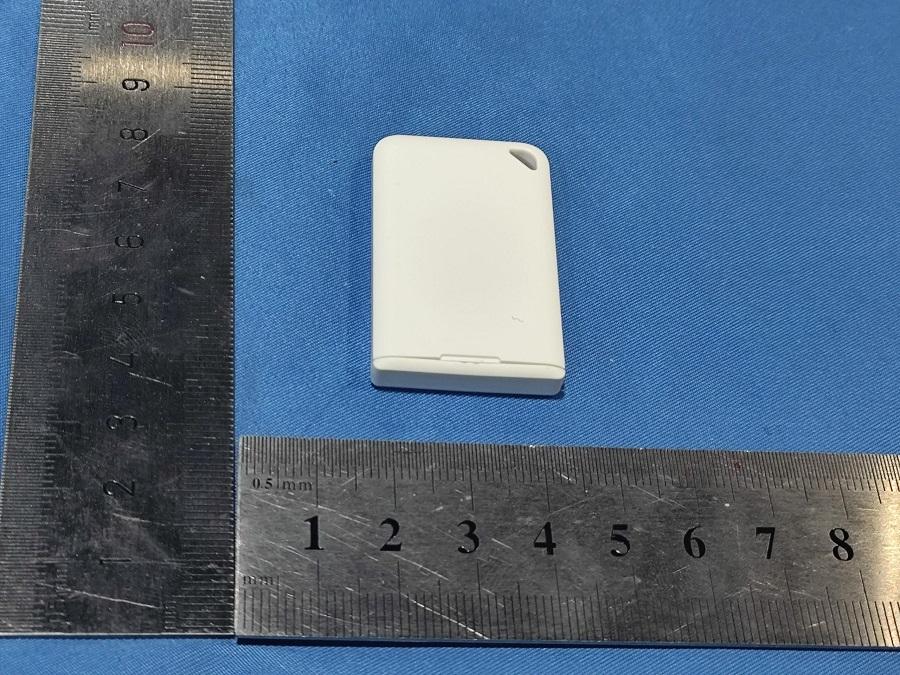

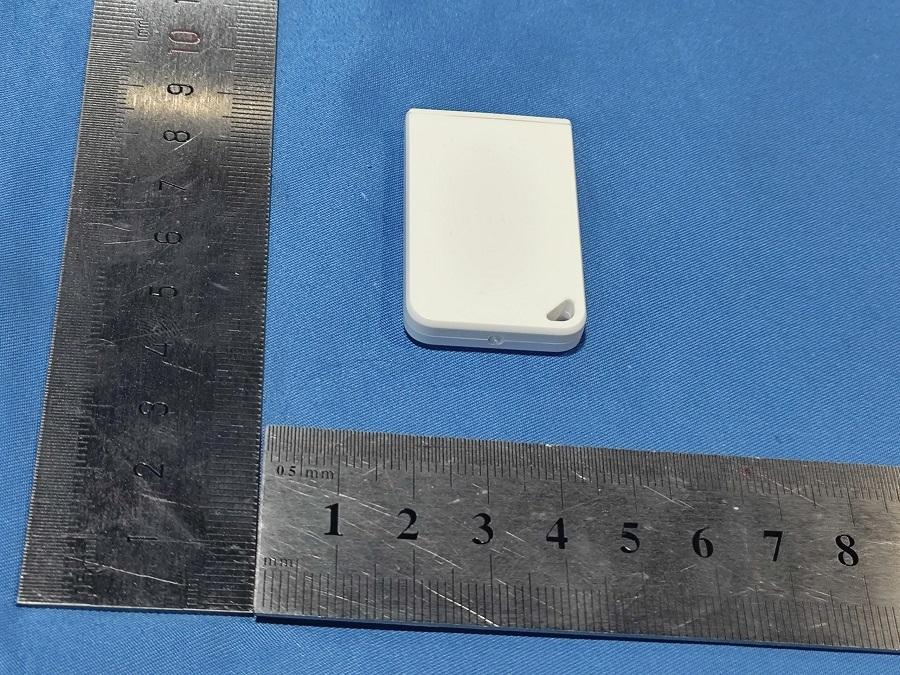

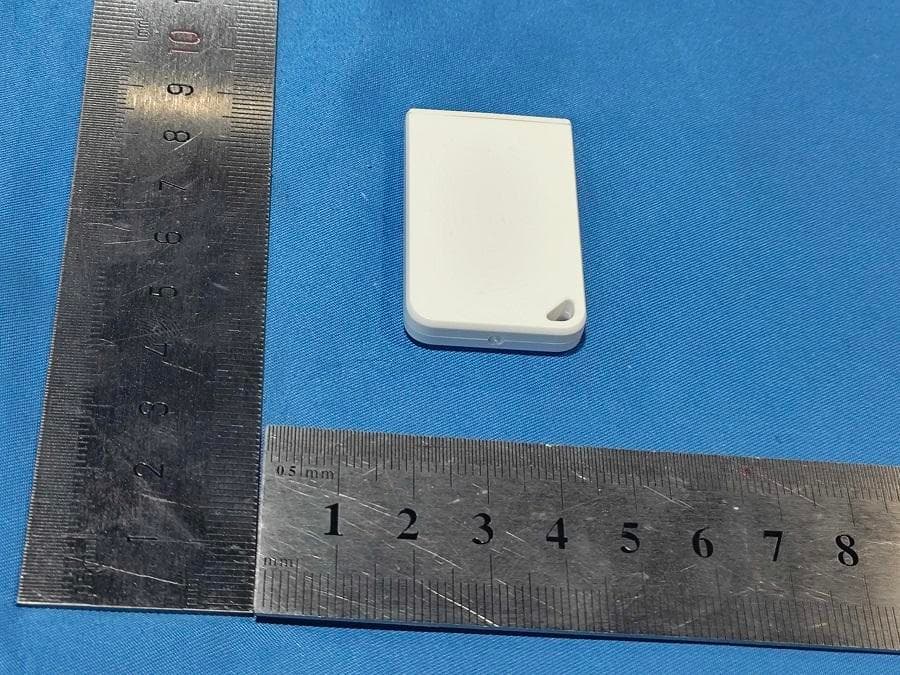

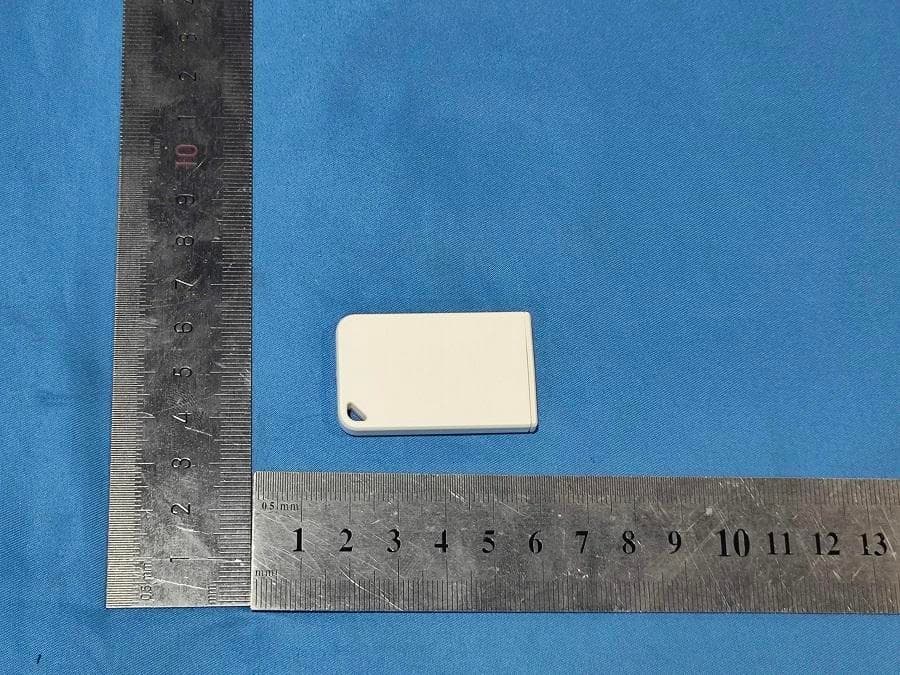

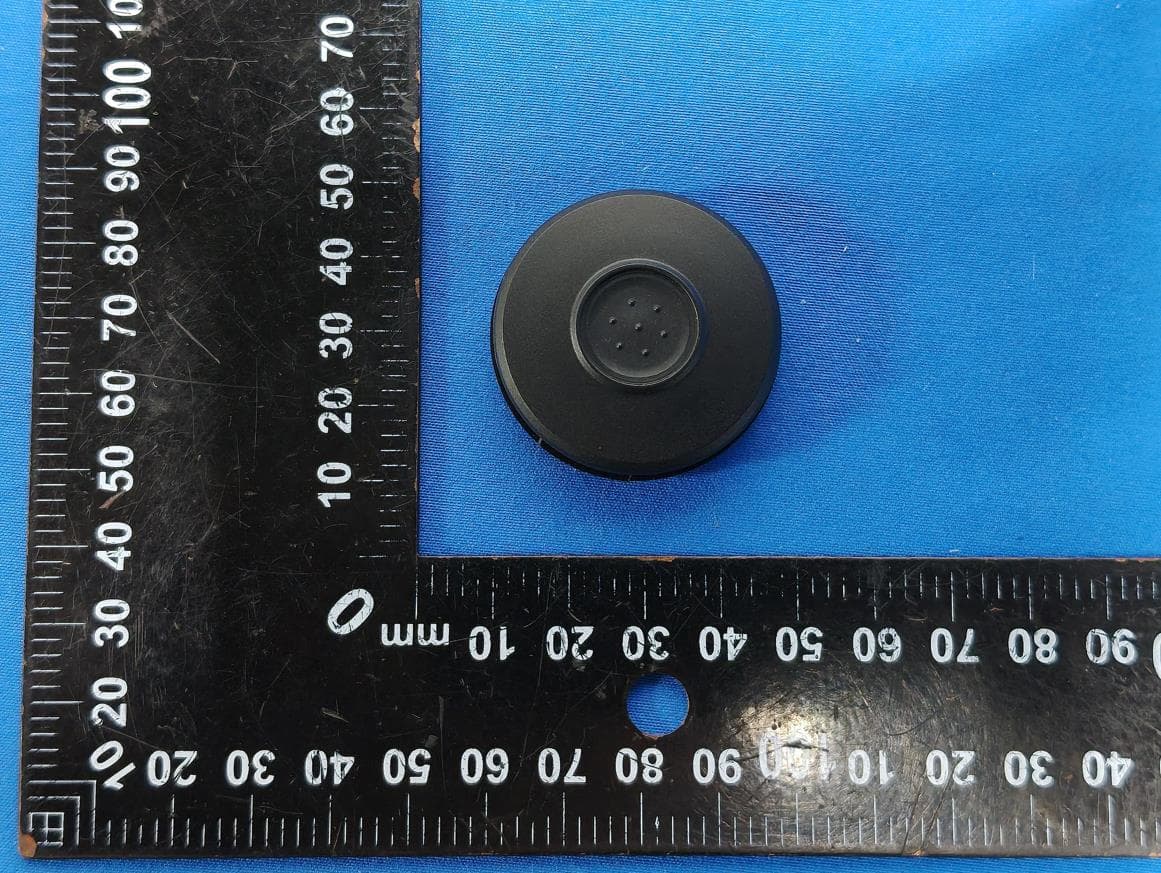

FCC ID: 2AO94-M4PRO Page 1/3 External photo FCC ID: 2AO94-M4PRO Page 2/3 External photo FCC ID: 2AO94-M4PRO Page 3/3 --END---

Label Location

FCC ID: 2AO94-M4PRO Page 1/4 Internal photo FCC ID: 2AO94-M4PRO Page 2/4 BT Antenna 2402-2480MHz FCC ID: 2AO94-M4PRO Page 3/4 FCC ID: 2AO94-M4PRO Page 4/4 ---END---

Page 1 of 2 Address: No.11, WuSong Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 GuangdongProvince,China523117 http://www.cpcteam.com RF EXPOSURE EVALUATION EUT Specification EUT Bluetooth Beacon Model Number M4P, eTA1, M4P-PNHAX, M4P-PNHNX, M4P-PNHN, M4P-PNHA , M4 Pro FCC ID 2AO94- M4PRO Antenna gain (Max) -0.7dBi Operation Frequency 2402-2480MHz Input Rating DC 3.0V Standard 47 CFR Part 1.1307 47 CFR Part 1.1310 KDB447498D01 General RF Exposure Guidance v06 Modulation BLE Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation17 • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 91108-24-72-24-PP002 Page 2 of 2 Address: No.11, WuSong Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 GuangdongProvince,China523117 http://www.cpcteam.com Calculated Result and Limit Operation Mode: BLE Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) Lowest (2402MHz) 1.68 1±1 2 1.58 0.49 3.0 Middle (2440MHz) 1.52 1±1 2 1.58 0.49 Highest (2480MHz) 1.43 1±1 2 1.58 0.50 Conclusion: the calculated value ≤3.0, SAR is exempted. The Maxinum power is less than the limit, complies with the exemption requirements, SAR is exempted. Remark: The Max Conducted Peak Output Power data refer to report Report No.: 91108-24-72-24-PP001

深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. Tester :Hu Lin Approval :Liu Feng Date : 2024 / 7/ 2 HUACHUANG TECHNOLOGY LTD Address:Factory 201, 107 Pinshun Rd Guixiang community, Guanlan Street, Longhua, Shenzhen, China 518110 M/N:M4 Pro Antenna Test Report 5 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. 1. Device Profile BT Antenna 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. Agilent E5071CS-Parameter Test 2. BT Test 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. Antenna Passive Test X Y Z X Y Z 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. Passive Test Frequency/M hz Efficiency/dBEfficiency/%MaxGain/dBi 2400-5.9925.18-1.84 2410-5.9325.53-1.83 2420-5.6227.42-1.35 2430-5.5327.99-1.17 2440-5.3529.17-1.06 2450-5.3129.44-1.1 2460-5.3129.44-1.23 2470-5.5228.05-1.03 2480-5.2130.13-1.16 2490-5.3629.11-0.7 2500-5.7326.73-1.67 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. 2D-Etotal(2400/2450/2500Mhz) Phi02DPhi902DTheta902D 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. 3D-Etotal(2400Mhz) 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. 3D-Etotal(2450Mhz) 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. 3D-Etotal(2500Mhz) 深圳市安特通讯科技有限公司 ANT Communication Technology（Shenzhen）Co., LTD. THANK YOU!

Page 1 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com TEST REPORT Report Number. ........................ : 91108-24-72-24-PP001 Date of issue ............................ : 2024.11.26 Tested by (+signature) ............ : Duke Chen Approved by (+signature) ....... : Jason Gao Testing Laboratory name ........ : SLG-CPC Testlaboratory Co., Ltd. Address .................................... : No. 11, Wu Song Road, Dongcheng District, Dongguan, Guangdong Province, China 523117 Applicant’s name ..................... : MOKO TECHNOLOGY Ltd Address .................................... : Factory 201, 107 Pinshun Rd Guixiang community, Guanlan Street, Longhua, Shenzhen, China 518110 Manufacturer’s name .............. : MOKO TECHNOLOGY Ltd Address .................................... : Factory 201, 107 Pinshun Rd Guixiang community, Guanlan Street, Longhua, Shenzhen, China 518110 Factory’s name ........................ : MOKO TECHNOLOGY Ltd Address .................................... : Factory 201, 107 Pinshun Rd Guixiang community, Guanlan Street, Longhua, Shenzhen, China 518110 Standard(s) ............................... : FCC 47 CFR Part 15, Subpart C EUT ............................................ : Bluetooth Beacon Trade Mark ................................ : Canopy Protect Model/Type reference .............. : M4P, eTA1, M4P-PNHAX, M4P-PNHNX, M4P-PNHN, M4P-PNHA , M4 Pro FCC ID ....................................... : 2AO94-M4PRO Date of receipt of test item ..... : 2024.10.23 Date (s) of performance of test: 2024.10.23- 2024.11.05 Summary of Test Results ........ : Pass The Summary of Test Results based on a technical opinion belongs to the standard(s). General disclaimer: This report shall not be reproduced except in full, without the written approval of SLG-CPC Testlaboratory Co., Ltd. The test results in the report only apply to the tested sample. 91108-24-72-24-PP001 Page 2 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com Table of Contents 1 EUT TECHNICAL DESCRIPTION ............................................................................................... 4 2 SUMMARY OF TEST RESULT.................................................................................................... 5 3 TEST METHODOLOGY .............................................................................................................. 6 3.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ..................................................... 6 3.2 MEASUREMENT EQUIPMENT USED ................................................................................ 6 3.3 DESCRIPTION OF TEST MODES ....................................................................................... 7 4 FACILITIES AND ACCREDITATIONS ......................................................................................... 8 4.1 FACILITIES ........................................................................................................................... 8 4.2 LABORATORY ACCREDITATIONS AND LISTINGS ........................................................... 8 5 TEST SYSTEM UNCERTAINTY .................................................................................................. 9 6 SETUP OF EQUIPMENT UNDER TEST .................................................................................. 10 6.1 RADIO FREQUENCY TEST SETUP 1 .............................................................................. 10 6.2 RADIO FREQUENCY TEST SETUP 2 .............................................................................. 10 7 TEST REQUIREMENTS ............................................................................................................ 12 7.1 DTS 6DB BANDWIDTH ...................................................................................................... 12 7.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER ......................................................... 15 7.3 MAXIMUM POWER SPECTRAL DENSITY ....................................................................... 17 7.4 RADIATED SPURIOUS EMISSION ................................................................................... 20 7.5 ANTENNA APPLICATION .................................................................................................. 30 91108-24-72-24-PP001 Page 3 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com Modified Information Version Report No. Revision Data Summary Ver.1.0 91108-24-72-24-PP001 2024.11.07 Original Version 91108-24-72-24-PP001 Page 4 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com 1 EUT TECHNICAL DESCRIPTION Product: Bluetooth Beacon Model Number: M4P, eTA1, M4P-PNHAX, M4P-PNHNX, M4P-PNHN, M4P-PNHA , M4 Pro Power supply: : DC 3.0V :Adapter information Modulation: BLE(GFSK) Frequency Range: 2402MHz～2480MHz Number of Channels: 40channels Antenna Gain: -0.7dBi Antenna: PCB Antenna Note: for more details, please refer to the User’s manual of the EUT. 91108-24-72-24-PP001 Page 5 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com 2 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Verdict Remark 15.247(a)(2) DTS (6dB) Bandwidth PASS 15.247(b)(3) Maximum Peak Conducted Output Power PASS 15.247(e) Maximum Power Spectral Density Level PASS 15.247(d) Unwanted Emission Into Non-Restricted Frequency Bands PASS 15.247(d) 15.209 Radiated Spurious Emission PASS 15.207 Conducted Emission Test N/A 15.247(b) Antenna Application PASS NOTE1: N/A (Not Applicable) NOTE2: According …

Text truncated - open the document above for the full version.

FCC ID: 2AO94-M4PRO Test photo Radiated emission FCC ID: 2AO94-M4PRO
