2AO94-W2Bluetooth Beacon

W2 Series Beacon (W2）） Datasheet MOKO TECHNOLOGY LIMITED www.mokosmart.com FCC ID:2AO94-W2 1. Description The W2 has a ** wearable bracelet shape, waterproof construction, precise hardware, powerful firmware and touch buttons**. It has a rechargeable lithium battery and a simple USB direct charging method. iBeacon format broadcast function: positioning, advertising and marketing, personnel or material information management, etc. Such as used in hospitals, shopping malls, libraries, schools, factories, warehouses, etc. Scanning device function: to realize the tracking of equipment or personnel, and record the equipment or personnel who have approached at different times. For example, it is used to collect people who have been in contact with infectious disease patients within a limited time within the medical scope. 2. Features Firmware and chipset Programmed MOKO standard MKiBeacon3.0 series firmware; Ultra-low power consumption chipset NORDIC ® nRF52 series with 32 bit ARM ® Cortex-M4 CPU. Compatibility Compatible with Apple iBeacon ; Compatible with all Bluetooth ® 4.2 devices. High quality Battery and long lifetime High quality rechargeable lithium battery (80mAH 3.7V); Simple USB direct charge; Easily get real-time battery notifications. Transmission Power Levels 9 adjustable grades; Transmission power range: -40dBm to -0.89dBm. Long Range The max. Range 55 meters in the open space（-0.89dBm TX power） ; The range depends on the environment where the W2 series Beacon is placed. Data storage Can save 46,875 broadcast data when there is external FLASH, and save 800 broadcast data when internal FLASH. Connection Mode Advertising mode, non-connectable; Configuration mode, connectable. Custom made mounting Color customizable; Easy to print a customization logo/branding on the case. Note:Because the EUT is too small, Lable only be placed in the User Manual Easy to print a customization logo/branding on the case. Provided with your own configuration； Customizable software, hardware and structure. OTA and DFU Supported upgrade via Over-The-Air; Nordic ® official Device Firmware Upgrade(DFU); Reserved J-Link port on the board for programming. 3.LED and Vibration reminder FunctionOperationLED or vibrate StatusRemarks Power on Long press 5S in the shutdown state the light flashes quickly for 3s- Shutdown The default button cannot be turned on, but can be turned off using APP. the light stays on for 2s and continuously vibrate for 2s - Connect Beacon APP Connect Beacon Light flashes 1S and vibrate for 0.5s - DisconnectAPP and Beacon disconnectLights up 1S- LED storage reminder> The condition to store the scan to Beacon is reached On-off-on-on-off-on-off, 3 cycles, each time on 500ms, every 500ms Off by default - Motor storage reminder Meet the condition of storing the scanned Beacon The motor vibrates 3 times, each time 500ms, interval 500ms Remind the user to find that there is a Beacon close, you can control the reminder switch, the default is on Upgrade Operation DFU upgrade in the air Light flashes during the upgrade process / lights up for 2S after successful upgrade - Low battery reminder For rechargeable Beacon, the battery is less than 3685mV (10%) The lamp flashes twice every 30s- ChargingChargingThe lamp is always on Before charging, if the device is off, the Beacon will automatically turn on when charging ChargeCharge completeLight off- 4. Physical Characteristics ItemValueRemarks Case Colorsilver grayOther colors can be customized Main MaterialABS- Battery ModelLithium polymer batteryLithium battery，80mAH 3.7V Battery LifetimeAbout 27 hours At default settings ② and without selfdischarge factor Waterproof Level IP67- Static Current18 - 19uADevice is power off Average Current 2.81mA At default settings ③ Transmission Range -4dBm TX power，in the open space Antenna50ohm Ceramic Antenna Size Body size: 40.89x20.18x12mm Wearable range: 13cm~21cm Refer to mechanical draws for details Net Weight-With battery Operating Temperature -20 ~ +60ºC- Storage Temperature 20 ~ +30ºC- ②③ Default setting ，0dBm TX power and 1000ms Advertising Interval. 6. Mechanical Draws All dimensions is mm. 7.FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 5mm between the radiator & your body 8. Technical support ItemFile NameLink Configure APP for Android Trackerhttps://cloud.mokosmart.…

Text truncated - open the document above for the full version.

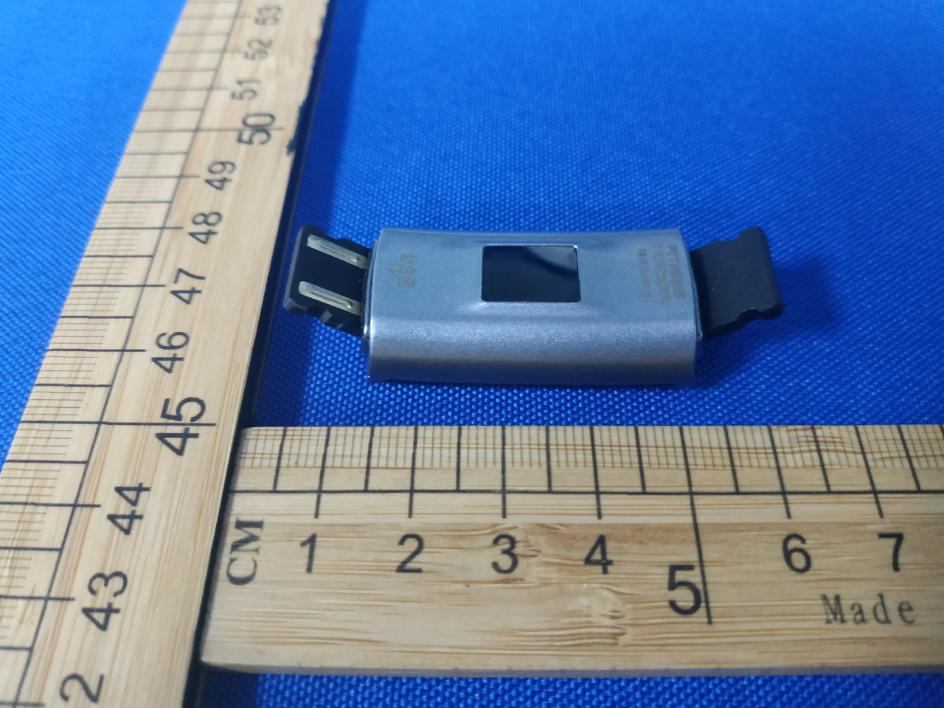

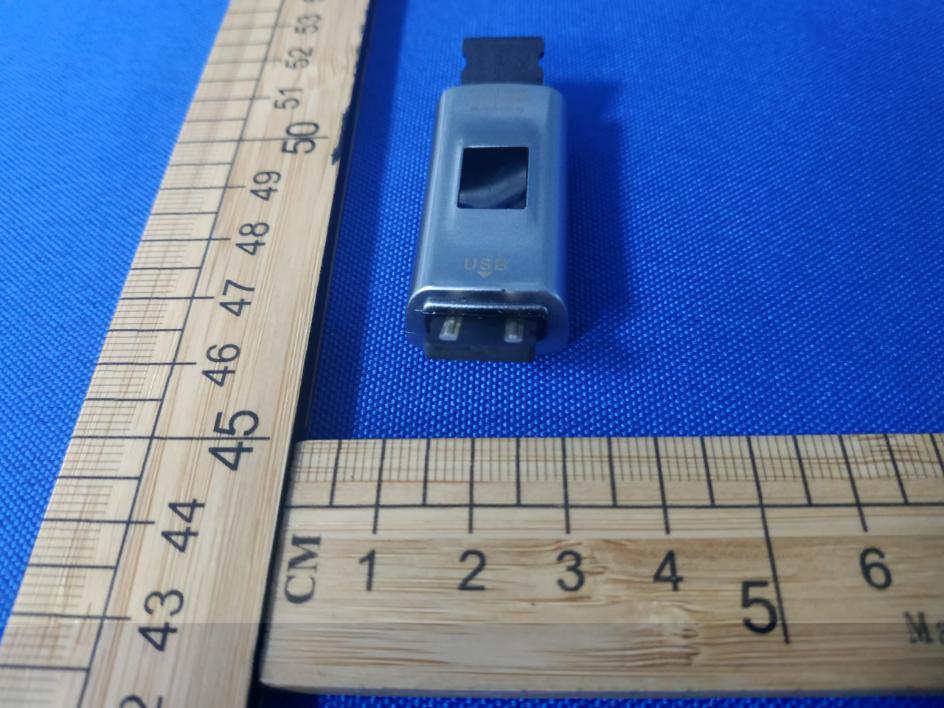

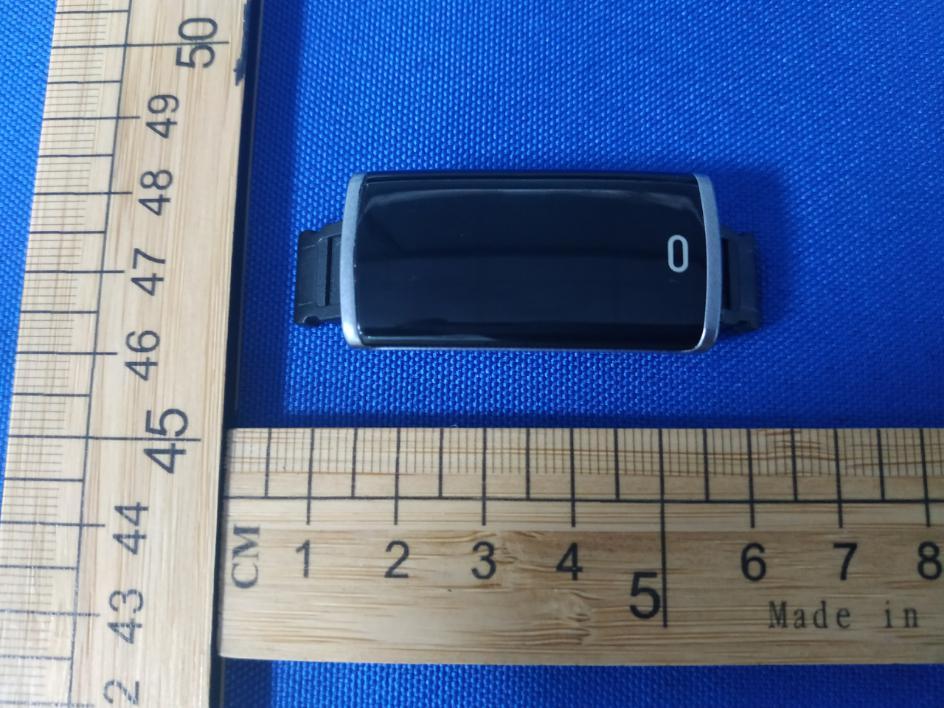

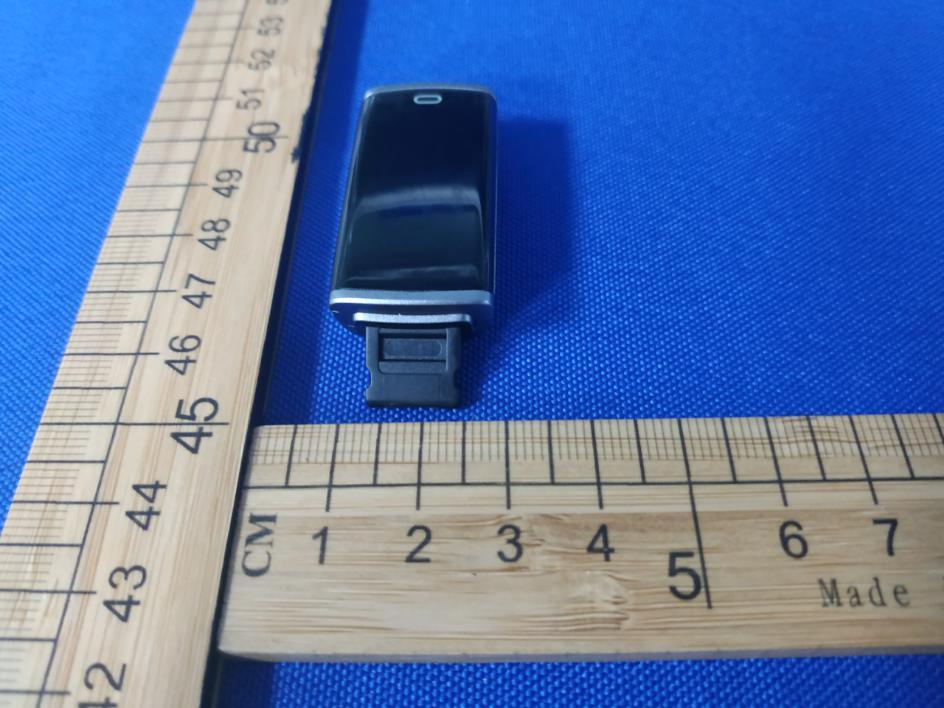

Mode:W2 ExternalPhotographs

LabelPosition

Mode:W2 InternalPhotographs ANT

version01 MOKOTECHNOLOGYLIMITED DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:W2,W2-CTNCAX-M FCCID:2AO94-W2 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforinternalantenna type(s)describedbelow: ModelNo.ofantenna:N/A Typeofantenna:CeramicAntenna Gainoftheantenna:-9.8dBi Frequencyrange:2402-2480MHz ModelNo.ofantenna:N/A Typeofantenna:/ Gainoftheantenna:/ Frequencyrange:/ Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbe used. Sincerely, Signature [jinghuichen] [MarketingManager] [MOKOTECHNOLOGYLIMITED]

KSIGN(Guangdong)TestingCo.,Ltd. WestSideof1/F.,BuildingC,ZoneA,FuyuanNewFactory,JiujiuIndustrialPark, Minzhu,Shatou,Shajing,Bao'anDistrict,Shenzhen,Guangdong,People’sRepublicofChina Tel.:+(86)755-29852678Fax:+(86)755-29852397E-mail:[email protected]:www.gdksign.com KSIGN(Guangdong)TestingCo.,Ltd. RFExposureEvaluation FCCID:2AO94-W2 REQUIREMENT KDB447498D01GeneralRFExposureGuidancev06,Clause4.3.1(a) [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0 Where -f(GHz)istheRFchanneltransmitfrequencyinGHz -PoweranddistanceareroundedtothenearestmWandmmbeforecalculation -Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm,andfor transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5 mm,adistanceof5mmaccordingto4.1f)isappliedtodetermineSARtestexclusion. TESTRESULT PassedNotApplicable BLE Testmode Channel Frequency (MHz) Max. Measured Power (dBm) Tuneup tolerance (dBm) Max. Tuneup Power (dBm) Maximum Output Power (mW) Calculating data LimitResults GFSK_1M 2402-1.0-1.0±101.0000.31 3.00Pass 2440-1.26-1.26±1-0.260.9420.29 2480-1.88-1.88±1-0.880.8170.26 GFSK_2M 2402-0.89-0.89±10.111.0260.32 2440-1.21-1.21±1-0.210.9530.30 2480-1.88-1.88±1-0.880.8170.26 Note: Theexposuresafetydistanceislessthan5mm. **********************THEEND**********************
