2AO94-W5Bluetooth Beacon

1 DATASHEET V1.0 4F,Buidling2, Guanghui Technology Park, MinQing Rd, Longhua, Shenzhen, Guangdong, China Tel:86‐755‐23573370‐829 [email protected] hƩps://www.mokoblue.com W5-CT Series Contact Tracing Wristband is a special designed product by MOKO Smart based on Bluetooth® Low Energy concurrent central & peripheral technology to realize safety social proximity distance amid the COVID-19 pandemic. Model:W5 FCC ID:2AO94-W5 When one wearer approaching within 2 meters to another one, both two wristbands will alert the wearers with vibration and LED flashing in real- time, and record the proximity time and wristband device information in device memory. ＊ Approaching distance detect ＊ Bluetooth® LE 4.2 ＊ VibraƟon and LED flashing alerts in real‐Ɵme ＊ Nordic® nRF52832 chipset ＊ Rechargeable baƩery via MagneƟc charging thimble＊ Support Apple Standard iBeacon ＊ Integrated 3‐axis accelerometer sensor ＊ ConfiguraƟon APP available for iOS and Android ＊ Contact Ɵme and informaƟon record in device ＊ APP SDK for Customer Development ＊ Contact data can export＊ IP67 protecƟon to support short‐Ɵme in wash ＊ Up to 65535 data count in device storage ＊ OTA ＊ Highly flexible pre‐configured or self‐configured seƫngs in AdverƟsing and Tracking ＊ Integrated RFID＊ Low power alert INTRODUCTION FEATURES APPLICATIONS User Cases: Contact Tracing, Visitor Tracking, Wayfinding, Indoor Navigation, Staff Management... Industries: Hospital, Nursing House, School, Stadium, In- stitution and Business entity... User can use the “MOKO Tracker+” APP (both available for Android and iOS) to do the personalize set- tings to meet the actual using. It can be pre-configured or self-configured with the BLE device name, iBeacon parameters, Advertising Tx power and Tracking filtered RSSI (relate to the Approaching dis- tance detect), Advertising interval and Sleeping time trigger of Advertising/Tracking (relate to the power saving), and also can build a white-list of the familiar wristband wearers to reduce the alert times. The sample is too small, the label is too large, the LABLE can only be placed in the instruction manual 2 DATASHEET V1.0 4F,Buidling2, Guanghui Technology Park, MinQing Rd, Longhua, Shenzhen, Guangdong, China Tel:86‐755‐23573370‐829 [email protected] hƩps://www.mokoblue.com SPECIFICATIONS SpecificaƟon Items DescripƟon & Typical Value General purposeProximity alert, Contact tracing Bluetooth® specs ChipsetNordic® nRF52832 Version Bluetooth® 4.2 Range Up to 160 meters (Open area) ① AdverƟsing Tx Power 0dBm default, adjustable in range ‐40/‐20/‐16/‐12/‐8/‐4/-0.05dBm Firmware UpdateYes, OTA BaƩery Specs Type651920 Lithium polymer baƩery Capacity230mAH, Rechargeable via MagneƟc charging thimble Single Charge Life 3 days ② AdverƟsing Specs iBeacon UUID, Major, Minor, RSSI@1m, ADV Tx power, ADV interval Device InformaƟon BLE device name, MAC address, Charging state Tracking Spec Tracking Seƫngs Tracking scan window, Scan interval , Tracking sleeping Ɵme trigger, Tracking filter, Tracking white list, Device ignoring period, Alert method Data RecordRecord data format, Recorded data can export Remaining baƩery power, AdverƟsing sleeping Ɵme trigger, Remaining memory, MoƟon trigger Physical ProperƟes Dimensions (L×W×H) 255.0 × 35.7 × 11.7 mm Weight32g (with baƩery) MaterialPC & TPU & Glass ColorBlack Sensor3‐axis accelerometer RFID13.56MHz MIFARE Desfire EV1 or Customized BuƩonMechanical buƩon on panel side LEDRGB LED on front panel VibraƟon Built‐in vibraƟon motor Environmental Requirements OperaƟng Temperature ‐20 ~ 60°C Humidity0 ~ 95%RH (noncondensing) CerƟficaƟons FCC, CE, REACH, RoHS, other cerƟficaƟons can be customized Other Available FuncƟons Note: ①The 160 meters maximum long range is tested in wild & open area. In specific application, the maximum long range might be different from this typical value. ②This typical value was tested with both Advertising and Scanning are enabled. 3 DATASHEET V1.0 4F,Buidling2, Guanghui Technology Park, MinQing Rd, Longhua, Shenzhen, Guangdong, China Tel:86‐755‐23573370‐829 [email protected] hƩps://www.mokoblue.com DIMENSIONS FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause unde- sired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to opera te the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipm ent generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip- ment does cause harmful interference to radio or television reception, which can be determined by turn- ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 5mm between the radiator & your body。 The contents of this datasheet are subject to change without prior notice for further improvemen…

Text truncated - open the document above for the full version.

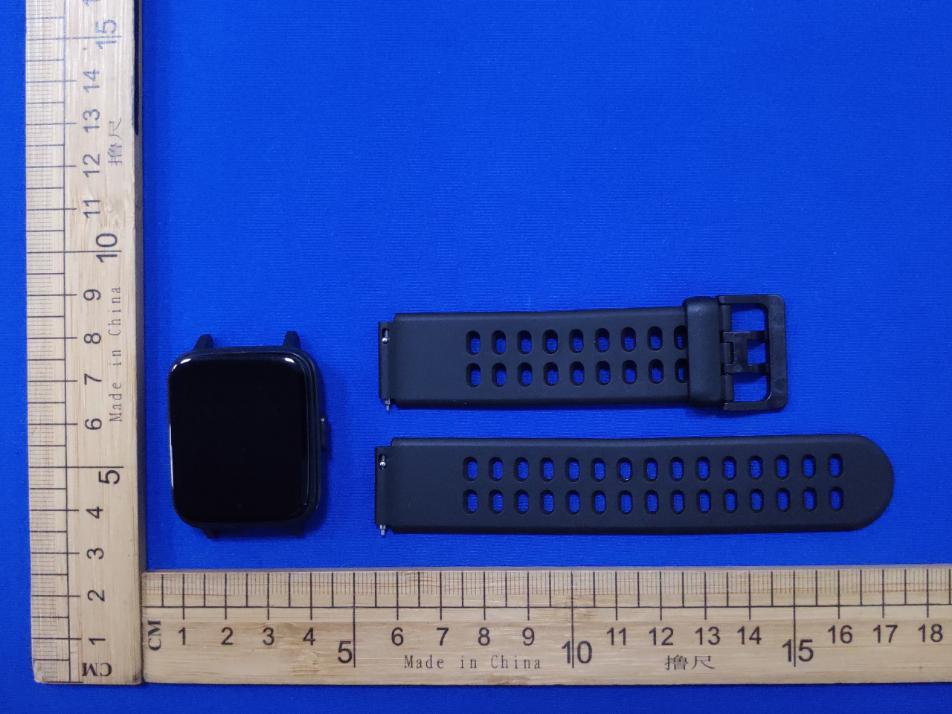

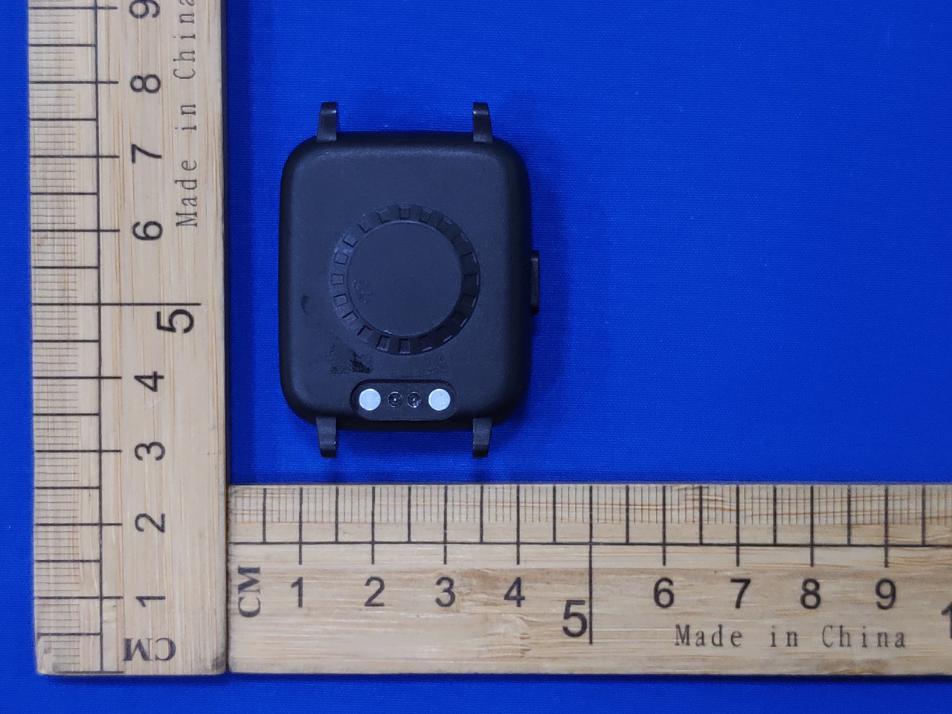

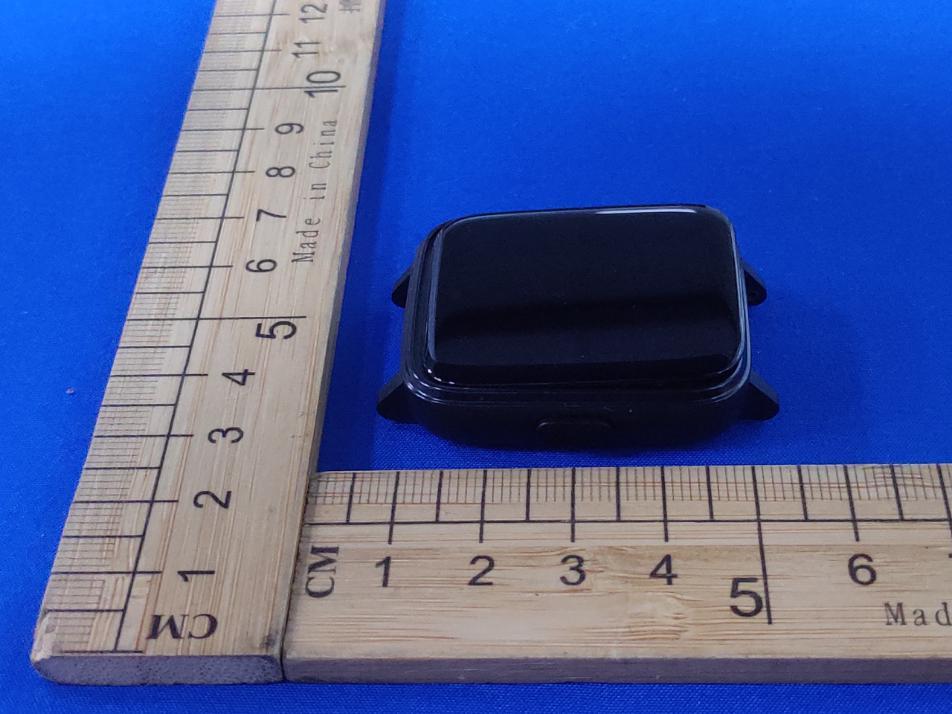

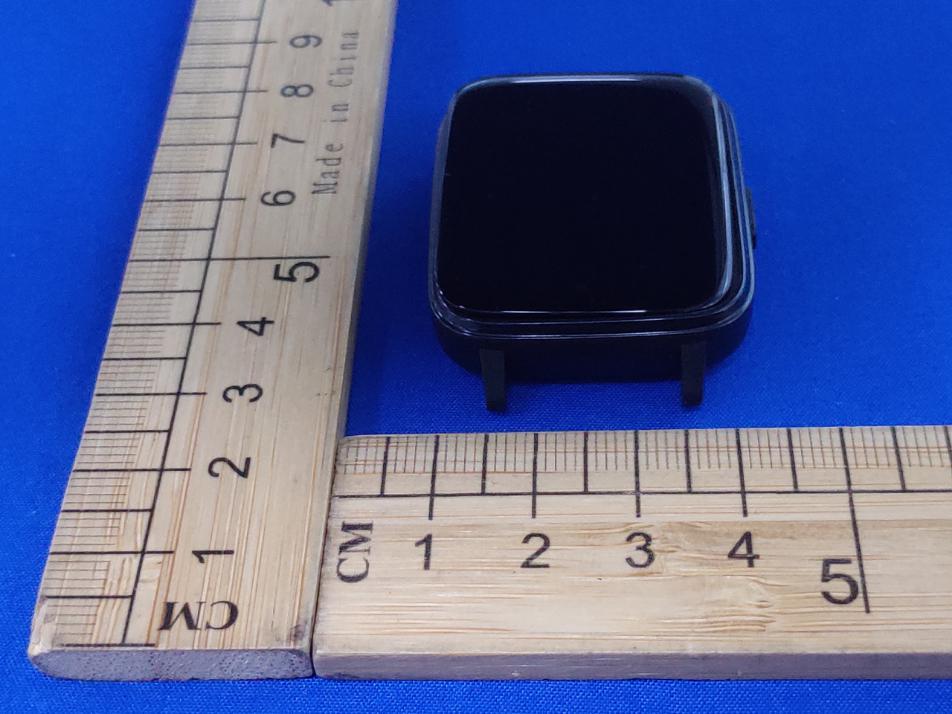

Model:W5 ExternalPhotographs

LabelPosition

Model ： W5 Internalphotos BLEANT NFCANT

version01 MOKOTECHNOLOGYLIMITED DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:W5,W5-CTNCAX-MHF,W5-CTNCAX-M,W5-PNCA,W5-PNCN,W5-PNCA-M,W5-PNCN-M,W5- PNCNX,W5-PNCAX,W5-PNCNX-M,W5-PNCAX-M,W5-PNCA-HF,W5-PNCN-HF,W5-PNCA-MHF,W5- PNCN-MHF,W5-PNCAX-HF,W5-PNCNX-HF,W5-PNCAX-MHF,W5-PNCNX-MHF FCCID:2AO94-W5 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforinternalantennatype(s) describedbelow: Antenna1 ModelNo.ofantenna:N/A Typeofantenna:FPCAntennaForBLE Gainoftheantenna:1.37dBi Frequencyrange:2402-2480MHz Antenna2 ModelNo.ofantenna:N/A Typeofantenna:FPCAntennaForNFC Gainoftheantenna:0dBi Frequencyrange:13.56MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Sincerely, Signature [jinghuichen] [MarketingManager] MOKOTECHNOLOGYLIMITED 2F,Building1,No.37XiaxintangXintangvillage,FuchengStreet,LonghuaDistrict,Shenzhen, GuangdongProvince,China

KSIGN(Guangdong)TestingCo.,Ltd. WestSideof1/F.,BuildingC,ZoneA,FuyuanNewFactory,JiujiuIndustrialPark, Minzhu,Shatou,Shajing,Bao'anDistrict,Shenzhen,Guangdong,People’sRepublicofChina Tel.:+(86)755-29852678Fax:+(86)755-29852397E-mail:[email protected]:www.gdksign.com KSIGN(Guangdong)TestingCo.,Ltd. RFExposureEvaluation FCCID:2AO94-W5 REQUIREMENT KDB447498D01GeneralRFExposureGuidancev06,Clause4.3.1(a) [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]·[√f(GHz)]≤3.0 Where -f(GHz)istheRFchanneltransmitfrequencyinGHz -PoweranddistanceareroundedtothenearestmWandmmbeforecalculation -Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm,andfortransmission frequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5mm,adistanceof5mm accordingto4.1f)isappliedtodetermineSARtestexclusion. TESTRESULT PassedNotApplicable BLE Testmode Channel Frequency (MHz) Max. Measured Power (dBm) Tuneup tolerance Power (dBm) Max. Tuneup tolerance Power (dBm) Max. Tuneup tolerance Power (mW) Calculatin gdata LimitResults GFSK 2402-0.06-0.06±10.941.2420.38 3.00Pass2440-0.05-0.05±10.951.2450.39 2480-0.50 -0.50±1 0.501.1220.35 Note: -Theexposuresafetydistanceislessthan5mm. KSIGN(Guangdong)TestingCo.,Ltd. WestSideof1/F.,BuildingC,ZoneA,FuyuanNewFactory,JiujiuIndustrialPark, Minzhu,Shatou,Shajing,Bao'anDistrict,Shenzhen,Guangdong,People’sRepublicofChina Tel.:+(86)755-29852678Fax:+(86)755-29852397E-mail:[email protected]:www.gdksign.com KSIGN(Guangdong)TestingCo.,Ltd. NFC AntennaGain=0dBi(Numeric1.0),π=3.14 Accordingtothefollowtransmitteroutputpower（EIRP）formula： g t =numericgainofthetransmittingantenna(unitess) E=electricfieldstrengthindBuV/m d=measurementdistanceinmeters(m) Accordingtotheformuladescribedabove: EIRP=E-104.8+20logD=49.14-104.8+20log3=-46.12dbm Note: 1.Onlytheworstcaserecorded. 2.The2.4GBLEandNFCcantransmitsimultaneouslyand MPERatio(BLE+NFC)=0.39/3+0.0000007/3=0.130<3 anditsatisfytheRFexposurerequirementsforsimultaneoustransmissionthatthesumoftheMPE radios<3 **********************THEEND********************** Frequency Max. MeasuredPower (dBm) Max. Tuneuptolerance Power Max. Tuneuptolerance Power Calculating data LimitResults MHzdBm (dBm)(mW) 0.00000073.00Pass 13.56 -46.12-46.12±1 0.000030

Page 2 of 25 ReportNo.:KS2102S00368E02 KSIGN(Guangdong)TestingCo.,Ltd. TABLEOFCONTENTSPage 1.TESTSUMMARY ....................................................................................................................................................................... 3 1.1.TESTSTANDARDS ................................................................................................................................................................... 3 1.2. REPORTVERSION ................................................................................................................................................................... 3 1.3.TESTDESCRIPTION ................................................................................................................................................................. 4 1.4.TESTFACILITY ........................................................................................................................................................................ 5 1.5. MEASUREMENTUNCERTAINTY ................................................................................................................................................. 6 1.6.ENVIRONMENTALCONDITIONS ................................................................................................................................................. 6 2.GENERALINFORMATION ......................................................................................................................................................... 7 2.1.CLIENTINFORMATION ............................................................................................................................................................ 7 2.2. GENERALDESCRIPTIONOFEUT ............................................................................................................................................... 7 2.3. TESTMODE .......................................................................................................................................................................... 7 2.4.MEASUREMENTINSTRUMENTSLIST .......................................................................................................................................... 8 2.5.TESTSOFTWARE ..................................................................................................................................................................... 8 3.TESTITEMANDRESULTS .......................................................................................................................................................... 9 3.1.ANTENNAREQUIREMENT ........................................................................................................................................................ 9 3.2.OCCUPIEDBANDWIDTH ........................................................................................................................................................ 10 3.3.FREQUENCYSTABILITY .......................................................................................................................................................... 12 3.4. SPURIOUSEMISSION(RADIATED) ........................................................................................................................................... 14 3.5.CONDUCTEDEMISSION ......................................................................................................................................................... 20 4.EUTTESTPHOTOS .................................................................................................................................................................. 23 5.PHOTOGRAPHSOFEUTCONSTRUCTIONAL .......................................................................................................................... 25 Page 3 of 25 ReportNo.:KS2102S00368E02 KSIGN(Guangdong)TestingCo.,Ltd. 1.TESTSUMMARY 1.1.TestStandards Thetestswereperformedaccordingtofollowingstandards: FCCRulesPart15.225:Operationwithintheband13.110-14.010MHz. ANSIC63.10-2013:AmericanNationalStandardforTestingUnlicensedWirelessDevices. 1.2.Reportversion RevisedNo.DateofissueDescription 01Apr.16,2021Original Page 4 of 25 ReportNo.:KS2102S00368E02 KSIGN(Guangdong)TestingCo.,Ltd. 1.3.TestDescription FCCRulesPart15.225 TestItem StandardSection ResultTestEngineer FCC AntennaRequirement 15.203PassRoryHuang ConductedEmissions15.207PassRoryHuang RadiatedSpuriousEmissionsFCCPart15.225&15.205&15.209PassRoryHuang FrequencyToleranceFCCPart15.225ePassRoryHuang OccupiedBandwidthFCCPart15.215cPassRoryHuang Note:1.Themeasurementuncertaintyisnotincludedinthetestresult. 2.N/A:meansthistestitemisnotapplicable Page 5 of 25 ReportNo.:KS2102S00368E02 KSIGN(Guangdong)TestingCo.,Ltd. 1.4.TestFacility Addressofthereportlaboratory KSIGN(Guangdong)TestingCo.,Ltd. WestSideof1/F.,BuildingC,ZoneA,FuyuanNewFactory,JiujiuIndustrialPark,Minzhu,Shatou,Shajing, Bao'anDistrict,Shenzhen,Guangdong,People’sRepublicofChina Laboratoryaccreditation Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: CNAS-LabCode:L13261 KSIGN(Guangdong)TestingCo.,Ltd.hasbeenassessedandprovedtobeinCompliancewithCNAS-CL01 AccreditationCriteriaforTestingandCalibrationLaboratories(identicaltoISO/IEC17025:2017General Requirements)fortheCompetenceofTestingandCalibrationLaboratories. A2LA-LabCert.No.:5457.01 KSIGN(Guangdong)TestingCo.,Ltd.EMCLaboratoryhasbeenaccreditedbyA2LAfortechnicalcompetence inthefieldofelectricaltesting,andprovedtobeincompliancewithISO/IEC17025:2017GeneralRequirements fortheCompetenceofTestingandCalibrationLaboratoriesandanyadditionalprogramrequirementsinthe identifiedfieldoftesting. ICRegistrationNo.:CN0096 The3malternatetestsiteofKSIGN(Guangdong)TestingCo.,Ltd.EMCLaboratoryhasbeenregisteredby CertificationandEngineerBureauofIndustryCanadafortheperformanceofwithRegistrationNO.:CN0096 FCC-RegistrationNo.:CN1272 KSIGN(Guangdong)TestingCo.,Ltd.EMCLaboratoryhasbeenregistere…

Text truncated - open the document above for the full version.

Model:W5 BLETestSetup RadiatedMeasurement(Below1GHz) RadiatedMeasurement(Above1GHz) RFConducted CONDUCTEDEMISSIONTESTSETUP NFCTestSetup RadiatedMeasurement(Below30HzForNFC) RadiatedMeasurement(Below1GHz) RadiatedMeasurement(Above1GHz) CONDUCTEDEMISSIONTESTSETUP
