2AOHHTURBOXC404Turbox C404 SOM

TURBOX™C40XSOM DATASHEET THUNDERCOMMTurboX™C40xSoMDatasheet 1 VersionDateDescription V0.12019-11-01 InitialVersion V0.22020-02-01 1.AddedTurboX™C405informationandupdatedSoMpin definitions. 2.AddeddescriptionsofHDMI,MIPIDSI,DECAP,SleepClockand SPMIinterfaces. V0.32020-02-06 1.SoMmarking5-3 2.ContentforFiguresandTables V0.52020-02-20 Updatein4.16.2BTPerformance V0.62020-02-26 Updatein4.16.2BTPerformance V0.72020-03-16 Updatein5.2Packagedimensions V0.82020-03-27 UpdateSDC2performancedescription V0.92020-09-16 CorrectthedescriptionerroroftheBluetoothversion. V1.02020-10-15 1.AddC403information. 2.UpdatethepindefinitionofSoM. V1.12020-11-23 FixtheinconsistencyofLDOoutputcurrentdescription,suchas LDO6andLDO7. V1.22020-12-29 DeletethedescriptionaboutFM. V1.32021-01-14 DeletethedescriptionaboutBT2. V1.42021-01-30 Updatecurrentconsumptiondata. THUNDERCOMMTurboX™C40xSoMDatasheet 2 Contents 1Overview......................................................................................................................................................................6 1.1TurboX™C40xModuleAbstract.....................................................................................................................6 1.2ReferenceDocuments.......................................................................................................................................6 1.3TermsandAcronyms........................................................................................................................................6 2TurboX™C40xSoMIntroduction..........................................................................................................................9 2.1Keyfeatures......................................................................................................................................................9 2.2HardwareBlockDiagram...............................................................................................................................12 2.3TurboX™C40xMajorComponentsLocation...............................................................................................13 3InterfacesDescription............................................................................................................................................13 3.1InterfacesParameterDefinitions....................................................................................................................14 3.2PinDescription................................................................................................................................................15 3.3InterfacesDetailDescription..........................................................................................................................23 3.3.1PowerSupplyInterface........................................................................................................................23 3.3.2RGMIIInterfaces.................................................................................................................................24 3.3.3SPDIFInterface...................................................................................................................................24 3.3.4AudioInterface....................................................................................................................................24 3.3.5USBInterface......................................................................................................................................27 3.3.6PCIeInterface......................................................................................................................................27 3.3.7MIPIDSIInterface..............................................................................................................................28 3.3.8HDMIInterface....................................................................................................................................28 3.3.9JTAGInterface.....................................................................................................................................29 3.3.10SDIOInterface...................................................................................................................................29 3.3.11BLSPInterface...................................................................................................................................30 3.3.12PowerOnInterface............................................................................................................................31 3.3.13ResetInterface...................................................................................................................................31 3.3.14BootConfigurationInterface.............................................................................................................32 THUNDERCOMMTurboX™C40xSoMDatasheet 3 3.3.15DebugUARTInterface......................................................................................................................34 3.3.16PWM..................................................................................................................................................34 3.3.17SleepClock........................................................................................................................................34 3.3.18SPMI..................................................................................................................................................35 3.3.19AntennaInterface...............................................................................................................................35 4ElectricalCharacteristics.......................................................................................................................................36 4.1AbsoluteMaximumRatings..........................................................................................................…

Text truncated - open the document above for the full version.

Thundercomm Technology Co., Ltd Date:2021/01/25 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID: 2AOHHTURBOXC404 To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules(CFR 47), and Section 552(b)(4) of the Freedom of Information Act, Thundercomm Technology Co., Ltd hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA04-1705. This provision will give Thundercomm Technology Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 BOM SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Signatory： Contact name: Qiyong Zhou Title: Manager Tel: +86 010-82036511 Email: [email protected] Company name: Thundercomm Technology Co., Ltd

Thundercomm Technology Co., Ltd Date: 2021/01/25 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Thundercomm Technology Co., Ltd the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Thundercomm Technology Co., Ltd solely in matters relating to the application for an FCC equipment authorization for FCC ID:2AOHHTURBOXC404 including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the Thundercomm Technology Co., Ltd in connection with the Application shall have the same effect as acts of the Thundercomm Technology Co., Ltd also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Signatory: Contact name: Zhou Qiyong Title: Manager Tel: +86 010-82036511 Email: [email protected] Company name: Thundercomm Technology Co., Ltd

ThundercommTechnologyCo.,Ltd FCC–ModularApprovalRequestRev2.0 ModularTransmitterApprovalRequest FederalCommunicationsCommission EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 Companyname:ThundercommTechnologyCo.,Ltd FCCID:2AOHHTURBOXC404 Gentlemen, Inaccordancewith47CFR15.212ModularTransmittersandKDB996369D01‘Module CertificationGuidev01r04’.FCCID:2AOHHTURBOXC404hasbeenexaminedagainstthe followingrequirements. Requirementper15.212andKDB996369D01 ‘ModularCertificationGuidev01r04 ExplanationfromGrantee (donotwriteyes/no,butexplainwhyproduct complies/howitisachieved) Theradioelementsmusthavetheradiofrequencycircuitry shielded.Physicalcomponentsandtuningcapacitor(s)maybe locatedexternaltotheshield,butmustbeonthemodule assembly Deviceisequippedwithmetalshieldingto coverRFsection.Refertophotos. Themodulemusthavebufferedmodulation/datainputstoensure thatthedevicewillcomplywithPart15requirementswithany typeofinputsignal Allinputstothemodulesarebuffered throughlogicandmicroprocessorinputs Themodulemustcontainpowersupplyregulationonthemodule Modulechipsetincorporatesvoltage regulationtotransceivercircuitry Themodulemustcontainapermanentlyattachedantenna,or containauniqueantennaconnector,andbemarketedand operatedonlywithspecificantenna(s),perSections15.203, 15.204(b),15.204(c),15.212(a),2.929(b) TheUserManualhasGuidingbusinesses usebyPCBantenna. Themodulemustdemonstratecomplianceinastand-alone configuration Deviceistestedinatestfixtureina standaloneconfiguration ThemodulemustbelabelledwithitspermanentlyaffixedFCCID label,oruseanelectronicdisplay(SeeKDBPublication784748 aboutlabellingrequirements) FCCIDlabelformatwillbeincludedin thefilling.HostIDlabelwillbedisplayed onthehostsystem. Themodulemustcomplywithallspecificrulesapplicabletothe transmitterincludingalltheconditionsprovidedintheintegration instructionsbythegrantee Pleasereferto“UserManual”Exhibit ThemodulemustcomplywithRFexposurerequirements RFexposureevaluationisexempted becauseoflowoutputpower. Name:ZhouQiyongDate:2021/2/5 Title:Manager Signatureofapplicant

RF_160,Issue02 DeclarationofAuthorization We Name:ThundercommTechnologyCo.,Ltd Address:Building4,No.99,DataValleyMiddleRoad,XiantaoDistrict,YubeiDistrict, Chongqing,China Country:China Declarethat: NameRepresentativeofagent:WendyZhan AgentCompanyname:ShenzhenMorlabCommunicationsTechnologyCo.,Ltd. Address:FL.3,BuildingA,FeiYangSciencePark,No.8LongChang Road,Block67,BaoAnDistrict,ShenZhen,GuangDong Province,P.R.China518100 City:ShenZhen CountryChina isauthorizedtoapplyforCertificationofthefollowingproduct(s): Productdescription:TurboxC404SOM Typedesignation:TurboXC404 Trademark:TurboX onourbehalf. Applicant’scompanyname:ThundercommTechnologyCo.,Ltd Date:2021.01.25 Applicant’sname:ZhouQiyong Signature:

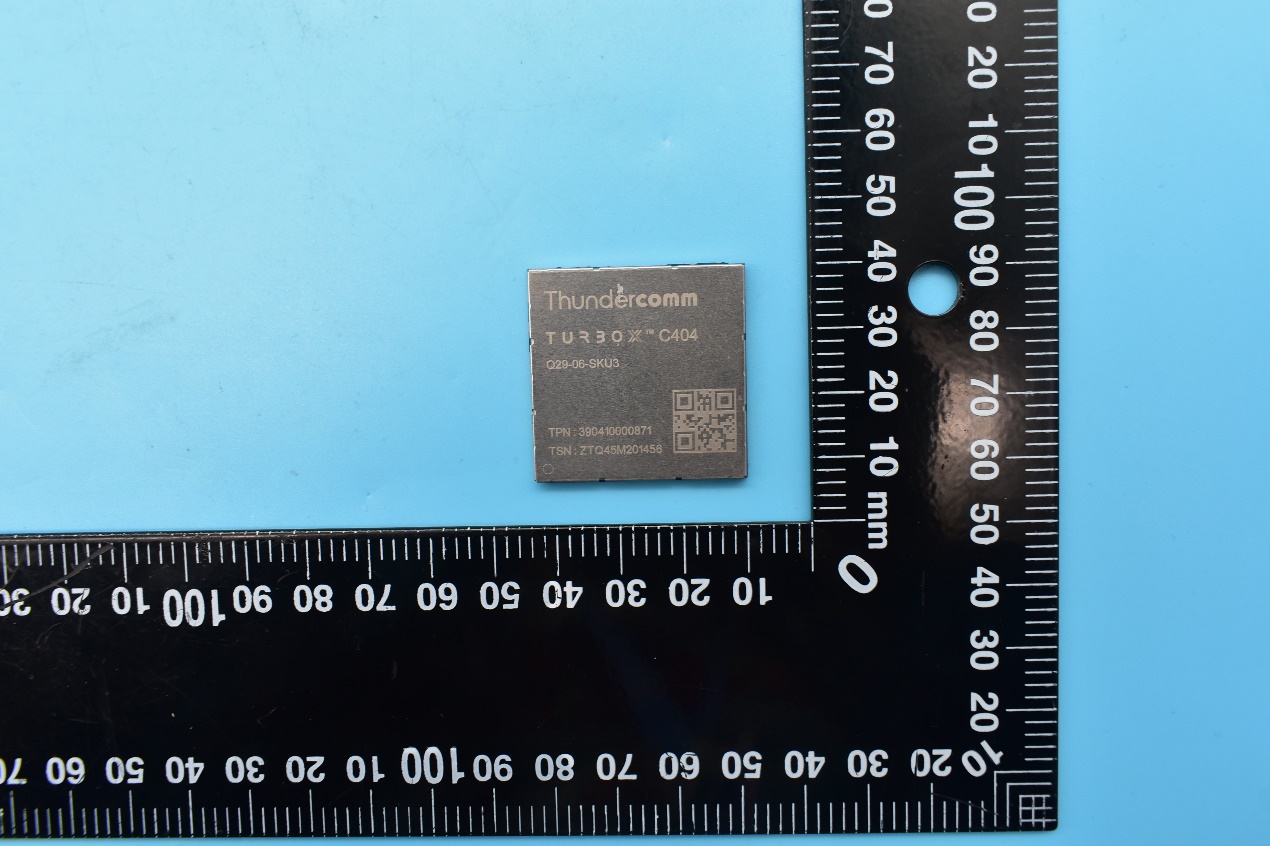

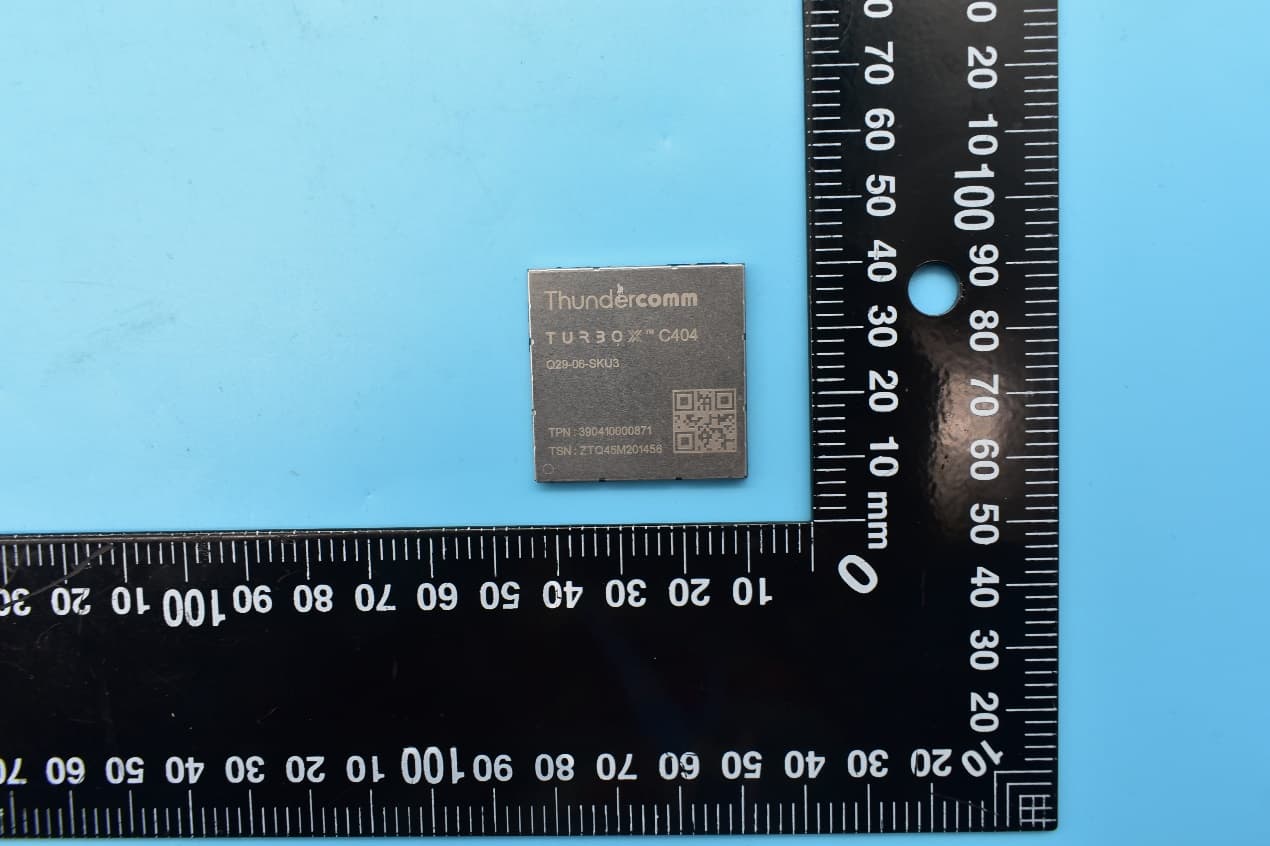

FCC ID:2AOHHTURBOXC404 External Photos 1. EUT front view 2. EUT rear view

1. Label 2. Label location

FCC ID:2AOHHTURBOXC404 Internal Photos 1. EUT uncover view 2. Antenna view Antenna Type A Antenna Type B Note: Antenna Type A and Antenna Type B are not shipped with the product. Wi-Fi Antenna Bluetooth/WIFI Antenna WIFI Antenna Bluetooth/WIFI Antenna

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 15 REPORT No.：SZ20090290S01 RF EXPOSURE EVALUATION REPORT APPLICANT : Thundercomm Technology Co., Ltd PRODUCT NAME : Turbox C404 SOM MODEL NAME :TurboX C404 BRAND NAME : TurboX FCC ID : 2AOHHTURBOXC404 STANDARD(S) : 47CFR 2.1091 KDB 447498 RECEIPT DATE : 2020-09-22 TEST DATE :2020-09-22 to 2021-01-22 ISSUE DATE :2021-02-08 Edited by: Zeng Xiaoying (Rapporteur) Approved by: Peng Huarui (Supervisor) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20090290S01 Page 2of 15 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2 Equipment under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 3. RF Output Power ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 4. RF Exposure Assessment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 13 Annex A Testing Laboratory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 15 Change History Version Date Reason for Change 1.0 2021-02-08 First edition MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20090290S01 Page 3of 15 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: Thundercomm Technology Co., Ltd Applicant Address: Building 4, No. 99, Data Valley Middle Road, Xiantao District, Yubei District, Chongqing, China Manufacturer: Thundercomm Technology Co., Ltd Manufacturer Address: Building 4, No. 99, Data Valley Middle Road, Xiantao District, Yubei District, Chongqing, China 1.2 Equipment under Test (EUT) Description Product Name: Turbox C404 SOM Serial No.: (N/A, marked #1 by test site) Hardware Version: TurboX C404 SOM V06 Software Version: LE1 Frequency Bands: Bluetooth 2402MHz-2480MHz WLAN 2.4GHz 2412MHz–2462MHz WLAN 5GHz 5180MHz-5240MHz 5260MHz-5320MHz 5500MHz-5720MHz 5745MHz-5825MHz Modulation Mode: Bluetooth GFSK(1Mbps), π/4-DQPSK(EDR 2Mbps), 8-DPSK(EDR 3Mbps) WLAN 2.4GHz DSSS, OFDM WLAN 5GHz OFDM Antenna Information: Bluetooth Antenna Type A Antenna Type: ANT1: Dipole Antenna Antenna Gain: ANT1: 3.00dBi Antenna Type B Antenna Type: ANT1: PIFA Antenna Antenna Gain: ANT1: 3.49dBi MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20090290S01 Page 4of 15 Antenna Information: WLAN 2.4GHz Antenna Type A Antenna Type: ANT1: Dipole Antenna ANT2: Dipole Antenna Antenna Gain: ANT1: 3.00dBi ANT 2: 3.00dBi Antenna Type B Antenna Type: ANT1: PIFA Antenna ANT2: PIFA Antenna Antenna Gain: ANT1: 3.49dBi ANT 2: 3.51dBi WLAN 5GHz Antenna Type A Antenna Type: ANT1: Dipole Antenna ANT2: Dipole Antenna Antenna Gain: ANT1: 4.00dBi ANT 2: 4.00dBi Antenna Type B Antenna Type: ANT1: PIFA Antenna ANT2: PIFA Antenna Antenna Gain: ANT1: 5.52dBi ANT 2: 5.55dBi Note 1: The EUT will not sell with antenna. Note 2: The EUT supports two type of antenna and each type of antenna has two antennas. Two type of antenna were considered and evaluated respectively by performing full test, only the worst data(Type B) were recorded and reported. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20090290S01 Page 5of 15 1.3 Applied Reference Documents Leading reference documents for testing: No. Identity Document Title Method determination /Remark 1 47 CFR§2.1091 Radio Frequency Radiation Exposure Assessment: mobile devices No deviation 2 KDB 447498 D01v06 General RF Exposure Guidance No deviation Note 1: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. Note 2: When the test result is a critical value, we will use the measurement uncertainty give the judgment result based on the 95% risk level. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36…

Text truncated - open the document above for the full version.

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 163 REPORT No.：SZ20090290W04 TEST REPORT APPLICANT : Thundercomm Technology Co., Ltd PRODUCT NAME : Turbox C404 SOM MODEL NAME :TurboX C404 BRAND NAME : TurboX FCC ID : 2AOHHTURBOXC404 STANDARD(S) : 47 CFR Part 15 Subpart E RECEIPT DATE : 2020-09-22 TEST DATE :2020-09-22 to 2021-01-20 ISSUE DATE :2021-02-08 Edited by: Zeng Xiaoying (Rapporteur) Approved by: Peng Huarui(Supervisor) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 163 REPORT No.：SZ20090290W04 DIRECTORY 1. Technical Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 3 1.1. Applicant and Manufacturer Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 3 1.2. Equipment Under Test (EUT) Description ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 3 1.3. Modulation Type and Data Rate of EUT ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 5 1.4. The Channel Number and Frequency ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 6 1.5. Test Standards and Results ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 7 1.6. Environmental Conditions ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 8 2. 47 CFR Part 15E Requirements ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 9 2.1. Antenna Requirement ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 9 2.2. Duty Cycle of the Test Signal ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 10 2.3. Maximum Conducted Output Power ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 15 2.4. Emission Bandwidth ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 21 2.5. Peak Power Spectral Density ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 60 2.6. Frequency Stability ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 101 2.7. Conducted Emission ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 104 2.8. Restricted Frequency Bands ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 108 2.9. Radiated Emission ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 128 Annex A Test Uncertainty ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 159 Annex B Testing Laboratory Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 160 Change History Version Date Reason for change 1.0 2021-02-08First edition MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 163 REPORT No.：SZ20090290W04 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Thundercomm Technology Co., Ltd Applicant Address: Building 4, No. 99, Data Valley Middle Road, Xiantao District, Yubei District, Chongqing, China Manufacturer: Thundercomm Technology Co., Ltd Manufacturer Address: Building 4, No. 99, Data Valley Middle Road, Xiantao District, Yubei District, Chongqing, China 1.2. Equipment Under Test (EUT) Description Product Name: Turbox C404 SOM Serial No.: (N/A, marked #1 by test site) Hardware Version: TurboX C404 SOM V06 Software Version: LE1 Modulation Technology: OFDM Modulation Mode: 802.11a, 802.11n (HT20), 802.11n (HT40) 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80), Operating Frequency Range: 5180MHz-5240MHz; 5260MHz-5320MHz; 5500MHz-5720MHz; 5745MHz-5825MHz Channel Number: Refer to 1.3 Antenna Information: Antenna Type A Antenna Type: ANT1: Dipole Antenna ANT2: Dipole Antenna Antenna Gain: ANT1: 4.00dBi ANT 2: 4.00dBi Antenna Type B Antenna Type: ANT1: PIFA Antenna ANT2: PIFA Antenna Antenna Gain: ANT1: 5.52dBi ANT 2: 5.55dBi Directional Gain: 8.56dBi(Type B) Note 4 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 163 REPORT No.：SZ20090290W04 Note 1: The EUT will not sell with antenna. Note 2: The EUT supports two type of antenna and each type of antenna has two antennas. Two type of antenna were considered and evaluated respectively by performing full test, only the worst data(Type B) were recorded and reported. Note 3: The EUT supports a MIMO function. Physically, the EUT provides two completed transmitters and two receivers for 802.11n and 802.11ac modulation mode. Modulation Mode: TX Function 802.11n 2TX 802.11ac 2TX Note 4: According to KDB 662911 D01, the directional gain = G ANT + 10log(N ANT ) dBi, where G ANT is the maximum antenna gain in dBi, N ANT is the number of outputs. Note 5: For conducted test item Conducted Output Power and Peak Power Spectral Density of each modulation mode, we recorded the test result of two antennas …

Text truncated - open the document above for the full version.

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 83 of 163 REPORT No.：SZ20090290W04 802.11ac (VHT20) Mode A.Test Verdict: Frequency (MHz) Measured PPSD (dBm/MHz) Duty Factor Total PPSD (dBm/MHz) Limit (dBm/MHz) Verdict ANT1 ANT2 5180 3.66 4.14 0.08 7.00 8.44 PASS 5220 3.74 3.97 6.95 5240 3.50 3.84 6.76 5260 3.16 3.71 6.53 5300 3.27 3.54 6.50 5320 3.28 3.67 6.57 5500 3.84 4.03 7.03 5600 3.60 4.39 7.10 5720 2.68 2.83 5.85 Frequency (MHz) Measured PPSD (dBm/500KHz) Duty Factor Total PPSD (dBm/500KHz) Limit (dBm/500KHz) Verdict ANT A ANT B 5720 -0.16 0.14 0.08 3.08 27.44 PASS 5745 -0.05 0.19 3.16 5785 0.39 0.67 3.62 5825 0.91 1.03 4.06 Note: Directional gain = 5.55dBi +10log(2) = 8.56dBi＞6dBi, so the limit shall be reduced to 11-(8.56-6) = 8.44dBm for 5.18-5.24 GHz band and reduced to 30-(8.56-6) = 27.44dBm for 5.745-5.825 GHz band. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 84 of 163 REPORT No.：SZ20090290W04 B.Test Plot: (Channel 36, 5180MHz, 802.11ac (VHT20), ANT2) (Channel 44, 5220MHz, 802.11ac (VHT20), ANT2) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 85 of 163 REPORT No.：SZ20090290W04 (Channel 48, 5240MHz, 802.11ac (VHT20), ANT2) (Channel 52, 5260MHz, 802.11ac (VHT20), ANT2) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 86 of 163 REPORT No.：SZ20090290W04 (Channel 60, 5300MHz, 802.11ac (VHT20), ANT2) (Channel 64, 5320MHz, 802.11ac (VHT20), ANT2) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 87 of 163 REPORT No.：SZ20090290W04 (Channel 100, 5500MHz, 802.11ac (VHT20), ANT2) (Channel 120, 5600MHz, 802.11ac (VHT20), ANT2) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 88 of 163 REPORT No.：SZ20090290W04 (Channel 144, 5720MHz, 802.11ac (VHT20), ANT2) (Channel 144, 5720MHz, 802.11ac(VHT20), ANT2) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 89 of 163 REPORT No.：SZ20090290W04 (Channel 149, 5745MHz, 802.11ac (VHT20), ANT2) (Channel 157, 5785MHz, 802.11ac (VHT20), ANT2) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 90 of 163 REPORT No.：SZ20090290W04 (Channel 165, 5825MHz, 802.11ac (VHT20), ANT2) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 91 of 163 REPORT No.：SZ20090290W04 802.11ac (VHT40) Mode A.Test Verdict: Frequency (MHz) Measured PPSD (dBm/MHz) Duty Factor Total PPSD (dBm/MHz) Limit (dBm/MHz) Verdict ANT1 ANT2 5190 1.45 2.04 0.16 4.93 8.44 PASS 5230 1.34 1.58 4.63 5270 0.79 1.25 4.20 5310 0.85 1.32 4.26 5510 1.52 1.43 4.65 5630 1.27 2.33 5.00 5710 0.33 0.73 3.70 Frequency (MHz) Measured PPSD (dBm/500KHz) Duty Factor Total PPSD (dBm/500KHz) Limit (dBm/500KHz) Verdict ANT A ANT B 5710 -2.47 -2.21 0.16 0.83 27.44 PASS 5755 -2.40 -1.78 1.09 5795 -1.95 -1.65 1.37 Note: Directional gain = 5.55dBi +10log(2) = 8.56dBi＞6dBi, so the limit shall be reduced to 11-(8.56-6) = 8.44dBm for 5.18-5.24 GHz band and reduced to 30-(8.56-6) = 27.44dBm for 5.745-5.825 GHz band. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 92 of 163 REPORT No.：SZ20090290W04 B.Test Plot: (Channel 38, 5190MHz, 802.11ac (VHT40), ANT2) (Channel 46, 5230MHz, 802.11ac (VHT40), ANT2) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 93 of 163 REPORT No.：SZ20090290W04 (Channel 54, 5270MHz, 802.11ac (VHT40), ANT2) (Channel 62, 5310MHz, 802.11ac (VHT40), ANT2) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36…
