2AOHHTURBOXC865Miura

Thundercomm TurboX C865 System on Module Copyright © 2018 All Rights Reserved, Thundercomm Technology Co., Ltd. 1 Thundercomm TurboX TM C865 System on Module A highest performance embedded platform based on Qualcomm® Snapdragon™ QRB5165 processor Description Thundercomm TurboX TM C865 System on Module (SOM) is a highest performance intelligent module, integrating Android, based on Qualcomm QRB5165 processor. It integrates the advanced 7 nm Fin FET process, a customized 64-bit Octa-core Qualcomm Kryo 585 applications processor. C865 SOM supports long range Wi-Fi, Wi-Fi 6 (Wi-Fi 802.11 a/b/g/n/ac/ax) and BT5.1. It supports one 5040 x 2160@60Hz or two 2560 x2560@120fps display, support up to 12 cameras with 7 concurrent, integrates multiple audio and video input/output interfaces. It provides a variety of GPIO, I2C, UART and SPI standard interfaces. In addition, it supports two 4-lane MIPI-DSI, six 4-laneMIPI-CSI together with SOM common standard protocol interfaces such as USB3.1, PCIE2.1/3.0 and I2S. C865 SOM provides convenient and stable system solution for IOT field, it can be embedded into the device on VR/AR, Robot, Smart Camera, AI devices, and any other connecting fields. The size of module is 56mm x 45mm x 9.06mm, besides a 500pins B2B connector. Features The following table shows the detailed features of QRB5165 and C865 SOM. QRB5165 Applications Processor Kryo 585-64-bit applications processor with a 4MB L3 cache  Quad high-performance Kryo Gold cores  Quad low-power Kryo Silver cores Digital signal processing  Compute Hexagon DSP with quad Hexagon Vector eXtensions (quad-HVX) and Hexagon Co-processor (Hexagon CP) 2.0  Audio Hexagon DSP dedicated to audio subsystem  Sensor Hexagon DSP in the Qualcomm All-Ways Aware Hub to support always-on, low-power use cases  All Hexagon DSP are cache-based processors with full access to DDR Thundercomm TurboX C865 System on Module Copyright © 2018 All Rights Reserved, Thundercomm Technology Co., Ltd. 2 Graphics  Adreno GPU 650 - 4K 60 fps UI or 2x 2k 60 fps UI  OpenGL ES 3.2, Vulkan 1.1, DX12 FL 12_1  OpenCL 2.0 full profile Display support 2 x 4-lane DSI D-PHY 1.2 and DisplayPort 1.4 data concurrency over USB Maximum concurrency configurations  5040 × 2160 at 60 Hz 30bpp primary + 3840 × 2160 at 60 Hz 30bpp DisplayPort or 3840 × 2160 at 60 Hz 30bpp Wi-Fi display  5040 × 2160 at 60Hz 30bpp primary + 7680 × 4320 at 30 Hz 24bpp DisplayPort  5040 × 2160 at 60Hz 30bpp primary + 2 × 3840 ×2160 at 60 Hz DisplayPort Video Encode 4K120/8K30 encode for H.265 Main 10, H.265 Main, H.264 High, and VP8 codecs Video Decode 4K240/8k30 decode for H.265 Main 10, H.265 Main, H.264 High, VP9 profile 2, VP8, and MPEG-2 codecs Camera support  Qualcomm Spectra 480 Camera ISP  Support 6 x 4 Lane MIPI CSI  Real-time sensor input resolution: 25 + 25 + 2 + 2 + 2 + 2 + 2 MP  64 MP 30 fps ZSL with a dual ISP WLAN 2.4G/5G, support 802.11 a/b/g/n/ac/ax, 2 x 2 MIMO Bluetooth  Support Bluetooth 5.1 + HS  BLE ADC Interface  Support ADC interfaces  Used for input voltage sense, battery temperature detection and general purpose ADC C865 SOM Processor Snapdragon™ QRB5165 Memory LPDDR5(POP) + UFS3.1, 8GB + 128GB Connectivity WiFi /BT: QCA6391 (2x2 MIMO, 802.11 a/b/g/n/ac/ax & BT5.1) Display Interfaces 2 x MIPI-DSI 4-lane, 5040 x 2160@60fps Camera Interfaces 6x 4 data lane MIPI CSI Thundercomm TurboX C865 System on Module Copyright © 2018 All Rights Reserved, Thundercomm Technology Co., Ltd. 3 Audio Interface  SoundWire interface for codec  SoundWire interface for smart speaker amplifier  3x MI2S with two data lanes to support full duplex stereo  1x MI2S with four data lanes for up to eight channels  3 DMIC ports supports up to 6 DMICs USB 2x USB 3.1 GEN2, one can support Type-C with DisplayPort PCIe 2 x 2-lane PCIe Gen3.0 Other Interfaces  2 x RF connector for WiFi /BT, 2 x USB 3.1, 2 x PCIE, 1 x UART, 1 x SDC for SD card, 6 x DMICs, 2 x Speakers  11 x 4pin QUPs( can be set as 4pin SPI or 2pin I2C)  2 x QUPs can be set as 2pin I2C  4 x camera dedicated I2Cs  2 x sensor dedicated I2Cs  1 x sensor dedicated SPI Operating Environment  Operation Temperature: --20°C ~ 70°C  Operation Humidity: 5%~95%, non-condensing Power supply 3.8V ~ 4.2V Dimension 45 x 56 x 9mm w/B2B Connector RoHS All hardware components are fully compliant with EU RoHS 2.0 directive Applications TurboX C865 SOM is ideal for many applications including (but not limited to): AI, Robotics, Virtual Reality (VR), Augmented Reality (AR), Drones and Medical Devices. Revision History: Version Date Description V1.0 May.30, 2020 Revised Release Thundercomm TurboX C865 System on Module Copyright © 2018 All Rights Reserved, Thundercomm Technology Co., Ltd. 4 Table of Contents 1 Physical Description................................................................................................................................ ................. 6 1.1 Hardware Block Diagram................................................................................................ .................... 6 1.2 Major Components Location................................................................................................ ............... 6 1.3 Connectors Function and Part Number................................................................................................ 7 1.4 Package Drawing and Dimensions................................................................................................ ...... 8 2 Interfaces Description ........................................................................................................................................ 10 2.1 Interfaces Parameter Definitions ........................................................................................................ 10 2.2 Interfaces Detail Description .............................................................................................................. 11 2.2.1 Power Supply Interface .............…

Text truncated - open the document above for the full version.

Thundercomm Technology CO., Ltd Address: Building 4, No. 99, Data Valley Middle Road, Xiantao District, Yubei District, Chongqing, China Tel.: +86 010-82036511 Fax: +86 010-82036511 E-mail: [email protected] QA-FR-170-B FCC Authorization Date: 2020-06-03 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Thundercomm Technology Co., Ltd hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Qiyong Zhou Manager

Thundercomm Technology Co., Ltd Address: Building 4, No. 99, Data Valley Middle Road, Xiantao District, Yubei District, Chongqing, China Tel.: +86 010-82036511 Fax: +86 010-82036511 E-mail: [email protected] FCC Confidential Authorization Date: 2020-06-03 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AOHHTURBOXC865 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Vuzix Corporation, hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Software Security Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Qiyong Zhou Manager

Thundercomm Technology Co., Ltd Address: Building 4, No. 99, Data Valley Middle Road, Xiantao District, Yubei District, Chongqing, China Tel.: +86 010-82036511 Fax: +86 010-82036511 E- mail: [email protected] Modular A pproval Letter Date: 2020-06-23 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Application Examiner, We, Thundercomm Technology Co., Ltd is submitting this application for certification of product named as Miura, Model Numbers: TurboX C865 (FCC ID: 2AOHHTURBOXC865). It is seeking modular approval. The radio meets the requirements for modular approval as detailed in FCC 15.212. Compliance to each of the requirements is described below: 1. “The modular transmitter must have its own RF shielding.” Yes, it is fulfilled. The radio portion of the module has its own RF shielding. The shielding is installed at the factory. Please see the EUT photos. 2. “The modular transmitter must have buffered modulation/data inputs.” Yes, it is fulfilled. The EUT has buffered data inputs to insure compliance with Part 15 requirements under conditions of excessive data rates or over modulation. Please see the Schematics exhibit. 3. “The modular transmitter must have its own power supply regulation.” Yes, it is fulfilled. The EUT has its own power supply regulation to insure compliance. 4. “The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” Yes . The EUT has a PIFA antenna design. 5. “The modular transmitter must be tested in a stand-alone configuration.” Yes, it is fulfilled. The EUT was tested in a stand-alone configuration. 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes, it is fulfilled. The module will be labeled with its own FCC ID number. Please see FCC ID label & location exhibit. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” Yes, it is fulfilled. The necessary explanation to be complied with this requirement is contained in the user manual, and please refer to the User manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes, it is fulfilled. The module will comply with all applicable RF exposure requirements of §2.1091 in its intended configuration/integration host. Please contact me if you have additional questions. Your attention to this matter is greatly appreciated. Sincerely Yours, Signature: Qiyong Zhou Manager

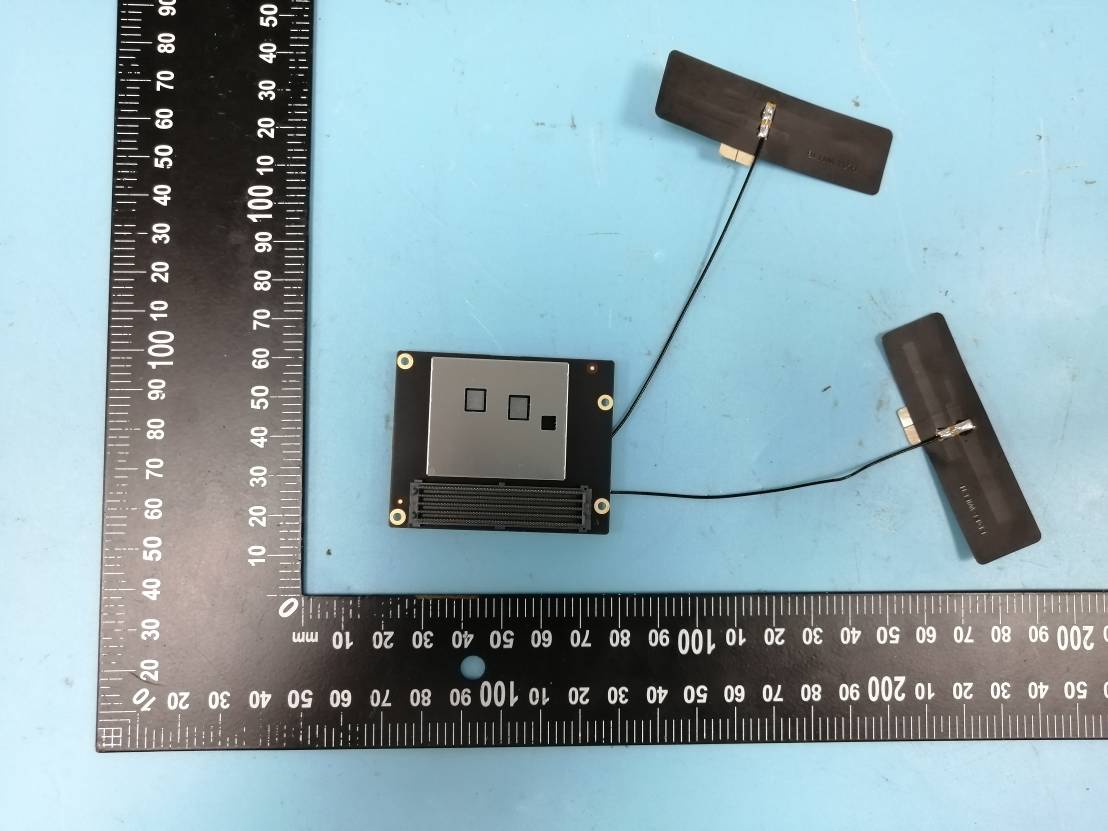

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Wi-Fi Ant 2/Bluetooth Ant Wi-Fi Ant 1

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C FCC Part 15.407 Page 13 of 53 1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 1.1307 (b)(1), 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG π S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C FCC Part 15.407 Page 14 of 53 Mode Frequency (MHz) Antenna Gain Tune up conducted power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) Bluetooth 2402-2480 2.0 1.58 4.0 2.51 20 0.0008 1 BLE 2402-2480 2.0 1.58 6.0 3.98 20 0.0013 1 2.4G Wi-Fi 2412-2462 2.0 1.58 21.0 125.89 20 0.04 1 5G Wi-Fi 5150-5250 2.0 1.58 17.0 50.12 20 0.016 1 5250-5350 2.0 1.58 17.0 50.12 20 0.016 1 5470-5725 2.0 1.58 16.0 39.81 20 0.013 1 5725-5850 2.0 1.58 17.0 50.12 20 0.016 1 Note: 1. the tune up conducted power was declared by the applicant 2. the 2.4G Wi-Fi can transmit at the same time with the 5G Wi-Fi. The Bluetooth can't transmit at the same time with Wi-Fi. Simultaneous transmitting consideration: The ratio=MPE 2.4G /limit + MPE 5G i /limit=0.0016+0.04=0.0416＜1.0 So simultaneous exposure comply with the limit. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliance

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.407 TEST REPORT For Thundercomm Technology CO.,Ltd Building 4, No. 99, Data Valley Middle Road, Xiantao District, Yubei District, Chongqing Report Type: Original Report Product Type: Miura Re port Number: RSZ200526008-00C Re port Date: 2020-06-16 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn FCC ID: 2AOHHTURBOXC865 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C FCC Part 15.407 Page 2 of 53 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 DUTY CYCLE ................................................................................................................................................................ 9 EQUIPMENT MODIFICATIONS ..................................................................................................................................... 10 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 10 EXTERNAL I/O CABLE ................................................................................................................................................ 10 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 10 SUMMARY OF TEST RESULTS ............................................................................................................................. 11 TEST EQUIPMENT LIST ......................................................................................................................................... 12 1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................ 13 APPLICABLE STANDARD ............................................................................................................................................ 13 RESULT ...................................................................................................................................................................... 13 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 15 FCC §15.407 (b) (6) §15.207 (a) – CONDUCTED EMISSIONS ............................................................................. 16 APPLICABLE STANDARD ............................................................................................................................................ 16 EUT SETUP ................................................................................................................................................................ 16 EMI TEST RECEIVER SETUP ....................................................................................................................................... 16 TEST PROCEDURE ..............................................................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C AppendixA1:EmissionBandwidth Test Result TestMode Antenna Channel 26db EBW [MHz] Limit[MHz] Verdict 11a Ant1 5180 18.680 --- PASS Ant2 5180 18.840 --- PASS Ant1 5200 19.080 --- PASS Ant2 5200 18.840 --- PASS Ant1 5240 18.720 --- PASS Ant2 5240 18.920 --- PASS Ant1 5260 18.720 --- PASS Ant2 5260 19.000 --- PASS Ant1 5280 18.880 --- PASS Ant2 5280 18.800 --- PASS Ant1 5320 18.840 --- PASS Ant2 5320 18.760 --- PASS Ant1 5500 18.720 --- PASS Ant2 5500 18.760 --- PASS Ant1 5600 18.600 --- PASS Ant2 5600 18.880 --- PASS Ant1 5720 18.760 --- PASS Ant2 5720 18.800 --- PASS Ant1 5720_UNII-2C14.4 --- PASS Ant2 5720_UNII-2C14.44 --- PASS Ant1 5720_UNII-34.36 --- PASS Ant2 5720_UNII-34.36 --- PASS 11N20MIMO Ant1 5180 18.720 --- PASS Ant2 5180 18.880 --- PASS Ant1 5200 18.760 --- PASS Ant2 5200 18.920 --- PASS Ant1 5240 18.920 --- PASS Ant2 5240 18.840 --- PASS Ant1 5260 19.880 --- PASS Ant2 5260 20.000 --- PASS Ant1 5280 19.720 --- PASS Ant2 5280 19.640 --- PASS Ant1 5320 19.640 --- PASS Ant2 5320 19.800 --- PASS Ant1 5500 19.760 --- PASS Ant2 5500 20.080 --- PASS Ant1 5600 19.920 --- PASS Ant2 5600 19.720 --- PASS Ant1 5720 19.880 --- PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C Ant2 5720 19.840 --- PASS Ant1 5720_UNII-2C15 --- PASS Ant2 5720_UNII-2C14.84 --- PASS Ant1 5720_UNII-34.88 --- PASS Ant2 5720_UNII-35 --- PASS 11N40MIMO Ant1 5190 39.760 --- PASS Ant2 5190 39.360 --- PASS Ant1 5230 39.920 --- PASS Ant2 5230 39.280 --- PASS Ant1 5270 39.920 --- PASS Ant2 5270 39.600 --- PASS Ant1 5310 40.240 --- PASS Ant2 5310 39.440 --- PASS Ant1 5510 40.000 --- PASS Ant2 5510 39.280 --- PASS Ant1 5550 40.000 --- PASS Ant2 5550 39.440 --- PASS Ant1 5710 39.840 --- PASS Ant2 5710 39.360 --- PASS Ant1 5710_UNII-2C34.92 --- PASS Ant2 5710_UNII-2C34.68 --- PASS Ant1 5710_UNII-34.92 --- PASS Ant2 5710_UNII-34.68 --- PASS 11ac20MIMO Ant1 5180 19.800 --- PASS Ant2 5180 19.920 --- PASS Ant1 5200 19.760 --- PASS Ant2 5200 19.840 --- PASS Ant1 5240 19.840 --- PASS Ant2 5240 19.880 --- PASS Ant1 5260 19.880 --- PASS Ant2 5260 19.800 --- PASS Ant1 5280 19.920 --- PASS Ant2 5280 19.840 --- PASS Ant1 5320 20.000 --- PASS Ant2 5320 20.080 --- PASS Ant1 5500 20.000 --- PASS Ant2 5500 20.000 --- PASS Ant1 5600 19.840 --- PASS Ant2 5600 19.800 --- PASS Ant1 5720 19.680 --- PASS Ant2 5720 19.600 --- PASS Ant1 5720_UNII-2C14.88 --- PASS Ant2 5720_UNII-2C14.8 --- PASS Ant1 5720_UNII-34.8 --- PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C Ant2 5720_UNII-34.8 --- PASS 11ac40MIMO Ant1 5190 39.920 --- PASS Ant2 5190 39.360 --- PASS Ant1 5230 40.080 --- PASS Ant2 5230 39.360 --- PASS Ant1 5270 40.240 --- PASS Ant2 5270 39.440 --- PASS Ant1 5310 40.160 --- PASS Ant2 5310 39.360 --- PASS Ant1 5510 40.080 --- PASS Ant2 5510 39.200 --- PASS Ant1 5550 40.240 --- PASS Ant2 5550 39.200 --- PASS Ant1 5710 40.240 --- PASS Ant2 5710 39.520 --- PASS Ant1 5710_UNII-2C35.16 --- PASS Ant2 5710_UNII-2C34.76 --- PASS Ant1 5710_UNII-35.08 --- PASS Ant2 5710_UNII-34.76 --- PASS 11ac80MIMO Ant1 5210 83.200 --- PASS Ant2 5210 82.240 --- PASS Ant1 5290 83.040 --- PASS Ant2 5290 83.040 --- PASS Ant1 5530 82.880 --- PASS Ant2 5530 82.400 --- PASS Ant1 5610 83.200 --- PASS Ant2 5610 82.080 --- PASS Ant1 5690 82.720 --- PASS Ant2 5690 81.920 --- PASS Ant1 5690_UNII-2C76.44 --- PASS Ant2 5690_UNII-2C75.8 --- PASS Ant1 5690_UNII-36.28 --- PASS Ant2 5690_UNII-36.12 --- PASS 11ax20MIMO Ant1 5180 20.640 --- PASS Ant2 5180 20.720 --- PASS 11ax40MIMO Ant1 5190 44.320 --- PASS Ant2 5190 44.480 --- PASS 11ax20MIMO Ant1 5200 20.760 --- PASS Ant2 5200 20.760 --- PASS 11ax80MIMO Ant1 5210 82.560 --- PASS Ant2 5210 82.560 --- PASS 11ax40MIMO Ant1 5230 44.800 --- PASS Ant2 5230 44.240 --- PASS 11ax20MIMO Ant1 5240 20.640 --- PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C Ant2 5240 20.800 --- PASS Ant1 5260 20.920 --- PASS Ant2 5260 20.760 --- PASS 11ax40MIMO Ant1 5270 40.640 --- PASS Ant2 5270 40.400 --- PASS 11ax20MIMO Ant1 5280 20.680 --- PASS Ant2 5280 20.840 --- PASS 11ax80MIMO Ant1 5290 82.880 --- PASS Ant2 5290 82.400 --- PASS 11ax40MIMO Ant1 5310 40.880 --- PASS Ant2 5310 40.720 --- PASS 11ax20MIMO Ant1 5320 20.840 --- PASS Ant2 5320 20.800 --- PASS Ant1 5500 20.920 --- PASS Ant2 5500 20.520 --- PASS 11ax40MIMO Ant1 5510 40.400 --- PASS Ant2 5510 40.480 --- PASS 11ax80MIMO Ant1 5530 82.880 --- PASS Ant2 5530 82.720 --- PASS 11ax40MIMO Ant1 5550 40.640 --- PASS Ant2 5550 40.480 --- PASS 11ax20MIMO Ant1 5600 20.600 --- PASS Ant2 5600 20.880 --- PASS 11ax80MIMO Ant1 5610 83.040 --- PASS Ant2 5610 82.560 --- PASS Ant1 5690 82.400 --- PASS Ant2 5690 82.560 --- PASS Ant1 5690_UNII-2C76.12 --- PASS Ant2 5690_UNII-2C76.12 --- PASS Ant1 5690_UNII-36.28 --- PASS Ant2 5690_UNII-36.44 --- PASS 11ax40MIMO Ant1 5710 40.480 --- PASS Ant2 5710 40.880 --- PASS Ant1 5710_UNII-2C35.24 --- PASS Ant2 5710_UNII-2C35.48 --- PASS Ant1 5710_UNII-35.24 --- PASS Ant2 5710_UNII-35.4 --- PASS 11ax20MIMO Ant1 5720 20.680 --- PASS Ant2 5720 20.840 --- PASS Ant1 5720_UNII-2C15.44 --- PASS Ant2 5720_UNII-2C15.52 --- PASS Ant1 5720_UNII-35.24 --- PASS Ant2 5720_UNII-35.32 --- PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C Test Graphs 11a_Ant1_5180 11a_Ant2_5180 11a_Ant1_5200 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C 11a_Ant2_5200 11a_Ant1_5240 11a_Ant2_5240 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C 11a_Ant1_5260 11a_Ant2_5260 11a_Ant1_5280 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C 11a_Ant2_5280 11a_Ant1_5320 11a_Ant2_5320 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C 11a_Ant1_5500 11a_Ant2_5500 11a_Ant1_5600 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C 11a_Ant2_5600 11a_Ant1_5720 11a_Ant2_5720 Bay…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C AppendixA2: Occupied channel bandwidth Test Result TestMode Antenna Channel OCB [MHz] Limit[MHz] Verdict 11a Ant1 5180 16.583 --- PASS Ant2 5180 16.583 --- PASS Ant1 5200 16.583 --- PASS Ant2 5200 16.583 --- PASS Ant1 5240 16.583 --- PASS Ant2 5240 16.583 --- PASS Ant1 5260 16.583 --- PASS Ant2 5260 16.583 --- PASS Ant1 5280 16.583 --- PASS Ant2 5280 16.583 --- PASS Ant1 5320 16.583 --- PASS Ant2 5320 16.583 --- PASS Ant1 5500 16.583 --- PASS Ant2 5500 16.583 --- PASS Ant1 5600 16.583 --- PASS Ant2 5600 16.583 --- PASS Ant1 5720 16.623 --- PASS Ant2 5720 16.583 --- PASS Ant1 5720_UNII-2C13.312 --- PASS Ant2 5720_UNII-2C13.272 --- PASS Ant1 5720_UNII-33.312 --- PASS Ant2 5720_UNII-33.312 --- PASS Ant1 5745 16.623 --- PASS Ant2 5745 16.623 --- PASS Ant1 5785 16.623 --- PASS Ant2 5785 16.623 --- PASS Ant1 5825 16.623 --- PASS Ant2 5825 16.623 --- PASS 11N20MIMO Ant1 5180 16.583 --- PASS Ant2 5180 16.503 --- PASS Ant1 5200 16.623 --- PASS Ant2 5200 16.503 --- PASS Ant1 5240 16.623 --- PASS Ant2 5240 16.503 --- PASS Ant1 5260 17.702 --- PASS Ant2 5260 17.622 --- PASS Ant1 5280 17.702 --- PASS Ant2 5280 17.582 --- PASS Ant1 5320 17.702 --- PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C Ant2 5320 17.622 --- PASS Ant1 5500 17.662 --- PASS Ant2 5500 17.622 --- PASS Ant1 5600 17.702 --- PASS Ant2 5600 17.582 --- PASS Ant1 5720 17.702 --- PASS Ant2 5720 17.622 --- PASS Ant1 5720_UNII-2C13.831 --- PASS Ant2 5720_UNII-2C13.791 --- PASS Ant1 5720_UNII-33.871 --- PASS Ant2 5720_UNII-33.831 --- PASS Ant1 5745 17.662 --- PASS Ant2 5745 17.622 --- PASS Ant1 5785 17.702 --- PASS Ant2 5785 17.622 --- PASS Ant1 5825 17.742 --- PASS Ant2 5825 17.622 --- PASS 11N40MIMO Ant1 5190 36.044 --- PASS Ant2 5190 36.044 --- PASS Ant1 5230 36.124 --- PASS Ant2 5230 36.044 --- PASS Ant1 5270 36.044 --- PASS Ant2 5270 35.964 --- PASS Ant1 5310 36.124 --- PASS Ant2 5310 36.044 --- PASS Ant1 5510 36.044 --- PASS Ant2 5510 36.044 --- PASS Ant1 5550 36.124 --- PASS Ant2 5550 36.124 --- PASS Ant1 5710 36.044 --- PASS Ant2 5710 36.044 --- PASS Ant1 5710_UNII-2C32.982 --- PASS Ant2 5710_UNII-2C32.982 --- PASS Ant1 5710_UNII-33.062 --- PASS Ant2 5710_UNII-33.062 --- PASS Ant1 5755 36.124 --- PASS Ant2 5755 36.044 --- PASS Ant1 5795 36.124 --- PASS Ant2 5795 36.044 --- PASS 11ac20MIMO Ant1 5180 17.702 --- PASS Ant2 5180 17.622 --- PASS Ant1 5200 17.702 --- PASS Ant2 5200 17.622 --- PASS Ant1 5240 17.702 --- PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C Ant2 5240 17.622 --- PASS Ant1 5260 17.702 --- PASS Ant2 5260 17.622 --- PASS Ant1 5280 17.702 --- PASS Ant2 5280 17.582 --- PASS Ant1 5320 17.702 --- PASS Ant2 5320 17.622 --- PASS Ant1 5500 17.702 --- PASS Ant2 5500 17.622 --- PASS Ant1 5600 17.702 --- PASS Ant2 5600 17.582 --- PASS Ant1 5720 17.702 --- PASS Ant2 5720 17.622 --- PASS Ant1 5720_UNII-2C13.831 --- PASS Ant2 5720_UNII-2C13.791 --- PASS Ant1 5720_UNII-33.871 --- PASS Ant2 5720_UNII-33.831 --- PASS Ant1 5745 17.662 --- PASS Ant2 5745 17.622 --- PASS Ant1 5785 17.702 --- PASS Ant2 5785 17.622 --- PASS Ant1 5825 17.702 --- PASS Ant2 5825 17.622 --- PASS 11ac40MIMO Ant1 5190 36.044 --- PASS Ant2 5190 36.044 --- PASS Ant1 5230 36.124 --- PASS Ant2 5230 36.044 --- PASS Ant1 5270 36.124 --- PASS Ant2 5270 36.044 --- PASS Ant1 5310 36.124 --- PASS Ant2 5310 36.044 --- PASS Ant1 5510 36.044 --- PASS Ant2 5510 36.044 --- PASS Ant1 5550 36.124 --- PASS Ant2 5550 36.044 --- PASS Ant1 5710 36.044 --- PASS Ant2 5710 36.044 --- PASS Ant1 5710_UNII-2C32.982 --- PASS Ant2 5710_UNII-2C32.982 --- PASS Ant1 5710_UNII-33.062 --- PASS Ant2 5710_UNII-33.062 --- PASS Ant1 5755 37.243 --- PASS Ant2 5755 37.083 --- PASS Ant1 5795 37.243 --- PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200526008-00C Ant2 5795 37.083 --- PASS 11ac80MIMO Ant1 5210 75.604 --- PASS Ant2 5210 75.604 --- PASS Ant1 5290 75.604 --- PASS Ant2 5290 75.445 --- PASS Ant1 5530 75.764 --- PASS Ant2 5530 75.604 --- PASS Ant1 5610 75.764 --- PASS Ant2 5610 75.445 --- PASS Ant1 5690 75.604 --- PASS Ant2 5690 75.445 --- PASS Ant1 5690_UNII-2C72.722 --- PASS Ant2 5690_UNII-2C72.562 --- PASS Ant1 5690_UNII-32.882 --- PASS Ant2 5690_UNII-32.882 --- PASS Ant1 5775 77.363 --- PASS Ant2 5775 77.363 --- PASS 11ax20MIMO Ant1 5180 18.981 --- PASS Ant2 5180 18.981 --- PASS 11ax40MIMO Ant1 5190 38.362 --- PASS…

Text truncated - open the document above for the full version.
