2AP2V-PL-0313Organizer with Clock and Wireless Charging

THANK YOU! We hope you enjoy your new OttLite product. PRODUCT REGISTRATION FORM Please complete the enclosed Product Registration Form and return it today by mail. NOTE: THIS UNIT IS FULLY ASSEMBLED 1. Remove product from packing, placing base (A) flat on a steady surface. 2. Connect power adapter input (B) into connector (C) in the back of the product. 3. Plug the power adapter (D) into a standard household 120V AC outlet. NOTE: Only use with the supplied power adapter to avoid damage or fire. 4. Wireless charger is located in the center of base (E). See Wireless Charging Instructions section for details. TO SET THE TIME: • Press and hold “Set” (H) until the year starts to flash. Then press “UP/ALARM” (F) or “DOWN” (G) to change the year. • Press “Set” (H) again and the month will start to flash. Press “UP/ALARM” (F) or “DOWN” (G) to change the month. • Press “Set” (H) again and the day will start to flash. Press “UP/ALARM” (F) or “DOWN” (G) to change the day. • Press “Set” (H) again and the hour will start to flash. Press “UP/ALARM” (F) or “DOWN” (G) to change the hour. • Press “Set” (H) again and the minutes will start to flash. Press “UP/ALARM” (F) or “DOWN” (G) to change the minutes. • Press “SET” (H) again to return to normal time keeping. ALARM: • Press and hold “UP/ALARM” (F) until the alarm time starts to flash. • Press “UP/ALARM” (F) or “DOWN” (G) to change the alarm time. A clock indicator will appear showing the alarm is on. • Press “SET” (H) again to return to normal time keeping. • To stop the alarm sounding, press the “DOWN” (G) button. TO TURN OFF THE ALARM FUNCTION: • Double press the “UP/ALARM” (F) quickly to turn the alarm function on or off. Note: The alarm is off when the year is visible. SNOOZE: • When the alarm is sounding, press “SNOOZE” (I) and the alarm will snooze for five minutes before sounding again. This can be done multiple times. TO CHANGE THE BRIGHTNESS: • Press the “SNOOZE” (I) button to change to the desired brightness. There are three levels. WIRELESS CHARGING INSTRUCTIONS: Wireless charging requires devices that have integrated wireless charging capabilities. To determine if your device has wireless charging, refer to the owners manual that came with your device. To wirelessly charge a device, perform the following: • Place the device, which supports wireless charging, face up on the middle of the wireless charging area (E). • When the device is centered on the wireless charging area (E), your device should show charging is taking place. • Check the charge level on your device periodically to determine when device is fully charged. NOTE: Product DOES NOT provide any indication of when device is fully charged. Organizer with Clock and Wireless Charging A03G5T F G H I PL-0313 INS-21-0638 REV033021 5V.DC MAX 2.1A 5V.DC MAX 2.1A CAUTION! DEVICE MAY BECOME WARM DURING CHARGING. THIS IS NORMAL AND PART OF THE PROCESS. CHARGING TIMES VARY BY DEVICE. SAFETY WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS 1. Never use with an extension cord unless the plug can be fully inserted into the receptacles in the extension cord. 2. Do not alter the plug. 3. INDOOR USE ONLY. NOTE: The important safety instructions appearing in this instruction sheet are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution, and care must be used with any electrical product. CAUTION! IF THE EXTERNAL FLEXIBLE CABLE OR CORD OF THIS LUMINAIRE IS DAMAGED, IT SHALL BE EXCLUSIVELY REPLACED BY THE MANUFACTURER OR ITS SERVICE AGENT OR A SIMILAR QUALIFIED PERSON IN ORDER TO AVOID A HAZARD. INDOOR USE ONLY. FCC PART 15 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that of the receiver. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “FCC/IC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC/IC’s RF exposure guidelines, place at least 20cm from nearby persons.” IC CANADA This device contains licence-exempt transmitter(s)/ receiver that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. IC WARNING L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produi…

Text truncated - open the document above for the full version.

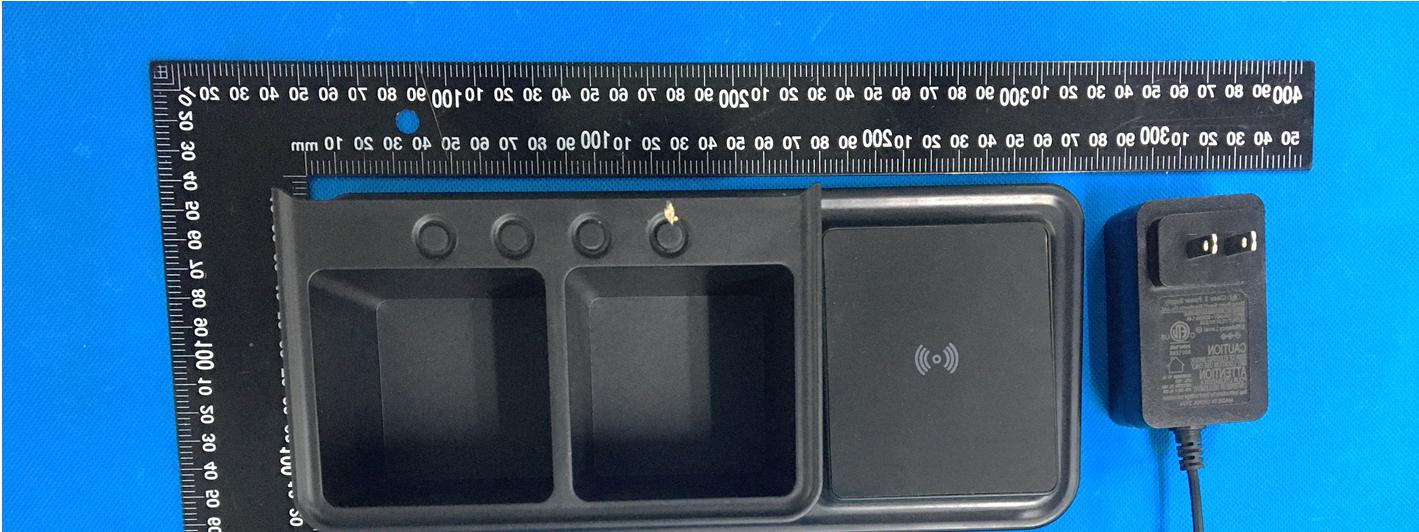

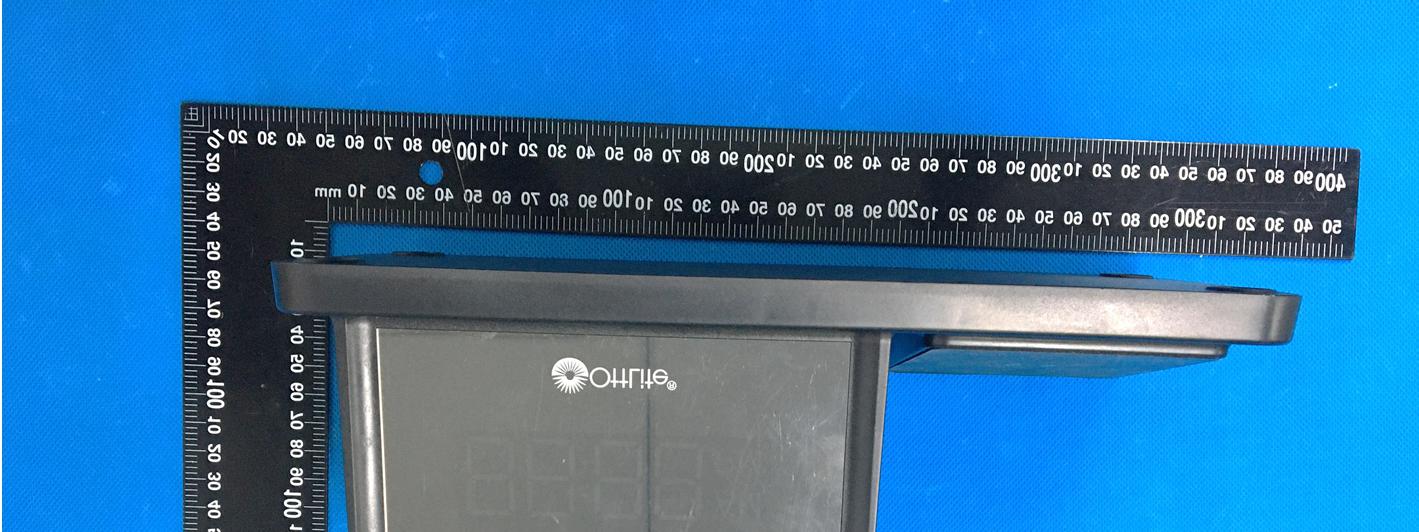

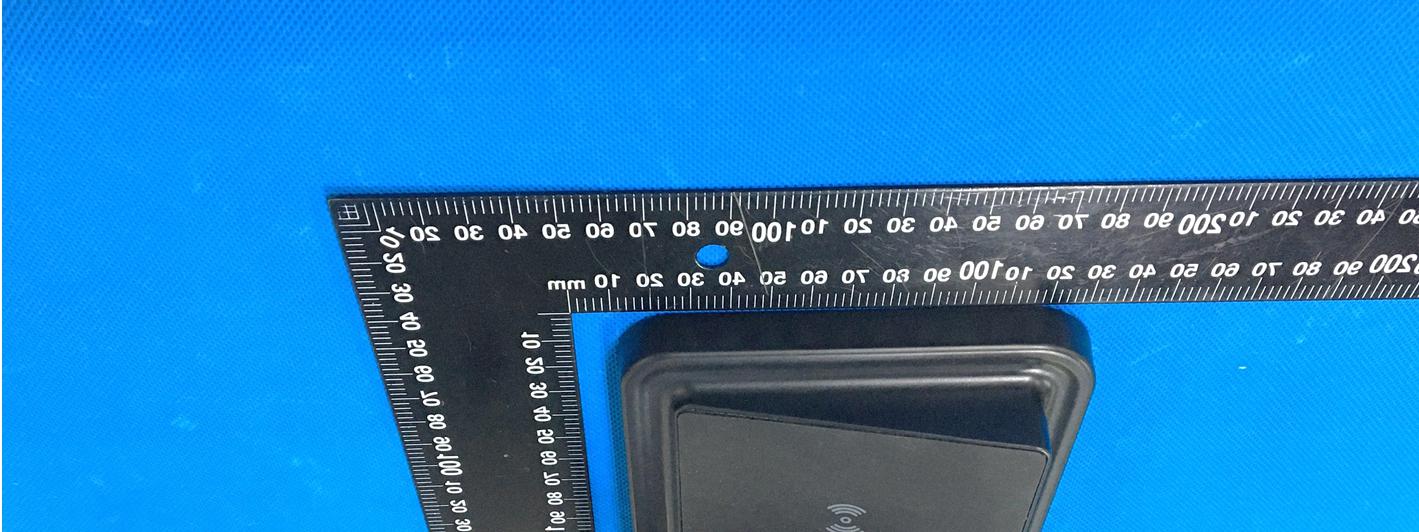

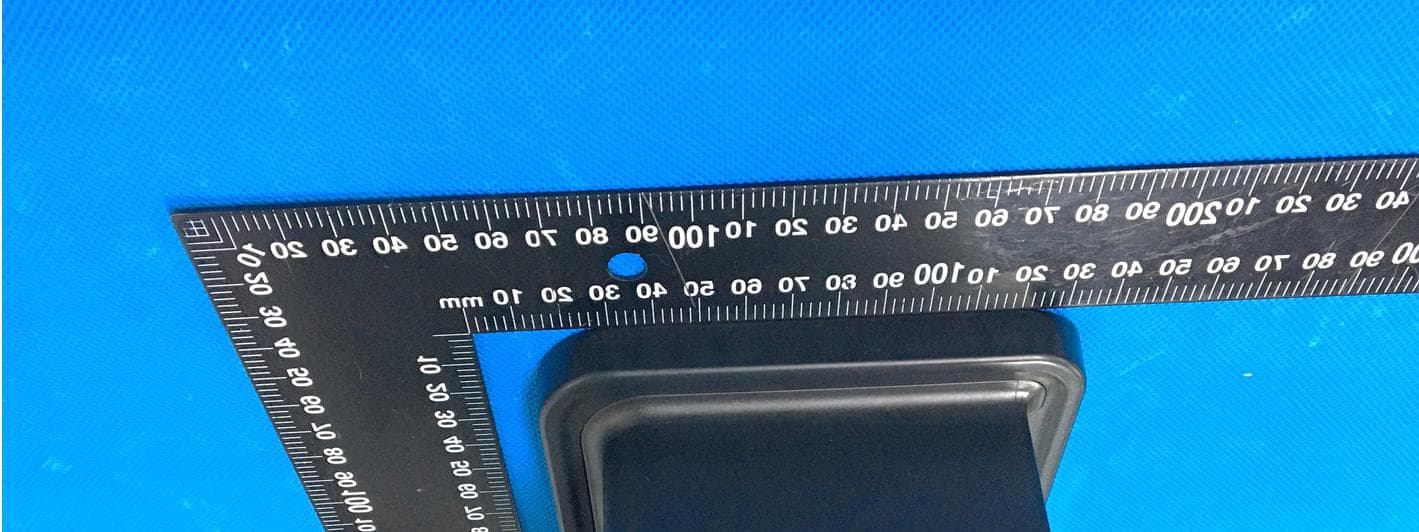

Reference No.: WTN21X02013518W-1/2 Page 2 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTN21X02013518W-1/2 Page 3 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 3 EUT View 4 Reference No.: WTN21X02013518W-1/2 Page 4 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 5 EUT View 6 Reference No.: WTN21X02013518W-1/2 Page 5 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 7

Reference No.: WTN21X02013518W-1/2 Page 1 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTN21X02013518W-1/2 Page 6 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTN21X02013518W-1/2 Page 7 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTN21X02013518W-1/2 Page 8 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 3 Solder Board-Component View 4

Reference No.: WTN21X02013518W-1/2 Page 9 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 5 Solder Board-Component View 6 Reference No.: WTN21X02013518W-1/2 Page 10 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 7 Solder Board-Component View 8 Reference No.: WTN21X02013518W-1/2 Page 11 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Antenna View

Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 1 of 10 TEST REPORT Reference No. .................... : WTN21X02013518W-2 FCC ID ................................ : 2AP2V-PL-0313 Applicant ........................... : Shaoxing Prolux Lighting Co.,Ltd Address.............................. : Ludong Industrial Zone,BaiGuan Street,ShangYu District, Shaoxing City Zhejiang Province,China Product Name ................... : Organizer with Clock and Wireless Charging Test Model. ........................ : PL-0313 Standards .......................... : KDB 680106 D01 V03 Date of Receipt sample .... : Feb.25, 2021 Date of Test........................ : Feb.25, 2021 to Mar.11, 2021 Date of Issue ..................... : Mar.11, 2021 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Mike Shi / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTN21X02013518W-2 Page 2 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 2 of 10 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ...............................................................................4 1.2 TEST EQUIPMENT LIST AND DETAILS .....................................................................................................................5 2. RF EXPOSURE TEST REPORT.............................................................................................................................6 2.1 STANDARD APPLICABLE .........................................................................................................................................6 2.2 TEST CONDITIONS ..................................................................................................................................................6 2.3 TEST PROCEDURE ...................................................................................................................................................7 2.4 TEST RESULT..........................................................................................................................................................7 2.5 TEST PHOTOS .........................................................................................................................................................9 APPENDIX PHOTOGRAPHS ................................................................................................................................... 10 Reference No.: WTN21X02013518W-2 Page 3 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 3 of 10 Report version Version No. Date of issue Description Rev.00 Mar.11, 2021 Original / / / Reference No.: WTN21X02013518W-2 Page 4 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 4 of 10 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Shaoxing Prolux Lighting Co.,Ltd Address of applicant: Ludong Industrial Zone,BaiGuan Street,ShangYu District, Shaoxing City,Zhejiang Province,China Manufacturer: Shaoxing Prolux Lighting Co.,Ltd Address of manufacturer: Ludong Industrial Zone,BaiGuan Street,ShangYu District, Shaoxing City,Zhejiang Province,China General Description of EUT Product Name: Wireless charging clock Trade Name: / Model No.: PL-0313 Adding Model(s): / Note: The test data is gathered from a production sample, provided by the manufacturer. Technical Characteristics of EUT Frequency Range: 110~205KHz Modulation Type: ASK Antenna Type: Coil Antenna Input: DC12V Wireless output： 10W Max Power adapter: MODEL:RSS1006-240120-W2-B INPUT:AC100-240V, 50/60Hz, 1.4A Output:DC12.0V, 2.0A Reference No.: WTN21X02013518W-2 Page 5 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 5 of 10 1.2 Test Equipment List and Details Description Manufacturer Model Serial No. Cal Date Due Date MPE Measuring Instrument Narda ELT-400 M-0155/M-0170 2020-07-15 2021-07-14 Broadband Field Meter Narda NBM-520 D-1699 2020-06-21 2021-06-20 Reference No.: WTN21X02013518W-2 Page 6 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 6 of 10 2. RF Exposure Test Report 2.1 Standard Applicable According to §1.1310 system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. 2.2 Test Conditions Test Mode Description Remark TM1 Wireless Charging DC12V Measurement Distance: 15 cm Reference No.: WTN21X02013518W-2 Page 7 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 7 of 10 2.3 Test Procedure a. The measurement probe was placed at test distance(15 cm for A,B,C,D,F and 20 cm for E) which is between the edge of the charger and the geometric center of probe. b. The highest emission level was recorded at the measurement points(A, B, C, D, E, F). c. The EUT was measured according to the distance of KDB 680106 D01 V03. 2.4 Test Result The EUT dose comply with item 5.2 of KDB 680106 D01V03 1. Power transfer frequency is less that 1 MHz Yes, the device operate in the frequency range from 110kHz to 205kHz. 2. Output power from each primary coil is less than or equal to …

Text truncated - open the document above for the full version.

Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 1 of 19 TEST REPORT Reference No. .................... : WTN21X02013518W-1 FCC ID ................................ : 2AP2V-PL-0313 Applicant ........................... : Shaoxing Prolux Lighting Co.,Ltd Address.............................. : Ludong Industrial Zone,BaiGuan Street,ShangYu District, Shaoxing City Zhejiang Province,China Product Name ................... : Organizer with Clock and Wireless Charging Test Model. ........................ : PL-0313 Standards .......................... : FCC Part 18 Date of Receipt sample .... : Feb.25, 2021 Date of Test........................ : Feb.25, 2021 to Mar.11, 2021 Date of Issue ..................... : Mar.11, 2021 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Mike Shi / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTN21X02013518W-1 Page 2 of 19 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ...............................................................................4 1.2 TEST STANDARDS ...................................................................................................................................................5 1.3 TEST METHODOLOGY .............................................................................................................................................5 1.4 TEST FACILITY .......................................................................................................................................................5 1.5 EUT SETUP AND OPERATION MODE ......................................................................................................................6 1.6 MEASUREMENT UNCERTAINTY ..............................................................................................................................6 1.7 TEST EQUIPMENT LIST AND DETAILS .....................................................................................................................7 2. SUMMARY OF TEST RESULTS ...........................................................................................................................8 3. CONDUCTED EMISSIONS ....................................................................................................................................9 3.1 STANDARD APPLICABLE .........................................................................................................................................9 3.2 TEST PROCEDURE ...................................................................................................................................................9 3.3 BASIC TEST SETUP BLOCK DIAGRAM .....................................................................................................................9 3.4 ENVIRONMENTAL CONDITIONS ..............................................................................................................................9 3.5 TEST RECEIVER SETUP ......................................................................................................................................... 10 3.6 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 4. RADIATED EMISSIONS ....................................................................................................................................... 13 4.1 TEST PROCEDURE ................................................................................................................................................. 13 4.2 TEST RECEIVER SETUP ......................................................................................................................................... 15 4.3 CORRECTED AMPLITUDE & MARGIN CALCULATION ............................................................................................ 15 4.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 15 4.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 15 APPENDIX PHOTOGRAPHS ................................................................................................................................... 19 Reference No.: WTN21X02013518W-1 Page 3 of 19 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Report version Version No. Date of issue Description Rev.00 Mar.11, 2021 Original / / / Reference No.: WTN21X02013518W-1 Page 4 of 19 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Shaoxing Prolux Lighting Co.,Ltd Address of applicant: Ludong Industrial Zone,BaiGuan Street,ShangYu District, Shaoxing City,Zhejiang Province,China Manufacturer: Shaoxing Prolux Lighting Co.,Ltd Address of manufacturer: Ludong Industrial Zone,BaiGuan Street,ShangYu District, Shaoxing City,Zhejiang Province,China General Description of EUT Product Name: Organiz…

Text truncated - open the document above for the full version.

Reference No.: WTN21X02013518W-1/2 Page 12 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission View (Below 30MHz) Reference No.: WTN21X02013518W-1/2 Page 13 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Radiation Emission View (30MHz to 1GHz)
