2APA9-CMSXJ38AIMILAB C21

上海创米科技有限公司 038A01 V1.1 V1.0创建图档 20201217 IMILAB C21IPC038A01 周晓玲 选择正确的 方向图标拖 动到图纸里 纹理方向 色相正确、印迹牢固、 套印准确、各色套印 不露杂色，套印误差≤ 0.1mm 模切走位≤±0.5mm （示例具体以实物为准） 修改内容版本 修 改 记 录 材质：太空梭105g无光铜亚粉 尺寸：75 80mm Cool Gray 11 C Product Overview IMILAB C21 can be placed on a number of horizontal surfaces, such as a writing desk, dining table, and coffee table. It can also be mounted on the wall. Mounted IMILAB C21 on a Wall: 1. Drill two holes on the wall by using the base of the IMILAB C21 as a template. It is recommended that you mark the locations of the hole with a pencil before drilling. The diameter of each hole is approximately 6 mm, and the depth is approximately 30 mm. 2. Insert the two plastic anchors into the holes on the wall. 3. Make sure to position the base unit so that the arrow is pointing up. Secure the base unit in place by tightening the screws into the plastic anchors. 4. Matching the grooves on the bottom of the camera unit with the raised area on the base unit. Press down until the two surfaces are flush, then turn the camera unit in either direction to lock it in position. Package Contents: IMILAB C21 x 1, power cable x 1, wall mounting accessories pack x 1, user manual x 1 Installation Warning: To avoid any damages or injuries, the device must be securely fastened to the floor/wall as specified in the installation instructions. When mounting the security camera on a wall: Please note that the wall must be able to support at least triple the product's total weight. MicroSD Indicator Light Steady blue on: connected/device status is normal Flashing blue: network error Flashing orange rapidly: waiting for connection Flashing orange slowly: system upgrade in progress Installing a MicroSD Card Make sure that the power to IMILAB C21 is already disconnected. Adjust the camera lens upward until the MicroSD slot is revealed, then insert the MicroSD card into the slot (the side with contact points must be facing down). Note: Please turn off the IMILAB C21‘s power supply before inserting or removing the MicroSD card. Please use a genuine Micro SD card manufactured by a qualified supplier, with a reading/writing speed of no less than U1/Class 10. (Maximum support capacity is 64 GB) Restore Factory Settings Press and hold the reset hole with fine needle, then you can hear the “reset succeed” voice. Data stored on the MicroSD card is not deleted. Install IMILAB Home App Connect with IMILAB Home app. This product works with IMILAB Home app. Control your device with IMILAB Home app. Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed already. Or search “IMILAB Home” in the app store to download and install it. Open IMILAB Home app, tap “+” on the upper right, and then follow prompts to add your device. Note: The version of the app might have been updated, please follow the instructions based on the current app version. Add Device 1. If the indicator light is flashing orange, that means the device is activated successfully. Else, please reset the device. 2. Once the IMILAB C21 is turned on, please do not attempt to rotate its head by force. If the camera position is incorrect, adjustments can be made through the app. Product Instructions Turning the Device On IMILAB C21will automatically activate once the power cable is inserted into the Micro-USB charging port. Specifications Name: IMILAB C21 Model: CMSXJ38A Net Weight: 249 g Viewing Angle: 105° Resolution: 2560 x 1440 Input: 5 V 2 A Expandable Memory: MicroSD card (up to 64 GB) Storage: 108 mm x 76 mm x 76 mm Operating Temperature: -10 °C to 40 °C Compatible With: Android 5.0 or iOS 9.0 or above Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz Open IMILAB Home app, tap “+” on the upper right. Tap”[-]”and scan the QR code under the device by your phone, then you can follow the steps to add your device. Open IMILAB Home app, tap “+” on the upper right. Tap”IMILAB C21”and then you can follow the steps to add your device. WEEE Information EU Declaration of Conformity Hereby, Shanghai Imilab Technology Co., Ltd. declares that the radio equipment type IMILAB C21 is in compliance with Directive 2014/53/EU. All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points. MicroSD Slot (Can be revealed by pushing the lens upward) Lens Status indicator Loudspeaker Micro-USB Charging port MIC Reset Hole Front View Rear View Camera IMILAB Home Security Cam... IMILAB Home Security Cam... Please enter the device name to... Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. …

Text truncated - open the document above for the full version.

Shanghai Imilab Technology Co., Ltd. Agent Authorization Company: Shanghai Imilab Technology Co., Ltd. Address: Room 001A, Floor 11, Block 1, No. 588 Zixing Road, Minhang District, Shanghai, China Product Name: IMILAB C21 Model Number(s): CMSXJ38A Product Description: IMILAB C21 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-03-12 Name: wang hesong Company: Shanghai Imilab Technology Co., Ltd.

Shanghai Imilab Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-03-02 Subject; Request for Confidentiality FCC ID: 2APA9-CMSXJ38A To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Shanghai Imilab Technology Co., Ltd. Contact person: wang hesong

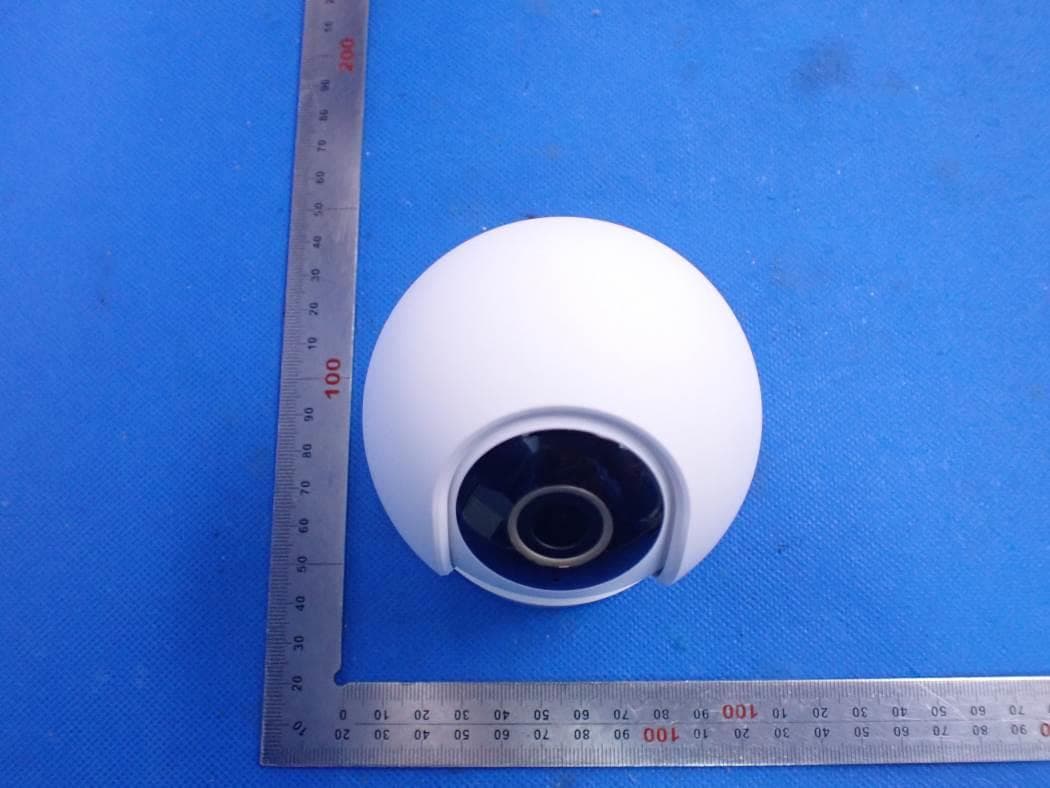

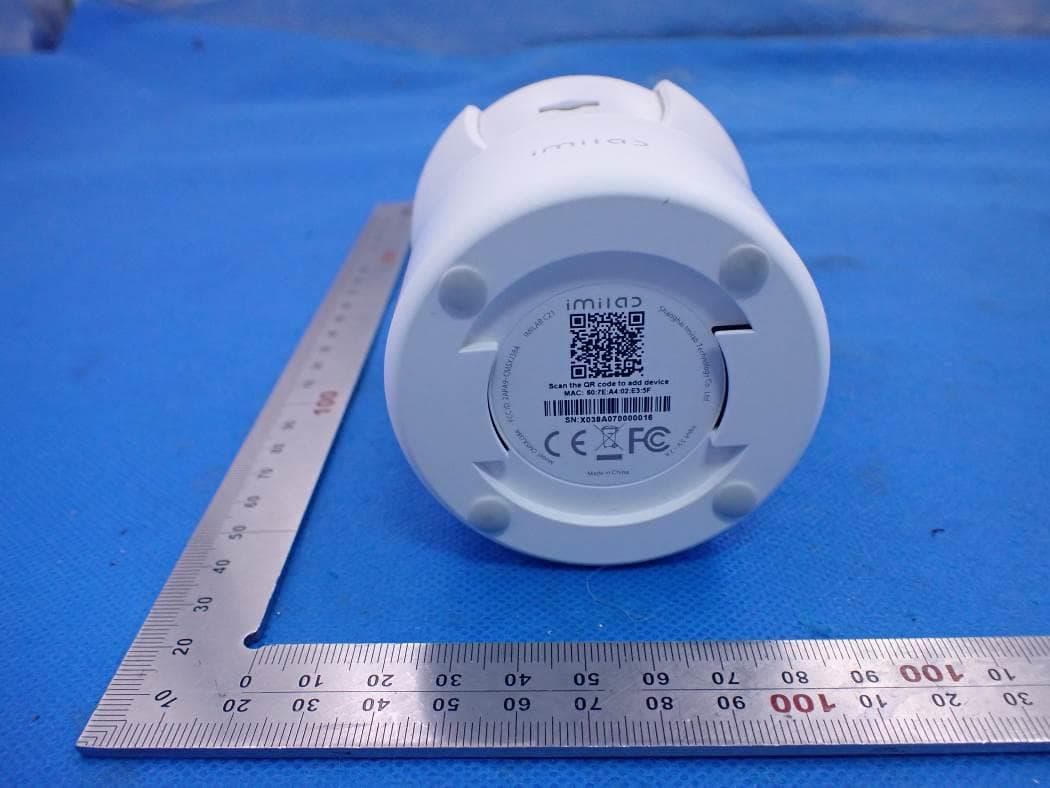

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)-1 VIEW OF EUT (PORT)-2 VIEW OF ADAPTER

FCC ID Label Location FCC ID: 2APA9-CMSXJ38A

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description IMILAB C21 Model Name CMSXJ38A FCC ID 2APA9-CMSXJ38A 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. Antenna Gain=3.43dBi (Numeric 2.20), π=3.14 Note: 1. Only the worst case recorded. 3. conclusion Compliance the RF exposure requirement Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 2437 15.61 36.39 0.0159 1

Page 1 of 80 Report No.: AGC05877201206FE05 FCC ID : 2APA9-CMSXJ38A APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : IMILAB C21 BRAND NAME : N/A MODEL NAME : CMSXJ38A APPLICANT : Shanghai Imilab Technology Co., Ltd. DATE OF ISSUE : Mar. 02, 2021 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd FCC Test Report Report No.: AGC05877201206FE05 Page 2 of 80 EPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 02, 2021 Valid Initial Release Report No.: AGC05877201206FE05 Page 3 of 80 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. IEEE 802.11N MODULATION SCHEME .................................................................................................. 7 2.4. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 7 2.5. TEST METHODOLOGY .......................................................................................................................... 7 2.6. SPECIAL ACCESSORIES ....................................................................................................................... 7 2.7. EQUIPMENT MODIFICATIONS .............................................................................................................. 7 2.8. ANTENNA REQUIREMENT .................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN EUT SYSTEM .................................................................................................... 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. OUTPUT POWER ........................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 6 DB BANDWIDTH ...................................................................................................................................... 16 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 16 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 16 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 17 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 25 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 25 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 25 9.3. MEASUREMENT EQUIPMENT USEDJN ............................................................................................. 25 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 25 Report No.: AGC05877201206FE05 Page 4 of 80 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ....................................................... 42 10.1 MEASUREMENT PROCEDURE .......................................................................................................... 42 10.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 42 10.3 MEASUREMENT EQUIPMENT USED ................................................................................................. 42 10.4 LIMITS AND MEASUREMENT RESULT .............................................................................................. 42 11. RADIATED EMISSION ............................................................................................................................... 50 11.1. MEASUREMENT PROCEDURE ......................................................................................................... 50 11.2. TEST SETUP ....................................................................................................................................... 51 11.3. LIMITS AND MEASUREMENT RESULT ...............…

Text truncated - open the document above for the full version.

Report No.: AGC05877201206FE05 Page 48 of 80 TEST PLOT OF SPECTRAL DENSITY FOR HIGH CHANNEL 802.11n 40 TEST RESULT TEST PLOT OF SPECTRAL DENSITY FOR LOW CHANNEL Report No.: AGC05877201206FE05 Page 49 of 80 TEST PLOT OF SPECTRAL DENSITY FOR MIDDLE CHANNEL TEST PLOT OF SPECTRAL DENSITY FOR HIGH CHANNEL Report No.: AGC05877201206FE05 Page 50 of 80 11. RADIATED EMISSION 11.1. MEASUREMENT PROCEDURE 1. The EUT was placed on the top of the turntable 0.8 or 1.5 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz RBW and 3MHz VBW for peak reading. Place the measurement antenna away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum values. 8.If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High - Low scan is not required in this case. Report No.: AGC05877201206FE05 Page 51 of 80 11.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC05877201206FE05 Page 52 of 80 11.3. LIMITS AND MEASUREMENT RESULT 15.209(a) Limit in the below table has to be followed Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested For restricted band radiated emission, the test records reported below are the worst result compared to other modes. 11.4. TEST RESULT RADIATED EMISSION BELOW 30MHZ The amplitude of spurious emissions from 9kHz to 30MHz which are attenuated more than 20 dB below the permissible value need not be reported. Report No.: AGC05877201206FE05 Page 53 of 80 RADIATED EMISSION BELOW 1GHZ EUT IMILAB C21 Model Name CMSXJ38A Temperature 25°C Relative Humidity 58% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with date rate 1 2412MHZ Antenna Horizontal RESULT: PASS Report No.: AGC05877201206FE05 Page 54 of 80 EUT IMILAB C21 Model Name CMSXJ38A Temperature 25°C Relative Humidity 58% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with date rate 1 2412MHZ Antenna Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Measurement-Limit. 2. The “Factor” value can be calculated automatically by software of measurement system. 3. All test modes had been pre-tested. The 802.11b at low channel is the worst case and recorded in the report. Report No.: AGC05877201206FE05 Page 55 of 80 RADIATED EMISSION ABOVE 1GHZ EUT IMILAB C21 Model Name CMSXJ38A Temperature 25°C Relative Humidity 58% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with date rate 1 2412MHZ Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4824.00054.610.0854.6974-19.31 peak 4824.00045.190.0845.2754-8.73 AVG 7236.00049.312.2151.5274-22.48 peak 7236.00040.252.2142.4654-11.54 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT IMILAB C21 Model Name CMSXJ38A Temperature 25°C Relative Humidity 58% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with date rate 1 2412MHZ Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(d…

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP BELOW 1GHZ FCC RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED EMISSION TEST SETUP
