2APD3-EDT800Tablet PC

-1- Instrucciones de la tableta AndroidTM 11 (edición Go) -2- Contenido 1 Información general ...................................................................................................................................................... 4 1.1 Perfil.................................................................................................................................................................................. 4 1.2 Advertencias y atenciones de seguridad ............................................................................................................................ 4 2 Su teléfono ...................................................................................................................................................................... 6 2.1 Funciones de las teclas ...................................................................................................................................................... 6 2.2 Funciones de los iconos .................................................................................................................................................... 6 3 Empezando. .................................................................................................................................................................... 6 3.1 Carga de la batería............................................................................................................................................................. 6 3.2 Vinculación a las redes y dispositivos ............................................................................................................................... 8 3.3 Uso de la pantalla táctil ..................................................................................................................................................... 9 3.4 Uso del teclado en pantalla ............................................................................................................................................... 9 4 Uso de los menús .......................................................................................................................................................... 10 4.1 Copia de seguridad de restauracion ................................................................................................................................ 10 4.2 navegador ........................................................................................................................................................................ 10 4.3 Calculadora ...................................................................................................................................................................... 11 -3- 4.4 Calendario ........................................................................................................................................................................ 11 4.5 .Cámara ........................................................................................................................................................................... 12 4.6 Reloj ................................................................................................................................................................................ 12 4.7 Descargas ........................................................................................................................................................................ 12 4.8 Correo electrónico ........................................................................................................................................................... 12 4.9 Facebook ......................................................................................................................................................................... 13 4.10 Administrador de archivos ............................................................................................................................................ 13 4.11 Luz de destello .............................................................................................................................................................. 14 4.12 Radio FM ...................................................................................................................................................................... 14 4.13 Google ........................................................................................................................................................................... 14 4.14 YouTube ........................................................................................................................................................................ 14 4.15 Google Tocar ................................................................................................................................................................. 14 4.16 Buscar ........................................................................................................................................................................... 14 4.17 Configuración ............................................................................................................................................................... 14 4.18 Grabador de sonido ....................................................................................................................................................... 15 4.19 Reproductor de video .................................................................................................................................................... 15 5 Apéndice ....................................................................................................................................................................... 16 -4- 1 Información general 1.1 Perfil Lea este folleto detenidamente para que su tablet pc esté en perfecta…

Text truncated - open the document above for the full version.

Page 1 of 1 Rev.2.0 SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2APD3-EDT800 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo-location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Signature: Name / Title: Jun Li / Manager Tel: +86-0755-83588177 Fax: +86-0755-83588159 E-Mail: [email protected] Date: 2021-07-13

SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Agent Authorization Company: SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address: Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Product Name: Tablet PC Trade Mark: N/A Model Number: EDT800, A80, EDT100 FCC ID: 2APD3-EDT800 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-07-13 Name: Jun Li Title: Manager Company: SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD

SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Add: Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Tel: +86-0755-83588177 Fax: +86-0755-83588159 Date: 2021-07-13 Dear Sir/Madam, We, SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only model numbers are different for marketing purpose: Product name: Tablet PC Models No.: EDT800, A80, EDT100 Sincerely, Name / Title: Jun Li / Manager Company: SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address: Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Tel: +86-0755-83588177 Fax: +86-0755-83588159 E-Mail: [email protected]

SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-07-13 Subject; Request for Confidentiality FCC ID: 2APD3-EDT800 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Declaration of Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jun Li Title: Manager

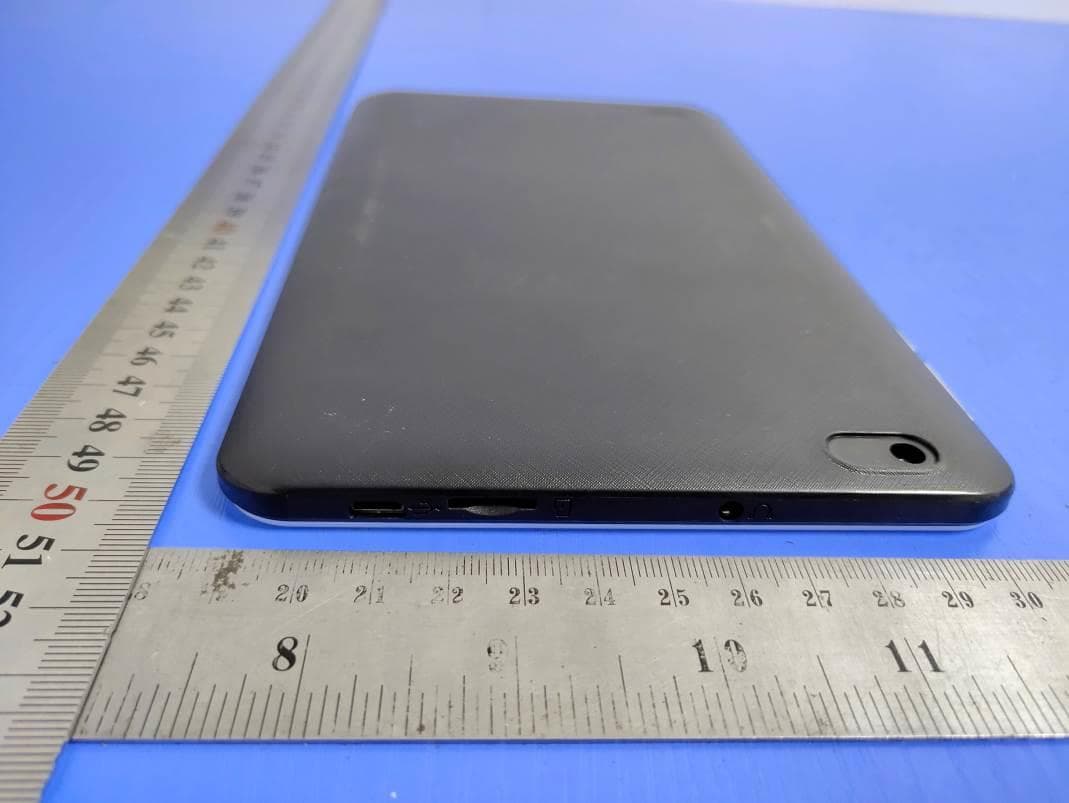

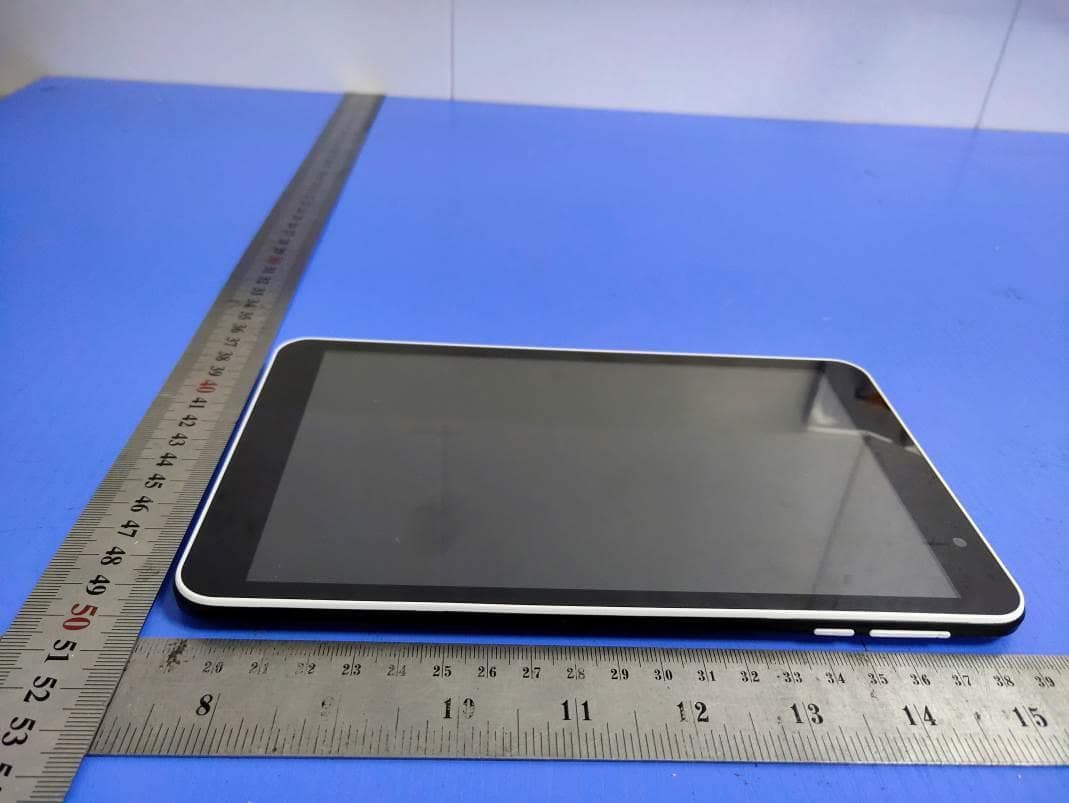

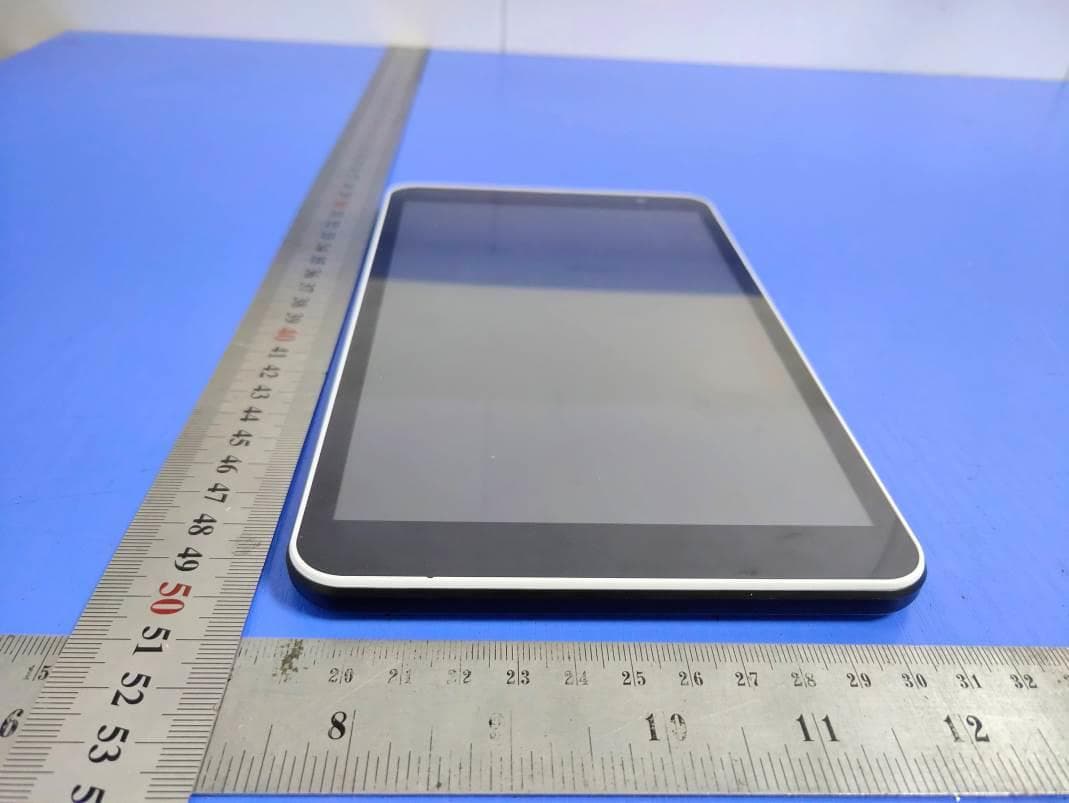

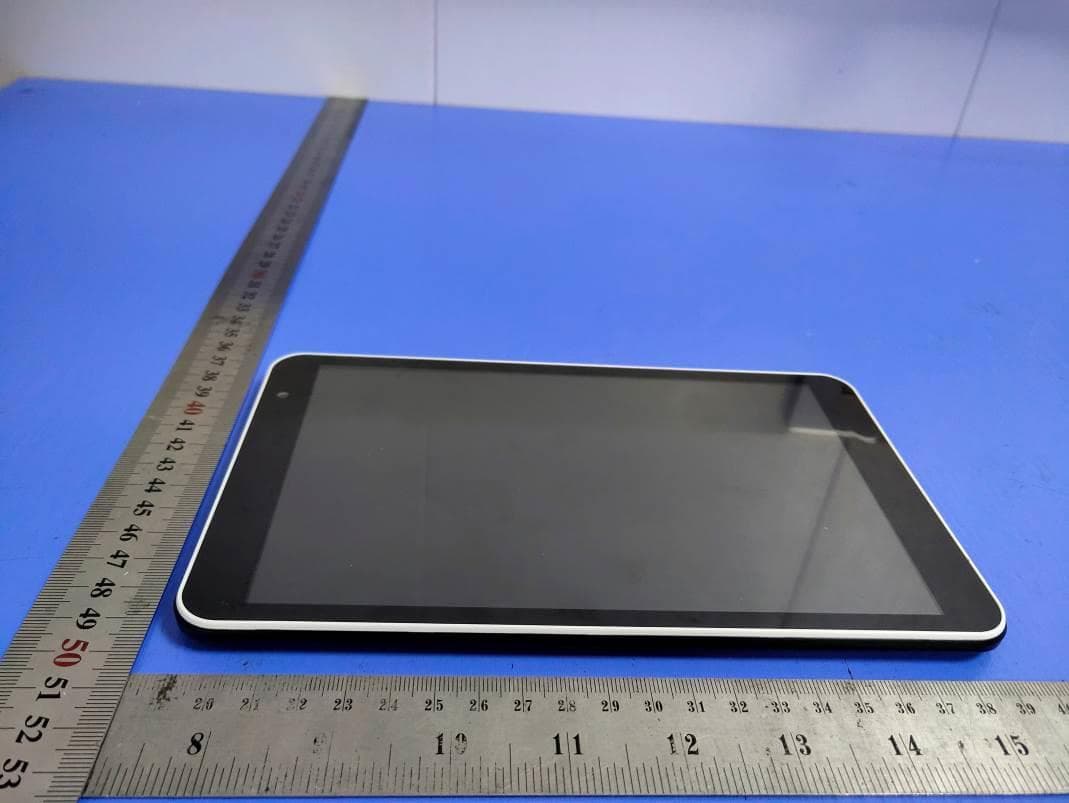

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 4cm*W: 3cm Label Location Tablet PC Model No.: EDT800 FCC ID : 2APD3-EDT800 DC 3.7V by Rechargeable Li-ion Battery, 4000mAh DC 5V, 2A from Adapter This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 BT/WIFI ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Fig. 11

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.:LCS210429005AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 82 SAR TEST REPORT For SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Tablet PC Test Model: EDT800 Additional Model No.: A80, EDT100 Prepared for : SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (86)755-82591330 Fax : (86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 11, 2021 Number of tested samples : 1 Serial number : Prototype Date of Test : May 11, 2021~June 20, 2021 Date of Report : July 05, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.:LCS210429005AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 82 SAR TEST REPORT Report Reference No. ............... : LCS210429005AEB Date Of Issue .............................. : July 05, 2021 Testing Laboratory Name ........ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ....................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ....... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ...................... : SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address ....................................... : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Test Specification: Standard ...................................... : IEEE Std C95.1, 2019/IEEE Std 1528™-2013/FCC Part 2.1093 Test Report Form No. ................. : LCSEMC-1.0 TRF Originator ........................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................. : Dated 2014-09 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes noresponsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .............. : Tablet PC Trade Mark ................................. : / Test Model .................................. : EDT800 Operation Frequency .................. : WLAN2.4G, WLAN5.2G, WLAN5.3G, WLAN5.5G Bluetooth5.0 Modulation Type ........................ : A80, EDT100 Ratings ........................................ : DC 3.7V by Rechargeable Li-ion Battery, 4000mAh DC 5V, 2A from Adapter Result ........................................ : Positive Compiled by: Supervised by: Approved by: Ping Li / File administrators Jin Wang / Technique principal Gavin Liang / Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.:LCS210429005AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 82 SAR -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210429005AEB July 05, 2021 Date of issue Type / Model......................... : EDT800 EUT....................................... : Tablet PC Applicant.............................. : SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address.................................. : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Telephone.............................. : / Fax......................................... : / Manufacturer....................... : SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address.................................. : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Telephone.............................. : / Fax......................................... : / Factory.................................. : SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address.................................. : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Telephone.............................. : / Fax......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.:LCS210429005AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 82 Revison History Revision Issue Date Revisions Revised By 000 July 05, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.:LCS210429005AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 82 TABLE OF CONTENTS 1. TEST STANDARDS AND TEST DESCRIPTION .....................................................................................................................6 1.1. TEST STANDARDS ...................................................................................................................................................................6 1.2. TEST DESCRIPTION ......................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 1 of 25 Appendix B RF Test Data for BT V5.0(Conducted Measurement) Product Name: Tablet PC Trade Mark: N/A Test Model: EDT800 Environmental Conditions Temperature: 23.7 C Relative Humidity: 51.6% ATM Pressure: 100.0 kPa Test Engineer: Jay Li Supervised by: Li Huan B.1 Duty Cycle BT LE Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 2 of 25 BT 2LE Test Mode Test Channel Ant Duty Cycle[%] Verdict BT 2LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 3 of 25 B.2 Maximum Conducted Peak Output Power BT LE Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH -2.096 30 PASS BT LE MCH -1.723 30 PASS BT LE HCH -1.694 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 4 of 25 HCH BT 2LE Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT 2LE LCH -2.351 30 PASS BT 2LE MCH -1.97 30 PASS BT 2LE HCH -1.923 30 PASS Test Graphs LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 5 of 25 MCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 6 of 25 B.3 Maximum Power Spectral Density BT LE Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -17.671 8 PASS BT LE MCH -17.212 8 PASS BT LE HCH -17.877 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 7 of 25 HCH BT 2LE Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT 2LE LCH -21.077 8 PASS BT 2LE MCH -20.773 8 PASS BT 2LE HCH -20.601 8 PASS Test Graphs LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 8 of 25 MCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 9 of 25 B.4 6dB Bandwidth BT LE Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.7068 ≥0.5 PASS BT LE MCH 0.6985 ≥0.5 PASS BT LE HCH 0.7028 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 10 of 25 HCH BT 2LE Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT 2LE LCH 1.239 ≥0.5 PASS BT 2LE MCH 1.244 ≥0.5 PASS BT 2LE HCH 1.239 ≥0.5 PASS Test Graphs LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 11 of 25 MCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 12 of 25 B.5 RF Conducted Spurious Emissions BT LE Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH -3.22 -37.589 -23.220 PASS BT LE MCH -2.849 -37.725 -22.849 PASS BT LE HCH -2.793 -36.750 -22.793 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 13 of 25 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 14 of 25 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH BT 2LE Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT 2LE LCH -3.924 -36.639 -23.924 PASS BT 2LE MCH -3.502 -37.378 -23.502 PASS BT 2LE HCH -3.489 -36.614 -23.489 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 15 of 25 BT 2LE _LCH_Graphs Pref/BT 2LE /LCH Puw/BT 2LE /LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 16 of 25 BT 2LE _MCH_Graphs Pref/BT 2LE /MCH Puw/BT 2LE /MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 17 of 25 BT 2LE _HCH_Graphs Pref/BT 2LE /HCH Puw/BT 2LE /HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 18 of 25 B.6 Band-edge for RF Conducted Emissions BT LE Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH -3.003 -49.915 -23 PASS BT LE HCH -2.476 -49.106 -22.48 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 19 of 25 BT 2LE Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT 2LE LCH -3.625 -49.497 -23.63 PASS BT 2LE HCH -3.057 -48.885 -23.06 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 20 of 25 B.7 Restrict-band band-edge measurements BT LE Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -43.05 2.0 0 54.18 PEAK 74 PASS Ant1 2310.0 -53.13 2.0 0 44.10 AV 54 PASS Ant1 2390.0 -42.48 2.0 0 54.75 PEAK 74 PASS Ant1 2390.0 -53.01 2.0 0 44.22 AV 54 PASS 2480 Ant1 2483.5 -42.78 2.0 0 54.45 PEAK 74 PASS Ant1 2483.5 -52.47 2.0 0 44.76 AV 54 PASS Ant1 2500.0 -41.31 2.0 0 55.92 PEAK 74 PASS Ant1 2500.0 -52.45 2.0 0 44.78 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 21 of 25 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 22 of 25 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AEC Page 23 of 25 BT 2LE Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 1 of 46 Appendix C RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Tablet PC Trade Mark: N/A Test Model: EDT800 Environmental Conditions Temperature: 23.7 C Relative Humidity: 51.6% ATM Pressure: 100.0 kPa Test Engineer: Jay Li Supervised by: Li Huan C.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 4 of 46 C.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 15.76 30 PASS MCH 15.95 30 PASS HCH 15.19 30 PASS 11G LCH 16.54 30 PASS MCH 18.34 30 PASS HCH 17.26 30 PASS 11N20SISO LCH 13.65 30 PASS MCH 13.25 30 PASS HCH 13.89 30 PASS 11N40SISO LCH 13.96 30 PASS MCH 13.99 30 PASS HCH 13.83 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 5 of 46 C.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -10.405 8 PASS MCH -9.292 8 PASS HCH -11.364 8 PASS 11G LCH -16.516 8 PASS MCH -13.162 8 PASS HCH -13.639 8 PASS 11N20SISO LCH -20.075 8 PASS MCH -14.478 8 PASS HCH -17.664 8 PASS 11N40SISO LCH -22.003 8 PASS MCH -21.278 8 PASS HCH -22.313 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 12 of 46 C.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 9.602 ≥0.5 PASS MCH 9.073 ≥0.5 PASS HCH 9.110 ≥0.5 PASS 11G LCH 15.14 ≥0.5 PASS MCH 15.15 ≥0.5 PASS HCH 15.74 ≥0.5 PASS 11N20SISO LCH 15.98 ≥0.5 PASS MCH 16.00 ≥0.5 PASS HCH 16.37 ≥0.5 PASS 11N40SISO LCH 35.77 ≥0.5 PASS MCH 35.50 ≥0.5 PASS HCH 35.36 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 19 of 46 C.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict 11B LCH 4.243 -37.758 -15.757 PASS MCH 4.516 -38.412 -15.484 PASS HCH 3.85 -38.857 -16.150 PASS 11G LCH -1.918 -37.153 -21.918 PASS MCH 1.009 -37.973 -18.991 PASS HCH -0.028 -38.500 -20.028 PASS 11N20 SISO LCH -5.274 -38.425 -25.274 PASS MCH 0.6 -38.573 -19.400 PASS HCH -4.253 -38.315 -24.253 PASS 11N40 SISO LCH -7.114 -38.393 -27.114 PASS MCH -7.558 -38.627 -27.558 PASS HCH -7.324 -38.012 -27.324 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-EDT800 Report No.: LCS210429005AED Page 25 of 46 11G_HCH_Graphs Pr…
