2APD3TS100Smart Watch

Downloading the App Scan the following QR code, download and install the App. Charging and Active Charging the device to active before the first time using; To charge your device, plug the charging cable into the adapter or USB port on your computer. Smart Watch Features Use the Touch ScreenPairing The MAC address on the “Setting”-”About” page could help you identify your device on the scanning list. Scan QR Code and Download Open the App and set up your profile Choose your device on the scanning list Finish Smart Watch FeaturesSmart Watch FeaturesSmart Watch FeaturesSmart Watch FeaturesSmart Watch FeaturesSmart Watch FeaturesGetting to Know Your DeviceGeneral Info & Specifications Sports Smart Watch automatically tracks Steps taken on the screen. NOTE: Your movement stats reset to zero at midnight. Sleep If you keep wearing Smart Watch in your sleep , it can provide the hours slept and quality of sleep stats on both the screen and the APP. NOTE: Sleep stats reset to zero at 8:00 pm. Training Blood Pressure Test Tap on the blood pressure page to start measuring your blood pressure. On the blood pressure page, It can show the blood pressure measured data of the last times. SpO2 Test Tap the SpO2 p a ge t o s tart measuring your SpO2. On the SpO2 page, It can show the SpO2 measured data of the last times. Weather It could show the weather info of current and tomo r row o n t he weather page. Weather info is synced after con- necting with the APP, it will not be updated after a long disconneted. Messages Reminder The device can sync incoming noti- fications from Twitter, Facebook, Whatsapp, Instagram etc. Recently 5 messages can be stored. Note: You can switch of/off the incoming notification in the APP. Remote Shutter After connecting the device,you can remote contral the camera on your phone. Other Features Other features include stopwatch, alarm, timer, brightness,mute on/off, theater mode,factory reset, power off and about. Stop Watch Tap the start button on stopwatch page to start timing, and tap the stop button to stop timing. 手环渲染图 1.Using in Wet Conditions Your device is water-resistant, which means it is rain-proof and splash-proof and can stand up to even the sweatiest workout. NOTE: Do not swim with your Smart Bra celet. We also don't recommend showering with your wristband; though the water won't hurt the device, wearing it 24/7 does not give your skin a chance to breathe. Whenever you get your bracelet wet, dry it thoroughly before putting it back on. 2.Using Quick View With Quick View you can check the time or the message form your phone on your Smart Bracelet without taping. Just turn your wrist towards you and the time screen will appear for a few seconds. 1.Environmental Conditions Operating temperature: 14°F to 122°F (-10°C to 50°C) Non-operating temperature: -4°F to 140°F (-20°C to 60°C) 2.Size Fits a wrist between 5.5 and 7.7 inches in circumference. 3.Disposal and Recycling Please kindly be aware that it is the consumer’s responsibility to properly dispose and recycle Smart Bracelet and accompanying components. Do not dispose of Smart Bracelet with common household waste, th e Smart Bracelet unit is considered electronic waste and should be disposed of at your local electronic equipment collection facility. For more information, please contact your local electronic equipment was te management authority or the retailer where you bought the product. Player Shutter The device will turn off the vibration and trun down the brightness when the dnd mode is truned on. Note: You can trun on/off the theater mode in the control center. DND Mode Set up the alarm on the APP, the device will vibrate to remind on time. Silent Alarms Smart Watch Features Remind to Move The device will vibrate to remind you to make a relax after 1 hour sittiing. Note: You can switch on/off the feature in the APP. Remind to Drink The smart watch will re mind you “Time to Drink Some Water” at the planned drinking time. Note: You can set the feature in tht APP. Heart Rate Test The Smart Watch could record your heart rate all day. You also could tap on the page to start measuring heart rate. Ta p the tr aining icon on the menu to start a new tr aining measure r ecor ding, there ar e 8 sport modes to be chosen. The last training recording will be shown on the training page. Swipe Up Swipe Down Swipe Up Swipe Down Swipe Right Swipe Left Swipe Right Feature pagesMenue Control Center Messages Menue After connecting the device,you can remote contral the music player on your phone.

FCC Warning 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement: 1.This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 5mm between the radiator and your body.

Differences Declaration To whom concern, We company SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Here by declares: The product model(s) RY67, TS38 pro, TS38max, TS38E, TS82, TS93, TS99, TS85, TS83, TS96, TS57, TS76E, TS63, TS59, TS89 are the same PCB board, structure and internal of these model(s) with TS100, the only differences between them are model names, others are same. Sincerely yours, Name (in print): Jun Li Company name: SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Company address: Room 2110-2116, huafeng international building, No. 4018 BaoAn Blvd, Shenzhen, China Tel: +86-0755-83588177 E-Mail: [email protected]

SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-01-09 Subject; Request for Long Term Confidentiality FCC ID: 2APD3TS100 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram BOM Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jun Li Title: Manager

Letter of Authorization Company: SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address: Room 2110-2116, huafeng international building, No. 4018 BaoAn Blvd, Shenzhen, China Product Name: Smart Watch Model Number: TS100, RY67, TS38 pro, TS38max, TS38E, TS82, TS93, TS99, TS85, TS83, TS96, TS57, TS76E, TS63, TS59, TS89 FCC Identifier: 2APD3TS100 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Jun Li Date: 2023-01-09 Title: Manager

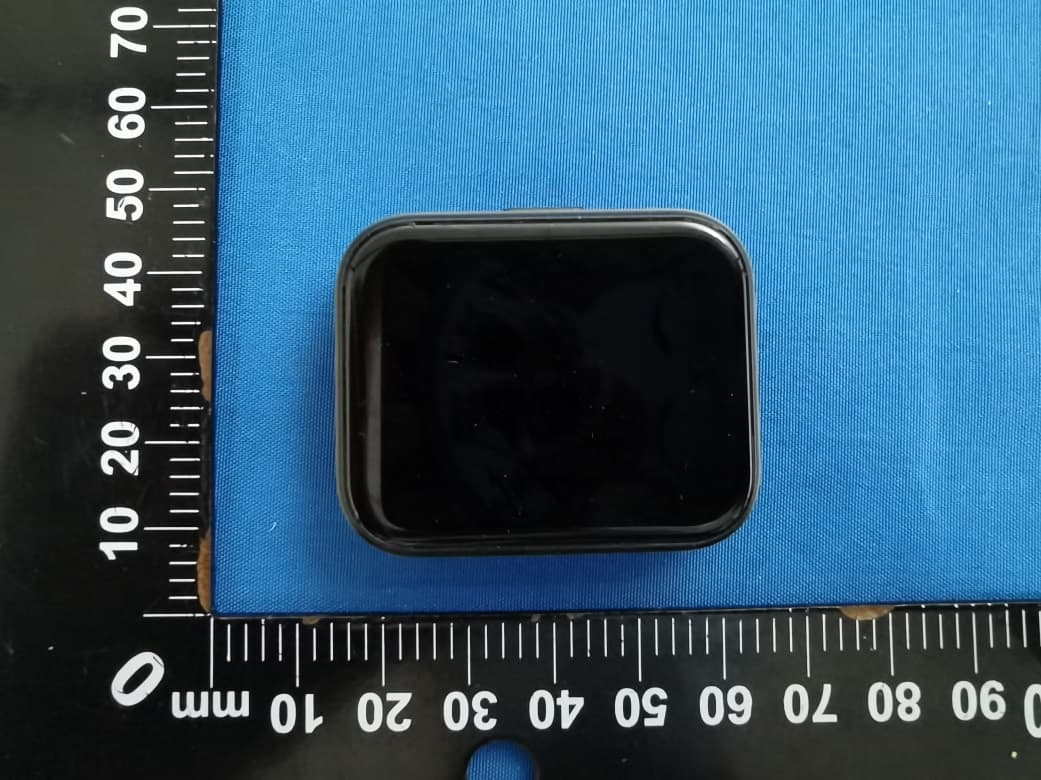

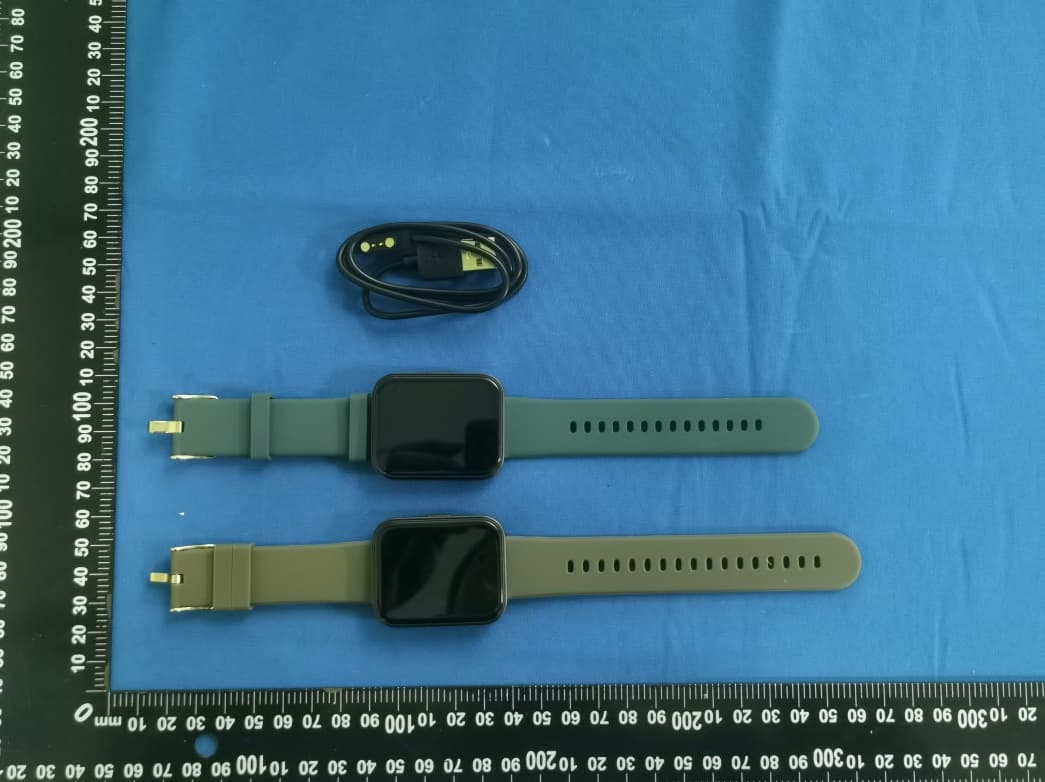

Report No.: TCT221216E026 Photographs of EUT External Photos Report No.: TCT221216E026 Report No.: TCT221216E026 Report No.: TCT221216E026
