2APD3SB001Smart fitness band

体温测量： 体温 Temperature measurement: when the function reaches the temperature interface, the measurement results will be automatically jammed and transmitted to the APP for saving. FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Model Difference 2022-12-12 EUT NAME: Smart fitness band MODEL : SB001, SW003T, SB 7+, HTSB001BK FCC ID: 2APD3SB001 All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : Jun Li / Manager Contact information / address: Room2110-2116, huafeng international building, No.4018 BaoAn Blvd, Shenzhen, China

SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12/12/2022 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2APD3SB001 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature [Jun Li] [Manager] [SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD]

SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12/12/2022 Request for Permanent Confidentiality Company name: SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD FCC ID: 2APD3SB001 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.457 and CFR 47 § 0.459 SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, These documents contain detailed system and equipment description and related information about the product which SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [Jun Li] [Manager] [SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD] Room2110-2116, huafeng international building, No.4018 BaoAn Blvd, Shenzhen, China

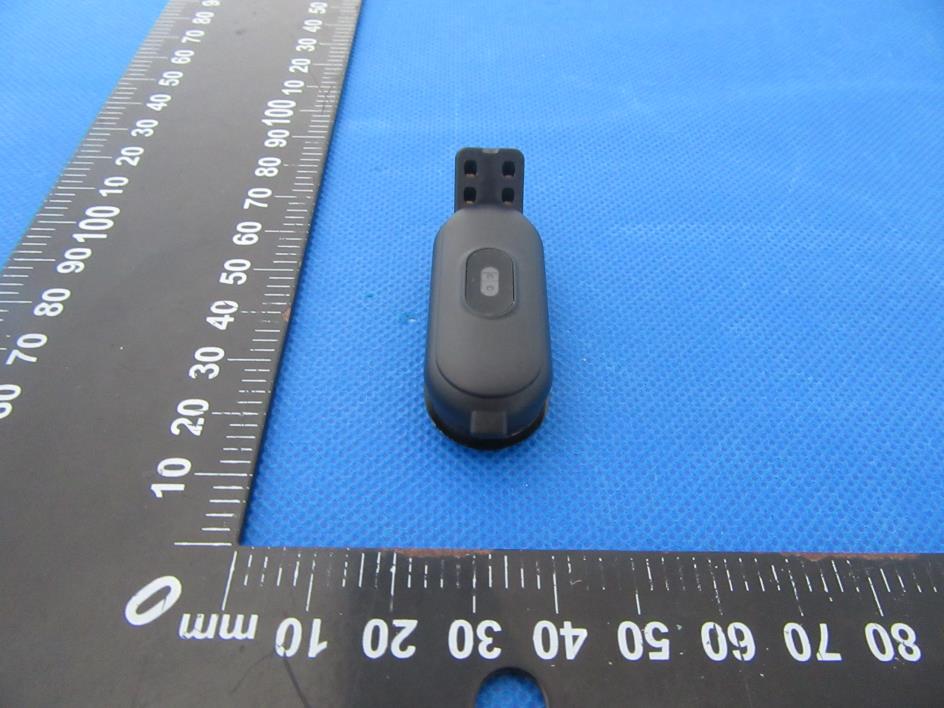

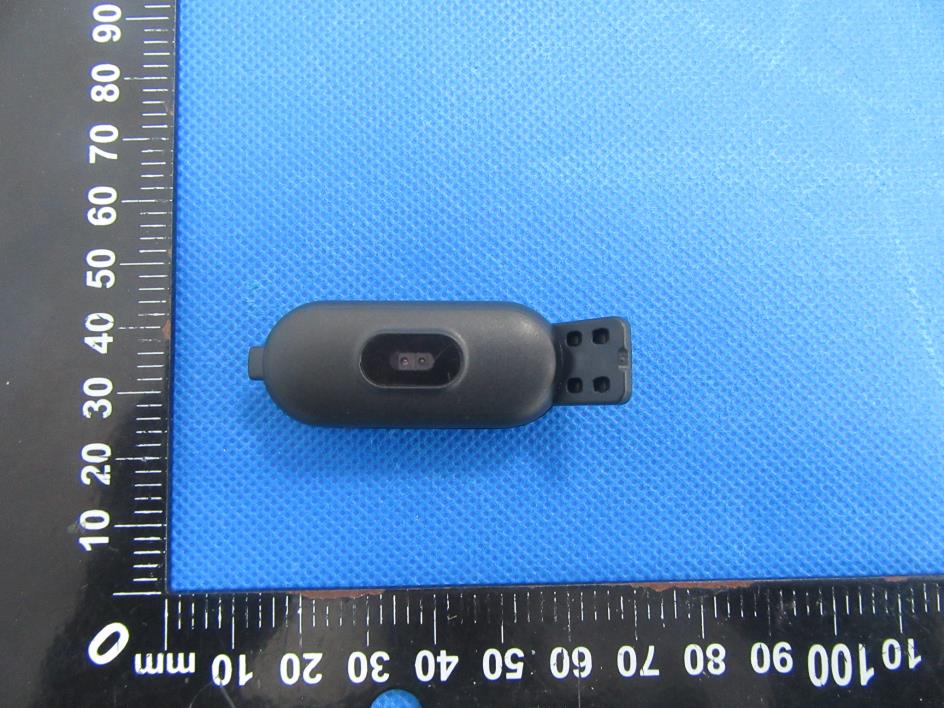

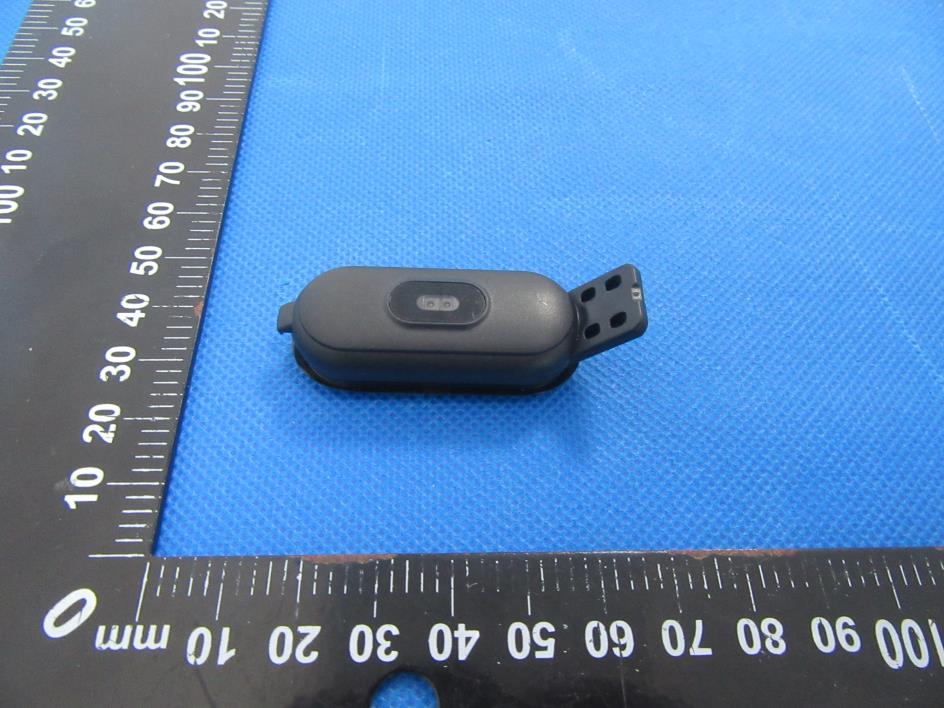

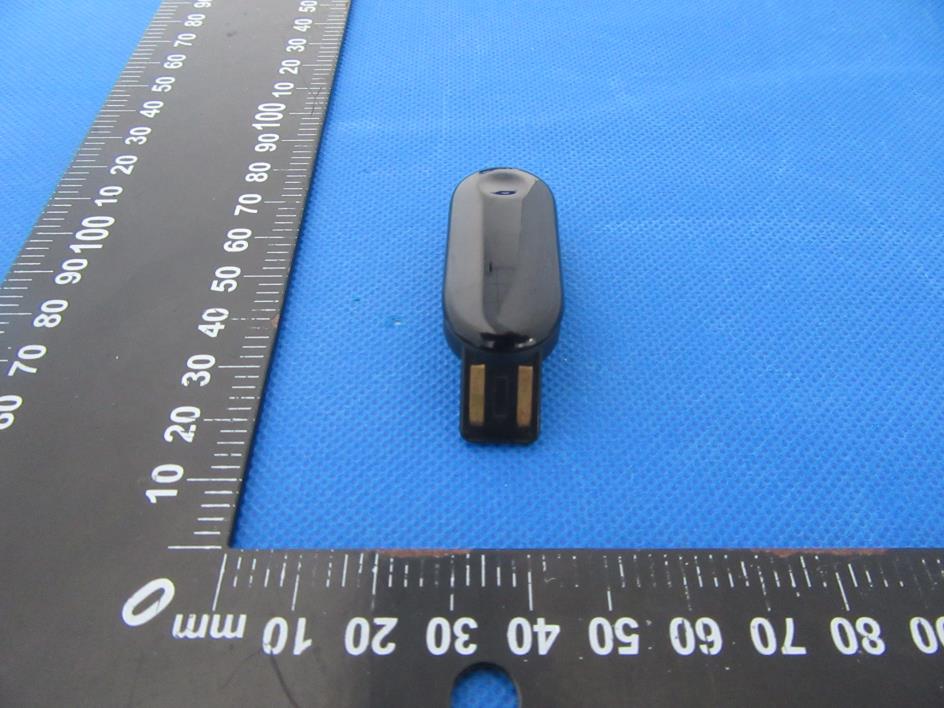

External Photos

Size:10*5mm FCC ID: 2APD3SB001 Label Location

Internal Photos Antenna

FCC ID: 2APD3SB001 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK2.402 -1.3 0.74-1±10.001.00<50.309973.00YES Conclusion: For the max result : 0.30997＜3, the SAR testing is not required.

No.：BCTC/RF-EMC-007 Page: 1 of 48 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2211897603E Applicant: SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Product Name: Smart fitness band Model/Type reference: SB001 Tested Date: 2022-09-29 to 2022-12-05 Issued Date: 2022-12-06 Report No.: BCTC2211897603E No.：BCTC/RF-EMC-007 Page: 2 of 48 Edition：A.5 FCC ID: 2APD3SB001 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Smart fitness band Trademark: N/A Model/Type reference: SB001 SW003T, SB 7+, HTSB001BK Prepared For: SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address: Room2110-2116, huafeng international building, No.4018 BaoAn Blvd, Shenzhen, China Manufacturer: SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address: Room2110-2116, huafeng international building, No.4018 BaoAn Blvd, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2022-09-29 Sample tested Date: 2022-09-29 to 2022-12-05 Issue Date: 2022-12-06 Report No.: BCTC2211897603E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Eric Yang/Project Handler Zero Zhou/Reviewer Report No.: BCTC2211897603E No.：BCTC/RF-EMC-007 Page: 3 of 48 Edition：A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table of parameters of text software setting ....................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used ............................................................................................ 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure ...................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 25 8.1 Block Diagram Of Test Setup .............................................................................. 25 8.2 Limit .................................................................................................................... 25 8.3 Test Procedure ................................................................................................... 26 8.4 EUT Operating Conditions .................................................................................. 27 8.5 Test Result .......................................................................................................... 27 9. Power Spectral Density Test ............................................................................... 28 9.1 Block Diagram Of Test Setup .............................................................................. 28 9.2 Limit .................................................................................................................... 28 9.3 Test procedure .................................................................................................... 28 9.4 EUT Operating Conditions .............................................................…

Text truncated - open the document above for the full version.

Applicant: Address: Model Name: Brand Name: Test Standard: Test Date: ISSUED BY: HXD 深圳市恒信达通信科技 ANTENNA SPECIFICATION Shenzhen HENGXINDA COMMUNICA丁ION了ech Co. Ltd NO. 306, HuiHuang Building,Waada Road, Great Wave Street,LongHua District, Shenzhen, Guangdong, China 2.4G ANT N/A ANSI/IEEE Std 149-1979 12. 09 2022 Shenzhen HENGXIN DA COM MUNICATION Tech Co. Ltd. 丁ested · by: Checked by: A pproved by: I�

Conducted emissions Radiated Measurement Photos
