2APQIIT-AC-HUB-01Whole House Fan Hub

Rev 1.0 Page 1 of 2 Air Control Installation Guide IT-AC-KIT which includes (IT-AC-HUB-01) and (IT-AC-SCREEN) Overview This document summarizes introductions for operating hub IT-AC-HUB-01. The IT-AC-HUB-01 can remotely control the QuietCool Whole Hous e Fans of QC Manufacturing Inc at up to 3 different speeds. Key Specifications IT-AC-HUB-01(Hub): Voltage: 120V Frequency: 60Hz Motor load: 1HP, 735W (Max) Warning: - Disconnect power at the circuit breaker before installing or servicing - Use wires rated at least 105*C – copper only - Installation/wiring must be in accordance with national and local code regulations - Keep the enclosure cover closed at all times when not servicing. - Cover all unused wires with a wire connector FCC Regulations: FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Rev 1.0 Page 2 of 2 Fig. 1 Dip Switch for Fan Speed Configuration 1 speed fan: Dial 1 to "ON”; and 2 speed fan: Dial 2 to "ON”; and 3 speed fan: Dial 3 to "ON” Fig. 2 Connection Wires of IT-AC-HUB-01 Input wires: Black: Line voltage, ACL White: Neutral, CAN Output wires: Red: Low speed Yellow: Medium speed Blue: High speed Installation IT-AC-HUB-01: (Please switch off main power before wiring. The installation should be done by qualified personnel only) The hub (with a curved bottom) should be attached to the cylindrical fan housing and is wired to the fan motor. Remove the screw that holds down the hub cover and flip it up. Once the cover is open, a three digit dip switch is available for fan speed configuration, as shown in Fig. 1. Once wiring is completed, close the hub cover and tighten the screw. Operation 1.Power on the Hub: Switch on power to the hub, the Power indicator on the hub will be on, and other three indicators will stay off. Press the “Test” button to change fan speed, the fan will run in the following cycles: 1 speed fan: on -> off -> on -> off, 2 speed fan: high speed -> low speed -> off -> high speed -> low speed -> off 3 speed fan: high speed -> medium speed -> low speed -> off -> high speed -> medium speed -> low speed -> off And, the Test indicator will blink as follows: Low speed on: the speed LED will blink once every 2 seconds, Medium speed on: the speed LED will blink twice every 2 seconds, and High speed on: the speed LED will blink three times every 2 seconds. Notes: 1.If the corresponding DIP switch of the fan is configured incorrectly, all the indicators on the hub will keep blinking when the hub is powered on. Please switch off power and re-configure the DIP switch correctly. Then try again.

QC Manufacturing Inc. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2APQIIT-AC-HUB-01 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: QC Manufacturing Inc. Contact Name: Jeff Whitehouse Title of Person：Director of Supply Chain Address: 26040 Ynez rd. Temecula, California 92591, United States Date: 8/18/2022 Bom list

QC Manufacturing Inc. Date: August 24,2022 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: QC Manufacturing Inc. Contact Name: Jeff Whitehouse Title of Person：Director of Supply Chain Address: 26040 Ynez rd. Temecula, California 92591, United States

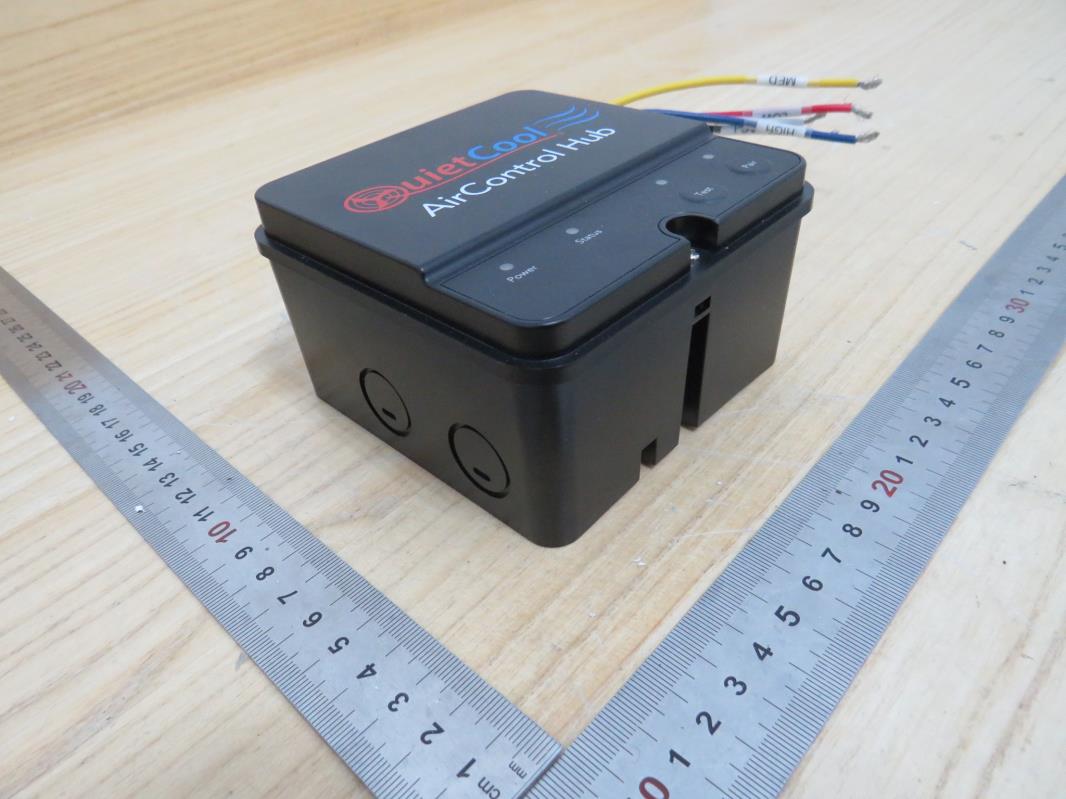

Appendix I External Photographs Page 2 of 2 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. External Photo

Name: Whole House Fan Hub Model: IT-AC-HUB-01 60 38 INPUT RATINGS: 120VAC 60Hz OUTPUT RATINGS: 1HP 120VAC 60Hz FCC ID: 2APQIIT-AC-HUB-01 EXXXXXX

Appendix II Internal Photographs Page 2 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal Photo Page 3 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Antenna Page 4 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-210 ISSUE 10 CERTIFICATION TEST REPORT For Whole House Fan Hub MODEL NUMBER: IT-AC-HUB-01 FCC ID: 2APQIIT-AC-HUB-01 REPORT NUMBER: 4790273902-1 ISSUE DATE: August 5, 2022 Prepared for QC Manufacturing Inc. 26040 Ynez rd. Temecula, California 92591, United States Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4790273902-1 Page 2 of 36 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0057 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 08/05/2022 Initial Issue REPORT NO.: 4790273902-1 Page 3 of 36 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0057 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC Rules Test Results 1 Transmitter Timeout CFR 47 FCC §15.231 (a) (1) ISED RSS-210 Annex A.1.1 Pass 2 20 dB Bandwidth and 99 % Occupied Bandwidth CFR 47 FCC §15.231 (c) ISED RSS-210 Annex A.1.3 Pass 3 Radiated Emission CFR 47 FCC §15.231 (b)(e) CFR 47 FCC §15.205 and §15.209 RSS-210 Annex A.1.2 RSS-GEN Clause 8.9 RSS-GEN Clause 8.10 Pass 4 Conducted Emission Test for AC Power Port CFR 47 FCC §15.207 RSS-GEN Clause 8.8 Pass 5 Antenna Requirement CFR 47 FCC §15.203 ISED RSS-Gen Clause 6.3 Pass Note 1: This test report is only published to and used by the applicant, and it is not for evidence purpose in China. Note 2: The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C and ISED RSS-210 Issue 10> when <Accuracy Method> decision rule is applied. REPORT NO.: 4790273902-1 Page 4 of 36 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0057 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT .............................................................................................. 8 5.2. MAXIMUM FIELD STRENGTH .................................................................................... 8 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 8 5.4. TEST ENVIRONMENT ................................................................................................ 8 5.5. DESCRIPTION OF TEST SETUP ................................................................................ 9 5.6. MEASURING INSTRUMENT AND SOFTWARE USED ..............................................10 6. ANTENNA PORT TEST RESULTS ...................................................................................11 6.1. ON TIME AND DUTY CYCLE .....................................................................................11 6.2. TRANSMITTER TIMEOUT .........................................................................................14 6.3. 20 dB BANDWIDTH AND 99 % OCCUPIED BANDWIDTH ........................................16 6.4. RADIATED TEST RESULTS ......................................................................................19 6.4.1. FIELD STRENGTH AND SPURIOUS EMISSIONS BELOW 1 GHz AND ABOVE 30 MHz 26 6.4.2. SPURIOUS EMISSIONS ABOVE 1 GHz .............................................................28 6.4.3. SPURIOUS EMISSIONS BELOW 30 MHz ..........................................................30 7. AC POWER LINE CONDUCTED EMISSIONS ..................................................................33 8. ANTENNA REQUIREMENTS ............................................................................................36 REPORT NO.: 4790273902-1 Page 5 of 36 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0057 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: QC Manufacturing Inc. Address: 26040 Ynez rd. Temecula, California 92591, United States Manufacturer Information Company Name: Shenzhen Asia Bright Co., Ltd Address: Building E, North Area No.2 of Shangxue Science Park, Bantian, Shenzhen, China EUT Information EUT Name: Whole House Fan Hub Model: IT-AC-HUB-01 Serial Model: / Brand: / Sa…

Text truncated - open the document above for the full version.

Appendix III Setup Photographs Conducted Disturbance Setup Radiated Disturbance Setup Below 1 GHz and Above 30 MHz Radiated Disturbance Setup Below 30 MHz Radiated Disturbance Setup (Above 1 GHz – X axis) Radiated Disturbance Setup (Above 1 GHz – Y axis) Radiated Disturbance Setup (Above 1 GHz – Z axis)
