Rev 1.1 Page 1 of 3 IT-RFSWITCH-01 Wall Switch & IT-RFHUB-01 Hub Installation Guide Overview This document summarizes introductions for operating hub IT-RFHUB-01 and in-wall switch IT-RFSWITCH-01. Working as a paired set, IT-RFHUB-01 and IT-RFSWITCH-01 can remotely control the QuietCool Whole House Fans of QC Manufacturing Inc at up to three different speeds. Key Specifications IT-RFHUB-01 (Hub): IT-RFSWITCH-01 (Switch) Voltage: 120V Voltage: 3VDC (2 AAA batteries) Frequency: 60Hz Battery Standby Current: ≤10uA Motor load: 1HP, 735W (Max) RF working distance: 100ft (no obstructions) Warning: - Disconnect power at the circuit breaker before installing or servicing - Use wires rated at least 105*C – copper only - Installation/wiring must be in accordance with national and local code regulations - Keep the enclosure cover closed at all times when not servicing. - Cover all unused wires with a wire connector FCC Regulations FCC Supplier’s Declaration of Conformity Product Name：RF Hub / RF Switch Model number： IT-RFHUB-01 / IT-RFSWITCH-01 Suppliers Name: QC Manufacturing Inc. Suppliers Address (USA) ：26040 Ynez rd Temecula California 92591, United States Suppliers Website: www.QuietCoolSystems.com Contact Email/Telephone: Jeff Whitehouse [email protected] FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Rev 1.1 Page 2 of 3 Fig. 3 Connection Wires of IT-RFHUB-01 Input wires: Black: Line voltage, ACL White: Neutral, CAN Output wires: Red: Low speed Yellow: Medium speed Blue: High speed Installation In-wall Switch: The in-wall switch is a standard decora style wall switch which can be fitted into a standard wall box or onto a wall- mount base plate that comes with the switch. As shown in Fig. 1, remove the front panel of in-wall switch, then install 2 pcs of AAA batteries into the holders. Please make sure the battery polarity is correct. All the LED lights on the in-wall switch will be on for 3 seconds and then go out, which means the in-wall switch operates properly. Install the front panel back onto the switch. If LED lights are not on after batteries are installed, please check the battery status and try again. IT-RFHUB-01 Hub: (Please switch off main power before wiring. The installation should be done by qualified personnel only) The hub (with a curved bottom) should be attached to the cylindrical fan housing and is wired to the fan motor. Remove the screw that holds down the hub cover and flip it up. Once the cover is open, a three digit dip switch is available for fan speed configuration, as shown in Fig. 2. Once wiring is completed, close the hub cover and tighten the screw. Operation 1. Power on the Hub: Switch on power to the hub, the Power indicator on the hub will be on, and other three indicators will stay off. Press the “Test” button to change fan speed, the fan will run in the following cycles: 1 speed fan: on -> off -> on -> off, 2 speed fan: high speed -> low speed -> off -> high speed -> low speed -> off 3 speed fan: high speed -> medium speed -> low speed -> off -> high speed -> medium speed -> low speed -> off And, the Test indicator will blink as follows: Low speed on: the speed LED will blink once every 2 seconds, Medium speed on: the speed LED will blink twice every 2 seconds, and High speed on: the speed LED will blink three times every 2 seconds. 2. Pairing the Hub with the In-Wall Switch: 2.1 Press and hold the “Pair” button, the “Pair” LED will be on for three seconds then turn off. All previous pairing info is removed (one hub can be paired with 20 in-wall switches respectively). 2.2 Press the “Pair” button twice, the “Pair” LED will have one blink every second, and the hub is in paring mode (all the buttons on the hub are disabled). Fig. 1 Install Battery onto In—wall Switch Fig. 2 Dip Switch for Fan Speed Configuration 1 speed fan: Dial 1 to "ON”; and 2 speed fan: Dial 2 to "ON”; and 3 speed fan: Dial 3 to "ON” Rev 1.1 Page 3 of 3 2.3 Press either one of the two buttons on the in-wall switch to be paired, the “Pair” LED will be off, indicating pairing is successfully done. At this time, the paired in-wall switch will display the current status of the hub (Please see “In-Wall Switch LEDs” for more details). Note: If there is no button press on in-wall switch within 3 minutes, the hub’s “Pair” indicator will go off too, but pairing is incomplete. In this case, the user would need to go back to step 2.2 3. Sleep Mode of In-Wall Switch: The wall switch will enter sleep mode whenever there is …

Text truncated - open the document above for the full version.

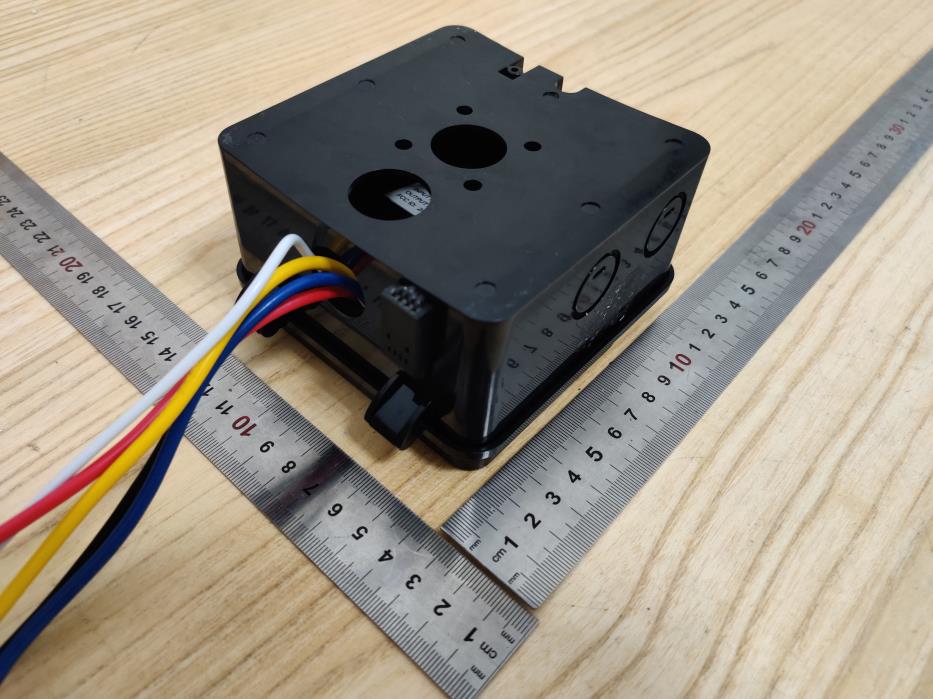

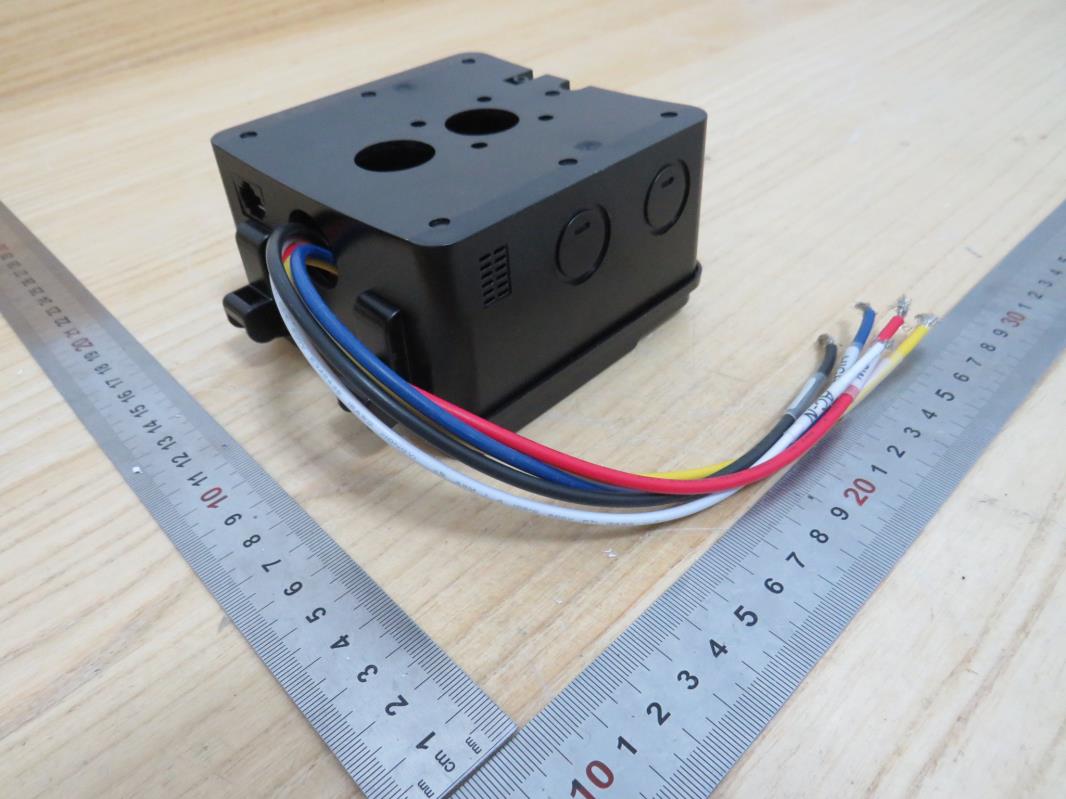

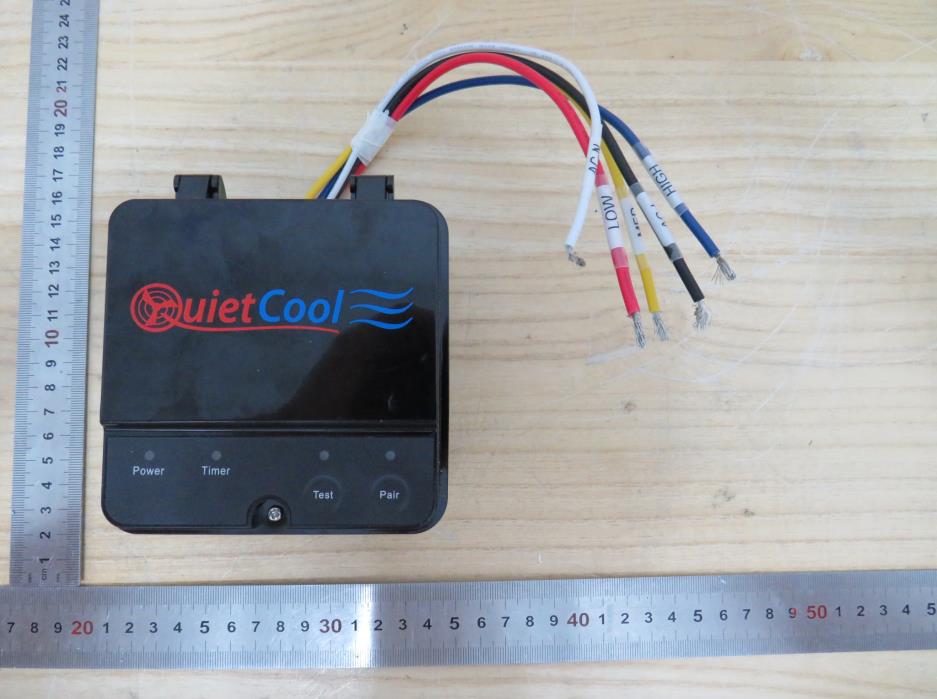

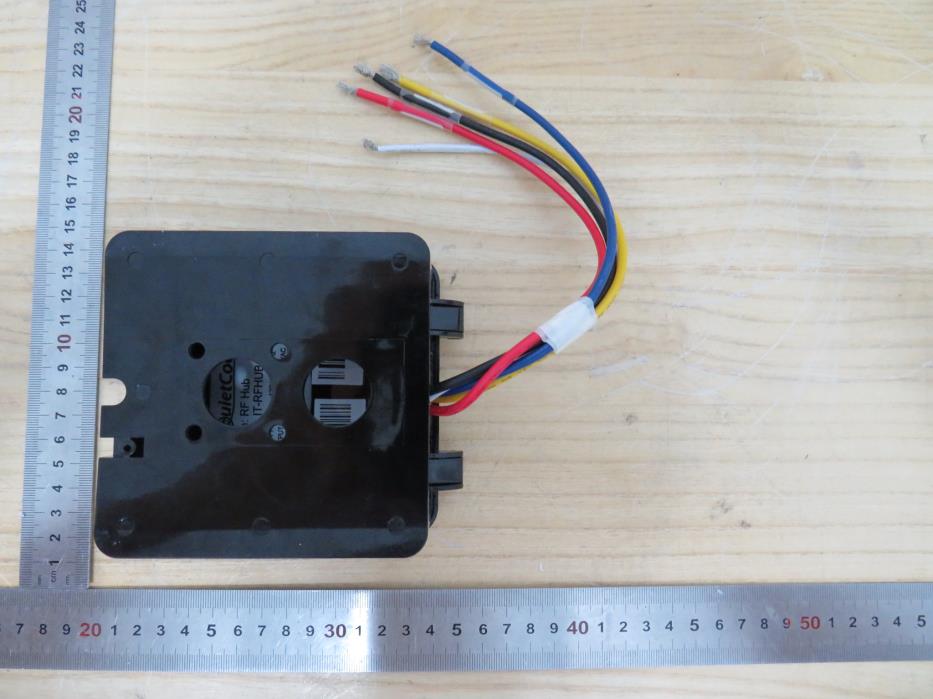

External Photographs Page 2 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 Page 3 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3 View of EUT-4
