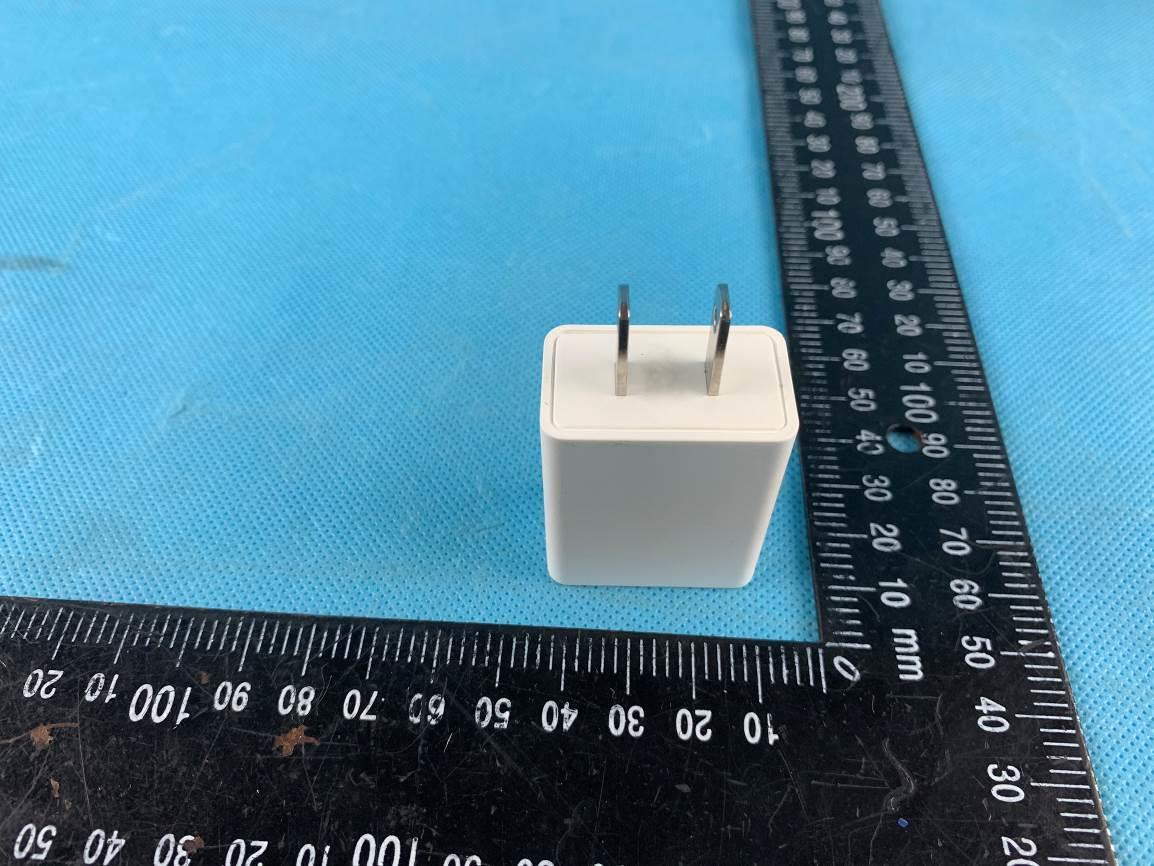

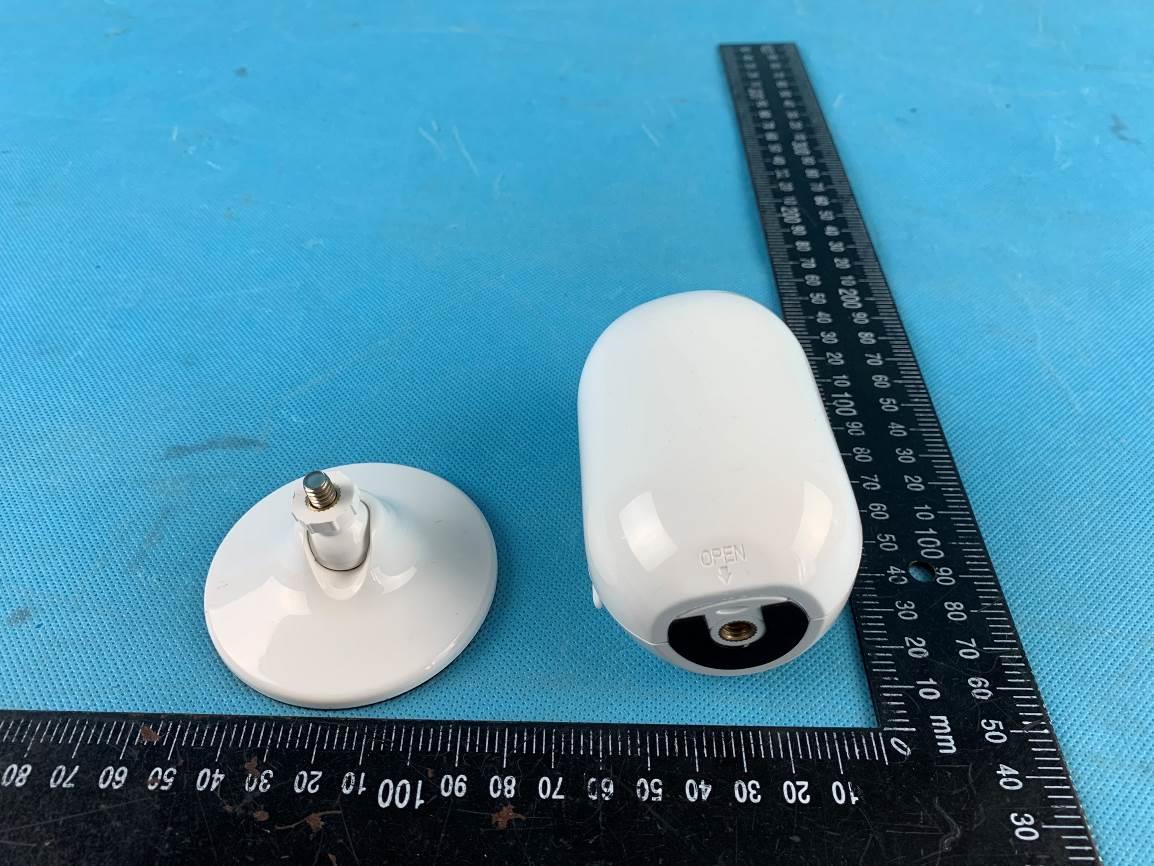

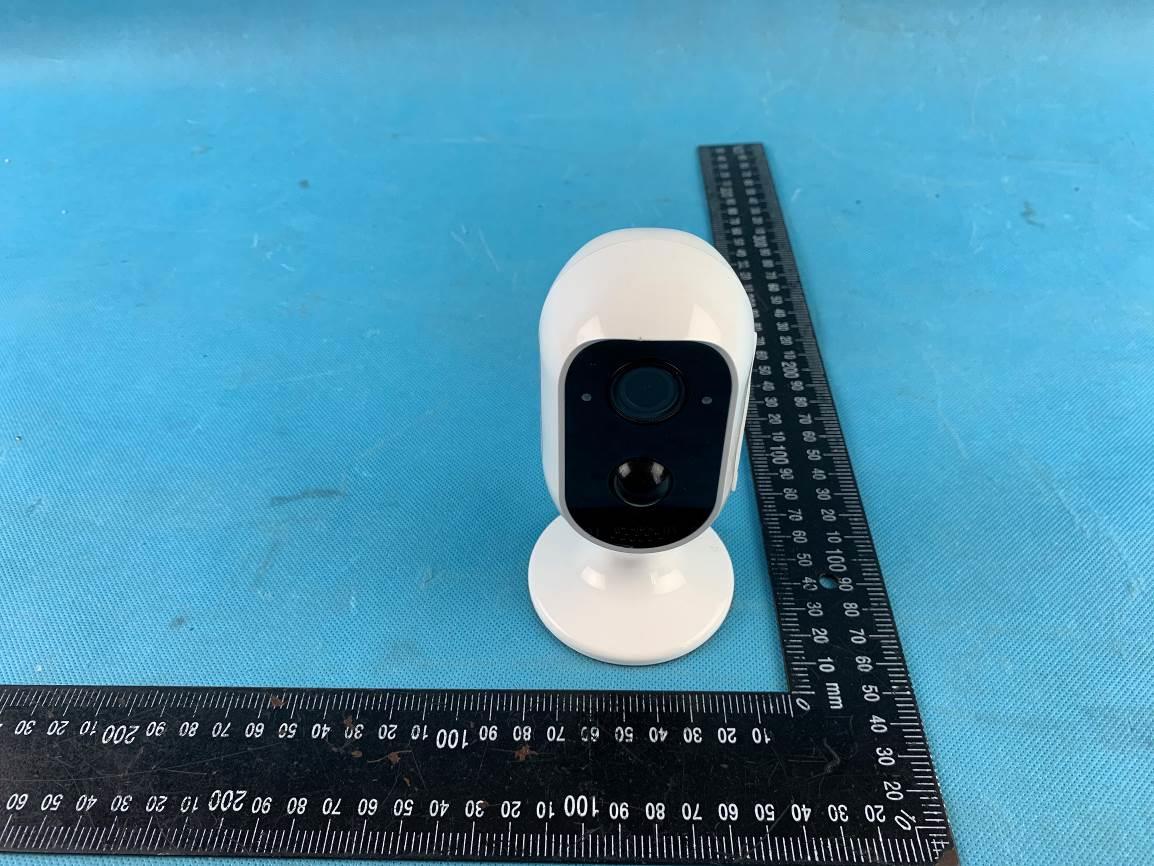

1 / 6 External photo Model: BA12-H 2 / 6 External photo 3 / 6 External photo 4 / 6 External photo 5 / 6 External photo 6 / 6 External photo

1 / 1 Label location

1 / 5 Internal photo Model: BA12-H 2 / 5 Internal photo 3 / 5 Internal photo 4 / 5 Internal photo Antenna 5 / 5 Internal photo

ITL Page 1 of 6 Report No.: D191105002-001-1 RF Exposure evaluation report Applicant: Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address of Applicant: No.2 Plant ,West of Shanxi country , Dashi street, Panyu District, Guangzhou City, China Manufacturer: Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address of Manufacturer: No.2 Plant ,West of Shanxi country , Dashi street, Panyu District, Guangzhou City, China Product name: Battery camera Model: See page 2 Rating(s): DC 5V Trademark: / Standards: 47 CFR Part 1.1310 (2013) 47 CFR Part 2.1091 (2013) KDB447498D01 General RF Exposure Guidance v06 FCC ID: 2APRB-BA12-H Date of Receipt: 2019-10-30 Date of Test: 2019-10-30~2019-11-18 Date of Issue: 2019-11-18 Test Result Pass* * In the configuration tested, the test item complied with the standards specified above. Authorized for issue by: Test by: Reviewed by: Nov 18, 2019 Eleven Liang Nov 18, 2019 Pauler Li Project Engineer Project Manager Date Name/Position Signature DateName/Position Signature ITL Page 2 of 6 Report No.: D191105002-001-1 Possible test case verdicts: test case does not apply to the test object .. : N/A test object does meet the requirement ........ : P (Pass) test object does not meet the requirement .. : F (Fail) Testing Laboratory information: Testing Laboratory Name .......... : ITL Co., Ltd Address : No. 8, Jinqianling Street 5, Huangjiang Town, Dongguan, Guangdong, China. Testing location : Same as above Tel : 0086-769-39001678 Fax : 0086-20-62824387 E-mail : [email protected] General remarks: The test results presented in this report relate only to the object tested. The results contained in this report reflect the results for this particular model and serial number. It is the responsibility of the manufacturer to ensure that all production models meet the intent of the requirements detailed within this report. This report would be invalid test report without all the signatures of testing technician and approver. This report shall not be reproduced, except in full, without the written approval of the Issuing testing laboratory. General product information: There's an AC Adapter that charges the battery. The models BC12-H, BD12-H, BE12-H, BF12-H, BP22-H, BM22-H, BQ22-H, BR22-H, BA05-H, BA06- H, BA07-H, BA08-H, HMB1, HMC1, G188HX-WBS2-4MM, G188JZ-WBS2-4MM-4G, DTS300T-WHS2-4G- 4MM, DTS300T-WHS2-4G-6MM, DTS300T-WHS2-4MM, DTS300T-WHS2-6MM, DS-200S, Q7H, Q9H, Q9H- P1, Q8H, Q2H, SMUS-B4210-JA, SMUS-B4410-JA, OSX-DC1080, OH-DC1080, WL-DC1080, AR-BA12- H*1, A4, F1-J200, Q1-J200, XF-DC30, XF-DC31, XF-DC32, XF-DC33, XF-DC34, XF-DC35, XF-DC36, XF- DC37, XF-DC38, XF-DC39, XF-DC40, MNL030, HD20L24JA-WIFI, HD20L25JA-WIFI, HD20L14JA-WIF, HD20L15JA-WIFI, HD20L34JA-WIFI, HD20L35JA-WIFI, HD50L24JA-WIFI, HD50L25JA-WIFI, HD50L14JA- WIFI, HD50L15JA-WIFI, HD50L34JA-WIFI, HD50L35JA-WIFI, C2027BN2M-W, C1800BN2-S, C1800BN4-S, C1801BN4-S, C1810BN2M, L2019B, BC3, TJ-ID6008PF-WF20J, TJ-KW7734AA-WF20J, TJ-ID6008PF- XXXXX, TJ-KW7734AA-XXXXX and BA12-H are identical to each other except for model names. All tests were performed on the model BA12-H as representative. ITL Page 3 of 6 Report No.: D191105002-001-1 1 Contents Page 1 CONTENTS ......................................................................................................................................... 3 2 GENERAL INFORMATION .............................................................................................................. 4 2.1 CLIENT INFORMATION .................................................................................................................. 4 2.2 GENERAL DESCRIPTION OF E.U.T. ............................................................................................. 4 2.3 DETAILS OF E.U.T. ...................................................................................................................... 4 2.4 DESCRIPTION OF SUPPORT UNITS .............................................................................................. 4 2.5 TEST LOCATION ........................................................................................................................... 5 2.6 DEVIATION FROM STANDARDS .................................................................................................... 5 2.7 ABNORMALITIES FROM STANDARD CONDITIONS ........................................................................ 5 2.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ............................................................. 5 2.9 TEST FACILITY ............................................................................................................................. 5 3 RF EXPOSURE EVALUATION ....................................................................................................... 6 3.1 RF EXPOSURE COMPLIANCE REQUIREMENT ............................................................................. 6 3.1.1 STANDARD REQUIREMENT ............................................................................................................... 6 3.1.2 EUT RF EXPOSURE ......................................................................................................................... 6 ITL Page 4 of 6 Report No.: D191105002-001-1 2 General Information 2.1 Client Information Applicant: Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address of Applicant: No.2 Plant ,West of Shanxi country , Dashi street, Panyu District, Guangzhou City, China 2.2 General Description of E.U.T. Name: Battery camera Model No.: BA12-H Trade Mark: / Operating Frequency: 802.11 b/g/n(HT20): 2412MHz-2462MHz Channels: 802.11b, 802.11g, 802.11n(20MHz): 11 802.11n(40MHz): 7 Type of Modulation: CCK, OFDM, QPSK, BPSK Antenna Reference FPC antenna with 2 dBi peak Gain Function: Battery camera 2.3 Details of E.U.T. EUT Power Supply: DC 5V Test mode for WIFI: The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. All testing shall be perf…

Text truncated - open the document above for the full version.

ITL Page 1 of 66 Report No.: D191105002-001 TEST REPORT Applicant: Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address of Applicant: No.2 Plant ,West of Shanxi country , Dashi street, Panyu District, Guangzhou City, China Manufacturer: Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address of Manufacturer: No.2 Plant ,West of Shanxi country , Dashi street, Panyu District, Guangzhou City, China Product name: Battery camera Model(s): See page 2 Rating(s): DC 5V Trademark: / Standards: 47 CFR PART 15 Subpart C: 2019 section 15.247 FCC ID: 2APRB-BA12-H Data of Receipt: 2019-10-30 Date of Test: 2019-10-30~2019-11-18 Date of Issue: 2019-11-18 Test Result Pass* * In the configuration tested, the test item complied with the standards specified above. Authorized for issue by: Test by: Reviewed by: Nov 18, 2019 Eleven Liang Nov 18, 2019 Pauler Li Project Engineer Project Manager Date Name/Position Signature DateName/Position Signature ITL Page 2 of 66 Report No.: D191105002-001 Testing Laboratory information: Testing Laboratory Name ........... : ITL Co., Ltd Address : No. 8, Jinqianling Street 5, Huangjiang Town, Dongguan, Guangdong, China Testing location : Same as above Tel : 0086-769-39001678 Fax : 0086-20-62824387 E-mail : [email protected] Possible test case verdicts: - test case does not apply to the test object . : N/A - test object does meet the requirement ....... : P (Pass) - test object does not meet the requirement . : F (Fail) General remarks: The test results presented in this report relate only to the object tested. The results contained in this report reflect the results for this particular model and serial number. It is the responsibility of the manufacturer to ensure that all production models meet the intent of the requirements detailed within this report. This report would be invalid test report without all the signatures of testing technician and approver. This report shall not be reproduced, except in full, without the written approval of the Issuing testing laboratory. General product information: There's an AC Adapter that charges the battery. The models BC12-H, BD12-H, BE12-H, BF12-H, BP22-H, BM22-H, BQ22-H, BR22-H, BA05-H, BA06- H, BA07-H, BA08-H, HMB1, HMC1, G188HX-WBS2-4MM, G188JZ-WBS2-4MM-4G, DTS300T-WHS2-4G- 4MM, DTS300T-WHS2-4G-6MM, DTS300T-WHS2-4MM, DTS300T-WHS2-6MM, DS-200S, Q7H, Q9H, Q9H-P1, Q8H, Q2H, SMUS-B4210-JA, SMUS-B4410-JA, OSX-DC1080, OH-DC1080, WL-DC1080, AR- BA12-H*1, A4, F1-J200, Q1-J200, XF-DC30, XF-DC31, XF-DC32, XF-DC33, XF-DC34, XF-DC35, XF-DC36, XF-DC37, XF-DC38, XF-DC39, XF-DC40, MNL030, HD20L24JA-WIFI, HD20L25JA-WIFI, HD20L14JA-WIF, HD20L15JA-WIFI, HD20L34JA-WIFI, HD20L35JA-WIFI, HD50L24JA-WIFI, HD50L25JA-WIFI, HD50L14JA- WIFI, HD50L15JA-WIFI, HD50L34JA-WIFI, HD50L35JA-WIFI, C2027BN2M-W, C1800BN2-S, C1800BN4-S, C1801BN4-S, C1810BN2M, L2019B, BC3, TJ-ID6008PF-WF20J, TJ-KW7734AA-WF20J, TJ-ID6008PF- XXXXX, TJ-KW7734AA-XXXXX and BA12-H are identical to each other except for model names. All tests were performed on the model BA12-H as representative. ITL Page 3 of 66 Report No.: D191105002-001 1 Test Summary Test Test Requirement Test method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS Occupied Bandwidth FCC PART 15 C section 15.247 (a)(2) ANSI C63.10:2013 and KDB 558074 D01 v05r02 PASS Maximum Peak Output Power FCC PART 15 C section 15.247(b)(3) ANSI C63.10: 2013 and KDB 558074 D01 v05r02 PASS Peak Power Spectral Density FCC PART 15 C section 15.247(e) ANSI C63.10:2013 and KDB 558074 D01 v05r02 PASS Conducted Spurious Emission (30MHz to 25GHz) FCC PART 15 C section 15.209 &15.247(d) ANSI C63.10:2013 and KDB 558074 D01 v05r02 PASS Radiated Spurious Emission (30 MHz to 25 GHz) FCC PART 15 C section 15.209 &15.247(d) ANSI C63.10:2013 and KDB 558074 D01 v05r02 PASS Band Edges Measurement FCC PART 15 C section 15.209 &15.247(d) ANSI C63.10:2013 and KDB 558074 D01 v05r02 PASS Conducted Emissions at Mains Te r m i n al s FCC PART 15 C section 15.207 ANSI C63.10:2013 PASS ITL Page 4 of 66 Report No.: D191105002-001 2 Contents Page TEST REPORT ....................................................................................................................................................................... 1 1 TEST SUMMARY ......................................................................................................................................................... 3 2 CONTENTS ................................................................................................................................................................... 4 3 GENERAL INFORMATION ........................................................................................................................................ 5 3.1 CLIENT INFORMATION ............................................................................................................................................ 5 3.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 3.3 DETAILS OF E.U.T. ................................................................................................................................................ 5 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 6 3.5 TEST LOCATION ..................................................................................................................................................... 6 3.6 DEVIATION FROM STANDARDS .............................................................................................................................. 6 3.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 3.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ..…
