2APRB-WNIP-2L-BUWireless IP Camera

Wi-Fi IP Camera NOTE: Camera is only compatible as an add on for the WNIP2 Series Wi-Fi NVR. Quick Setup Guide Flexible Setup Options: Option 1 Setup Video Option 2 Setup Video STOP: Only install a camera in its final location AFTER it’s paired, and setup is completed. Run the WNVR’s Startup Wizard and follow the onscreen instructions. When prompted, plug in the camera(s) no more than 8 ft. from the WNVR. First Time User? Download Night Owl Protect from the App Store or Google Play Store. Create an account & log in. Sign in if you already have an account! Tap the “Add New” button, and the app will guide you through the setup process. Option 1: Add on Camera - Connecting to your Night Owl Wi-Fi NVR (WNVR): Option 2: Standalone Camera - Connecting to your Wi-Fi Router: NEED HELP? For system manuals, troubleshooting guides, FAQs, video tutorials and more: Please visit Support.NightOwlSP.com Enter WNIP2-CM into the Search bar. Why Call? Our Support Site Has it All! For more Support Videos, go to www.youtube.com/nightowlsp FCC RADIATION NORM FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Compliance Statement These limits are designed to provide reasonable protection against frequency interference in residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed or used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in television reception, which can be determined by turning the equipment o and on. The user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION! The Federal Communications Commission warns the user that changes or modications to the unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment should be installed and operated with a minimum distance of 8 inches between the radiator and your body.

Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd No.2 Plant, West of Shanxi country, Dashi street, Panyu District, Guangzhou City, China Date: May 16, 2020 FCC ID: 2APRB-WNIP-2L-BU Model Number: WNIP-2LTA-BS, WNIP-2LTA-BS-U, CAM-2PK-WNIP2LBU, CAM-WNIP2LBU, CL-CAM-WNIP2LBU, WNIP2-4L1, CL-2WNP1-2L, CL-2WNP1-4L, CL-2WNP1-8L, WNIP21L-2-B, WNIP21L-4-B, WNIP21L-8-B To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd, declare that this EUT (FCC ID: 2APRB-WNIP-2L-BU) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name: Wenhuang Li Company: Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address: No.2 Plant, West of Shanxi country, Dashi street, Panyu District, Guangzhou City, China Phone: 02022275999 Fax: 02022647897 E-Mail: [email protected]

Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Model Declaration Letter For FCC ID : 2APRB-WNIP-2L-BU We, the undersigning company Company Name: Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address: No.2 Plant, West of Shanxi country, Dashi street, Panyu District, Guangzhou City, China Hereby confirm that the following products: Product description: Wireless IP Camera Type designation: WNIP-2LTA-BS, WNIP-2LTA-BS-U, CAM-2PK-WNIP2LBU, CAM-WNIP2LBU, CL-CAM-WNIP2LBU, WNIP2-4L1, CL-2WNP1-2L, CL-2WNP1-4L, CL-2WNP1-8L, WNIP21L-2-B, WNIP21L-4-B, WNIP21L-8-B. Trade name or Brand(s): NIGHT OWL That All these models are identical in the same PCB, layout and electrical circuit, the only difference is model name for commercial. City and Country: Date: Name: Signature: Guangzhou City, China 05/16/2020 Wenhuang Li

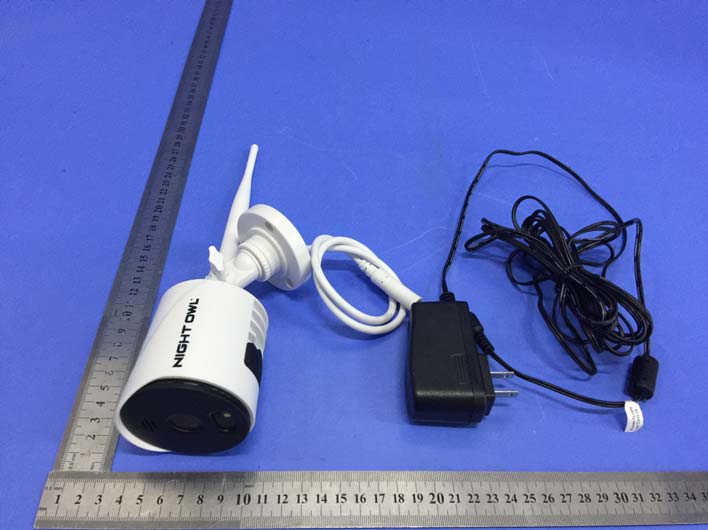

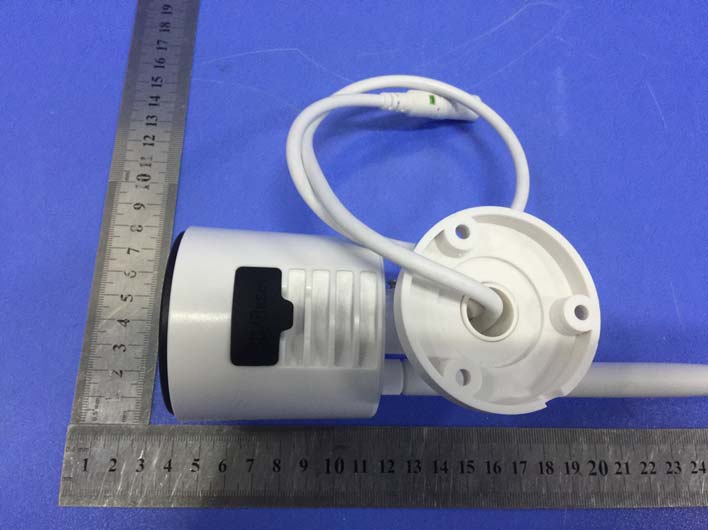

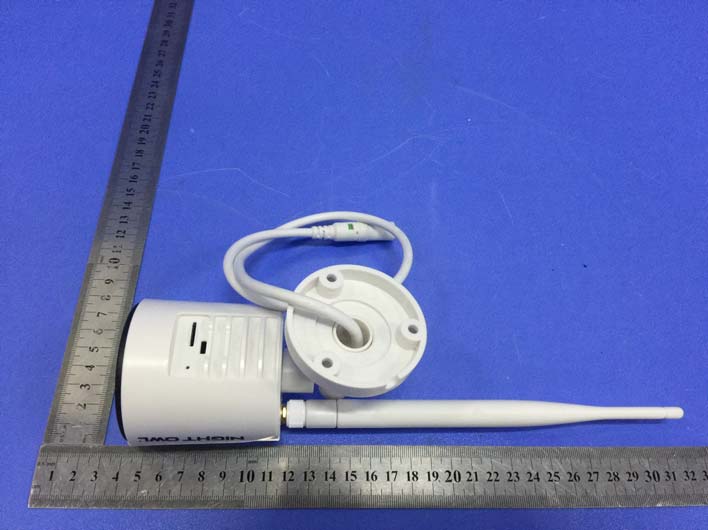

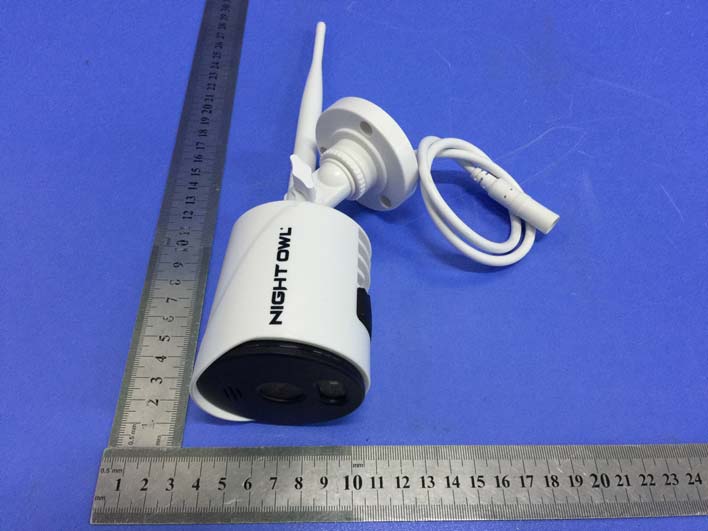

Report No. : TB-FCC172699 Page : 3 of 13 FCC ID: 2APRB-WNIP-2L-BU TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No. : TB-FCC172699 Page : 4 of 13 FCC ID: 2APRB-WNIP-2L-BU TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No. : TB-FCC172699 Page : 5 of 13 FCC ID: 2APRB-WNIP-2L-BU TB-RF-075-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT Report No. : TB-FCC172699 Page : 6 of 13 FCC ID: 2APRB-WNIP-2L-BU TB-RF-075-1.0 Photo 7 Appearance of EUT Photo 8 Appearance of EUT 2.4G WiFi Ant.

Report No. : TB-FCC172699 Page : 2 of 13 FCC ID: 2APRB-WNIP-2L-BU TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No. : TB-FCC172699 Page : 1 of 13 FCC ID: 2APRB-WNIP-2L-BU TB-RF-074-1.0 Appendix IFCC ID Label

Report No. : TB-FCC172699 Page : 7 of 13 FCC ID: 2APRB-WNIP-2L-BU TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 9 Internal of EUT Photo 10 Internal of EUT Report No. : TB-FCC172699 Page : 8 of 13 FCC ID: 2APRB-WNIP-2L-BU TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB Report No. : TB-FCC172699 Page : 9 of 13 FCC ID: 2APRB-WNIP-2L-BU TB-RF-075-1.0 Photo 13 Appearance of PCB Photo 14 Appearance of PCB Report No. : TB-FCC172699 Page : 10 of 13 FCC ID: 2APRB-WNIP-2L-BU TB-RF-075-1.0 Photo 15 Appearance of PCB Photo 16 Appearance of PCB Report No. : TB-FCC172699 Page : 11 of 13 FCC ID: 2APRB-WNIP-2L-BU TB-RF-075-1.0 Photo 17 Appearance of Camera Photo 18 Appearance of Camera

Report No.: TB-MPE172670 Page: 1 of 3 TB-RF-075-1.0 Maximum Permissible Exposure Evaluation FCC ID: 2APRB-WNIP-2L-BU 1. Client Information Applicant : Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address : No.2 Plant, West of Shanxi country, Dashi street, Panyu District, Guangzhou City, China Manufacturer : Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address : No.2 Plant, West of Shanxi country, Dashi street, Panyu District, Guangzhou City, China 2. General Description of EUT EUT Name : Wireless IP Camera Models No. : WNIP-2LTA-BS, WNIP-2LTA-BS-U, CAM-2PK-WNIP2LBU, CAM-WNIP2LBU, CL-CAM-WNIP2LBU, WNIP2-4L1, CL-2WNP1-2L, CL-2WNP1-4L, CL-2WNP1-8L, WNIP21L-2-B, WNIP21L-4-B, WNIP21L-8-B Model Different : All these models are identical in the same PCB, layout and electrical circuit, the only difference is model name for commercial. Brand Name : NIGHT OWL Product Description : Operation Frequency: 802.11b/g/n(HT20): 2412MHz~2462MHz Number of Channel: 802.11b/g/n(HT20):11 channels RF Output Power: 802.11b:18.26dBm 802.11g: 18.66dBm 802.11n (HT20): 18.84dBm Antenna Gain: 5 dBi Dipole Antenna Power Rating : DC 12V from AC/DC Adapter(CS-1201000): Input: AC 100-240V, 50/60Hz. Output: DC 12V, 1A. Software Version : WNIP-2L-BU_20200331 Hardware Version : FH8852-F37-M-V2 Connecting I/O Port(S) : Please refer to the User's Manual Remark : the MPE report used the EUT(20200401-20-02). Report No.: TB-MPE172670 Page: 2 of 3 TB-RF-075-1.0 MPE Calculations for WIFI 1. Antenna Gain: Dipole Antenna: 5dBi. 2. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 4. Test Result: Worst Maximum MPE Result Mode N TX Freq. (MHz) Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] 802.11b 1 2412 18.26 18±1 19 5 20 0.0500 2437 17.79 18±1 19 5 20 0.0500 2462 17.45 18±1 19 5 20 0.0500 802.11g 1 2412 18.66 18±1 19 5 20 0.0500 2437 18.23 18±1 19 5 20 0.0500 2462 17.82 18±1 19 5 20 0.0500 802.11n(HT20) 1 2412 18.84 18±1 19 5 20 0.0500 2437 18.39 18±1 19 5 20 0.0500 2462 17.60 18±1 19 5 20 0.0500 Note: (1) N TX = Number of Transmit Antennas (2) RF Output power specifies that Maximum Conducted Peak Output Power. Report No.: TB-MPE172670 Page: 3 of 3 TB-RF-075-1.0 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For Bluetooth:2412~2462 MHz MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.0500mW / cm 2 < limit 1mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. 6. Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. -----END OF REPORT-----

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC172699 Page: 1 of 75 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2APRB-WNIP-2L-BU Original Grant Report No. : TB-FCC172699 Applicant : Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Equipment Under Test (EUT) EUT Name : Wireless IP Camera Model No. : WNIP-2LTA-BS Series Model No. : WNIP-2LTA-BS-U, CAM-2PK-WNIP2LBU, CAM-WNIP2LBU, CL-CAM-WNIP2LBU, WNIP2-4L1, CL-2WNP1-2L, CL-2WNP1-4L, CL-2WNP1-8L, WNIP21L-2-B, WNIP21L-4-B, WNIP21L-8-B Brand Name : NIGHT OWL Receipt Date : 2020-04-21 Test Date : 2020-04-22 to 2020-05-14 Issue Date : 2020-05-15 Standards : FCC Part 15, Subpart C 15.247 Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Jack Deng Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC172699 Page: 2 of 75 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 9 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST SOFTWARE ................................................................................................................... 10 4. TEST EQUIPMENT .................................................................................................................. 11 5. CONDUCTED EMISSION TEST ........................................................................................... 12 5.1 Test Standard and Limit .................................................................................................... 12 5.2 Test Setup ........................................................................................................................... 12 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 13 5.5 EUT Operating Mode ........................................................................................................ 13 5.6 Test Data ............................................................................................................................. 13 6. RADIATED EMISSION TEST ................................................................................................ 14 6.1 Test Standard and Limit .................................................................................................... 14 6.2 Test Setup ........................................................................................................................... 15 6.3 Test Procedure ................................................................................................................... 16 6.4 Deviation From Test Standard ......................................................................................... 17 6.5 EUT Operating Condition ................................................................................................. 17 6.6 Test Data ............................................................................................................................. 17 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 18 7.1 Test Standard and Limit .................................................................................................... 18 7.2 Test Setup ........................................................................................................................... 18 7.3 Test Procedure ................................................................................................................... 19 7.4 Deviation From Test Standard ......................................................................................... 19 7.5 EUT Operating Condition ................................................................................................. 19 7.6 Test Data ............................................................................................................................. 19 8. BANDWIDTH TEST ...............................................…
