2APRB-WNVR-WNIP2Wireless Network Video Recorder

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide r easonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver . -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Responsible for compliance could void the user’s authority to operate this equipment. (E xample- use only shielded interface cables when connecting to computer or peripheral devices). Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: The equipment complies with FCC Radiation exposure limits set forth for uncontrolled enviroment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. .

Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd No.2 Plant, West of Shanxi country, Dashi street, Panyu District, Guangzhou City, China Date: May 22, 2020 FCC ID: 2APRB-WNVR-WNIP2 Model Number: WNVR-WNIP2, WNIP2-4L1, CL-2WNP1-2L, CL-2WNP1-4L, CL-2WNP1-8L, WNIP21L-2-B, WNIP21L-4-B, WNIP21L-8-B To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd declare that this EUT (FCC ID: 2APRB-WNVR-WNIP2) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name: Wenhuang Li Company: Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address: No.2 Plant, West of Shanxi country, Dashi street, Panyu District, Guangzhou City, China Phone: 02022275999 Fax: 02022647897 E-Mail: [email protected]

Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Agent Authorization Date: 22th May, 2020 Company: Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address: No.2 Plant, West of Shanxi country, Dashi street, Panyu District, Guangzhou City, China Product Description: Wireless Network Video Recorder FCC ID: 2APRB-WNVR-WNIP2 Tested Model Number: WNVR-WNIP2, WNIP2-4L1, CL-2WNP1-2L, CL-2WNP1-4L, CL-2WNP1-8L, WNIP21L-2-B, WNIP21L-4-B, WNIP21L-8-B We authorize Eurofins Product Service GmbH, Storkower Strasse 38c, D-15526 Reichenwalde, Germany, to act on our behalf on all matters concerning the certification of above mentioned equipment. We declare that Eurofins Product Service GmbH is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We, Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd., the undersigned, hereby authorize Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.), Shenzhen Microwave Certification Services Co., Ltd. (Gilbert Lui, Marketing Manager) and Ka.Ma.S UG (Karin Schmidt, CEO) on our behalf, to apply to the Federal Communications Commission on our equipment. We, the undersigned, hereby authorize Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.) to act on our behalf in matters relating to the application for a FCC equipment authorization for mentioned FCC ID Number including the signing of Form 731, necessary forms and documents in connection with this application. Any and all acts carried out by Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.) on our behalf shall have the same effect as acts of our own. This authorization expires on 31th December, 2019. Yours Sincerely, Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd. <Signature of Wenhuang Li > ----------------------------------------------------------------------------------- Name: Wenhuang Li Company: Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address: No.2 Plant, West of Shanxi country, Dashi street, Panyu District, Guangzhou City, China Phone: 02022275999 Fax: 02022647897 E-Mail: [email protected]

Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Declaration Letter of Model Difference Date: 22th May, 2020 FCC ID: 2APRB-WNVR-WNIP2 Tested Model Number: WNVR-WNIP2 Adding Model Number(s): WNIP2-4L1, CL-2WNP1-2L, CL-2WNP1-4L, CL-2WNP1-8L, WNIP21L-2-B, WNIP21L-4-B, WNIP21L-8-B All Adding Model Number(s) is/are same electrically identical as Tested Model Number. Yours Sincerely, Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd <Signature of Wenhuang Li > ----------------------------------------------------------------------------------- Name: Wenhuang Li Company: Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address: No.2 Plant, West of Shanxi country, Dashi street, Panyu District, Guangzhou City, China Phone: 02022275999 Fax: 02022647897 E-Mail: [email protected]

Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd CONFIDENTIALITY REQUEST for Certification under the FCC Rules Date: 22th May, 2020 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the following product: FCC ID: 2APRB-WNVR-WNIP2 Models No.: WNVR-WNIP2, WNIP2-4L1, CL-2WNP1-2L, CL-2WNP1-4L, CL-2WNP1-8L, WNIP21L-2-B, WNIP21L-4-B, WNIP21L-8-B For the product stated above, we request that the following information be held confidential: Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days Block Diagram Schematic Diagram/ Circuit Diagram Circuit Description/ Operational Description Parts List Tune Up Information User’s Manual External Photos Internal Photos Test Setup Photos The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. Please do not hesitate to contact me if you have any queries. Yours Sincerely, Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd <Signature of Wenhuang Li > ----------------------------------------------------------------------------------- Name: Wenhuang Li Company: Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address: No.2 Plant, West of Shanxi country, Dashi street, Panyu District, Guangzhou City, China Phone: 02022275999 Fax: 02022647897 E-Mail: [email protected]

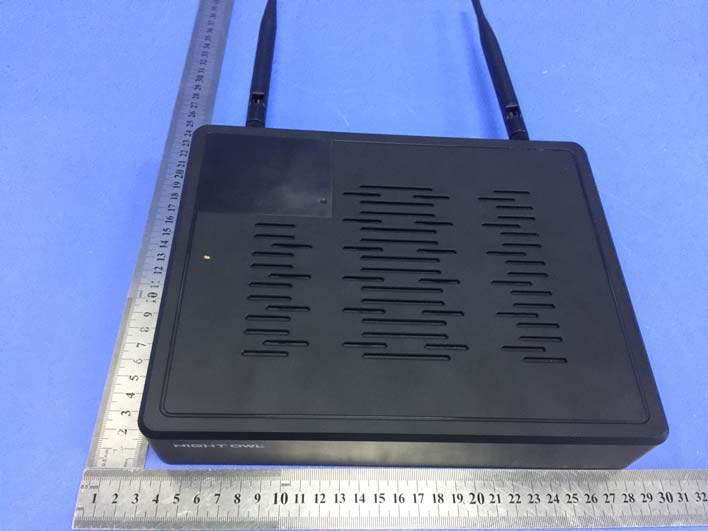

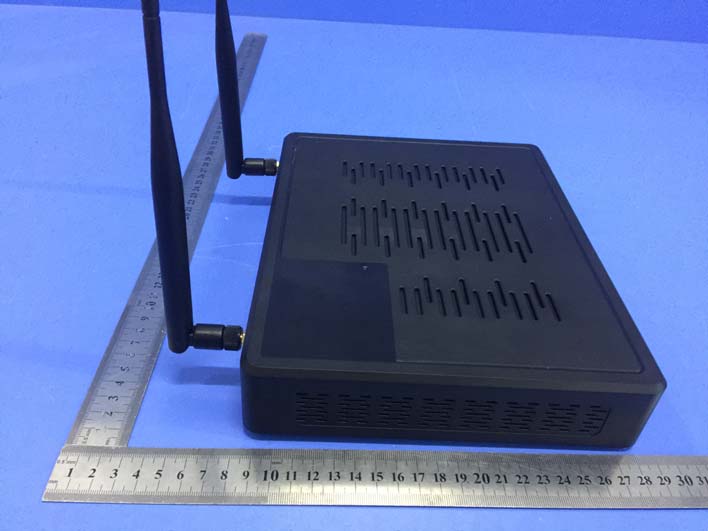

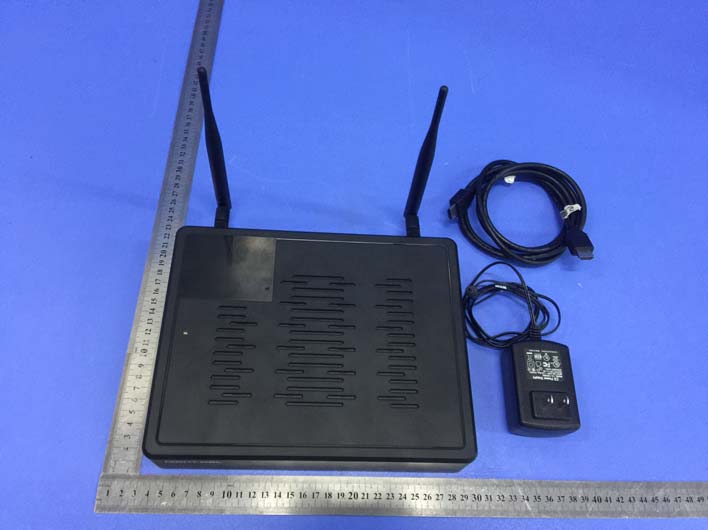

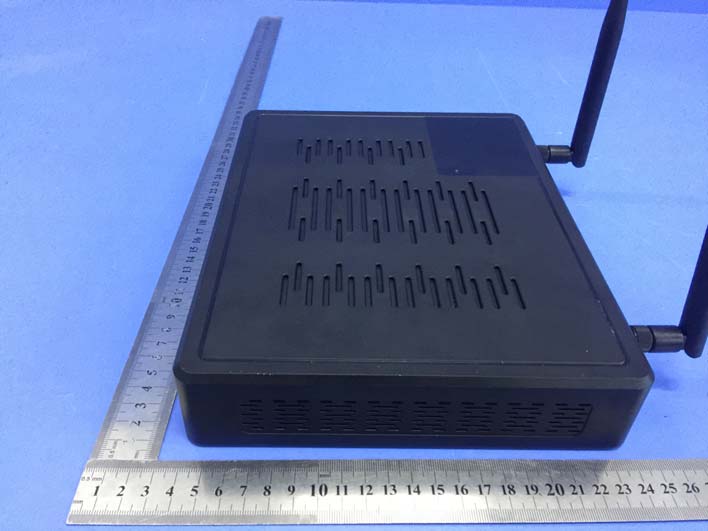

Report No.: TB-FCC172675 Page: 3 of 11 FCC ID: 2APRB-WNVR-WNIP2 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC172675 Page: 4 of 11 FCC ID: 2APRB-WNVR-WNIP2 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC172675 Page: 5 of 11 FCC ID: 2APRB-WNVR-WNIP2 TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT 2.4G WiFi Ant. A 2.4G WiFi Ant. B Report No.: TB-FCC172675 Page: 6 of 11 FCC ID: 2APRB-WNVR-WNIP2 TB-RF-074-1.0 Photo 7 Appearance of EUT Photo 8 Appearance of Adapter

Report No.: TB-FCC172675 Page: 1 of 11 FCC ID: 2APRB-WNVR-WNIP2 TB-RF-074-1.0 Appendix IFCC ID Label Size：60x52cm Report No.: TB-FCC172675 Page: 2 of 11 FCC ID: 2APRB-WNVR-WNIP2 TB-RF-074-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC172675 Page: 7 of 11 FCC ID: 2APRB-WNVR-WNIP2 TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 10 Internal of EUT Photo 11 Internal of EUT Report No.: TB-FCC172675 Page: 8 of 11 FCC ID: 2APRB-WNVR-WNIP2 TB-RF-074-1.0 Photo 12 Internal of EUT Photo 13 Appearance of PCB Report No.: TB-FCC172675 Page: 9 of 11 FCC ID: 2APRB-WNVR-WNIP2 TB-RF-074-1.0 Photo 14 Appearance of PCB Photo 15 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE172676 Page: 1 of 4 TB-RF-075-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2APRB-WNVR-WNIP2 1. Client Information Applicant : Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address : No.2 Plant ,West of Shanxi country , Dashi street, Panyu District, Guangzhou City, China Manufacturer : Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Address : No.2 Plant ,West of Shanxi country , Dashi street, Panyu District, Guangzhou City, China 2. General Description of EUT EUT Name : Wireless Network Video Recorder Models No. : WNVR-WNIP2, WNIP2-4L1, CL-2WNP1-2L, CL-2WNP1-4L, CL-2WNP1-8L, WNIP21L-2-B, WNIP21L-4-B, WNIP21L-8-B Brand Name : NIGHT OWL Product Description : Operation Frequency: 802.11b/g/n(HT20): 2412MHz~2462MHz 802.11n(HT40): 2422MHz~2452MHz Power Rating : Adapter(CS-1202000): Input: AC 100-240V, 50/60Hz, 1.5A Output: DC 12V, 2A Software Version : WNVR-WNIP2_20200420 Hardware Version : Hi3536D_V125P Connecting I/O Port(S) : Please refer to the User's Manual Report No.: TB-MPE172676 Page: 2 of 4 TB-RF-075-1.0 MPE Calculations 1. Antenna Gain: Antenna Brand Type 2.4G Antenna Gain(dBi) ANT. A N/A External Ant 5.0 ANT. B N/A External Ant 5.0 Note: For MIMO mode: Directional Gain=ANT. Gain+10*LOG(N ANT ) =8.01dBi 2.4G working with 802.11b/g/n(HT20/HT40) has MIMO mode. 2. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 4. Simultaneous transmission MPE Considerations According to KDB447498 :All transmitters and antennas in the host must be either evaluated for MPE compliance, by measurement or computational modeling, or qualify for the standalone MPE test exclusion in section 7.1.Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. This means that: ∑ of MPE ratios ≤ 1.0 Report No.: TB-MPE172676 Page: 3 of 4 TB-RF-075-1.0 5. Standalone MPE Evaluation: [2.4GHz WLAN] Mode Channel Frequency Peak Conducted Output Power (dBm) Tolerance ± (dB) Turn-up Power Tolerance (dB) Ant.A Ant.B Ant.A Ant.B IEEE 802.11b 1 2412 14.827 15.665 1.0 15±1 15±1 6 2437 15.152 14.696 1.0 15±1 15±1 11 2462 15.248 15.474 1.0 15±1 15±1 IEEE 802.11g 1 2412 14.904 15.531 1.0 15±1 15±1 6 2437 14.940 15.756 1.0 15±1 15±1 11 2462 14.428 15.153 1.0 15±1 15±1 IEEE 802.11n HT20 1 2412 14.915 15.570 1.0 15±1 15±1 6 2437 14.562 15.360 1.0 15±1 15±1 11 2462 15.065 14.624 1.0 15±1 15±1 IEEE 802.11n HT40 3 2422 15.304 15.204 1.0 15±1 15±1 6 2437 15.157 15.112 1.0 15±1 15±1 9 2452 14.836 14.635 1.0 15±1 15±1 2.4GHz WLAN ANT. A Modulation Type Output power (Turn-up Procedure) Antenna Gain (dBi) Antenna Gain (Numeric) Distance (cm) [R] MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW IEEE 802.11b 15.248 33.48 5.0 3.162 25 0.0210 1.0000 IEEE 802.11g 14.940 31.19 5.0 3.162 25 0.0196 1.0000 IEEE 802.11n HT20 15.065 32.10 5.0 3.162 25 0.0201 1.0000 IEEE 802.11n HT40 15.304 33.91 5.0 3.162 25 0.0213 1.0000 2.4GHz WLAN ANT. B Modulation Type Output power (Turn-up Procedure) Antenna Gain (dBi) Antenna Gain (Numeric) Distance (cm) [R] MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW IEEE 802.11b 15.665 36.85 5.0 3.162 25 0.0231 1.0000 IEEE 802.11g 15.756 37.63 5.0 3.162 25 0.0236 1.0000 IEEE 802.11n HT20 15.570 36.05 5.0 3.162 25 0.0226 1.0000 IEEE 802.11n HT40 15.204 33.14 5.0 3.162 25 0.0208 1.0000 Remark: 1. Output power (Average) including turn-up tolerance; 2. Output power was adjust to duty cycle at 100% if measured duty cycle less than 98%; 3. MPE evaluate distance is 25cm from user manual provide by manufacturer. Report No.: TB-MPE172676 Page: 4 of 4 TB-RF-075-1.0 6. Summary simultaneous transmission information Modulation Type Work Frequency Band Transmit Antenna Antenna A Antenna B Synchronization transmit Antenna A Antenna B IEEE 802.11b 2.4GHz Yes Yes Yes IEEE 802.11g 2.4GHz Yes Yes Yes IEEE 802.11n HT20 2.4GHz Yes Yes Yes IEEE 802.11n HT40 2.4GHz Yes Yes Yes 7. Summary simultaneous transmission results Antenna A and Antenna B for 2.4GWLAN Modulation Type MPE Antenna A (mW/cm 2 ) MPE Antenna B (mW/cm 2 ) ∑MPE ratios Limit Results IEEE 802.11b 0.0210 0.0231 0.0441 1.0 PASS IEEE 802.11g 0.0196 0.0236 0.0432 1.0 PASS IEEE 802.11n HT20 0.0201 0.0226 0.0427 1.0 PASS IEEE 802.11n HT40 0.0213 0.0208 0.0421 1.0 PASS Maximum Simultaneous transmission MPE Ratios for 2.4GHz WLAN Maximum MPE ratio 2.4GWLAN Limit Results 0.0441 1.0 PASS 8. Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. -----END OF REPORT-----

Shenzhen Toby Technology Co., Ltd. Report No.:TB-FCC172675 Page: 1 of 105 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2APRB-WNVR-WNIP2 Original Grant Report No. : TB-FCC172675 Applicant : Guangzhou Juan Intelligent Tech Joint Stock Co.,Ltd Equipment Under Test (EUT) EUT Name : Wireless Network Video Recorder Model No. : WNVR-WNIP2 Series Model No. : WNIP2-4L1, CL-2WNP1-2L, CL-2WNP1-4L, CL-2WNP1-8L, WNIP21L-2-B, WNIP21L-4-B, WNIP21L-8-B Brand Name : NIGHT OWL Receipt Date : 2020-04-24 Test Date : 2020-04-25 to 2020-05-22 Issue Date : 2020-05-22 Standards : FCC Part 15, Subpart C 15.247 Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Jack Deng Engineer Supervisor : Ivan Su Authorized Signatory : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC172675 Page: 2 of 105 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 7 1.4 Description of Support Units .............................................................................................. 7 1.5 Description of Test Mode .................................................................................................... 8 1.6 Description of Test Software Setting ................................................................................ 9 1.7 Measurement Uncertainty ................................................................................................ 10 1.8 Test Facility ......................................................................................................................... 10 2. TEST SUMMARY ..................................................................................................................... 11 3. TEST SOFTWARE ................................................................................................................... 11 4. TEST EQUIPMENT .................................................................................................................. 12 5. CONDUCTED EMISSION TEST ........................................................................................... 13 5.1 Test Standard and Limit .................................................................................................... 13 5.2 Test Setup ........................................................................................................................... 13 5.3 Test Procedure ................................................................................................................... 14 5.4 Deviation From Test Standard ......................................................................................... 14 5.5 EUT Operating Mode ........................................................................................................ 14 5.6 Test Data ............................................................................................................................. 14 6. RADIATED EMISSION TEST ................................................................................................ 15 6.1 Test Standard and Limit .................................................................................................... 15 6.2 Test Setup ........................................................................................................................... 16 6.3 Test Procedure ................................................................................................................... 17 6.4 Deviation From Test Standard ......................................................................................... 18 6.5 EUT Operating Condition ................................................................................................. 18 6.6 Test Data ............................................................................................................................. 18 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 19 7.1 Test Standard and Limit .................................................................................................... 19 7.2 Test Setup ........................................................................................................................... 19 7.3 Test Procedure ................................................................................................................... 20 7.4 Deviation From Test Standard ......................................................................................... 20 7.5 EUT Operating Condition ................................................................................................. 20 7.6 Test Data ............................................................................................................................. 20 8. BANDWIDTH TEST ..................................................................................................…

Text truncated - open the document above for the full version.

Report No.: TB-FCC172675 Page: 10 of 11 FCC ID: 2APRB-WNVR-WNIP2 TB-RF-074-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC172675 Page: 11 of 11 FCC ID: 2APRB-WNVR-WNIP2 TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
