2AQNR-M502630CSWireless Backup camera System

Mold :SWD-M502630CS Camera and Monitor NOTE：The contents included may be different based on the kit you purchased. Please take the actual produal product as standard What’s in the Box? Thank you very much for purchasing a Rear View Backup Camera System. With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle. The Backup Camera System should not be used as a substitute for the standard rear view mirror or for any other mirror that exists in your vehicle. In some jurisdictions, it is unlawful for a person to drive a motor vehicle equipped with a TV viewer or screen located forward of the back of the driver’s seat or in any location that is visible, directly or indirectly, to the driver while operating the vehicle. Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Introduction Monitor Operation 1２３ ４ ５ 12MM Key 1Power key Confirm keyCard insertionStart Pause key Switch on/off Key 2 Key 3 Key 4 Key 5 Product name SWD-502630CS 12 Menu keyReturn key 12 Enter menu Left selection 1 Enter menu Right Select 1 plus 2 Short press to switch channels 3 reduce 2 Car ruler 3 In adjustment mode Position of the vehicle gauge 4 Box Size The Packing Box is Hard and not Easy to Wear Camera Size Camera Installation Suitable Installation Position Camera Placement Diagram Monitor Installation Choose a monitor location in your vehicle that does not block your view and complies with local laws for safe driving. Do not place in an area where it might interfere with driving. Installation Diagram The above is the correct connection mode. Please operate carefully during installation and removal to avoid damage Connect the display to the bracket 1 Connection mode of accessories Connect the display to the ladder bracket 2 Waterproof joints are docked according to the hole position 3 Reverse Rotation And Lock After Docking 4 to the ladder bracket Reverse Rotation And 4 Waterproof joints are docked according to the hole position 3 PAIRINGPICTURE CAM 2 NO SIGNAL CAM 2 CAM 2 PAIRING START 18 NOTE: when you need pairing,please confirm the circuit is properly connected and powered.If you need to pairing multiple cameras, please switch to the corresponding channel. Pairing the Camera and Monitor CAM 2 Power Supply Wireless Frequency Wireless Range Delaying Time Operating temperature Image Sensor Waterproof Rating View Angle Camera Pixel DC12V to 36V 2.4 GHz 500m(open area) <200ms -20°C ~ 80°C 1/3 inch IP 68 100°[H] 130°[D] 1000TVL CAMERA LCD Size Resolution Contrast Brightness Response Time Power Consumption 5 inch IPS 1280H) x 720(V) 500:1 500cd/㎡ 25ms <500mA MONITOR Specifications Monitor Won’t turn on Camera and Monitor won’t pair Weak Signal Night Vision is poor Dark Picture Check the cigarette lighter has 12V-36V DC Output Check the fuse in the Cigarette socket adapter Check if the camera is receiving power Make sure to follow the instructions to operate the Pairing Check if the camera and monitor antennas are installed Distance between camera and monitor is too great. Reduce distance between camera and monitor Large dense objects could be obscuring the signal. If possible, move the objects Interference from overhear power lines may be affecting the signal Try unpairing and pairing The night sensor on the camera may be dirty or obstructed Ensure the camera is installed at least 2 inches away from rear lights Check whether brightness and contrast are adjusted correctly Problem Solution Troubleshooting

SHENZHEN SUNVEYTECH CO.,LTD Agent Authorization Company: SHENZHEN SUNVEYTECH CO.,LTD Address: 502,Building A,Penglongpan High-Tech Park, No.11, Dafu Industrial Zone,Guanlan Street, Longhua District, Shenzhen, China Product Name: Wireless Backup camera System Model Number(s): SWD-M502630CS, AY5, C5, N5, G5, M5, K5, F5, H5, R5 Product Description: Wireless Backup camera System We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Nov. 17, 2022 Name: Xiong lijun Title: Manager Company: SHENZHEN SUNVEYTECH CO.,LTD

HENZHEN SUNVEYTECH CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Nov. 17, 2022 Subject; Request for Confidentiality FCC ID: 2AQNR-M502630CS To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Xiong lijun Title: Manager

Model Difference Declaration To Whom It May Concern, We, SHENZHEN SUNVEYTECH CO.,LTD(Wireless Backup camera System) ; Model Number:SWD- M502630CS, AY5, C5, N5, G5, M5, K5, F5, H5, R5; All model’s the function, software and electric circuit are the same, only with a product model named different. Test sample model: SWD-M502630CS. Please contact me if you have any question. Name: Xiong lijun Date: Nov. 17, 2022 Title: Manager Signature of applicant:

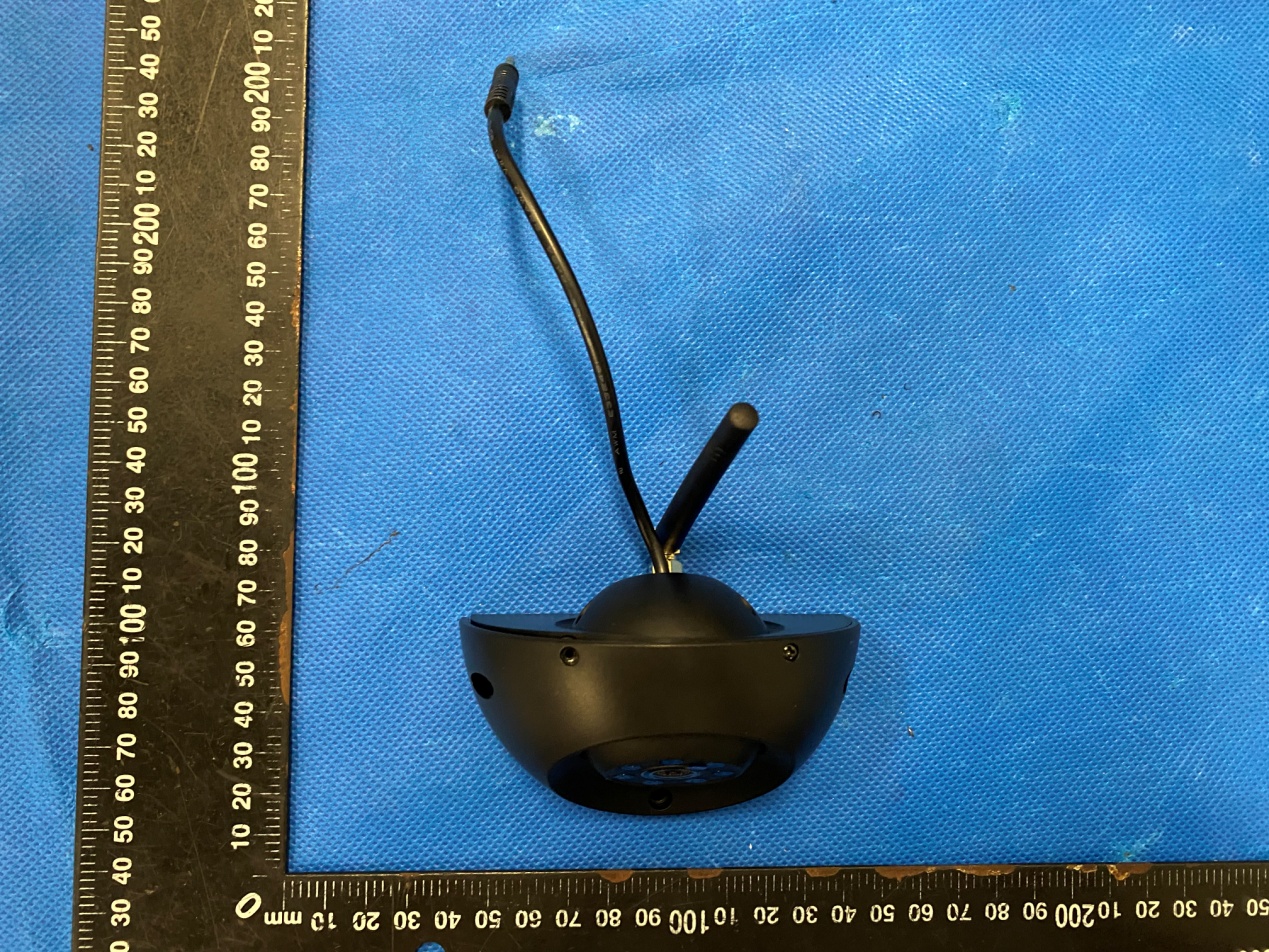

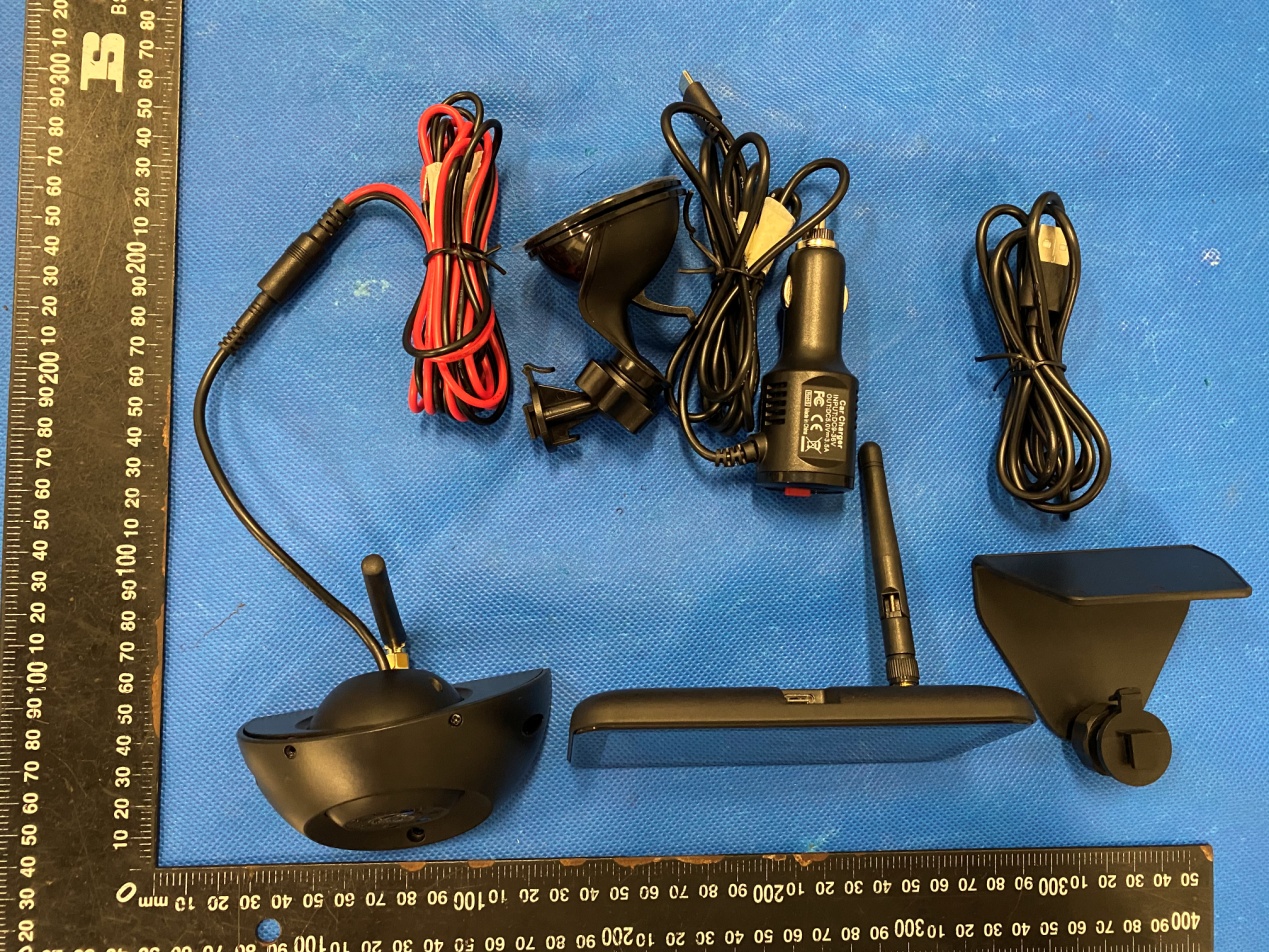

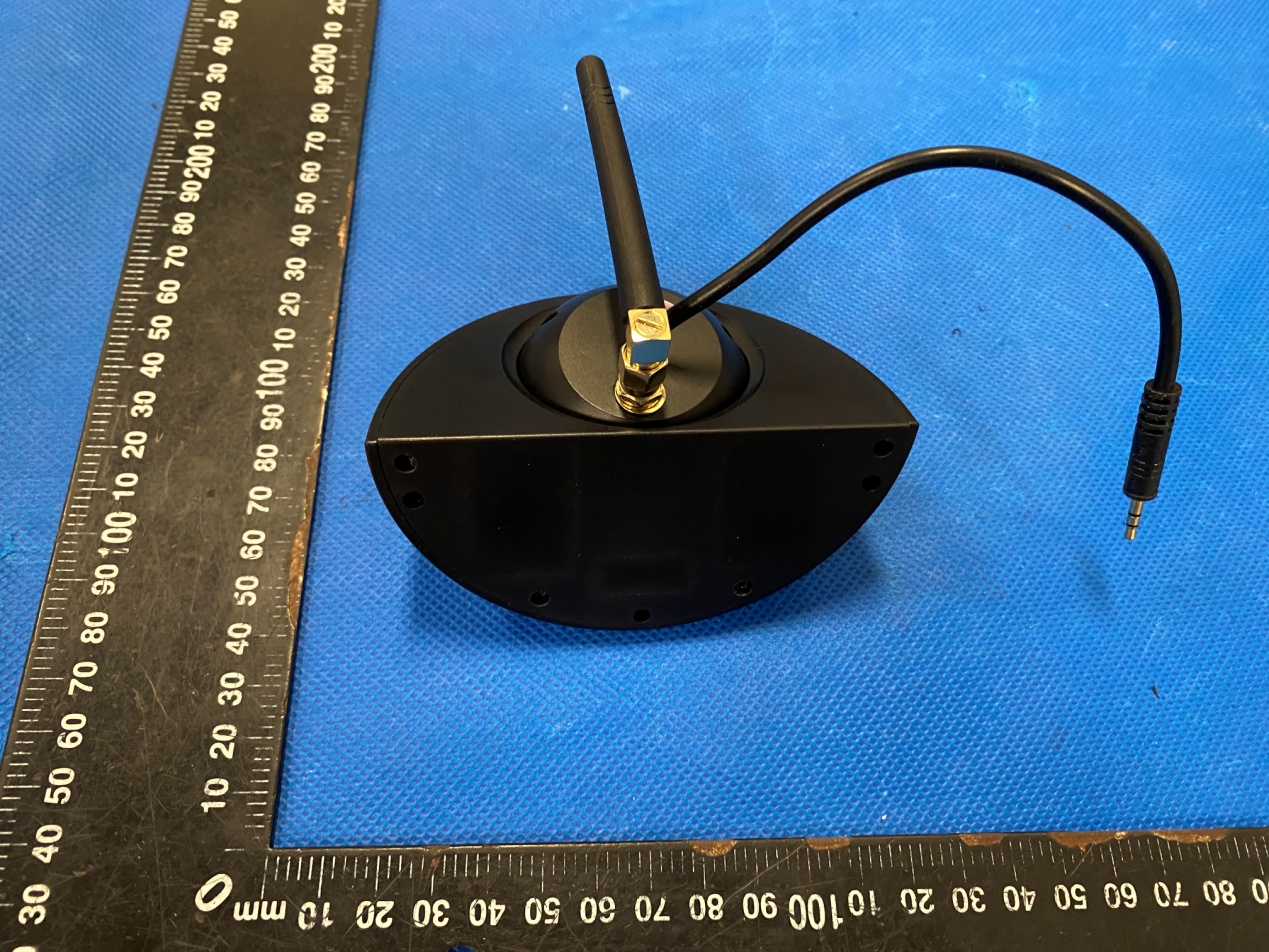

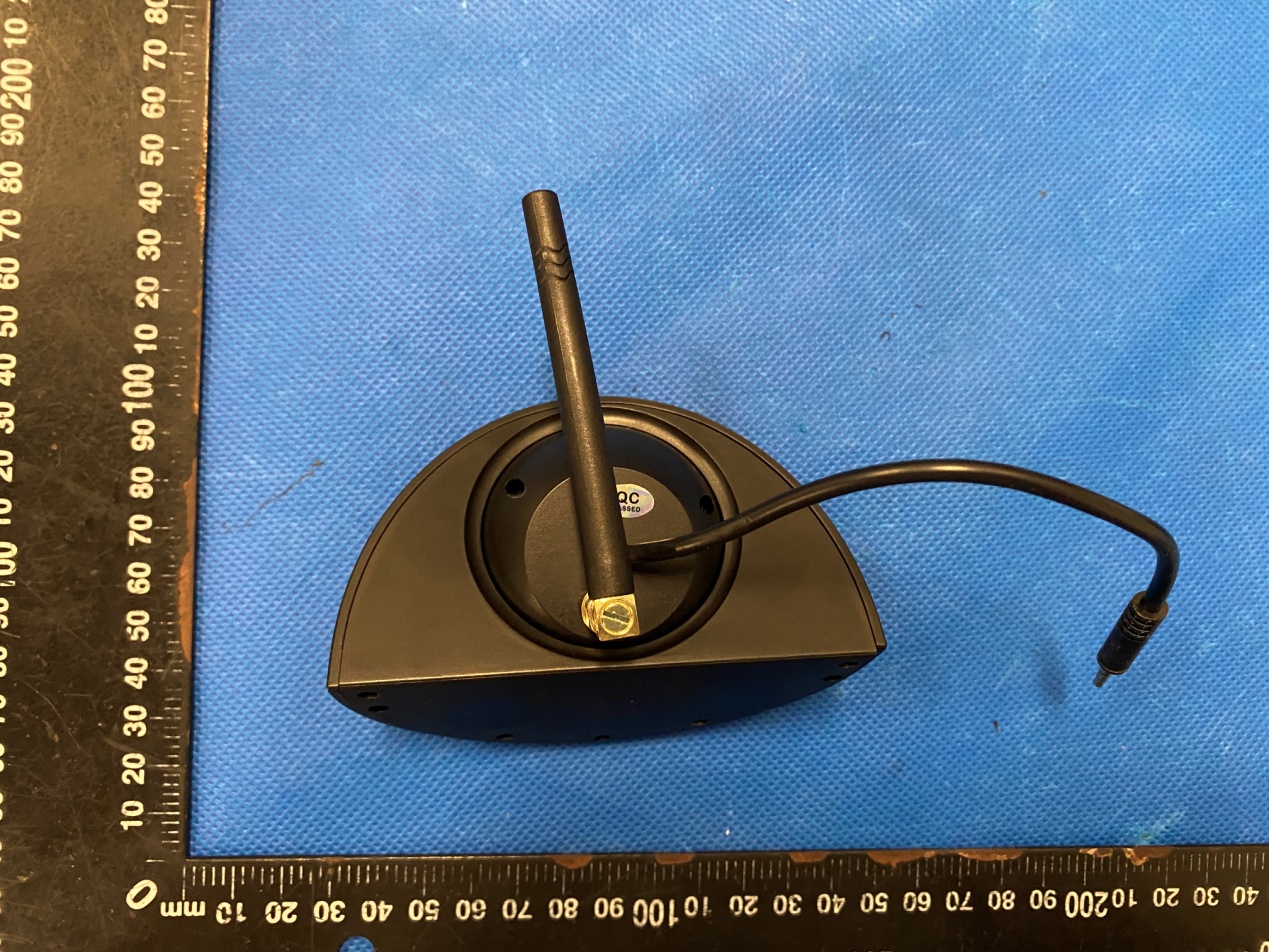

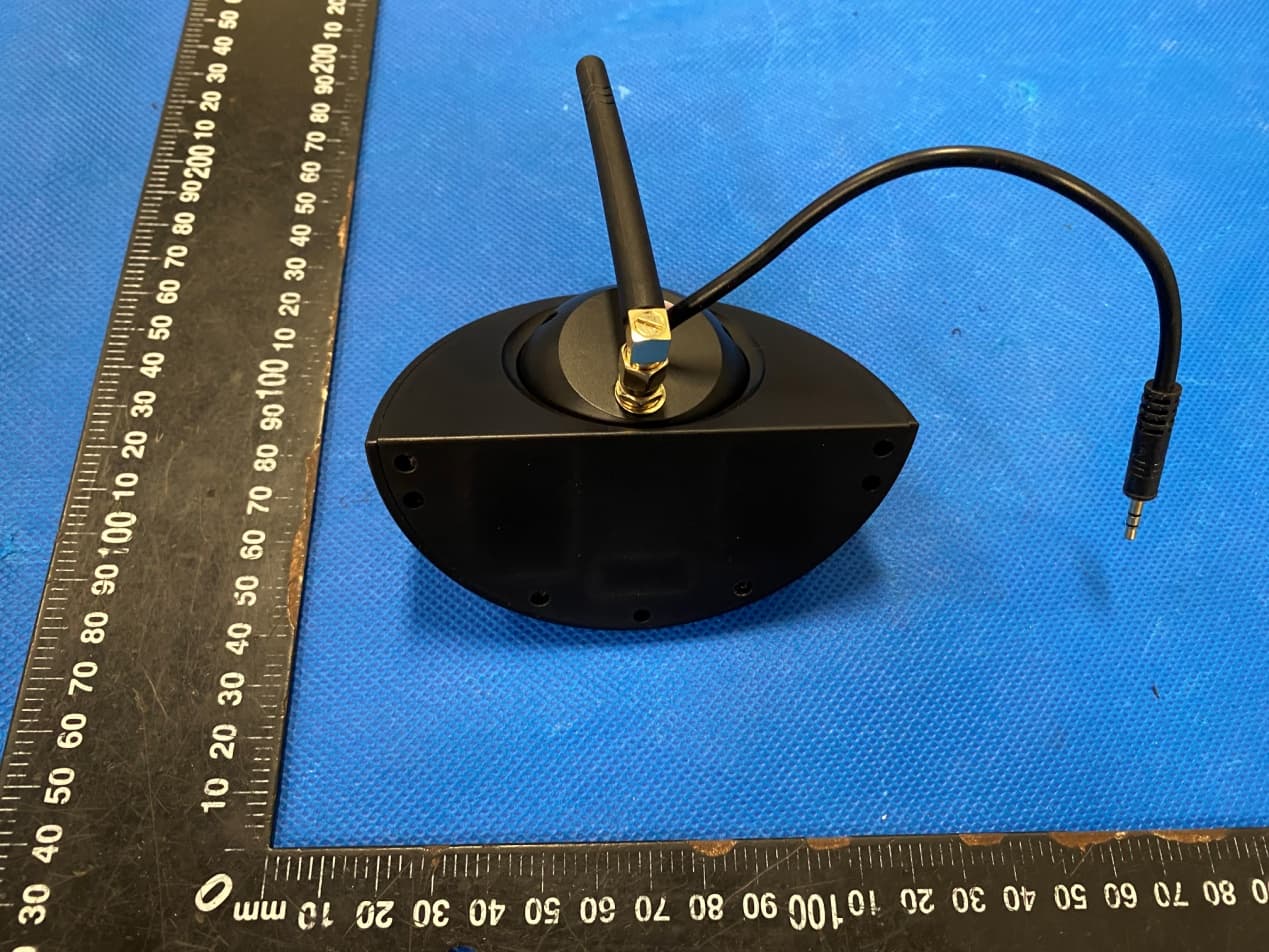

Annex A External Photos Report No.:HK2211084949-E Page 1 of 5 Report No.:HK2211084949-E Page 2 of 5 Antenna Report No.:HK2211084949-E Page 3 of 5 Report No.:HK2211084949-E Page 4 of 5 Report No.:HK2211084949-E Page 5 of 5

FCC ID LABEL: label location

Annex B Internal Photo Report No.:HK2211084949-E Page 1 of 3 Report No.:HK2211084949-E Page 2 of 3 Report No.:HK2211084949-E Page 3 of 3

Page 1 of 26 Report No.: HK2211084949-E FCC TEST REPORT Test report On Behalf of SHENZHEN SUNVEYTECH CO.,LTD For Wireless Backup camera System Model No.: SWD-M502630CS, AY5, C5, N5, G5, M5, K5, F5, H5, R5 FCC ID: 2AQNR-M502630CS Prepared For : SHENZHEN SUNVEYTECH CO.,LTD 502,Building A,Penglongpan High-Tech Park, No.11, Dafu Industrial Zone,Guanlan Street, Longhua District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Nov. 08, 2022~ Nov. 15, 2022 Date of Report: Nov. 15, 2022 Report Number: HK2211084949-E Page 2 of 26 Report No.: HK2211084949-E TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN SUNVEYTECH CO.,LTD Address .................................. : 502,Building A,Penglongpan High-Tech Park, No.11, Dafu Industrial Zone,Guanlan Street, Longhua District, Shenzhen, China Manufacture's Name ............ : SHENZHEN SUNVEYTECH CO.,LTD Address .................................. : 502,Building A,Penglongpan High-Tech Park, No.11, Dafu Industrial Zone,Guanlan Street, Longhua District, Shenzhen, China Product description Trade Mark: CARMOUR Product name ............................ : Wireless Backup camera System Model and/or type reference : SWD-M502630CS, AY5, C5, N5, G5, M5, K5, F5, H5, R5 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests.............. : Nov. 08, 2022~ Nov. 15, 2022 Date of Issue ........................................... : Nov. 15, 2022 Test Result .............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 26 Report No.: HK2211084949-E Table of Contents Page 1 . TEST SUMMARY 5 1.1 . Test Procedures and Results 5 1.2 . Information of the Test Laboratory 5 1.3 . Measurement Uncertainty 5 2 . GENERAL INFORMATION 6 2.1 . General Description of EUT 6 2.2 . Operation of EUT During Testing 7 2.3 .Description of Test Setup 8 2.4 .Measurement Instruments List 9 3 . CONDUCTED EMISSIONS TEST 10 3.1. Conducted Power Line Emission Limit 10 3.2. Test Setup 10 3.3. Test Procedure 10 3.4. Test Result 11 4. RADIATED EMISSION TEST 12 4.1. Radiation Limit 12 4.2. Test Setup 12 4.3. Test Procedure 13 4.4. Test Result 13 5. BAND EDGE 19 5.1. Limits 19 5.2. Test Procedure 19 5.3. Test Result 20 6. OCCUPIED BANDWIDTH MEASUREMENT 22 6.1. Test Setup 22 6.2. Test Procedure 22 6.3. Measurement Equipment Used 22 6.4. Test Result 22 7. ANTENNA REQUIREMENT 24 8. PHOTOGRAPH OF TEST 25 9. PHOTOS OF THE EUT 26 Page 4 of 26 Report No.: HK2211084949-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Nov. 15, 2022 Jason Zhou Page 5 of 26 Report No.: HK2211084949-E 1. TEST SUMMARY 1.1. Test Procedures and Results DESCRIPTION OF TEST SECTION NUMBERRESULT CONDUCTED EMISSIONS TEST 15.207 N/A RADIATED EMISSION TEST 15.249(a)/15.209 COMPLIANT BAND EDGE 15.249(d)/15.205 COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT 15.215（c） COMPLIANT ANTENNA REQUIREMENT 15.203 COMPLIANT 1.2. Information of the Test Laboratory Shenzhen HUAK Testing Technology Co., Ltd. Add.: 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Testing Laboratory Authorization： A2LA Accreditation Code is 4781.01. FCC Designation Number is CN1229. Canada IC CAB identifier is CN0045. CNAS Registration Number is L9589. 1.3. Measurement Uncertainty Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.71dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.90dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 3.90dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.28dB, k=2 Page 6 of 26 Report No.: HK2211084949-E 2. GENERAL INFORMATION 2.1.General Description of EUT Equipment: Wireless Backup camera System Model Name: SWD-M502630CS Series Model: AY5, C5, N5, G5, M5, K5, F5, H5, R5 Model Difference: All model’s the function, software and electric circuit are the same, only with a product model named different. Test sample model: SWD-M502630CS. FCC ID: 2AQNR-M502630CS Antenna Type: External Antenna Antenna Gain: 2dBi Operation frequency: 2406-2478MHz Number of Channels: 19CH Modulation Type: GFSK Power Source: DC12V-36V Power Rating: DC12V-36V Page 7 of 26 Report No.: HK2211084949-E 2.1.1.Carrier Frequency of Channels Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 2406 8 2432 15 2465 2 2409 9 2442 16 2468 3 2415 10 2445 17 2472 4 2418 11 2448 18 2475 5 2422 12 2452 19 2478 6 2425 13 2455 7 2428 14 2458 2.2. Operation of EUT During Testing Operating Mode The mode is used: Transmitting mode Low Channel: 2406MHz Middle Channel: 2442MHz High Channel: 2478MHz Page 8 of 26 Report No.: HK2211084949-E 2.3.Description of Test Setup Operation of EUT during testing: The sample was placed (0.8m below 1GHz, 1.5m above 1GHz) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, v…
