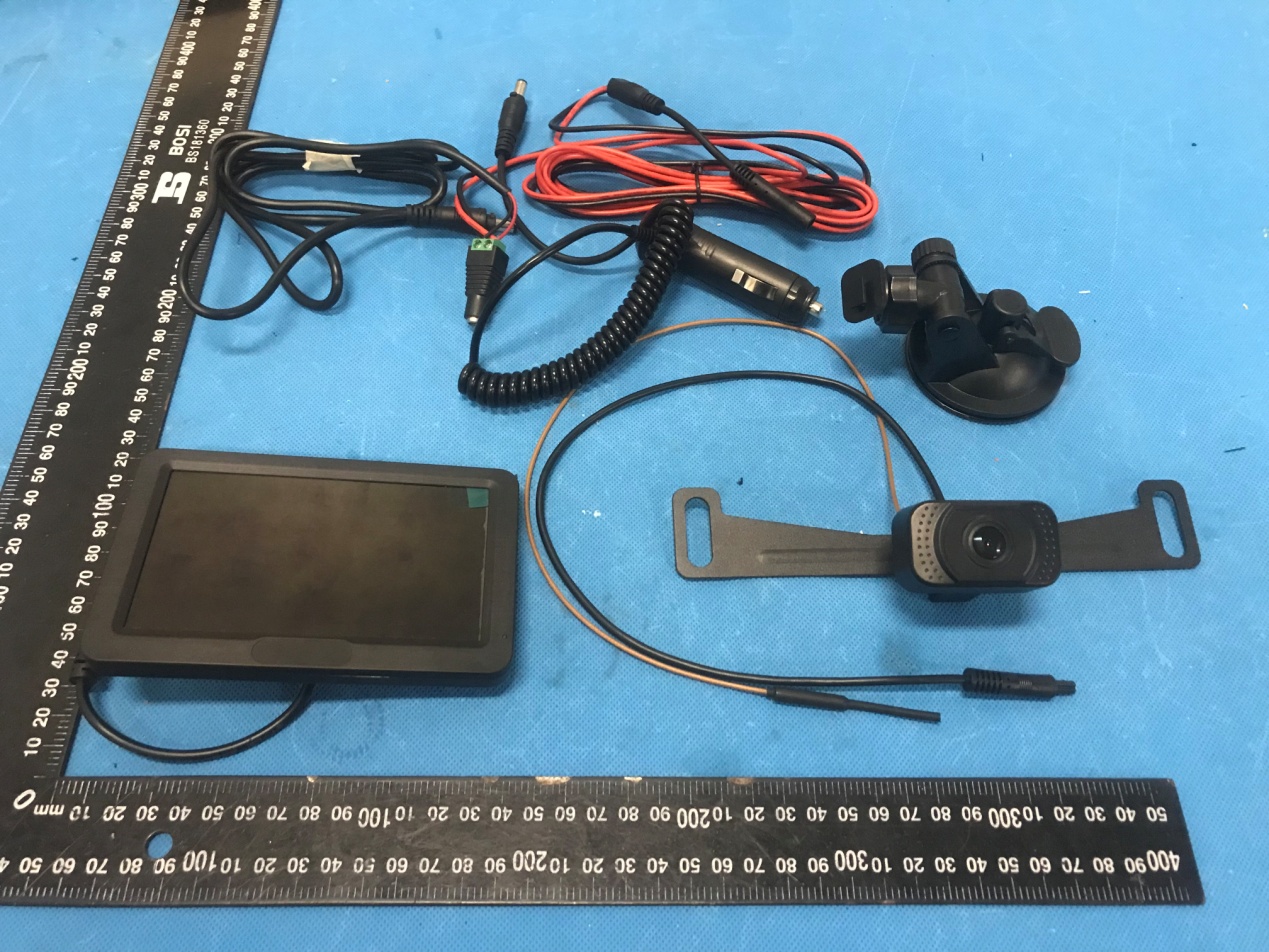

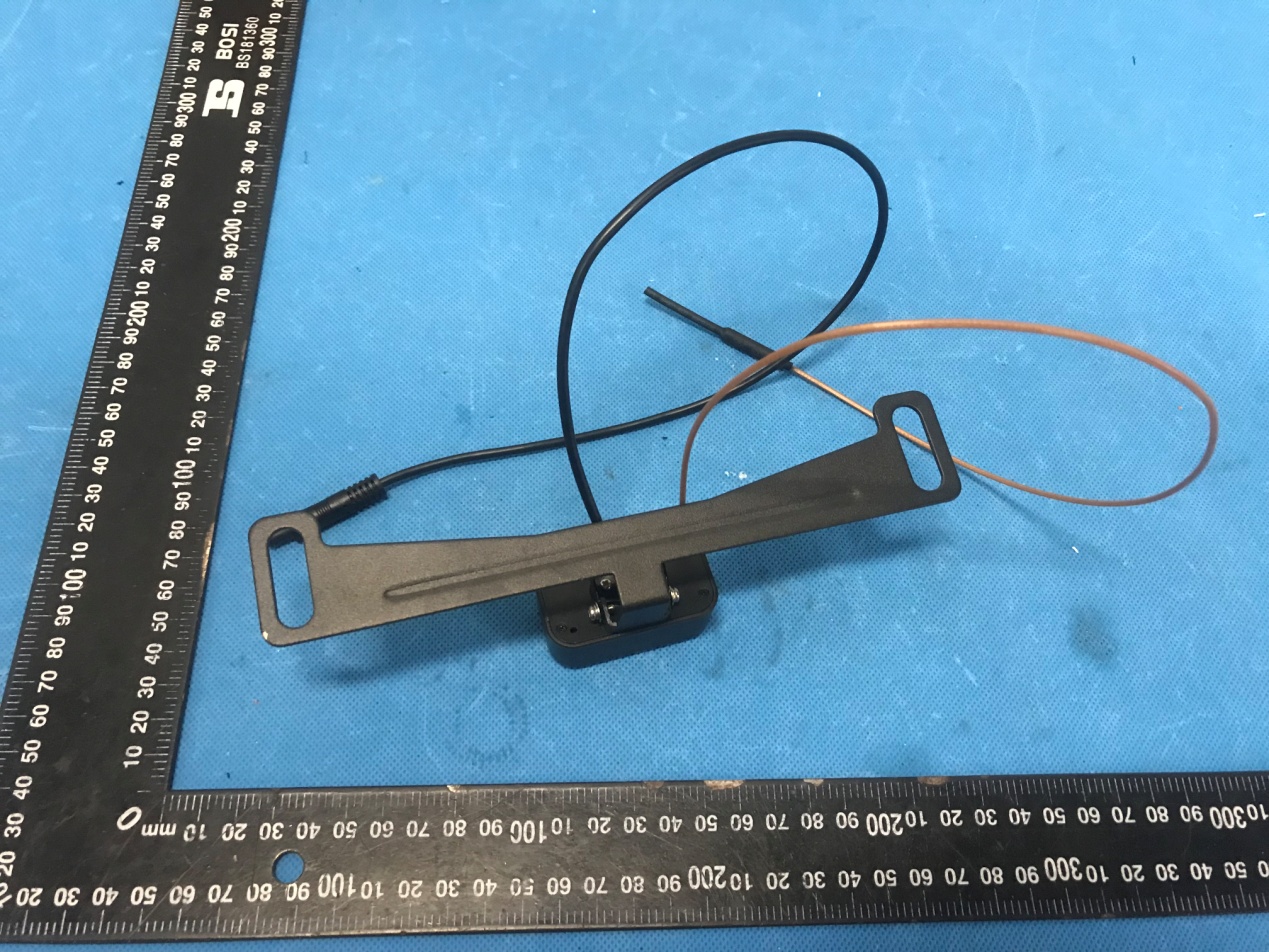

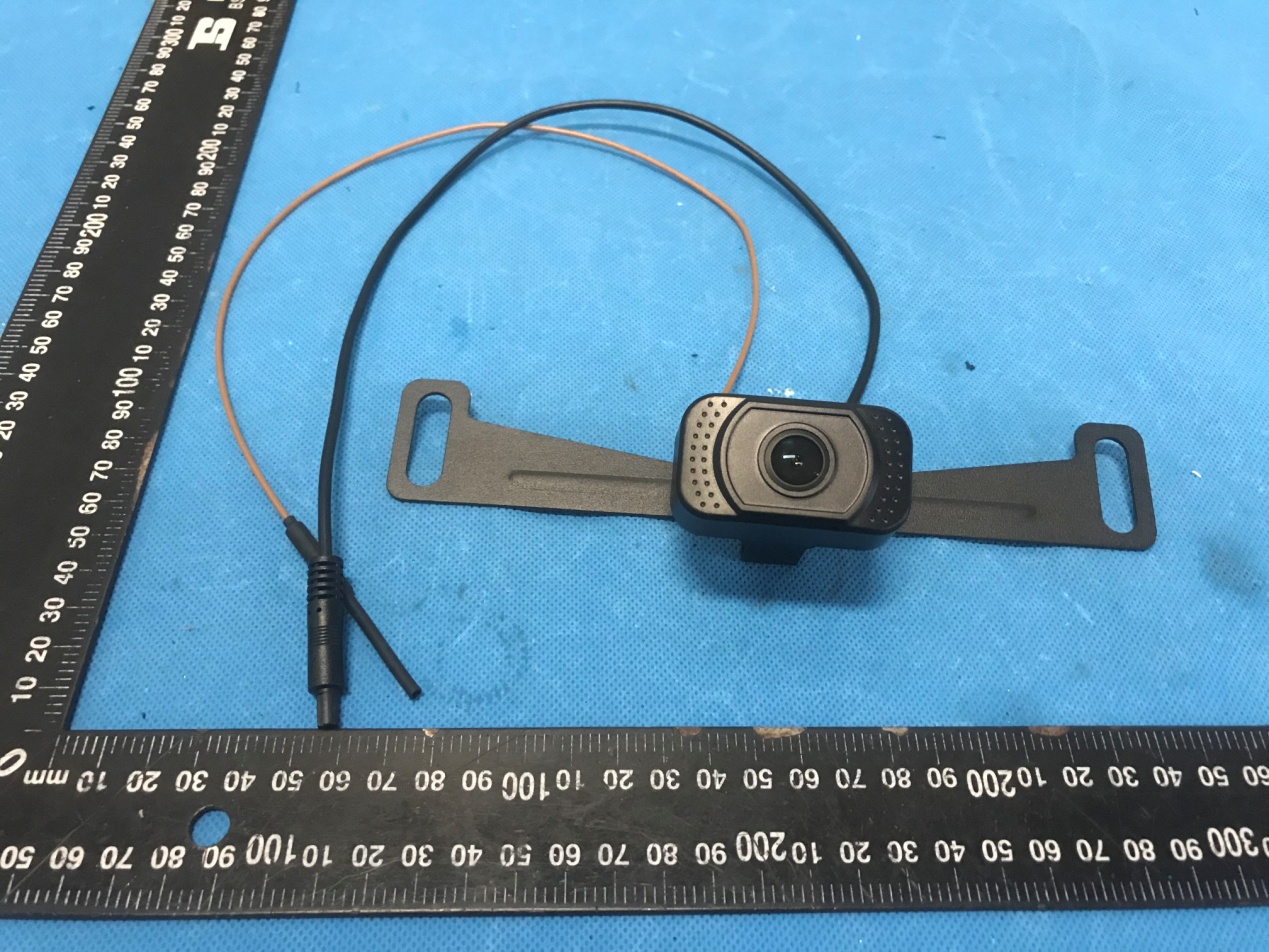

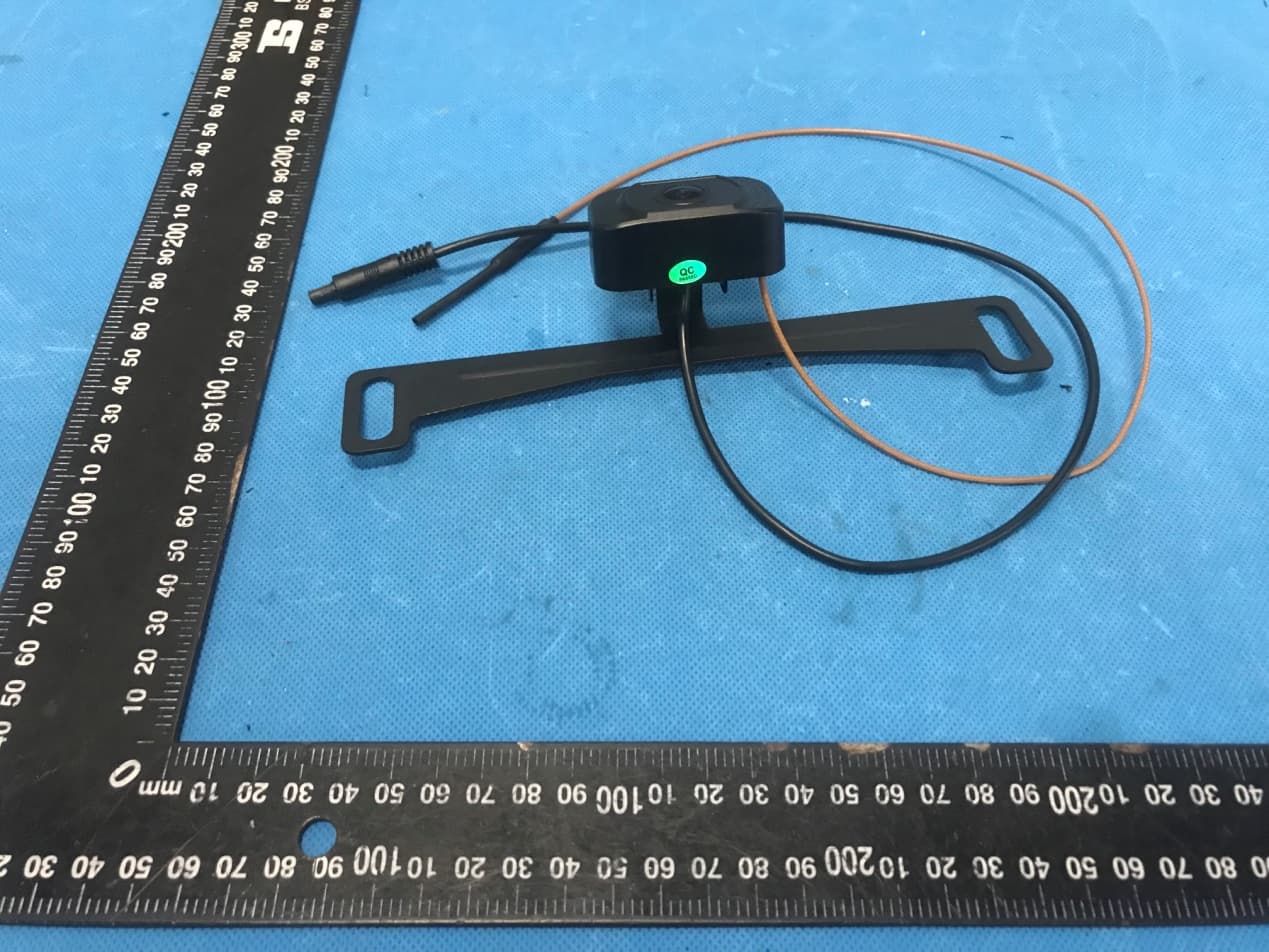

Annex A External Photos Report No.:HK2202250699-E Page 1 of 4 Antenna Report No.:HK2202250699-E Page 2 of 4 Report No.:HK2202250699-E Page 3 of 4 Report No.:HK2202250699-E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2AQNR-SWDM2505006

Annex B Internal Photo Report No.:HK2202250699-E Page 1 of 3 Report No.: HK2202250699-E Page 2 of 3 Report No.:HK2202250699-E Page 3 of 3

MPE ESTIMATION FCC ID: 2AQNR-SWDM2505006 1,Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (numerical) MPE ( mW/cm²) 2.4GWIFI 15.63 15±1(16) 39.81 1 1.26 0.00998 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2202250699-E, antenna gain=1dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.00998 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Page 1 of 49 Report No.: HK2202250699-E FCC TEST REPORT Test report On Behalf of SHENZHEN SUNVEYTECH CO.,LTD For Wireless Backup camera System Model No.: SWD-M2-505+006, SWD-M2-505+007, SWD-M2-505+008, SWD-M2-505+009, SWD-M2-505S+006, SWD-M2-505S+007, SWD-M2-505S+008, SWD-M2-505S+009, R11, F08 FCC ID: 2AQNR-SWDM2505006 Prepared For : SHENZHEN SUNVEYTECH CO.,LTD 502,Building A,Penglongpan High-Tech Park, No.11, Dafu Industrial Zone,Guanlan Street, Longhua District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Feb. 21, 2022 ~ Mar. 05, 2022 Date of Report: Mar. 05, 2022 Report Number: HK2202250699-E Applican Address Manufa c Address Product Trade M a Product n Model an Standard This pub the She n source o and will reprodu c Date of T Date (s) o Date of Is Te s t R e s nt’s name .. .................. cture's Nam .................. descripti o ark: name .......... nd/or type re ds .............. lication ma y nzhen HUA f the mater not assu m ced materia Test ............ of performa ssue .......... ult .............. Te s Te c Aut TES ................ : ................ : me ............ : ................ : on ................... : eference : ................ : y be reprod AK Testing ial. Shenzh me liability l due to its p .................. ance of tests .................. .................. sting Engine chnical Man thorized Sig P ST RESU SHENZH 502,Build Industrial China SHENZH 502,Build Industrial China SVTCAM Wireless SWD-M2 - SWD-M2- SWD-M2- FCC Rul e ANSI C63 duced in wh Te c h n o l o gy en HUAK T for damag placement a .............. : s ............. : .............. : .............. : eer : nager : gnatory : Page 2 of 49 ULT CER EN SUNVE ing A,Peng Zone,Gua n EN SUNVE ing A,Peng Zone,Gua n Backup ca m -505+006, S -505+009, S -505S+008 es and Regu 3.10: 2013 hole or in pa y Co., Ltd. Testing Tech ges resultin and context Feb. 21, 20 Mar. 05, 20 Pass 9 R RTIFICAT EYTECH CO longpan Hig nlan Street, EYTECH CO longpan Hig nlan Street, mera Syste SWD-M2-50 SWD-M2-50 , SWD-M2- ulations Par art for non-c is acknowl hnology Co ng from the t. 022 ~ Mar. 0 022 (Gary Qi a (Eden H u (Jason Zho Report No.:H TION O.,LTD gh-Tech Pa Longhua D O.,LTD gh-Tech Pa Longhua D m 05+007, SW 05S+006, S 505S+009, rt 15 Subpar commercial ledged as ., Ltd. take s e reader's 5, 2022 an) u) ou) HK220225069 ark, No.11, D District, She ark, No.11, D District, She WD-M2-505 SWD-M2-50 R11, F08 rt C Section purposes a copyright o s no respon interpretati 99-E Dafu enzhen, Dafu enzhen, 5+008, 05S+007, n 15.247 as long as owner and nsibility for on of the Page 3 of 49 Report No.:HK2202250699-E TABLE OF CONTENTS 1. TEST RESULT SUMMARY ........................................................................ 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. INFORMATION OF THE TEST LABORATORY ................................................................................ 5 1.3. MEASUREMENT UNCERTAINTY ..................................................................................................... 6 2. EUT DESCRIPTION ................................................................................... 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. CARRIER FREQUENCY OF CHANNELS .......................................................................................... 8 2.3. OPERATION OF EUT DURING TESTING .......................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. GENERA INFORMATION ........................................................................ 10 3.1. TEST ENVIRONMENT AND MODE ................................................................................................. 10 3.2. DESCRIPTION OF SUPPORT UNITS .............................................................................................. 11 4. TEST RESULTS AND MEASUREMENT DATA ...................................... 12 4.1. CONDUCTED EMISSION ................................................................................................................. 12 4.2. TEST RESULT .................................................................................................................................. 14 4.3. MAXIMUM CONDUCTED OUTPUT POWER ................................................................................... 15 4.4. EMISSION BANDWIDTH .................................................................................................................. 17 4.5. POWER SPECTRAL DENSITY ........................................................................................................ 21 4.6. CONDUCTED BAND EDGE AND SPURIOUS EMISSION MEASUREMENT ................................. 25 4.7. RADIATED SPURIOUS EMISSION MEASUREMENT .................................................................... 31 5. ANTENNA REQUIREMENT ..................................................................... 47 6. PHOTOGRAPH OF TEST ........................................................................ 48 7. PHOTOS OF THE EUT ............................................................................ 49 Page 4 of 49 Report No.:HK2202250699-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Mar. 05, 2022 Jason Zhou Page 5 of 49 Report No.:HK2202250699-E 1. TEST RESULT SUMMARY 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247(b)(4) PASS AC Power Line Conducted Emission §15.207 N/A Conducted Peak Output Power §15.247(b)(3) PASS 6dB Em…
