2AQNR-MYTB703Wireless Backup camera System

WIRELESS 7 INCH MONITOR WITH CAMERAS SYSTEM Before installation please read the manual VEHICLE SAFETY SOLUTIONS User Manual / Installation Instructions What’s in the Box? NOTE 1: The contents included may be different based on the kit you purchased. Please take the actual product as standard. NOTE 2Antenna is divided into 2.4G wireless/433 codepair remote control(Please install it to the corresponding position) 01 02 0304 09 10 05 0607 08 05. U-shaped bracket 06.Screw(x4) 07. Power cable（x3） 08. Sunshade 09. Antenna(X4) 10. Accessories 11. Bracket 12. Iron sheet and 3M glue 01. 7’’ monitor 02. HD camera 03. Solar camera 04. Car charger Thank you very much for purchasing a Rear View Backup Camera System. With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle. The Backup Camera System should not be used as a substitute for the standard rear view mirror or for any other mirror that exists in your vehicle. In some jurisdictions, it is unlawful for a person to drive a motor vehicle equipped with a TV viewer or screen located forward of the back of the driver’s seat or in any location that is visible, directly or indirectly, to the driver while operating the vehicle. Introduction Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Monitor Operation 1２３ ４ ５６ ７ １ Power key (control camera) ２ Switch channel ３ 1.Enter the menu and move to the left 2. Reduce brightness ４ 1.Menu key/Back key 2.Long press to enlarge (1X 1.5X 2.X 3X) ５ 1.Brightness Plus 2.(Enter the menu) Right select 3.plus ６ 1.Confirm key 2.Start/pause recording (after card insertion) 3.Long press to adjust the V/H/W mode of the vehicle ruler ７ Vehicle ruler shortcut key Remote control function? 1.Confirm key 2.After entering the menu for confirmation 3.Start/pause recording (after card insertion) 1.Power on key 1.Vehicle ruler shortcut key 1.Enter the menu and move to the left 2. Reduce brightness 3.Enter the menu and select from the left 1.Menu key 1.Brightness Plus 2.(Enter the menu) Right select 3.Enter the menu and right select 1.Switch channel 2.CH1---CH2---CH3---CH4 (Split screen) 1.Display channel CH1 screen 1.Display channel CH3 screen 1.Display channel CH2 screen 1.Display channel CH4 screen 21 Video recording function Please format the memory card Plug in the card to start recording(“ENTER” to turn on/off recording) Recording: REC Open the SD card slot on the monitor back with the small bluescrew-driver , insert the adapter and micro SD card for recordingHigh-speed SD card of class 10 or above ( Less than 128G ) isrecommended Please make sure to UNLOCK the Adapter before inserting the SD CardThe format al location unit of the micro SD card should be set in EXFAT32 / 64KB , other value is not compatible for the recording function for the first time Camera Installation Suitable Installation Position Installation Diagram Monitor Installation Choose a monitor location in your vehicle that does not block your view and complies with local laws for safe driving. Do not place in an area where it might interfere with driving. CH MENU ENTER SEL 01. The indicator will flash when charging battery is exhausted 02. The red light flashes when the means the battery is full 03. Four lights are always on, which Connection method Car charger connect to wireless receiver in the monitor “+”ACC/Fuse/radio Data cable charging “-” 1 2 Charging instructions Camera is rechargeable NO SIGNAL CAM 2 CH MENUENTERSEL CH MENUENTERSEL NO SIGNAL CAM 2 CH MENUENTERSEL NOTE: when you need pairing,please confirm the circuit is properly connected and powered.If you need to pairing multiple cameras, please switch to the corresponding channel. Pairing the Camera and Monitor 1. Select the channel to be pairing 2. Enter the menu and select pairing and press "ENTER" to confirm 4. Waiting for matching and drawing successfully PAIRING START 18 SPLIT SYSTEMPLAYRECORD MODE CAM-SETUP MIR-FLIPPAIRINGPICTURE CAM 2 CAM 2 CAM 2 NO SIGNAL CAM 2 CH MENUENTERSEL The camera is turned on and off under the control of the monitor switch (when the monitor power is turned off, the camera will enter the standby state) Connection mode monitor power on/off Remote control of two camera signals 2.4G image signal transmission Power Supply Wireless Frequency Wireless Range Delaying Time Operating temperature Image Sensor Waterproof Rating esolving power DC12 to 36V 2.4 GHz 500m(open area) <200ms -20°C ~ 80°C 1/3 inch IP67 720P CAMERA Image Sensor Waterproof Rating esolving power View Angle 1/3 inch IP65 720P 110°[H] 140°[D] SOLAR CAMERA LCD Size Resolution Contrast Brightness Recording period Power Consumption 7 inch IPS 1024(H) x 600(V) 500:1 600cd/㎡ 1 minute/video <500mA MONITOR Specifications Camera voltage Camera voltage DC 5V TYPE-C DC 5V TYPE-C Troubleshooting Monitor Won’t turn on Camera and Monitor won’t pair Weak Signal Night Vision is poor Dark Picture Check the cigarette lighter has 12-36V DC Output Check the fuse in the Cigarette socket adapter Check if the camera is receiving power Make sure to follow the instructions to operate the Pairing Check if the camera and monitor antennas are installed Distance between camera and monitor is too great. Reduce distance between camera and monitor Large dense objects could be obscuring the signal. If possible, move the objects Interference from overhear power lines may be affecting the signal Try unpairing and pairing The night sensor on the camera may be dirty or obstructed Ensure the camera is installed at least 2 inches away from rear lights Check whether brightness and contrast are adjusted correctly ProblemSolution FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment…

Text truncated - open the document above for the full version.

SHENZHEN SUNVEYTECH CO.,LTD Model Difference Declaration To Whom It May Concern, We, SHENZHEN SUNVEYTECH CO.,LTD (Wireless Backup camera System); Trade Mark: CARMOUR, Model Number: SWD-MYTB703+S217+MB70, SWD-MYCX77+S1+M1, SWD- MYTB77+S1+M1, SWD-MYT901+S1+M1, SWD-MYT902+S1+M1, SWD-MYT101+S1+M1, SWD-MYT102+S1+M1, SWD-MYT103+S1+M1, Z1, Z2, Z3; All model’s the function, software and electric circuit are the same, only with a product model named different. Test sample model: SWD-MYTB703+S217+MB70. Please contact me if you have any question. Signature: Date: Jan. 09, 2023 Name: Xiong lijun Title: manager

SHENZHEN SUNVEYTECH CO.,LTD Agent Authorization Company: SHENZHEN SUNVEYTECH CO.,LTD Address: 502,Building A,Penglongpan High-Tech Park, No.11, Dafu Industrial Zone,Guanlan Street, Longhua District, Shenzhen, China Product Name: Wireless Backup camera System Model Number(s): SWD-MYTB703+S217+MB70, SWD-MYCX77+S1+M1, SWD-MYTB77+S1+M1, SWD-MYT901+S1+M1, SWD-MYT902+S1+M1, SWD-MYT101+S1+M1, SWD-MYT102+S1+M1, SWD-MYT103+S1+M1, Z1, Z2, Z3 Product Description: Wireless Backup camera System We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 09, 2023 Name: Xiong lijun Title: manager Company: SHENZHEN SUNVEYTECH CO.,LTD

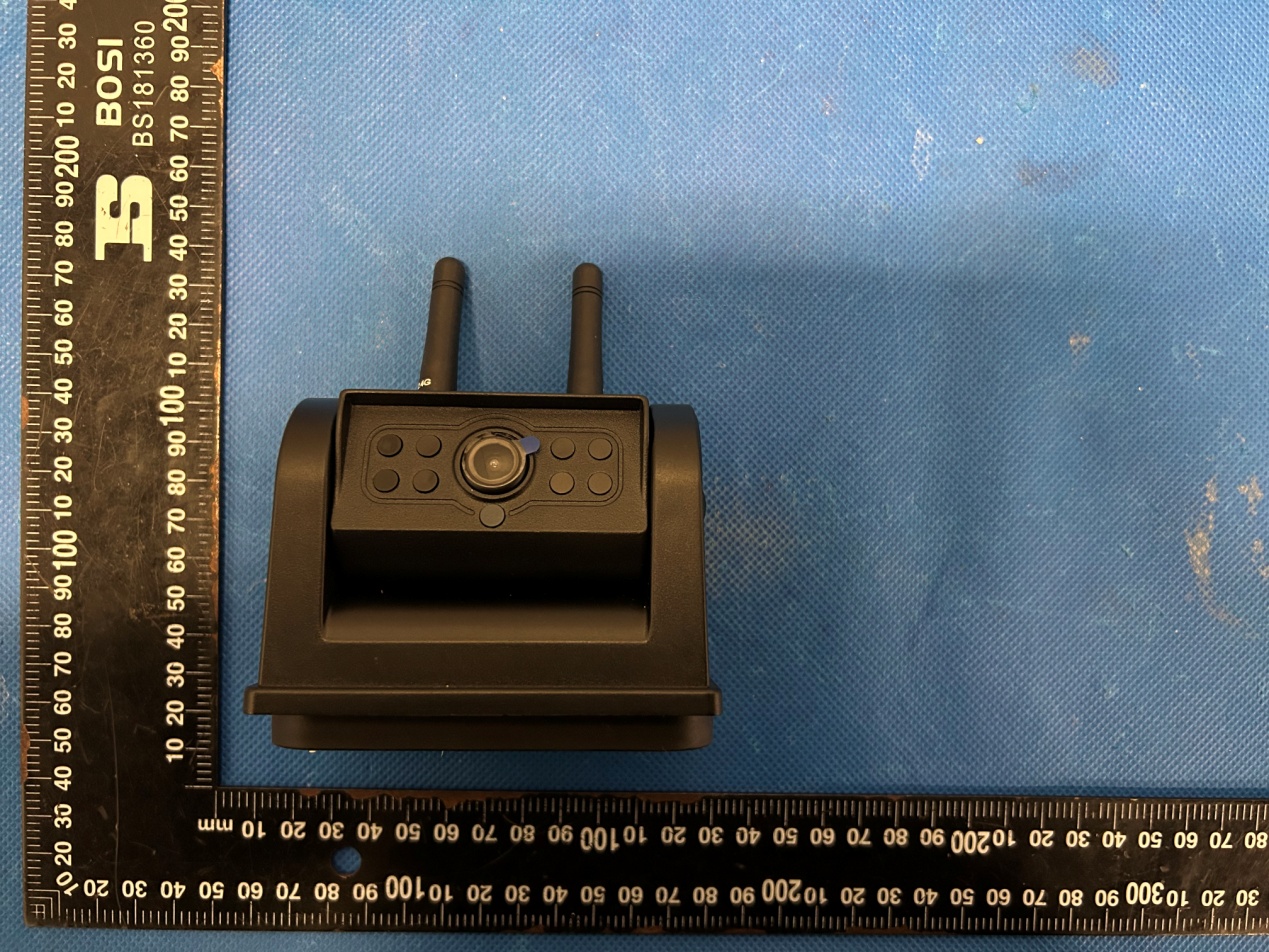

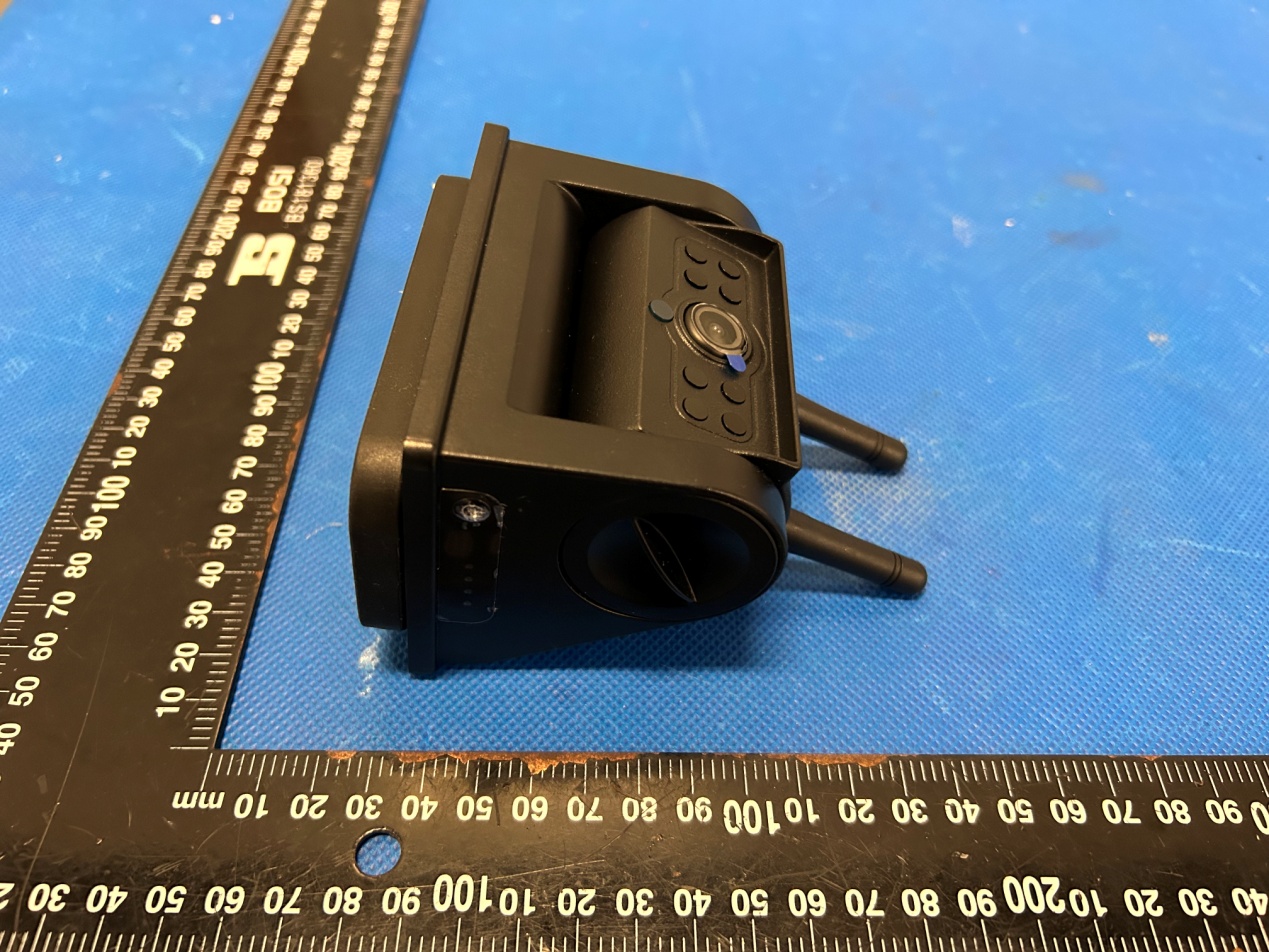

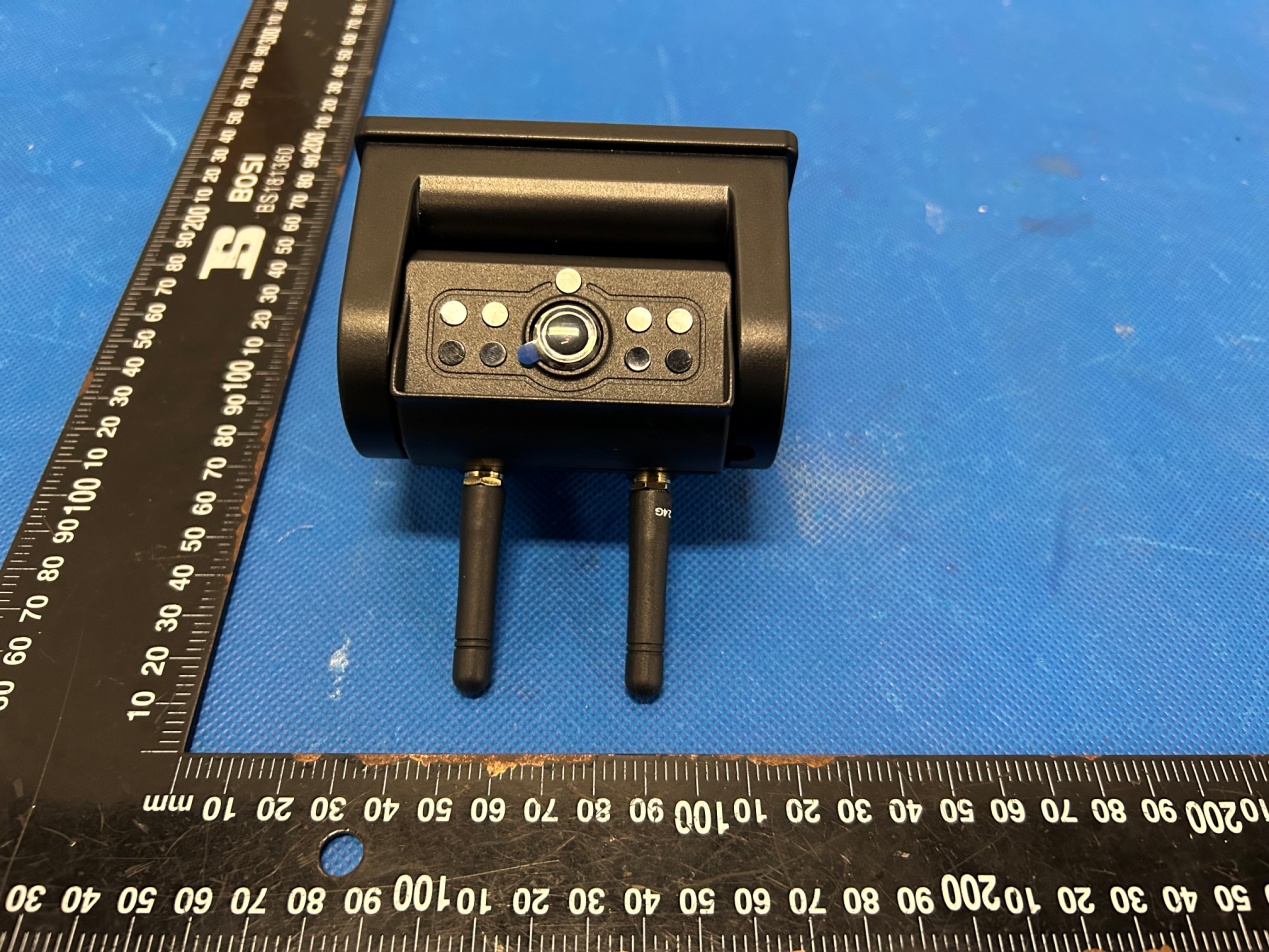

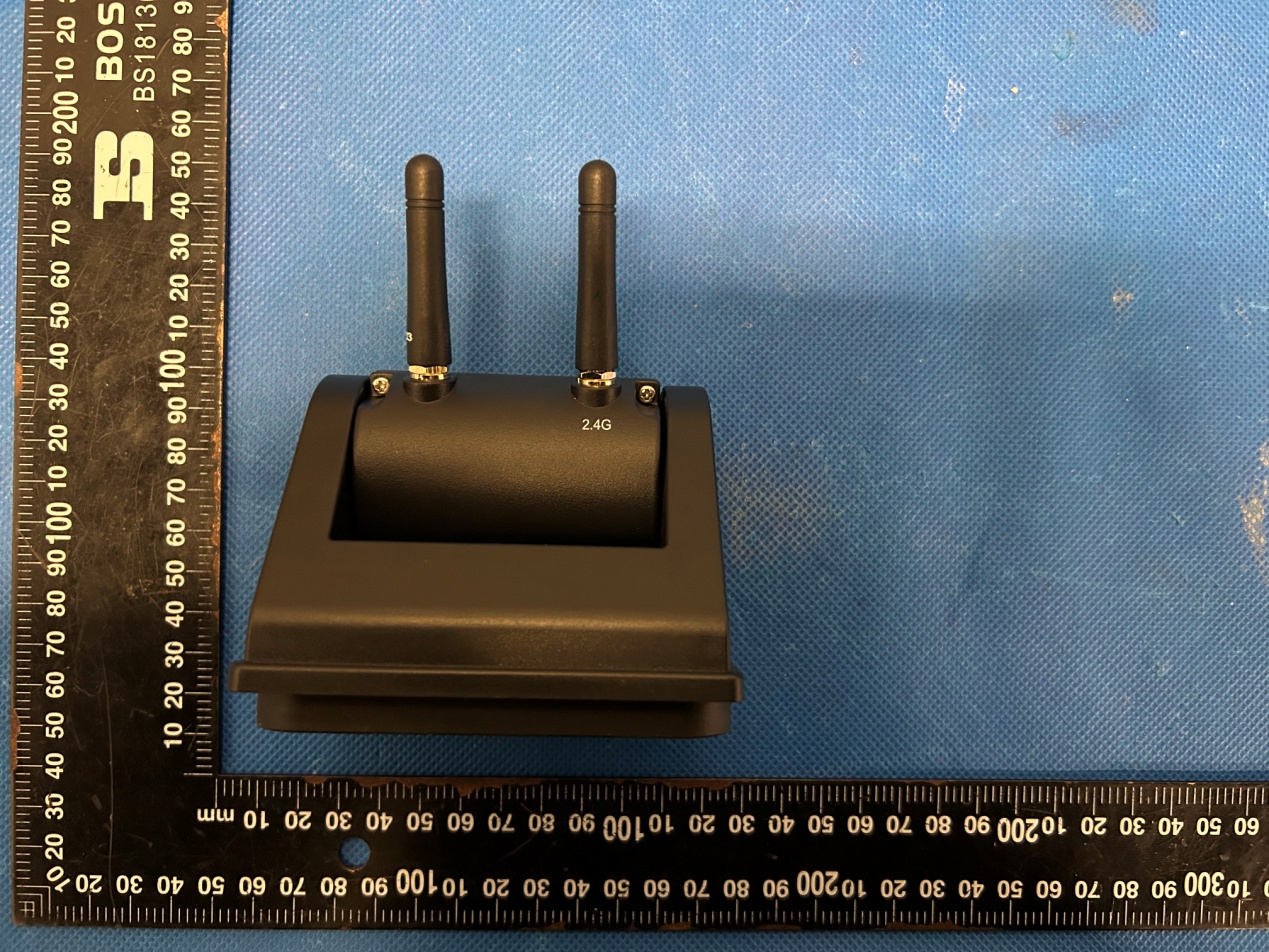

Annex A External Photos Report No.:HK2212065523-1E/2E Page 1 of 4 2.4g Antenna 433.92MHz Antenna Report No.:HK2212065523-1E/2E Page 2 of 4 Report No.:HK2212065523-1E/2E Page 3 of 4 Report No.:HK2212065523-1E/2E Page 4 of 4

FCC ID LABEL: Label Location

Annex B Internal Photo Report No.:HK2212065523-1E/2E Page 1 of 8 Report No.:HK2212065523-1E/2E Page 2 of 8 Report No.:HK2212065523-1E/2E Page 3 of 8 Report No.:HK2212065523-1E/2E Page 4 of 8 Report No.:HK2212065523-1E/2E Page 5 of 8 Report No.:HK2212065523-1E/2E Page 6 of 8 Report No.:HK2212065523-1E/2E Page 7 of 8 Report No.:HK2212065523-1E/2E Page 8 of 8

1.Generalmatters 1.1scopeofapplication：2.4WIFIantenna 1.2operatingtemperaturerange ： Thetemperaturerangeofthisproductis-20~+75 °C 1.3Storagetemperaturerange ： Thisproductisstoredat-30~+60 °C 2.Productspecifications NO.ITEMSDETAILS 1 type Colloidal2.4WIFI 2 frequency band 2400-2500MHz 3VSWR ≤1.8 4GAIN 1.7dBi 5 impedance 50Ω 6 Antennatype Gluerod antenna 7 AntennaPresent form Colloidal antenna 8 Pictureof antenna 3.Productstructureparameters 3.1Productmaterialcomposition: NO. materialSpecification(MM) 1 Antenna+connector 43MM/SMA 3.2exterior Theproducthasagoodappearance,withoutscars,sweatmarks,bumpsandotherdefectsthat seriouslyaffecttheappearance. 3.3Structuraldimensions Refertoproductdrawings: 3.4Productelectricalperformancetestdata 3.5Testenvironmentandinstrumentsandequipment testingenvironment： Temperature：10°C——+30°C relativehumidity：≤80%（+40°C） atmosphericpressure ： 750mmkg±30mmkg testingequipment ： HP8753Dnetworkanalyzer ETSmicrowavedarkroom 3.6Electricalperformancetestdataofproducts ： S11diagramoftheproduct： (Singleantennatestisnotinthewholemachine) Marker2400MHz2500MHz LogMag -17-15 VSWR1.31.5

1.Generalmatters 1.1scopeofapplication：2.4WIFIantenna 1.2operatingtemperaturerange ： Thetemperaturerangeofthisproductis-20~+75 °C 1.3Storagetemperaturerange ： Thisproductisstoredat-30~+60 °C 2.Productspecifications NO.ITEMSDETAILS 1 type Colloidal433MHZ 2 frequency band 420-440 3VSWR ≤2.0 4GAIN 1.2dBi 5 impedance 50Ω 6 Antennatype Gluerod antenna 7 AntennaPresent form Colloidal antenna 8 Pictureof antenna 3.Productstructureparameters 3.1Productmaterialcomposition: NO. materialSpecification(MM) 1 Antenna+connector 43MM/SMA 3.2exterior Theproducthasagoodappearance,withoutscars,sweatmarks,bumpsandotherdefectsthat seriouslyaffecttheappearance. 3.3Structuraldimensions Refertoproductdrawings: 3.4Productelectricalperformancetestdata 3.5Testenvironmentandinstrumentsandequipment testingenvironment ： Temperature：10°C——+30°C relativehumidity ： ≤80% （ +40 °C） atmosphericpressure：750mmkg±30mmkg testingequipment： 5071Cnetworkanalyzer ETSmicrowavedarkroom 3.6Electricalperformancetestdataofproducts： S11diagramoftheproduct ： (Singleantennatestisnotinthewholemachine) Marker420MHz433MHz LogMag -15-10.4 VSWR1.21.8

Page 1 of 28 Report No.: HK2212065523-1E FCC TEST REPORT Test report On Behalf of SHENZHEN SUNVEYTECH CO.,LTD For Wireless Backup camera System Model No.: SWD-MYTB703+S217+MB70, SWD-MYCX77+S1+M1, SWD-MYTB77+S1+M1, SWD-MYT901+S1+M1, SWD-MYT902+S1+M1, SWD-MYT101+S1+M1, SWD-MYT102+S1+M1, SWD-MYT103+S1+M1, Z1, Z2, Z3 FCC ID: 2AQNR-MYTB703 Prepared For : SHENZHEN SUNVEYTECH CO.,LTD 502,Building A,Penglongpan High-Tech Park, No.11, Dafu Industrial Zone,Guanlan Street, Longhua District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Dec. 02, 2022~ Dec. 09, 2022 Date of Report: Dec. 09, 2022 Report Number: HK2212065523-1E Page 2 of 28 Report No.: HK2212065523-1E TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN SUNVEYTECH CO.,LTD Address .................................. : 502,Building A,Penglongpan High-Tech Park, No.11, Dafu Industrial Zone,Guanlan Street, Longhua District, Shenzhen, China Manufacture's Name ............ : SHENZHEN SUNVEYTECH CO.,LTD Address .................................. : 502,Building A,Penglongpan High-Tech Park, No.11, Dafu Industrial Zone,Guanlan Street, Longhua District, Shenzhen, China Product description Trade Mark: CARMOUR Product name ............................ : Wireless Backup camera System Model and/or type reference : SWD-MYTB703+S217+MB70, SWD-MYCX77+S1+M1, SWD-MYTB77+S1+M1, SWD-MYT901+S1+M1, SWD-MYT902+S1+M1, SWD-MYT101+S1+M1, SWD-MYT102+S1+M1, SWD-MYT103+S1+M1, Z1, Z2, Z3 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests.............. : Dec. 02, 2022~ Dec. 09, 2022 Date of Issue ........................................... : Dec. 09, 2022 Test Result .............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 28 Report No.: HK2212065523-1E Table of Contents Page 1 . TEST SUMMARY 5 1.1 . Test Procedures and Results 5 1.2 . Information of the Test Laboratory 5 1.3 . Measurement Uncertainty 5 2 . GENERAL INFORMATION 6 2.1 .General Description of EUT 6 2.2 . Operation of EUT During Testing 7 2.3 .Description of Test Setup 8 2.4 .Measurement Instruments List 9 3 . CONDUCTED EMISSIONS TEST 10 3.1. Conducted Power Line Emission Limit 10 3.2. Test Setup 10 3.3.Test Procedure 10 3.4. Test Result 11 4. RADIATED EMISSION TEST 13 4.1. Radiation Limit 13 4.2. Test Setup 13 4.3.Test Procedure 14 4.4. Test Result 14 5. BAND EDGE 20 5.1. Limits 20 5.2.Test Procedure 20 5.3. Test Result 21 6. OCCUPIED BANDWIDTH MEASUREMENT 23 6.1. Test Setup 23 6.2.Test Procedure 23 6.3.Measurement Equipment Used 23 6.4. Test Result 23 7. ANTENNA REQUIREMENT 25 8. PHOTOGRAPH OF TEST 26 9. PHOTOS OF THE EUT 28 Page 4 of 28 Report No.: HK2212065523-1E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Dec. 09, 2022 Jason Zhou Page 5 of 28 Report No.: HK2212065523-1E 1. TEST SUMMARY 1.1. Test Procedures and Results DESCRIPTION OF TEST SECTION NUMBERRESULT CONDUCTED EMISSIONS TEST 15.207 COMPLIANT RADIATED EMISSION TEST 15.249(a)/15.209 COMPLIANT BAND EDGE 15.249(d)/15.205 COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT 15.215（c） COMPLIANT ANTENNA REQUIREMENT 15.203 COMPLIANT Remark: “N/A” is an abbreviation for Not Applicable. 1.2. Information of the Test Laboratory Shenzhen HUAK Testing Technology Co., Ltd. Add.: 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Testing Laboratory Authorization： A2LA Accreditation Code is 4781.01. FCC Designation Number is CN1229. Canada IC CAB identifier is CN0045. CNAS Registration Number is L9589. 1.3. Measurement Uncertainty Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.71dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.90dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 3.90dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.28dB, k=2 Page 6 of 28 Report No.: HK2212065523-1E 2. GENERAL INFORMATION 2.1.General Description of EUT Equipment: Wireless Backup camera System Model Name: SWD-MYTB703+S217+MB70 Series Model: SWD-MYCX77+S1+M1, SWD-MYTB77+S1+M1, SWD-MYT901+S1+M1, SWD-MYT902+S1+M1, SWD-MYT101+S1+M1, SWD-MYT102+S1+M1, SWD-MYT103+S1+M1, Z1, Z2, Z3 Model Difference: All model’s the function, software and electric circuit are the same, only with a product model named different. Test sample model: SWD-MYTB703+S217+MB70. FCC ID: 2AQNR-MYTB703 Antenna Type: External Antenna Antenna Gain: 1.7dBi Operation frequency: 2403-2478MHz Number of Channels: 19CH Modulation Type: GFSK Power Source: DC 7.4V from Battery or DC 5V from Type-C Power Rating: DC 7.4V from Battery or DC 5V from Type-C Page 7 of 28 Report No.: HK2212065523-1E 2.1.1.Carrier Frequency of Channels Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 2403 8 2432 15 2465 2 2409 9 2442 16 2468 3 2415 10 2445 17 2472 4 2418 11 2448 18 2475 5 2422 12 2452 19 2478 6 2425 13 2455 7 2428 14 2458 2.2. Operation of EUT During Testing Operating Mode The mode is used: Transmitting mode Low Channel: 2403MHz Middle Channel: 2442MHz High Channel: 2478MHz Page 8 of 28 Report No.: HK2212065523-1E 2.3.Description of Test Setup Operation of EUT durin…

Text truncated - open the document above for the full version.

Test Model：SWD-MYTB703+S217+MB70 Radiated Emission Conducted Emission
