2AR5E-INSKAM130WI-FI Endoscope

INSKAM RFexposurestatement: The transmitter must not be colocated or operated in conjunction with any other antenna or transmitter. This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

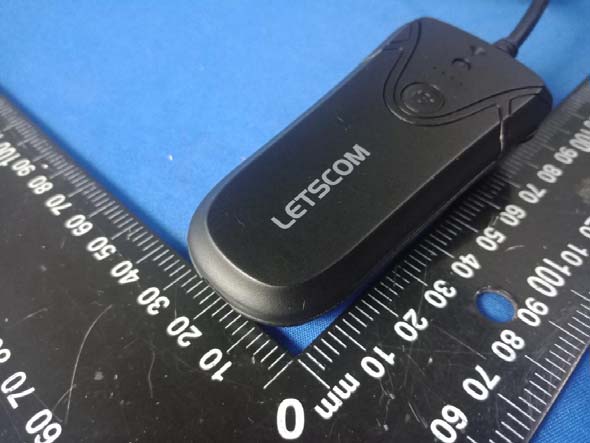

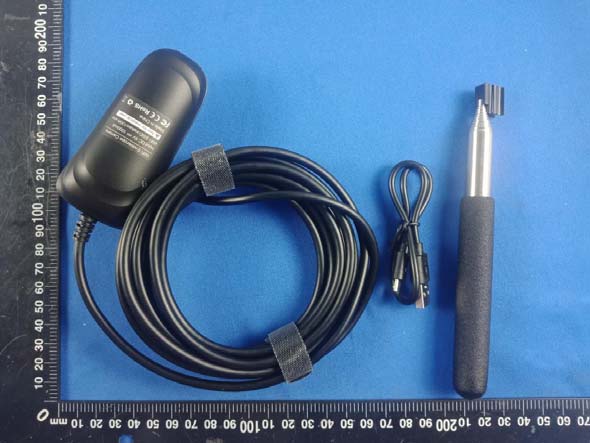

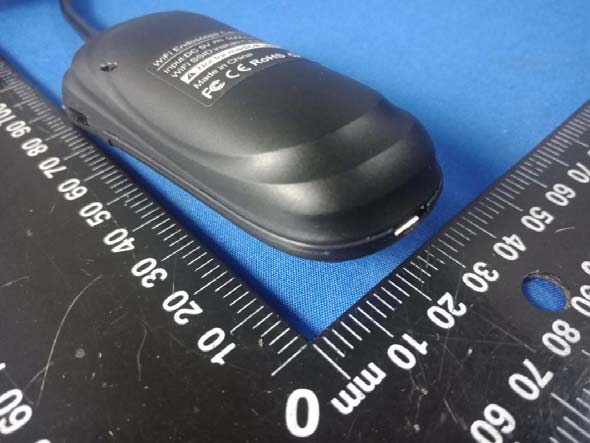

External Photos of EUT FCC ID: 2AR5E-INSKAM130

FCC ID Label Information Label location: FCC ID:2AR5E-INSKAM130

Internal Photos of EUT FCC ID: 2AR5E-INSKAM130

version01 SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. 305, No.8 BLDG, SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Tel:+86-13715282097 Fax:N/A Declaration concerning Antenna Specification It is hereby declared that the product Model No.: inskam130, inskam130-35, inskam130-50 FCC ID:2AR5E-INSKAM130 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: N/A Type of antenna: PCB antenna Gain of the antenna: 0 dBi Frequency range: 2412~2462 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address: 305, No.8 BLDG, SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA City:Shenzhen ZIP / Postal code: Country: China Place: Shenzhen Date: 2020-4-23 Signature:

RF Exposure evaluation FCC ID: 2AR5E-INSKAM130 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0dBi for 2.4GHz , the RF power density can be obtained. For 2.4GHz wifi Mode Max. Output Power (dBm) Max. Output Power (mW) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit FCC (mW/cm 2 ) Test Results 802.11b 17.67 58.500 1.0000 0.0116 1.0000 PASS 802.11g 15.88 38.700 1.0000 0.0077 1.0000 PASS 802.11n20 16.04 40.200 1.0000 0.0080 1.0000 PASS 5.Conclusion The SAR evaluation is not required.

1 Appendix for 15.247 TABLE OF CONTENTS Appendix for 15.247 .................................................................................................................................. 1 TABLE OF CONTENTS .................................................................................................................... 1 1. Duty Cycle ............................................................................................................................................ 2 1.1 Test Result .................................................................................................................................. 2 1.2 Test Graph ................................................................................................................................... 2 2. Bandwidth ............................................................................................................................................. 5 2.1 Test Result .................................................................................................................................. 5 2.2 Test Graph - 6dB Bandwidth ....................................................................................................... 6 2.3 Test Graph - 99% Occupied Bandwidth ...................................................................................... 9 3. Maximum Conducted Output Power ................................................................................................... 12 3.1 Test Result ................................................................................................................................ 12 3.2 Test Graph ................................................................................................................................. 12 4. Maximum Power Spectral Density (PSD) ........................................................................................... 15 4.1 Test Result ................................................................................................................................ 15 4.2 Test Graph ................................................................................................................................. 15 5. Unwanted Emissions in Non-restricted Frequency Bands .................................................................. 18 5.1 Test Result ................................................................................................................................ 18 5.2 Test Graph ................................................................................................................................. 18 2 1. Duty Cycle 1.1 Test Result Test Mode Channel Frequency( MHz) TX Type ANT No. T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) 802.11b 2412 SISO 1 0.908 0.926 98.06 0.09 2437 SISO 1 0.936 0.955 98.01 0.09 2462 SISO 1 0.909 0.926 98.16 0.08 802.11g 2412 SISO 1 0.019 0.036 52.78 2.78 2437 SISO 1 0.020 0.037 54.05 2.67 2462 SISO 1 0.012 0.030 40.00 3.98 802.11n(HT20) 2412 SISO 1 0.520 0.536 97.01 0.13 2437 SISO 1 0.520 0.537 96.83 0.14 2462 SISO 1 0.519 0.536 96.83 0.14 1.2 Test Graph 802.11b_2412MHz_SISO_ANT1 802.11b_2437MHz_SISO_ANT1 802.11b_2462MHz_SISO_ANT1 3 802.11g_2412MHz_SISO_ANT1 802.11g_2437MHz_SISO_ANT1 802.11g_2462MHz_SISO_ANT1 4 802.11n(HT20)_2412MHz_SISO_ANT1 802.11n(HT20)_2437MHz_SISO_ANT1 802.11n(HT20)_2462MHz_SISO_ANT1 5 2. Bandwidth 2.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11b 2412 SISO 1 7.323 ≥0.5 PASS 2437 SISO 1 7.446 ≥0.5 PASS 2462 SISO 1 7.315 ≥0.5 PASS 802.11g 2412 SISO 1 16.498 ≥0.5 PASS 2437 SISO 1 16.498 ≥0.5 PASS 2462 SISO 1 16.501 ≥0.5 PASS 802.11n(HT20) 2412 SISO 1 17.767 ≥0.5 PASS 2437 SISO 1 17.749 ≥0.5 PASS 2462 SISO 1 17.769 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 14.749 Only for Report Use 2437 SISO 1 14.674 Only for Report Use 2462 SISO 1 14.641 Only for Report Use 802.11g 2412 SISO 1 16.850 Only for Report Use 2437 SISO 1 16.813 Only for Report Use 2462 SISO 1 16.807 Only for Report Use 802.11n(HT20) 2412 SISO 1 17.989 Only for Report Use 2437 SISO 1 17.942 Only for Report Use 2462 SISO 1 17.929 Only for Report Use 6 2.2 Test Graph - 6dB Bandwidth 802.11b_2412MHz_SISO_ANT1 802.11b_2437MHz_SISO_ANT1 802.11b_2462MHz_SISO_ANT1 802.11g_2412MHz_SISO_ANT1 7 802.11g_2437MHz_SISO_ANT1 802.11g_2462MHz_SISO_ANT1 802.11n(HT20)_2412MHz_SISO_ANT1 8 802.11n(HT20)_2437MHz_SISO_ANT1 802.11n(HT20)_2462MHz_SISO_ANT1 9 2.3 Test Graph - 99% Occupied Bandwidth 802.11b_2412MHz_SISO_ANT1 802.11b_2437MHz_SISO_ANT1 802.11b_2462MHz_SISO_ANT1 802.11g_2412MHz_SISO_ANT1 10 802.11g_2437MHz_SISO_ANT1 802.11g_2462MHz_SISO_ANT1 802.11n(HT20)_2412MHz_SISO_ANT1 11 802.11n(HT20)_2437MHz_SISO_ANT1 802.11n(HT20)_2462MHz_SISO_ANT1 12 3. Maximum Conducted Output Power 3.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 802.11b 2412 SISO 16.56 30 PASS 2437 SISO 17.45 30 PASS 2462 SISO 17.67 30 PASS 802.11g 2412 SISO 14.56 30 PASS 2437 SISO 15.62 30 PASS 2462 SISO 15.88 30 PASS 802.11n(HT20) 2412 SISO 14.80 30 PASS 2437 SISO 15.83 30 PASS 2462 SISO 16.04 30 PASS 3.2 Test Graph 802.11b_2412MHz_SISO_ANT1 802.11b_2437MHz_SISO_ANT1 802.11b_2462MHz_SISO_ANT1 13 802.11g_2412MHz_SISO_ANT1 802.11g_2437MHz_SISO_ANT1 802.11g_2462MHz_SISO_ANT1 14 802.11n(HT20)_2412MHz_SISO_ANT1 802.11n(HT20)_2437MHz_SISO_ANT1 802.11n(HT20)_2462MHz_SISO_ANT1 15 4. Maximum Power Spectral Density (PSD) 4.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 802.11b 2412 SISO -8.72 ≤8 PASS 2437 SISO -7.65 ≤8 PASS 2462 SISO -7.38 ≤8 PASS 802.11g 2412 SISO -11.70 ≤8 PASS 2437 SISO -10.62 ≤8 PASS 2462 SISO -10.26 ≤8 PASS 802.11n(HT20) 2412 SISO -10.64 ≤8 PASS 2437 SISO -9.44 ≤8 PASS 2462 SISO -9.09 ≤8 PASS 4.2 Test Graph 802.11b_2412MHz_SISO_AN…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. .................... :CTL2001181031-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ................................. : WI-FI Endoscope Model/Type reference .................... : inskam130 List Model(s) .................................... : inskam130-35, inskam130-50 Trade Mark ....................................... : LETSCOM, Letsfit, ANBES FCC ID ............................................... : 2AR5E-INSKAM130 Applicant’s name ........................... : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address of applicant ..................... : 305, No.8 BLDG, SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Test Firm ........................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ..................... : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ........................... : Standard ............................................ :FCC Part 15.247:Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF ....................................... : Dated 2011-01 Date of receipt of test item .......... : Feb. 28, 2020 Date of sampling............................: Mar. 02, 2020 Date of Test Date ............................ : Mar. 04, 2020–Apr. 02, 2020 Data of Issue .................................... : Apr. 03, 2020 Result ................................................ : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0Page 2 of 30 Report No.: CTL2001181031-WF TEST REPORT Test Report No. :CTL2001181031-WF Apr. 03, 2020 Date of issue Equipment under Test:WI-FI Endoscope Model /Type:inskam130 Listed Models:inskam130-35, inskam130-50 Applicant:SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address:305, No.8 BLDG, SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Manufacturer:SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address:305, No.8 BLDG, SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Test resultPass * *In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0Page 3 of 30 Report No.: CTL2001181031-WF ** Modified History ** RevisionsDescriptionIssued DataReport No.Remark Version 1.0Initial Test Report Release2020-04-03CTL2001181031-WFTracy Qi V1.0Page 4 of 30 Report No.: CTL2001181031-WF Table of ContentsPage 1. SUMMARY .............................................................................................................................................................................. 5 1.1. TEST STANDARDS ............................................................................................................................................................ 5 1.2. T ESTDESCRIPTION ............................................................................................................................................................... 5 1.3. T ESTFACILITY ...................................................................................................................................................................... 6 1.4. S TATEMENT OF THE MEASUREMENT UNCERTAINTY ...................................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................................... 8 2.1. E NVIRONMENTAL CONDITIONS ................................................................................................................................................ 8 2.2. G ENERALDESCRIPTION OFEUT ............................................................................................................................................. 8 2.3. D ESCRIPTION OFTESTMODES ANDTESTFREQUENCY ................................................................................................................. 8 2.4. E QUIPMENTSUSED DURING THETEST ...................................................................................................................................... 9 2.5. R ELATEDSUBMITTAL(S)/GRANT(S) ..................................................................................................................................... 10 2.6. M ODIFICATIONS ................................................................................................................................................................ 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................................... 11 3.1. C ONDUCTEDEMISSIONSTEST ............................................................................................................................................... 11 3.2. R ADIATEDEMISSIONS ANDBANDEDGE ........................…

Text truncated - open the document above for the full version.

Test Photos of EUT FCC ID:2AR5E-INSKAM130
