2AR5E-Q3H4K Action Camera

4K Action Camera User Manual Q3H Thank you for purchasing our products. This manual addresses the safety guidelines, warranty and operating instructions. Please review this manual thoroughly before operating your device. Package Contents.............................................. 1 At a Glance......................................................... 3 Application Diagram of Assemble....................... 4 Features.............................................................. 5 LED Indicator Guide........................................... 5 Install & Take Out the Battery............................. 6 Install & Take Out the Micro SD Card................. 6 Charge the Battery.............................................. 7 Use Your Q3H..................................................... 7 Customize Your Q3H.......................................... 9 Specifications................................................... 13 FAQs................................................................ 14 Warnings/Cautions........................................... 15 Warranty........................................................... 16 CONTENTS Package Contents Waterproof Case Handlebar Mount Base Mount 1 Base Mount 2 Fixed Base Switch Connection 1 Switch Connection 2 Switch Connection 3 AdapterClip1Clip2 Helmet Base BandagesBatteriesStickers Ribbon& Wirerope Back Cover USB Cable WiperUser Manual - 1 - NOTES: 1 x Switch Connection 2 1 x Switch Connection 3 1 x Adapter 1 x User Manual 1 x Ribbon & Wire rope 4 x Bandages 2 x Clips 1 x Back Cover 2 x Stickers 1 x Wiper 1 x Camera 1 x Waterproof Case 2 x Batteries 1 x Handlebar Mount 1 x Base Mount 1 1 x Base Mount 2 2 x Helmet Bases 1 x USB Cable 1 x Fixed Base 1 x Switch Connection 1 - 2 - The Micro SD card is NOT included in the package. Micro SD card (Class 10 or higher up to 32GB) is supported. Two batteries are included in the package, one of the batteries has been installed in the camera. At a Glance UP Button DOWN Button Speaker Battery Compartment Red Indicator Blue Indicator - 3 - OK Button Micro USB Port Micro SD Card Slot HDOUT Port Lens Switch/Mode Button WIFI Indicator Screen Application Diagram of Assemble - 4 - Features LED Indicator Guide √170° wide-angle lens √2.0" display screen √Built-in WIFI & HDOUT √100 feet waterproof casing - 5 - Power onThe Blue LED indicator keeps on. The Blue LED indicator keeps flashing. The Red LED indicator keeps flashing. The Red LED indicator keeps on. The WIFI indicator keeps flashing. The WIFI indicator keeps on. The Blue LED indicator flashes twice and goes out. The Blue LED indicator flashes once every press on the OK button. Power off Photo Video/Slow motion Battery charging Fully charged Turn on WIFI WIFI is connected System StateIndicator Activity Install & Take Out the Battery Install & Take Out the Micro SD Card Install the battery: Take out the battery: Install the Micro SD card: Take out the Micro SD card: NOTES: Pull the label on the battery to take it out. - 6 - 1) Insert the Micro SD card into the card slot with its label side upwards. A "click" sound indicates that the card is installed successfully. 2) Format the Micro SD card by using the camera's "Setting menu"→ "Format" before using it for the first time, especially when a card has been used in other devices. 1) Stir downward the battery compartment cover and open it. 2) Install the battery into the camera correctly (Please mind the plus-minus hole). • Please choose the Micro SD card over class 10. Micro SD cards up to a maximum 32GB capacity are supported. (Capacity above 8G is recommended) • Please make sure the camera is turned off before installing or taking out the Micro SD card or battery. Push in the card gently and then it will pop outward. The card is released from the slot and ready to be removed when you hear the click. Charge the Battery Use Your Q3H NOTE: NOTE: Power on & off Turn on & off the WIFI Power on/off: Press the MODE button for 2-3 seconds. - 7 - 1) Plug the small end of the USB cable into the Micro USB on the camera. 2) Plug the other end into a USB wall charger or computer (DC 5V) that is powered on. When the camera is being charged, the Red LED indicator keeps flashing. When it is fully charged, the Red LED indicator keeps on. Before using the WIFI function, please install the “XDV” app on your mobile phone. The app can be downloaded from Google Play for Android phone, and from Apple Store for IOS phone. You can also scan the “XDV” app dimensional code below directly and follow the prompts to complete the installation. Please remove the plastic protective films from the camera lens and the screen before use. For AndroidFor iOS Turn on the WIFI: Turn off the WIFI: Press the UP button to exit WIFI. Video, photo, slow motion and playback mode menus NOTES: - 8 - 1) Long press the UP button for 2 seconds after the camera is turned on, and WIFI message will appear on the screen, then the WIFI indicator will flash. 2) Go to the WIFI settings of your phone/tablet. Choose the WIFI name “Q3H” from the WIFI list and type in the password “1234567890” to connect. 3) Open the “XDV” app on your phone/tablet. Click on “Q3H” from the WIFI list, and the camera is connected to the “XDV” app on your phone/tablet. Then you can view the shooting screen of the camera on your phone/ tablet and shoot videos/photos and playback/download/delete/share files using your phone/tablet. • App installation requires Android 4.1/IOS 7 above. • Please make sure the camera is turned off before installing or taking out the Micro SD card or battery. A. Video mode 1) Press the OK button to start recording. 2) Press the OK button to stop recording. B. Photo mode 1) Press the MODE button to switch to photo mode (A corresponding icon will be displayed on the upper left corner of the screen when entering into camera mode). 2) Press the OK button to take a photo. C. Slow motion mode 1) Press the MODE button to switch to slow mode (A corresponding icon wi…

Text truncated - open the document above for the full version.

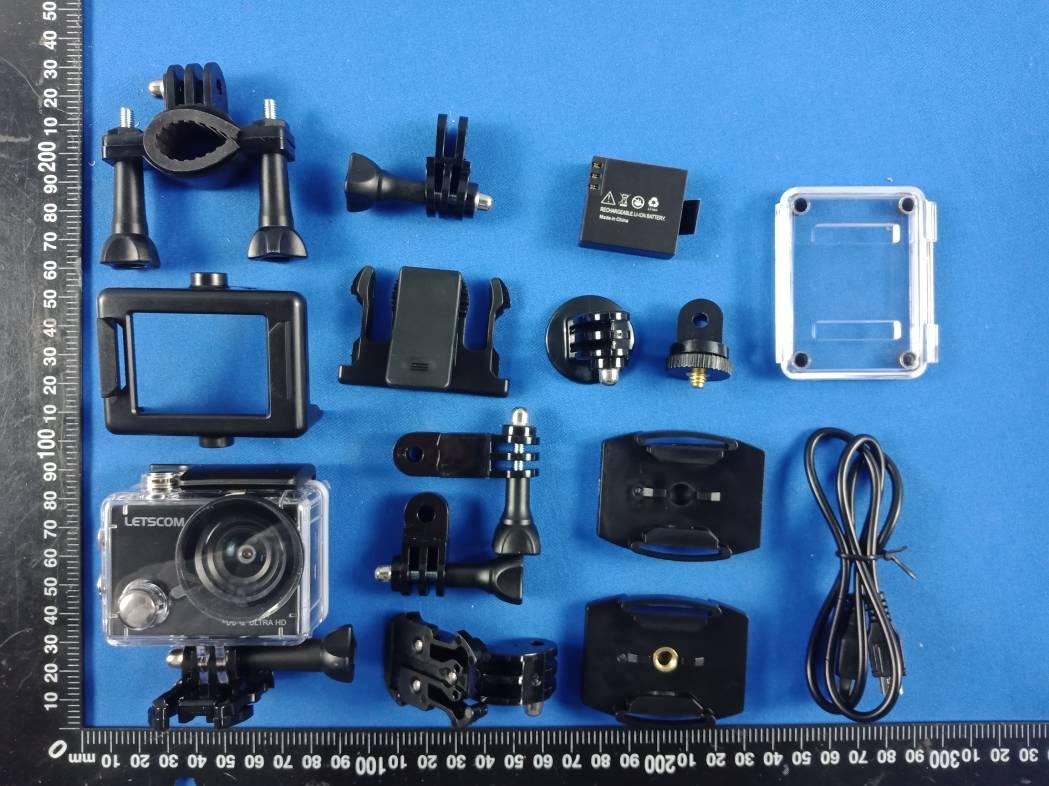

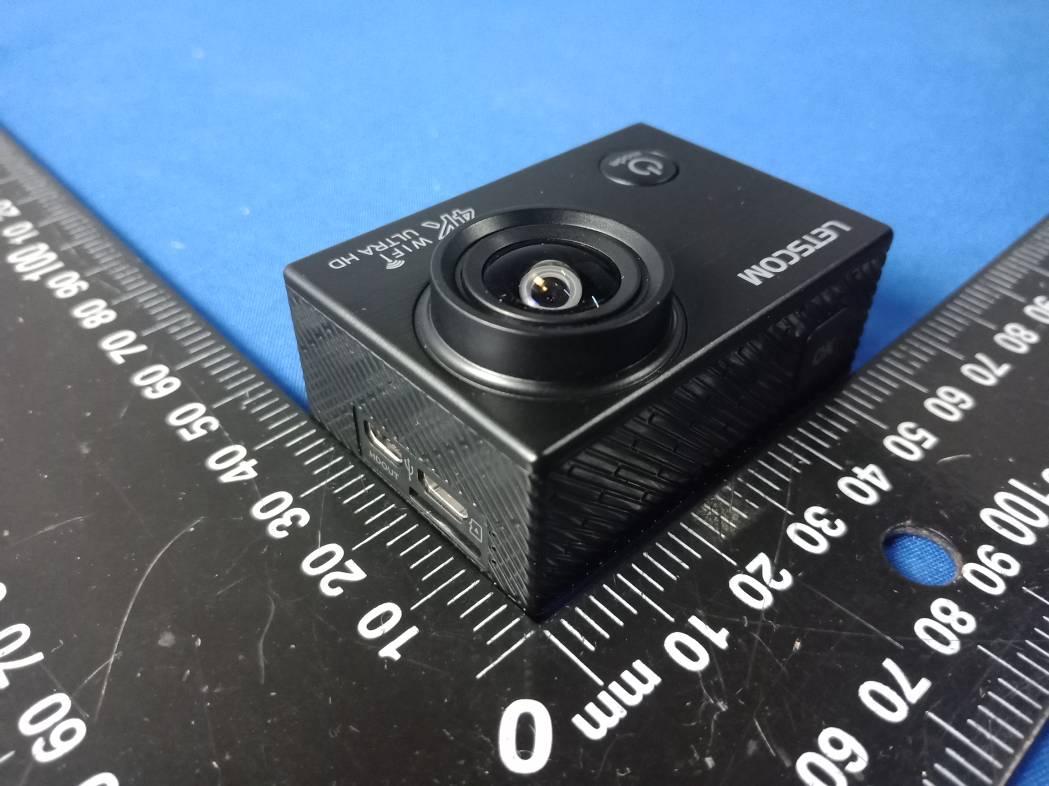

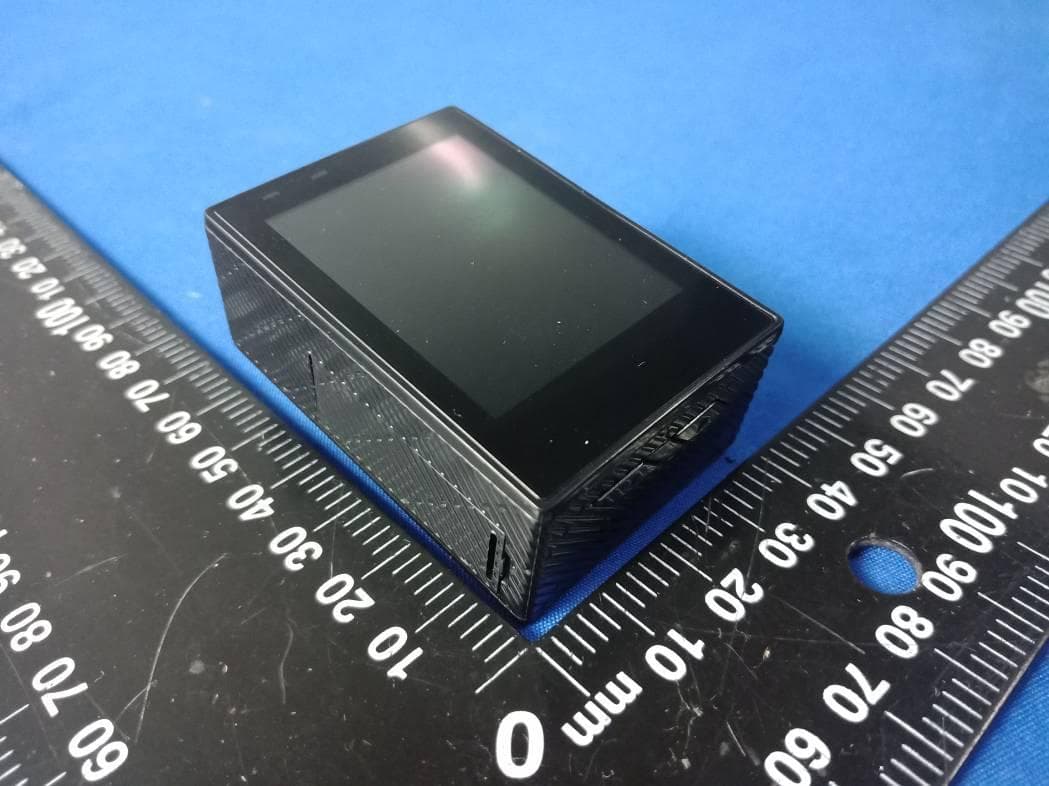

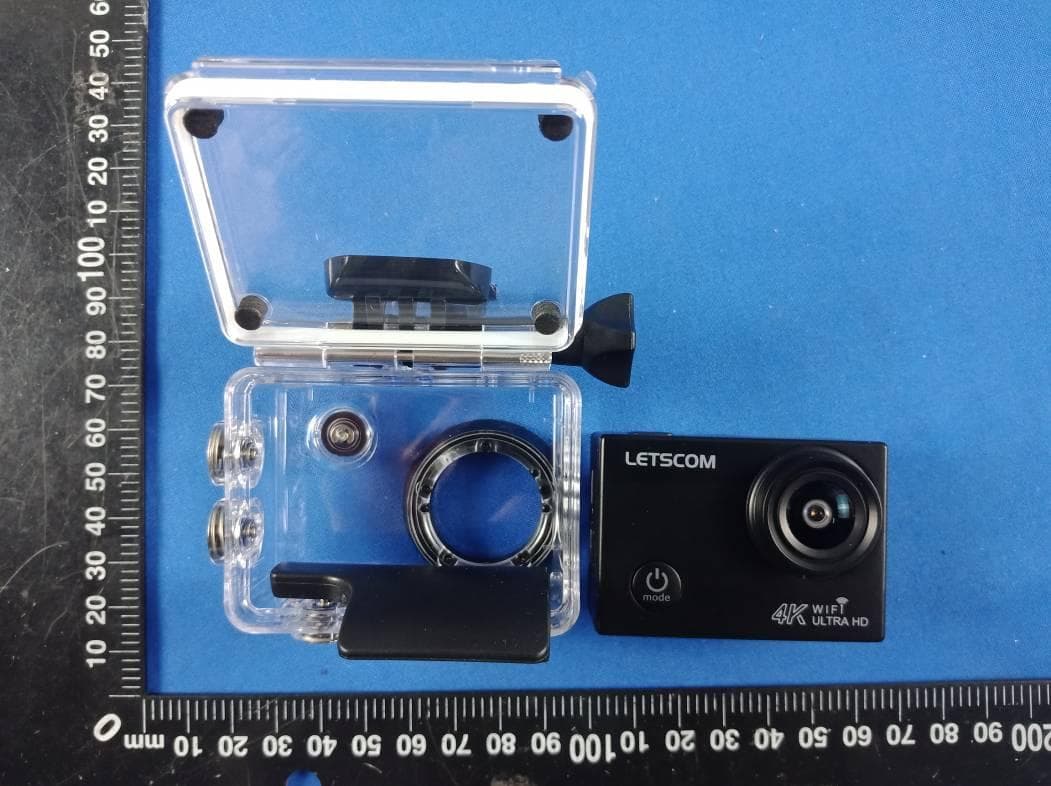

External Photos of EUT

FCC-ID Label Information 1. Label location: 2.FCC ID Label: 2AR5E-Q3H FCC-ID Label Locatio

Internal Photos of EUT Antenna

version01 SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Tel: +86-13715282097 Fax: N/A Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Q3H FCC ID:2AR5E-Q3H fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: Q3H Type of antenna: PCB Antenna Gain of the antenna: 1.69 dBi Frequency range: 2412-2462 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address: 05, No.8 BLDG, SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA City: Shenzhen ZIP / Postal code: Country: China Place: william lin Date: 2020-6-12 Signature:

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison pt=8.23dBm =6.65 mW at 2462MHz So (6.65mW/5mm)x √2.462GHz =2.0877<3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2003171021-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : 4K Action Camera Model/Type reference ................ : Q3H List Model(s) ............................... : N/A Trade Mark .................................. : LETSCOM, Letsfit, ANBES FCC ID ......................................... : 2AR5E-Q3H Applicant’s name ....................... : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address of applicant ................. : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : 47 CFR FCC Part 15 Subpart C 15.247 TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Mar. 23, 2020 Date of sampling ........................ : Mar. 24, 2020 Date of Test Date ........................ : Mar. 24, 2020- May 25, 2020 Data of Issue............................... : May 26, 2020 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 30 Report No.: CTL2003171021-WF TEST REPORT Test Report No. : CTL2003171021-WF May 26, 2020 Date of issue Equipment under Test : 4K Action Camera Model /Type : Q3H Listed Models : N/A Applicant : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Manufacturer : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 30 Report No.: CTL2003171021-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2020-05-26 CTL2003171021-WF Tracy Qi V1.0 Page 4 of 30 Report No.: CTL2003171021-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM CONDUCTED OUTPUT POWER....................................................................................................................... 21 3.4. POWER SPECTRAL DENS…

Text truncated - open the document above for the full version.

1 / 26 Appendix for 15.247 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11b 2412 SISO 1 8.604 ≥0.5 PASS 2437 SISO 1 8.549 ≥0.5 PASS 2462 SISO 1 8.812 ≥0.5 PASS 802.11g 2412 SISO 1 16.522 ≥0.5 PASS 2437 SISO 1 16.503 ≥0.5 PASS 2462 SISO 1 16.520 ≥0.5 PASS 802.11n(HT20) 2412 SISO 1 17.726 ≥0.5 PASS 2437 SISO 1 17.685 ≥0.5 PASS 2462 SISO 1 17.718 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 12.840 Only for Report Use 2437 SISO 1 12.896 Only for Report Use 2462 SISO 1 12.811 Only for Report Use 802.11g 2412 SISO 1 16.809 Only for Report Use 2437 SISO 1 16.796 Only for Report Use 2462 SISO 1 16.770 Only for Report Use 802.11n(HT20) 2412 SISO 1 17.793 Only for Report Use 2437 SISO 1 17.788 Only for Report Use 2462 SISO 1 17.789 Only for Report Use 1.2 Test Graph - 6dB Bandwidth 2 / 26 3 / 26 4 / 26 5 / 26 6 / 26 1.3 Test Graph - 99% Occupied Bandwidth 7 / 26 8 / 26 9 / 26 10 / 26 11 / 26 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 802.11b 2412 SISO 5.47 30 PASS 2437 SISO 5.76 30 PASS 2462 SISO 6.22 30 PASS 802.11g 2412 SISO 7.62 30 PASS 2437 SISO 7.94 30 PASS 2462 SISO 8.23 30 PASS 802.11n(HT20) 2412 SISO 7.80 30 PASS 2437 SISO 7.90 30 PASS 2462 SISO 8.14 30 PASS 3. Maximum Power Spectral Density (PSD) 3.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 802.11b 2412 SISO -23.07 ≤8 PASS 2437 SISO -22.93 ≤8 PASS 2462 SISO -22.82 ≤8 PASS 802.11g 2412 SISO -25.45 ≤8 PASS 2437 SISO -24.46 ≤8 PASS 2462 SISO -24.95 ≤8 PASS 802.11n(HT20) 2412 SISO -24.61 ≤8 PASS 2437 SISO -25.10 ≤8 PASS 2462 SISO -24.75 ≤8 PASS 3.2 Test Graph 12 / 26 13 / 26 14 / 26 15 / 26 16 / 26 17 / 26 4. Unwanted Emissions in Non-restricted Frequency Bands 4.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 802.11b 2412 SISO 1 Refer to test graph -26.39 PASS 2437 SISO 1 Refer to test graph -26.39 PASS 2462 SISO 1 Refer to test graph -26.39 PASS 802.11g 2412 SISO 1 Refer to test graph -30.14 PASS 2437 SISO 1 Refer to test graph -30.14 PASS 2462 SISO 1 Refer to test graph -30.14 PASS 802.11n(HT20) 2412 SISO 1 Refer to test graph -30.37 PASS 2437 SISO 1 Refer to test graph -30.37 PASS 2462 SISO 1 Refer to test graph -30.37 PASS 4.2 Test Graph 18 / 26 19 / 26 20 / 26 21 / 26 22 / 26 23 / 26 24 / 26 25 / 26 26 / 26

Test Setup Photos of the EUT
