2AR5E-Q6HReal 4K Action Camera

RF exposure statement: The transmitter must not be colocated or operated in conjunction with any other antenna or transmitter. This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

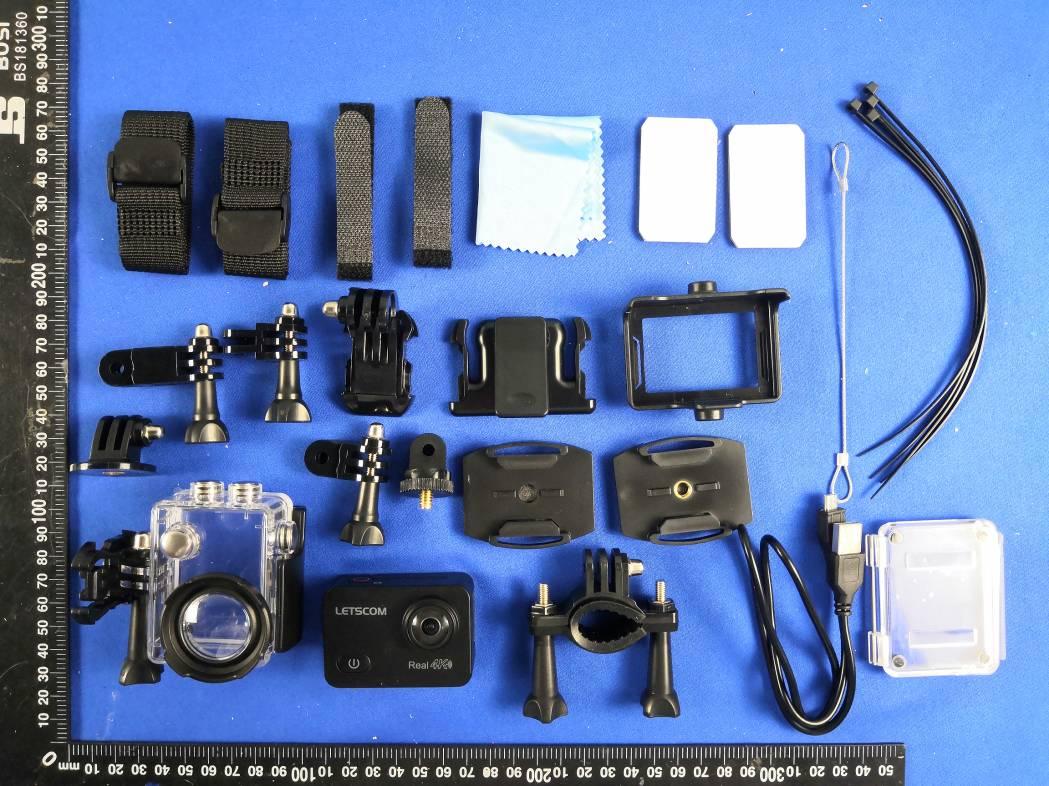

External Photos of EUT

FCC-ID Label Information 1. Label location: 2.FCC ID Label: 2AR5E-Q6H FCC-ID Label Locatio

Internal Photos of EUT Antenna

SHENZHENMIFANGNETWORKTECHNOLOGYCO.,LTD.305, No.8BLDG.,SUOLINGINDUSTRIALZONEXIKENG,GUANLAN, LONGHUA,SHENZHEN,GUANGDONG,CHINA Tel:+86-13715282097Fax:N/A DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:Q6H FCCID:2AR5E-Q6H fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforinternalantennatype(s) describedbelow: ModelNo.ofantenna:Q6H Typeofantenna: MonopoleAntenna Gainoftheantenna: 1.69dBi Frequencyrange: 2412-2462MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:SHENZHENMIFANGNETWORKTECHNOLOGYCO.,LTD. Address: 05,No.8BLDG,SUOLINGINDUSTRIALZONEXIKENG,GUANLAN, LONGHUA,SHENZHEN,GUANGDONG,CHINA City:Shenzhen ZIP/Postalcode: Country: China Place: williamlin Date: 2020-6-22 Signature: version01

RF Exposure evaluation FCC ID: 2AR5E-Q6H 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0dBi for 2.4GHz , the RF power density can be obtained. For 2.4GHz wifi Mode Max. Output Power (dBm) Max. Output Power (mW) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit FCC (mW/cm 2 ) Test Results 802.11b 9.83 9.6161 1.4757 0.0028 1.0000 PASS 802.11g 9.84 9.6383 1.4757 0.0028 1.0000 PASS 802.11n20 9.77 9.4842 1.4757 0.0028 1.0000 PASS 5.Conclusion The SAR evaluation is not required.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2003171022-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Real 4K Action Camera Model/Type reference ................ : Q6H List Model(s) ............................... : N/A Trade Mark .................................. : LETSCOM, Letsfit, ANBES FCC ID ......................................... : 2AR5E-Q6H Applicant’s name ....................... : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address of applicant ................. : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : 47 CFR FCC Part 15 Subpart C 15.247 TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Mar. 23, 2020 Date of sampling ........................ : Mar. 24, 2020 Date of Test Date ........................ : Mar. 24, 2020- May 25, 2020 Data of Issue............................... : May 26, 2020 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 31 Report No.: CTL2003171022-WF TEST REPORT Test Report No. : CTL2003171022-WF May 26, 2020 Date of issue Equipment under Test : Real 4K Action Camera Model /Type : Q6H Listed Models : N/A Applicant : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Manufacturer : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 31 Report No.: CTL2003171022-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2020-05-26 CTL2003171022-WF Tracy Qi V1.0 Page 4 of 31 Report No.: CTL2003171022-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM CONDUCTED OUTPUT POWER....................................................................................................................... 21 3.4. POWER SPE…

Text truncated - open the document above for the full version.

1 / 26 Appendix for 15.247 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11b 2412 SISO 1 8.140 ≥0.5 PASS 2437 SISO 1 8.688 ≥0.5 PASS 2462 SISO 1 9.151 ≥0.5 PASS 802.11g 2412 SISO 1 16.554 ≥0.5 PASS 2437 SISO 1 16.509 ≥0.5 PASS 2462 SISO 1 16.536 ≥0.5 PASS 802.11n(HT20) 2412 SISO 1 17.708 ≥0.5 PASS 2437 SISO 1 17.640 ≥0.5 PASS 2462 SISO 1 17.628 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 12.924 Only for Report Use 2437 SISO 1 12.821 Only for Report Use 2462 SISO 1 12.905 Only for Report Use 802.11g 2412 SISO 1 16.847 Only for Report Use 2437 SISO 1 16.780 Only for Report Use 2462 SISO 1 16.804 Only for Report Use 802.11n(HT20) 2412 SISO 1 17.788 Only for Report Use 2437 SISO 1 17.730 Only for Report Use 2462 SISO 1 17.773 Only for Report Use 1.2 Test Graph - 6dB Bandwidth 2 / 26 3 / 26 4 / 26 5 / 26 1.3 Test Graph - 99% Occupied Bandwidth 6 / 26 7 / 26 8 / 26 9 / 26 10 / 26 11 / 26 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 802.11b 2412 SISO 8.31 30 PASS 2437 SISO 9.83 30 PASS 2462 SISO 9.68 30 PASS 802.11g 2412 SISO 8.66 30 PASS 2437 SISO 9.84 30 PASS 2462 SISO 9.59 30 PASS 802.11n(HT20) 2412 SISO 8.62 30 PASS 2437 SISO 9.77 30 PASS 2462 SISO 9.61 30 PASS 3. Maximum Power Spectral Density (PSD) 3.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 802.11b 2412 SISO -20.06 ≤8 PASS 2437 SISO -18.35 ≤8 PASS 2462 SISO -19.61 ≤8 PASS 802.11g 2412 SISO -22.95 ≤8 PASS 2437 SISO -21.71 ≤8 PASS 2462 SISO -22.00 ≤8 PASS 802.11n(HT20) 2412 SISO -23.08 ≤8 PASS 2437 SISO -22.27 ≤8 PASS 2462 SISO -22.17 ≤8 PASS 3.2 Test Graph 12 / 26 13 / 26 14 / 26 15 / 26 16 / 26 17 / 26 4. Unwanted Emissions in Non-restricted Frequency Bands 4.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 802.11b 2412 SISO 1 Refer to test graph -23.56 PASS 2437 SISO 1 Refer to test graph -23.56 PASS 2462 SISO 1 Refer to test graph -23.56 PASS 802.11g 2412 SISO 1 Refer to test graph -26.58 PASS 2437 SISO 1 Refer to test graph -26.58 PASS 2462 SISO 1 Refer to test graph -26.58 PASS 802.11n(HT20) 2412 SISO 1 Refer to test graph -26.70 PASS 2437 SISO 1 Refer to test graph -26.70 PASS 2462 SISO 1 Refer to test graph -26.70 PASS 4.2 Test Graph 18 / 26 19 / 26 20 / 26 21 / 26 22 / 26 23 / 26 24 / 26 25 / 26 26 / 26
