2AR5EID215GSmart Watch

Contents English Version................................................1 Getting Started ........................................................1 What’s in the box.........................................................1 What’s in this Document..............................................1 Setting up Your Watch...........................................2 Charging your watch....................................................2 Disassembling / Assembling Your Watch....................4 Wearing Your Watch...............................................6 Using Your Watch....................................................8 App Installation............................................................8 Smart Phone System Requirements...........................8 App Interfaces............................................................9 Pairing the Watch with Your Phone ...........................11 Getting to Know Your Watch.............................14 Function Button.........................................................14 Watch Interfaces.......................................................15 Unlock the screen.....................................................16 Function Introduction..........................................17 1.Tracking Sports......................................................18 2. Monitoring Heart Rate...........................................21 3. Measuring Blood Oxygen Level............................22 4. Checking Weather.................................................22 5. Setting Alarms......................................................23 6. Tracking Sleep......................................................23 7. More Functions.....................................................24 7.1 Call Notification .................................................24 7.2 Message Notification ........................................24 7.3 Sedentary Reminder .........................................25 Basic Specifications..............................................26 FAQs............................................................................27 Warranty.....................................................................30 Important Safety Instructions............................31 2. Überwachung der Herzfrequenz............................58 3. Messung des Blutsauerstoffs................................59 4. Das Wetter zu sehen.............................................59 5. Alarme einstellen..................................................60 6. Schlaf verfolgen....................................................60 7. Weitere Funktione.................................................61 7.1 Anrufbenachrichtigung ......................................61 7.2 Nachrichtenbenachrichtigung...........................61 7.3 Sitzende Erinnerung .........................................62 Grund-Technische Daten.....................................63 FAQs............................................................................64 Garantie.....................................................................67 Wichtige Sicherheitsanweisungen...................68 ID215G Smart Watch User Manual Thank you for purchasing our product. This manual addresses the safety guidelines, warranty, and operating instructions. Please review this manual thoroughly before operating your device. - 2 - Setting up Your Watch Charging your watch Please fully charge your watch before initial use. 1. Insert the USB plug of the charging cable into the USB port on your computer or a UL-certified USB wall charger. 2. Place the watch in charging cradle and push it in until you hear a click. The pins on the charging cradle must align with the gold contacts on the back of the watch. The battery icon with percent charged appears on the screen. - 3 - When the watch shows that the battery is low, connect the watch to a USB port with 5V-500mA. Make sure the pins on the charging cable attach securely to the pins on the smart watch. Remove the watch from the power supply once fully charged. ● USB charger requirement: DC USB port (5V-500mA) ● Charging time: 2 hours - 4 - Disassembling / Assembling Your Watch Disassembly 1. To remove the wristbands, turn over the watch and find the quick-release lever. 2. While pressing the quick-release lever inward, gently pull the wristband away from the watch to release it. 3. Repeat on the other side. Notes: ● Once the watch is connected to your app, the watch will automatically search and reconnect itself if the connection is lost or when Bluetooth is restarted after manual disconnection. ● If the watch is unbound from the app, the information on the watch will be reset, and the information on the app will be cleared. Please do not unbind the connection unless there is an issue that will require a reset. ● The watch can only pair with one smartphone at a time. When pairing, please ensure the watch and your smartphone is within 0.5 meters distance. - 13 - Basic Specifications Model No.: ID215G Sync: Bluetooth 4.2 Screen: 1.1" Full Reflection Screen Battery Capacity: 260mAh Working Voltage: 3.8V Working Temperature: -10 to 40 Weight: 1.7oz (49g) Waterproof Rating: 5ATM Working Time: Approximately 15 days (without GPS mode) Approximately 20 hours (in GPS mode) Standby Time: Approximately 40 days (when fully charged) - 26 - - 5 - Assembly 1. To reattach the wristbands, slide the pin (the side opposite the quick-release lever) into the notch on the watch. Attach the wristband with the clasp to the top of the watch. 2. While pressing the quick-release lever inward, slide the other end of the wristband into place. 3. When both ends of the pin are inserted, release the quick-release lever. Wearing Your Watch All-day wear and exercise For all-day wear when you’re not exercising, wear the device on your wrist horizontally, a finger’s width below your wrist bone and lying flat, the same way you would put on a watch. - 6 - - 7 - For optimized heart rate tracking, keep these…

Text truncated - open the document above for the full version.

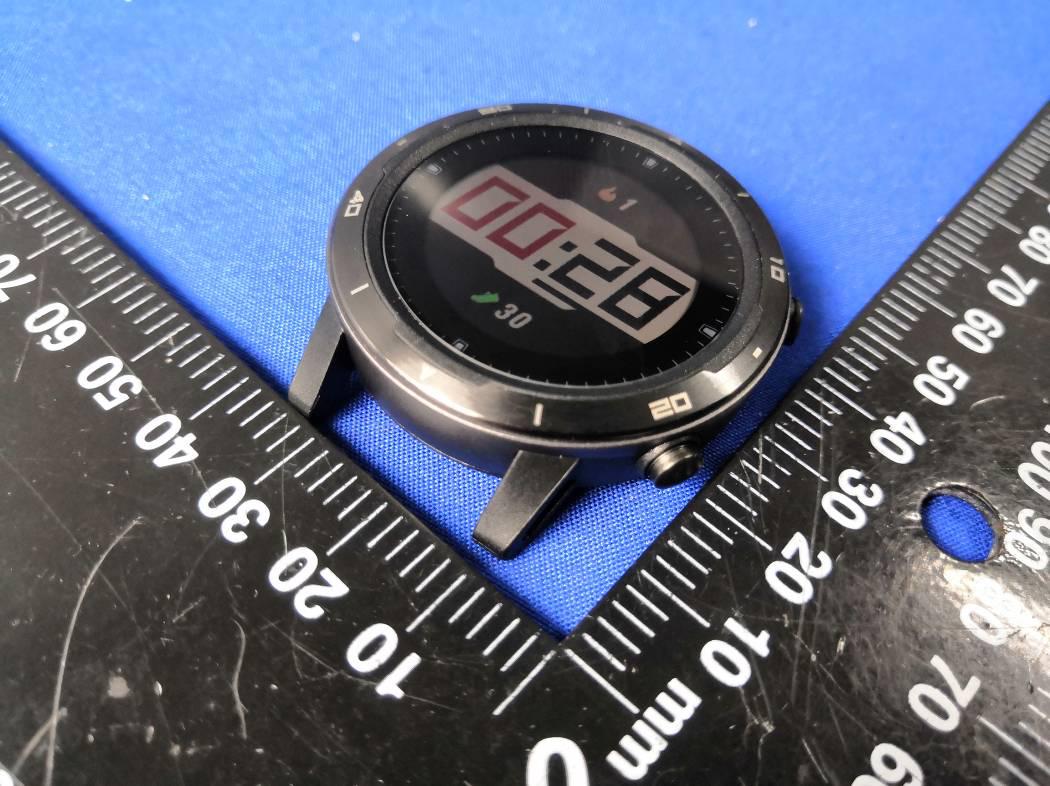

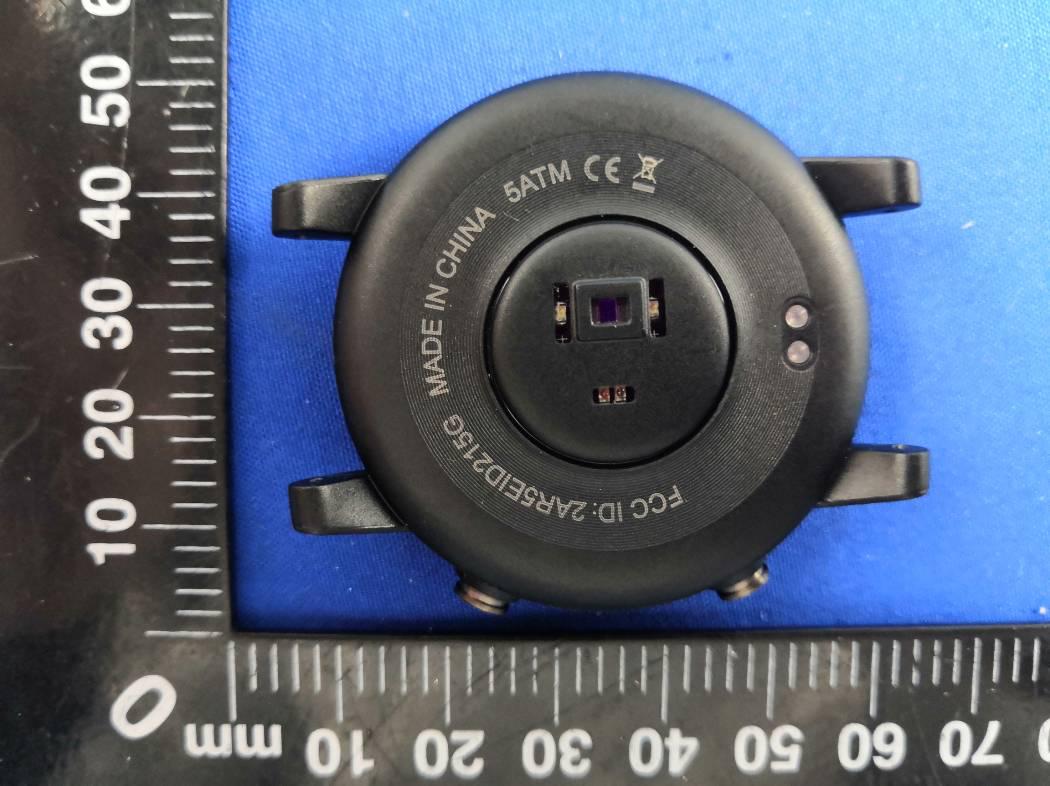

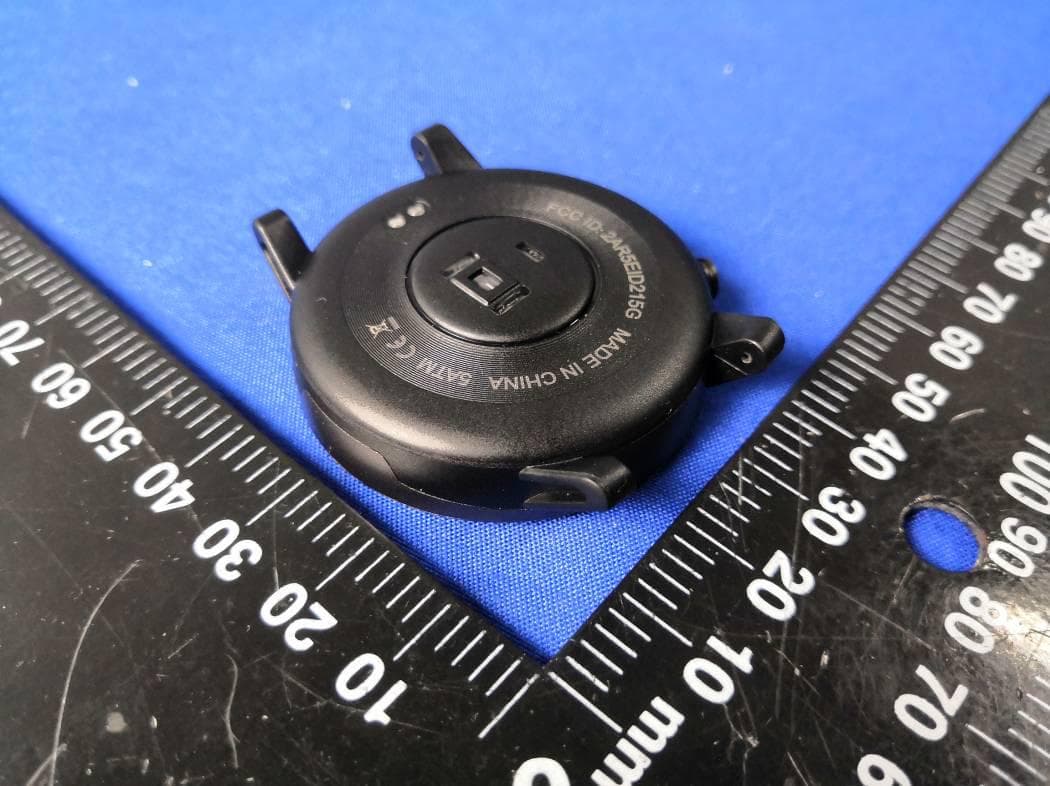

FCC ID Label Information 1. Label location: 2. FCC ID Label: FCC ID:2AR5EID215G FCCID Label Location

Antenna

version01 SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Tel: +86-13715282097 Fax: N/A Declaration concerning Antenna Specification It is hereby declared that the product Model No.: ID215G FCC ID: 2AR5EID215G fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PIFA antenna type(s) described below: Model No. of antenna: 2.4G ANT Type of antenna: PIFA Gain of the antenna: 0dBi Frequency range: 2402~2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address: 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA City: Shenzhen ZIP / Postal code: Country: China Place: Shenzhen Date: 2020-03-12 Signature:

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison pt=-0.02dBm =0.995mW at 2480MHz So (0.995mW/5mm)x √2.480GHz =0.313<3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2001091031-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Smart Watch Model/Type reference ................ : ID215G List Model(s) ............................... : N/A Trade Mark .................................. : LETSCOM, Letsfit, ANBES FCC ID ......................................... : 2AR5EID215G Applicant’s name ....................... : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address of applicant ................. : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Jan. 15, 2020 Date of sampling ........................ : Jan. 15, 2020 Date of Test Date ........................ : Jan. 15, 2020–Mar. 03, 2020 Data of Issue .............................. : Mar. 04, 2020 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 31 Report No.: CTL2001091031-WF TEST REPORT Test Report No. : CTL2001091031-WF Mar. 04, 2020 Date of issue Equipment under Test : Smart Watch Model /Type : ID215G Listed Models : N/A Applicant : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Manufacturer : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 31 Report No.: CTL2001091031-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2020-03-04 CTL2001091031-WF Tracy Qi V1.0 Page 4 of 31 Report No.: CTL2001091031-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................................................ 9 2.6. MODIFICATIONS ........................................................................................................................................................... 9 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 10 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3. MAXIMUM CONDUCTED OUTPUT POWER ........................................................................................…

Text truncated - open the document above for the full version.

第 1 页 共 8 页 Annex for BLE Test Report No.:CTL2001091031-WF TABLE OF CONTENTS Annex for BLE ....................................................................................................................................... 1 Test Report No.:CTL2001091031-WF ............................................................................................ 1 TABLE OF CONTENTS .................................................................................................................. 1 1. Bandwidth .......................................................................................................................................... 2 1.1 Test Result ............................................................................................................................... 2 1.2 Test Graph - 6dB Bandwidth ..................................................................................................... 2 1.3 Test Graph - 99% Occupied Bandwidth .................................................................................... 3 2. Maximum Conducted Output Power .................................................................................................. 4 2.1 Test Result ............................................................................................................................... 4 2.2 Test Graph ................................................................................................................................ 4 3. Maximum Power Spectral Density (PSD) ........................................................................................... 5 3.1 Test Result ............................................................................................................................... 5 3.2 Test Graph ................................................................................................................................ 5 4. Unwanted Emissions in Non-restricted Frequency Bands .................................................................. 6 4.1 Test Result ............................................................................................................................... 6 4.2 Test Graph ................................................................................................................................ 7 第 2 页 共 8 页 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) 1M 2402 SISO 1 0.690 PASS 2440 SISO 1 0.686 PASS 2480 SISO 1 0.690 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 1M 2402 SISO 1 1.035 Only for Report Use 2440 SISO 1 1.037 Only for Report Use 2480 SISO 1 1.039 Only for Report Use 1.2 Test Graph - 6dB Bandwidth 1M_2402MHz_SISO_ANT1 1M_2440MHz_SISO_ANT1 1M_2480MHz_SISO_ANT1 第 3 页 共 8 页 1.3 Test Graph - 99% Occupied Bandwidth 1M_2402MHz_SISO_ANT1 1M_2440MHz_SISO_ANT1 1M_2480MHz_SISO_ANT1 第 4 页 共 8 页 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 1M 2402 SISO -0.27 30 PASS 2440 SISO -0.21 30 PASS 2480 SISO -0.02 30 PASS 2.2 Test Graph 1M_2402MHz_SISO_ANT1 1M_2440MHz_SISO_ANT1 第 5 页 共 8 页 1M_2480MHz_SISO_ANT1 3. Maximum Power Spectral Density (PSD) 3.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 1M 2402 SISO -17.94 ≤8 PASS 2440 SISO -17.95 ≤8 PASS 2480 SISO -17.72 ≤8 PASS 3.2 Test Graph 1M_2402MHz_SISO_ANT1 第 6 页 共 8 页 1M_2440MHz_SISO_ANT1 1M_2480MHz_SISO_ANT1 4. Unwanted Emissions in Non-restricted Frequency Bands 4.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 1M 2402 SISO 1 Refer to test graph -20.03 PASS 第 7 页 共 8 页 2440 SISO 1 Refer to test graph -20.03 PASS 2480 SISO 1 Refer to test graph -20.03 PASS 4.2 Test Graph 1M_SISO_ANT1_REF 1M_2402MHz_SISO_ANT1 1M_2402MHz_SISO_ANT1 1M_2440MHz_SISO_ANT1 第 8 页 共 8 页 1M_2480MHz_SISO_ANT1 1M_2480MHz_SISO_ANT1
