BOYAMIC User Manual 2.4GHz Dual-Channel Wireless Microphone System �.�GHz双通道无线麦克风系统 用户手册 Statement Please read this manual carefully before using and strictly operate and store it in accordance with the instructions. Please save the manual for your future reference. If you need further assistance than the user manual, please consult your retailer for help or email us: [email protected] Cautions 1. DO NOT remove the housing yourself. 2. Please keep it away from heat sources such as radiators or spotlights. 3. Do not remove the battery without professionals’ help. 4. Please clean the device with only a soft, dry cloth. 5. When using and storing, please keep away from dust and moisture places. 6. For the best pick-up pattern, do not hold your hand against the microphone capsule cover. General Introduction The BOYAMIC is a portable 2.4GHz wireless microphone system. It features high-performance noise cancellation, which is available for improving the recording eect in a noisy environment. It also boasts a remarkable onboard recording which is available for storing your recording files in real-time. The BOYAMIC is perfect for live streaming, vlogging, mobile journalism, and more. What’s more, equipped with a low-cut filter, the wireless microphone can eliminate unwanted low-frequency noise (75Hz/150Hz or lower) in your recording. It is possible to use BOYAMIC in many ways. You can choose to use the transmitter with the 3.5mm external microphone, your line input devices, or its built-in microphone as your needs. A 3.5mm TRS output, USB-C, and iOS Lightning adapters allow the receiver to connect with cameras, mixers, smartphones, tablets, laptops, and more. The receiver has a USB-C charging port that supports charging and powering the device while using it with the adapters. Features • Up to 60 meters of wireless transmission • Separate noise cancellation control - 48kHz/ 24bit HD audio format retained • Wide-range 20-20,000Hz frequency response - deliver exceptional high-quality sound • 8GB memory - store up to 15 hours of recording • Transmitter’ USB-C port - connect to a laptop or smartphone to read recording files • Up to 10 hours of operating time (about 6 hours when the onboard recording is enabled) • Comes with a windproof capsule - minimize unwanted wind noise • Attach the transmitter can be to your clothes with the included magnet. • Rotating clasp-type fur windshield, not easy to fall o • Receiver’s 3.5mm headphone output - monitor your audio in real-time or playback audio • High-resolution OLED display - see vital information at a glance • Selectable Mono/ Stereo/ Safety Track output setting • 3.5mm TRS analog output, USB-C and iOS Lightning digital output – universal compatibility with cameras, smartphones and computers • Charging case included - make the kit easy to carry on Product Structure Transmitter 1 2 3 4 5 6 7 9 10 11 8 Status Microphone muted Onboard recording enabled Indicator Blinking red Static red Status Unpaired Pairing Paired successfully Noise cancellation enabled Low battery Charging Fully charged Indicator Blinking blue slowly Blinking blue rapidly Static blue (Mic input) Static yellow (Line input) Static green Blinking red Static red Red light o ➀ In-built Microphone Capsule The capsule is fabricated with a windproof diaphragm, which can minimize unwanted wind noise and handling noise, etc. ➁ 3.5mm TRS Input For connecting 3.5mm microphones or line-in devices. ➂ Recording Indicator ➃ Status Indicator NOTE: Please charge the transmitter when TX indicates low battery status, or it will automatically shut o within 10 minutes. ➄Power Button • Press and hold for 2 seconds to power on or o. • Press to mute or unmute the microphone. • Press and hold for 5 seconds to enter the pairing state in shutdown mode. ➅Noise Cancellation Button Press to enable or disable the noise cancellation. ➆Record Button Press to enable or disable the onboard recording. ➇Magnetic Belt Clip ➈Mic/ Line Input Toggle ➉USB-C Charging Port Used for charging. After connecting a laptop or smartphone, can also be used to read the recording files. ⑪Charging Contacts 3 4 Receiver 1 2 5 6 7 8 9 11 1213 10 Status Unpaired Paired successfully Indicator Blinking blue slowly Static blue Status Unpaired Paired successfully Indicator Blinking blue slowly Static blue ➄Power Button • Press and hold for 2 seconds to power on or o. • Press to access the options of the gain or volume. Refer to “Receiver’s Screen Operations” for more details. ➅M Button For setting values or functions in the receiver’s menu. Refer to “Receiver’s Screen Operations” for more details. ➆3.5mm TRS Headphones Port Connect your headphones to monitor the audio output in real-time or listen to the playback of the audio. ➇3.5mm TRS Output For analog audio output to a camera, mixer or recorder, etc. ➈Charging Contacts ➉Connecting Contacts ⑪USB-C Charging Port For charging the receiver. An external device can be powered and charged through this port while the receiver with a USB-C or iOS Lightning adapter is plugged into it. ⑫MFi Certified Lightning Adapter It can be connected to an iOS Lightning device. ⑬USB-C Adapter It can be connected to Android Smartphones, Tablets, Computers and other USB-C devices. ➀ Status Indicator for Channel A ➁ Belt Clip ➂ OLED Screen ➃ Status Indicator for Channel B Charging Case 132 ➀ Charging Indicator ➁USB-C Charging Port ➂Wireless Charging Sector Status Low battery Charging Fully charged Battery Level ＜��% ＜��% ��%~��% ��%~��% ��%~���% ���% Indicator Receiver’s Screen Operations Home Screen Overview • From the Home screen, press the power button to access the options of the A or B channel gain and output volume in turn press the M button to adjust the value press the power button again to save the setting. General Introduction The BOYAMIC is a portable 2.4GHz wireless microphone system. It features high-performance noise cancellation, which is available for improving the recording eect in a noisy environ…

Text truncated - open the document above for the full version.

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: 0755-28435911 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2023-08-04 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID:2ARN3-072711RX Shenzhen Jiayz photo industrial ., Ltdcertifies that the equipment for which authorization is soughtis not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Contact Person:Michael Zhao Title: Manager Company Name & Address:Shenzhen Jiayz photo industrial ., Ltd &A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: 0755-28435911 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 08/04/2023 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2ARN3-072711RX Shenzhen Jiayz photo industrial ., Ltd certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Contact Person:Michael Zhao Title:Manager Company Name & Address:Shenzhen Jiayz photo industrial ., Ltd &A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China

U.S. AGENT LETTER OF ATTESTATION Date: 2023-08-04 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2ARN3-072711RX Shenzhen Jiayz photo industrial ., Ltd (“the Applicant”) certifies that, as of the date of the filing of the application, Mamiya America Corporation is our designated U.S. agent for service of process for the above referenced FCC ID. Shenzhen Jiayz photo industrial ., Ltd (“the Applicant”) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Mamiya America Corporation accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Mamiya America Corporation Address: 75 Virginia Rd White Plains, NY 10063 FRN: 0033742214 Tel.: (914) 345-5436 Email: [email protected] Signed by (printed name): Joseph Nassar Signature: Applicant: Shenzhen Jiayz photo industrial ., Ltd Address: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China FRN: 0027973098 Tel: 0755-28435911 Email: [email protected] Signed by (printed name): Michael Zhao Signature:

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: 0755-28435911 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2023-08-04 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Shenzhen Jiayz photo industrial ., Ltd, the undersigned, hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Michael Zhao Manager

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: 0755-28435911 Email: [email protected] FCC Confidential Authorization Date: 2023-08-04 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ARN3-072711RX In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shenzhen Jiayz photo industrial ., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts List The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Michael Zhao Manager

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: 0755-28435911 Email: [email protected] Date: 2023-08-04 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, The RF chip, model: ATS2831P, installed in our product Microphone, model: BOYAMIC RX, FCC ID:2ARN3-072711RX, this chip supports 2.4GHz FHSS and Bluetooth/BLE function, but for marketing purpose, this chip only supports 2.4GHz FHSS, not support Bluetooth/BLE. The other Bluetooth/BLE was disabled to use by manufacture in the software, the end user has no capability to activate it. Signature: Michael zhao Manager

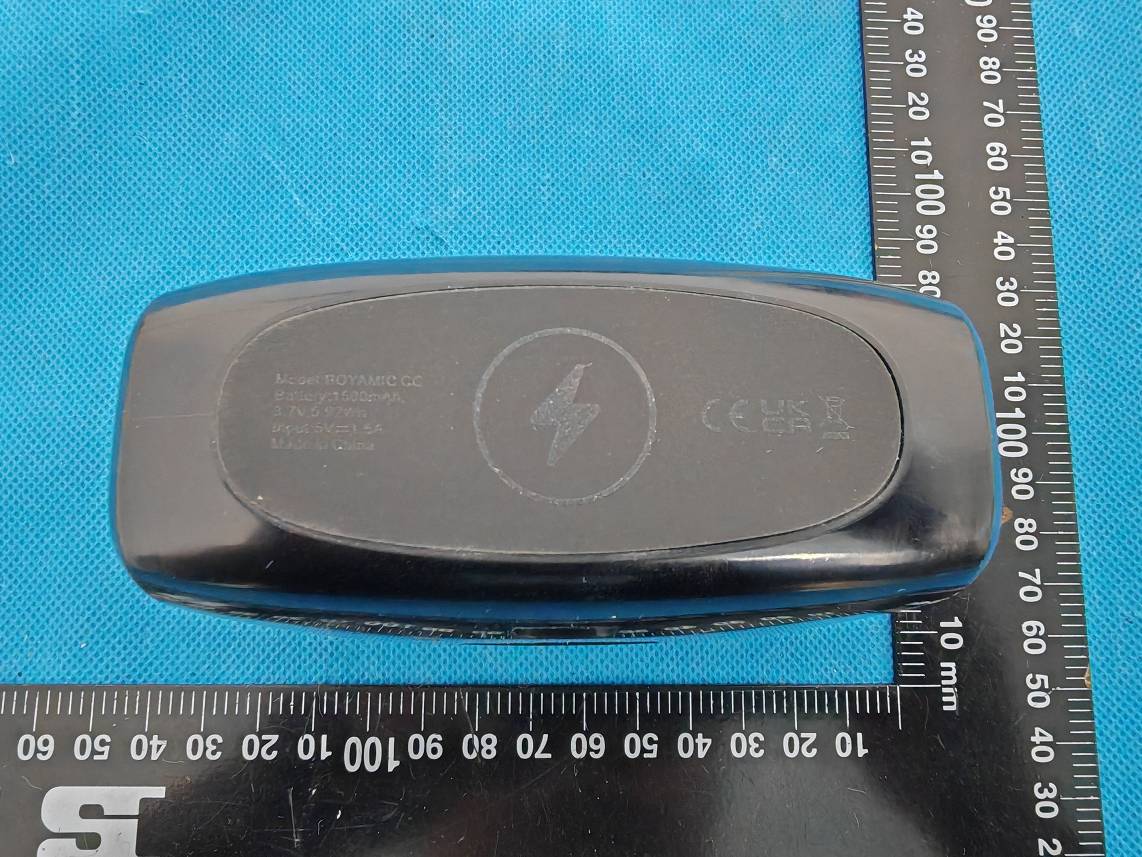

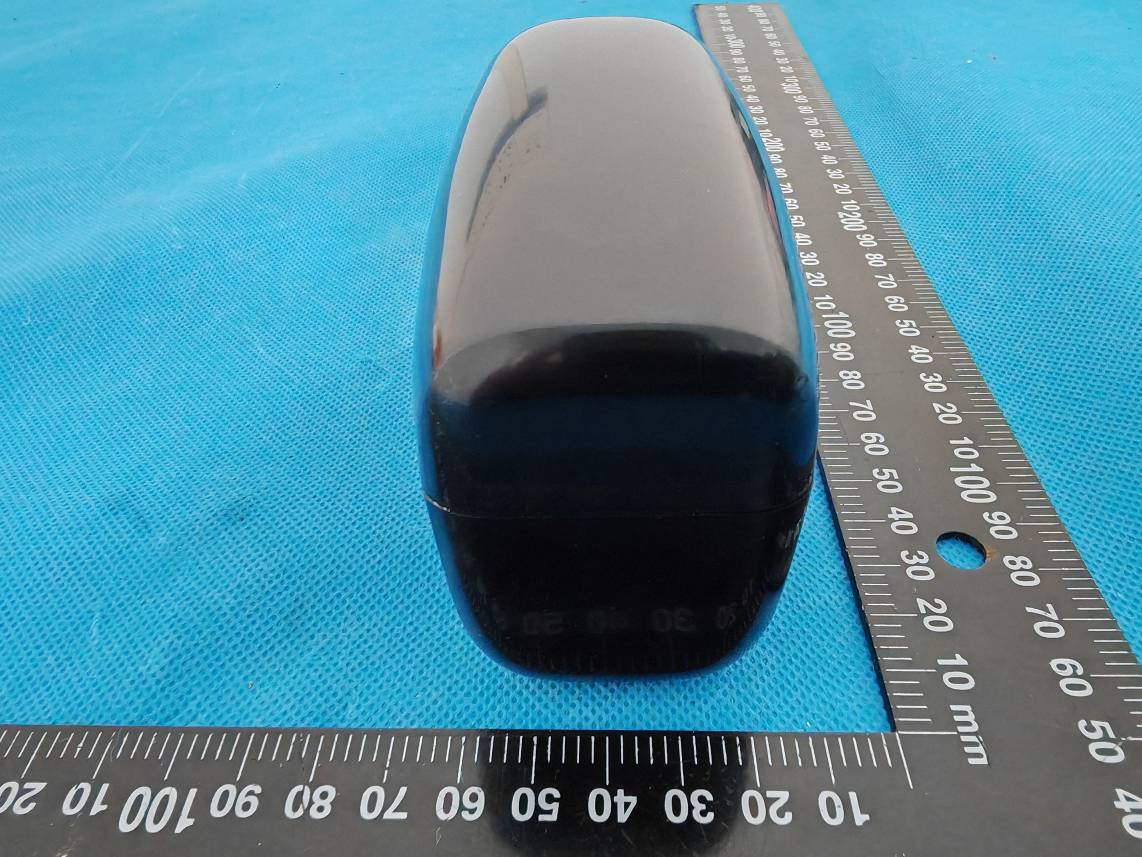

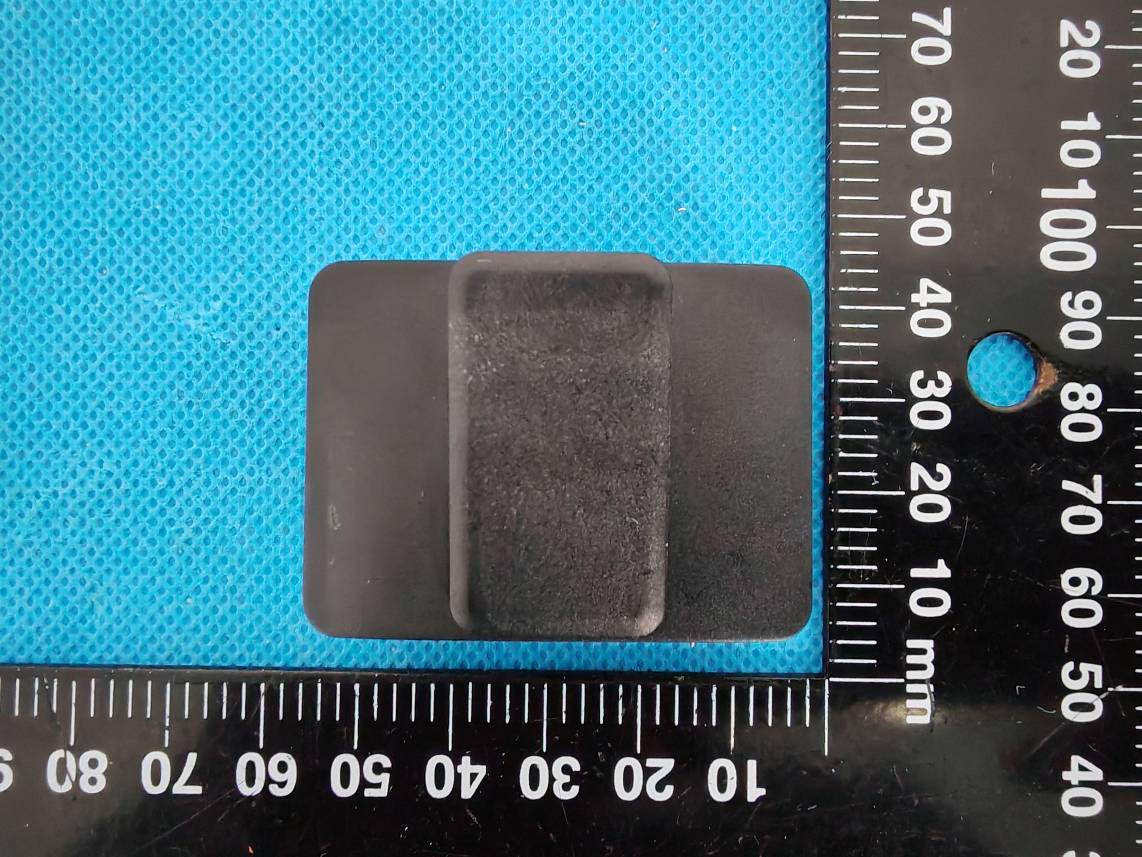

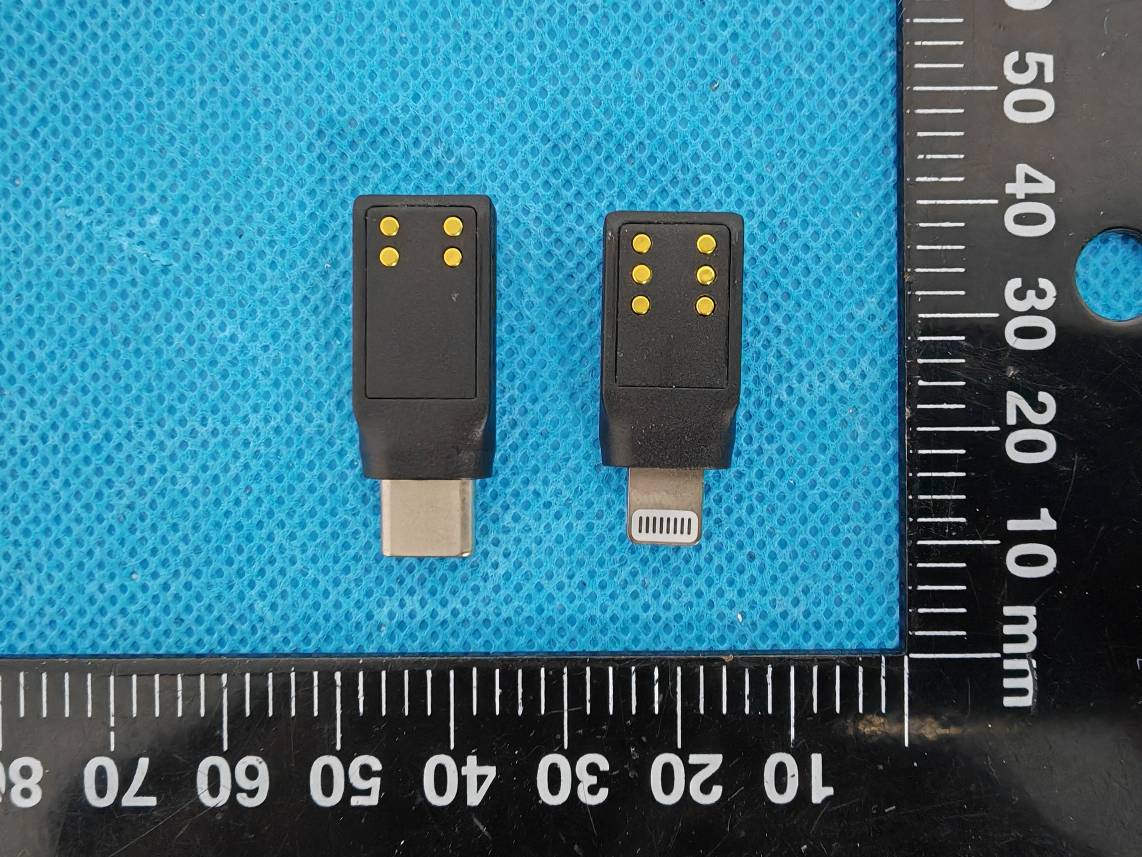

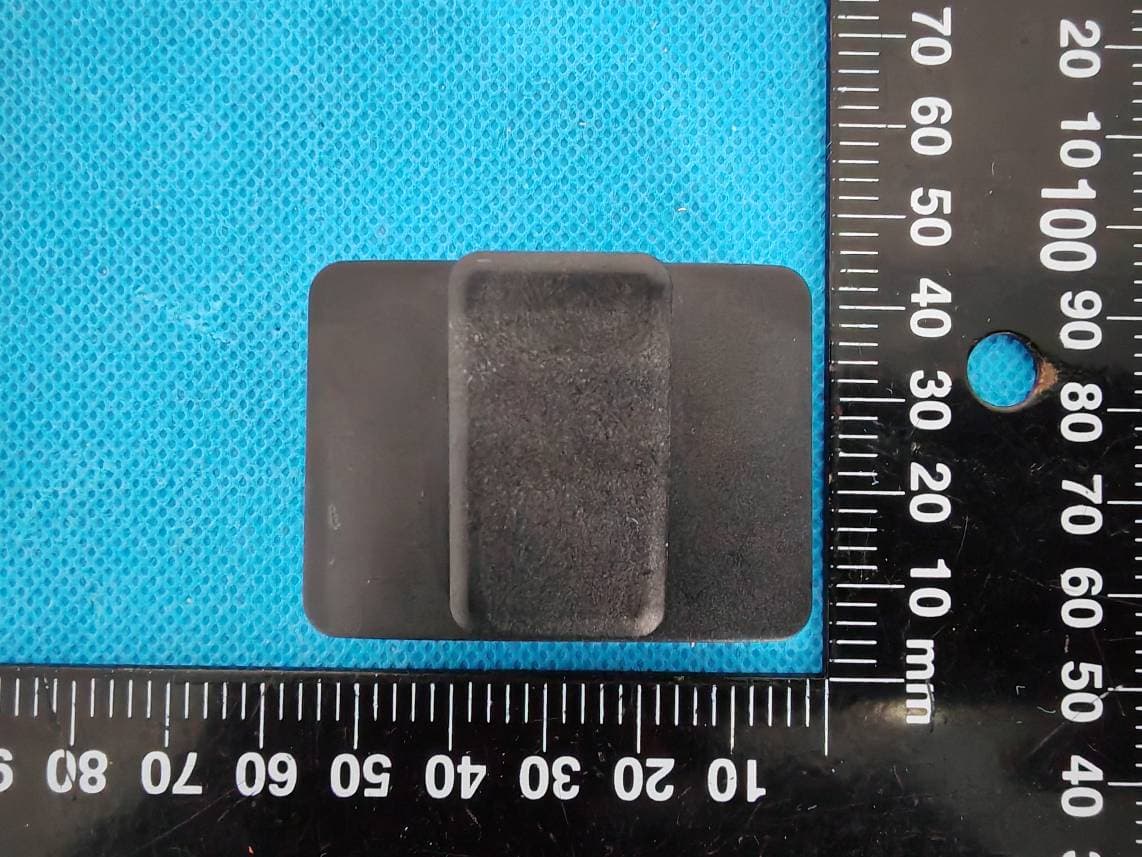

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-EXP Page 1 of 9 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-EXP Page 2 of 9 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-EXP Page 3 of 9 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-EXP Page 4 of 9 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-EXP Page 5 of 9 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-EXP Page 6 of 9 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-EXP Page 7 of 9 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-EXP Page 8 of 9 port port China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-EXP Page 9 of 9

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-INP Page 1 of 12 EUT INTERNAL PHOTOGRAPHS uncover China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-INP Page 2 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-INP Page 3 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-INP Page 4 of 12 SRD Antenna chip China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-INP Page 5 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-INP Page 6 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-INP Page 7 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-INP Page 8 of 12 Coil China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-INP Page 9 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-INP Page 10 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-INP Page 11 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-INP Page 12 of 12

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-00 Page 49 of 51 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard According to§15.247(i) and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 5.2 Measurement Result The max conducted power including tune-up tolerance is 4.5 dBm (2.82 mW). [(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)] =2.82/5*(√2.480) = 0.89< 3.0 Result: Compliant. The stand-alone SAR evaluation is not necessary.

ModelName：BOYAMIC Frequency:(2402~2480MHz) Manufacturer: Shenzhen Jiayz photo industrial ., Ltd; ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China

TEST REPORT Applicant: Shenzhen Jiayz photo industrial ., Ltd Address: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China FCC ID: 2ARN3-072711RX Product Name: Microphone Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230745360-00 Date Of Issue: 2023/8/30 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-00 Page 2 of 51 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230745360-00 Page 3 of 51 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................ 10 2. SUMMARY OF TEST RESULTS .......................................................................................... 11 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 12 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 12 3.1.1 Applicable Standard ..................................................................................................................................... 12 3.1.2 EUT Setup.................................................................................................................................................... 13 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 13 3.1.4 Test Procedure ............................................................................................................................................. 14 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.2 RADIATED SPURIOUS EMISSIONS ...................................................................................................... 15 3.2.1 Applicable Standard ..................................................................................................................................... 15 3.2.2 EUT Setup.................................................................................................................................................... 15 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 3.2.4 Test Procedure ............................................................................................................................................. 16 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 16 3.3 20 DB EMISSION BANDWIDTH ...............................…
