2ARN3-MICRIGWUniversal Video Grip with Built 2.4GHz Wireless Mic

Shenzhen Jiayz photo industrial., Ltd Agent Authorization Company: Shenzhen Jiayz photo industrial., Ltd Address: A16 Builing, Intelligent Terminal Industrial Park of Sililcon Valley Power, Guanlan, Longhua District, Shenzhen, China Product Name: Universal Video Grip with Built 2.4GHz Wireless Mic Model Number(s): MicRig W, MicRig W1, MicRig W2 Product Description: Universal Video Grip with Built 2.4GHz Wireless Mic We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021/05/18 Name: michael zhao Title: Manager Company: Shenzhen Jiayz photo industrial., Ltd

Shenzhen Jiayz photo industrial., Ltd Authorization Letter We, (the approval holder) Company name Shenzhen Jiayz photo industrial., Ltd Addresss A16 Builing, Intelligent Terminal Industrial Park of Sililcon Valley Power, Guanlan, Longhua District, Shenzhen, China declare that the following representative (agent): Name (person) Bovey Yang Company name Shenzhen STS Test Services Co., Ltd. Addresss 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to Micom Labs for product certification below Product Description Universal Video Grip with Built 2.4GHz Wireless Mic Type or Model(s) MicRig W, MicRig W1, MicRig W2 Tradename or Brand(s) BOYA, MOVO, SEVENOAK FCC ID 2ARN3-MICRIGW Attestation: City: Date: Name: (this must be a person) Function: Signature: (or official company stamp) China 2021.05.18 michael zhao Manager

Differences Description We Shenzhen Jiayz photo industrial., Ltd state: Product： Universal Video Grip with Built 2.4GHz Wireless Mic Model Name： MicRig W, MicRig W1, MicRig W2 Brand Name： BOYA, MOVO, SEVENOAK FCC ID： 2ARN3-MICRIGW Both of models have the same circuit schematic, construction, PCB Lavout and critical components. Only different in model names and brand name. Sincerely, Company: Shenzhen Jiayz photo industrial., Ltd Title: Manager E-mail: [email protected] Name: michael zhao Signature

Shenzhen Jiayz photo industrial., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021.05.18 FCC ID: 2ARN3-MICRIGW To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: michael zhao Title: Manager

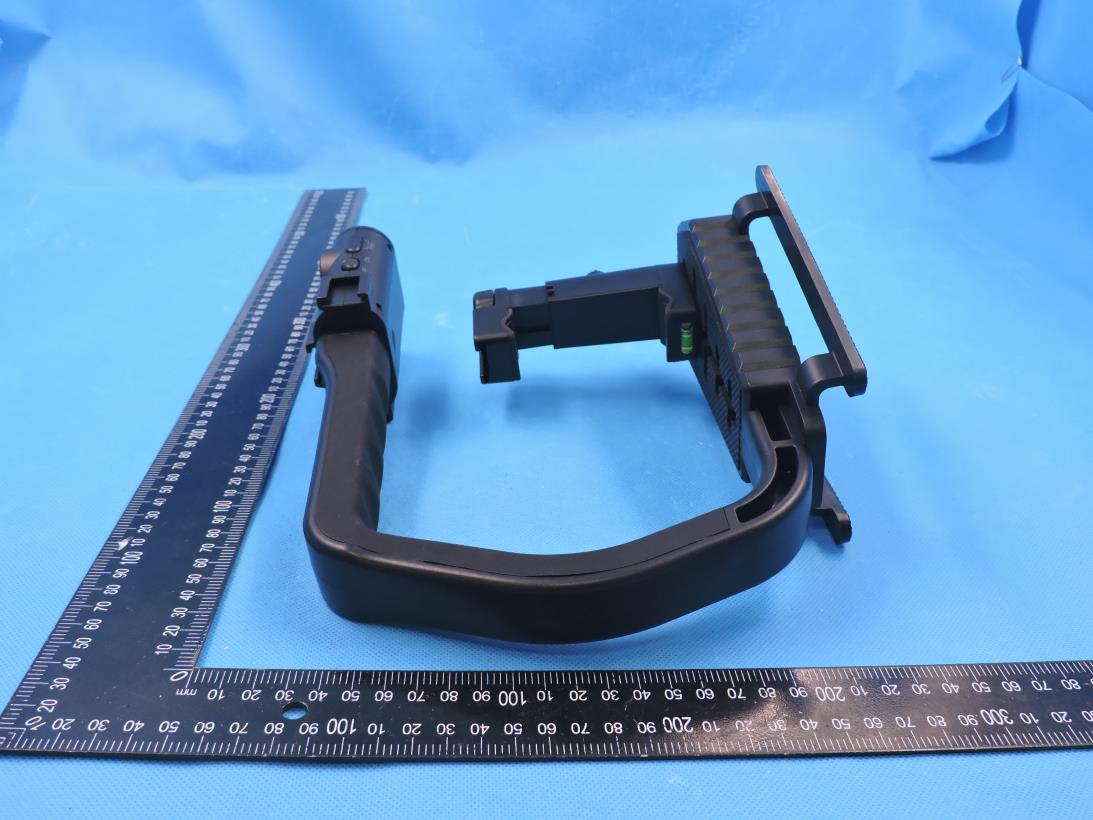

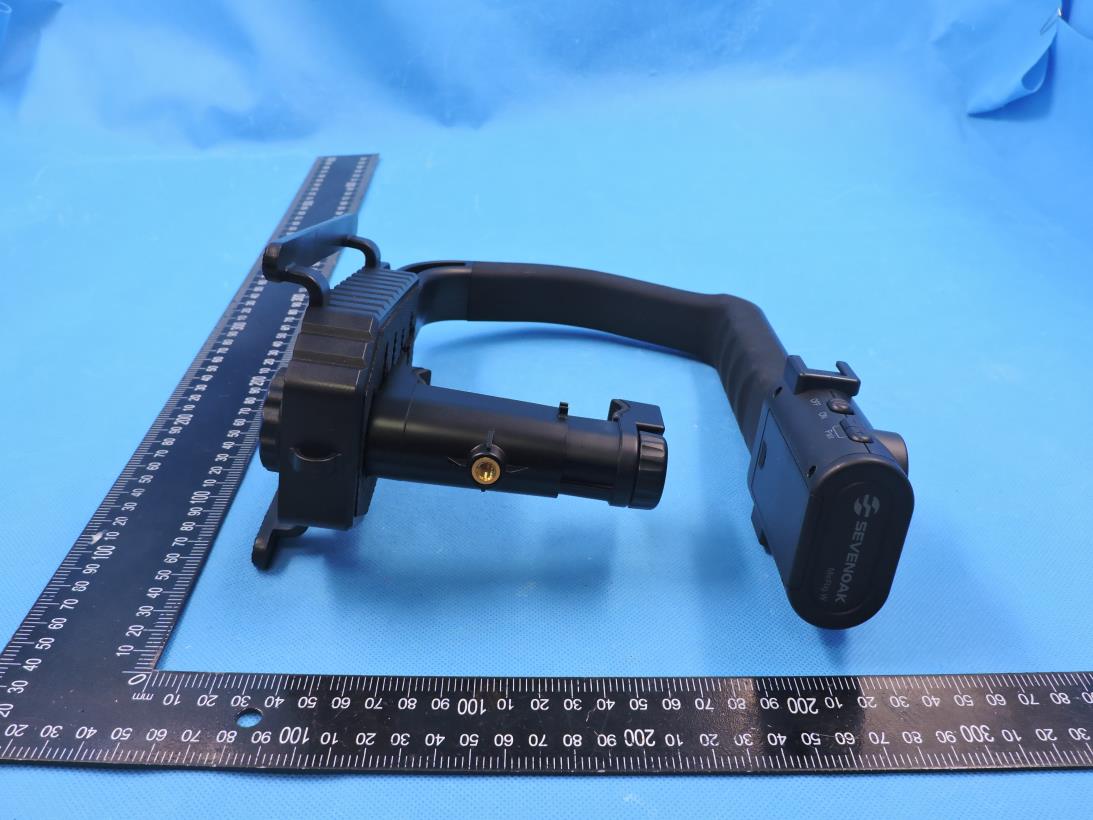

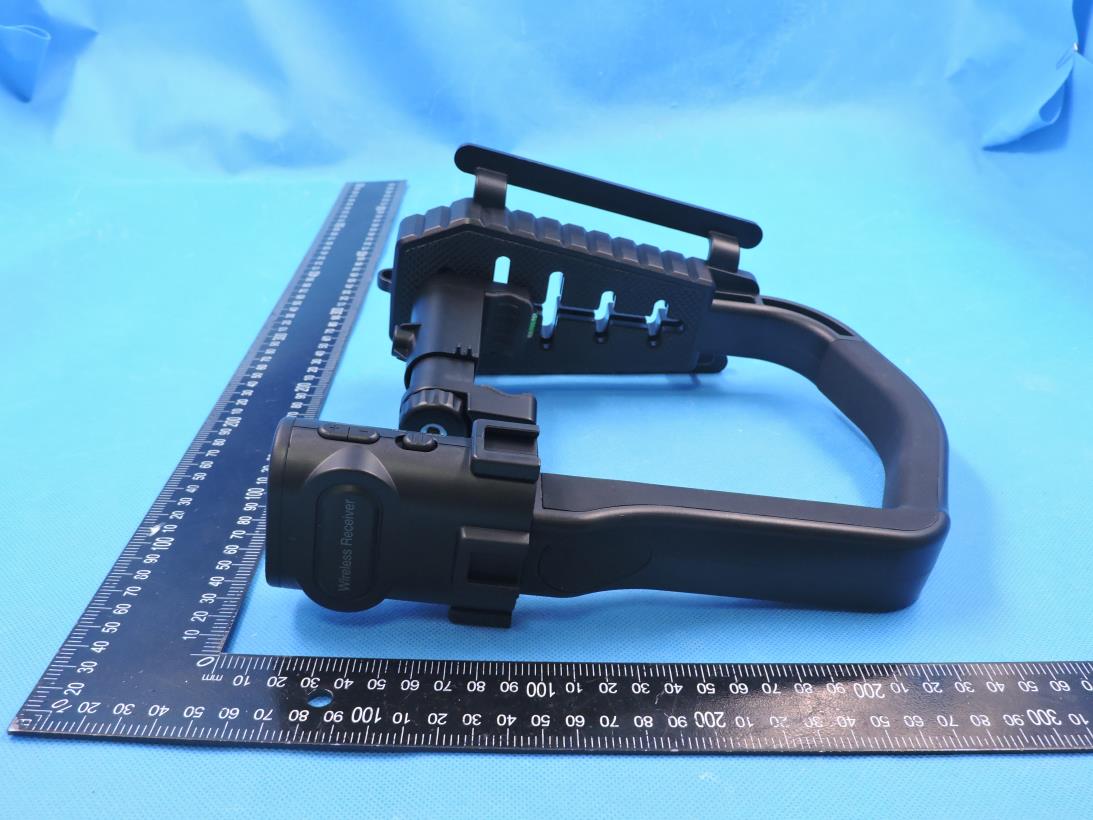

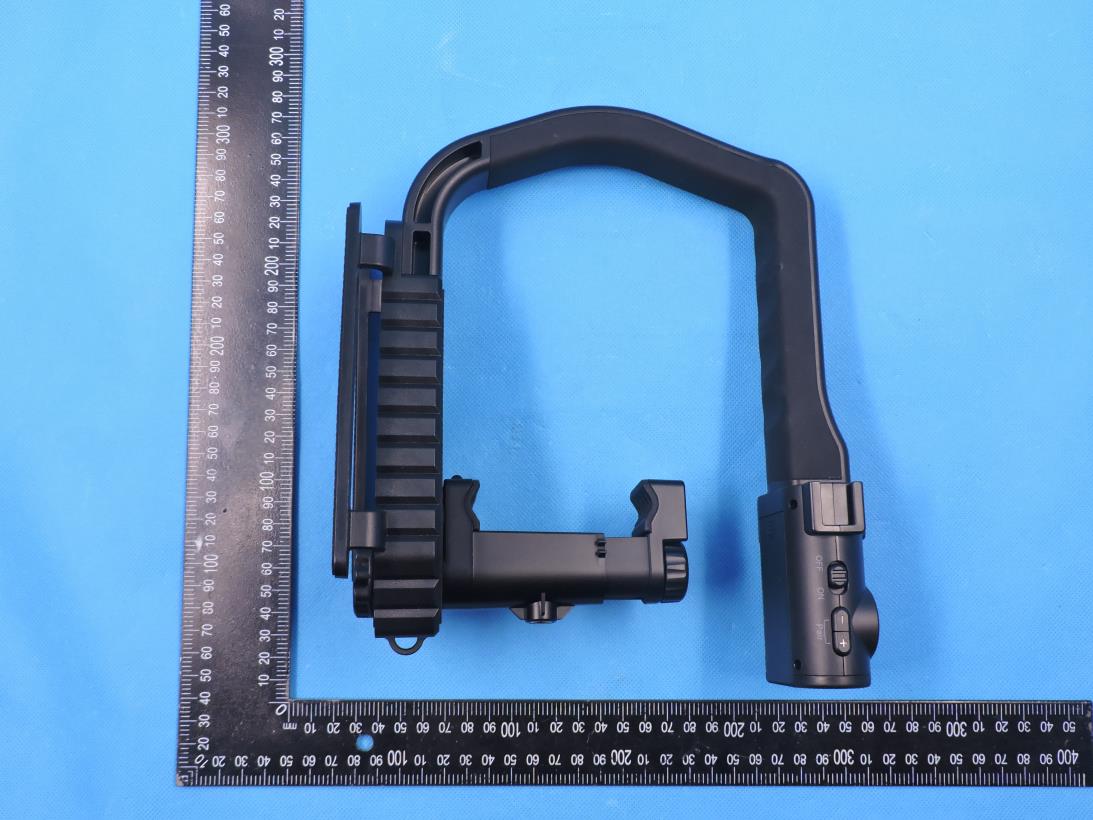

Page 1 of 3 Report No.: STS2104131 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: MicRig W Photo 1 Photo 2 Page 2 of 3 Report No.: STS2104131 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2104131 Photo 5 Photo 6

Label Size:10*30mm The label is printed on the shell FCC ID: 2ARN3-MICRIGW .

Page 1 of 2 Report No.: STS2104131 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: MicRig W Photo 1 Photo 2 Antenna Page 2 of 2 Report No.: STS2104131 Photo 3 Photo 4

FCC ID: 2ARN3-MICRIGW RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: 2ARN3-MICRIGW Maximum measured transmitter power. 2.4G The Worst Case Mode 2406-2474MHz Detector PEAK LOW -2±1dBm Middle -3±1dBm High -4±1dBm Remark: The worst case gain of the antenna is 2.5dBi. 2.5dBi logarithmic terms convert to numeric result is nearly 1.78 Low 2.406 -2.98 -1 0.79432823 0.2464 3 Middle 3.438 -3.73 -2 0.63095734 0.2340 3 High 2.474 -4.8 -3 0.50118723 0.1577 3 Mode Limit Maximum Peak Conducted Output Power (dBm) frequency (GHz) Tune up Power(dBm) Tune up Power (mW) Result Threshold at which no SAR required is 0.2464≤ 3.0 for 1-g SAR, Separation distance is 5mm.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2104131W03 Issued for Shenzhen Jiayz photo industrial., Ltd A16 Builing, Intelligent Terminal Industrial Park of Sililcon Valley Power, Guanlan, Longhua District, Shenzhen, China Product Name: Universal Video Grip with Built 2.4GHz Wireless Mic Brand Name: BOYA, MOVO, SEVENOAK Model Name: MicRig W Series Model: MicRig W1, MicRig W2 FCC ID: 2ARN3-MICRIGW Test Standard: FCC Part 15.247 S T L A B S Page 2 of 43 Report No.: STS2104131W03 TEST RESULT CERTIFICATION Applicant’s Name ................. : Shenzhen Jiayz photo industrial., Ltd Address ................................. : A16 Builing, Intelligent Terminal Industrial Park of Sililcon Valley Power, Guanlan, Longhua District, Shenzhen, China Manufacturer's Name .......... : Shenzhen Jiayz photo industrial., Ltd Address ................................. : A16 Builing, Intelligent Terminal Industrial Park of Sililcon Valley Power, Guanlan, Longhua District, Shenzhen, China Product Description Product Name ....................... : Universal Video Grip with Built 2.4GHz Wireless Mic Brand Name ........................ : BOYA, MOVO, SEVENOAK Model Name .......................... : MicRig W Series Model ......................... : MicRig W1, MicRig W2 Test Standards ..................... : FCC Part15.247 Test Procedure ...................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 25 Apr. 2021 Date (s) of performance of tests ............. : 25 Apr. 2021 ~ 13 May 2021 Date of Issue .......................................... : 13 May 2021 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 43 Report No.: STS2104131W03 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 TEST SOFTWARE AND POWER LEVEL 9 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.6 EQUIPMENTS LIST 11 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.2 TEST PROCEDURE 14 3.3 TEST SETUP 14 3.4 EUT OPERATING CONDITIONS 14 3.5 TEST RESULTS 15 4. RADIATED EMISSION MEASUREMENT 16 4.1 RADIATED EMISSION LIMITS 16 4.2 TEST PROCEDURE 18 4.3 TEST SETUP 19 4.4 EUT OPERATING CONDITIONS 19 4.5 FIELD STRENGTH CALCULATION 20 4.6 TEST RESULTS 21 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 28 5.1 LIMIT 28 5.2 TEST PROCEDURE 28 5.3 TEST SETUP 28 5.4 EUT OPERATION CONDITIONS 28 5.5 TEST RESULTS 29 6. POWER SPECTRAL DENSITY TEST 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 TEST SETUP 33 Page 4 of 43 Report No.: STS2104131W03 Table of Contents 6.4 EUT OPERATION CONDITIONS 33 6.5 TEST RESULTS 34 7. BANDWIDTH TEST 36 7.1 LIMIT 36 7.2 TEST PROCEDURE 36 7.3 TEST SETUP 36 7.4 EUT OPERATION CONDITIONS 36 7.5 TEST RESULTS 37 8. PEAK OUTPUT POWER TEST 39 8.1 LIMIT 39 8.2 TEST PROCEDURE 39 8.3 TEST SETUP 40 8.4 EUT OPERATION CONDITIONS 40 8.5 TEST RESULTS 41 9. ANTENNA REQUIREMENT 42 9.1 STANDARD REQUIREMENT 42 9.2 EUT ANTENNA 42 10. EUT TEST PHOTO 43 Page 5 of 43 Report No.: STS2104131W03 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 13 May 2021 STS2104131W03 ALL Initial Issue Page 6 of 43 Report No.: STS2104131W03 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 43 Report No.: STS2104131W03 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9K-30MHz ±2.84dB 4 All emissions, radiated 30M-1GHz ±4.39dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.48dB 7 Conducted Emission (9KHz-150KHz) ±2.79dB 8 Conducted Emission (150KHz-30MHz) ±2.80dB Page 8 of 43 Repor…

Text truncated - open the document above for the full version.

Page 1 of 1 FCC ID: 2ARN3-MICRIGW DTS Setup photo Model name: MicRig W DTS radiation L DTS radiation H
