2ARN3-SR-BH900Bluetooth Wireless Active Noise-Cancelling Headphones

Shenzhen Jiayz photo industrial.,Ltd A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Agent Authorization Company: Shenzhen Jiayz photo industrial.,Ltd Address: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Product Name: Wireless Active Noise-Cancelling Headphones Model Number(s): SR-BH900 Product Description: Bluetooth Wireless Active Noise-Cancelling Headphones We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 07, 2021 Name: michael zhao Title: manager Company: Shenzhen Jiayz photo industrial.,Ltd

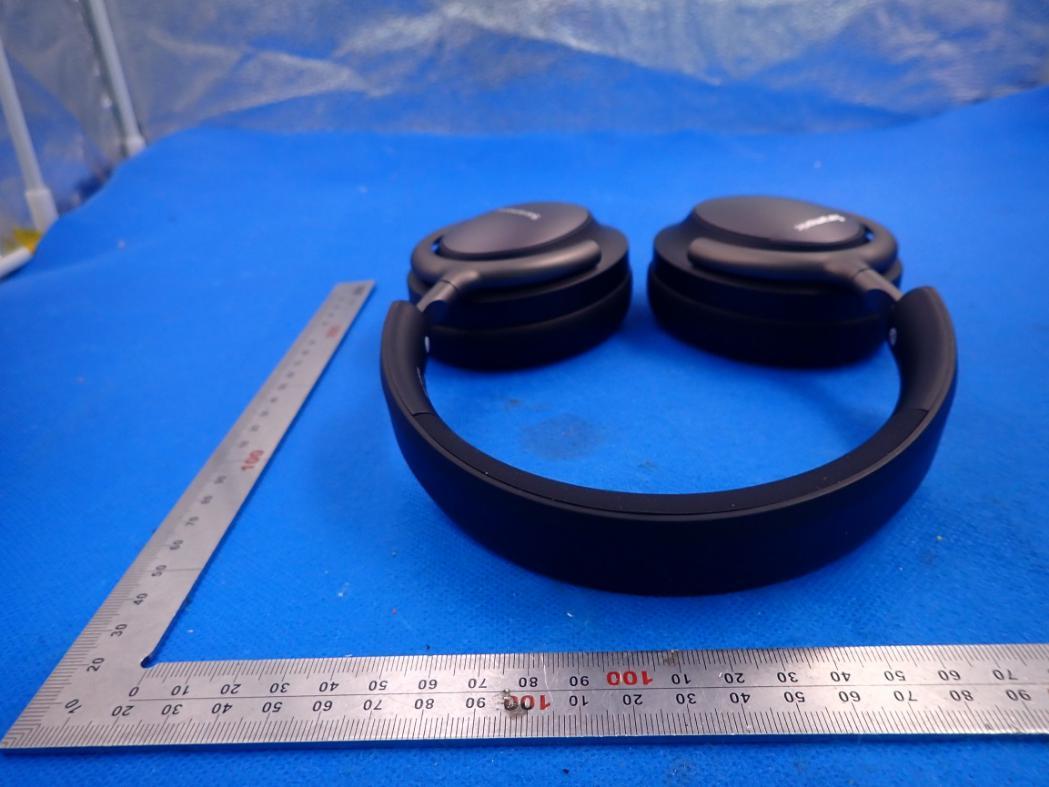

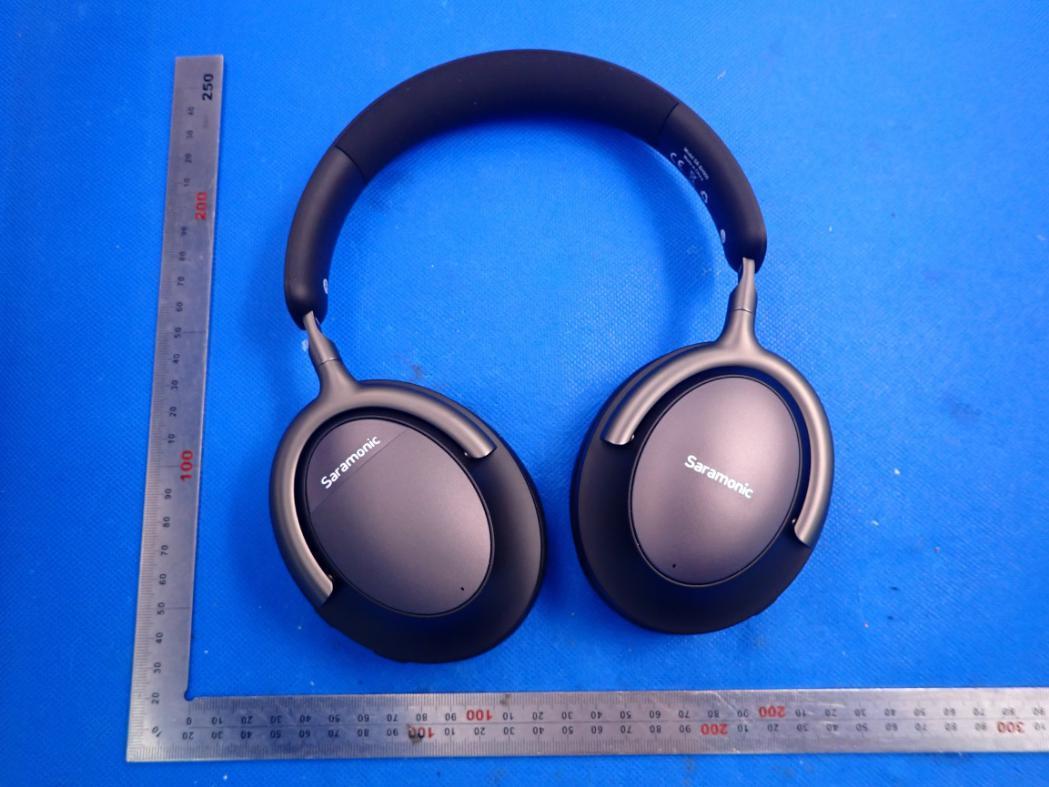

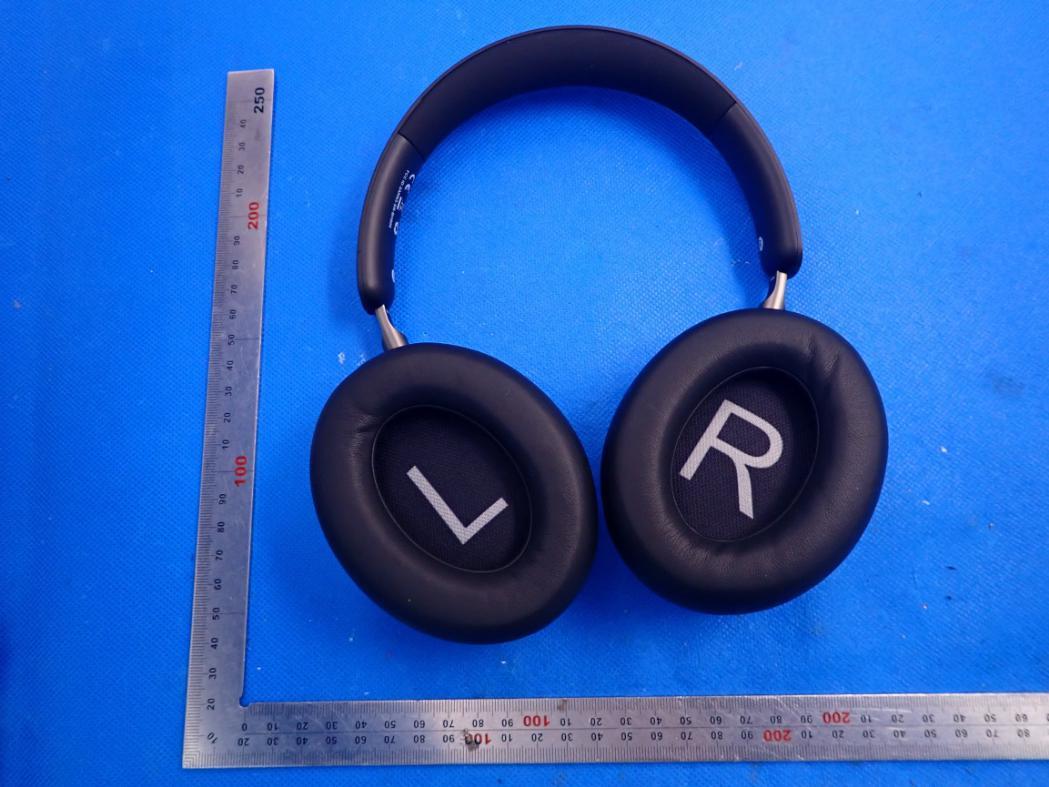

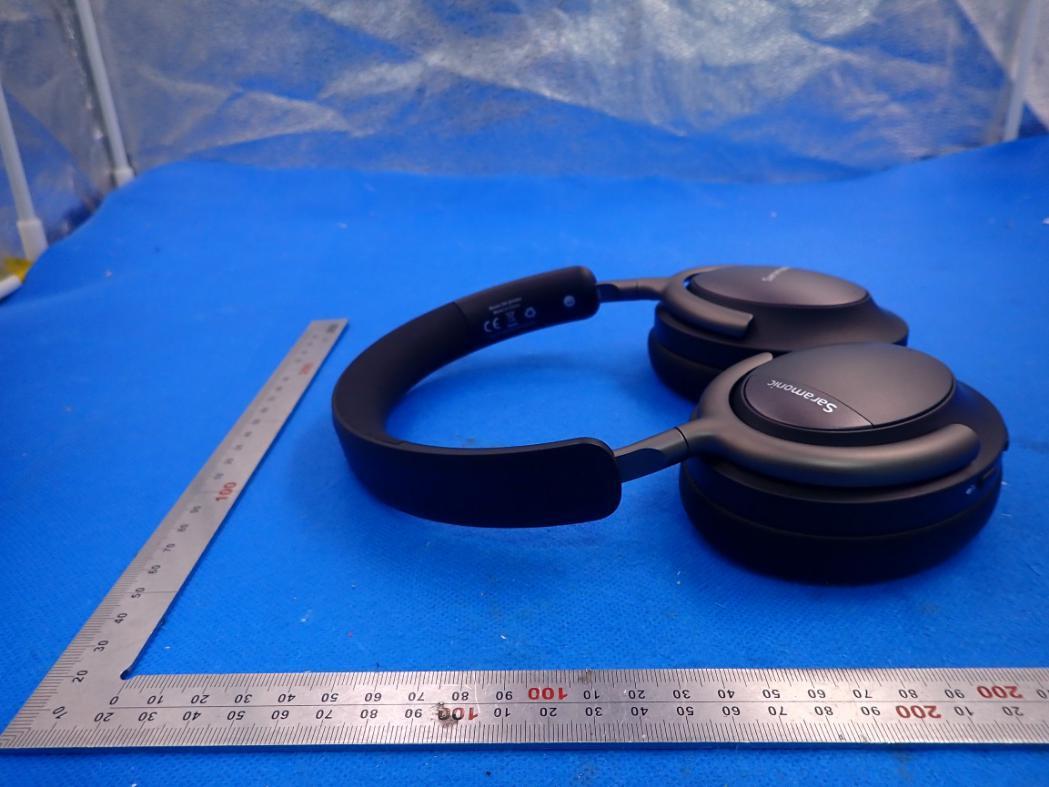

External Photos Test Model: SR-BH900 WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)-1 VIEW OF EUT(PORT)-2

FCC ID Label Location 15mm*10mm FCC ID: 2ARN3-SR-BH900

Internal Photos Test Model: SR-BH900 OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Wireless Active Noise-Cancelling Headphones Model Name SR-BH900 FCC ID 2ARN3-SR-BH900 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t = 4.361dBm=2.73mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(2.73mW /5mm) .[√2.480GHz)]=0.86<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 71 FCC Test Report Report No.: AGC09691201205FE03 FCC ID : 2ARN3-SR-BH900 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Active Noise-Cancelling Headphones BRAND NAME : Saramonic MODEL NAME : SR-BH900 APPLICANT : Shenzhen Jiayz photo industrial ., Ltd. DATE OF ISSUE : Jan. 06, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC09691201205FE03 Page 2 of 71 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan. 06, 2021 Valid Initial Release Report No.: AGC09691201205FE03 Page 3 of 71 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 20 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 21 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 27 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 27 Report No.: AGC09691201205FE03 Page 4 of 71 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 27 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 27 10. RADIATED EMISSION ................................................................................................................................. 40 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 40 10.2. TEST SETUP ......................................................................................................................................... 42 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 43 10.4. TEST RESULT........................................................................................................................................ 43 11. NUMBER OF HOPPING FREQUENCY ................................…

Text truncated - open the document above for the full version.

Report No.: AGC09691201205FE03 Page 41 of 71 The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC09691201205FE03 Page 42 of 71 10.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC09691201205FE03 Page 43 of 71 10.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested for restricted band radiated emission, the test records reported below are the worst result compared to other modes. 10.4. TEST RESULT RADIATED EMISSION BELOW 30MHz The amplitude of spurious emissions from 9kHz to 30MHz which are attenuated more than 20 dB below the permissible value need not be reported. Report No.: AGC09691201205FE03 Page 44 of 71 RADIATED EMISSION BELOW 1GHz EUT Wireless Active Noise-Cancelling Headphones Model Name SR-BH900 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal NO. Freq. [MHz] Level [dBμV/m ] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 30.9700 31.62 10.02 40.00 8.38 100 163 Horizontal 2 55.2200 27.05 11.27 40.00 12.95 200 351 Horizontal 3 99.8400 25.48 11.30 43.50 18.02 200 280 Horizontal 4 159.9800 29.46 14.94 43.50 14.04 200 326 Horizontal 5 366.5900 33.03 18.50 46.00 12.97 200 40 Horizontal 6 716.7600 33.23 26.37 46.00 12.77 200 353 Horizontal RESULT: PASS Report No.: AGC09691201205FE03 Page 45 of 71 EUT Wireless Active Noise-Cancelling Headphones Model Name SR-BH900 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical NO. Freq. [MHz] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 40.6700 26.21 11.91 40.00 13.79 100 6 Vertical 2 52.3100 29.47 11.49 40.00 10.53 100 339 Vertical 3 107.6000 25.95 12.17 43.50 17.55 100 41 Vertical 4 159.9800 28.94 14.94 43.50 14.56 100 2 Vertical 5 232.7300 23.06 14.25 46.00 22.94 100 34 Vertical 6 366.5900 33.24 18.50 46.00 12.76 100 5 Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Measurement-Limit. 2. All test modes had been pre-tested. The mode 3 is the worst case and recorded in the report. Report No.: AGC09691201205FE03 Page 46 of 71 RADIATED EMISSION ABOVE 1GHz EUT Wireless Active Noise-Cancelling Headphones Model Name SR-BH900 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00045.360.0845.4474-28.56 peak 4804.00038.670.0838.7554-15.25 AVG 7206.00041.352.2143.5674-30.44 peak 7206.00033.082.2135.2954-18.71 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Wireless Active Noise-Cancelling Headphones Model Name SR-BH900 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00043.560.0843.6474-30.36 peak 4804.00037.950.0838.0354-15.97 AVG 7206.00040.722.2142.9374-31.07 peak 7206.00032.482.2134.6954-19.31 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC09691201205FE03 Page 47 of 71 EUT Wireless Active Noise-Cancelling Headphones Model Name SR-BH900 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00046.040.1446.1874-27.82 peak 4882.00039.470.1439.6154-14.39 AVG 7323.00042.522.3644.8874-29.12 peak 7323.00034.962.3637.3254-16.68 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Wireless Active Noise-Cancelling Headphones Model Name SR-BH900 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00045.640.1445.7874-28.22 peak 4882.00038.120.1438.2654-15.74 AVG 7323.00041.792.3644.1574-29.85 peak 7323.00032.212.3634.5754-19.43 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC09691201205FE03 Page 48 of 71 EUT Wireless Active Noise-Cancelling Headphones Model Name SR-BH900 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00046.970.2247.1974-26.81 peak 4960.00039.160.2239.3854-14.62 AVG 7440.00041.542.6444.1874-29.82 peak 7440.00032.322.6434.9654-19.04 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Wireless Active Noise-Cancelling Headphones Model Name SR-BH900 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00046.140.2246.3674-27.64 peak 4960.00038.450.2238.6754-15.33 AVG 7440.00040.292.6442.9374-31.07 peak 7440.00033.722.6436.3654-17.64 AVG Remar…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED TEST SETUP
