2ARN3-UWMIC9STXUHF Wireless Microphone System

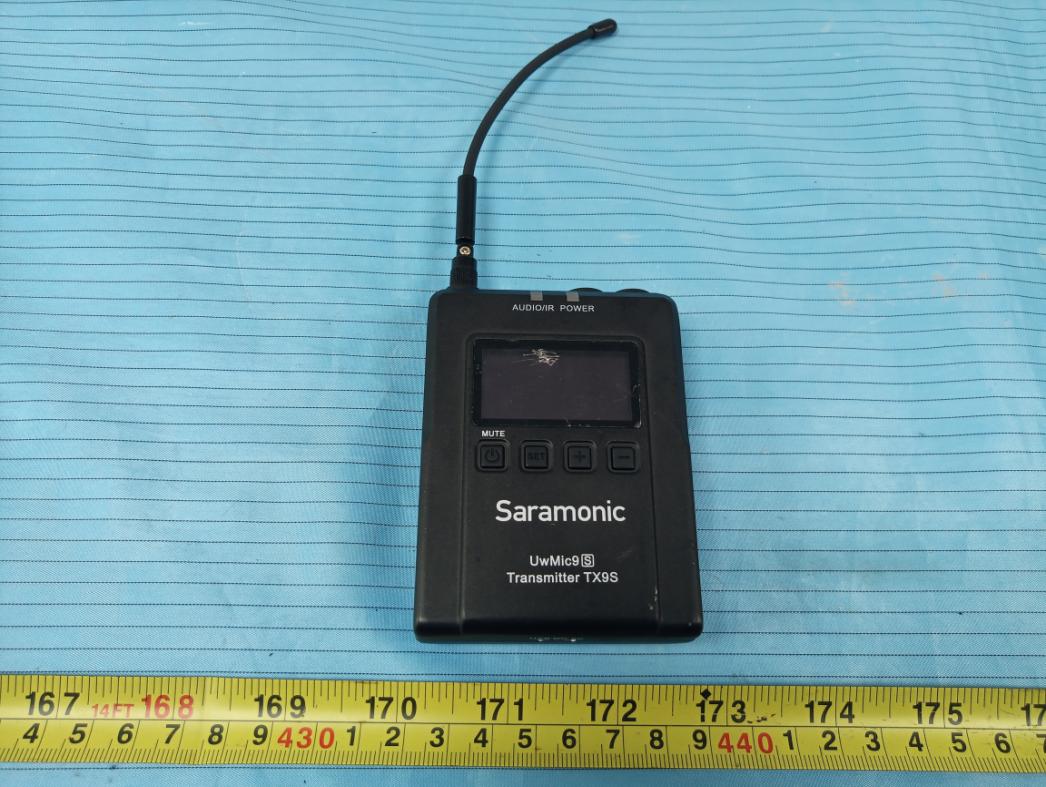

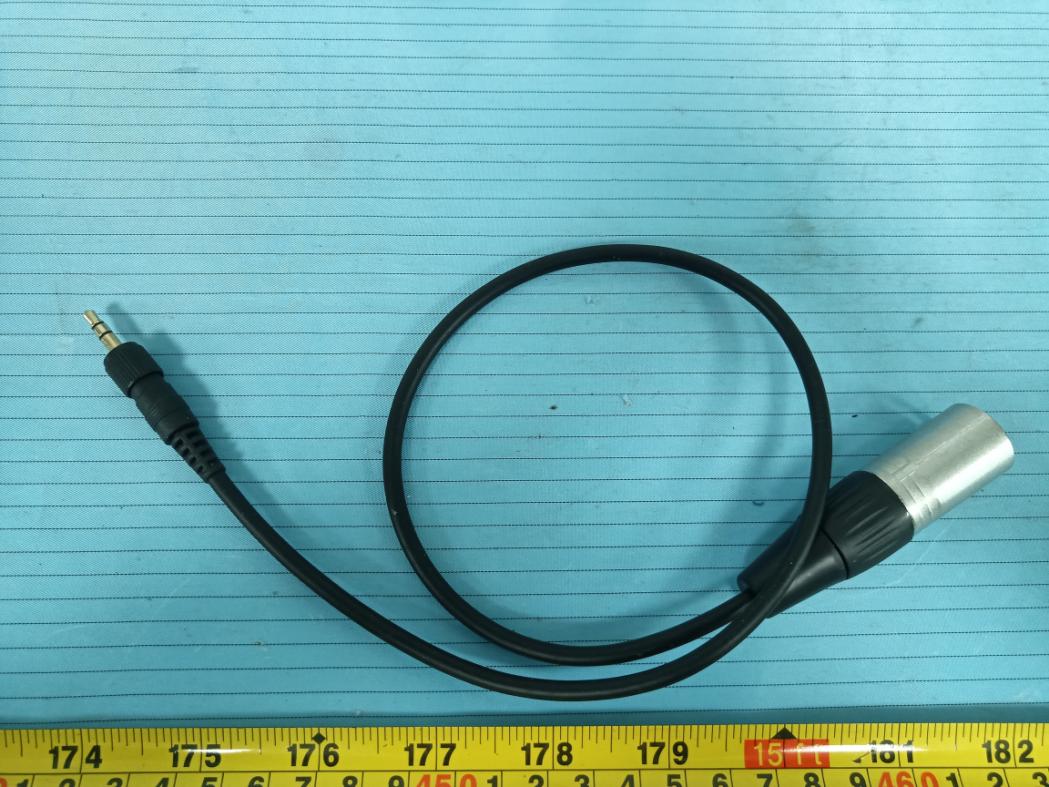

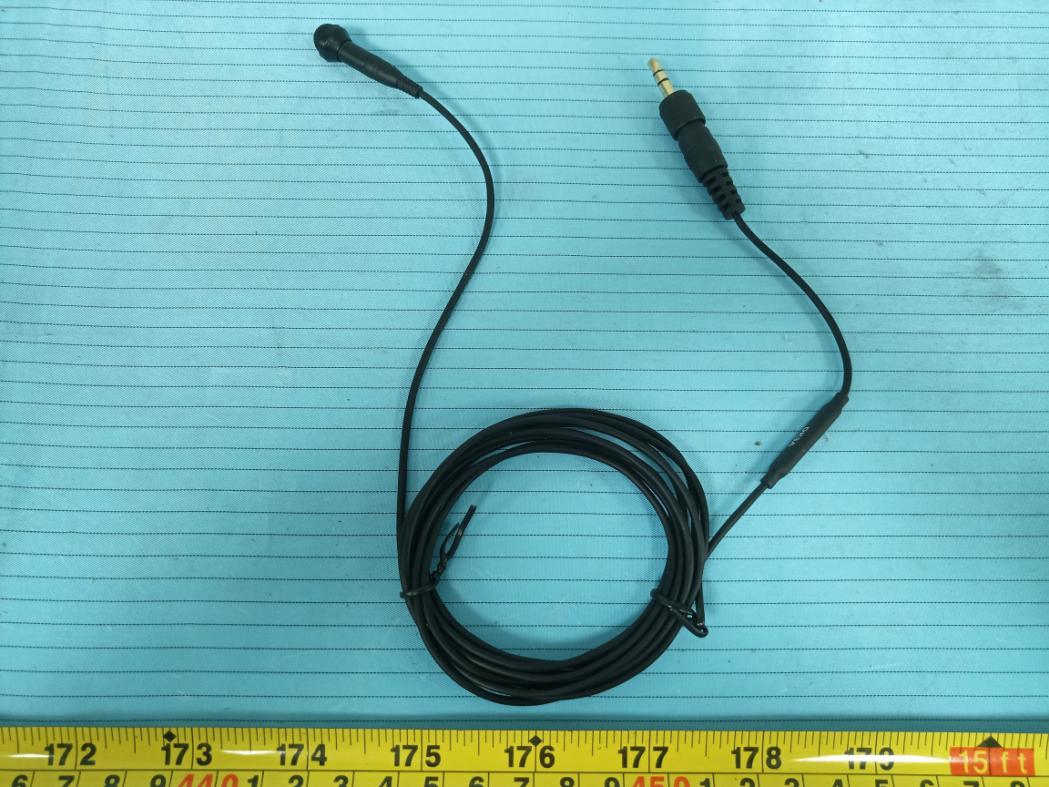

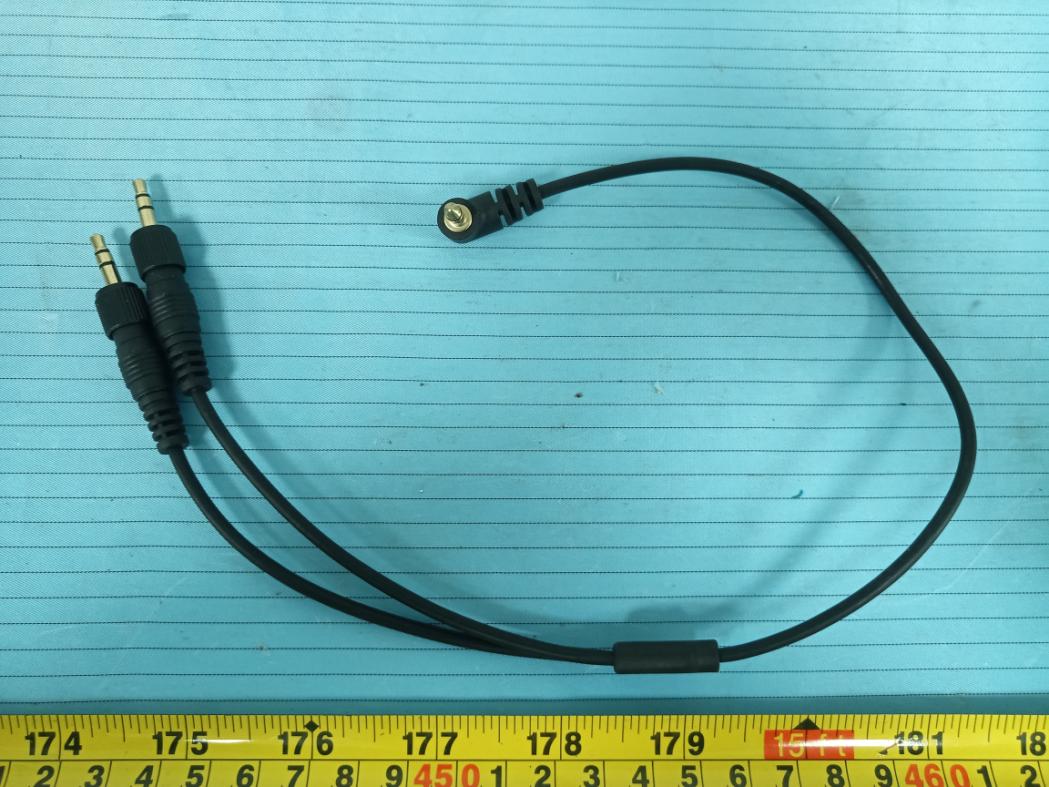

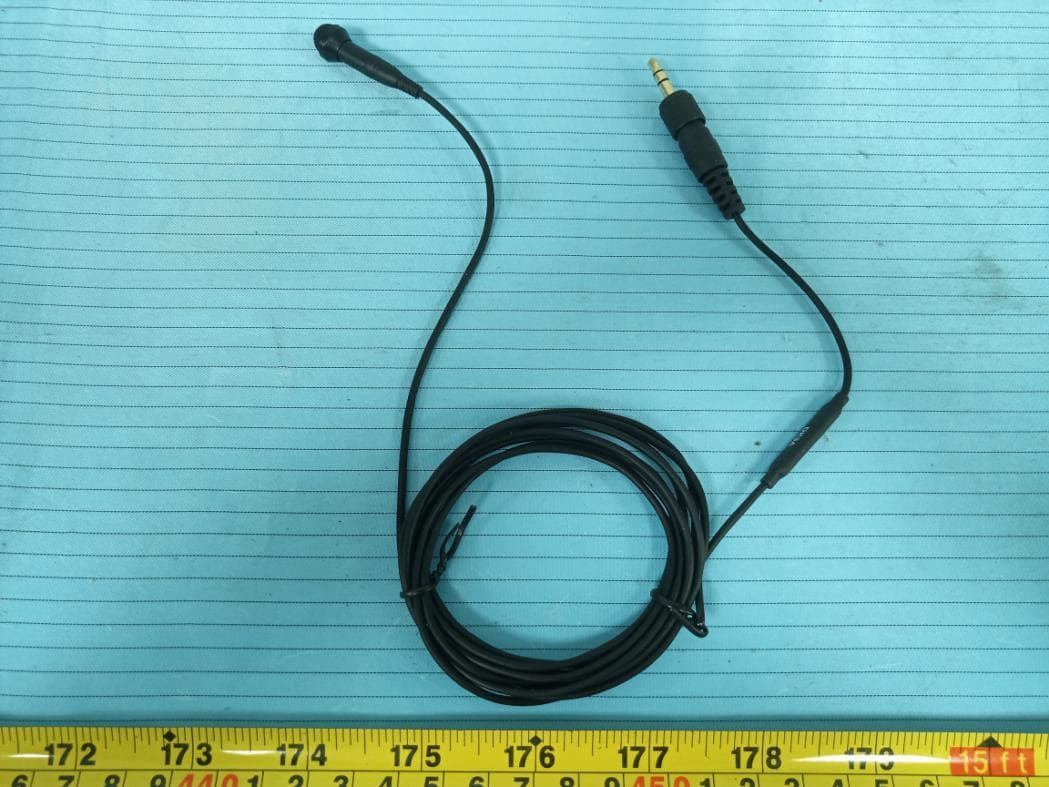

User Manual 用户手册 UHF Wireless Microphone System 无线麦克风系统 UwMic9S Kit2 (TX9S+TX9S+RX9S) Statement Please read this manual carefully before using and strictly operate and store in accordance with the instructions. Please save it for your future reference. If the user manual can not help you to solve certain problems, please ask your retailer for help or email us: [email protected]. Cautions 1. Do not use the unit under water, don't expose it to rain. Please store it in a cool, dry place. 2. Please use and store it in normal temperature. Do ot move it from overheated to supercooled condition frequently as well as keep away from heat sources such as heater and oven. 3. When using and storing, please pay attention to dust and moisture. 4. Be careful to violent collision. 5. To avoid acoustical feed-back, do not hold the microphone close to the loudspeakers. 6. For the best sound pick-up pattern do not hold your hand against the microphone head. 7. Remove the batteries from the battery compartment when the device is not used for a long time. 3 General Introduction The Saramonic UwMic9S UHF wireless microphone system is intended for portable wireless operation and can be used in several environments for applications such as DSLR video, field recording, broadcast TV, electronic news gathering (ENG), on-the-spot interviews, and more. Portable Receiver RX9S Introduction The Saramonic RX9S is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to- read, high-contrast OLED display and infrared synchronization between transmitter and receiver. Equipped with an auto-scan function, the RX9S can automatically search for an available transmission frequency. The selectable output mode allows you to choose the output signal to be mono or stereo. Product Structure ① Antennas ② A channel output jack Connect the RX9S to a video camera, camcorder, mixer or amplifier with the supplied output cables. ③ B channel output jack Connect the RX9S to a video camera, camcorder, mixer or amplifier with the supplied output cables. ④ RF-A indicator RF indicator displays the RF input level as follows: Solid Green: RF signal is strong. Flash Green: RF signal is weak. Lights off: RF signal is disconnected. ⑤ IR/POWER indicator Indicates the battery level as follows: Solid Green: Sufficient battery level. Solid Red: Low batter level. Charging Status: Flashing Red: Charging. ⑥ RF-B indicator RF indicator displays the RF input level as follows: Green light: RF signal is strong. Lights off: RF signal is disconnected. ⑦ MIC IN/LINE IN jack It can be connected to the 3.5mm lavalier microphone or line-in devices ⑧ OLED display Display menus, please refer to "OLED Display Operation Guide" (page 4) for more details. ⑨ Power button Long Press to turn on or off the RX9S. 4 Attach the shoe mount adapter. ① Please attach the belt clip upside-down before attach-ing the shoe mount adapter. ② Push the bottom of the belt clip to make some space between the belt clip and the receiver. ③ Align the belt clip with the two vertical grooves on the shoe mount adapter and insert the adapter in the direction of the arrow. ④ Push the shoe mount adapter in fully until the belt clip fits into the horizontal groove on the adapter holds. ⑩ SET button Long press the SET button to enter the displayed menu. Then, short press the SET button to confirm your option or long press again to exit without saving. ⑪ + or – button Selects functions or values shown on the display. ⑫ ON/OFF switch A (A channel) ⑬ ON/OFF switch B (B channel) ⑭ Cold shoe mount adapter ⑮ USB-C charging port (DC 5V) Attaching Accessories Connect the supplied cable to the output jack. ① Choose the corresponding cable and plug into the OUTPUT jack. ② For a secure connection, turn to lock the connector. Attach a belt clip. Please Refer to "Attaching Accessories" (page 7). 5 Output mode. The output mode can be selected to mono or stereo. When the output mode is mono, the audio from left and right channel will be mixed. When it is stereo, the left (Group B) and right (Group A) audio channel output will be separated. Please make sure the ON/OFF switch of both channels have been turn to ON position. System default is mono. Input mode. The input mode can be selected to Mic in or Line in. When the input mode is Mic in mode, the receiver can be connected to the 3.5mm lavalier microphone. When the input mode is Line in mode, the receiver can be connected to the line-in devices. System default is "Mic in". Low cut. Long press the SET button to turn on or off low cut function. Attenuate low-frequency rumble from audio at 1kHz. System default is low cut off. Default is“Low cut off”. Local mic Long press the set button to adjust the input type between Enable and Disable. When the receiver is connected to 3.5mm lavalier microphone or line-in devices, please set the Local mic to “Enable”. If not, please set the Local mic to “Disable”. Default is ”Disable” . When the mode is disable, the mic/line in jack of receiver can not be operated normally. Home screen. If no operation is performed for 20 seconds on the other screens, the display will automatically return to the home screen. ① Group icon Indicates the power of group A is turned off. Indicates the power of group A is turned on. ② RF level indicator Indicates the current reception level. ③ Battery level indicator Displays the battery level. Please replace both batteries immediately when the indicator starts flashing. ④ Name of the channel group ⑤ Current channel Displays the current channel number. ⑥ Audio input level meter Displays the audio input level. Power key. Long press the SET button to unlocked or locked the power key. Lock the power key to prevent the receiver being turned off unwittingly while using. • Unlocked: Long press the power key to turn the receiver on or off (System default). • Locked: The receiver will not be turned off even after pressing the power key. OLED Display Operation Guide ④ ⑤ ⑥…
