UHF Wireless Microphone System 无线麦克风系统 User Manual 用户手册 UwMic9 S tatement Ple ase read this manual carefully before using and strictly operate and store in accordance with the instructions. Please save it for your future reference. If the user manual can not help you to solve certain problems, please ask your retailer for help or email us: info@saramonic. com. C autions 1. Do not use the unit under water, don't expose it to rain. Please store it in a cool, dry place. 2. Please use and store it in normal temperature. Do ot move it from overheated to supercooled condition frequently as well as keep away from heat sources such as heater and oven. 3. When using and storing, please pay attention to dust and moisture. 4. Be careful to violent collision. 5. To avoid acoustical feed-back, do not hold the microphone close to the loudspeakers. 6. For the best sound pick-up pattern do not hold your hand against the microphone head. 7. Remove the batteries from the battery compartment when the device is not used for a long time. 1 General Introduction ......................................................................2 UwMic9-RX9 Introduction ...................................................................................2 Product Structure ..........................................................................2 Attaching Accessories ..................................................................4 LCD Display Operation Guide ....................................................5 UwMic9 TX9 Introduction ...................................................................................9 Product Structure ..........................................................................9 Attaching Accessories ................................................................10 LCD Display Operation Guide ..................................................11 UwMic9-HU9 Introduction .................................................................................14 Product Structure ........................................................................14 Setup Guide ................................................................................15 UwMic9 TX-XLR9 Introduction .................................................................................16 Product Structure ........................................................................16 Attaching Accessories ................................................................17 LCD Display Operation Guide ..................................................18 UwMic9 RX-XLR9 Introduction .................................................................................21 Product Structure ........................................................................21 Attaching Accessories ................................................................23 LCD Display Operation Guide ..................................................23 UwMic9 SP-RX9 Product Structure ........................................................................26 Introduction .................................................................................26 LCD Display Operation Guide ..................................................28 Operation Guide ..........................................................................32 Specification ..................................................................................37 Receiver RX9 and RX-XLR9 .......................................................37 Transmitter TX9, HU9 and TX-XLR9 ..........................................38 Receiver SP-RX9 ..........................................................................38 Packing list .....................................................................................40 Contents 2 General Introduction The Sar amonic UwMic9 UHF wireless microphone system is intended for portable wireless operation and can be used in several environments for applications such as DSLR video, field recording, broadcast TV, electronic news gathering (ENG), on-the-spot interviews, and more. Po rtable Receiver UwMic9-RX9 Introduction Th e Saramonic UwMic9-RX9 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver. Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency. The selectable output mode allows you to choose the output signal to be mono or stereo. Pr oduct Structure ① ② ⑤ ⑦ ③ ④ ⑥ ⑧ ⑩⑨ ⑪ 3 ① Antennas ② P ower but ton Long Press to turn on or off the RX9. ③ SET button Long press the SET button to enter the displayed menu. Then, short press the SET button to confirm your option or long press again to exit without saving. ④ POWER indicator Indicates the battery level as follows: Green light: Sufficient battery level. Red light: Low battery level. ⑤ RF indicator and infrared transmitter port The infrared transmitter port sends the set frequency to a transmitter. RF indicator displays the RF input level as follows: Green light: RF signal is strong. Red light: RF signal is weak or disconnected. ⑥ + or – button Selects functions or values shown on the display. ⑦ LCD display Display menus, please refer to "LCD Display Operation Guide" (page 5) for more details. ⑧ Battery compartment Operates on two AA batteries (not included). ⑨ Phone jack It is a 3.5mm diameter and stereo mini headphone jack. Connect a headphone to monitor the audio output Note: Please do not connect a he adphone with a monaural mini jack. As this may short-circuit the headphone jack and distorted sound output. ⑩ Output jack Connect the RX9 to a video camera, camcorder, mixer or amplifier with the supplied output cable. ⑪ Standard cold shoe 4 ① ③ ② Attaching Accessories Connect the supplied cable to the output jack. ① Plug the supplied cable into the OUTPUT jack. ② For a secure connection, turn to lock the connector. Attach a belt clip. Please Refe…

Text truncated - open the document above for the full version.

Shenzhen Jiayz photo industrial ., Ltd A16 Building,Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Agent Authorization Company: Shenzhen Jiayz photo industrial ., Ltd Address: A16 Building,Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Product Name: UHF Wireless Microphone System Model Number(s): UwMic9 TX9 Product Description: UHF Wireless Microphone System We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 29, 2021 Name: michael zhao Title: General Manager Company: Shenzhen Jiayz photo industrial ., Ltd

ShenzhenJiayzphotoindustrial.,Ltd A16Building,IntelligentTerminalIndustrialParkofSiliconValleyPower,Guanlan,LonghuaDistrict, Shenzhen,China OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:Jun.29,2021 Subject;RequestforConfidentiality FCCID:2ARN3-UWMIC9TX9 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram OperationalDescription PartsList Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:michaelzhao Title:GeneralManager

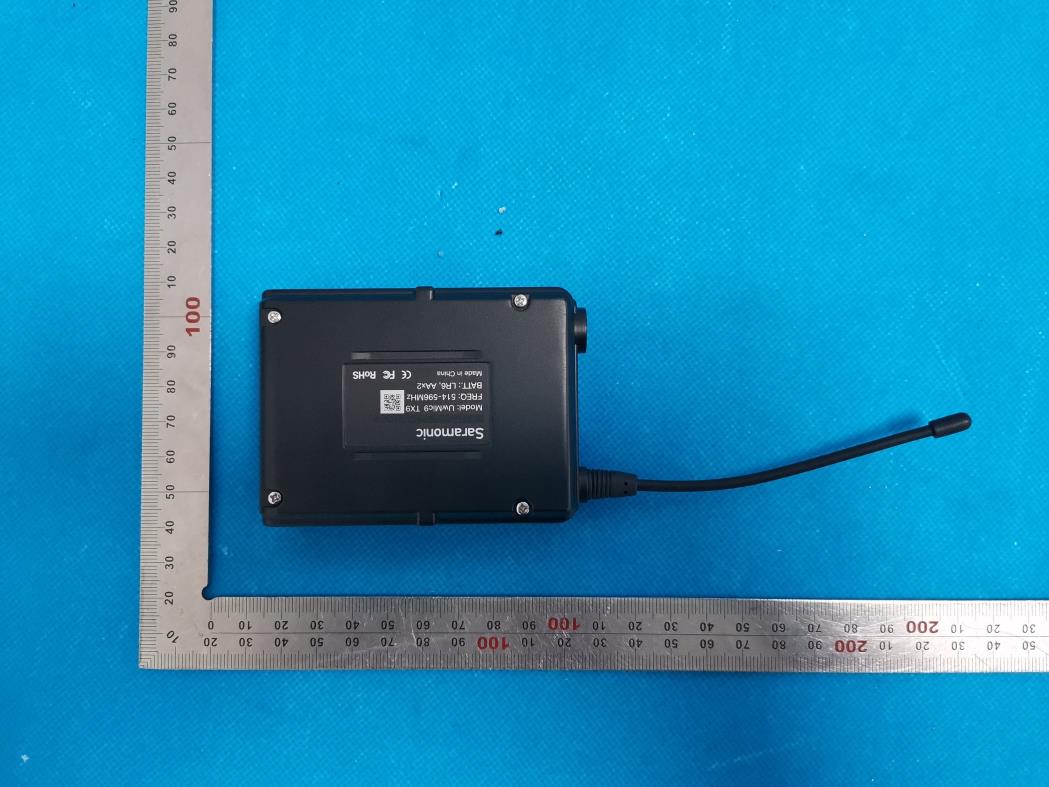

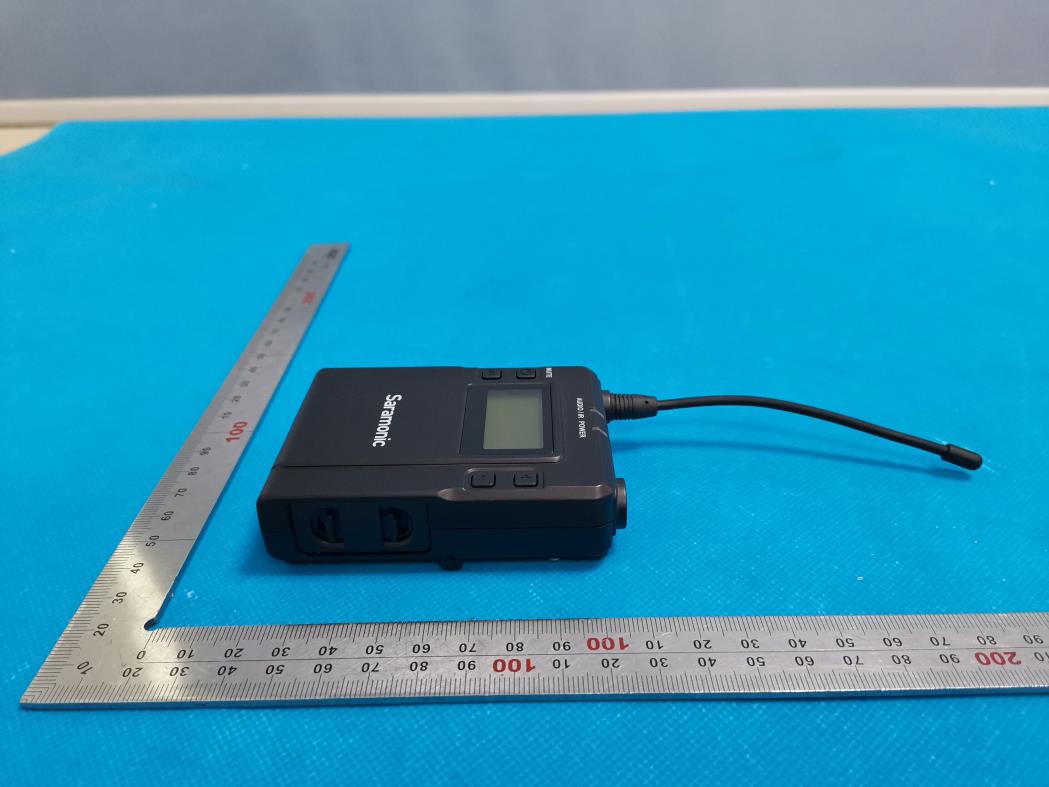

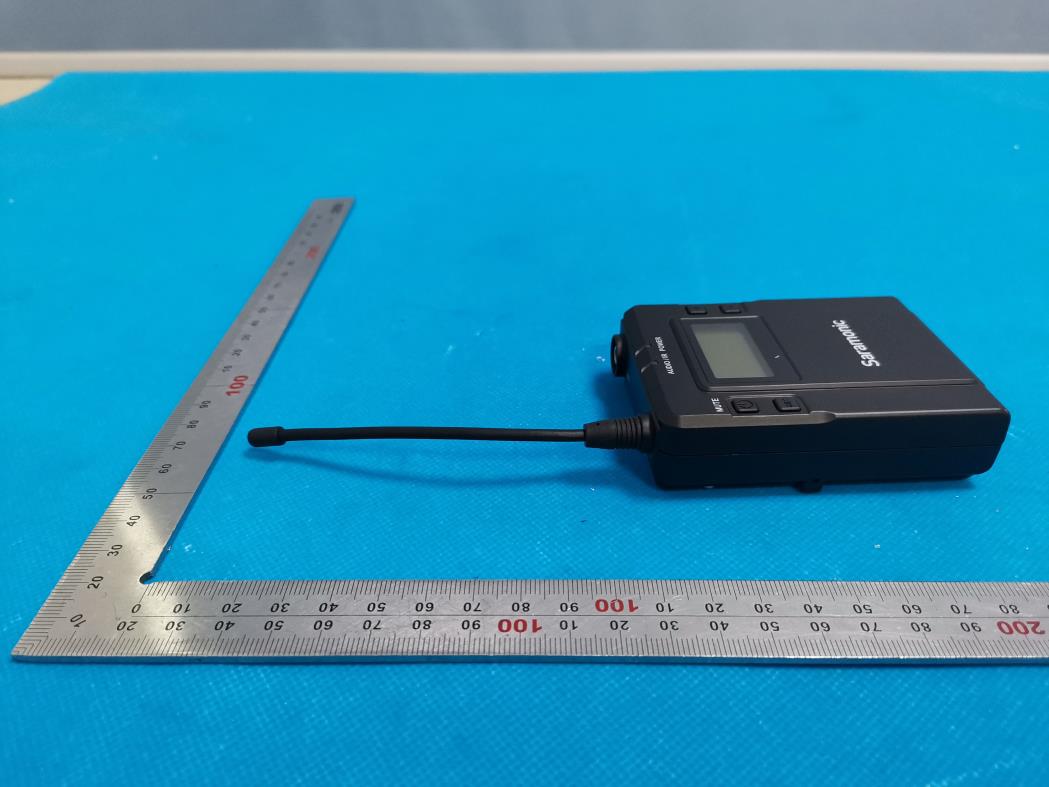

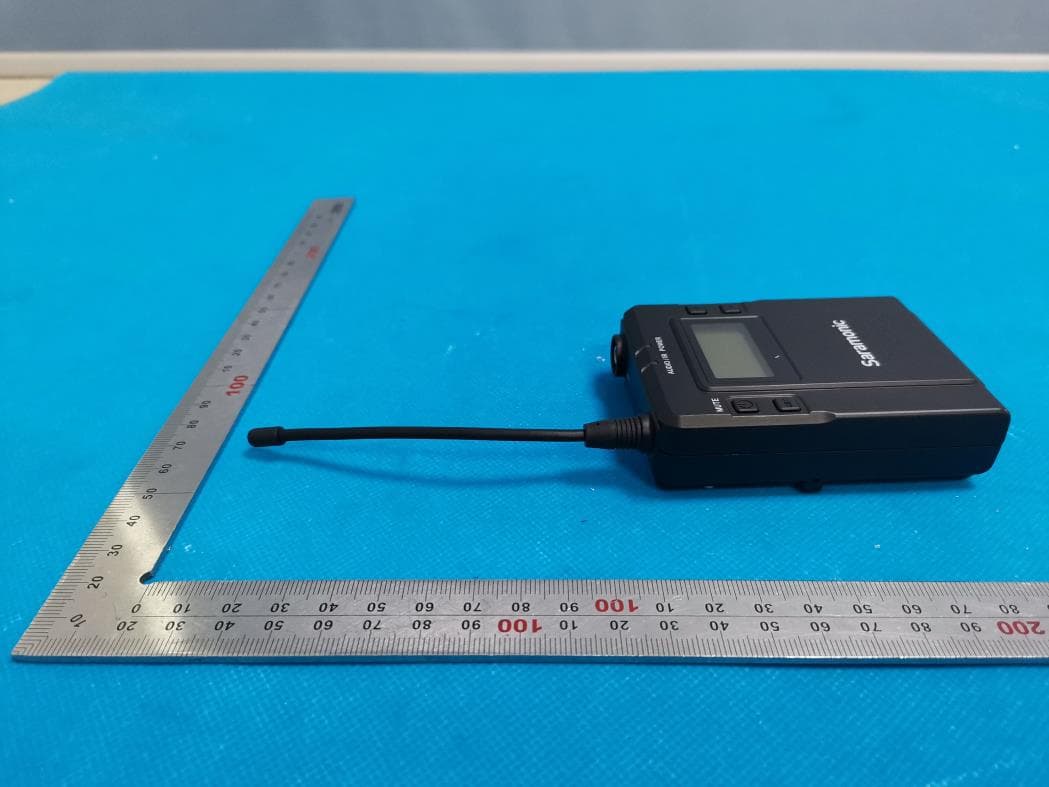

External Photos ALL VIEW OF EUT OUTSIDE VIEW-1 OF EUT OUTSIDE VIEW-2 OF EUT OUTSIDE VIEW-3 OF EUT OUTSIDE VIEW-4 OF EUT OUTSIDE VIEW-5 OF EUT OUTSIDE VIEW-6 OF EUT PORT VIEW OF EUT

FCC ID Label Location 40mm*35mm Model:UwMic9 TX9 FCC ID: 2ARN3-UWMIC9TX9

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT Antenna INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description UHF Wireless Microphone System Model Name UwMic9 TX9 FCC ID 2ARN3-UWMIC9TX9 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION Wireless microphones: Group A P t =2.663dBm =1.846mW The result for RF exposure evaluation SAR=(1.846mW /5mm) .[√0.55351(GHz)]= 0.273<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Group B P t =2.534dBm =1.792mW The result for RF exposure evaluation SAR=(1.792mW /5mm) .[√0.57578(GHz)]= 0.272<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 78 FCC Test Report Report No.: AGC09691210602FE04 FCC ID : 2ARN3-UWMIC9TX9 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : UHF Wireless Microphone System BRAND NAME : Saramonic MODEL NAME : UwMic9 TX9 APPLICANT : Shenzhen Jiayz photo industrial ., Ltd DATE OF ISSUE : Jul. 23, 2021 STANDARD(S) : FCC Part 15.236 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC09691210602FE04 Page 2 of 78 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 23, 2021 Valid Initial Release Report No.: AGC09691210602FE04 Page 3 of 78 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TEST METHODOLOGY ............................................................................................................................. 8 2.3. SPECIAL ACCESSORIES ......................................................................................................................... 9 2.4. EQUIPMENT MODIFICATIONS ................................................................................................................ 9 2.5. ANTENNA REQUIREMENT....................................................................................................................... 9 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 10 4. DESCRIPTION OF TEST MODES ................................................................................................................. 11 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 12 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 12 5.2 EQUIPMENT USED IN TESTED SYSTEM ............................................................................................... 12 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 12 6. TEST FACILITY .............................................................................................................................................. 13 7. OUPUT POWER ............................................................................................................................................. 14 7.1. TEST LIMIT .............................................................................................................................................. 14 7.2. MEASUREMENT PROCEDURE ............................................................................................................. 14 7.3. TEST SETUP............................................................................................................................................ 15 7.4. TEST RESULT .......................................................................................................................................... 16 8. OCCUPIED BANDWIDTH .............................................................................................................................. 17 8.1. TEST LIMIT .............................................................................................................................................. 17 8.2. MEASUREMENT PROCEDURE ............................................................................................................. 17 8.3. TEST SET-UP........................................................................................................................................... 17 8.4. MEASUREMENT RESULTS .................................................................................................................... 18 9. FREQUENCY STABILITY .............................................................................................................................. 28 9.1. TEST LIMIT .............................................................................................................................................. 28 9.2. MEASUREMENT PROCEDURE ............................................................................................................. 28 9.3. TEST SET-UP........................................................................................................................................... 29 9.4. TEST RESULT .......................................................................................................................................... 29 10. EMISSIONS WITHIN THE BAND AND OUTSIDE THE BAND ................................................................... 39 Report No.: AGC09691210602FE04 Page 4 of 78 10.1. TEST LIMIT ............................................................................................................................................ 39 10.2. MEASUREMENT PROCEDURE ........................................................................................................... 39 10.3. TEST SETUP ......................................................................................................................................... 40 10.4. TEST RESULT........................................................................................................................................ 42 11. LINE CONDUCTED EMISSION TEST ......................................................................................................... 67 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST..............................…

Text truncated - open the document above for the full version.

Report No.: AGC09691210602FE04 Page 41 of 78 Emission within the band Report No.: AGC09691210602FE04 Page 42 of 78 10.4. TEST RESULT Group A Emission within the band for 514.56MHz at low power Emission within the band for 514.56MHz at middle power Report No.: AGC09691210602FE04 Page 43 of 78 Emission within the band for 514.56MHz at High power Emission within the band for 533.83MHz at low power Report No.: AGC09691210602FE04 Page 44 of 78 Emission within the band for 533.83MHz at middle power Emission within the band for 533.83MHz at High power Report No.: AGC09691210602FE04 Page 45 of 78 Emission within the band for 553.51MHz at low power Emission within the band for 553.51MHz at middle power Report No.: AGC09691210602FE04 Page 46 of 78 Emission within the band for 553.51MHz at High power Note: 1.The manufacturer declared that the channel bandwidth is 200KHz. 2.The carrier power is the ref level, and the factor had been edited in the “Input Correction” of the Spectrum Analyzer. Report No.: AGC09691210602FE04 Page 47 of 78 Group B Emission within the band for 556.51MHz at low power Emission within the band for 556.51MHz at middle power Report No.: AGC09691210602FE04 Page 48 of 78 Emission within the band for 556.51MHz at High power Emission within the band for 575.78MHz at low power Report No.: AGC09691210602FE04 Page 49 of 78 Emission within the band for 575.78MHz at middle power Emission within the band for 575.78MHz at High power Report No.: AGC09691210602FE04 Page 50 of 78 Emission within the band for 595.46MHz at low power Emission within the band for 595.46MHz at middle power Report No.: AGC09691210602FE04 Page 51 of 78 Emission within the band for 595.46MHz at High power Note: 1. The manufacturer declared that the channel bandwidth is 200KHz. 2. The carrier power is the ref level, and the factor had been edited in the “Input Correction” of the Spectrum Analyzer. Report No.: AGC09691210602FE04 Page 52 of 78 Emission outside the band 30-1000MHz EUT: UHF Wireless Microphone System Model Name: UwMic9 TX9 Temperature: 25°C Relative Humidity: 60% Pressure: 986 Pa Test Voltage: Normal Test Mode: Mode 3 Polarization: Horizontal NO. Freq. [MHz] Reading [dBm] Level [dBm] Limit [dBm] Margin [dB] Factor [dB] Angle [°] Polarity 1 36.7900 -95.35 -60.50 -36.00 24.50 34.85 134 Horizontal 2 40.6700 -95.77 -60.86 -36.00 24.86 34.91 225 Horizontal 3 52.3100 -92.92 -59.93 -54.00 5.93 32.99 360 Horizontal 4 147.3700 -93.94 -64.59 -36.00 28.59 29.35 242 Horizontal 5 366.5900 -86.35 -52.75 -36.00 16.75 33.60 43 Horizontal 6 515.0000 -39.15 -2.29 36.86 76 Horizontal 7 881.6600 -91.85 -48.82 -36.00 12.82 43.03 18 Horizontal RESULT: PASS Report No.: AGC09691210602FE04 Page 53 of 78 EUT: UHF Wireless Microphone System Model Name: UwMic9 TX9 Temperature: 25°C Relative Humidity: 60% Pressure: 986 Pa Test Voltage: Normal Test Mode: Mode 3 Polarization: Vertical NO. Freq. [MHz] Reading [dBm] Level [dBm] Limit [dBm] Margin [dB] Factor [dB] Angle [°] Polarity 1 52.3100 -87.97 -57.80 -54.00 3.80 30.17 251 Vertical 2 103.7200 -87.77 -57.80 -54.00 3.80 29.97 342 Vertical 3 147.3700 -87.75 -53.87 -36.00 17.87 33.88 27 Vertical 4 167.7400 -76.54 -44.49 -36.00 8.49 32.05 342 Vertical 5 366.5900 -83.62 -49.99 -36.00 13.99 33.63 176 Vertical 6 515.0000 -30.11 6.63 36.74 334 Vertical 7 881.6600 -84.51 -41.37 -36.00 5.37 43.14 151 Vertical RESULT: PASS Report No.: AGC09691210602FE04 Page 54 of 78 EUT: UHF Wireless Microphone System Model Name: UwMic9 TX9 Temperature: 25°C Relative Humidity: 60% Pressure: 986 Pa Test Voltage: Normal Test Mode: Mode 6 Polarization: Horizontal NO. Freq. [MHz] Reading [dBm] Level [dBm] Limit [dBm] Margin [dB] Factor [dB] Angle [°] Polarity 1 36.7900 -95.78 -60.93 -36.00 24.93 34.85 1 Horizontal 2 48.4300 -92.32 -58.45 -54.00 4.45 33.87 342 Horizontal 3 52.3100 -93.24 -60.25 -54.00 6.25 32.99 360 Horizontal 4 147.3700 -93.70 -64.35 -36.00 28.35 29.35 226 Horizontal 5 385.9900 -90.26 -56.18 -36.00 20.18 34.08 51 Horizontal 6 533.8000 -38.23 -0.72 37.51 267 Horizontal 7 908.8200 -86.31 -43.18 -36.00 7.18 43.13 259 Horizontal RESULT: PASS Report No.: AGC09691210602FE04 Page 55 of 78 EUT: UHF Wireless Microphone System Model Name: UwMic9 TX9 Temperature: 25°C Relative Humidity: 60% Pressure: 986 Pa Test Voltage: Normal Test Mode: Mode 6 Polarization: Vertical NO. Freq. [MHz] Reading [dBm] Level [dBm] Limit [dBm] Margin [dB] Factor [dB] Angle [°] Polarity 1 36.7900 -89.38 -62.44 -36.00 26.44 26.94 37 Vertical 2 48.4300 -88.55 -59.00 -54.00 5.00 29.55 178 Vertical 3 52.3100 -88.51 -58.34 -54.00 4.34 30.17 342 Vertical 4 147.3700 -87.72 -53.84 -36.00 17.84 33.88 12 Vertical 5 385.9900 -80.85 -46.43 -36.00 10.43 34.42 169 Vertical 6 533.8000 -30.05 7.12 37.17 294 Vertical 7 920.4600 -89.52 -46.00 -36.00 10.00 43.52 112 Vertical RESULT: PASS Report No.: AGC09691210602FE04 Page 56 of 78 EUT: UHF Wireless Microphone System Model Name: UwMic9 TX9 Temperature: 25°C Relative Humidity: 60% Pressure: 986 Pa Test Voltage: Normal Test Mode: Mode 9 Polarization: Horizontal NO. Freq. [MHz] Reading [dBm] Level [dBm] Limit [dBm] Margin [dB] Factor [dB] Angle [°] Polarity 1 48.4300 -95.30 -61.43 -54.00 7.43 33.87 26 Horizontal 2 52.3100 -95.37 -62.38 -54.00 8.38 32.99 289 Horizontal 3 147.3700 -93.35 -64.00 -36.00 28.00 29.35 230 Horizontal 4 315.1800 -96.58 -64.25 -36.00 28.25 32.33 206 Horizontal 5 406.3600 -87.82 -53.28 -36.00 17.28 34.54 66 Horizontal 6 553.8000 -37.52 0.70 38.22 18 Horizontal 7 908.8200 -83.11 -39.98 -36.00 3.98 43.13 339 Horizontal RESULT: PASS Report No.: AGC09691210602FE04 Page 57 of 78 EUT: UHF Wireless Microphone System Model Name: UwMic9 TX9 Temperature: 25°C Relative Humidity: 60% Pressure: 986 Pa Test Voltage: Normal Test Mode: Mode 9 Polarization: Vertical NO. Freq. [MHz] Reading [dBm] Level [dBm] Limit [dBm] Margin [dB] Factor [dB] Angle [°] Polarity 1 52.3100 -88.35 -58.18 -54.00 4.18 30.17 193 Vertical 2 66.8600 -93.72 -64.73 -54.00 10.73 28.99 46 Vertical 3 147.3700 -87.42 -53.54 -3…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED TEST SETUP
