2ARN3-WHM12Wireless Handheld Microphone

Thanks for choosing the Movo WMX-7-TH! The Movo WMX-7-TH is a 12-Channel VHF Wireless Handheld Microphone and Transmitter, suitable for use alongside receivers from the Movo WMX-7 Wireless Microphone System. The transmitter can be easily paired with a single receiver alongside other mics, including the lavaliers that come with the WMX-7, and is ideal for interviews, lmmaking, business presentations, or other applications that require portability. The microphone is lightweight and easy to use, oering exibility without sacricing high-quality audio. It operates at a range of 98 feet (30m) without obstacles. - Press the “PAIR” button to change the channel number.

Shenzhen Jiayz photo industrial.,Ltd Agent Authorization Company: Shenzhen Jiayz photo industrial.,Ltd Address: A16 Builing,Intelligent Terminal Industrial Park of Sililcon Valley Power, Guanlan, Longhua District, Shenzhen, China Product Name: Wireless Handheld Microphone Model Number(s): WMX-7-TH, WMX-7 RX, WMX-7-SP, BY-WHM12, SP-RX12 Product Description: Wireless Handheld Microphone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021.08.11 Name: Jiankuai Li Title: PM Company: Shenzhen STS Test Services Co., Ltd.

Differences Description We Shenzhen Jiayz photo industrial.,Ltd state: Product： Wireless Handheld Microphone Model Name： WMX-7-TH, WMX-7 RX, WMX-7-SP, BY-WHM12, SP-RX12 Brand Name： BOYA, MOVO FCC ID： 2ARN3-WHM12 Both of models have the same circuit schematic, construction, PCB Lavout and critical components. Only different in model name and brand name. Sincerely, Company: Shenzhen STS Test Services Co., Ltd. Title: PM E-mail: [email protected] Name: Jiankuai Li Signature

2021.08.04 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeSHENZHENSTSTESTSERVICESCO.,LTD./A1/F,Building B,ZhuokeSciencePark,No.190ChongqingRoad,HepingShequ,FuyongSub-District,Bao’anDistrict, Shenzhen,GuangDong,China/JiankuaiLi(NameofAgentcompanynameandaddress,NameofAgent) toactonourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Name:JiankuaiLi Title:PM E-mail:[email protected] ThisappointmentisvaliduntilfurtheruntilAug31,2022 Sincerely, Name:Michaelzhao Title:manager E-mail:[email protected] Company:ShenzhenJiayzphotoindustrial.,Ltd Signature:

Shenzhen Jiayz photo industrial.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021.08.11 FCC ID: 2ARN3-WHM12 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jiankuai Li Title: PM

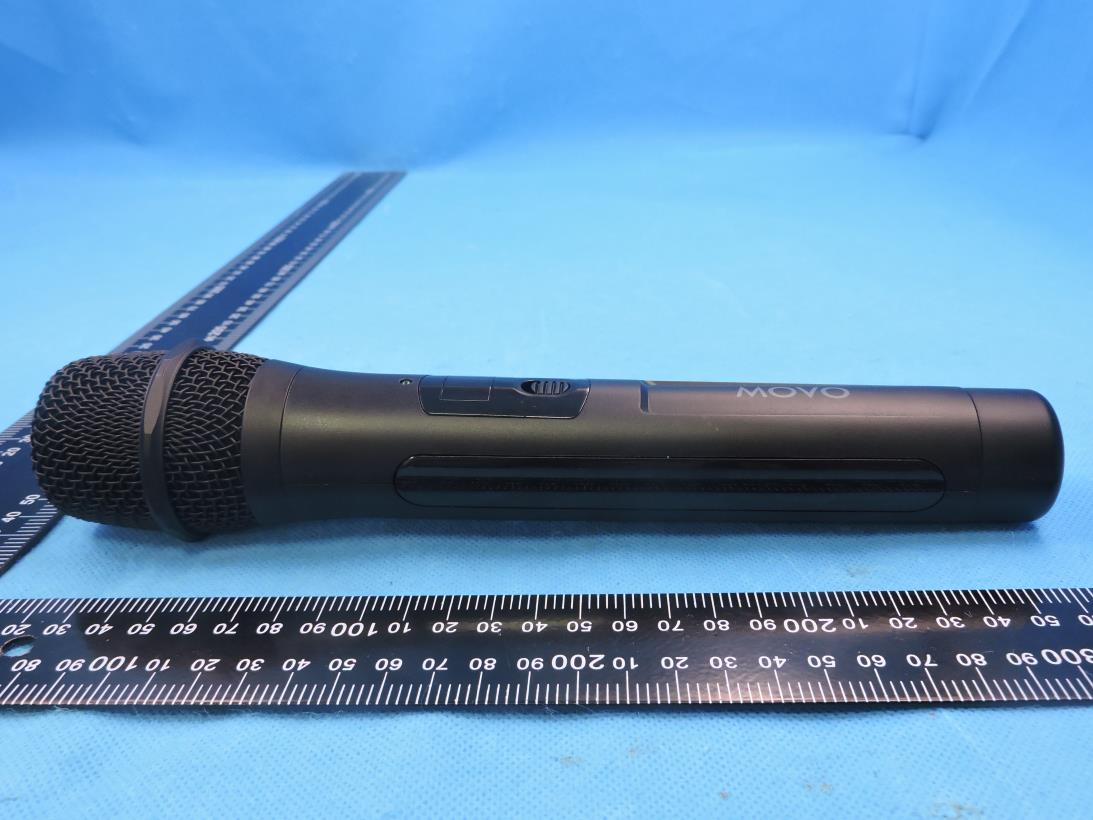

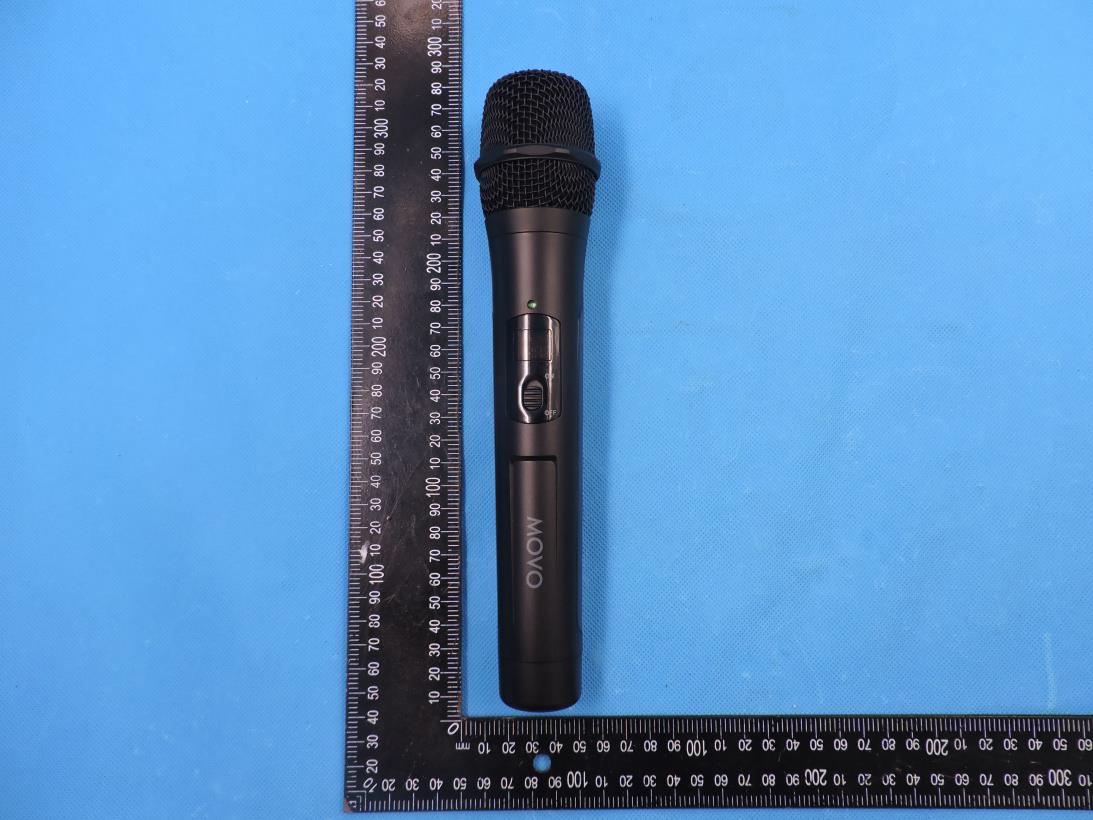

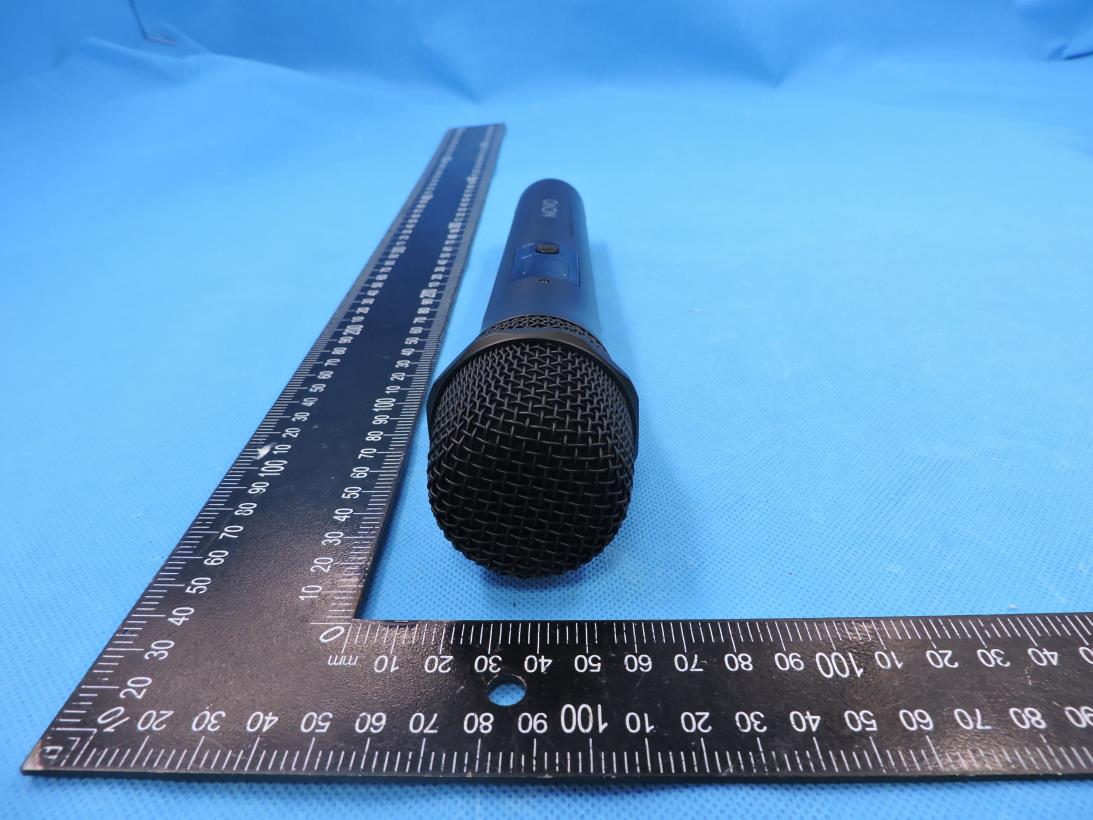

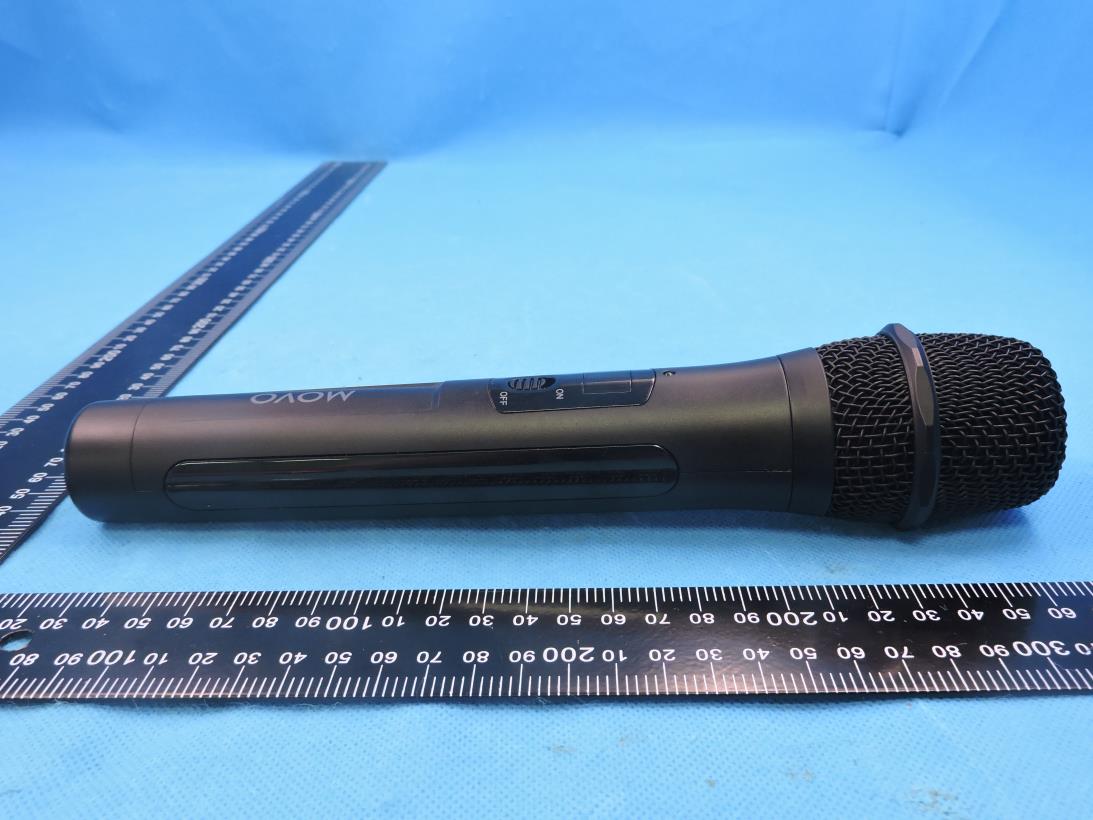

Page 1 of 3 Report No.: STS2105122 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Page 2 of 3 Report No.: STS2105122 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2105122 Photo 5 Photo 6

Label Size: 30*30mm The label is printed on the shell Product Name: Wireless Handheld Microphone Model Name: WMX-7-TH FCC ID: 2ARN3-WHM12

Page 1 of 4 Report No.: STS2105122 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Antenna Page 2 of 4 Report No.: STS2105122 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2105122 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2105122 Photo 7 Photo 8

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS2105122H02 Issued for Shenzhen Jiayz photo industrial.,Ltd A16 Builing,Intelligent Terminal Industrial Park of Sililcon Valley Power, Guanlan, Longhua District, Shenzhen, China Product Name: Wireless Handheld Microphone Brand Name: BOYA, MOVO Model Name: WMX-7-TH Series Model: WMX-7 RX, WMX-7-SP, BY-WHM12, SP-RX12 FCC ID: 2ARN3-WHM12 Test Standard: FCC 47CFR §2.1093 S T L A B S Page 2 of 8 Report No.: STS2105122H02 Test Report Certification Applicant’s Name ................. : Shenzhen Jiayz photo industrial.,Ltd Address ................................. : A16 Builing,Intelligent Terminal Industrial Park of Sililcon Valley Power, Guanlan, Longhua District, Shenzhen, China Manufacturer's Name .......... : Shenzhen Jiayz photo industrial.,Ltd Address ................................. : A16 Builing,Intelligent Terminal Industrial Park of Sililcon Valley Power, Guanlan, Longhua District, Shenzhen, China Product Description Product Name ........................ : Wireless Handheld Microphone Brand Name ......................... : BOYA, MOVO Model Name .......................... : ... : WMX-7-TH Series Model .......................... : WMX-7 RX, WMX-7-SP, BY-WHM12, SP-RX12 Standards ............................. : FCC 47CFR §2.1093 This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date of receipt of test item ...................... : 25 May 2021 Date (s) of performance of tests ............. : 25 May 2021 ~ 03 Aug. 2021 Date of Issue ........................................... : 03 Aug. 2021 Test Result ............................................... : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 8 Report No.: STS2105122H02 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 5 2. FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 8 Page 4 of 8 Report No.: STS2105122H02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 03 Aug. 2021 STS2105122H02 ALL Initial Issue Page 5 of 8 Report No.: STS2105122H02 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name Wireless Handheld Microphone Brand Name BOYA, MOVO Model Name WMX-7-TH Series Model WMX-7 RX, WMX-7-SP, BY-WHM12, SP-RX12 Model Difference Only different in model name and brand name. Product Description The EUT is Wireless Handheld Microphone Operation Frequency: 204-215MHz Modulation Type: GFSK Antenna gain: 2.5dBi Antenna Designation: PCB Antenna Rating Two AA batteries(DC 3V from battery) Hardware Version BY-WHM12 V1.1 Software Version V1.3 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 6 of 8 Report No.: STS2105122H02 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Page 7 of 8 Report No.: STS2105122H02 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Page 8 of 8 Report No.: STS2105122H02 2.3 TEST RESULT Maximum measured transmitter power. The Worst Case Mode frequency Maximum Output Power Tune up tolerance Max Tune up MHz dBm dBm dBm GFSK 210 7.27 7±1 8 Remark: The worst case gain of the antenna is 2.5dBi. 2.5dBi logarithmic terms convert to numeric result is nearly 1.78. Maximum Tune up Power (210) = 6.31mw [(power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 6.31/5*√0.210=0.578≤3.0 Threshold at which no SAR required is 0.578≤ 3.0 for 1-g SAR, Separation distance ≤ 5mm. ※※※※※END OF THE REPORT※※※※※

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC TEST REPORT Report No: STS2105122W02 Issued for Shenzhen Jiayz photo industrial.,Ltd A16 Builing,Intelligent Terminal Industrial Park of Sililcon Valley Power, Guanlan, Longhua District, Shenzhen, China Product Name: Wireless Handheld Microphone Brand Name: BOYA, MOVO Model Name: WMX-7-TH Series Model: WMX-7 RX, WMX-7-SP, BY-WHM12, SP-RX12 FCC ID: 2ARN3-WHM12 Test Standard: FCC Part 15.236 S T L A B S Page 2 of 48 Report No.: STS2105122W02 TEST RESULT CERTIFICATION Applicant’s Name ................. : Shenzhen Jiayz photo industrial.,Ltd Address .................................. : A16 Builing,Intelligent Terminal Industrial Park of Sililcon Valley Power, Guanlan, Longhua District, Shenzhen, China Manufacturer's Name ........... : Shenzhen Jiayz photo industrial.,Ltd Address .................................. : A16 Builing,Intelligent Terminal Industrial Park of Sililcon Valley Power, Guanlan, Longhua District, Shenzhen, China Product Description Product Name ........................ : Wireless Handheld Microphone Brand Name ......................... : BOYA, MOVO Model Name ........................... : WMX-7-TH Series Model .......................... : WMX-7 RX, WMX-7-SP, BY-WHM12, SP-RX12 Test Standards ..................... : FCC Part 15.236 Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................................. : Date of receipt of test item ....................... : 25 May 2021 Date of performance of tests ................... : 25 May 2021 ~ 03 Aug. 2021 Date of Issue ........................................... : 03 Aug. 2021 Test Result ............................................... : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 48 Report No.: STS2105122W02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF THE EUT 7 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.5 TEST EQUIPMENT 11 3. EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.2 RADIATED EMISSION MEASUREMENT 14 4. PART 15.236 REQUIREMENTS 26 4.1 RADIATED SPURIOUS EMISSION 26 4.2 EMISSION MASK 26 4.3 FREQUENCY STABILITY VS. TEMPERATURE & VOLTAGE 38 4.4 OCCUPIED BANDWIDTH 42 4.5 RADIATED POWER 45 PHOTOS OF TEST SETUP 48 Page 4 of 48 Report No.: STS2105122W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 03 Aug. 2021 STS2105122W02 ALL Initial Issue Page 5 of 48 Report No.: STS2105122W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: The EUT has been tested according to FCC CFR 47: Part 15.236: Operation of wireless microphones in the bands 54-72 MHz, 76-88 MHz, 174-216 MHz, 470-608 MHz and 614-698 MHz. Emission Standard Item Limit Result FCC 15.236(g) Radiated Spurious Emission Refer to 300 422-1 V1.4.2 (8.4) PASS FCC 15.236(d)(1) EIRP ≤50 mW PASS FCC 15.215 Occupied Bandwidth -- PASS FCC 15.236(f)(3) Frequency tolerance ±0.005% PASS FCC 15.236(g) Necessary Bandwidth (Mask) Refer to 300 422-1 V1.4.2 (8.3) PASS FCC 15.207 Conducted Emission -- N/A FCC 15.209 Radiated Spurious Emission Refer to Part 15.209(a) PASS FCC 15.205 Restricted bands of operation Refer to Part 15.205(a) PASS NOTE: (1) “N/A” denotes test is not applicable in this Test Report. Page 6 of 48 Report No.: STS2105122W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9K-30MHz ±2.84dB 4 All emissions, radiated 30M-1GHz ±4.39dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.48dB 7 Conducted Emission (9KHz-150KHz) ±2.79dB 8 Conducted Emission (150KHz-30MHz) ±2.80dB Page 7 of 48 Report No.: STS2105122W02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: Wireless Handheld Microphone Brand Name: BOYA, MOVO Model Name: WMX-7-TH Series Model : WMX-7 RX, WMX-7-SP, BY-WHM12, SP-RX12 Model Difference description: Only different in model name and brand name. Emission Bandwidth: 76.918KHz Rating: Two AA batteries(DC 3V from battery) Operation Frequency Range 204-215MHz Maximum Transmitter Power: 0.005W(7.27dBm) Modulation mode / type: GFSK Frequency Tolerance: 0.0018% Temperature Range: -20°C-50°C Test frequency list: Please refer to the Note 5. Software version number: BY-WHM12 V1.1 Hardware version number: V1.3 Connecting I/O Port(s): …

Text truncated - open the document above for the full version.

Page 1 of 1 FCC ID: 2ARN3-WHM12 DWM Setup photo Model name: WMX-7-TH DWM radiation L DWM radiation H
