2ARRB-MB085MOTO BUDS

Model No.: MOTO BUDS Frequency Band: 2.402 – 2.480GHz Maximum RF power: 6 dBm 2 EN 1.Charging: 100%<100% Fully charge before use The device can be powered through a USB-C from any CE compliant power source that implement the European interface as requested by EN 301 489-52. 2.Pairing: 2.1 Ensure both buds are inside the charging case and take out both buds. The buds will flash blue and red. 2.2 Select “ from the smartphone 3 3.Fitting: 3.1 To optimize the best fit and audio experience, it is S ML 3.2 Insert the MOTO BUDS into your ear and rotate to fit comfortably. 4.Basic Operation: x1 x2 x3 4S 2S / x1 / OFF ON 2S Siri/Google 4 Additional Operation Reject a callMFB 2sec Receive incoming and on hold ongoing call Single Press MFB LED Indicator PairingRed-blue flash StandbyBlue flash ChargingRed steady Fully charged Battery lowRed flash ES 1.Carregando: Cargue completamente antes del primer uso Este aparato puede ser cargado con un cable USB-C conectado a cualquier toma de corriente que implemente la interfase Europea que se pide en EN 301 489-52. 2.Pareando: 2.1 Asegúrese de que ambos auriculares estén dentro del estuche de carga y saque ambos. Las luces parpadearán en azul y rojo. 2.2 Seleccione " en el menú de Bluetooth. 3.Encaixando: 3.1 Coloque los MOTO BUDS en su oido y girelos hasta que tengan un ajuste cómodo. FCC ID: 2ARRB- IC: 20353- Working temperature: -10°C–45°C bluetooth menu. 5 3.2 Para mejorar la experiencia de audio, se recomienda que pruebe todos los tamaños de almohadillas disponibles. 4.Operação dos Botões: Operaciones adicionales Rechazar llamada MFB 2sec Recibir llamada entrante y poner en espera la llamada actual Presione una vez MFB Sincronizando Destello rojo-azul ReposoDestello azul CargandoRojo fijo Carga completaApagado Batería bajaDestello rojo NL 1.Opladen: Volledig opladen voor gebruik Het apparaat kan via een USB-C worden opgeladen via elke CE-compatibele voedingsbron die de Europese interface implementeert, zoals vereist door EN 301 489-52. 6 2.Pairing: 2.1 Zorg ervoor dat beide oordopjes zich in de oplaadcassette bevinden en verwijder beide oordopjes. De knoppen zullen blauw en rood knipperen. 2.2 Selecteer "in het Bluetooth-menu van de smartphone. 3.Passen: 3.1 Plaats de MOTO BUDS in uw oor en draai totdat ze comfortabel zitten. 3.2 Om de best passende en audio-ervaring te optimaliseren, wordt het aanbevolen om de verschillende oordopjes uit te proberen. 4.Knop bediening: Extra bediening Een oproep weigerenMFB 2sec Ontvang een inkomende oproep en zet de huidige oproep in de wacht Eén keer MFB indrukken LED Indicator VerbindenRood-blauw knipperend StandbyBlauw knipperend OpladenRood constant Volledig opgeladenUit Batterij bijna leegRood knipperend PT 1.Carregamento: Carregue completamente antes de usar O dispositivo pode ser alimentado através de uma porta USB-C, a partir de qualquer fonte de energia compatível com o padrão CE que implemente a interface europeia, conforme requisitado pela norma EN 301 489-52. 2.Sincronização: 2.1 Assegure-se de que ambos os fones estejam dentro do estojo de carregamento, então retire os dois fones. Os fones piscarão azul e vermelho. 2.2 Selecione " no menu de Bluetooth do seu dispositivo. 3.Ajuste: 3.1 Para aperfeiçoar o encaixe e a experiência de áudio, é recomendável experimentar cada um dos diferentes tamanhos de almofadas. 7 3.2 Insira os MOTO BUDS em seu ouvido e gire para encaixar confortavelmente. 4.Operação dos botões: Operação Adicional Rejeitar uma chamadaPressione o MFB por 2 segundos Receber nova chamada e colocar em espera a chamada em andamento Pressione o MFB uma vez Indicador LED EmparelhamentoLuz vermelha-azul piscando Em esperaLuz azul piscando CarregamentoLuz vermelha fixa Completamente carregadoLuzes desligadas Bateria baixaLuz vermelha piscando 8 IT 1.Come caricare il dispositivo: Ricaricare completamente prima dell'uso Il dispositivo può essere alimentato tramite una USB-C da qualsiasi fonte di alimentazione conforme CE che implementa l'interfaccia europea come richiesto dalla EN 301 489-52. 2.Come accoppiare il dispositivo: all'interno della custodia di ricarica, poi rimuovetele entrambe. Le luci lampeggeranno in blu e in rosso. 2.2 Seleziona " dal menu Bluetooth dello smartphone. 3.Come indossare il dispositivo: 3.1 Inserisci i MOTO BUDS nell'orecchio e ruotali per farli adattare comodamente al tuo orecchio. 3.2 Per ottimizzare l'esperienza di adattamento all'orecchio e per un audio ottimale, si consiglia di provare ciascuna delle diverse dimensioni di auricolari in dotazione. 9 4.Funzioni pulsanti: Operazione aggiuntiva Rifiuta una chiamataMFB 2sec Ricevi chiamata in arrivo e metti in attesa la chiamata n corso Premi una volta MFB Indicatore LED AccoppiamentoRosso-blu lampeggiante StandbyBlu lampeggiante CaricamentoRosso fisso Carica completaSpento Batteria scaricaRosso lampeggiante DE 1.Laden: Vor dem Gebrauch vollständig aufladen Das Gerät kann über einen USB-C von jeder CE-konformen Stromquelle aufgeladen werden, die der europäischen Schnittstelle gemäß EN 301 489-52 entspricht. 2.Verbindung: 2.1 Vergewissern Sie sich, dass sich beide Ohrhörer in der Ladeschale befinden, und nehmen Sie beide Ohrhörer heraus. Die Ohrhörer blinken blau und rot. 10 2.2 Wählen Sie im Bluetooth-Menü Ihres Smartphones " . 3.Anpassung: 3.1 Setzen Sie die MOTO BUDS in Ihr Ohr ein und drehen Sie sie, bis sie bequem sitzt. 3.2 Setzen Sie die MOTO BUDS in Ihr Ohr ein und drehen Sie sie, bis sie bequem sitzt. 4.Tastenbedienung: Operazione aggiuntiva Einen Anruf ablehnenMFB 2sec Eingehenden Anruf empfangen und laufenden Anruf 'halten' MFB-Taste einmal drücken LED-Anzeige VerbindenRot-blauer blinkend StandbyBlau blinkend AufladenRot stetig Voll aufgeladenAus Batterie schwachRot blinkend 11 FR 1.Chargement: Charger complètement avant utilisation L'appareil peut être alimenté via un USB-C à partir de n'importe quelle source d'alimentation conforme à la norme CE implémentant l'interface européenne, conformément à la norme EN 301…

Text truncated - open the document above for the full version.

Meizhou Guo Wei Electronics Co., Ltd Date: 2021-7-22 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ARRB-MB085 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou Branch and Kobe Jian in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou Branc h to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Meizhou Guo Wei Electronics Co., Ltd This authorization is valid until further written notice from the applicant. Print Name: Raymond Leung Title: Engineering Manager On behalf of Company: Meizhou Guo Wei Electronics Co., Ltd Telephone: 0755-2573-6666 E-mail: [email protected]

Date: 2021-7-22 To: Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 From: Meizhou Guo Wei Electronics Co., Ltd Regarding: Confidentiality Request regarding application for FCC ID: 2ARRB-MB085 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby requests confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 180 days from the grant date whichever is less. If the device is marketed within confidential period, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Print Name: Raymond Leung Title: Engineering Manager On behalf of Company: Meizhou Guo Wei Electronics Co., Ltd Telephone: 0755-2573-6666 E-mail: [email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Meizhou Guo Wei Electronics Co., Ltd Address AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong China Grantee Code 2ARRB FCC ID 2ARRB-MB085 Authorized Contact Name Raymond Leung Contact Email [email protected] Contact Phone 0755-2573-6666 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 2021-7-22 Print Name: Raymond Leung Title: Engineering Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

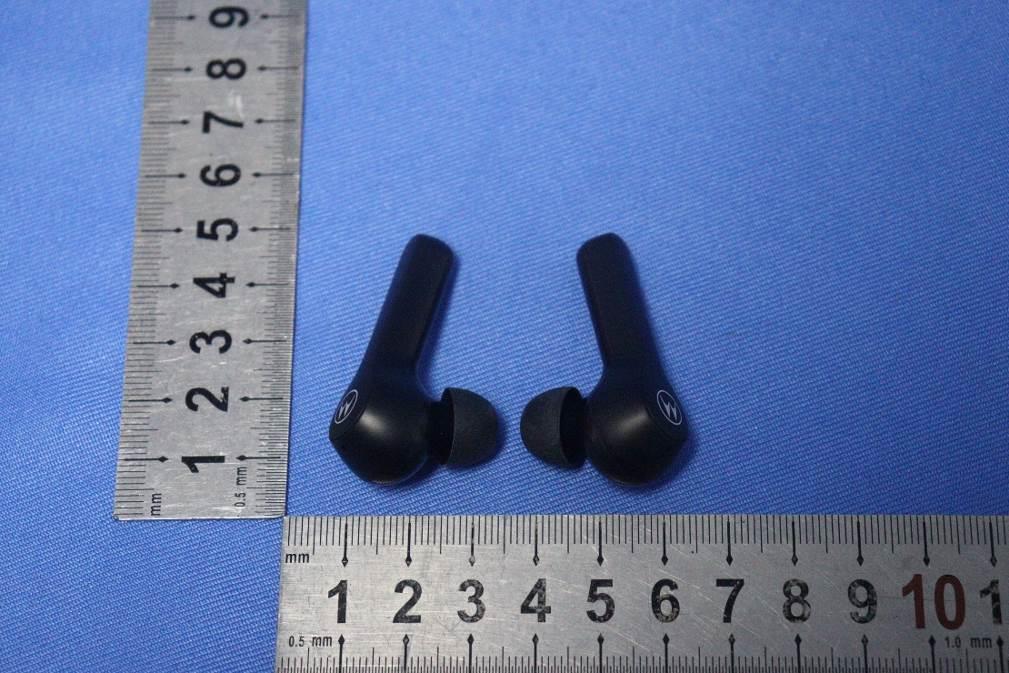

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.0 Page: 1 of 6 Appendix External Photos for GZCR2108020938AT SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.0 Page: 2 of 6 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.0 Page: 3 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.0 Page: 4 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.0 Page: 5 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.0 Page: 6 of 6

Meizhou Guo Wei Electronics Co., Ltd Label placement To Federal Communication Commission Equipment Authorization Branch 7 435 Oakland Mills Road Columbia, MID 21046 For the following product, Model Name/Number: MOTO BUDS 085 FCC ID:2ARRB‐MB085 The FCC ID is not affixed on the product itself, but described in the product user manual and the product package due to below reasons. Reasons： The product (earbuds) is too small to put the label on it. The Size is below: 43.98mm*19.2mm* 22.85 mm Print Name: Raymond Leung Title: Engineering Manager Signature: On behalf of Company: Meizhou Guo Wei Electronics Co., Ltd Telephone: 0755-2573-6666 E-mail: [email protected]

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 1 of 9 Appendix Internal Photos for GZCR2108020938AT SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 2 of 9 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 3 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 4 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 5 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 6 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 7 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 8 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 9 of 9

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.0 Report No.: GZCR210802093803 Page: 1 of 8 FCC ID: FCC ID: 2ARRB-MB085 Kobe Jian EMC Laboratory Manager RF EXPOSURE EVALUATION REPORT Application No.: GZCR2108020938AT Applicant: Meizhou Guo Wei Electronics Co., Ltd Address of Applicant: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China Manufacturer: Meizhou Guo Wei Electronics Co., Ltd. Address of Manufacturer: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Factory: Yangzhou TENJI Technology Co., Ltd. Address of Factory: 1 SanJiang Street, YangJiang Development Zone, JiangDu, YangZhou, JiangSu Equipment Under Test (EUT): EUT Name: MOTO BUDS Model No.: MOTO BUDS 085 Trade mark: Motorola Standard(s) : 47 CFR PART 1, Subpart I, Section 1.1310 47 CFR PART 2, Subpart J, Section 2.1093 KDB447498D01 General RF Exposure Guidance v06 Date of Receipt: 2021-08-23 Date of Evaluation: 2021-08-23 to 2021-08-31 Date of Issue: 2021-09-01 Evaluation Result: Pass* * In the configuration evaluated, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093803 EMC-TRF-03 Rev 1.0 Page: 2 of 8 Revision Record Version Chapter Date Modifier Remark 01 2021-09-01 Original Aut horized for issue by: Kevin Zhang/Project Engineer Ricky Liu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093803 EMC-TRF-03 Rev 1.0 Page: 3 of 8 2 Evaluation Summary Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093803 EMC-TRF-03 Rev 1.0 Page: 4 of 8 3 Contents Page 1 Cover Page ......................................................................................................................................... 1 2 Evaluation Summary .......................................................................................................................... 3 3 Contents ............................................................................................................................................. 4 4 General Information............................................................................................................................ 5 4.1 Details of E.U.T. ........................................................................................................................... 5 4.2 Evaluating Location ...................................................................................................................... 5 4.3 Facility ......................................................................................................................................... 6 4.4 Deviation from Standards ............................................................................................................. 6 4.5 Abnormalities from Standard Conditions ....................................................................................... 6 5 Technical Requirements Specification .............................................................................................. 7 5.1 RF Exposure Evaluation ............................................................................................................... 7 5.1.1 Limit & Test Method ................................................................................................................. 7 5.1.2 Conclusion ............................................................................................................................... 7 6 EUT Constructional Details (EUT Photos) ......................................................................................... 8 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093803 EMC-TRF-03 Rev 1.0 Page: 5 of 8 4 General Information 4.1 Details of E.U.T. Power supply: DC 5V from adapter input AC 120V/60Hz Lithium Ion Battery: DC 3.7V 40mAh rechargeable battery which charged by charging case for left earbud and right earbud Lithium Ion Battery: DC 3.7V 300mAh 1.11Wh rechargeable battery which charged by USB port for charging case Operation Frequency: 2402MHz to 2480MHz Bluetooth Version: V5.0 Dual mode Modulation Type: GFSK, pi/4DQPSK, 8DPSK Number of Channels: 79 Channel Spacing: 1MHz Spectrum Spread Technology: Frequency Hopping Spread Spectrum(FHSS) Antenna Type: Chip Antenna Gain: 0dBi Operation Frequency: 2402MHz to 2480MHz Bluetooth Version: V5.0 Dual mode Modulation Type: GFSK Number of Channels: 40 Channel Spacing: 2MHz Antenna Type: Chip Antenna Gain: 0dBi 4.2 Evaluating Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou Branch EMC Laboratory, 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, China 510663 Tel: +86 20 82155555 Fax: +86 20 82075059 No tests were sub-contracted. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093803 EMC-TRF-03 Rev 1.0 Page: 6 of 8 4.3 Facility The facility is recognized, certified, or accredited by the following organizations: ● NVLAP (Lab Code: 200611-0) SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP/NIST). NVLAP Code: 200611-0. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. ● ACMA SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory can also perform testing for the Australian/New Zealand Regulatory Compliance Mark (RCM). ● SGS UK(Certificate No.: 32), SGS-TUV SAARLAND and SGS-FIMKO Have approved SGS-CSTC Stan…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 1.0 Report No.: GZCR210802093801 Page: 1 of 152 FCC ID: 2ARRB-MB085 Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZCR2108020938AT Applicant: Meizhou Guo Wei Electronics Co., Ltd Address of Applicant: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China Manufacturer: Meizhou Guo Wei Electronics Co., Ltd. Address of Manufacturer: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Factory: Yangzhou TENJI Technology Co., Ltd. Address of Factory: 1 SanJiang Street, YangJiang Development Zone, JiangDu, YangZhou, JiangSu Equipment Under Test (EUT): EUT Name: MOTO BUDS Model No.: MOTO BUDS 085 Trade Mark: Motorola Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2021-08-23 Date of Test: 2021-08-23 to 2021-08-30 Date of Issue: 2021-09-01 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 2 of 152 Revision Record Version Chapter Date Modifier Remark 01 2021-09-01 Original Aut horized for issue by: Kevin Zhang/Project Engineer Ricky Liu/Reviewer EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 3 of 152 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence N/A 47 CFR Part 15, Subpart C 15.247(a)(1),(g),(h) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.5 47 CFR Part 15, Subpart C 15.247(b)(1) Pass 20dB Bandwidth ANSI C63.10 (2013) Section 7.8.7 47 CFR Part 15, Subpart C 15.247(a)(1) Pass Carrier Frequencies Separation ANSI C63.10 (2013) Section 7.8.2 47 CFR Part 15, Subpart C 15.247a(1) Pass Hopping Channel Number ANSI C63.10 (2013) Section 7.8.3 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Dwell Time ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Conducted Band Edges Measurement ANSI C63.10 (2013) Section 7.8.6 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2013) Section 7.8.8 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions (Below 1GHz) ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions (Above 1GHz) ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 4 of 152 3 Contents Page 1 Cover Page ......................................................................................................................................... 1 2 Test Summary ..................................................................................................................................... 3 3 Contents ............................................................................................................................................. 4 4 General Information............................................................................................................................ 6 4.1 Details of E.U.T. ........................................................................................................................... 6 4.2 Description of Support Units ......................................................................................................... 7 4.3 Measurement Uncertainty ............................................................................................................ 7 4.4 Test Location ............................................................................................................................... 8 4.5 Test Facility .................................................................................................................................. 8 4.6 Deviation from Standards ............................................................................................................. 9 4.7 Abnormalities from Standard Conditions ....................................................................................... 9 5 Equipment List ..................................................................................................................................10 6 Radio Spectrum Technical Requirement ..........................................................................................13 6.1 Antenna Requirement .................................................................................................................13 6.1.1 Test Requirement: ..................................................................................................................13 6.2 Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence ...............14 6.2.1 Test Requirement: ..................................................................................................................14 7 Radio Spectrum Matter Test Results ................................................................................................16 7.1 Conducted Peak Output Power ...................................................................................................16 7.1.1 E.U.T.…

Text truncated - open the document above for the full version.

EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 61 of 152 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 62 of 152 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 63 of 152 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 64 of 152 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 65 of 152 1.2 20dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) Packet Type Ant 20dB Bandwidth (MHz) Verdict Result GFSK SISO 2402 DH5 1 0.954 Pass 2441 DH5 1 0.952 Pass 2480 DH5 1 0.952 Pass Pi/4DQPSK SISO 2402 2DH5 1 1.259 Pass 2441 2DH5 1 1.260 Pass 2480 2DH5 1 1.286 Pass 8DPSK SISO 2402 3DH5 1 1.280 Pass 2441 3DH5 1 1.285 Pass 2480 3DH5 1 1.281 Pass EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 66 of 152 1.2.2 Test Graph GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 67 of 152 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 68 of 152 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 69 of 152 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 70 of 152 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 71 of 152 2. Maximum Conducted Output Power 2.1 Power 2.1.1 Test Result Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict Ant1 Limit GFSK SISO 2402 DH5 1.70 <=30 Pass 2441 DH5 2.84 <=30 Pass 2480 DH5 3.52 <=30 Pass Pi/4DQPSK SISO 2402 2DH5 2.59 <=20.97 Pass 2441 2DH5 3.77 <=20.97 Pass 2480 2DH5 4.40 <=20.97 Pass 8DPSK SISO 2402 3DH5 2.72 <=20.97 Pass 2441 3DH5 3.94 <=20.97 Pass 2480 3DH5 4.63 <=20.97 Pass EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 72 of 152 3. Carrier Frequency Separation 3.1 Ant1 3.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 1.005 0.954 >=0.954 Pass Pi/4DQPSK SISO HOPP 2DH5 1.005 1.286 >=0.857 Pass 8DPSK SISO HOPP 3DH5 0.990 1.281 >=0.854 Pass EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 73 of 152 3.1.2 Test Graph GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210802093801 Page: 74 of 152 8DPSK_3DH5_HOPP_Ant1_NTNV EMC…
