2ARRB-MB135TRUE WIRELESS EARBUDS

MOTO BUDS 135 TRUE WIRELESS EARBUDS For: MOTO BUDS 135 User Guide Safety instructions DANGER To avoid hearing damage, limit the time you use earbuds at high volume and set the volume to a safe level. The louder the volume, the shorter the safe listening time is. WARNING This true wireless earbuds are compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User Guide, safe to use. Therefore, always read the instructions in this User Guide carefully before using the device. • Listen at reasonable volumes for reasonable periods of time. • Be careful not to adjust the volume continuously upwards as your hearing adapts. • Do not turn up the volume so high that you can't hear what is around you. • You should use caution or temporarily discontinue use in potentially hazardous situations. • Excessive sound pressure from earbuds can cause hearing loss. • Using earbuds with both ears covered while driving is not recommended and may be illegal in some areas while driving. • For your safety, avoid distractions from music or phone calls while in traffic or other potentially dangerous environments. • Replacement with incorrect type batteries may cause an explosion. Make sure to use original batteries. • Do not replace a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types). • Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an explosion. • Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas. • The battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Do not shock the battery at a high altitude. CAUTION • Do not expose earbuds to excessive heat. • Do not drop your earbuds. • Earbuds shall not be exposed to dripping, splashing water. • Do not allow your earbuds to be submerged in water. • Do not use any cleaning agents containing, alcohol, ammonia, benzene, or abrasives. • If cleaning is required use a soft cloth, if necessary dampened with a minimum amount of water or diluted with a minimum amount of water or diluted mild soap, to clean the earbuds. • The integrated battery shall not be exposed to excessive heat such as sunshine, fire or the like. • Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. • Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, can result in an explosion. • Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of ammable liquid or gas. • A battery subjected to extremely low air pressure that may result in an explosion or the leakage of ammable liquid or gas. • Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types). Operating temperature and humidity • Store in a place where temperature is between -20°C (-4°F) to 50°C (122°F) (up to 90% relative humidity with no condensation). • Operate in a place where temperature is between 0°C (32°F) to 45°C (113°F) (up to 90% relative humidity with no condensation). • Battery life may be shorter in high or low temperature conditions. Welcome... to your new MOTO BUDS 135 true wireless earbuds! • Wireless charging case. • Up to 14 hours total playtime with the charging case. • Touch control for powering on/off and music play/pause. • Use either earbud individually for call and music playback. • Lower power consumption to increase battery life. • Water resistant buds (IPX5). • Smart voice assistant (Siri® and Google Assistant TM ). • Bluetooth 5.2 • Simpler Bluetooth pairing with the Motorola smart phone or an Andriod phone. Need help? If you have any problems setting up or using your MOTO BUDS 135, please visit us at motorolasound.com/support Alternatively, you may find the answer in the ‘Help’ section at the back of this guide. This User Guide provides you with all the information you need to get the most from your true wireless earbuds. Before you make call or listen to music you will need to set up your true wireless earbuds. Follow the simple instructions in ‘Getting started’, on the next few pages. Got everything? • Bluetooth true wireless earbuds (with M size earcaps) • Charging case • USB-C charging cable (300 mm in length) • Extra 2 pairs (S and L sizes) of replaceable silicon earcaps • Quick start guide • Warranty 6 1. Getting started ...................................................................7 2. Getting to know your true wireless earbuds...........9 3. Using the true wireless earbuds ................................10 3.1 Select the earcaps ..........................................................................................10 3.2 Wear the earbuds ...........................................................................................10 3.3 Reconnect the earbuds to your Bluetooth device .............................10 3.4 Operation .............................................................................................................11 3.4.1 Turn on/off ...........................................................................................11 3.4.2 Call control ..........................................................................................11 3.4.3 Music ......................................................................................................11 3.4.4 Activate voice assistant .................................................................12 3.4.5 Restore factory settings ................................................................12 3.5 LED status indicators ...........................................................................12 4. Help .............................................................................…

Text truncated - open the document above for the full version.

Meizhou Guo Wei Electronics Co., Ltd Agent Authorization Letter (2022-11-03) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Raymond Leung / Engineering Manager Date/City: 2022-11-03 / Meizhou Phone: 0755-2573-6666 Fax: 0755-2573 2288 E-mail: [email protected]

Meizhou Guo Wei Electronics Co., Ltd Long Term Confidentiality Request Letter (2022-11-03) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: TRUE WIRELESS EARBUDS Model No.: MOTO BUDS 135 FCC ID: 2ARRB-MB135 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the  Schematic Diagram  Block Diagram  Operational Description Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Raymond Leung / Engineering Manager Date/City: 2022-11-03 / Meizhou Phone: 0755-2573-6666 Fax: 0755-2573 2288 E-mail: [email protected]

Meizhou Guo Wei Electronics Co., Ltd Short Term Confidentiality Request Letter (2022-11-03) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For Product:TRUE WIRELESS EARBUDS Model No.:MOTO BUDS 135 FCC ID:2ARRB-MB135 To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, <MEIZHOU GUO WEI ELECTRONICS CO., LTD>. requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. Test setup photos External Photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which <MEIZHOU GUO WEI ELECTRONICS CO., LTD> considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, <MEIZHOU GUO WEI ELECTRONICS CO., LTD> feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, RaymondLeung / Engineering Manager Date/City: 2022-11-03 / Meizhou Phone: 0755-2573-6666 Fax: 0755-2573 2288 E-mail: [email protected]

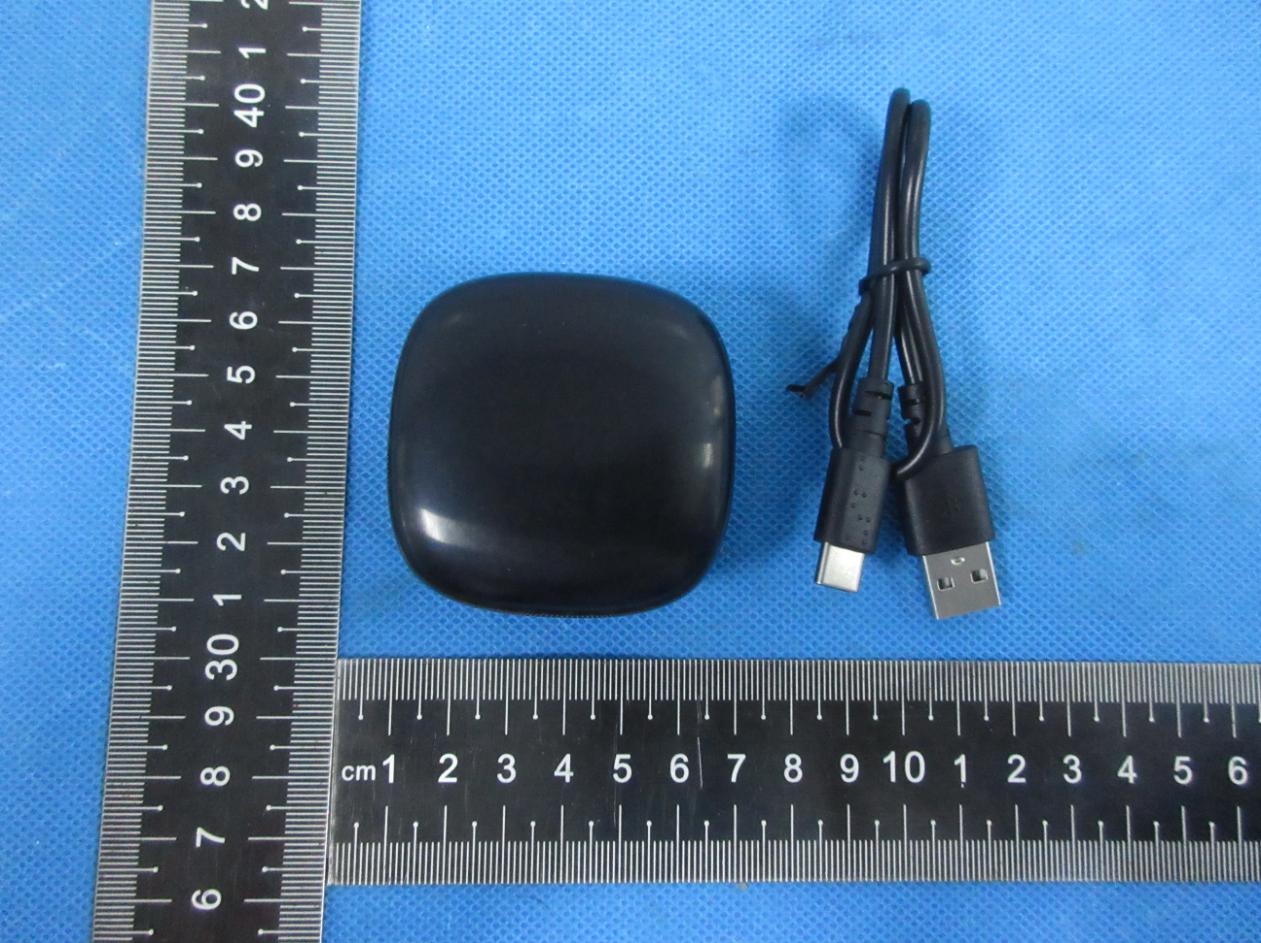

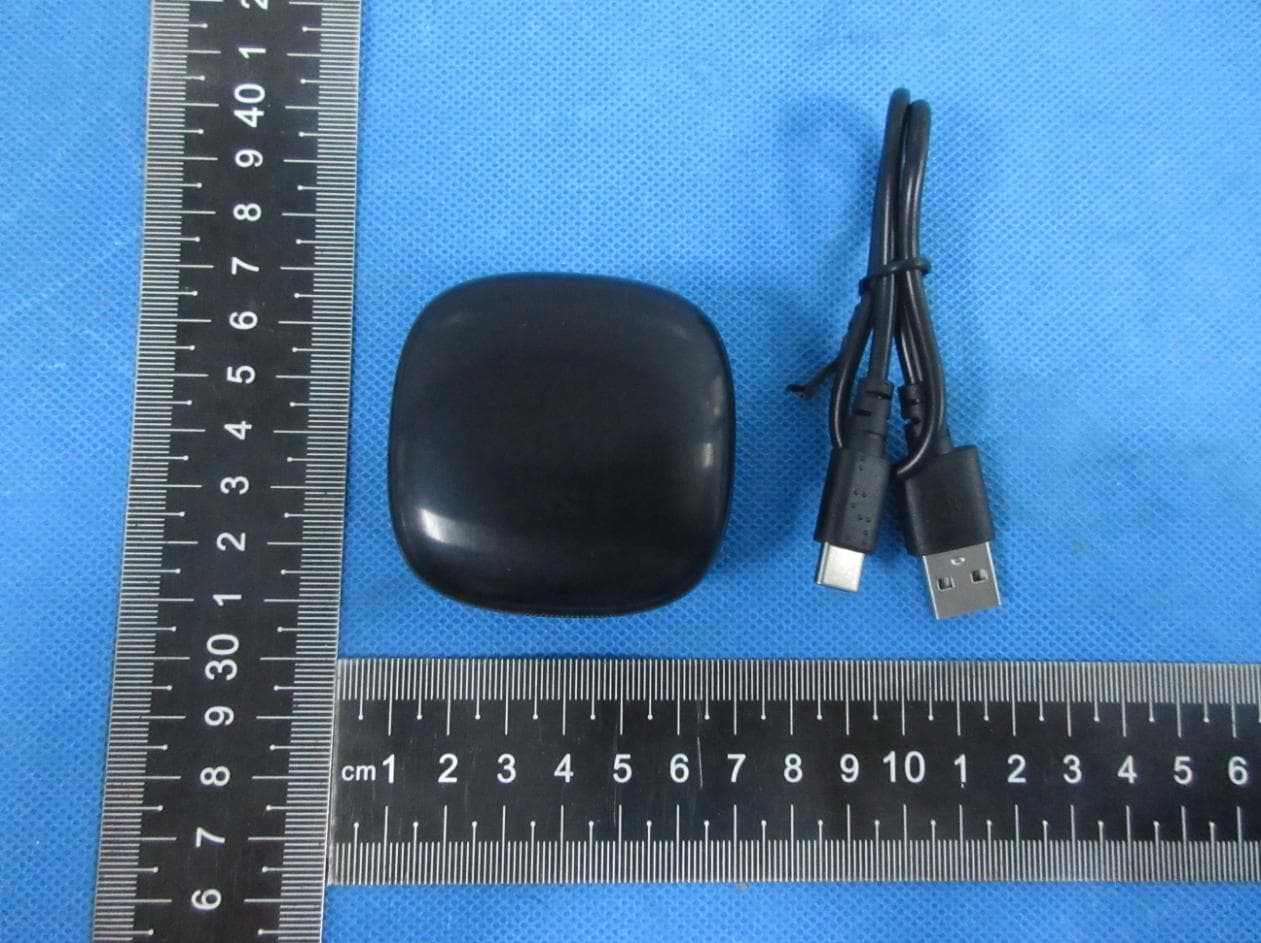

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

Scale 1:1 MOTO BUDS 135(Global) Product rating details V1 2022.09.27 Model: MOTO BUDS 135 FCC ID: 2ARRB-MB135 IC: 20353-MB135 3.7V, 315mAh, 1.17Wh Input: 5V 1A Made in China Meizhou Guo Wei Electronics Co., Ltd 28.1 14.5 图形展示为MB135充电盒底部

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 Photo 21 Photo 22 Photo 23 Photo 24 BT ANT Photo 25 Photo 26 Photo 27 Photo 28 BT ANT Photo 29

Page 1 of 56 Report No.: S22092105002001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： TRUE WIRELESS EARBUDS Trademark： Motorola Model Name： MOTO BUDS 135 Family Model： N/A Report No.： S22092105002001 FCC ID： 2ARRB-MB135 Prepared for Meizhou Guo Wei Electronics Co., Ltd. AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 56 Report No.: S22092105002001 TEST RESULT CERTIFICATION Applicant’s name .................. : Meizhou Guo Wei Electronics Co., Ltd. Address .................................. : AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Manufacturer's Name ........... : Meizhou Guo Wei Electronics Co., Ltd. Address .................................. : AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Product description Product name ......................... : TRUE WIRELESS EARBUDS Trademark ............................ : Motorola Model Name ......................... : MOTO BUDS 135 Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number .............................. S220921050002 Date of Test Date (s) of performance of tests ............. : Oct. 14, 2022 Date of Issue .......................................... : Oct. 17, 2022 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 56 Report No.: S22092105002001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Oct. 17, 2022 Jacob Chen Page 4 of 56 Report No.: S22092105002001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 8 1.5. Ambient Condition ................................................................................... 8 2. SAR Measurement System ................................................................................... 9 2.1. SATIMO SAR Measurement Set-up Diagram ............................................ 9 2.2. Robot ..................................................................................................... 10 2.3. E-Field Probe .......................................................................................... 11 2.3.1. E-Field Probe Calibration ................................................................. 11 2.4. SAM phantoms ...................................................................................... 12 2.4.1. Technical Data .................................................................................. 13 2.5. Device Holder ........................................................................................ 14 2.6. Test Equipment List ................................................................................ 15 3. SAR Measurement Procedures .......................................................................... 17 3.1. Power Reference ................................................................................... 17 3.2. Area scan & Zoom scan .......................................................................... 17 3.3. Description of interpolation/extrapolation scheme .............................. 19 3.4. Volumetric Scan ..................................................................................... 19 3.5. Power Drift ............................................................................................ 19 4. System Verification Procedure .......................................................................... 20 4.1. Tissue Verification ................................................................................. 20 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 21 4.2. System Verification Procedure .............................................................. 22 4.2.1. System Verification Results .............................................................. 23 5. SAR Measurement variability and uncertainty .................................................. 24 5.1. SAR measurement variability ................................................................. 24 5.2. SAR measurement uncertain…

Text truncated - open the document above for the full version.

2.4GHz2012ChipAntenna:RANT2012F245C07 Dimension(mm) L2.05+-0.15 W1.20+-0.15 T0.85+-0.10 No.TerminalName 1Feeding/GNG 2GND Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT2012F245C07 (A)(B)(C)(D)(E)(F) (A)ProductTypeChipAntenna (B)SizeCode2.0x1.2mm(+-0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=06 ElectricalSpecification WorkingFrequencyRange2400~2484MHz Bandwidth84(Min.) PeakGain2.0dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 2.4GHz2012ChipAntenna:RANT2012F245C07 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss ReturnLoss&Radiation 1 Frequency(MHz) S11(dB) 2400-10.77 2450-24.81 2484-10.243 Radiation Z Y X 2400MHz2450MHz2500MHz Efficiency70.56%75.25%71.01% PeakGain1.72dBi1.95dBi1.69dBi Directivity2.26dBi2.69dBi2.11dBi 2.4GHz2012ChipAntenna:RANT2012F245C07 TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 20127”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTDP PaperType2012 1.50±0.202.30±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.101.57±0.104.0±0.1 2.4GHz2012ChipAntenna:RANT2012F245C07 ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz2012ChipAntenna:RANT2012F245C06 2.4GHz2012ChipAntenna:RANT2012F245C07 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12020/10/15NewDatasheet

Report No.: S22092105001001 Version.1.3 Page 1 of 110 RADIO TEST REPORT FCC ID: 2ARRB-MB135 Product: TRUE WIRELESS EARBUDS Trade Mark: Motorola Model No.: MOTO BUDS 135 Family Model: N/A Report No.: S22092105001001 Issue Date: Oct 08, 2022 Prepared for Meizhou Guo Wei Electronics Co., Ltd AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22092105001001 Version.1.3 Page 2 of 110 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 29 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 30 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 31 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 33 7.7 PEAK OUTPUT POWER .............................................................................................................................. 34 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 35 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 36 7.10 ANTENNA APPLICATION .......................................................................................................................... 37 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS ......................................... 38 8 TEST RESULTS ................................................................................................................................................... 39 8.1 LEFT ............................................................................................................................................................... 39 8.2 RIGHT ............................................................................................................................................................. 75 Report No.: S22092105001001 Version.1.3 Page 3 of 110 1 TEST RESULT CERTIFICATION Applicant’s name ........................ : Meizhou Guo Wei Electronics Co., Ltd Address ....................................... : AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Manufacturer's Name ................. : Meizhou Guo Wei Electronics Co., Ltd Address ....................................... : AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Product description Product name ............................. : TRUE WIRELESS EARBUDS Model and/or type reference ..... : MOTO BUDS 135 Family Model .............................. : N/A Test Sample Number ................... S220921050001 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing Technology Co., Ltd., this document may be altered or revised by Shenzhen NT…

Text truncated - open the document above for the full version.

Report No.: S22092105001001 Version.1.3 Page 81 of 110 Power NVNT 2-DH5 2402MHz Ant1 Power NVNT 2-DH5 2441MHz Ant1 Report No.: S22092105001001 Version.1.3 Page 82 of 110 Power NVNT 2-DH5 2480MHz Ant1 Report No.: S22092105001001 Version.1.3 Page 83 of 110 8.2.3 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) -20 dB Bandwidth (MHz) Verdict NVNT 1-DH5 2402 Ant 1 0.8791 0.95 Pass NVNT 1-DH5 2441 Ant 1 0.8811 0.956 Pass NVNT 1-DH5 2480 Ant 1 0.8631 0.946 Pass NVNT 2-DH5 2402 Ant 1 1.1788 1.286 Pass NVNT 2-DH5 2441 Ant 1 1.1788 1.284 Pass NVNT 2-DH5 2480 Ant 1 1.1708 1.284 Pass OBW NVNT 1-DH5 2402MHz Ant1 Report No.: S22092105001001 Version.1.3 Page 84 of 110 -20 dB BW NVNT 1-DH5 2402MHz Ant1 OBW NVNT 1-DH5 2441MHz Ant1 Report No.: S22092105001001 Version.1.3 Page 85 of 110 -20 dB BW NVNT 1-DH5 2441MHz Ant1 OBW NVNT 1-DH5 2480MHz Ant1 Report No.: S22092105001001 Version.1.3 Page 86 of 110 -20 dB BW NVNT 1-DH5 2480MHz Ant1 OBW NVNT 2-DH5 2402MHz Ant1 Report No.: S22092105001001 Version.1.3 Page 87 of 110 -20 dB BW NVNT 2-DH5 2402MHz Ant1 OBW NVNT 2-DH5 2441MHz Ant1 Report No.: S22092105001001 Version.1.3 Page 88 of 110 -20 dB BW NVNT 2-DH5 2441MHz Ant1 OBW NVNT 2-DH5 2480MHz Ant1 Report No.: S22092105001001 Version.1.3 Page 89 of 110 -20 dB BW NVNT 2-DH5 2480MHz Ant1 Report No.: S22092105001001 Version.1.3 Page 90 of 110 8.2.4 Carrier Frequencies Separation Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH5 2402.041 2403.046 1.005 0.95 Pass NVNT 1-DH5 2441.047 2442.109 1.062 0.956 Pass NVNT 1-DH5 2479.044 2480.043 0.999 0.946 Pass NVNT 2-DH5 2401.882 2402.887 1.005 0.857 Pass NVNT 2-DH5 2440.888 2441.887 0.999 0.856 Pass NVNT 2-DH5 2478.888 2480.049 1.161 0.856 Pass CFS NVNT 1-DH5 2402MHz Report No.: S22092105001001 Version.1.3 Page 91 of 110 CFS NVNT 1-DH5 2441MHz CFS NVNT 1-DH5 2480MHz Report No.: S22092105001001 Version.1.3 Page 92 of 110 CFS NVNT 2-DH5 2402MHz CFS NVNT 2-DH5 2441MHz Report No.: S22092105001001 Version.1.3 Page 93 of 110 CFS NVNT 2-DH5 2480MHz Report No.: S22092105001001 Version.1.3 Page 94 of 110 8.2.5 Number of Hopping Channel Condition Mode Hopping Number Limit Verdict NVNT 1-DH5 79 15 Pass Hopping No. NVNT 1-DH5 2402MHz Report No.: S22092105001001 Version.1.3 Page 95 of 110 8.2.6 Band Edge Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant 1 No-Hopping -34.42 -20 Pass NVNT 1-DH5 2402 Ant 1 Hopping -34.13 -20 Pass NVNT 1-DH5 2480 Ant 1 No-Hopping -36.48 -20 Pass NVNT 1-DH5 2480 Ant 1 Hopping -35.36 -20 Pass NVNT 2-DH5 2402 Ant 1 No-Hopping -33.44 -20 Pass NVNT 2-DH5 2402 Ant 1 Hopping -33.89 -20 Pass NVNT 2-DH5 2480 Ant 1 No-Hopping -35.3 -20 Pass NVNT 2-DH5 2480 Ant 1 Hopping -35.35 -20 Pass Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Ref Report No.: S22092105001001 Version.1.3 Page 96 of 110 Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Emission Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Report No.: S22092105001001 Version.1.3 Page 97 of 110 Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Ref Report No.: S22092105001001 Version.1.3 Page 98 of 110 Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Emi…
