2ARRB-MB600TRUE WIRELESS EARBUDS

MOTO BUDS 600 ANC TRUE WIRELESS EARBUDS For: MOTO BUDS 600 ANC User Guide Safety instructions DANGER To avoid hearing damage, limit the time you use earbuds at high volume and set the volume to a safe level. The louder the volume, the shorter the safe listening time is. WARNING These true wireless earbuds are compliant with all relevant standards regarding electromagnetic fields and are, when handled as described in the User Guide, safe to use. Therefore, always read the instructions in this User Guide carefully before using the device. • Listen at reasonable volumes for reasonable periods of time. • Be careful not to adjust the volume continuously upwards as your hearing adapts. • Do not turn up the volume so high that you can't hear what is around you. • You should use caution or temporarily discontinue use in potentially hazardous situations. • Excessive sound pressure from earbuds can cause hearing loss. • Using earbuds with both ears covered while driving is not recommended and may be illegal in some areas while driving. • For your safety, avoid distractions from music or phone calls while in traffic or other potentially dangerous environments. • Replacement with incorrect type batteries may cause an explosion. Make sure to use original batteries. • Do not replace a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types). • Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an explosion. • Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas. • The battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Do not shock the battery at a high altitude. CAUTION •Do not expose earbuds to excessive heat. •Do not drop your earbuds. •Earbuds shall not be exposed to dripping, splashing water. •Do not allow your earbuds to be submerged in water. •Do not use any cleaning agents containing, alcohol, ammonia, benzene, or abrasives. •If cleaning is required use a soft cloth, if necessary dampened with a minimum amount of water or diluted with a minimum amount of water or diluted mild soap, to clean the earbuds. •The integrated battery shall not be exposed to excessive heat such as sunshine, fire or the like. •Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. •Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, can result in an explosion. •Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of ammable liquid or gas. •A battery subjected to extremely low air pressure that may result in an explosion or the leakage of ammable liquid or gas. •Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types). Operating temperature and humidity •Store in a place where temperature is between -20°C (-4°F) to 50°C (122°F) (up to 90% relative humidity with no condensation). •Operate in a place where temperature is between 0°C (32°F) to 45°C (113°F) (up to 90% relative humidity with no condensation). •Battery life may be shorter in high or low temperature conditions. Welcome... to your new MOTO BUDS 600 true wireless earbuds! •Wireless charging case. •Charge the charging case battery with either a USB-C cable or wireless charger. •Up to 21 hours total playtime with the charging case. •Active noise cancellaton setting. •Touch control for powering on/off and music play/pause. •Use either earbud individually for call and music playback. •Lower power consumption to increase battery life. •Water resistant buds (IPX5). •Smart voice assistant (Siri® and Google Assistant TM ). •Connect 2 mobile devices through Bluetooth at the same time. •Bluetooth 5.2 •Simpler Bluetooth pairing with the Motorola smart phone or an Andriod phone. Need help? If you have any problems setting up or using your MOTO BUDS 600, please visit us at motorolasound.com/support Alternatively, you may find the answer in the ‘Help’ section at the back of this guide. This User Guide provides you with all the information you need to get the most from your true wireless earbuds. Before you make call or listen to music you will need to set up your true wireless earbuds. Follow the simple instructions in ‘Getting started’, on the next few pages. Got everything? • Bluetooth true wireless earbuds (with M size earcaps) • Charging case • USB-C charging cable (300 mm in length) • Extra 2 pairs (S and L sizes) of replaceable silicon earcaps • Quick start guide • Warranty 6 1. Getting started ...................................................................7 2. Getting to know your true wireless earbuds...........9 3. Using the true wireless earbuds ................................10 3.1 Select the earcaps ..........................................................................................10 3.2 Wear the earbuds ...........................................................................................10 3.3 Reconnect the earbuds to your Bluetooth device .............................10 3.4 Operation .............................................................................................................11 3.4.1 Turn on/off ...........................................................................................11 3.4.2 Call control ..........................................................................................11 3.4.3 Music ......................................................................................................11 3.4.4 Activate voice assistant .................................................................12 3.4.5 Active noise cancellation (ANC) / Ambient sound ............12 3.4.6 Multipoint connection ..........................…

Text truncated - open the document above for the full version.

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] Declaration Date: 2022-11-02 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: Our product, TRUE WIRELESS EARBUDS, Model number: MOTO BUDS 600 ANC, FCC ID: 2ARRB-MB600, is a twins earbud that has a left earbud and a right earbud. We would like to declare that the left earbud and right earbud are electrically identical. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Raymond Leung Engineering Manager

QA-FR-170-B Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] FCC Authorization Date: 2022-10-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Meizhou Guo Wei Electronics Co., Ltd , the undersigned, Hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, Meizhou Guo Wei Electronics Co., Ltd ,the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Raymond Leung Engineering Manager

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] FCC Confidential Authorization Date: 2022-10-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ARRB-MB600 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Meizhou Guo Wei Electronics Co., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Raymond Leung Engineering Manager

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] Date: 2022-11-02 FCC certification No. Cover Letter We, Meizhou Guo Wei Electronics Co., Ltd, hereby submit justification for placing the FCC certification No. in the associated charging case. According to the FCC regulation, the FCC certification No. should be printed on the earbuds, but as the earbuds are too small to print the label (FCC ID: 2ARRB-MB600) , it will be moved to the charging case. The details are as below: A. Side surface (A): The side surface does not provide enough physical space to fit the printing of the FCC certification No. according to below reference picture. B. Top cover (B): The top cover does not provide enough physical space to fit the printing of the FCC certification No. according to below reference picture. Conclusion: Based on the above description of area A to B, we conclude that the device is unquestionably too small for enabling the FCC certification No. to be printed onto any surface. We therefore request to move the FCC certification No. to the charging case. Label: Best regards, Signature: Raymond Leung Engineering Manager

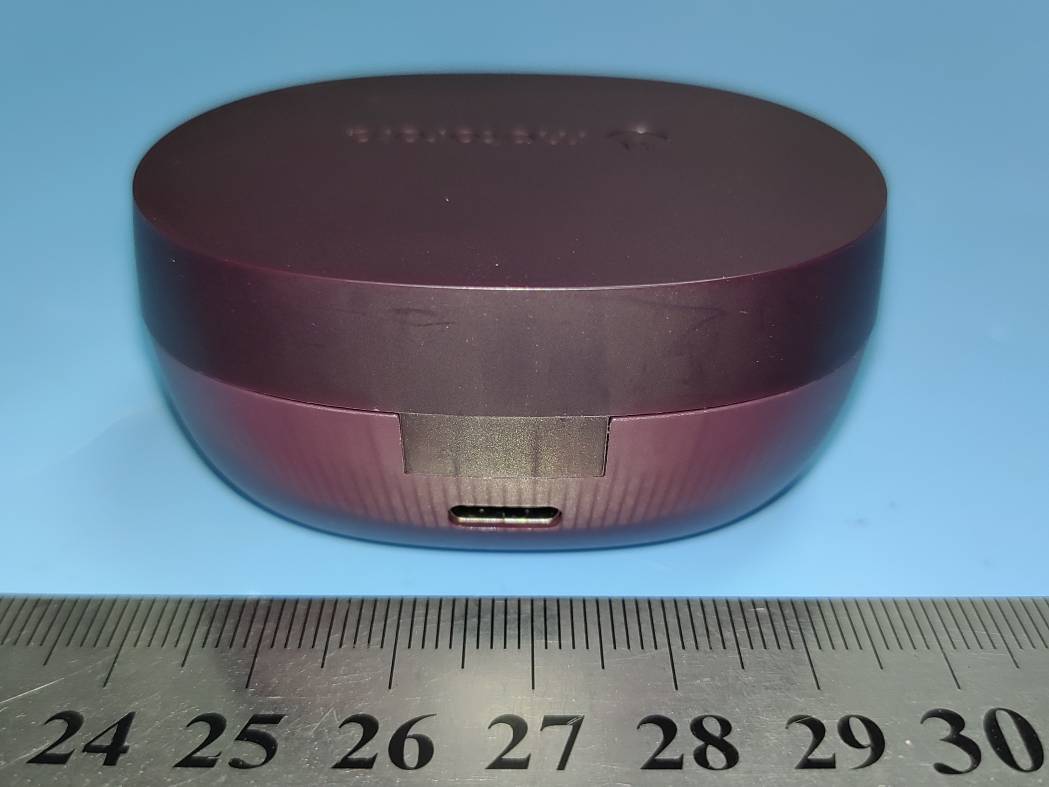

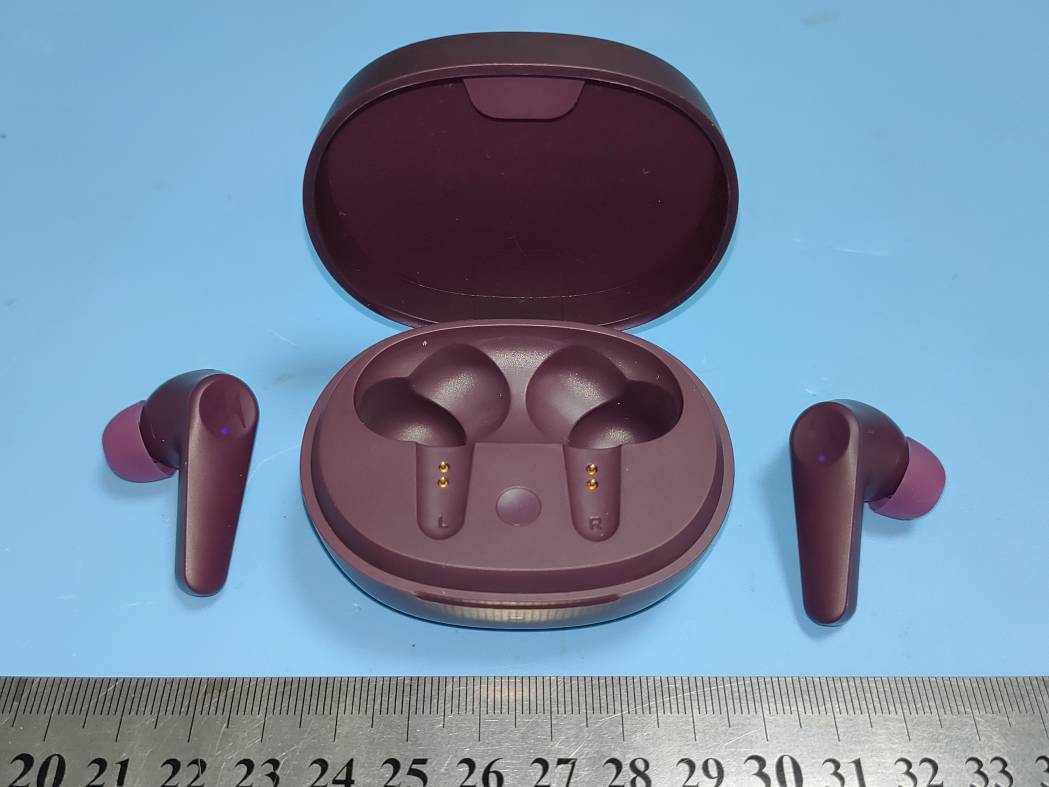

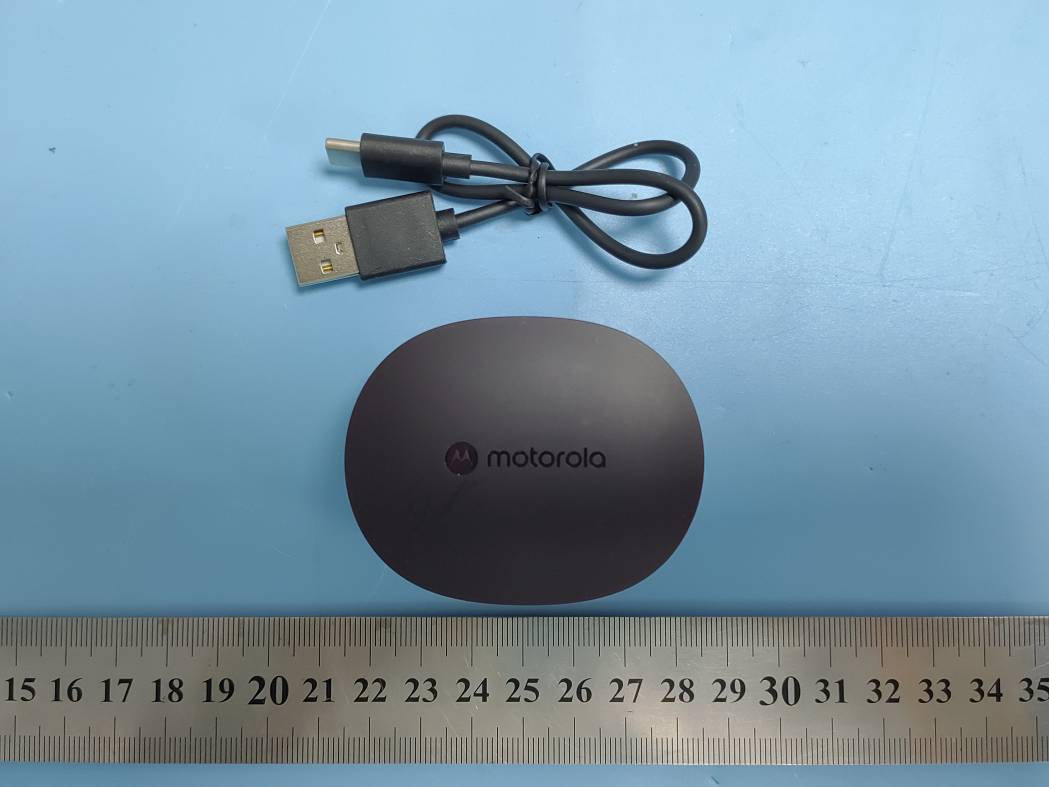

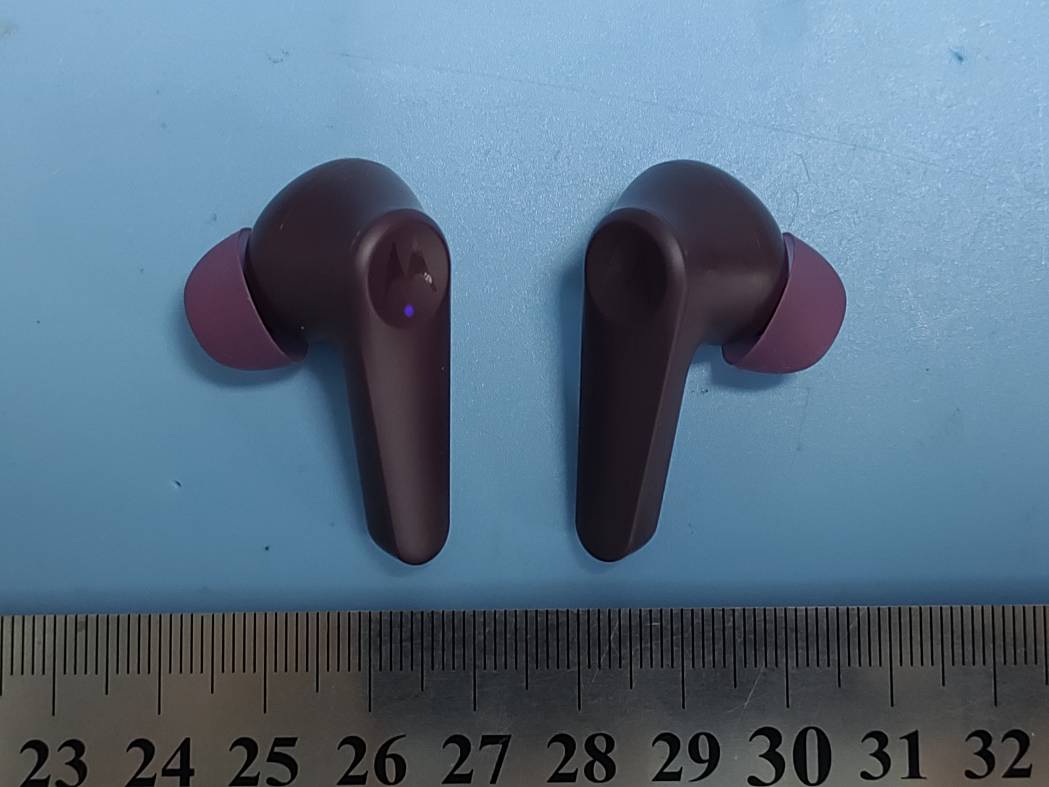

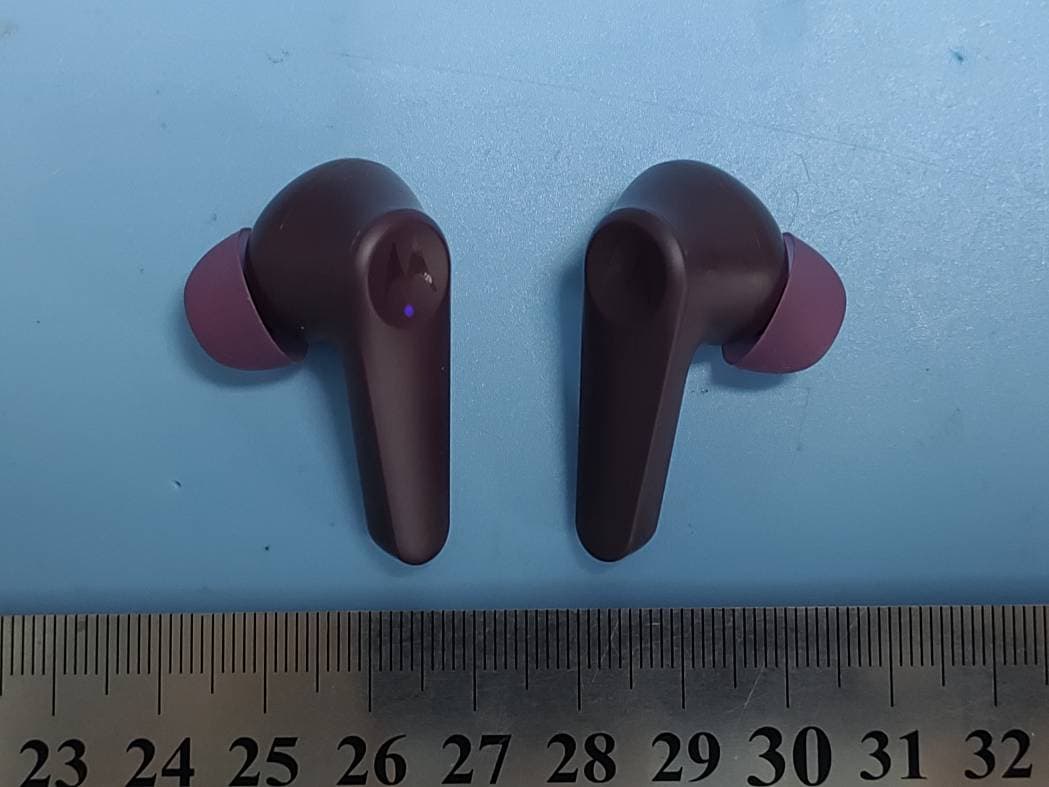

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS221020-48207E-RF External Photos Page 1 of 8 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS221020-48207E-RF External Photos Page 2 of 8 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS221020-48207E-RF External Photos Page 3 of 8 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS221020-48207E-RF External Photos Page 4 of 8 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS221020-48207E-RF External Photos Page 5 of 8 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS221020-48207E-RF External Photos Page 6 of 8 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS221020-48207E-RF External Photos Page 7 of 8 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS221020-48207E-RF External Photos Page 8 of 8

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS221020-48207E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS221020-48207E-RF Internal Photos Page 1 of 4 Internal photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS221020-48207E-RF Internal Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS221020-48207E-RF Internal Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS221020-48207E-RF Internal Photos Page 4 of 4 Antenna

Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221020-48207E-RFA Version 15: 2021-11-09 Page 11 of 63 FCC-BT；RSS-BT FCC§15.247 (i), §1.1307 (b) (3) &§2.1093 – RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b) (3), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D04 Interim General RF Exposure Guidance SAR-Based Exemption: SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum timeaveraged power or maximum time-averaged ERP, whichever is greater. Per § 1.1307(b)(3)(i)(B), for single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). P th is given by: Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221020-48207E-RFA Version 15: 2021-11-09 Page 12 of 63 FCC-BT；RSS-BT For worst case: Exemption limit: For f=2.48GHz, d=0.5cm, the P th =2.72mW The higher of the available maximum time-averaged power or effective radiated power (ERP): The antenna gain is -1.98dBi(-4.13dBd), 0dBd=2.15dBi The maximum tune-up conducted power is 2.5dBm (1.78mW), which less than 2.72mW@2480MHz exemption limit. So the stand-alone SAR evaluation can be exempted.

Hongji wireless communication (Shenzhen) Co., Ltd Part acknowledgement Part Approval Sheet Customer name： HANKAI ELECTRONICS.,LTD Product Model：A21 Risuntek P/N： 108.01.00501 Version:A Prodcut Name：FPC antenna Description: 2.45G Bluetooth headset antenna R Date：2022/11/3 （Customer Signatures) （PM） （ME）（QE） （Inner Signatures） （QE）（ME） （RF） AstonCindyJames Address: room 211-212, floor 2, Kushi science and technology innovation center, 4006 Wuhe Avenue, Longgang District, Shenzhen Telephone：0755-28700082 www.honant.com.cn Preparation / revision of change record Product drawings escription of electrical and mechanical properties Full size measurement report CPK Report Expanded list of environmental management substance Parts Reliability test report Packaging specification TABLE OF CONTENTS 1. 2. 3. 4. 5. 6. 7. 8. 1.Preparation / revision of change record editi on Revision page Change time: Changed by: Reason and content of changeremarks A0 －2022/11/3CindyFirst issue A1 A2 A3 A4 A5 A6 2.Product drawings Hongji wireless communication (Shenzhen) Co., Ltd Electrical and mechanical properties 1、Match the circuit diagram ElementValue E1 1.0pF E2 0Ω E3 N/A 2、S11 parameter 3. 3、The efficiency of passive Freq[MHz]Efficiency(%)Gain(dBi) Free spaceFree space 2400 20.98-2.5 2410 21.76-2.15 2420 21.5-2.28 2430 21.04-2.33 2440 22.79-1.98 2450 21.59-2.1 2460 20.56-2.21 2470 18.47-2.81 2480 17.79-2.82 2490 17.15-2.78 2500 17.37-2.47 4、 Active OTA data R channel TRP（dbm） TRP（dBm） Free space 0 4.29 -86.32 39 5.29 -89.68 78 5.16 -87.22 Human head model 0 3.39 -85.15 39 4.17 -87.80 78 3.85 -86.53 4.Full size measurement report code108.01.00501Part nameFPC antenna Specifica tions A21 -R FPC antenna Material Science FPC (1 half) supplierHung Kai wireless Measurin g tools Two dimensional element and micrometer Unit of measureme nt MM Measurement date: 2022.11.4 N O . 尺寸 （ DIMENSIO N） u p p e r l i m i t + TOL.- TOL. l o w e r l i m i t Measured 1 Measured 2 Measured 3 Measured 4 Measured 5 Measured 6 Measured 7 UPPER≦100%LOWER≦100% A21-R 31.32 31.47 0.15 0.15 31.17 31.335 31.329 31.309 31.302 31.336 31.342 31.348 19%12% 8.77 8.92 0.15 0.15 8.62 8.769 8.772 8.796 8.759 8.759 8.748 8.792 17%15% Tabulation: Cindyto examine:James Date: 2022/11/4 5.CPK Report Hongji wireless communication (Shenzhen) Co., Ltd Project name A21-R Customer HANKAI ELECTRONICS.,LTD Description antenna Inspected Cindy Material One half electrolytic copper Inches/MM mm Revision A Date2022/11/4 Dim. Designator 31.32 8.77 Upper Limit 31.47 8.92 Lower Limit 31.17 8.62 1 31.28 8.77 2 31.33 8.78 3 31.32 8.79 4 31.36 8.79 5 31.36 8.74 6 31.29 8.81 7 31.29 8.78 8 31.32 8.75 9 31.28 8.77 10 31.32 8.80 11 31.30 8.74 12 31.30 8.77 13 31.31 8.79 14 31.31 8.80 15 31.33 8.73 16 31.31 8.79 17 31.32 8.73 18 31.28 8.76 19 31.36 8.76 20 31.31 8.80 21 31.30 8.80 22 31.28 8.78 23 31.33 8.79 24 31.35 8.74 25 31.29 8.73 26 31.29 8.74 27 31.34 8.81 28 31.35 8.79 29 31.37 8.75 30 31.36 8.81 31 31.35 8.82 32 31.36 8.78 MAX. 31.37 8.82 MIN. 31.28 8.73 AVERAGE 31.32 8.77 STDEV 0.03 0.03 CP 1.74 1.91 Cpk 1.73 1.85 TOOLING caliperscalipers Prepared by : Checked by : Approved by : AstoncindyJames 6.Expanded list of environmental management substance parts The Parts List of Enviromental Management Substances Product Information Supplier Contact InformationReport typeConfirmation resultsremarks Part name FPC antenna Compony Name Hongji wireless communication (Shenzhen) Co., Ltd R RoHS 2.0 £ Metal provides 4 RoHS items and other 10 items Risuntek P/N108.01.00501 Contact Name/TitleAston R HF £ CL & br for non-metallic parts Supplier's P/N A21-RDate:YY/MM/DD2022/11/3 Q CP65 / Parts in contact with skin Manufacurering site DongguanE-mail address Q REACH / According to the latest SVHC list Total weight (g)Tel. No. 13714345069 Q other（ ） / Such as be, pops, PFOS / PFOA, etc R MSDS £ Article 17, seal, validity No. Customer item number Part name Homogeneo us material Test Report No. Test Date (YY/MM/DD) Test result (ppm) Test report MSDS PbCdHg Cr6 + PBB PBD E ClBr DEH P DBPBBP DIB P 1 108.01.00501 Base material fubon A2220120187103001 E 2022/4/1 NDNDNDNDNDNDNDNDNDNDNDND 2 ink High interest black oil ETR21805831A022022/7/7 NDNDNDNDNDNDNDNDNDNDNDND 3 Gummed paper3MCANEC22083598012022/5/9 NDNDNDNDNDNDNDNDNDNDNDND 4 Gold platedGen da A2220428312101003E 2022/10/9 NDNDNDNDNDNDNDNDNDNDNDND 5 White inkChuan yuETR22A01347M012022/10/17 NDNDNDNDNDNDNDNDNDNDNDND MSDS_PS-800黑 色油墨.pdf MSDS_3M9471 白色.pdf MSDS_ZSR-150 白色文字油墨.pdf 镀金 MSDS报告.pdf 20220707(REAC H)ETR21805831A02 (熱固)224項(1).pdf CANEC2208359 801 9471-REACH 2022.5.9.pdf A222012018710 3001E REACH检测报告 2022-04-01.pdf 基材MSDS.pdf ETR22A01347M 01 ZSR-150白色文字油墨ROHS PFOS PFOA SCCP HF Sb As 2022.10.17.pdf A222042831210 1003E 电镍金 ROHS&HF 2022.10.09.pdf 7.Reliability test report customerHANKAI ELECTRONICS.,LTD entry nameA21-R FPC antenna Test time:2022/11/1---2022/11/3 Number of tests 5pcs for each test item Serial number Test itemsTest instrumentest methodCriteria:determine 1 Salt spray experiment Salt spray test machine Put the tested product into a salt spray test machine containing 5% ± 1% NaCl solution for testing. The laboratory temperature is 35 °, the pressure barrel temperature is 47 °, the pressure is 1kgf / cm2, and the test is 48 hours. The product is required to be placed at 45 °, after the test, take out the product, wash it and dry it for inspection Appearance after test: the appearance is intact without obvious change. Plating: no peeling and rust. Surface spraying and screen printing: it is qualified if there is no falling off and bubble PASS 2 Thermal Shock Constant temperature and humidity box Place the test product flat in the test machine and set the test conditions. The high temperature is 85 °C, and one cycle test is conducted for 24 hours; The low temperature is - 30 °C, the test is conducted for 2 cycles, and the test is started after setting. After the test, recover for 2 hours and take out the product for inspection. Ther…

Text truncated - open the document above for the full version.

★ Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “ ”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 15: 2021-11-09 Page 1 of 63 FCC-BT；RSS-BT TEST REPORT Applicant Name : Meizhou Guo Wei Electronics Co., Ltd Address : AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guan gdong, China. Report Number : SZNS221020-48207E-RFA FCC ID: 2ARRB-MB600 IC: 20353-MB600 Test Standard (s) FCC PART 15.247; RSS-GEN ISSUE 5, FEBRUARY 2021 AMENDMENT 2; RSS-247, ISSUE 2, FEBRUARY 2017 Sample Description Product Type: TRUE WIRELESS EARBUDS Model No.: MOTO BUDS 600 ANC Multiple Model(s) No.: N/A Trade Mark: Motorola Date Received: 2022/10/20 Report Date: 2022/11/02 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Andy Yu Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS221020-48207E-RFA Version 15: 2021-11-09 Page 2 of 63 FCC-BT；RSS-BT TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (I), §1.1307 (B) (3) &§2.1093 – RF EXPOSURE ..................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 RSS-102 § 2.5.1 –EXEMPTION LIMITS FOR ROUTINE EVALUATION-SAR EVALUATION .................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 TEST RESULT: ............................................................................................................................................................ 14 FCC §15.203 & RSS-GEN §6.8 – ANTENNA REQUIREMENT............................................................................ 15 APPLICABLE STANDARD ............................................................................................................................................ 15 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 15 FCC §15.209, §15.205 & §15.247(D) & RSS-247§ 5.5 - SPURIOUS EMISSIONS ................................................ 16 APPLICABLE STANDARD ............................................................................................................................................ 16 EUT SETUP ............................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS221020-48207E-RF Test Photos Page 1 of 1 Photo of Radiated Emission Measurement (Below 1G) Photo of Radiated Emission Measurement (Above 1G)
