2ARRB-ROKR600Wireless portable speaker

ROKR 600 Wireless Portable Speaker For: ROKR 600 User Guide Safety instructions DANGER To avoid hearing damage, limit the time you use sp eaker at high volume and set the volume to a safe level. The louder the volume, the shorter the safe listening time is. WARNING This speaker is compliant with all relevant standards regarding electromagnetic fields and are, when handled as described in the User Guide, safe to use. Therefore, always read the instructions in this User Guide carefully before using the device. •Listen at reasonable volumes for reasonable periods of time. •Be careful not to adjust the volume continuously upwards as your hearing adapts. •Do not turn up the volume so high that you can't hear what is around you. •You should use caution or temporarily discontinue use in potentially hazardous situations. • Excessive sound pressure from the speaker can cause hearing loss. •For your safety, avoid distractions from music or phone calls while in traffic or other potentially dangerous environments. •Replacement with incorrect type batteries may cause an explosion. Make sure to use original batteries. •Do not replace a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types). •Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an explosion. •Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas. •The battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Do not shock the battery at a high altitude. CAUTION • Do not expose the speaker to excessive heat. • Do not drop your speaker. • The speaker shall not be exposed to dripping, splashing water. • Do not allow your speaker to be submerged in water. •Do not use any cleaning agents containing, alcohol, ammonia, benzene, or abrasives. •If cleaning is required use a soft cloth, if necessary dampened with a minimum amount of water or diluted with a minimum amount of water or diluted mild soap, to clean the earbuds. •The integrated battery shall not be exposed to excessive heat such as sunshine, fire or the like. •Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. •Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, can result in an explosion. •Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of ammable liquid or gas. •A battery subjected to extremely low air pressure that may result in an explosion or the leakage of ammable liquid or gas. •Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types). Operating temperature and humidity • Store in a place where temperature is between -20°C (-4°F) to 7 0°C (158°F) (up to 90% relative humidity with no condensation). •Operate in a place where temperature is between 0°C (32°F) to 45°C (113°F) (up to 90% relative humidity with no condensation). •Battery life may be shorter in high or low temperature conditions. Welcome... to your new ROKR 600 wireless portable speaker!. •Up to 6 hours total playtime. • Button control for powering on/off and music play/pause. • Sweat resistant (IP67). • Bluetooth 5.3 •Simpler Bluetooth pairing with the Motorola smart phone or an Andriod phone. Need help? If you have any problems setting up or using your ROKR 600, please visit us at motorolasound.com/support Alternatively, you may find the answer in the ‘Help’ section at the back of this guide. • Speaker driver (Tweeter and Woofer) This User Guide provides you with all the information you need to get the most from your wireless portable speaker. Before you listen to music you will need to set up your wireless portable speaker. Follow the simple instructions in ‘Getting started’, on the next few pages. Got everything? • Wireless portable speaker • USB-C charging cable (300 mm in length) •Quick start guide •Warranty 6 1.Getting started ...................................................................7 2. Getting to know your wireless portable speaker...9 3. Using the wireless portable speaker ........................ 10 3.1 Operation ........................................................................................................... 10 3.2 LED status indication .................................................................................... 10 4. Help ........................................................................................11 5. Technical Specifications ................................................ 12 6. General information .........................................................13 7 1.Getting started Location Important The speaker is resistant to dripping and splashing water, but the USB-C charging cable is not waterproof. Make sure you wipe off any moisture on the cable thoroughly before plugging for charging . Range of earbuds and the Bluetooth device Make sure the speaker and Bluetooth device are placed within range of each other. Charging the battery Important Warning! Use only the approved rechargeable Lithium polymer battery supplied with your ROKR 600. Charging case Connect one side of the supplied USB-C charging cable to the Type-C charging port, and the other side to the USB AC adaptor. The LED indicator flashes orange 1 second ON/1 second OFF during charging the battery. It turns solid orange for 10 seconds when charging is complete. For the first time use, charge the battery for at least 4 hours continuously. Battery performance In ideal conditions, a fully charged battery should give up to 6 hours usage time at 75% volume setting. The charge capacity of the rechargeable battery will reduce with time as it wears out, giving the earbuds less usage / standby time. Battery low war…

Text truncated - open the document above for the full version.

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2023-11-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2ARRB-ROKR600 Meizhou Guo Wei Electronics Co., Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely Yours, Raymond Leung Engineering Manager Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China.

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2023-11-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2ARRB-ROKR600 Meizhou Guo Wei Electronics Co., Ltd certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely Yours, Raymond Leung Engineering Manager Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China.

U.S. AGENT LETTER OF ATTESTATION Date: 2023-04-20 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d) (7) Filing Meizhou Guo Wei Electronics Co., Ltd certifies that, as of the date of the filing of the application, Meizhou Guo Wei Electronics Co.,LLC is our designated U.S. agent for service of process for FCC ID. Meizhou Guo Wei Electronics Co.,Ltd accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Meizhou Guo Wei Electronics Co.,LLC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for FCC ID. Designated U.S. Agent Information: Company Name: Meizhou Guo Wei Electronics Co.,LLC Address: 16192 Coastal Highway,Lewes,Delaware 19958,Country of Sussex,USA FRN: 0033625732 Tel.: +44 7776 228522 Email: [email protected] Signed by (printed name): Malcolm Paton Signature: Applicant: Meizhou Guo Wei Electronics Co.,Ltd Address: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong , China. FRN: 0027997733 Tel: +86- 0755-2573 6666 Email: [email protected] Signed by (printed name): Raymond Leung Signature:

QA-FR-170-B Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] FCC Authorization Date: 2023-11-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Meizhou Guo Wei Electronics Co., Ltd , the undersigned, Hereby China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, Meizhou Guo Wei Electronics Co., Ltd ,the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Raymond Leung Engineering Manager

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] FCC Confidential Authorization Date: 2023-11-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ARRB-ROKR600 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Meizhou Guo Wei Electronics Co., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Raymond Leung Engineering Manager

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] Attestation Letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-11-27 To Whom It May Concern, The RF chip, model L7016C, installed in our product: Wireless portable speaker, Model: ROKR 600, FCC ID: 2ARRB-ROKR600, supports BDR (GFSK), EDR (π/4- DQPSK, 8DPSK), and BLE functions. For use in America and this chip will not support/enable BLE function. The BLE function has been shielded by the manufacturer using the software, the end user has no capability to activate it. Sincerely, Raymond Leung Engineering Manager J

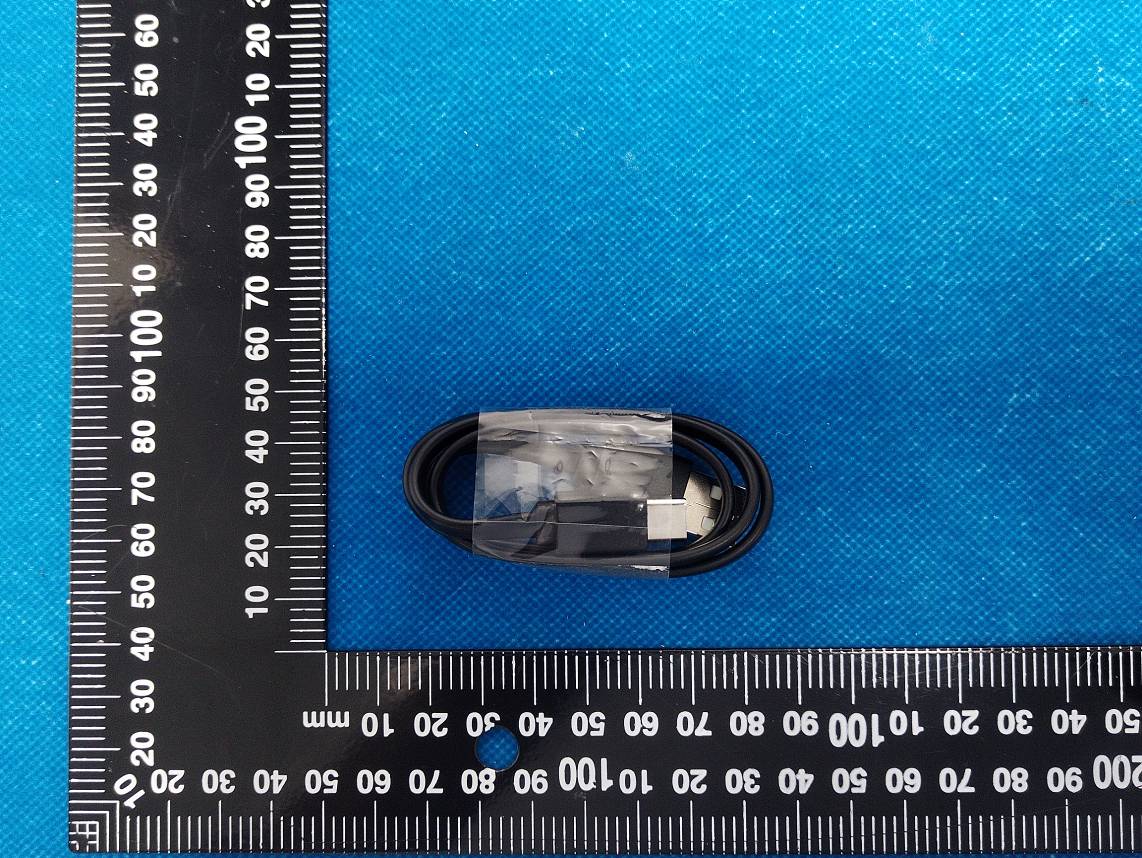

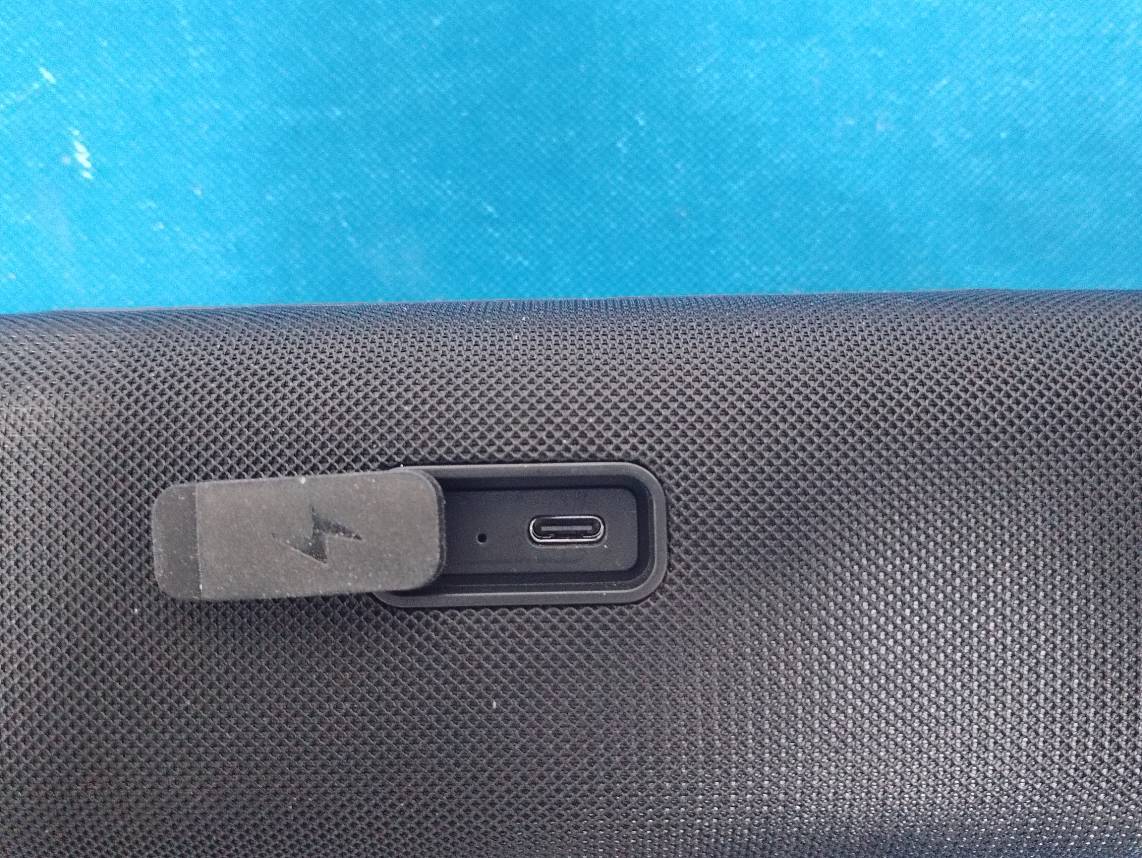

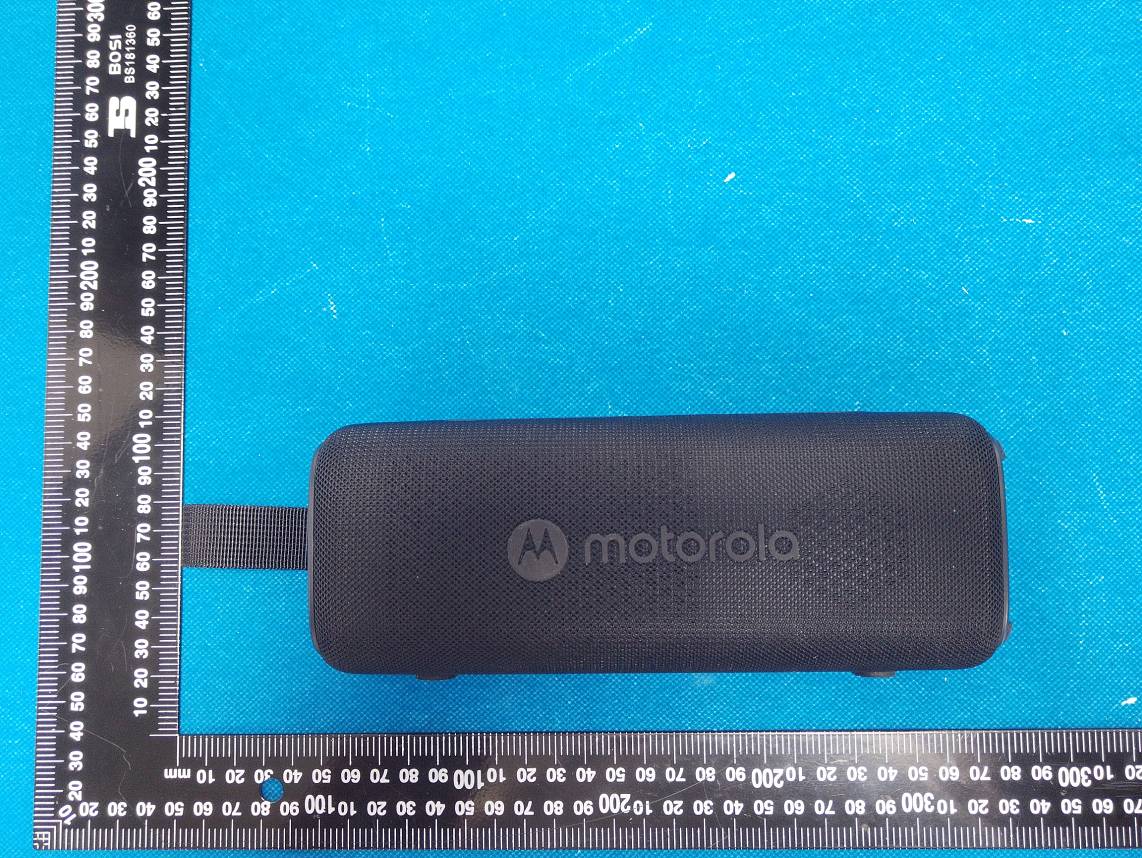

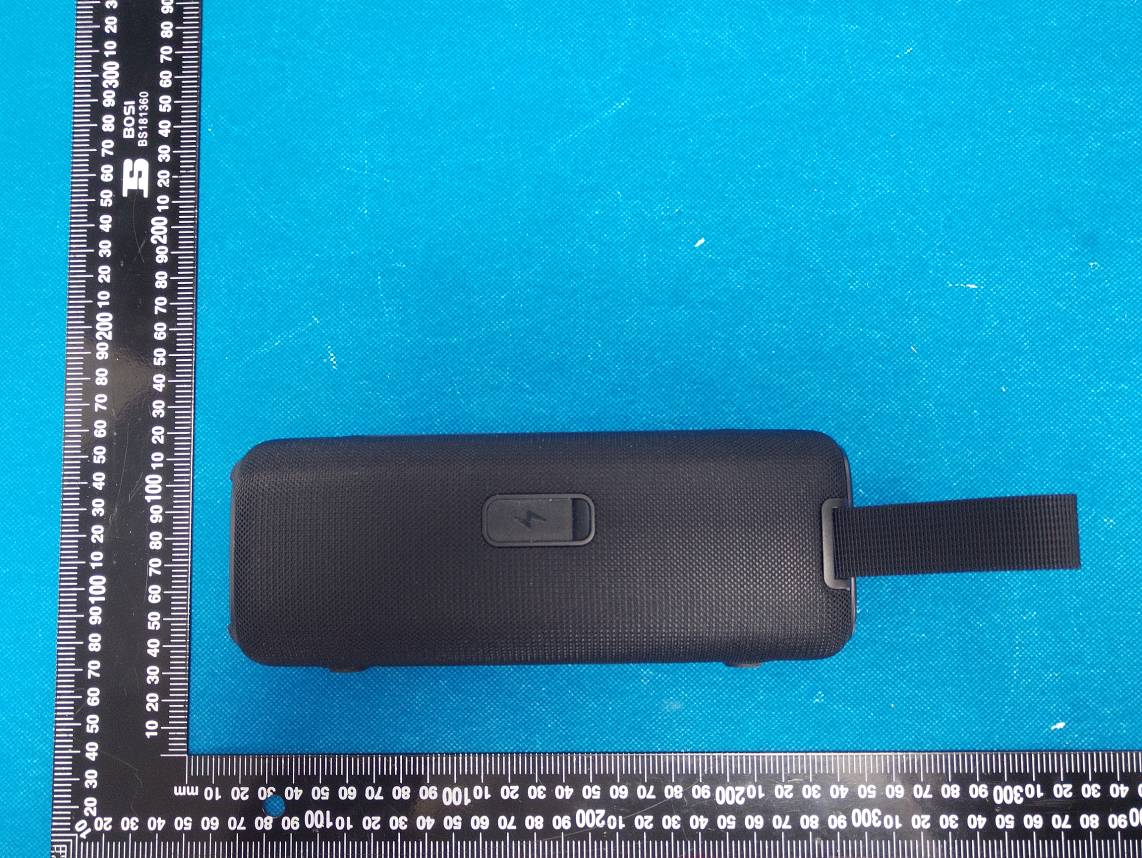

China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-EXP EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-EXP China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-EXP China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-EXP China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-EXP

China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-INP EUT INTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-INP China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-INP ANT

China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-00 Page 78 of 81 5. RF EXPOSURE EVALUATION 5.1 FCC SAR test exclusion 5.1.1 Applicable Standard According to§15.247(i) and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ꞏ [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 5.1.2 Measurement Result The max conducted power including tune-up tolerance is 2.0dBm (1.58mW). [(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)] =1.58/5*(√2.480) = 0.5< 3.0 Result: Compliant. The stand-alone SAR evaluation is not necessary.

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency MAX. Gain -0.58dBi Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 15.20* 5.7mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo -1.26dBi-0.76dBi -0.58dBi -5.25dBi -2.46dBi-1.86dBi 333 Kexing Rd,Nanping Town,Xiangzhou Dist,Zhuhai City, Guangdong Province,China Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

TEST REPORT Applicant: Meizhou Guo Wei Electronics Co., Ltd. Address: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. FCC ID: 2ARRB-ROKR600 IC: 20353-ROKR600 HVIN: ROKR 600 Product Name: Wireless portable speaker Standard(s): 47 CFR Part 15, Subpart C(15.247) RSS-247 Issue 3, August 2023 RSS-Gen, Issue 5, February 2021 Amendment 2 ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above device has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR231165412-00 Date Of Issue: 2023/11/28 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-00 Page 2 of 81 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-00 Page 3 of 81 CONTENTS DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 13 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 3.2.4 Test Procedure ............................................................................................................................................. 16 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 17 3.3 20 DB BANDWIDTH ............................................................................................................................. 1 8 3.3.1 Applicable Standard ..................................................................................................…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-00-TSP TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-00-TSP Radiated Emission 9kHz-30MHz View Parallel Radiated Emission 9kHz-30MHz View Perpendicular China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-00-TSP Radiated Emission 9kHz-30MHz View Ground-parallel Radiated Emission30MHz-1GHz View China Certification ICT Co., Ltd (Dongguan) Report No.: CR231165412-00-TSP Radiated Emission Above 1GHz View
