2ARRB-SS500ROKR 500

MODEL: ROKR 500 Frequency Band: 2.402–2.480 GHz Maximum RF power: 4dBm Working temperature: -10oC– 45oC FCC ID: 2ARRB-SS500 IC: 20353-SS500 Quick Start Guide / Guía de inicio rápido / Snelstartgids / Guia de Início Rápido / Guida per il primo utilizzo / Schnellstartanleitung / Guide de démarrage rapide / Snabbstartsguide / Poradnik użytkowania / 快速入門指南 / 快速入门指南 / Краткое руководство пользователя /Hızlı Başlangıç Kılavuzu / クイックスタートガイド / 빠른 시작 안내 서 / Коротке керівництво користувача/panduan awal cepat / підручник швидкого запуску / gyorsindítási útmutató 1. Pairing: Type-C input EN ① Power On/ Off •Press and hold button 3s to turn ON/OFFand selec "ROKR 500" from phone menu. •Double-click to enter 2 speaker link mode. ② Volume Down • Short Press to decrease volume; Press and hold it for 2s to play the last track. ③ Volume Up • Short press to increase volume; Press and hold for 2s to play the next track. ④ Play/Pause / Handsfree / BT Disconnect • Short press to play /pause. • Press and hold for 2s to connect /disconnect bluetooth. • Double press can start to "voice assistant". ⑤ Wireless Chargepad •When ROKR 500 is power on ,or in charging with power supply, put your phone on the product (center the phone with the wireless charging symbol on the product) , can charge your device. ⑥ Saving Mode • Saving mode : No any audio input or no function operation after 15 minutes, the main set will be automatic power off. ⑦ Single Speaker BT Connection Process • Power on only one speaker. The blue LED will flash when power is on. Wait until you hear the “Pairing” from the speaker. • Select the model of ROKR 500 you have from the BT menu to and pair the speaker to your mobile device. You will hear “Pairing complete” when the speaker is connected. ⑧ Two Speaker Linking Process • • • Power on both speakers to put them into pairing mode. Double click the power button on either speaker to enter link mode.You will hear “Left Channel, Right Channel”. Go to the BT menu on your device and select the model of ROKR 500 that you have , you will hear “Pairing complete” when the speaker is connected If you previously connected one speaker to your phone, power on the other speaker and after you hear “Pairing” double click the power button to enter link mode.“You will hear Left Channel, Right Channel”. ⑨ Type C Input • 10W Fast Charge Mode: (Using Quick Charge 2.0/3.0 Adapter), power supply for type C input must be use 5V/2A & 9V 2A . • 5W Standard Charge Mode: (Using 5V/2A Adapter) • Do not use 5V/1A charger or computer's USB port to power your wireless charger. CZ ① Zapnutí/vypnutí •Stiskněte a podržte tlačítko 3S pro zapnutí/vypnutí a vyberte "ROKR 500" z menu telefonu. •Dvojitým kliknutím přejdete do režimu propojení dvou reproduktorů. ② Snížení hlasitosti • Krátké stisknutí pro snížení hlasitosti; Stiskněte a podržte po dobu 2s pro přehrávání poslední stopy. ③ Zvýšení hlasitosti • Krátké stisknutí pro zvýšení hlasitosti; Stiskněte a podržte po dobu 2s pro přehrávání další stopy. ④ Spuštění/pauza/handsfree/odpojení BT • Krátké stisknutí pro přehrávání / pauzu. • Podržte po dobu 2s pro připojení / odpojení Bluetooth. • Dvojité stisknutí může spustit "Hlasového asistenta". ⑤ Bezdrátový nabíječ •Když je ROKR 500 zapnutý nebo se dobíjí zdrojem napájení, položte telefon na produkt (vycentrujte telefon se symbolem bezdrátového nabíjení na produktu), pak můžete zařízení nabíjet. ⑥ Režim šetření • Režim šetření: Pokud není žádný audio vstup či funkce po dobu 15 minut v provozu, hlavní sada bude automaticky vypnuta. ⑦ Proces připojení jednoho reproduktoru BT • Zapněte jen jeden reproduktor. Modré LED světlo bude blikat, když je napájení zapnuté. Počkejte, než uslyšíte z reproduktoru "Párování. • Vyberte model ROKR 500, který máte, z BT menu a spárujte reproduktor s vaším mobilním zařízením. Uslyšíte "Párování dokončeno", když je reproduktor ⑧ Proc es připojení dvou reproduktorů BT •Zapněte oba reproduktory a přepněte je do režimu párování. Dvojitým kliknutím na tlačítko napájení na kterémkoli reproduktoru vstoupíte do režimu propojení. Uslyšíte „Levý kanál, pravý kanál“. •V zařízení přejděte do nabídky BT a vyberte model ROKR 500, který máte, když je reproduktor připojen, uslyšíte „Párování dokončeno“. •Pokud jste k telefonu dříve připojili jeden reproduktor, zapněte druhý reproduktor a poté, co uslyšíte „Párování“, dvakrát klikněte na tlačítko napájení a přejděte do režimu propojení. Uslyšíte "Levý kanál, pravý kanál“. ⑨ Vstup typu C • 10W režim rychlého nabíjení: (použití adaptéru 2.0/3. pro rychlé nabíjení, zdroj napájení pro vstup typu C musí být použitý 5V/2A & 9V 2A. • 5W režim standardního nabíjení: (použití 5V/2A adaptéru) • Nepoužívejte 5V/1A nabíječku nebo USB port počítače pro nabíjení vaší bezdrátové nabíječky. SK ① Zapnutie/vypnutie •Stlačte a podržte tlačidlo 3S pre zapnutie/vypnutie a vyberte "ROKR 500" z menu telefónu. •Dvojitým kliknutím prejdete do režimu prepojenia dvoch reproduktorov. ② Zníženie hlasitosti • Krátke stlačenie pre zníženie hlasitosti; Stlačte a podržte po dobu 2s pre prehrávanie poslednej stopy. ③ Zvýšenie hlasitosti • Krátke stlačenie pre zvýšenie hlasitosti; Stlačte a podržte po dobu 2s pre prehrávanie ďalšej stopy. ④ spustenie/pauza/handsfree/odpojenie BT • Krátke stlačenie pre prehrávanie/pauzu. • Stlačte a podržte po dobu 2s pre pripojenie/odpojenie Bluetooth. • Dvojité stlačenie môže spusiť "Hlasového asistenta". ⑤ Bezdrôtový nabíjač •Keď je ROKR 500 zapnutý alebo sa dobíja zdrojom napájania, položte telefón na produkt (vycentrujte telefón so symbolom bezdrôtového nabíjania na produkte), potom môžete zariadenie nabíjať. ⑥ Rešim šetrenia • Režim šetrenia: Ak nie je žiadny audio vstup či funkcia po dobu 15 minút v prevádzke, hlavná sada bude automaticky vypnutá." ⑦ Proces pripojenia jedného reproduktora BT • Zapnite len jeden reproduktor. Modré LED svetlo bude blikať, keď je napájanie zapnuté. Počkajte, než budete počuť z reproduktoru "Párovanie". • Vyberte model ROKR 500, ktorý máte,…

Text truncated - open the document above for the full version.

MeizhouGuoWeiElectronicsCo.,Ltd. AgentAuthorization Company:MeizhouGuoWeiElectronicsCo.,Ltd. Address:AD1Section,EconomicDevelopmentArea,DongshengIndustrial District,Meizhou,Guangdong,China. ProductName:ROKR500 ModelNumber(s):ROKR500 Trademark: FCCID:2ARRB-SS500 WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2021/7/30 Name:RaymondLeung Title:EngineeringManager Company:MeizhouGuoWeiElectronicsCo.,Ltd.

MeizhouGuoWeiElectronicsCo.,Ltd. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2021/7/30 Subject;RequestforConfidentiality FCCID:2ARRB-SS500 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram OperationalDescription Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:RaymondLeung Title:EngineeringManager

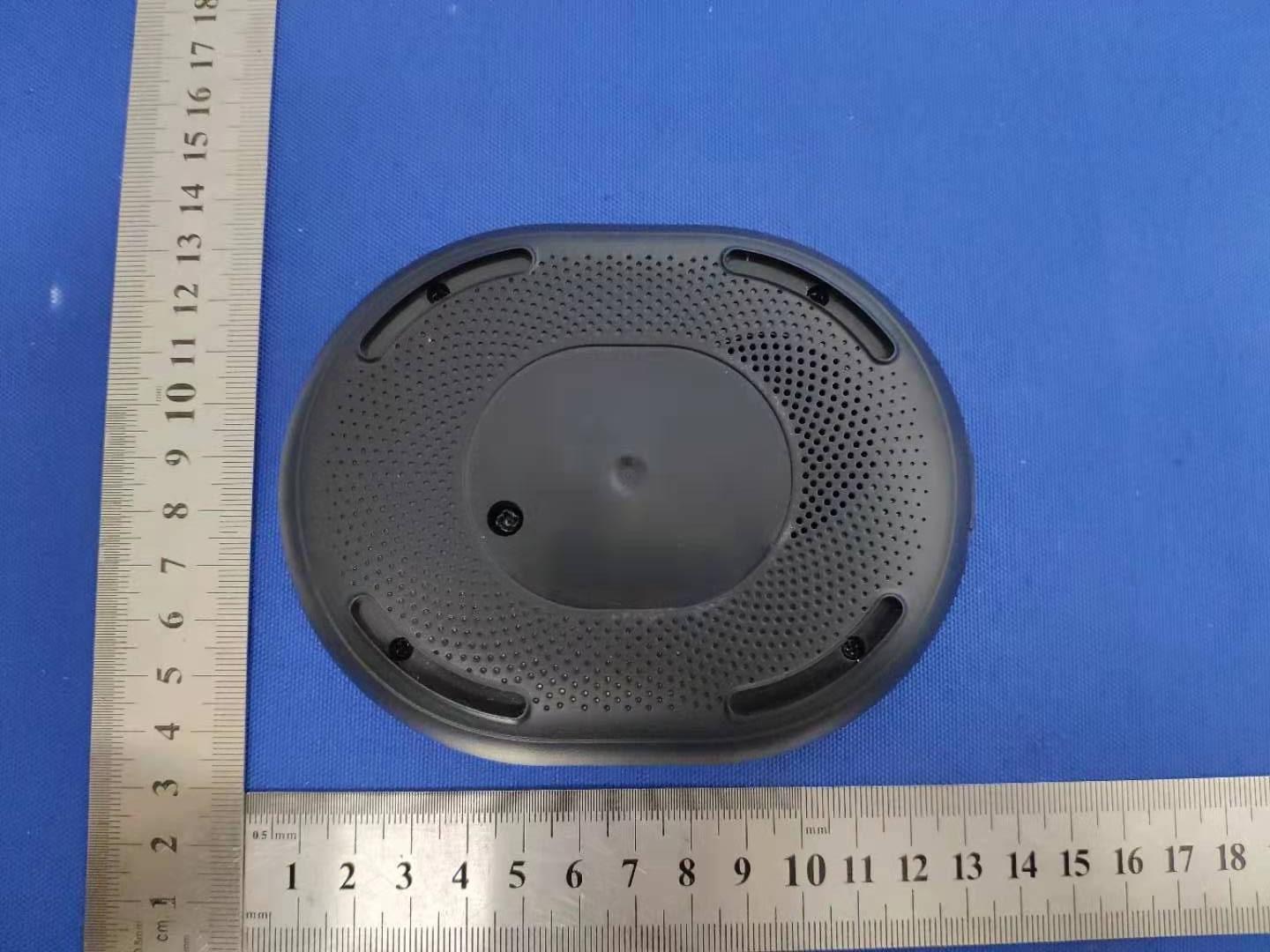

ExternalPhotos

Label&labellocation ROKR500 FCCID:2ARRB-SS500

InternalPhotos Wireless Antenna BT Antenna

RFEXPOSUREEVALUATIONMETHOD FCCID:2ARRB-SS500 Applicablestandard ： InaccordancewithFCC47CFRpart2(2.1093)thisdevicehasbeendefinedasaportable devicewhichisdefinedasatransmittingdevicedesignedtobeusedsothattheradiating structure(s)ofthedeviceis/arewithin20centimetersofthebodyoftheuser. PortabledevicesmustbeevaluatedusingthespecifiedinFCC47CFRpart2(2.1093)and ANSI/IEEEC95.1-1992.andhadbeentestedinaccordancewiththemeasurementmethods andproceduresspecifiedinIEEE1528-2003. PerFCCKDB447498D01v06,the1-gand10-gSARtestexclusionthresholdsfor100MHz to6GHzattestseparationdistancess50mmaredeterminedby: SARTestExclusionThresholdsfor100MHz–6GHzand≤50mm ApproximateSARTestExclusionPowerThresholdsatSelectedFrequenciesandTestSeparation DistancesareillustratedinthefollowingTable. The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50 mmandfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtest exclusion. BT-EDR maxpossibleoutputpower(PK,conducted)：3±1dbm 0dBilogarithmictermsconverttonumericresultisnearly1 4dbm=2.51mW 2402MHz [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]·[√f(GHz)]2.51/5*√2.402=0.78≤3.0 ThresholdatwhichnoSARrequiredis10mwand≤3.0for1-gSAR,Separation distanceis5mm. Modulation Frequency (MHz) OutputPower (dBm) MaxAntenna Gain(dBi) GFSK24020.943 0 GFSK 24411.061 0 GFSK 24800.807 0 Pi/4DQPSK 24021.969 0 Pi/4DQPSK 24412.175 0 Pi/4DQPSK 24802.021 0 8DPSK 24022.431 0 8DPSK 24412.608 0 8DPSK 24802.370 0 2441MHz [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]·[√f(GHz)]=2.51/5*√2.441=0.78≤3.0 ThresholdatwhichnoSARrequiredis10mwand≤3.0for1-gSAR,Separation distanceis5mm. Conclusion:NoSARisrequired. 2480MHz [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]·[√f(GHz)]=2.51/5*√2.48=0.79≤3.0 ThresholdatwhichnoSARrequiredis10mwand≤3.0for1-gSAR,Separation distanceis5mm.

No.：BCTC/RF-EMC-007Page: 1 of 68 Edition：A.3 TESTREPORT ShenzhenBCTCTestingCo.,Ltd. ReportNo.:BCTC2107178257-3E Applicant:MeizhouGuoWeiElectronicsCo.,Ltd. ProductName:ROKR500 Model/Type reference: ROKR500 TestedDate:2021-07-13to2021-07-26 IssuedDate:2021-07-26 ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 2 of 68 Edition：A.3 FCCID:2ARRB-SS500 Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp.Thisresult(s)showninthisreport referonlytothesample(s)tested.WithoutwrittenapprovalofShenzhenBCTCTestingCo.,Ltd,thisreport can’tbereproducedexceptinfull.Thetestedsample(s)andthesampleinformationareprovidedbythe client. ProductName: ROKR500 Trademark: Model/Typereference: ROKR500 PreparedFor: MeizhouGuoWeiElectronicsCo.,Ltd. Address: AD1Section,EconomicDevelopmentArea,Dongsheng IndustrialDistrict,Meizhou,Guangdong,China. Manufacturer: MeizhouGuoWeiElectronicsCo.,Ltd. Address: AD1Section,EconomicDevelopmentArea,Dongsheng IndustrialDistrict,Meizhou,Guangdong,China. PreparedBy: ShenzhenBCTCTestingCo.,Ltd. Address: 1-2/F.,BuildingB,PengzhouIndustrialPark,No.158,Fuyuan 1stRoad,Tangwei,FuhaiSubdistrict,Bao'anDistrict, Shenzhen,Guangdong,China SampleReceivedDate: 2021-07-13 SampletestedDate: 2021-07-13to2021-07-26 IssueDate: 2021-07-26 ReportNo.: BCTC2107178257-3E TestStandards FCCPart15.247 ANSIC63.10-2013 TestResultsPASS Remark:ThisisBluetoothClassicradiotestreport. Testedby:Approvedby: KelseyTan/ProjectHandlerZeroZhou/Reviewer ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 3 of 68 Edition：A.3 TABLEOFCONTENT TestReportDeclarationPage 1.VERSION ........................................................................................................................ 5 2.TESTSUMMARY .......................................................................................................... 6 3.MEASUREMENTUNCERTAINTY ............................................................................. 7 4.PRODUCTINFORMATIONANDTESTSETUP ..................................................... 8 4.1ProductInformation .................................................................................................. 8 4.2TestSetupConfiguration ......................................................................................... 8 4.3SupportEquipment ................................................................................................... 9 4.4ChannelList ............................................................................................................... 9 4.5TestMode ................................................................................................................ 10 4.6tableofparametersoftextsoftwaresetting ....................................................... 10 5.TESTFACILITYANDTESTINSTRUMENTUSED .............................................. 11 5.1TestFacility .............................................................................................................. 11 5.2TestInstrumentUsed ............................................................................................. 11 6.CONDUCTEDEMISSIONS ....................................................................................... 13 6.1BlockDiagramOfTestSetup ............................................................................... 13 6.2Limit ........................................................................................................................... 13 6.3Testprocedure ........................................................................................................ 13 6.4EUToperatingConditions ..................................................................................... 13 6.5TestResult ............................................................................................................... 14 7.RADIATEDEMISSIONS ............................................................................................ 16 7.1BlockDiagramOfTestSetup ............................................................................... 16 7.2Limit ........................................................................................................................... 17 7.3Testprocedure ........................................................................................................ 18 7.4EUToperatingConditions ..................................................................................... 19 7.5TestResult ............................................................................................................... 20 8.RADIATEDBANDEMISSIONMEASUREMENTANDRESTRICTEDBANDS OFOPERATION .............................................................................................................. 24 8.1BlockDiagramOfTestSetup ............................................................................... 24 8.2Limit ........................................................................................................................... 24 8.3Testprocedure ........................................................................................................ 25 8.4EUToperatingConditions ..................................................................................... 25 8.5TestResult ............................................................................................................... 26 9.CONDUCTEDEMISSION .......................................................................................... 27 9.1BlockDiagramOfTestSetup ............................................................................... 27 9.2Limit ........................................................................................................................... 27 9.3Testprocedure ........................................................................................................ 27 9.4TestResult ............................................................................................................... 28 10.20DBBANDWIDTH ...........................................…

Text truncated - open the document above for the full version.

ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 36 of 68 Edition：A.3 8DPSKTransmittingBandedge-rightside 8DPSKHoppingBandedge-rightside ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 37 of 68 Edition：A.3 10.20DBBANDWIDTH 10.1BlockDiagramOfTestSetup 10.2Limit N/A 10.3Testprocedure 1.SetRBW=30kHz. 2.Setthevideobandwidth(VBW)≥3xRBW. 3.Detector=Peak. 4.Tracemode=maxhold. 5.Sweep=autocouple. 6.Allowthetracetostabilize. 7.Measurethemaximumwidthoftheemissionthatisconstrainedbythefrequencies associatedwiththetwooutermostamplitudepoints(upperandlowerfrequencies)that areattenuatedby6dBrelativetothemaximumlevelmeasuredinthefundamental emission.. ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 38 of 68 Edition：A.3 10.4TestResult Temperature： 26 °C Relative Humidity： 54% TestVoltage： DC3.7VRemarkN/A ModulationTestChannelBandwidth(MHz) GFSKLow0.931 GFSKMiddle0.930 GFSKHigh0.929 Pi/4DQPSKLow1.285 Pi/4DQPSKMiddle1.285 Pi/4DQPSKHigh1.284 8DPSKLow1.228 8DPSKMiddle1.225 8DPSKHigh1.228 Testplots GFSKLowChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 39 of 68 Edition：A.3 GFSKMiddleChannel GFSKHighChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 40 of 68 Edition：A.3 Pi/4DQPSKLowChannel Pi/4DQPSKMiddleChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 41 of 68 Edition：A.3 Pi/4DQPSKHighChannel 8DPSKLowChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 42 of 68 Edition：A.3 8DPSKMiddleChannel 8DPSKHighChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 43 of 68 Edition：A.3 11.MAXIMUMPEAKOUTPUTPOWER 11.1BlockDiagramOfTestSetup 11.2Limit FCCPart15(15.247),SubpartC SectionTestItemLimit FrequencyRange (MHz) Result 15.247(b)(1) PeakOutput Power 0.125wattor 21dBm 2400-2483.5PASS 11.3Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantenna porttothespectrum. 2.Setthespectrumanalyzer:RBW=3MHz.VBW=3MHz.Sweep=auto;Detector Function=Peak. 3.KeeptheEUTintransmittingatlowest,mediumandhighestchannelindividually. Recordthemaxvalue. ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 44 of 68 Edition：A.3 11.4TestResult Temperature： 26 °C Relative Humidity： 54% TestVoltage：DC3.7VRemark:N/A ModulationTestChannelOutputPower(dBm)Limit(dBm) GFSKLow0.94321 GFSK Middle1.06121 GFSK High0.80721 Pi/4DQPSK Low1.96921 Pi/4DQPSK Middle2.17521 Pi/4DQPSK High2.02121 8DPSK Low2.43121 8DPSK Middle2.60821 8DPSKHigh2.37021 Testplots GFSKLowChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 45 of 68 Edition：A.3 GFSKMiddleChannel GFSKHighChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 46 of 68 Edition：A.3 Pi/4DQPSKLowChannel Pi/4DQPSKMiddleChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 47 of 68 Edition：A.3 Pi/4DQPSKHighChannel 8DPSKLowChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 48 of 68 Edition：A.3 8DPSKMiddleChannel 8DPSKHighChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 49 of 68 Edition：A.3 12.HOPPINGCHANNELSEPARATION 12.1BlockDiagramOfTestSetup 12.2Limit Frequencyhoppingsystemsshallhavehoppingchannelcarrierfrequenciesseparated byaminimumof25kHzorthe20dBbandwidthofthehoppingchannel,whicheveris greater.Alternatively,frequencyhoppingsystemsoperatinginthe2400-2483.5MHz bandmayhavehoppingchannelcarrierfrequenciesthatareseparatedby25kHzor two-thirdsofthe20dBbandwidthofthehoppingchannel,whicheverisgreater,provided thesystemsoperatewithanoutputpowernogreaterthan0.125W. 12.3Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantenna port tothespectrum. 2.Setthespectrumanalyzer:RBW=30kHz.VBW=100kHz,Span=2.0MHz.Sweep= auto;DetectorFunction=Peak.Trace=Maxhold. 3.Allowthetracetostabilize.Usethemarker-deltafunctiontodeterminetheseparation betweenthepeaksoftheadjacentchannels.Thelimitisspecifiedinoneofthe subparagraphsofthisSectionSubmitthisplot. ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 50 of 68 Edition：A.3 12.4TestResult ModulationTestChannel Separation (MHz) Limit(MHz)Result GFSKLow0.9980.621PASS GFSKMiddle0.9980.620PASS GFSKHigh1.0000.619PASS Pi/4DQPSKLow1.0020.857PASS Pi/4DQPSKMiddle1.0000.857PASS Pi/4DQPSKHigh1.0100.856PASS 8DPSKLow1.0000.819PASS 8DPSKMiddle1.0040.817PASS 8DPSKHigh1.0060.819PASS Testplots GFSKLowChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 51 of 68 Edition：A.3 GFSKMiddleChannel GFSKHighChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 52 of 68 Edition：A.3 Pi/4DQPSKLowChannel Pi/4DQPSKMiddleChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 53 of 68 Edition：A.3 Pi/4DQPSKHighChannel 8DPSKLowChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 54 of 68 Edition：A.3 8DPSKMiddleChannel 8DPSKHighChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 55 of 68 Edition：A.3 13.NUMBEROFHOPPINGFREQUENCY 13.1BlockDiagramOfTestSetup 13.2Limit Frequencyhoppingsystemsinthe2400-2483.5MHzbandshalluseatleast15 channels. 13.3Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantenna porttothespectrum. 2.Setthespectrumanalyzer:RBW=100kHz.VBW=300kHz.Sweep=auto;Detector Function=Peak.Trace=Maxhold. 3.Allowthetracetostabilize.Itmayprovenecessarytobreakthespanuptosections.in ordertoclearlyshowallofthehoppingfrequencies.Thelimitisspecifiedinoneofthe subparagraphsofthisSection. 4.Setthespectrumanalyzer:StartFrequency=2.4GHz,StopFrequency=2.4835GHz. Sweep=auto; ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 56 of 68 Edition：A.3 13.4TestResult TestPlots: 79Channelsintotal GFSK Pi/4DQPSK ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 57 of 68 Edition：A.3 8DPSK ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 58 of 68 Edition：A.3 14.DWELLTIME 14.1BlockDiagramOfTestSetup 14.2Limit Frequencyhoppingsystemsinthe2400-2483.5MHzbandshalluseatleast15channels. Theaveragetimeofoccupancyonanychannelshallnotbegreaterthan0.4seconds withinaperiodof0.4secondsmultipliedbythenumberofhoppingchannelsemployed. Frequencyhoppingsystemsmayavoidorsuppresstransmissionsonaparticular hoppingfrequencyprovidedthatami…

Text truncated - open the document above for the full version.

ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 63 of 68 Edition：A.3 8DPSKDH3MiddleChannel 8DPSKDH5MiddleChannel ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 64 of 68 Edition：A.3 15.ANTENNAREQUIREMENT 15.1Limit 15.203requirement:Forintentionaldevice,accordingto15.203:anintentionalradiator shall bedesignedtoensurethatnoantennaotherthanthatfurnishedbytheresponsibleparty shallbeusedwiththedevice. 15.2TestResult TheEUTantennaisInternalantenna,fulfilltherequirementofthissection. ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 65 of 68 Edition：A.3 16.EUTPHOTOGRAPHS EUTPhoto1 EUTPhoto2 ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 66 of 68 Edition：A.3 17.EUTTESTSETUPPHOTOGRAPHS Conductedemissions ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 67 of 68 Edition：A.3 RadiatedMeasurementPhotos ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 68 of 68 Edition：A.3 STATEMENT 1.Theequipmentlistsaretraceabletothenationalreferencestandards. 2.Thetestreportcannotbepartiallycopiedunlesspriorwrittenapprovalisissuedfromour lab. 3.Thetestreportisinvalidwithoutstampoflaboratory. 4.Thetestreportisinvalidwithoutsignatureofperson(s)testingandauthorizing. 5.ThetestprocessandtestresultisonlyrelatedtotheUnitUnderTest. 6.ThequalitysystemofourlaboratoryisinaccordancewithISO/IEC17025. 7.Ifthereisanyobjectiontoreport,theclientshouldinformissuinglaboratorywithin15 daysfromthedateofreceivingtestreport. Address: 1-2/F.,BuildingB,PengzhouIndustrialPark,No.158,Fuyuan1stRoad,Tangwei,Fuhai Subdistrict,Bao'anDistrict,Shenzhen,Guangdong,China TEL：400-788-9558 P.C.:518103 FAX：0755-33229357 Website：http://www.chnbctc.com E-Mail：[email protected] ※※※※※END※※※※※

ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 66 of 68 Edition：A.3 17.EUTTESTSETUPPHOTOGRAPHS Conductedemissions ReportNo.:BCTC2107178257-3E No.：BCTC/RF-EMC-007Page: 67 of 68 Edition：A.3 RadiatedMeasurementPhotos
