2ARRB-VM40XLBUVideo baby monitor

5.0" HD Video Baby Monitor with Touch Screen For: VM40XL TOUCH VM40XL-2 TOUCH VM40XL-3 TOUCH VM40XL-4 TOUCH User Guide Safety instructions WARNING Strangulation Hazard. Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3 ft (1 m) away). Never use extension cords with AC Adapters. Only use the AC Adapters provided. Baby monitor setup and use: • Choose a location for the baby unit that will provide the best view of your baby in their crib. • Place the baby unit on a flat surface, such as a dresser, desk, shelf or mount the unit securely using the flexible grip or tripod mount screw hole on the underside of the stand. • NEVER place the baby unit or cords in the crib or within reach of the baby (the unit and cords should be more than 3 feet away). WARNING This Video Baby Monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User Guide, safe to use. Therefore, always read the instructions in this User Guide carefully before using the device. • Adult assembly is required. Keep small parts away from children when assembling. • This product is not a toy. Do not allow children to play with it. • This baby monitor is not a substitute for responsible adult supervision. • Keep this User Guide for future reference. • Do not place the baby (camera) unit or cords in the crib or within reach of the baby (the unit and cords should be more than 3 feet away). • Keep the cords out of reach of children. • Do not cover the baby monitor with a towel, blanket, or other item that will stop air circulation. • Never use extension cords with power adapters. Only use the power adapters provided. • Test this monitor and all its functions so that you are familiar with it prior to actual use. • Do not use the baby monitor near water or allow water or other foreign substances to enter the power port or adapter. • Do not place the Baby Monitor near a heat source. • Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery packs. • Do not touch the plug contacts with sharp or metal objects. • The unit should be set up and used so that parts of the user's body other than the hands are maintained at a distance of approximately 8 inches (20 cm) or more. CAUTION There is a risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Welcome... to your new Video Baby Monitor! Thank you for purchasing your new Nursery product. Now you can see and hear your baby sleeping in another room or you can monitor your older children in their playroom. Important To use your baby and parent units together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic door or reinforced concrete between the baby and parent units may block the radio signal. The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. Other 2.4GHz products, such as wireless networks (Wi-Fi® routers), Bluetooth™ systems, microwave ovens or other baby monitors, may cause interference with this product, so keep the baby monitor at least 5 ft (1.5 m) away from these types of products, or switch them off if they appear to be causing interference. If the signal is weak, try moving the parent and/or the baby unit(s) to different positions in rooms. Need help? If you have any problems setting up or using your VM40XL TOUCH, please visit us at: motorolanursery.com/support Alternatively, you may find the answer in the ‘Help’ section at the back of this guide. This User Guide provides you with all the information you need to get the most from your Video Baby Monitor. Read the instructions carefully, and be aware that this Video Baby Monitor is only intended as an aid. It is not a substitute for responsible and proper adult supervision. Before you use the Video Baby Monitor, set up the parent and baby units. Follow the simple instructions in ‘Getting started’, on the next few pages. Important Only use the power adapters supplied. Got everything? • Parent unit with built-in rechargeable Lithium battery (2000 mAh) • Baby (camera) unit • AC power adapter for the parent unit • AC power adapter for the baby (camera) unit If you have purchased multi camera pack, you will also have the following additional items: • Baby (camera) unit(s) • AC power adapter(s) for the baby (camera) unit(s) 6 1. Getting started ...................................................................7 2. Getting to know your baby monitor ........................10 3. Using the video baby monitor .....................................13 3.1 Use the touch screen ......................................................................................13 3.2 Parent unit main menu ...................................................................................14 3.3 Adjust the brightness on the parent unit ...............................................14 3.4 Zoom the screen ..............................................................................................14 3.5 Enable audio media playback .....................................................................14 3.5.1 Lullabies/soothe sounds playback ............................................14 3.5.2 English audio book playback ......................................................15 3.5.3 Adjust the volume level of audio playback ............................15 3.6 Turn the flashlight on or off .........................................................................15 3.7 Set the timer ......................................................................................................15 3.8 Two-way talk .................…

Text truncated - open the document above for the full version.

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] Declaration letter Date: 2023-01-11 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD21046 We, Meizhou Guo Wei Electronics Co., Ltd declare that our product Video baby monitor, model: VM40XL TOUCHBU (FCC ID: 2ARRB-VM40XLBU) is electrical identical to the certified product Video baby monitor (model: VM40 CONNECTBU, FCC ID: 2ARRB-VM85BU), except the mood night and Wi-Fi feature was removed. The RF output power of EUT was spot checked and it’s consistently with the reference report, so the test data refers to the report: SZ1210301-05161EA. Sincerely, Signature: Raymond Leung Engineering Manager

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] Attestation Letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-01-11 To Whom It May Concern, The RF chip, model nRF52810, installed in our product: Product Name: Video baby monitor, Model: VM40XL TOUCHBU, FCC ID: 2ARRB-VM40XLBU, supports Bluetooth Low Energy and 2.4GHz FHSS. For use in America and this chip only supports 2.4GHz FHSS. The Bluetooth Low Energy has been shielded by the manufacturer using the software, the end user has no capability to activate it. Sincerely, Signature Raymond Leung Engineering Manager

$77(67$7,2167$7(0(17   $SSOLFDQW0HL]KRX*XR:HL(OHFWURQLFV&R/WG $GG$'6HFWLRQ(FRQRPLF'HYHORSPHQW$UHD'RQJVKHQJ,QGXVWULDO'LVWULFW0HL]KRX *XDQJGRQJ&KLQD 7HO (PDLOUD\PRQGOHXQJ#VJZJOREDOFRPFQ  'DWH  )('(5$/&20081,&$7,216&200,66,21 $XWKRUL]DWLRQDQG(YDOXDWLRQ'LYLVLRQ 2DNODQG0LOOV5RDG &ROXPELD0'  5HI$WWHVWDWLRQ6WDWHPHQWV3DUW G  L  LL )LOLQJ )&&,'$55%90;/%8  0HL]KRX*XR:HL(OHFWURQLFV&R/WGFHUWLILHVWKDWWKHHTXLSPHQWIRUZKLFKDXWKRUL]DWLRQ LVVRXJKWLVQRW³FRYHUHG ́HTXLSPHQWSURKLELWHGIURPUHFHLYLQJDQHTXLSPHQWDXWKRUL]DWLRQ SXUVXDQWWRVHFWLRQRIWKH)&&UXOHV  $QG0HL]KRX*XR:HL(OHFWURQLFV&R/WGFHUWLILHVWKDWDVRIWKHGDWHRIWKHILOLQJRIWKH DSSOLFDWLRQWKHDSSOLFDQWLVQRWLGHQWLILHGRQWKH&RYHUHG/LVWDVDQHQWLW\SURGXFLQJ ³FRYHUHG ́HTXLSPHQW    6LQFHUHO\         5D\PRQG/HXQJ   Engineering Manager

QA-FR-170-B Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] FCC Authorization Date: 2023-01-11 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Meizhou Guo Wei Electronics Co., Ltd , the undersigned, Hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, Meizhou Guo Wei Electronics Co., Ltd ,the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Raymond Leung Engineering Manager

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] FCC Confidential Authorization Date: 2023-01-11 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ARRB-VM40XLBU In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Meizhou Guo Wei Electronics Co., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Raymond Leung Engineering Manager

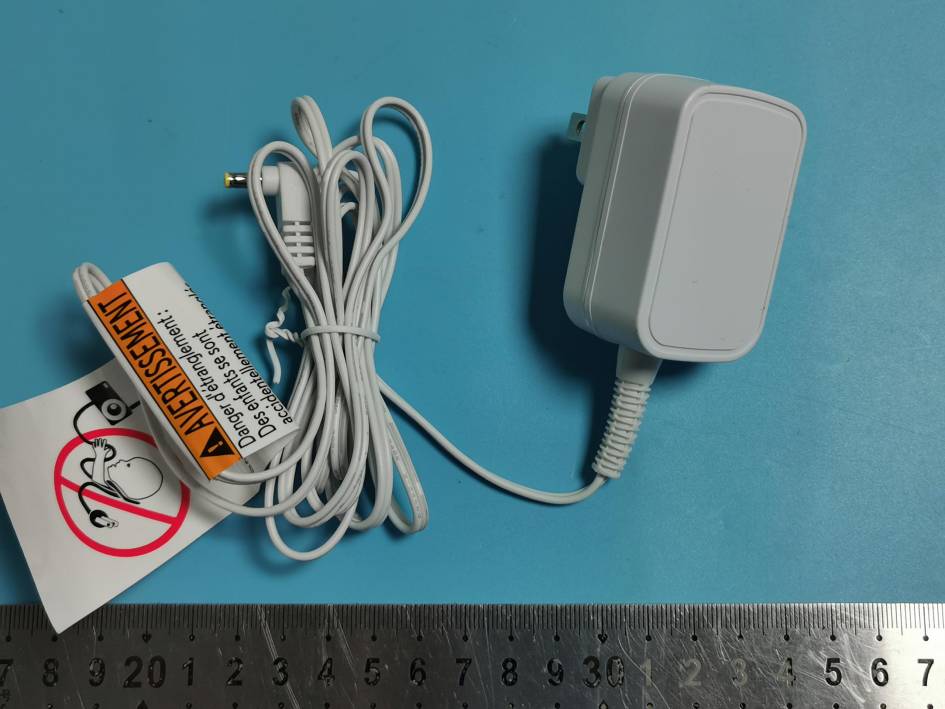

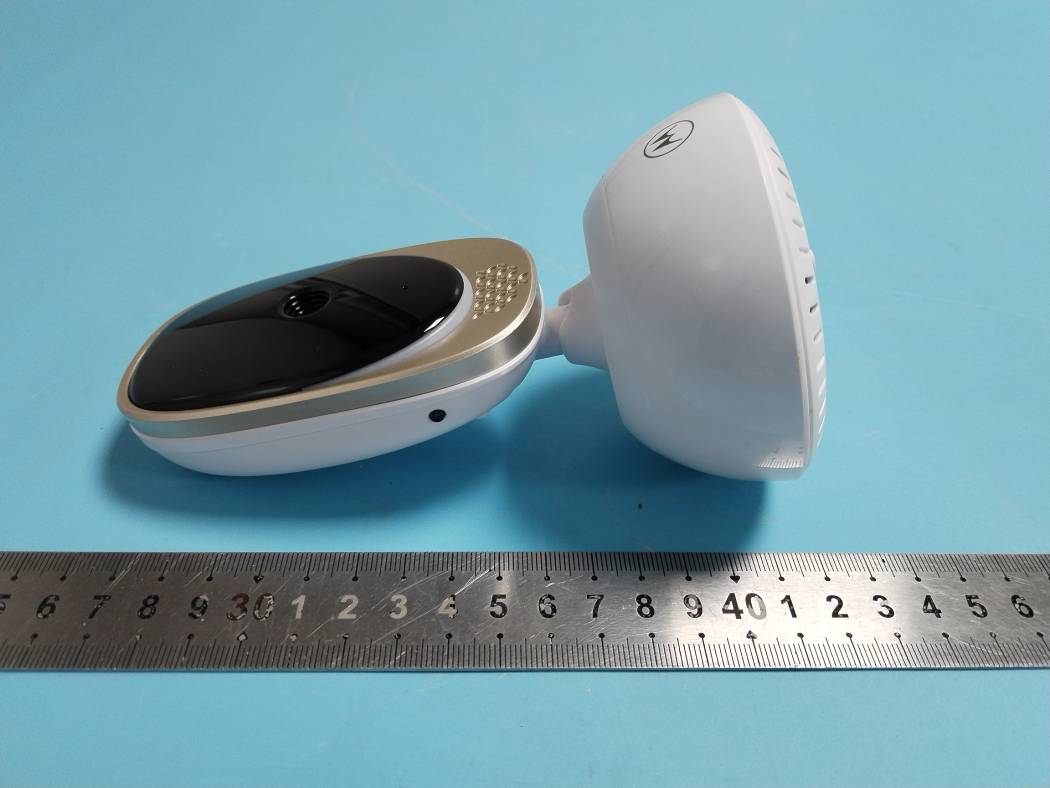

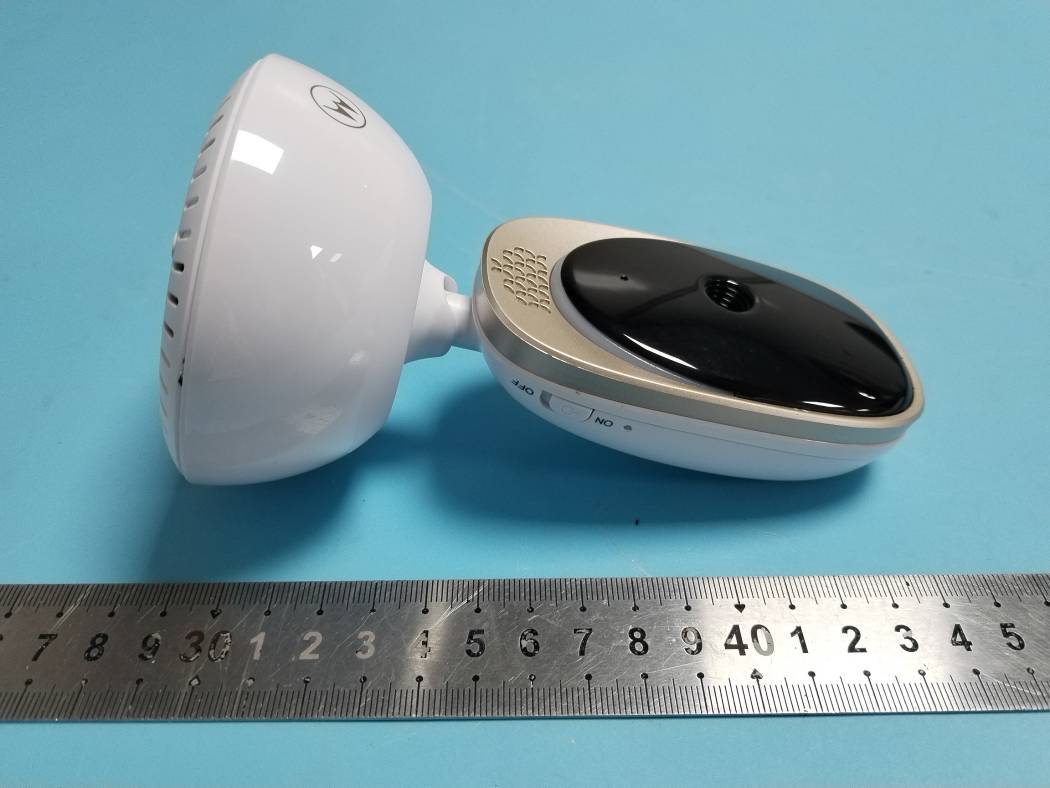

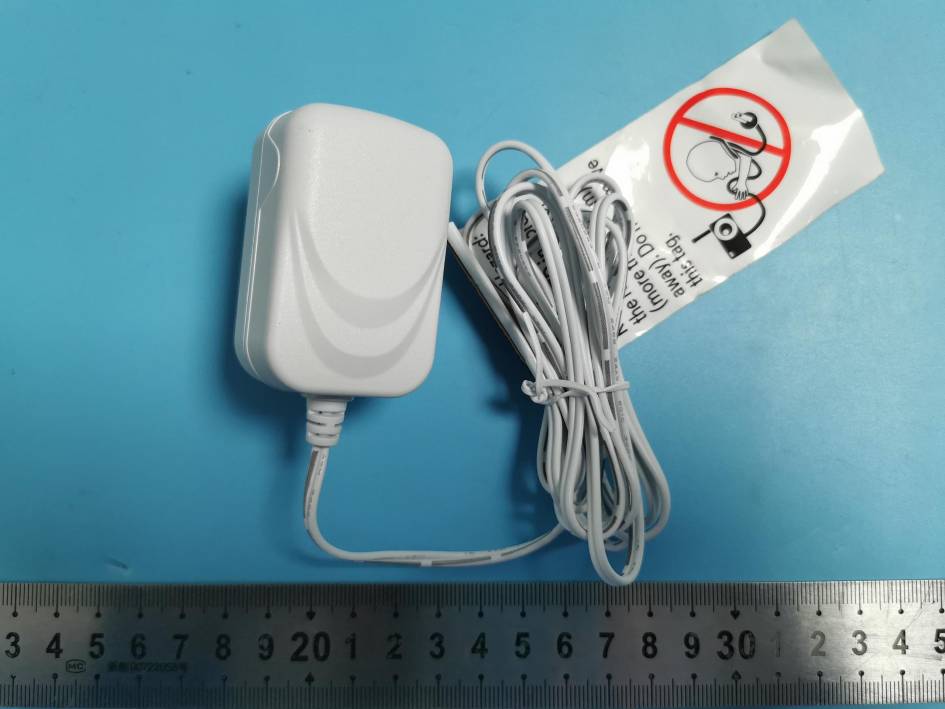

Shenzhen Accurate Technology Co., Ltd. FCC ID:2ARRB-VM40XLBU External Photos Page 1 of 6 External Photos Shenzhen Accurate Technology Co., Ltd. FCC ID:2ARRB-VM40XLBU External Photos Page 2 of 6 Shenzhen Accurate Technology Co., Ltd. FCC ID:2ARRB-VM40XLBU External Photos Page 3 of 6 Shenzhen Accurate Technology Co., Ltd. FCC ID:2ARRB-VM40XLBU External Photos Page 4 of 6 Adapter 1（BQ05A-0501000-U） Shenzhen Accurate Technology Co., Ltd. FCC ID:2ARRB-VM40XLBU External Photos Page 5 of 6 Adapter 2（YWK-AD050100-U） Shenzhen Accurate Technology Co., Ltd. FCC ID:2ARRB-VM40XLBU External Photos Page 6 of 6 Adapter 3（PSO5Q050K1000UD）

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221117-54815E-RFA2 LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. FCC ID:2ARRB-VM40XLBU Internal Photos Page 1 of 7 Internal photos Shenzhen Accurate Technology Co., Ltd. FCC ID:2ARRB-VM40XLBU Internal Photos Page 2 of 7 ANT Shenzhen Accurate Technology Co., Ltd. FCC ID:2ARRB-VM40XLBU Internal Photos Page 3 of 7 Shenzhen Accurate Technology Co., Ltd. FCC ID:2ARRB-VM40XLBU Internal Photos Page 4 of 7 Shenzhen Accurate Technology Co., Ltd. FCC ID:2ARRB-VM40XLBU Internal Photos Page 5 of 7 Shenzhen Accurate Technology Co., Ltd. FCC ID:2ARRB-VM40XLBU Internal Photos Page 6 of 7 Shenzhen Accurate Technology Co., Ltd. FCC ID:2ARRB-VM40XLBU Internal Photos Page 7 of 7

Antenna Specification Model Name 2.4G FHSS ANT KC-0628 Frequency 2400MHz 2450MHz 2500MHz Gain (dBi) -1.02dBi -0.45dBi 0 dBi MAX. Gain 0 dBi Impedance 50 Ω Antenna Length 18.7mm Manufacturer ShenZhen YaYiLian Ltd. 6/F, Building 5, Fengtang Avenue, Fuyong Street, Bao'an District, Shenzhen Antenna Photo & Length (mm) XOZ YOZ XOY

★ Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “ ”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 30: 2021-11-09 Page 1 of 34 FCC&RSS-FHSS TEST REPORT Applicant Name : Meizhou Guo Wei Electronics Co., Ltd Address : AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Report Number : RA221117-54815E-RFAA1 FCC ID: 2ARRB-VM40XLBU IC 20353-VM40XLBU Test Standard (s) FCC PART 15.247; RSS-GEN ISSUE 5, FEBRUARY 2021 AMENDMENT 2; RSS-247, ISSUE 2, FEBRUARY 2017 Sample Description Product Type: Video baby monitor Model No.: VM40XL TOUCHBU Multiple Model(s) No.: N/A Trade Mark: Motorola Date Received: 2022/11/17 Report Date: 2023/02/13 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Andy Yu Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA221117-54815E-RFAA1 Version 30: 2021-11-09 Page 2 of 34 FCC&RSS-FHSS TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 3 GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC §15.247 (I) & §1.1307 (B) (3) & §2.1091- RF EXPOSURE ............................................................................. 11 RSS-102 § 2.5.2 –EXEMPTION LIMITS FOR ROUTINE EVALUATION-RF EXPOSURE EVALUATION 12 APPLICABLE STANDARD ............................................................................................................................................ 12 FCC §15.203 & RSS-GEN §6.8– ANTENNA REQUIREMENT ............................................................................ 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (A) & RSS-GEN §8.8– AC LINE CONDUCTED EMISSIONS ....................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 15 EMI TEST RECEIVER SETUP ......................................................................................…

Text truncated - open the document above for the full version.

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 RSS-GEN ISSUE 5, FEBRUARY 2021 AMENDMENT 2 RSS-247, ISSUE 2, FEBRUARY 2017 TEST REPORT For Meizhou Guo Wei Electronics Co., Ltd. AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. FCC ID: 2ARRB-VM85BU IC: 20353-VM85BU Report Type: Original Report Product Type: Video baby monitor Re port Number: SZ1210301-05161EA Report Date: 2021-05-28 Reviewed B y: Jacob Kong RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) ,6F,7F,the 3rd Phase of Wan Li Industrial Building D,Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1210301-05161EA FCC Part 15.247 RSS-GEN ISSUE 5, FEBRUARY 2021 AMENDMENT 2, RSS-247, ISSUE 2, FEBRUARY 2017 Page 2 of 45 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 RESULT ...................................................................................................................................................................... 10 RSS-102 § 4 –EXPOSURE LIMITS ........................................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 FCC §15.203 & RSS-Gen §6.8– ANTENNA REQUIREMENT .............................................................................. 1 4 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 14 FCC §15.207 (a) & RSS-Gen §8.8– AC LINE CONDUCTED EMISSIONS ......................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 EUT SETUP ................................................................................................................................................................ 16 EMI TEST RECEIVER SETUP .................................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221117-54815E-RFA2 Test Photos Page 1 of 2 Photo of Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: RA221117-54815E-RFA2 Test Photos Page 2 of 2 Photo of Radiated Emission Measurement (Below 1G)
