USER’ S GUIDE 4.3 " Wi-Fi® Video Baby Monitor MODELS: VM20 CONNECT, VM20-2 CONNECT, VM20-3 CONNECT, VM20-4 CONNECT The features described in this user’s guide are subject to modifications without prior notice. Welcome... to your new Motorola Wi-Fi ® Video Baby Monitor! Thank you for purchasing the Wi-Fi® Video Baby Monitor. Now you can see and hear your baby sleeping in another room or you can monitor your older children in their play room. Our Connected Baby Monitor let you see your baby from the hand-held viewer, or from your smartphone. Watch over and communicate with your baby from anywhere in the world. Please keep your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For questions, warranty, support or service related to the product, please contact us by visit: motorolanursery.com/support This User’s Guide has all the information you need to make the most out of your product. Please read the Safety Instructions on pages 8-9 before you install the unit. Inside the Box •1 x Parent Unit •1 x Baby Unit (Camera) •2 x Power adapter (Parent Unit and Baby Unit) •1 x Quick Start Quide In multi-camera packs, you will find one or more additional Camera Units with power adapters. 1 1 12 13 14 15 10 9 Overview of the Parent Unit 1.Display (LCD screen) 2.Parent Unit ON/OFF and Charging LED Red when the parent unit is ON. Purple when electrical outlet connected. Blue when off and connected to electrical outlet. 3.Audio Level LEDs (Green, Green, Amber, Red, Red) 4.MENU button Press to open / close the Menu options. 5.VIDEO ON/OFF button Press to turn the LCD screen ON/OFF (Note: audio is maintained.) 6.Navigation button Move Up/Down/Right/Left menu options. Adjust Volume level and Brightness 7.OK button 8.Power button Press and Hold to turn the Parent Unit ON/OFF. 9.TALK button Press and hold to speak to your baby. 10.Mocrophone 11.Antenna 12.RESET button (recessed - use small pin) 13.Speaker 14.Power Socket 15.Stand Parent Unit menu icons Signal Level (5 Levels) Night Vision Mode (Video also changes to Black/White). Talk Mode On. Indicates the screen off timer is set. Volume Level Control (8 Levels). No Baby Unit detected. Battery Level Indication (4 Levels). Zoom Level Control (1X, 2X). LCD Brightness Level Control (8 Levels). Lullaby Control (5 Song Selections). Alarm Setting (6h, 4h, 2h, OFF) On status bar, indicates alarm set, and when flashing, that alarm time has been reached or missed. Temperature scale select (°C/°F) Readings display in BLUE, but turn RED if > 29 °C / 84 °F or < 14 °C / 57 °F. Displays HH °C / °F if >36 °C / 97 °F. Displays LL °C / °F if < 1 °C / 34 °F. Camera Control (scan , view , add , del ). Set Screen Off Timer (Off , 5 mins, 30 mins, 60 mins). View multiple cameras on screen. Available when you have more than 1 Baby Unit (Camera). Home page of Hubbleconnect, Scan the QR code to download the Hubble Connected App on Smartphone or tablet. 10 Overview of Your Baby Unit 1. Infrared LEDs (x 8, for night vision) 2. Photo Sensor (Night Vision Mode) 3. Camera Lens 4. Power/Link indicator 5. High Sense Microphone 6. Speaker 7. PAIR button 8. Power Socket 9. Antenna 10. Temperature Sensor Important guidelines for installing your Digital Video Baby Monitor •To use your Baby Unit and Parent Unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. •Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic door or reinforced concrete, between the Baby Unit and Parent Unit may block the radio signal. •The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. •Other 2.4GHz products, such as wireless networks (Wi-Fi® routers), Bluetooth™ systems, microwave ovens or other Baby Monitors, may cause interference with this product, so keep the Baby Monitor at least 5ft (1.5m) away from these types of product, or switch them off if they appear to be causing interference. •If the signal is weak, try moving the Parent and/or the Baby Unit to different positions in the rooms. Table of contents 6 Table of contents 1. Safety Instructions ...................................................................................... 8 2. Getting Started .......................................................................................... 10 2.1 Connecting the Power Supply for the Baby Unit ........................................ 10 2.2 Connecting the Power Supply of the Parent Unit. ..................................... 10 2.3 Desktop Stand of the Parent Unit .............................................................. 11 2.4 Registration (Pairing). ................................................................................ 12 3. Using the Baby Monitor ............................................................................ 13 3.1 Setting Up .................................................................................................. 13 3.2 Night Vision Mode ..................................................................................... 13 3.3 Talk Mode ................................................................................................... 13 3.5 Video ON/OFF ............................................................................................ 13 3.6 Temperature Display (HH °C / °F or LL °C / °F) ............................................ 14 4. Parent Unit Menu Options ........................................................................ 14 4.1 Volume ....................................................................................................... 14 4.2 Zoom ...............................................................…

Text truncated - open the document above for the full version.

Ver. 1 15_Fbe_2011 AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: +86-755-25736666, Fax: +86-755-25732288, Website: www.sgwglobal.com ************************************************************************************************************ 15-March-2021 To whom it may concern敬启者, Multiple Models Confirmation Letter型号多样性号确认书 I, the undersigned, hereby confirm that the family models are listed in the following table. 我司特此确认下列表内的型号有以下相同及不同之处。 These models are identical as follows: 相同之处如下: √ Electronics/electrical designs, including firmware 电子或电机设计,包括固件 √ Construction design/Physical design/Enclosure结构设计或物理设计或外壳 √ PCB layout PCB走线布局 □ (Others, please specify其他,请说明) The only differences between these models are the follows for marketing purpose: 不同之处如下: √ Color颜色 √ Software 软件 √ Cosmetic details 外观细节 □ Trade name商标 √ Model Number型号 √ (Others, please specify其他,请说明) different LCD lens color □ Suffix (“ ”) represents 子尾(“ ”)代表 □ Color code色标 √ Packing configuration包装配置 □ (Others, please specify其他,请说明) Item No. 项目 New model新型号 Model Number型号 Remark 注释 1 √ YES VM44 CONNECTPU FCC ID: 2ARRB-VM44PU IC: 20353-VM44PU 2 √ YES VM20 CONNECTPU The sample being submitted to Bay Area Compliance Laboratories Corp. (Shenzhen) for conformity assessment is item no. / model number VM20 CONNECTPU (tested model) of the above list. Regards此致, Raymond Leung Engineering Manager

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] FCC Confidential Authorization Date: 2021-05-20 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ARRB-VM44PU In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Meizhou Guo Wei Electronics Co., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Raymond Leung Engineering Manager

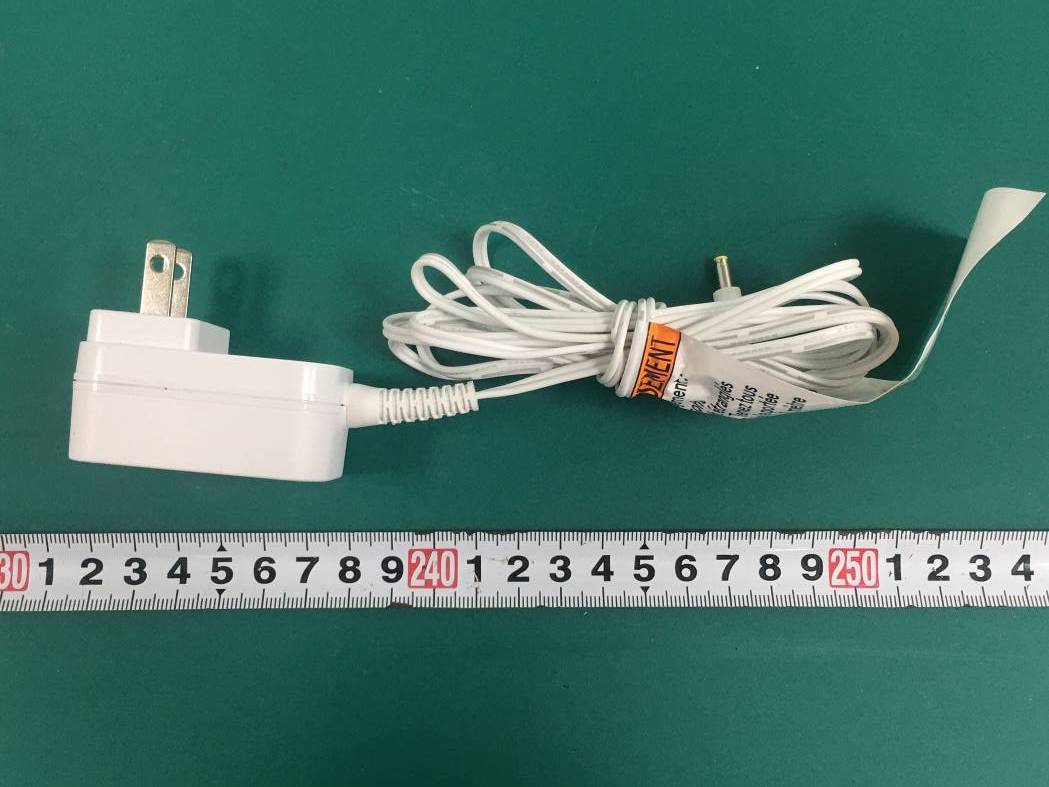

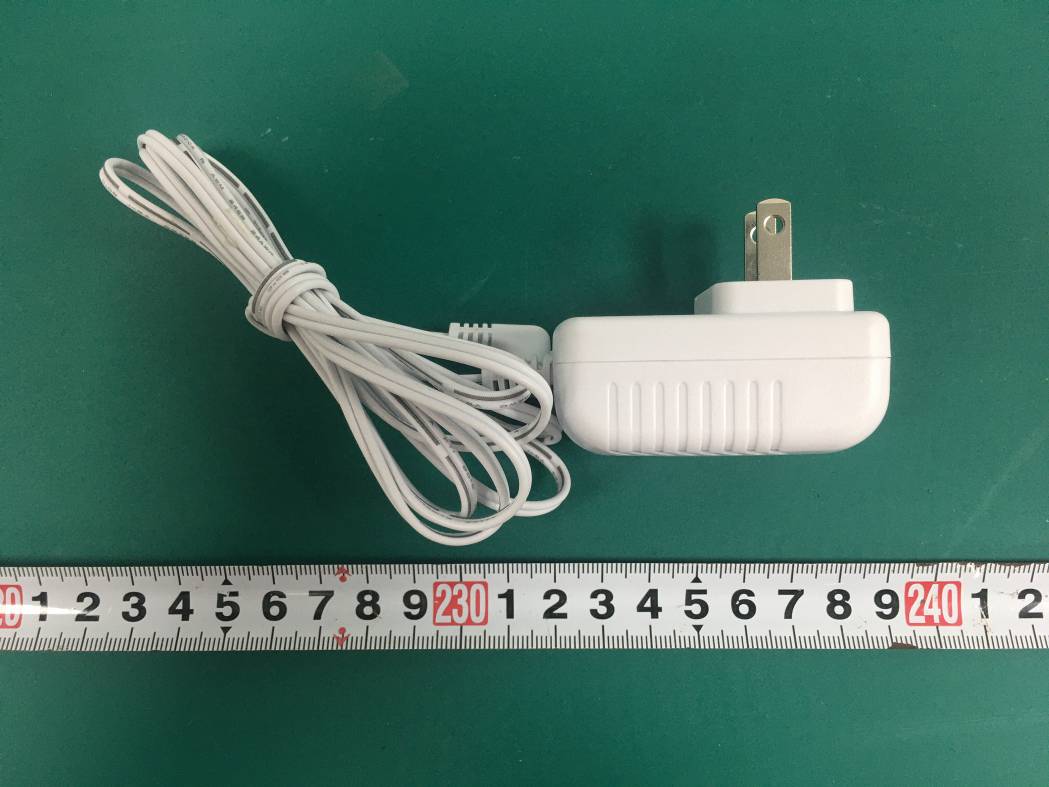

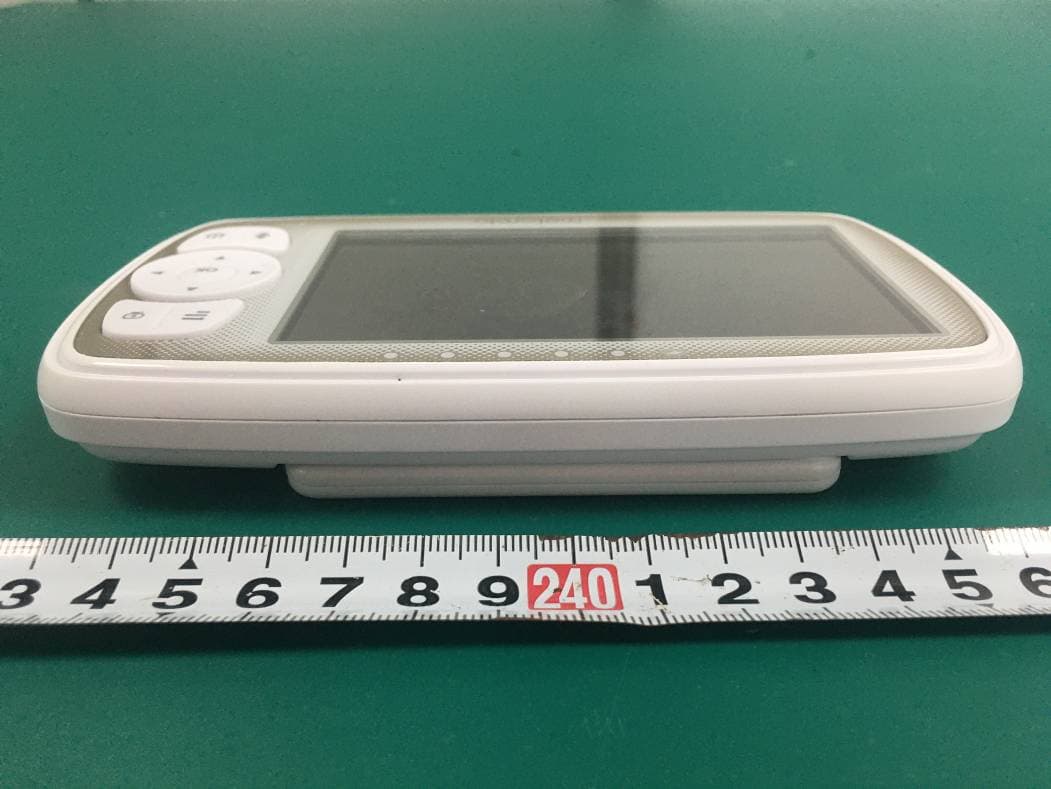

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04521E-RF Page 1 of 5 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04521E-RF Page 2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04521E-RF Page 3 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04521E-RF Page 4 of 5 Adapter1-Model: BQ05A-0501000-U Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04521E-RF Page 5 of 5 Adapter2-Model: YWK-AD050100-U

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04521E-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04521E-RF Page 1 of 5 EXHIBIT C - EUT INTERNAL PHOTOGRAPH Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04521E-RF Page 2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04521E-RF Page 3 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04521E-RF Page 4 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04521E-RF Page 5 of 5 Ant

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For Meizhou Guo Wei Electronics Co., Ltd. AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. FCC ID: 2ARRB-VM44PU IC: 20353-VM44PU Report Type: Original Report Product Type: Video baby monitor Report Number: SZ1210218-04521E-20 Report Date: 2021-05-26 Reviewed By: Brave Lu SAR Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: SZ1210218-04521E-20 SAR Evaluation Report 2 of 45 Attestation of Test Results EUT Information EUT Description Video baby monitor Tested Model VM20 CONNECTPU Multiple Model VM44 CONNECTPU FCC ID 2ARRB-VM44PU IC 20353-VM44PU Serial Number SZ1210218-04521E-SA-S1 Test Date 2021-03-12 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) 2.4G FHSS 10g Extremity SAR0.93 4.0 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RSS-102 Issue 5 March 2015 Radio Frequency (RF) Exposure Compliance of Radio communication Apparatus (All Frequency Bands). RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequenc y range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093/RSS-102 Issue 5 March 2015 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: SZ1210218-04521E-20 SAR Evaluation Report 3 of 45 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 6 SAR LIMITS ................................................................................................................................................................. 7 FACILITIES .................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 15 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 16 LIQUID VERIFICATION ............................................................................................................................................... 16 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 17 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 18 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 19 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 19 CHEEK/TOUCH POSITION ........................................................................................................................................... 20 EAR/TILT POSITION ................................................................................................................................................... 20 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 21 TEST DISTANCE FOR SAR EVALUATION .................................................................................................................... 21 SAR EVALUATION PROCEDURE ..........................................................................................................…
