2ARRB-VM65PUVideo Baby Monitor

USER’S GUIDE The features described in this user’s guide are subject to modifications without prior notice. 5" HD Wi-Fi® Video Baby Monitor MODELS: VM 65 CONNECT, VM65-2 CONNECT, VM65-3 CONNECT, VM 65-4 CONNECT Welcome... to your new Motorola Wi-Fi ® Video Baby Monitor! Thank you for purchasing the Wi-Fi® Video Baby Monitor. Now you can see and hear your baby sleeping in another room or you can monitor your older children in their play room. Our Connected Baby Monitor let you see your baby from the hand-held viewer, or from your smartphone. Watch over and communicate with your baby from anywhere in the world. Please keep your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For questions, warranty, support or service related to the product, please contact us by visit: motorolanursery.com/support or email: [email protected] This User’s Guide has all the information you need to make the most out of your product. Please read the Safety Instructions on pages 8-10 before you install the unit. Inside the Box • 1 x Parent Unit • 1 x Baby Unit (Wi-Fi® Camera) • 1 x Magnetic Mount • 1 x Power adapter for Parent Unit • 1 x Power adapter for Baby Unit In multi-camera packs, you will find one or more additional Camera Units with power adapters and Magnetic mount units. Overview of the Parent Unit 123456 13 14 7 8 10 9 11 12 15 16 1.Display (LCD screen) 2. Parent Unit ON/OFF and Charging LED Red when the parent unit is ON. Purple when electrical outlet connected. Blue when off and connected to electrical outlet. 3. Audio Level LEDs (Green, Green, Amber, Red, Red) 4. Volume Down Press to decrease Volume level. 5. Volume Up Press to increase Volume level. 6. Microphone 7.VIDEO ON/OFF button Press to turn the LCD screen ON/OFF (Note: audio is maintained.) 8. MENU button Press to open / close the Menu options. 9.Navigation button Move Up/Down/Right/Left menu options. Move the image upward/ downward/left/right. 10. OK button 11. TALK button Press and hold to speak to your baby. 12. Power button Press and Hold to turn the Parent Unit ON/OFF. 13. RESET button (recessed - use small pin) 14. Power Socket 15. Stand 16. Speaker Parent Unit menu icons Signal Level (5 Levels) Night Vision Mode (Video also changes to Black/White). Talk Mode On. Indicates the screen off timer is set. Volume Level Control (8 Levels). No Baby Unit detected. Battery Level Indication (4 Levels). Zoom Level Control (1X, 2X). LCD Brightness Level Control (8 Levels). Audio content Playback selection - Lullabies/Soothing Sounds , Audio Books , Personal Recordings , Volume level of audio playback . Alarm Setting (6h, 4h, 2h, OFF) On status bar, indicates alarm set, and when flashing, that alarm time has been reached or missed. Temperature scale select (°C/°F) Readings display in BLUE, but turn RED if > 29 °C / 84 °F or < 14 °C / 57 °F. Displays HH °C / °F if >36 °C / 97 °F. Displays LL °C / °F if < 1 °C / 34 °F. Camera Control (scan , view , add , del ). Set Screen Off Timer (Off , 5 mins, 30 mins, 60 mins). View multiple cameras on screen. Available when you have more than 1 Baby Unit (Camera). Home page of Hubbleconnect, Scan the QR code to download the Hubble for Motorola Monitors App on Smartphone or tablet. Overview of Your Baby Unit Important guidelines for installing your Digital Video Baby Monitor • To use your Baby Unit and Parent Unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. • Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic door or reinforced concrete, between the Baby Unit and Parent Unit may block the radio signal. • The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. • Other 2.4GHz products, such as wireless networks (Wi-Fi® routers), Bluetooth™ systems, microwave ovens or other Baby Monitors, may cause interference with this product, so keep the Baby Monitor at least 5ft (1.5m) away from these types of product, or switch them off if they appear to be causing interference. • If the signal is weak, try moving the Parent and/or the Baby Unit to different positions in the rooms. 1.Photo Sensor (Night Vision Mode) 2. Camera Lens 3. Infrared LEDs (x 8, for night vision) 4. High Sense Microphone 5. Magnetic mount 6. Power/Link indicatior 7.PAIR button 8. Speaker 9.Power Socket 10. Temperature Sensor 1 2 4 5 3 10 9 8 7 6 6 Table of contents Table of contents 1. Safety Instructions ..........................................................................8 2. Getting Started .............................................................................. 10 2.1 Connecting the Power Supply for the Baby Unit ......................10 2.2 Fixing magnetic mount on the wall ................................................10 2.3 Connecting the Power Supply of the Parent Unit. ..................... 11 2.4 Desktop Stand of the Parent Unit ..................................................... 11 2.5 Registration (Pairing)............................................................................ 12 3. Using the Baby Monitor ............................................................... 13 3.1 Setting Up ................................................................................................. 13 3.2 Night Vision Mode .................................................................................. 13 3.3 Talk Mode ................................................................................................... 13 3.4 Digital Pan and Tilt ................................................................................. 13 3.5 Video ON/OFF ....................................…

Text truncated - open the document above for the full version.

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] Declaration letter Date: 2021-04-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Meizhou Guo Wei Electronics Co., Ltd , hereby confirm that the EUT (Product Name: Video baby monitor, Model No.: VM65 CONNECTPU, FCC ID: 2ARRB- VM65PU) is identical with the device (FCC ID: 2ARRB-VM64PU) except the size of the screen. So the “Radiated emission below 1GHz” and “SAR” was tested, all other data were refer to the report SZ1210218-04515EC issued on 2021-04-13 by Bay Area Compliance Laboratories Corp. (Shenzhen). Sincerely Yours, Signature Raymond Leung Engineering Manager

Ver. 1 15_Fbe_2011                           !"#$%&''%('&)$$$$ *+!"#$%&''%('&)((## ,- !.... -  ////////////////////////////////////////////////////////////////////////////////////////////////////////////     .  0  㟻⚾劔          ⨚⚆⮩㫆㊶⚆䫽帳⃵            㒠⚇䔈㷳䫽帳ₚ(k)嫷␔䤓⨚⚆㦘vₚ䦇⚛♙ₜ⚛⃚⮓ᇭ    1  .!䦇⚛⃚⮓Ⱁₚ  Ĝ   2       1 . 䟄⷟㒥䟄㧉幍帰 ▔㕻⦉ↅ Ĝ!  "#   "$ 兢㨓幍帰㒥䓸䚕幍帰㒥⮥⮂ Ĝ340  34忿兎を⻏ %&  ␅VI庆広㢝' (    )  ₜ⚛⃚⮓Ⱁₚ  Ĝ! 欫唁 Ĝ*䖟Ԧ Ĝ!  ⮥屑兕唑 (⟕㪖 Ĝ+ ,⨚⚆  %&  ␅VI庆広㢝' * -%. /' ⷟⻍%./'iii嫷 ! 唁㪖 Ĝ#)   ▔孔揜函     欈䥽    㠿⨚⚆   ⨚⚆ 㽷摙  Ĝ0$* 1+23!&,,$!(#4 5!! 6 7781+23#4 !  9391+23#4  Ĝ0$* 1+2 !&,,$!(#4 9 Ĝ0$* 1+23:!&,,$!(#4 ; Ĝ0$* 1+93#4  - -  40   5-    6  71  1  0     2  - 1+23!&,,$!(#4%   7 1 -     7㷳咃    80 5  $  +

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: 0755-2573 6666 Email: [email protected] FCC Confidential Authorization Date: 2021-04-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ARRB-VM65PU In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Meizhou Guo Wei Electronics Co., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Raymond Leung Engineering Manager

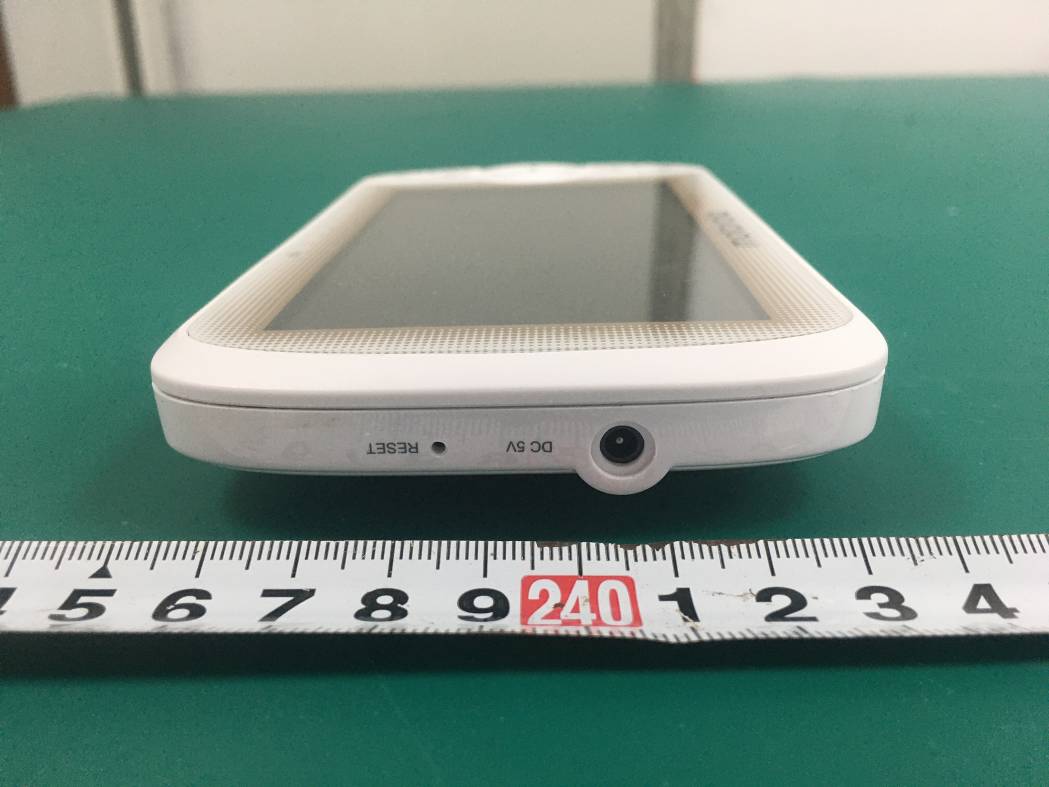

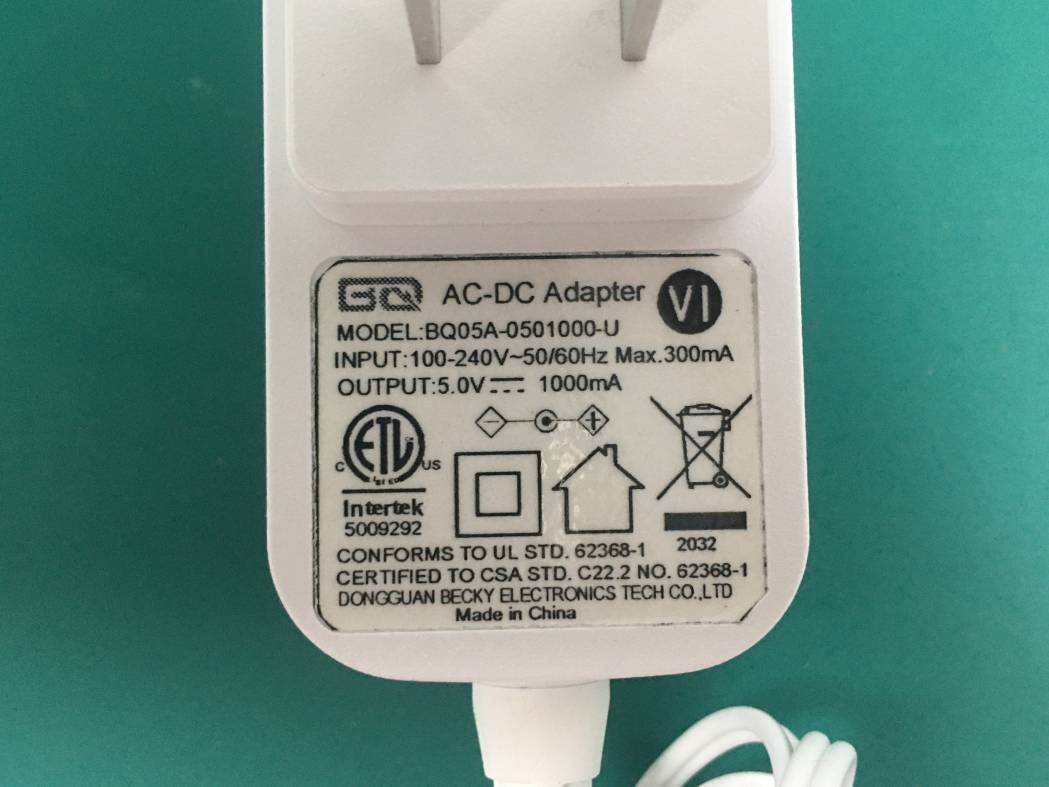

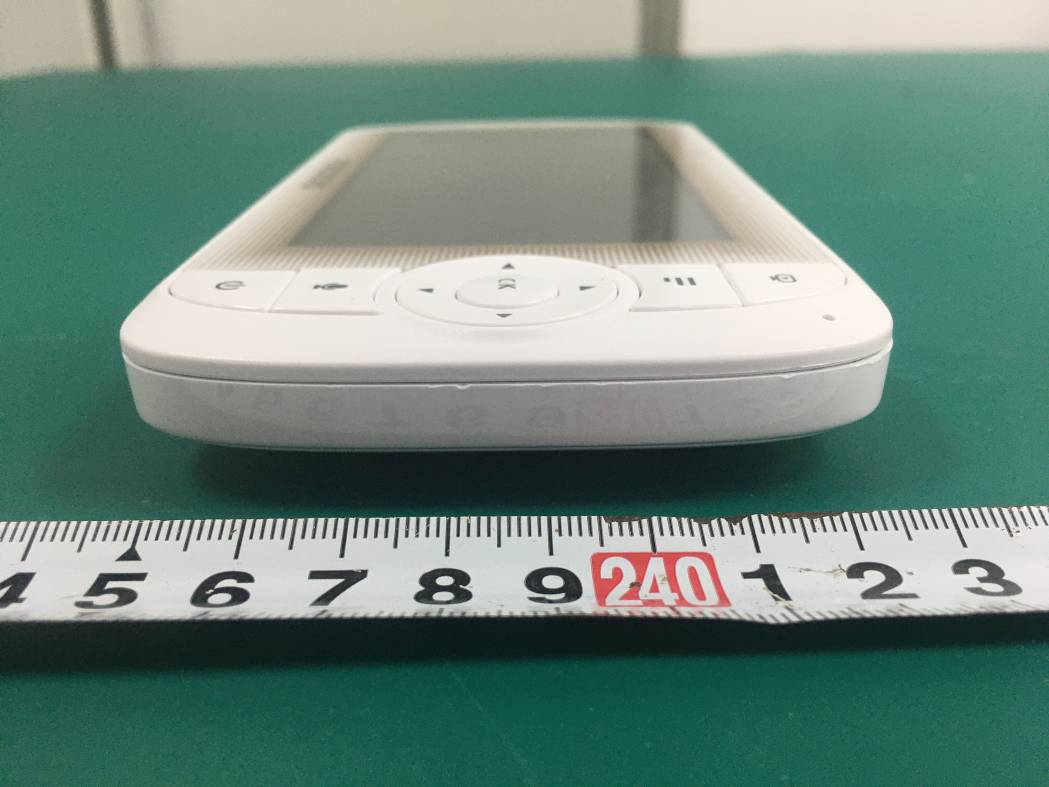

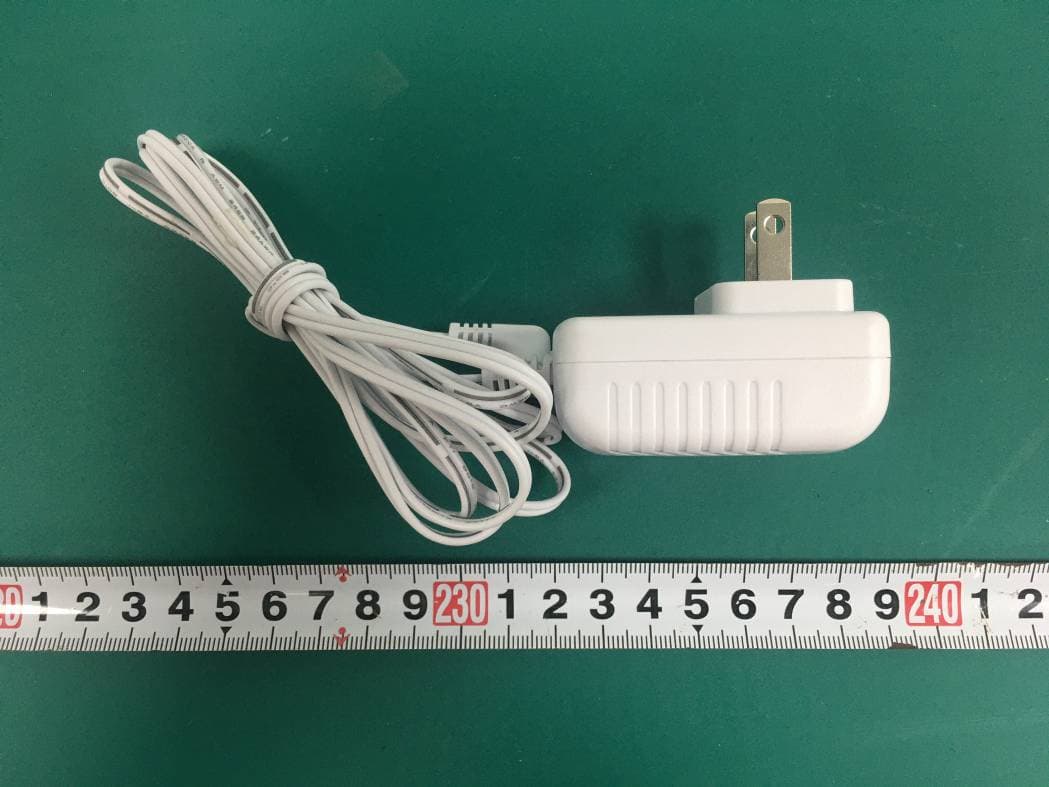

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04515E-RF Page 1 of 5 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04515E-RF Page 2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04515E-RF Page 3 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04515E-RF Page 4 of 5 Adapter1-Model: BQ05A-0501000-U Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04515E-RF Page 5 of 5 Adapter2-Model: YWK-AD050100-U

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04515E-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04515E-RF Page 1 of 4 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04515E-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04515E-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ1210218-04515E-RF Page 4 of 4

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For Meizhou Guo Wei Electronics Co., Ltd. AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. FCC ID: 2ARRB-VM65PU IC: 20353-VM65PU Report Type: Original Report Product Type: Video baby monitor Report Number: SZ1210218-04515E-20B Report Date: 2021-04-06 Reviewed By: Brave Lu SAR Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: SZ1210218-04515E-20B SAR Evaluation Report 2 of 35 Attestation of Test Results EUT Information EUT Description Video baby monitor Tested Model VM65 CONNECTPU Multiple Models VM60 CONNECTPU, VM65X CONNECTPU, VM35PU FCC ID 2ARRB-VM65PU IC 20353-VM65PU Serial Number SZ1210218-04515E-SA-S2 Test Date 2021-03-12 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) 2.4G FHSS 10g Extremity SAR0.74 4.0 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RSS-102 Issue 5 March 2015 Radio Frequency (RF) Exposure Compliance of Radio communication Apparatus (All Frequency Bands). RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequenc y range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D07 UMPC Mini Tablet v01r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093/RSS-102 Issue 5 March 2015 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: SZ1210218-04515E-20B SAR Evaluation Report 3 of 35 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 6 SAR LIMITS ................................................................................................................................................................. 7 FACILITIES .................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 15 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 16 LIQUID VERIFICATION ............................................................................................................................................... 16 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 17 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 18 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 19 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 19 CHEEK/TOUCH POSITION ........................................................................................................................................... 20 EAR/TILT POSITION ................................................................................................................................................... 20 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 21 TEST DISTANCE FOR SAR EVALUATION .................................................................................................................... 21 SAR EVALUATION PROCEDURE ......................................…

Text truncated - open the document above for the full version.

APPENDIX C PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Report No.: SZ1210218-04515E-20B Page 1 of 9 Plot 1#: 2.4G FHSS_Handheld Front with antenna unfold_Mid DUT: Video baby monitor; Type: VM65 CONNECTPU; Serial: SZ1210218-04515E-SA-S2 Communication System: GFSK; Frequency: 2440 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2440 MHz; σ = 1.801 S/m; ε r = 38.557; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(7.63, 7.63, 7.63) @ 2440 MHz; Calibrated: 2021/2/23  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2020/9/30  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (101x51x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.546 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.53 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.662 W/kg SAR(1 g) = 0.606 W/kg; SAR(10 g) = 0.575 W/kg Maximum value of SAR (measured) = 0.612 W/kg 0 dB = 0.612 W/kg = -2.13 dBW/kg Report No.: SZ1210218-04515E-20B Page 2 of 9 Plot 2#: 2.4G FHSS_Handheld Back with antenna unfold_Low DUT: Video baby monitor; Type: VM65 CONNECTPU; Serial: SZ1210218-04515E-SA-S2 Communication System: GFSK; Frequency: 2402 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2402 MHz; σ = 1.725 S/m; ε r = 38.953; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(7.63, 7.63, 7.63) @ 2402 MHz; Calibrated: 2021/2/23  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2020/9/30  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (101x51x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 2.14 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.60 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 2.57 W/kg SAR(1 g) = 1.19 W/kg; SAR(10 g) = 0.642 W/kg Maximum value of SAR (measured) = 2.04 W/kg 0 dB = 2.04 W/kg = 3.10 dBW/kg Report No.: SZ1210218-04515E-20B Page 3 of 9 Plot 3#: 2.4G FHSS_Handheld Back with antenna unfold_Mid DUT: Video baby monitor; Type: VM65 CONNECTPU; Serial: SZ1210218-04515E-SA-S2 Communication System: GFSK; Frequency: 2440 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2440 MHz; σ = 1.801 S/m; ε r = 38.557; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(7.63, 7.63, 7.63) @ 2440 MHz; Calibrated: 2021/2/23  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2020/9/30  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (101x51x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.59 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.46 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 1.76 W/kg SAR(1 g) = 0.977 W/kg; SAR(10 g) = 0.660 W/kg Maximum value of SAR (measured) = 1.48 W/kg 0 dB = 1.48 W/kg = 1.70 dBW/kg Report No.: SZ1210218-04515E-20B Page 4 of 9 Plot 4#: 2.4G FHSS_Handheld Back with antenna unfold_High DUT: Video baby monitor; Type: VM65 CONNECTPU; Serial: SZ1210218-04515E-SA-S2 Communication System: GFSK; Frequency: 2477 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2477 MHz; σ = 1.864 S/m; ε r = 38.194; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(7.63, 7.63, 7.63) @ 2477 MHz; Calibrated: 2021/2/23  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2020/9/30  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (101x51x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.953 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.02 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 1.10 W/kg SAR(1 g) = 0.594 W/kg; SAR(10 g) = 0.396 W/kg Maximum value of SAR (measured) = 0.921 W/kg 0 dB = 0.921 W/kg = -0.36 dBW/kg Report No.: SZ1210218-04515E-20B Page 5 of 9 Plot 5#: 2.4G FHSS_Handheld Front with antenna fold_Mid DUT: Video baby monitor; Type: VM65 CONNECTPU; Serial: SZ1210218-04515E-SA-S2 Communication System: GFSK; Frequency: 2440 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2440 MHz; σ = 1.801 S/m; ε r = 38.557; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(7.63, 7.63, 7.63) @ 2440 MHz; Calibrated: 2021/2/23  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2020/9/30  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (111x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.123 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.971 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 0.152 W/kg SAR(1 g) = 0.063 W/kg; SAR(10 g) = 0.041 W/kg Maximum value of SAR (measured) = 0.122 W/kg 0 dB = 0.122 W/kg = -9.14 dBW/kg Report No.: SZ1210218-04515E-20B Page 6 of 9 Plot 6#: 2.4G FHSS_Handheld Back with antenna fold_Mid DUT: Video baby monitor; Type: VM65 CONNECTPU; Serial: SZ1210218-04515E-SA-S2 Communication System: GFSK; Frequency: 2402 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2402 MHz; σ = 1.725 S/m; ε r = 38.953; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(7.63, 7.63, 7.63) @ 2402 MHz; Calibrated: 2021/2/23  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics…

Text truncated - open the document above for the full version.

Report No.: SZ1210218-04515E-20B Page 1 of 4 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom Type: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 Report No.: SZ1210218-04515E-20B Page 2 of 4 Handheld Front With Antenna Unfold Setup Photo (0mm) Handheld Back With Antenna Unfold Setup Photo (0mm) Report No.: SZ1210218-04515E-20B Page 3 of 4 Handheld Front With Antenna Fold Setup Photo (0mm) Handheld Back With Antenna Fold Setup Photo (0mm) Report No.: SZ1210218-04515E-20B Page 4 of 4 Handheld Top With Antenna Fold Setup Photo (0mm)

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 RSS-GEN ISSUE 5, MARCH 2019 AMENDMENT 1 RSS-247, ISSUE 2, FEBRUARY 2017 TEST REPORT For Meizhou Guo Wei Electronics Co., Ltd. AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. FCC ID: 2ARRB-VM65PU IC: 20353-VM65PU Report Type: Original Report Product Type: Video baby monitor Re port Number: SZ1210218-04515ED Re port Date: 2021-04-13 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) ,6F,7F,the 3rd Phase of Wan Li Industrial Building D,Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ1210218-04515ED FCC Part 15.247 RSS-GEN ISSUE 5, MARCH 2019 AMENDMENT 1, RSS-247, ISSUE 2, FEBRUARY 2017 Page 2 of 15 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 SPECIAL ACCESSORIES ................................................................................................................................................. 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCC §1.1307(b) & §2.1093 - RF EXPOSURE INFORMATION .............................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 TEST RESULT ............................................................................................................................................................... 9 RSS-102 – RF EXPOSURE ......................................................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §15.203 & RSS-Gen §6.8– ANTENNA REQUIREMENT .............................................................................. 1 1 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.205, §15.209 & §15.247(d) & RSS-247 § 5.5– RADIATED EMISSIONS ............................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP ...................................................................................…

Text truncated - open the document above for the full version.

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Ado…

Text truncated - open the document above for the full version.
