2. You can also press button to check for activity on the current channel before you talk. 3. Release the button to exit monitor mode. User can use this function to switch between two-way and weather mode by press and hold for 3 seconds. 335100418 _RevA OPERATING INSTRUCTION Walkie-Talkie 123 6547 109811 13141512 Note: Please read the operating instructions carefully before using the device. GETTING STARTED Insert 3 AA NiMH batteries. Close the battery cover. Radio Battery Meter KEY FUNCTIONS Installing the Three AA NiMH Rechargeable Battery 1. Take the belt clip off. 2. Unlock two screws counterclockwise and open the cover ot install the three AA NiMH battery according to orientation shown in battery compartment. 3. Close the battery and tighten the two screws clockwise. 4. Tighten the screws clockwise to close the battery cover firmly. Battery full bars indicates battery high .When battery meter shows 1 bar, device is on low battery mode and will indicate low battery alert in the forms of alert tone and blinking bar display. Using the Micro-USB Charger The micro-USB charger is a handy port that allows you to conveniently charge your NiMH battery. Use certified adaptor(5V, ≥1A). Do not attempt to charge alkaline batteries. 1. Make sure your radio is turned OFF. 2. Plug the micro-USB cable into the micro-USB charging port on DISPLAY SCREEN GUIDE Numbers of Channel Call Tone Numbers for Codes Dual Watch Scan VOX Battery Meter Status (Transmit/Receive) Volume Mute Lock Weather Alert Remove the battery cover. screws When you press PTT buttons for more than 60 seconds, radio will stop transmitting. This is to prevent accidental transmission. To communicate, all radios in your group must be set to the same channel and sub code. 1. To talk, press and hold the PTT button. When transmitting, the icon is shown. Release the PTT button when you are finished talking. Do not use the radios closer than five feet apart. 2. When receiving, the icon is shown. Monitor Button PTT Timeout Timer 1. Press and hold button for 3 seconds to enter monitor mode and listen for weak signals on the current channel. Mode Button RECEIVING AND TRANSMITTING FEATURES 2. Press or button to change the channel number. . Setting the Channel 2. Press or button to select code number.Press the PTT button to exit menu . . Setting and Transmitting Call Tones 1. Press button until call tone 'CA' appears. The current call tone setting flash. 1. Press the button until the code number starts to flash. Press the PTT button to exit menu Press the PTT button to exit menu Setting the Sub Codes 1. Press the button until the channel number starts to flash. 2. Press or button to change and listen to the call tone. Voice Operated Transmission (VOX) L3=High Sensitivity L2=Medium Sensitivity L1=Low Sensitivity L0=Turn Off VOX function exit menu. The screen will alternate between Home Channel and Dual Watch Channel.To end Dual Watch mode, re-enter Dual Watch menu to select the OFF setting. If you set the same channel and code as current channel, Dual Watch does not work. 2. Press or to select channels. Dual Channel Monitor Press the PTT button to With this feature enabled, you can scan current channel and another channel alternately. 1. Press button until '2CH' appears on the display. The current setting (OF, 1-22) will flash. Press the PTT button to exit menu. 1. To activate VOX, press button until 'VOX' appears on the display. The current setting (0, 1-3) will flash. 2. Press or button to select the sensitivity level. Press and hold the button while turning the radio ON to switch the keypad tone ON/OFF. Press and hold the button while turning the radio ON to turn the Roger Beep ON. Repeat the step to turn Roger Beep OFF. 2. To unlock the radio, press and hold button until key lock indicator icon on display disappear. Keypad Tones Scanning Channels To Start Scanning: 1. Briefly press the button to start scanning. SCAN icon will appear in the display. The device will stop scrolling and receiving when matched channel and sub codes detected. 2. After the end of transmission, press the PTT button within 5 seconds to respond. The device will resume scanning after end of any received activity. 3. If you press PTT button when the device is scrolling, the transmission will be on the 'home channel'. 4. Press button to exit scanning feature. Roger Tone Keypad Lock 1. To lock the radio, press and hold button until the key lock indicator icon on display appear. Your radio receives weather frequencies: Entering Weather Mode press and hold button for 3 seconds to enter weather mode. Setting the Weather Channel 3. Press the PTT button to set and exit menu. 2. Press or button to select the appropriate channel. 1. In weather mode, press the button until weather channel number flashes. WEATHER RECEIVE Setting the Weather Alert Your radio can be set to respond to NOAA Weather Radio emergency messages. 2. Press or button to select On/Off. 1. In weather mode press the button twice until icon displays. 3. Press the PTT button or button to exit the weather menu set up. WEATHER CHANNELS & FREQUENCIES Weather Channel (MHz) Frequency Weather Channel Frequency (MHz) WX1162.550WX7162.525 WX2162.400WX8161.650 WX3162.475WX9161.775 WX4162.425WX10161.750 WX5162.450WX11162.000 WX6162.500 SAFETY & GENERAL INFORMATION FCC Warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a r…

Text truncated - open the document above for the full version.

QA-FR-170-B GOCOM Technology Co., Ltd. Address: UNIT12, 14/F, LIPPO SUN PLAZA,28 CANTON ROAD TSIM SHA TSUI, KOWLOON, Hong Kong, China Email: [email protected] Tel: +8618750555801 FCC Authorization 2020/06/28 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We ( GOCOM Technology Co., Ltd.), the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, Signature: Snow Huang Sales Executive

GOCOM Technology Co., Ltd. Address: UNIT12, 14/F, LIPPO SUN PLAZA,28 CANTON ROAD TSIM SHA TSUI, KOWLOON, Hong Kong, China Email: [email protected] Tel: +8618750555801 FCC Confidential Authorization 2020/06/28 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ARRE-2020G9 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (GOCOM Technology Co., Ltd.) hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Snow Huang Title: Sales Executive

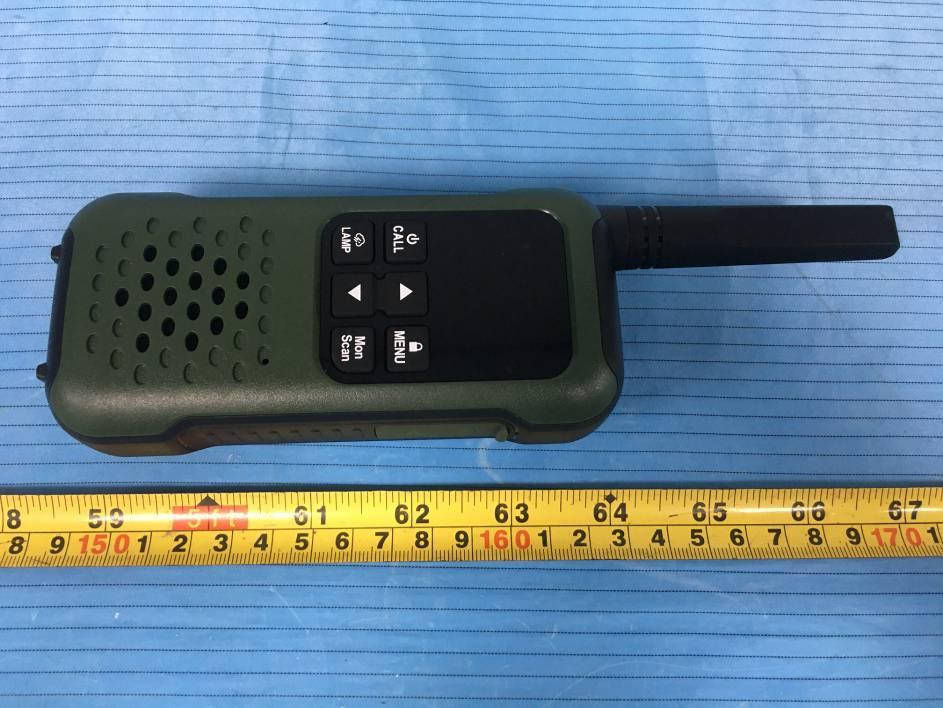

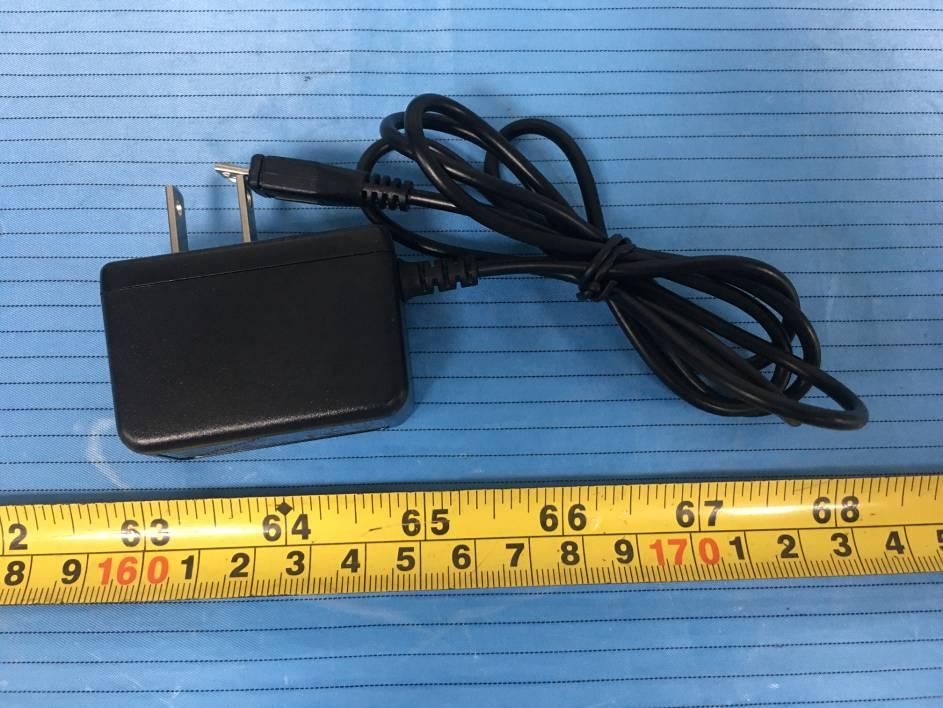

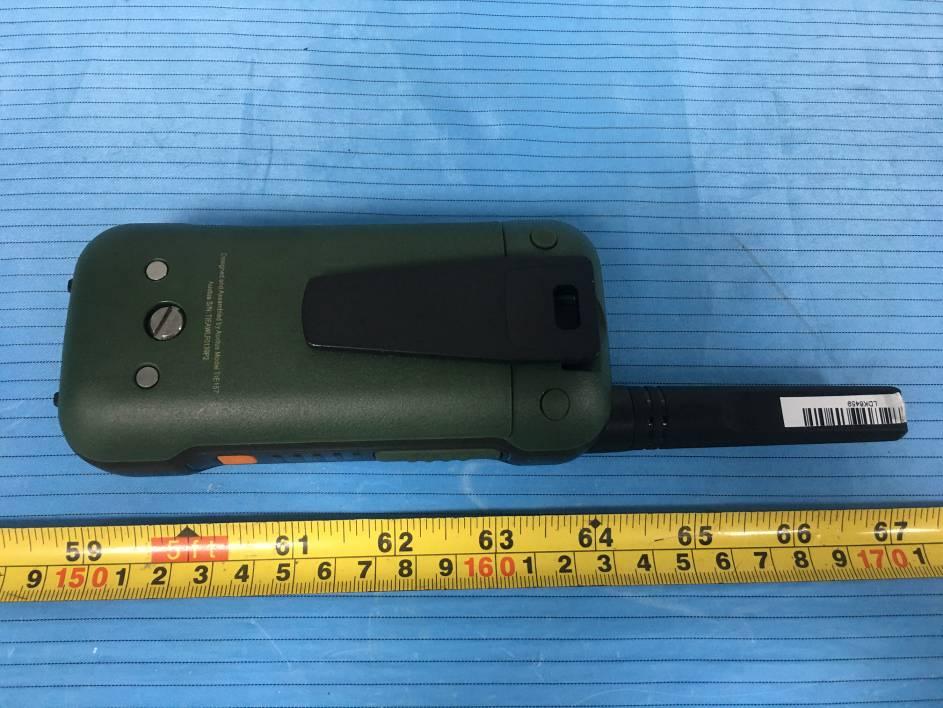

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS + Charger 1 + + Charger 2 + +
