2ARRE2020G600Walkie talkie

(2) (3)(4)(5)(6)(7) Ÿ Be careful when removing NiMH batteries. Do not use sharp or conductive tools to remove either of these batteries. Note: Ÿ Remove the batteries before storing your radio for extended periods of time. Batteries corrode over time and may cause permanent damage to your radio. Ÿ Do not mix old and new batt eri es and Do not mix alkaline, standard (carbon-zi nc) or rechargeable (ni-cad, ni-mh, etc.) batteries. The micro-USB charger is a handy port that allows you to conveniently charge your NiMH battery. Use certified adaptor(5 V, ≥1A). Do not attempt to charge alkaline batteries. 2. Plug the micro-USB cable into the micro-USB charging port on Using the Micro-USB Charger Battery Capacity Maintenance 3. Store the NiMH batteries in temperature between -20 °C to 35 °C and in low humidity. Avoid damp conditions and corrosive materials. 1. Charge the NiMH batteries once every 3 months when not in use. 2. Before placing the radio in storage, remove the battery. 1. Make sure your radio is turned OFF. Note: Ÿ It is recommended to power OFF your radio while charging. Ÿ When moving between hot and cold temperatures, do not charge the NiMH batteries until the battery temperature acclimates (usually about 20 minutes). Ÿ For optimal battery life, remove the radio from the charger within 16 hours. Do not store the radio while connected to the charger. Turning your Radio On and Off 1. First press either or to trigger volume change. You will see current volume level on screen. Do not hold the radio close to your ear. If the volume is set to an uncomfortable level, it could hurt your ear. 1. Press and hold on the button to turn your radio ON/OFF. In the ON position, the radio chirps and briefly shows all feature icons available on the radio. 2. The display screen then shows the current channel, code and all features that are enabled. The radio is in Two-Way mode. Setting the Volume Press and hold button for three seconds to listen to volume level. 2. Press to increase the volume. Press to decrease the volume. 3. When the volume reached level 0 the mute icon appears permanently on screen. To communicate, all radios in your group must be set to the same channel and Interference Eliminator Code. 1. To talk, press and hold the PTT button. When transmitting, the icon is shown. 2. When you are finished talking, release the PTT button. 3. When receiving, the icon is shown. For maximum clarity, hold the radio 2 to 3 centimeters away from your mouth and speak directly into the microphone. Do not cover the microphone while talking. Talk Range Your radio is designed to maximize performance and improve transmission range. Do not use the radios closer than five feet apart. Push-to-Talk Ti meout Ti mer Press and hold button for 3 seconds to enter monitor mode and listen for weak signals on the current channel. You can also listen to the volume level of the radio when you are not receiving. This allows you to adjust the volume, if necessary. You can also press button to check for activity on the current channel before you talk. Monitor Button To prevent accidental transmissions and save battery life, radio will stop transmitting if you press PTT button for 60 seconds continuously. Mode Button Press and hold button for 3 seconds, the user will be seamlessly switching between two-way and weather mode. TALKING AND LISTENING (9)(8) MENU OPTIONS Selecting the Channel The channel is the frequency of the radio uses to transmit. 1. Press the button until the channel number starts to flash. Sub-Codes help minimize interference by blocking transmission from unknown sources. Your radio has 121 Sub-Codes. Selecting the Interference Eliminator Code 2. Press or button to change the channel number. To set the code for a channel: 1. Press the button until the code number starts to flash. 2. Press or button to select code number. 3. Press the PTT button to exit menu or button to continue setup. 3. Press the PTT button to exit menu or button to continue setup. Setting and Transmitting Call Tones 1. Press button until call tone 'CA' appears. The current call tone setting flash. 2. Press or button to change and listen to the call tone. 3. Press the P TT button to exit menu or button to continue setup. Voice Operated Transmission (VOX) Transmission is initiated by speaking into the microphone of the radio instead of pushing the PTT button. 1. To activate VOX, press button until 'VOX' appears on the display. The current setting (0, 1-3) will flash. Your radio can transmit different call tones to other radios in your group when you pressed button. The radio has 20 call tones. To set a call tone: For better battery life, your radio is designed to switch to Power Save mode when it has been no transmissions after 5 seconds. The radio can receive transmissions in this mode. can hear the transmission. LED Lamp 3. To stop scanning, briefly press the button. Your radio has a built-in-LED Lamp. Briefly press the button once to ON the lamp, press again to OFF the lamp. Scanning Notes: Automatic Power Save (11)(10)(12) Note: If you set the same channel and code as current channel, Dual Watch does not work. SPECIAL FEATURES (13) (15) (14) 9467.5875 MHz0.5W20 462.6750 MHz2W 10467.6125 MHz0.5W21462.7000 MHz2W 11467.6375 MHz 0.5W22462.7250 MHz2W 2. When the radio detects channel activity matching the channel and code combination, it stops scrolling and you To Start Scanning: 1. Briefly press the button, the icon will appear in the display and the radio will begin to scroll through the channel and code combinations. Keypad Tones Your radio emits a beep each time one of the buttons is pressed (except the PTT and button). Press and hold the button while turning the radio ON to switch the keypad tone ON/OFF. Roger Tone You can set your radio to transmit a unique tone when you finish transmitting. Keypad Lock To avoid accidentally changing your radio settings: 1. To lock the radio, press and hold button until the key lock indicator icon on dis…

Text truncated - open the document above for the full version.

GOCOM Technology Co.,Ltd UNIT12, 14/F, LIPPO SUN PLAZA,28 CANTON ROAD,TSIM SHA TSUI, KOWLOON, Hong Kong, China Tel: +8618750555801 Email: [email protected] Fax: 0085223744662 Date: 2020-11-06 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We , GOCOM Technology Co.,Ltd , Product Name: walkie talkie; here by appl y a new certification under FCC ID: 2ARRE2020G600.The device have been certified by FCC, FCC ID: 2ARRE2019G600 (applicant : GOCOM Technology Co.,Ltd), As per Amazon's requirements that Part 15B also needs to apply for FCC ID with Part 95 Report together, for this product can sale on Amazon’s again ,so we apply a new ID for same product, They are the same schematic diagram, except that the scanning receiver function is added through the software, and the scanning receiver frequency range is expanded to 400-470MHz. The Part 95B(FRS Function) has not changed. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact with me if you have any question Sincerely. Signature: Snow Huang Sales Executive

QA-FR-170-B GOCOM Technology Co.,Ltd. UNIT12, 14/F, LIPPO SUN PLAZA,28 CANTON ROAD,TSIM SHA TSUI, KOWLOON, Hong Kong, China Tel: +8618750555801 Email: [email protected] Fax: 0085223744662 Date: 2020-11-04 FCC Authorization FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We (GOCOM Technology Co.,Ltd.), the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We (GOCOM Technology Co.,Ltd.),the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Snow Huang Sales Executive

GOCOM Technology Co.,Ltd. UNIT12, 14/F, LIPPO SUN PLAZA,28 CANTON ROAD,TSIM SHA TSUI, KOWLOON, Hong Kong, China Tel: +8618750555801 Email: [email protected] Fax: 0085223744662 Date: 2020-11-17 FCC Confidential Authorization FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Roa Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ARRE2020G600 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (GOCOM Technology Co.,Ltd.) hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Internal Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Snow Huang Sales Executive

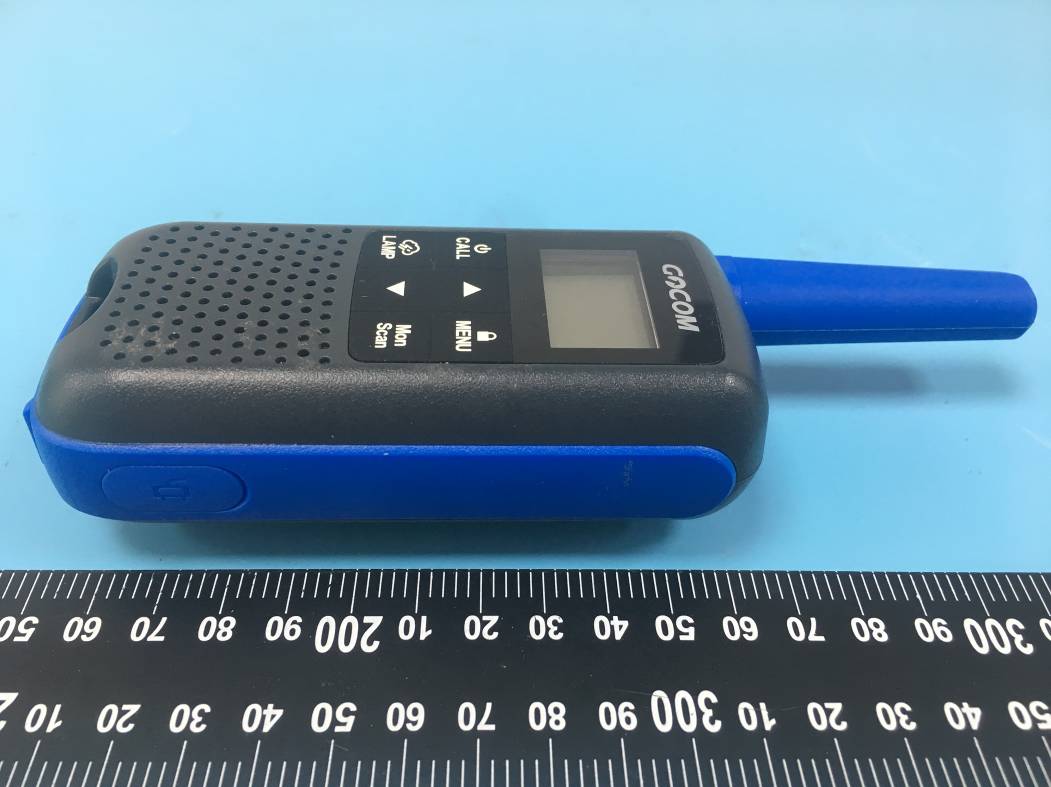

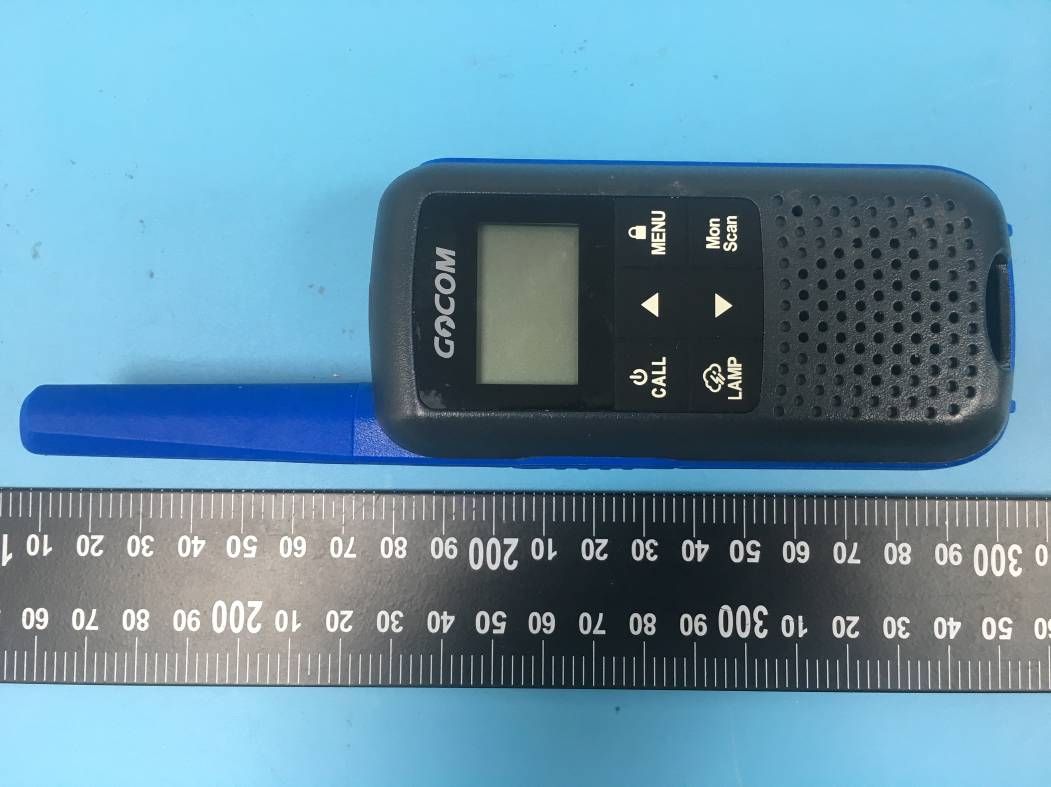

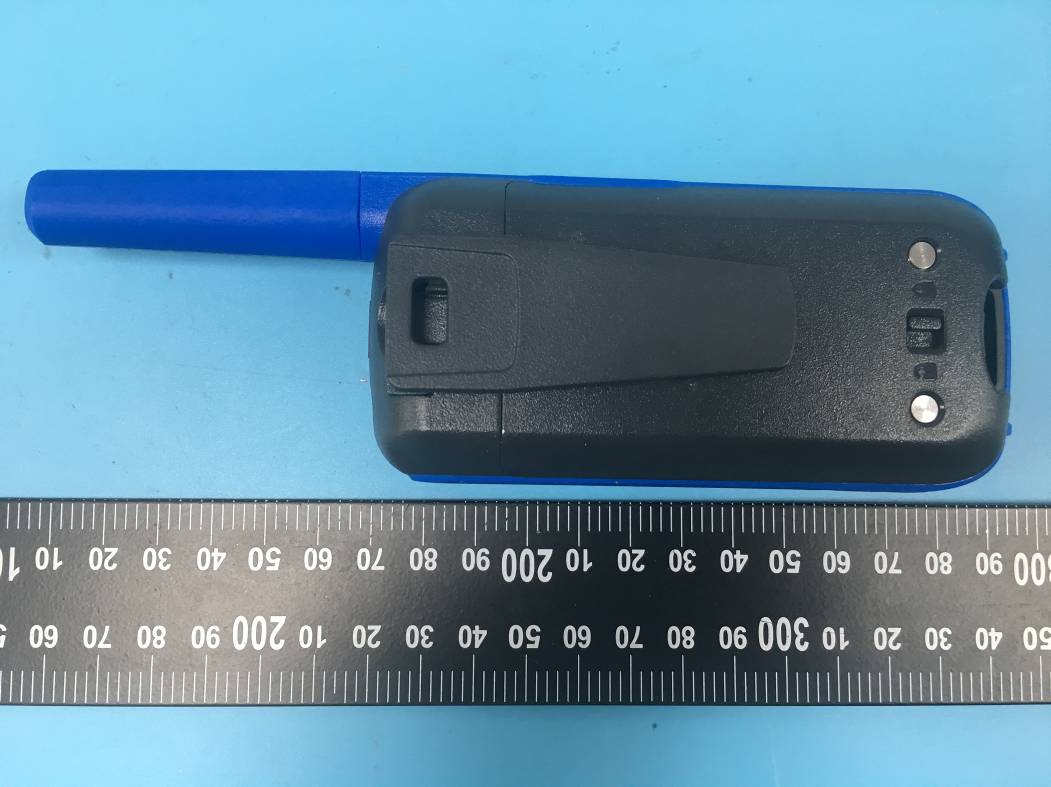

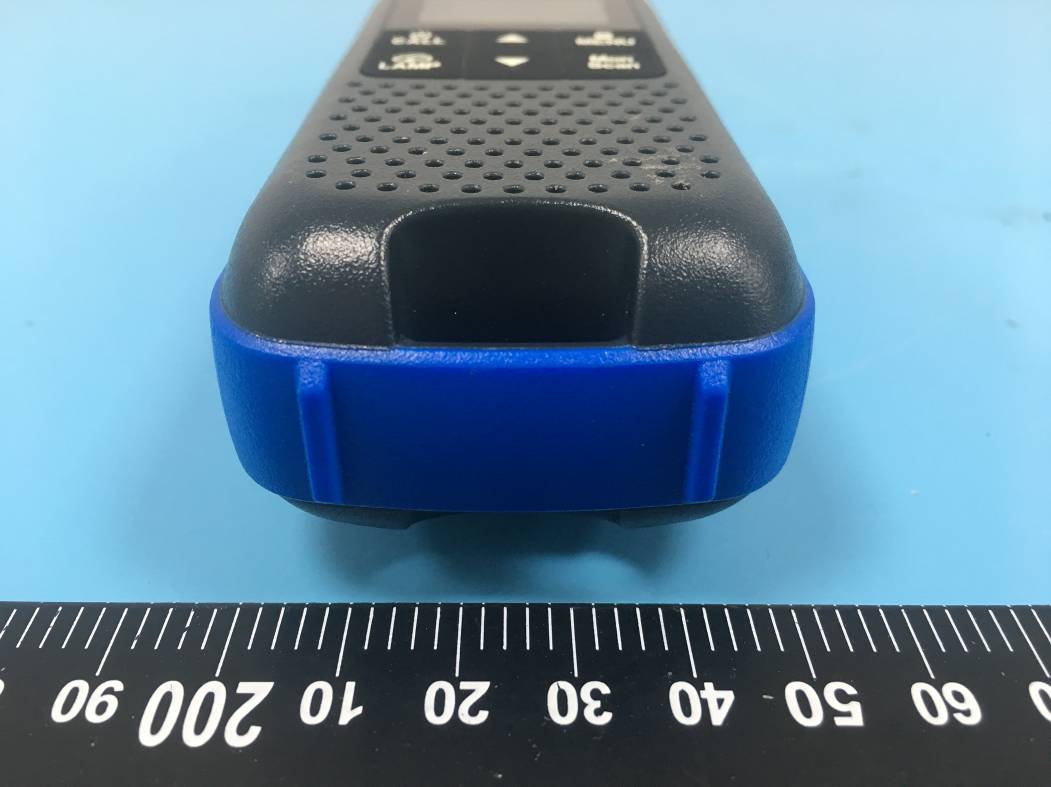

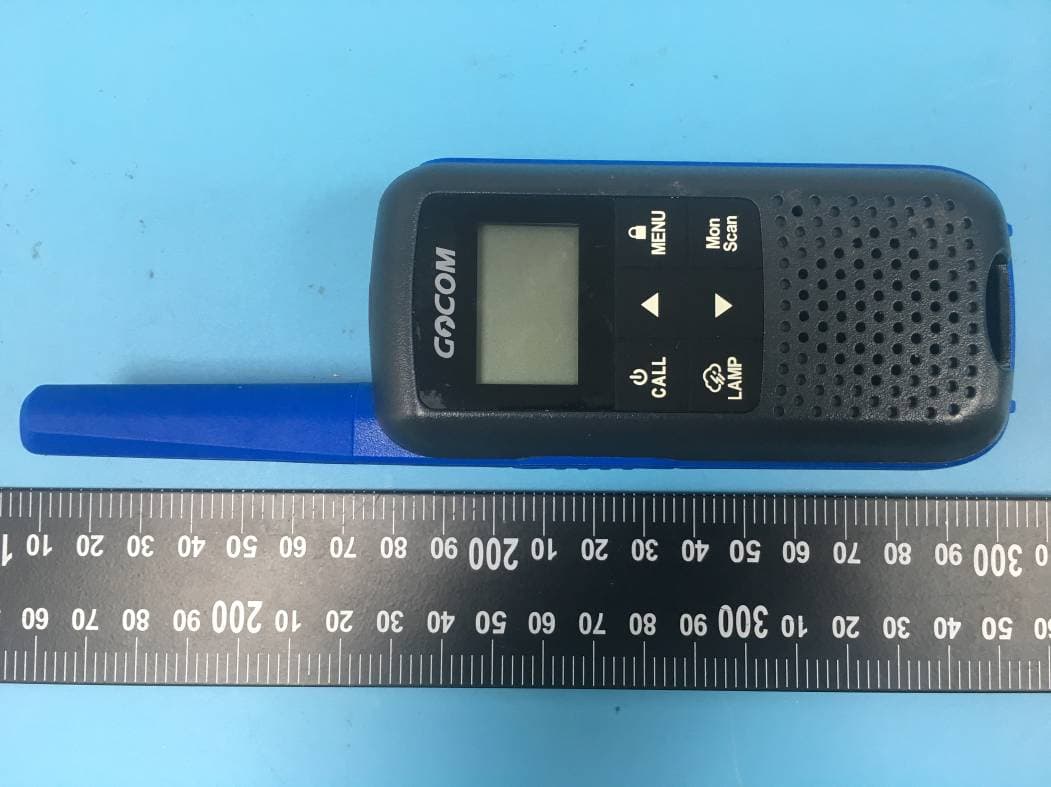

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201103011-EM Page 1 of 3 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201103011-EM Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201103011-EM Page 3 of 3

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201103011-EM EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. SAR EVALUATION REPORT For GOCOM Technology Co.,Ltd. UNIT 12, 14/F, LIPPO SUN PLAZA, 28 CANTON ROAD TSIM SHA TSUI, KOWLOON, Hong Kong, China FCC ID: 2ARRE2020G600 Report Type: Original Report Product Type: Walkie talkie Report Number: RSZ201103011-SA Report Date: 2020-11-10 Reviewed By: Alvin Huang Lab Mana ger Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201103011-SA SAR Evaluation Report 2 of 4 Attestation of Test Results EUT Information EUT Description Walkie talkie Tested Model G600 FCC ID 2ARRE2020G600 Serial Number RSZ201103011-EM-S1 Test Date 2020-11-03 Mode Test Model Max. SAR Level(s) Reported(W/kg) Limit PTT (462.55-462.725MHz 467.5625-467.7125MHz) 1g Head SAR(Face Up) 1.023 1.6 (W/kg) 1g Body SAR(Body Back)1.507 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques RF Exposure Procedures: TCB Workshop April 2019 IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequenc y range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 643646 D01 SAR Test for PTT Radios v01r03 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for Occupational/Controlled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201103011-SA SAR Evaluation Report 3 of 4 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201103011-SA SAR Evaluation Report 4 of 4 DOCUMENT REVISION HISTORY Revision Number Report Number Description of Revision Date of Revision 0 RSZ201103010-SA Original Report 2020-11-10 Note: Model G600 (FCC ID: 2ARRE2019G600) and this EUT are the same product. And Model G600 (FCC ID: 2ARRE2019G600) grant on 2019-05-15 by Intertek Testing Services NA, Inc. which had done change ID base on model number ONA19WT004 (FCC ID: 2ASCZ2019WT004). So all the test data are referred to the original report CHTEW19020050, issued on 2019-02-18 by Shenzhen Huatongwei International Inspection Co., Ltd.. ***** END OF REPORT *****

Report No: TRE18100158 Page: 1 of 27 Issued: 2018-11-05 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-08) TEST REPORT Report No. ...................................... : CHTEW19020050 Report virificaiton: Project No. ...................................... : SHT1812044706EW FCC ID ............................................. : 2ASCZ2019WT004 Applicant’s name ........................... : Auctus Technologies Co.,Ltd. Address ............................................. : 17F, Building 3, China Science and Technology Development Park, No. 009, Gaoxin Road, Nanshan Dist.Shenzhen, Guangdong, China Manufacturer.....................................: PAN-INTERNATIONAL ELECTRONICS (MALAYSIA) SDN. BHD. Address.............................................: PLOT 4, SEBERANG JAYA INDUSTRIAL ESTATE, 13700 PRAI, PULAU PINANG Test item description .................... : walkie talkie Trade Mark ....................................... : ONN Model/Type reference ....................... : ONA19WT004 Listed Model(s) ................................. : - Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1, 1999 Edition IEEE 1528: 2013 Date of receipt of test sample.........: Jan. 30, 2019 Date of testing.............................: Jan. 31, 2019- Feb. 17, 2019 Date of issue...............................: Feb. 18, 2019 Result .................. ........................: PASS Compiled by ( position+printed name+signature) .. : File administrators:Xiaodong Zhao Supervised by ( position+printed name+signature) .. : Test Engineer: Xiaodong Zhao Approved by ( position+printed name+signature) .. : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No: CHTEW19020050 Page: 2 of 27 Issued: 2019-02-18 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-08) Contents 1. Test Standards and Report version 3 1.1. Test Standards 3 1.2. Report version 3 2. Summary 4 2.1. Client Information 4 2.2. Product Description 4 2.3. Test frequency list 5 3. Test Environment 6 3.1. Test laboratory 6 3.2. Test Facility 6 3.3. Environmental conditions 6 4. Equipments Used during the Test 7 5. Measurement Uncertainty 8 6. SAR Measurements System Configuration 10 6.1. SAR Measurement Set-up 10 6.2. DASY5 E-field Probe System 11 6.3. Phantoms 12 6.4. Device Holder 12 7. SAR Test Procedure 13 7.1. Scanning Procedure 13 7.2. Data Storage and Evaluation 15 8. Position of the wireless device in relation to the phantom 17 8.1. Front-of-face 17 8.2. Body Position 17 9. Dielectric Property Measurements & System Check 18 9.1. Tissue Dielectric Parameters 18 9.2. SAR System Validation 19 9.3. SAR System Verification 20 10. SAR Exposure Limits 24 11. Radiated Power Measurement Results 25 12. Maximum Tune-up Limit 25 13. SAR Measurement Results 26 14. SAR Measurement Variability 27 Report No: CHTEW19020050 Page: 3 of 27 Issued: 2019-02-18 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-08) 1. Test Standards and Report version 1.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency Radiation Exposure Evaluation:Portable Devices IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 1.2. Report version Revision No. Date of issue Description N/A 2019-02-18 Original Report No: CHTEW19020050 Page: 4 of 27 Issued: 2019-02-18 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-08) 2. Summary 2.1. Client Information Applicant: Auctus Technologies Co.,Ltd. Address: 17F, Building 3, China Science and Technology Development Park, No. 009, Gaoxin Road, Nanshan Dist.Shenzhen, Guangdong, China Manufacturer: PAN-INTERNATIONAL ELECTRONICS (MALAYSIA) SDN. BHD. Address: PLOT 4, SEBERANG JAYA INDUSTRIAL ESTATE, 13700 PRAI, PULAU PINANG 2.2. Product Description Name of EUT: walkie talkie Trade mark: ONN Model/Type reference: ONA19WT004 Listed model(s): - Accessories: Belt Clip Device Category: Portable RF Exposure Environment: General Population/Uncontrolled Power supply: DC 3.6V Device Dimension: Overall (Length x Width x Thickness):112 x 50 x 32mm Antenna(Length):60mm Maximum SAR Value Separation Distance: Front-of-face: 25mm Body: 0mm Maximun SAR Value (1g): Front-of-face: 1.023 W/kg Body: 1.507 W/kg RF Specification Operation Frequency Range: 462.5625MHz~ 462.7125MHz 467.5625MHz~ 467.7125MHz 462.5500MHz~ 462.7250MHz Rated Output Power: High Power: 2W (33.00dBm) Low Power: 0.5W (27.00dBm) Modulation …

Text truncated - open the document above for the full version.

Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 2/17/2019 Anolog-Front of face Communication System: UID 0, Analog (0); Frequency: 462.637 MHz;Duty Cycle: 1:1 Medium parameters used: f = 463 MHz; σ = 0.87 S/m; ε r = 44.258; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.9°C;Liquid Temperature:22.6°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(11.7, 11.7, 11.7) @ 462.637 MHz; Calibrated: 2/26/2018 lSensor-Surface: 4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/25/2018 lPhantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/Anolog-CH4/Area Scan (51x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.47 W/kg Front/Anolog-CH4/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 39.40 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 1.82 W/kg SAR(1 g) = 1.37 W/kg; SAR(10 g) = 1.01 W/kg Maximum value of SAR (measured) = 1.45 W/kg 0 dB = 1.45 W/kg = 1.61 dBW/kg Appendix A:SAR Test Data Plots Plot No.1 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 2/17/2019 Anolog-Body Worn Communication System: UID 0, Analog (0); Frequency: 462.65 MHz;Duty Cycle: 1:1 Medium parameters used: f = 463 MHz; σ = 0.97 S/m; ε r = 56.033; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.9°C;Liquid Temperature:22.6°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(11.87, 11.87, 11.87) @ 462.65 MHz; Calibrated: 2/26/2018 lSensor-Surface: 4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/25/2018 lPhantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/Anolog-CH19/Area Scan (51x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.38 W/kg Rear/Anolog-CH19/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 40.74 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 2.97 W/kg SAR(1 g) = 2.11 W/kg; SAR(10 g) = 1.48 W/kg Maximum value of SAR (measured) = 2.25 W/kg 0 dB = 2.25 W/kg = 3.52 dBW/kg Appendix A:SAR Test Data Plots Plot No.2

Appendix B: DAE and Probe Calibration Certificate 1 of 44 1.1. DAE4 Calibration Certificate Appendix B: DAE and Probe Calibration Certificate 2 of 44 Appendix B: DAE and Probe Calibration Certificate 3 of 44 Appendix B: DAE and Probe Calibration Certificate 4 of 44 Appendix B: DAE and Probe Calibration Certificate 5 of 44 Appendix B: DAE and Probe Calibration Certificate 6 of 44 1.2. Probe Calibration Certificate Appendix B: DAE and Probe Calibration Certificate 7 of 44 Appendix B: DAE and Probe Calibration Certificate 8 of 44 Appendix B: DAE and Probe Calibration Certificate 9 of 44 Appendix B: DAE and Probe Calibration Certificate 10 of 44 Appendix B: DAE and Probe Calibration Certificate 11 of 44 Appendix B: DAE and Probe Calibration Certificate 12 of 44 Appendix B: DAE and Probe Calibration Certificate 13 of 44 Appendix B: DAE and Probe Calibration Certificate 14 of 44 Appendix B: DAE and Probe Calibration Certificate 15 of 44 Appendix B: DAE and Probe Calibration Certificate 16 of 44 Appendix B: DAE and Probe Calibration Certificate 17 of 44 Appendix B: DAE and Probe Calibration Certificate 18 of 44 Appendix B: DAE and Probe Calibration Certificate 19 of 44 Appendix B: DAE and Probe Calibration Certificate 20 of 44 Appendix B: DAE and Probe Calibration Certificate 21 of 44 Appendix B: DAE and Probe Calibration Certificate 22 of 44 Appendix B: DAE and Probe Calibration Certificate 23 of 44 Appendix B: DAE and Probe Calibration Certificate 24 of 44 Appendix B: DAE and Probe Calibration Certificate 25 of 44 Appendix B: DAE and Probe Calibration Certificate 26 of 44 Appendix B: DAE and Probe Calibration Certificate 27 of 44 Appendix B: DAE and Probe Calibration Certificate 28 of 44 Appendix B: DAE and Probe Calibration Certificate 29 of 44 Appendix B: DAE and Probe Calibration Certificate 30 of 44 Appendix B: DAE and Probe Calibration Certificate 31 of 44 Appendix B: DAE and Probe Calibration Certificate 32 of 44 Appendix B: DAE and Probe Calibration Certificate 33 of 44 Appendix B: DAE and Probe Calibration Certificate 34 of 44 Appendix B: DAE and Probe Calibration Certificate 35 of 44 Appendix B: DAE and Probe Calibration Certificate 36 of 44 Appendix B: DAE and Probe Calibration Certificate 37 of 44 Appendix B: DAE and Probe Calibration Certificate 38 of 44 Appendix B: DAE and Probe Calibration Certificate 39 of 44 Appendix B: DAE and Probe Calibration Certificate 40 of 44 Appendix B: DAE and Probe Calibration Certificate 41 of 44 Appendix B: DAE and Probe Calibration Certificate 42 of 44 Appendix B: DAE and Probe Calibration Certificate 43 of 44 Appendix B: DAE and Probe Calibration Certificate 44 of 44

Appendix C: Dipole Calibration Certificate 1 of 8 1.1. D450V3 Dipole Calibration Certificate Appendix C: Dipole Calibration Certificate 2 of 8 Appendix C: Dipole Calibration Certificate 3 of 8 Appendix C: Dipole Calibration Certificate 4 of 8 Appendix C: Dipole Calibration Certificate 5 of 8 Appendix C: Dipole Calibration Certificate 6 of 8 Appendix C: Dipole Calibration Certificate 7 of 8 Appendix C: Dipole Calibration Certificate 8 of 8

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 95 MEASUREMENT AND TEST REPORT For GOCOM Technology Co.,Ltd. UNIT 12, 14/F, LIPPO SUN PLAZA, 28 CANTON ROAD TSIM SHA TSUI, KOWLOON, Hong Kong, China FCC ID: 2ARRE2020G600 Report Type: Original Report Product Type: Walkie talkie Report Number: RSZ201103011-00B Report Date: 2020-11-06 Reviewed By: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201103011-00B FCC Part 95 Page 2 of 5 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SUMMARY OF TEST RESULTS ............................................................................................................................... 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201103011-00B FCC Part 95 Page 3 of 5 GENERAL INFORMATION Product Description for Equipment Under Test (EUT) Product Walkie talkie Tested Model G600 Frequency Range 462.55 - 462.725 MHz 467.5625 - 467.7125 MHz Transmit Power (ERP) 462.55 - 462.725 MHz: 1.4Watts 467.5625 - 467.7125 MHz: 0.38Watt Channel Spacing 12.5kHz Modulation Technique FM Antenna Specification* 2.15dBi (It is provided by the applicant) Voltage Range DC 3.6V from battery Sample/EUT Status Good condition Objective This test report is in accordance with Part 2 and Part 95, Subpart A & Subpart B of the Federal Communication Commissions rules. Test Methodology All tests and measurements indicated in this document were performed in accordance with Part 95 Subpart A, Subpart B of the Federal Communication Commissions rules with TIA-603-E, Land Mobile FM or PM- Communications Equipment-Measurement and Performance Standards. All emissions measurement was performed at Bay Area Compliance Laboratories Corp. (Shenzhen). The radiated testing was performed at an antenna-to-EUT distance of 3 meters. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201103011-00B FCC Part 95 Page 4 of 5 Measurement Uncertainty Parameter Uncertainty Occupied Channel Bandwidth ±5% RF Output Power with Power meter ±0.73dB RF conducted test with spectrum ±1.6dB Emissions, Radiated Below 1GHz ±4.75dB Above 1GHz ±4.88dB Temperature ±1°C Humidity ±6% Supply voltages ±0.4% Note: The extended uncertainty given in this report is obtained by combining the standard uncertainty times the coverage factor K with the 95% confidence interval. Otherwise required by the applicant or Product Regulations, Decision Rule in this report did not consider the uncertainty. Test Facility The Test site used by Bay Area Compliance Laboratories Corp. (Shenzhen) to collect test data is located on the 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China. The test site has been approved by the FCC under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 342867,the FCC Designation No. : CN1221. The test site has been re…

Text truncated - open the document above for the full version.
