2ATLB-SY-W0281Alarm Clock Wireless Charger

15W wireless charger User manual Model：W-0281 Function：Wireless charging、USB-A Output 1. Product structure 2. How to use 2.1 Plug in Connect the power adapter to any wall outlet and plug it into the device using the included USB cable. Way of use Illustration Input Wireless Charging only 5V\2.1A;9V\2.5A; 12V\2A Warning: Using power adapter with other specifications may damage the product or cause malfunction. 2.2 Wireless Charging 2.2.1 Before you try to charge your device, make sure it is compatible with wireless charging. 2.2.2 If your device has a metal case, remove it before you put the device on the charger. 2.2.3 Place your wireless charging-compatible device directly onto the charging pad. Refer to the placement illustrations here as a guide. Wireless charging indicator USB-A Type-C 2.2.4 Indicator Display： Power connection successful – blue light flashes twice Standby – light off Charging – solid blue light on Charged – light off FOD – blue light flashes continuously Important: If the charging indicator light starts blinking, there’s something interfering with the charging. Make sure there are no objects between your phone and the charging pad. 3.Attention: 3.1 Using uncertified or incompatible power supplies and adapters may cause fire, short circuit or other dangers. 3.2 Do not squeeze or collide. 3.3 Do not disassemble or put into the fire, water, to avoid short-circuit leakage. 3.4 Do not use wireless chargers in severe high temperature, humidity or corrosive environments to avoid leakage of damaged circuits. 3.5 Do not place too close to magnetic cards (ID cards, bank cards, etc.) with magnetic strips or chips to avoid magnetic card failure. 3.6 Keep more than 20cm between the implanted medical device (pacemaker, implantable cochlea, etc.) and the wireless charger to avoid potential disruption to medical devices. 3.7 Keep children from the product in case they play the wireless charger as a toy to avoid accidents. 3.8 Keep the wireless charger and receiver device away from water and other liquids. 3.9 To clean the charger, make sure the power supply is disconnected. 3.10 Usage temperature: -10°C-40°C 3.11 Usage humidity: 20-90% (40°C) * Pictures in this manual are all illustration. Final product is subject to fact. * Inside package: adapter (non-standard), charging cable, manual. * If you need to purchase or use other adapters by yourself, please make sure to use QC3.0 adapter. * It supports PD fast charging. 4.Specification: Input: 5V/2.1A, 9V/2.5A, 12V/2A Output: 5W/7.5W/10W/15W Charging efficiency: ≥75% Charging distance: ≤8mm Wireless charging frequency: 110-205KHz USB Output: 5V/1A (MAX) Size: 170x154x22mm 5.Applicable Devices: Products qualified with Qi standard. 6.FCC compliance statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 7.Manufacturer: Shenzhen Shuoyu Technology Co., Ltd. Address: 30F East Block, Wenhua Bldg, 1027 Shennan East Road, Luohu District, Shenzhen, Guangdong, China Importer: Caliber Europe BV Address: Kortakker 10 4264 AE Veen, The Netherlands

Shenzhen Shuoyu Technology Co. , Ltd. Date: 2021.1.29 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: 2ATLB-SY-W0281 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Keny Xu in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Shenzhen Shuoyu Technology Co. , Ltd. . This authorization is valid until further written notice from the applicant. Print Name: YuanYuan Long Title: General Manager Signature: On behalf of Company: Shenzhen Shuoyu Technology Co. , Ltd. Telephone: 13827486068 E-mail: [email protected]

Shenzhen Shuoyu Technology Co. , Ltd. TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: Confidentiality Request regarding application for FCC ID: 2ATLB-SY-W0281 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Print Name: YuanYuan Long Title: General Manager Signature: On behalf of Company: Shenzhen Shuoyu Technology Co. , Ltd. Telephone: 13827486068 E-mail: [email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Shenzhen Shuoyu Technology Co. , Ltd. Address 30F East Block, Wenhua Bldg, 1027 Shennan East Road,Luohu District, Shenzhen, Guangdong, China Grantee Code 2ATLB FCC ID 2ATLB-SY-W0281 Authorized Contact Name YuanYuan Long Contact Email [email protected] Contact Phone 13827486068 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: Print Name: YuanYuan Long Title: General Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Shenzhen Shuoyu Technology Co. , Ltd. Cover Letter-Wireless Charger Approval Date: 2021.1.29 Gentlemen: There’s an Alarm Clock Wireless Charger that would like to have your authorization as an Inductive wireless power transfer applications approval. The specific product as below, Alarm Clock Wireless Charger, with its designed features and specified description, meets special requirements for KDB 680106 D01 section 5.2 requirements. Company: Shenzhen Shuoyu Technology Co. , Ltd. Product Name: Alarm Clock Wireless Charger Model Number: SY-W0281 FCC ID: 2ATLB-SY-W0281 KDB 680106 D01 Section 5.2 Requirements Product Technical Specification Result a) Power transfer frequency is less that 1 MHz Complied b) Output power from each primary coil is less than or equal to 15 watts. Complied c) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils Complied d) Client device is placed directly in contact with the transmitter. Yes Complied e) Mobile exposure conditions only For inductive applications where the primary does not physically attach to the client, and it is intended for desktop use, the desktop guidance in KDB 680106 D01 may be applied Complied f) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Please refer to RF exposure report Complied Sincerely, Print Name: YuanYuan Long Title: General Manager Signature: On behalf of Company: Shenzhen Shuoyu Technology Co. , Ltd. Telephone: 13827486068 E-mail: [email protected]

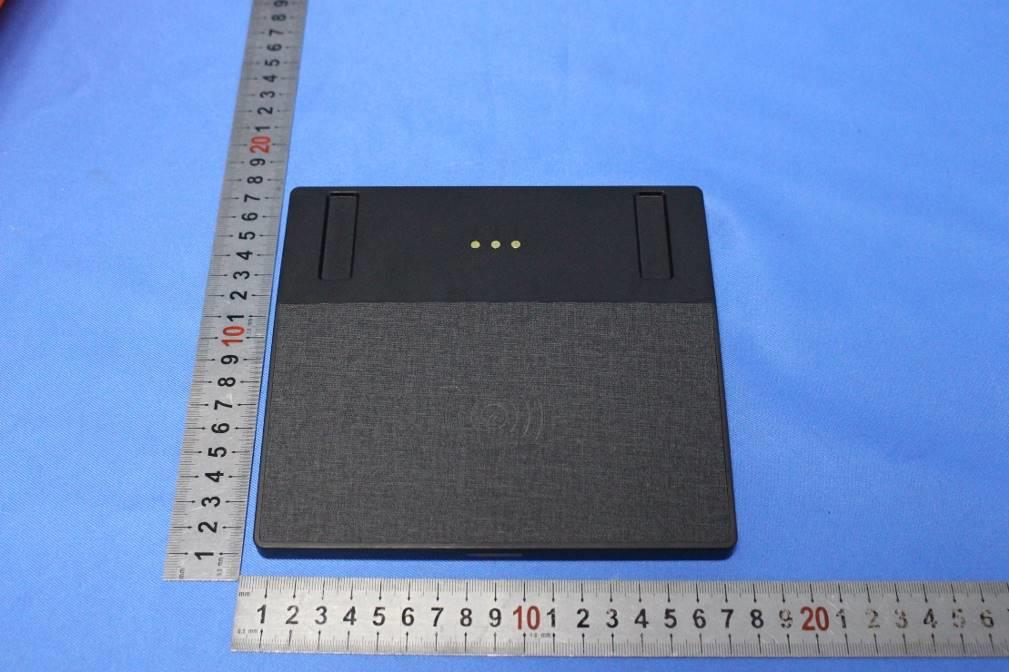

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 4 External Photos for SZEM2101000945CR FCC ID:2ATLB-SY-W0281 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 4 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 4

70*40mm

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 4 Internal Photos for SZEM2101000945CR FCC ID: 2ATLB-SY-W0281 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 4 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 4

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100094503 Page: 1 of 8 Keny Xu EMC Laboratory Manager Human Exposure Report Application No.: SZEM2101000945CR Applicant: ShenZhen ShuoYu Technology Co., Ltd. Address of Applicant: 30F East Block, Wenhua Bldg, 1027 Shennan East Road, Luohu District, Shenzhen, Guangdong, China Manufacturer: ShenZhen ShuoYu Technology Co., Ltd. Address of Manufacturer: 30F East Block, Wenhua Bldg, 1027 Shennan East Road, Luohu District, Shenzhen, Guangdong, China Factory: ShenZhen ShuoYu Technology Co., Ltd. Address of Factory: 30F East Block, Wenhua Bldg, 1027 Shennan East Road, Luohu District, Shenzhen, Guangdong, China Equipment Under Test (EUT): EUT Name: Alarm Clock Wireless Charger Model No.: SY-W0281 Trade Mark: Pointuch FCC ID: 2ATLB-SY-W0281 Standards: 47 CFR PART 1, Subpart I, Section 1.1310 47 CFR PART 2, Subpart J, Section 2.1091 Date of Receipt: 2021-01-22 Date of Test: 2021-01-25 to 2021-02-09 Date of Issue: 2021-02-19 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100094503 Page: 2 of 8 Revision Record Version Chapter Date Modifier Remark 01 2021-02-19 Original Authorized for issue by: Leo Li/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100094503 Page: 3 of 8 1 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 1 CONTENTS ......................................................................................................................................... 3 2 GENERAL INFORMATION .................................................................................................................. 4 2.1 DETAILS OF E.U.T. ............................................................................................................................. 4 2.2 DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 4 2.3 TEST LOCATION ................................................................................................................................. 5 2.4 TEST FACILITY ................................................................................................................................... 5 2.5 DEVIATION FROM STANDARDS .............................................................................................................. 5 2.6 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................... 5 3 EQUIPMENTS USED DURING TEST .................................................................................................. 6 4 TEST RESULTS .................................................................................................................................. 7 4.1 RF EXPOSURE TEST ........................................................................................................................... 7 4.1.1 E.U.T. Operation ...................................................................................................................... 7 Operating Environment: ........................................................................................................................ 7 EUT Operation: ................................................................................................................................. 7-8 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100094503 Page: 4 of 8 2 General Information 2.1 Details of E.U.T. Power supply: Input: 5V/2.1A, 9V/2.5A, 12V/2A Wireless Output: 5W/7.5W/10W/15W(MAX) USB-A Output: 5V/1A Operation frequency: 120.19kHz to 149.84kHz Modulation type: Load modulation Antenna type: Loop Antenna Remark: Tests were conducted in all load modes and the worst case 15W is reported only . 2.2 Description of Support Units Description Manufacturer Model No. Serial No. Type-C Cable SGS N/A REF. No.SEA07B00 Adapter DJI QC24-US REF. No.SEA05F01C Dummy Load Client Supply NuVolta DN3000002 Frame Radio Alarm Clock ShuoYu SY-W0280 N/A Mobile Phone SAMSUNG SM-G9810 REF. No.SEA16K00 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100094503 Page: 5 of 8 2.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen Branch E&E Lab, No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong,China 518057. Tel: +86 755 2601 2053 Fax: +86 755 2671 0594 No tests were sub-contracted. 2.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: G-20026, R-14188, C-12383 and T-11153 respectively. • FCC –Designation Number: CN1178 SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized as an accredited testing laboratory. Designation Number: CN1178. Test Firm Registration Number: 406779. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0006. IC#: 4620C. …

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100094502 Page: 1 of 29 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM2101000945CR Applicant: ShenZhen ShuoYu Technology Co., Ltd. Address of Applicant: 30F East Block, Wenhua Bldg, 1027 Shennan East Road, Luohu District, Shenzhen, Guangdong, China Manufacturer: ShenZhen ShuoYu Technology Co., Ltd. Address of Manufacturer: 30F East Block, Wenhua Bldg, 1027 Shennan East Road, Luohu District, Shenzhen, Guangdong, China Factory: ShenZhen ShuoYu Technology Co., Ltd. Address of Factory: 30F East Block, Wenhua Bldg, 1027 Shennan East Road, Luohu District, Shenzhen, Guangdong, China Equipment Under Test (EUT): EUT Name: Alarm Clock Wireless Charger Model No.: SY-W0281 Trade Mark: Pointuch FCC ID: 2ATLB-SY-W0281 Standard(s) : 47 CFR Part 15, Subpart C Date of Receipt: 2021-01-22 Date of Test: 2021-01-25 to 2021-02-09 Date of Issue: 2021-02-19 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100094502 Page: 2 of 29 Revision Record Version Chapter Date Modifier Remark 01 2021-02-19 Original Authorized for issue by: Leo Li/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100094502 Page: 3 of 29 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Mains Power Port (150kHz-30MHz) 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Radiated Emissions (30MHz-1GHz) 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Emissions (9kHz-30MHz) 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.4 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass 20dB Bandwidth 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.9.2 47 CFR Part 15, Subpart C 15.215 Pass Restricted Bands 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 Pass SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100094502 Page: 4 of 29 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 6 4.1 DETAILS OF E.U.T. ......................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 6 4.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 6 4.4 TEST LOCATION ............................................................................................................................. 7 4.5 TEST FACILITY ............................................................................................................................... 7 4.6 DEVIATION FROM STANDARDS ......................................................................................................... 7 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 7 5 EQUIPMENT LIST ............................................................................................................................... 8 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................10 6.1 ANTENNA REQUIREMENT ................................................................................................................10 6.1.1 Test Requirement: ..................................................................................................................10 6.1.2 Conclusion ..............................................................................................................................10 7 RADIO SPECTRUM MATTER TEST RESULTS .................................................................................11 7.1 CONDUCTED EMISSIONS AT AC MAINS POWER PORT (150KHZ-30MHZ) ............................................11 7.1.1 E.U.T. Operation .....................................................................................................................11 7.1.2 Test Mode Description ............................................................................................................11 7.1.3 Test Setup Diagram ................................................................................................................12 7.1.4 Measurement Procedure and Data .........................................................................................12 7.2 RADIATED EMISSIONS (30MHZ-1GHZ) ............................................................................................15 7.2.1 E.U.T. Operation .....................................................................................................................15 7.2.2 Test Mode Description ............................................................................................................15 7.2.3 Test Setup Diagram ...................................................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 7 RF Exposure Setup Photos for SZEM2101000945CR FCC ID: 2ATLB-SY-W0281 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 7 1 Photographs Load SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 7 Phone SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 6 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 7 of 7

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 3 Setup Photos for SZEM2101000945CR FCC ID: 2ATLB-SY-W0281 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 3 1 Photographs Conducted Emissions at AC Mains Power Port (150kHz-30MHz) SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 3 Radiated Emissions (30MHz-1GHz) Radiated Emissions (9kHz-30MHz)
