2ATLB-SYW0258Alarm Clock Wireless Charger

Alarm Clock Night Light Wireless Charger Model: SYW0258 I. Function Buttons II. Functions A.Power Connection 1.Plug the USB-A end of cable into the power adapter while plug Type-C end into the product. 2.The product will be ready and stand by after all indicators are on. B.Wireless Charging 1.Output: 15W 2.Indicator Display:Power connection successful – blue light flashes once Standby – light off Charging – blue light on Charged – light off FOD – blue light flashes continuously C.Alarm Clock Functions 1.Four Buttons: Alarm, +, -, Light. 2.Time System Setting: Double click Alarm button to setup 12-hour time system and 24-hour time system. AM and PM will display while 12-hour time system is set. 3.Time Setting: 1) Click Alarm button once to enter minute setting, adjust value with +/-; 2) Click Alarm button once after minute setting, to enter hour setting, adjust value with +/-; 3) Click Alarm button a third time to finish time setting. 4.Alarm Setting: 1) Press “+” 3 seconds to activate or deactivate Alarm 1; Press “-” 3 seconds to activate or deactivate Alarm 2. Alarm indicator is on while Alarm is activated; 2) While activated, press Alarm button 3 seconds to enter alarm minute setting, adjust value with +/-; 3) Click Alarm button once after alarm minute setting, to enter alarm hour setting, adjust value with +/-; 4) Click Alarm button a third time to finish alarm time setting; 5) Alarm bell rings 3 minutes before automatic switch-off while no any operation. 6) Touch any button to enter Sleepy Mode when bell rings. Bell will rings for 3 more times after 5 minutes. The indicator flashes and Alarm button is out of function during the Sleepy Mode. If time setting is needed, please long press “+” to stop alarm 1 or long press “-” to stop alarm 2. All buttons will function normally; 7) The brightness of the clock light can be manually adjusted to four grades (dark, low light, sub-bright, high-brightness): "+" and "-" to manually adjust the light brightness of the digital display, the default is the brightest state after plugging in, each time you click " - "Decrease the brightness one stop at a time and turn off the clock display light one last time. 8) Time display brightness can also be adjusted manually to 3 grades (Min/Mid/Max). “+” and “-” can be used to adjust display brightness manually. The default grade is max brightness when power is connected. Single click “-” to dark the display one grade. 5.Night Light Setting: 1) Night light can be set into 9 color modes: white, RGB shade, red, yellow, light green, green, light blue, blue and pink; 2) Touch the Light button once to turn on the night light with white color. Another touch shall allow you to set another color in turn as specified in 5. 1). The last touch will turn off atmosphere light. 6.Eco-power function: 1) Button cell inside is only for time keeping. 2) All functions are out during power disconnection. Functions restored when power is connected. D.Note 1.Attention: In order to function alarm, wireless charging, night light and USB output all together, power shall be connected by a QC2.0 or QC3.0 adapters. If connected by a 5V adapter, only wireless charging and alarm can work together. 2.Do not squeeze or collide. 3.Do not disassemble or put into the fire, water, to avoid short-circuit leakage. 4.Do not use wireless chargers in severe high temperature, humidity or corrosive environments to avoid leakage of damaged circuits. 5.Do not place too close to magnetic cards (ID cards, bank cards, etc.) with magnetic strips or chips to avoid magnetic card failure. 6.Keep more than 20cm between the implanted medical device (pacemaker, implantable cochlea, etc.) and the wireless charger to avoid potential disruption to medical devices. 7.Keep children from the product in case they play the wireless charger as a toy to avoid accidents. 8.Keep the wireless charger and receiver device away from water and other liquids. 9.To clean the charger, make sure the power supply is disconnected. 10.Usage temperature: 0-45°C. 11.Usage humidity: 20-85% (40°C) * Pictures in this manual are all illustration. Final product is subject to fact. * Inside package: alarm charger, charging cable, manual. * power adapter is not included. Please purchase otherwise or use phone original adapter. III.Specification Input: DC5V/3A, 9V/3A 12V/2A Output power: 15W (MAX) Charging efficiency: 73% Charging distance: ≤8mm Frequency: 110.2-128.8KHz， Maximum wireless transmit Power：-7.85dBuA/m@10m Size: 145x116x73mm IV.Applicable Devices Products qualified with Qi standard. Manufacturer Shenzhen Shuoyu Technology Co., Ltd. Address: 30F East Block, Wenhua Bldg, 1027 Shennan East Road, Luohu District, Shenzhen, Guangdong, China Importer Caliber Europe BV Address: Kortakker 10 4264 AE Veen, The Netherlands UP Global Sourcing UK (Ltd) Manor Mill,Victoria Street, Chadderton, Oldham, OL9 0DD，UK FCC compliance statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning …

Text truncated - open the document above for the full version.

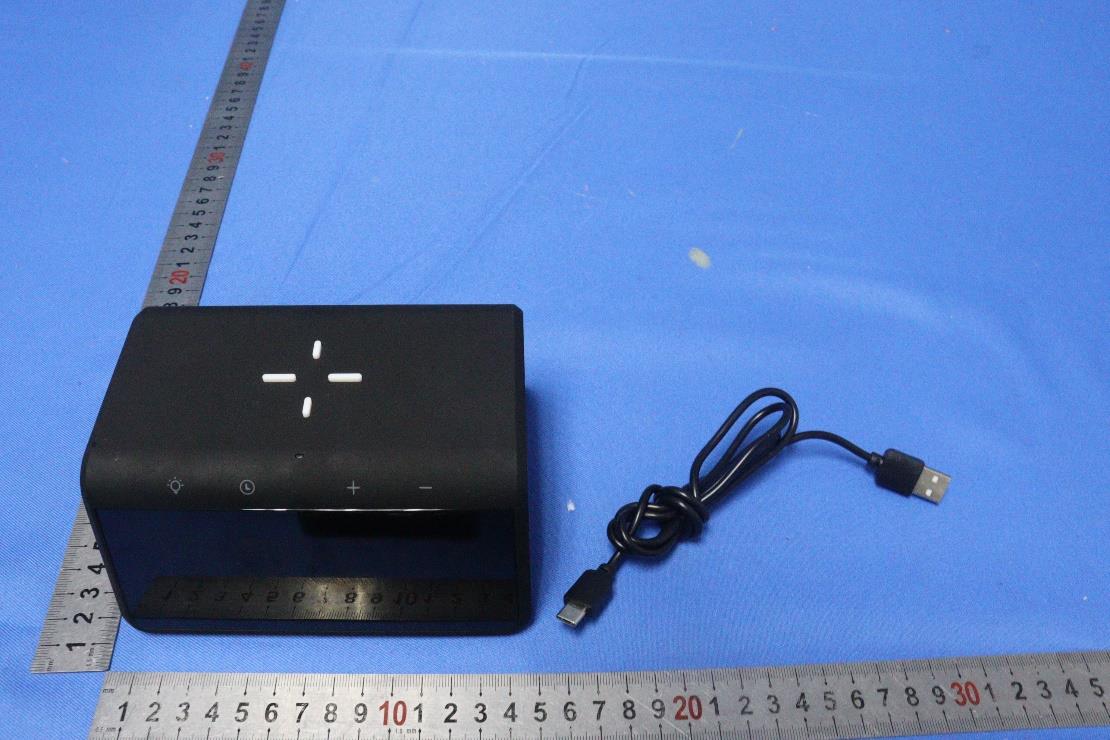

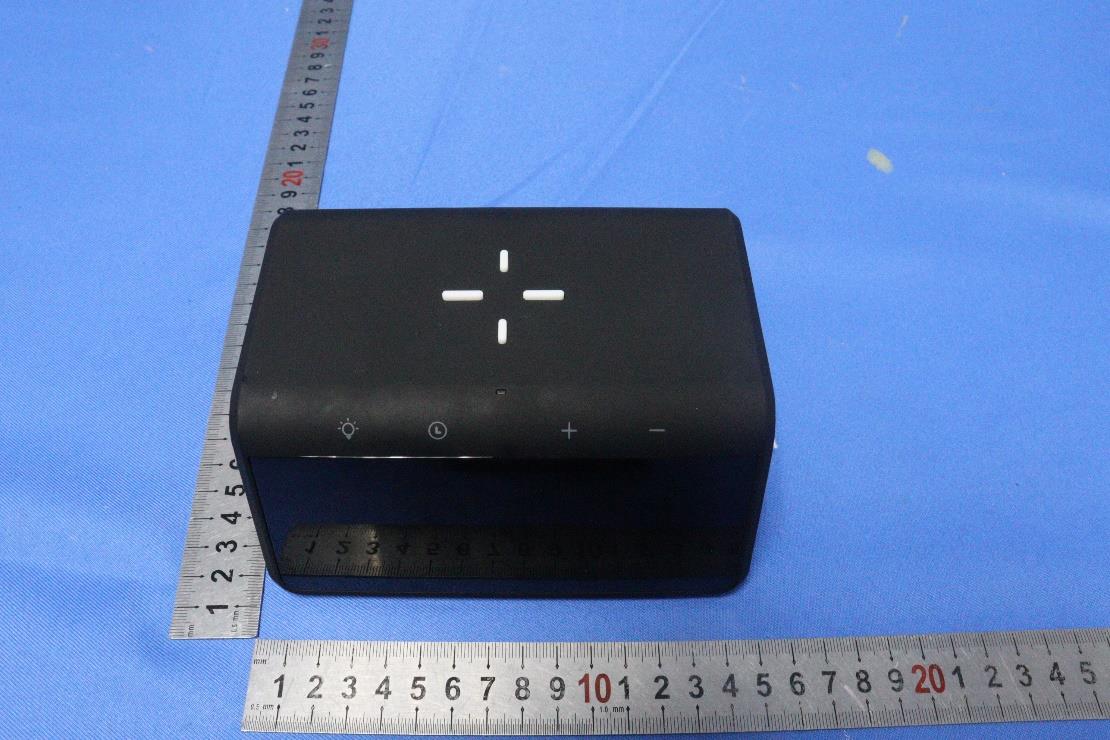

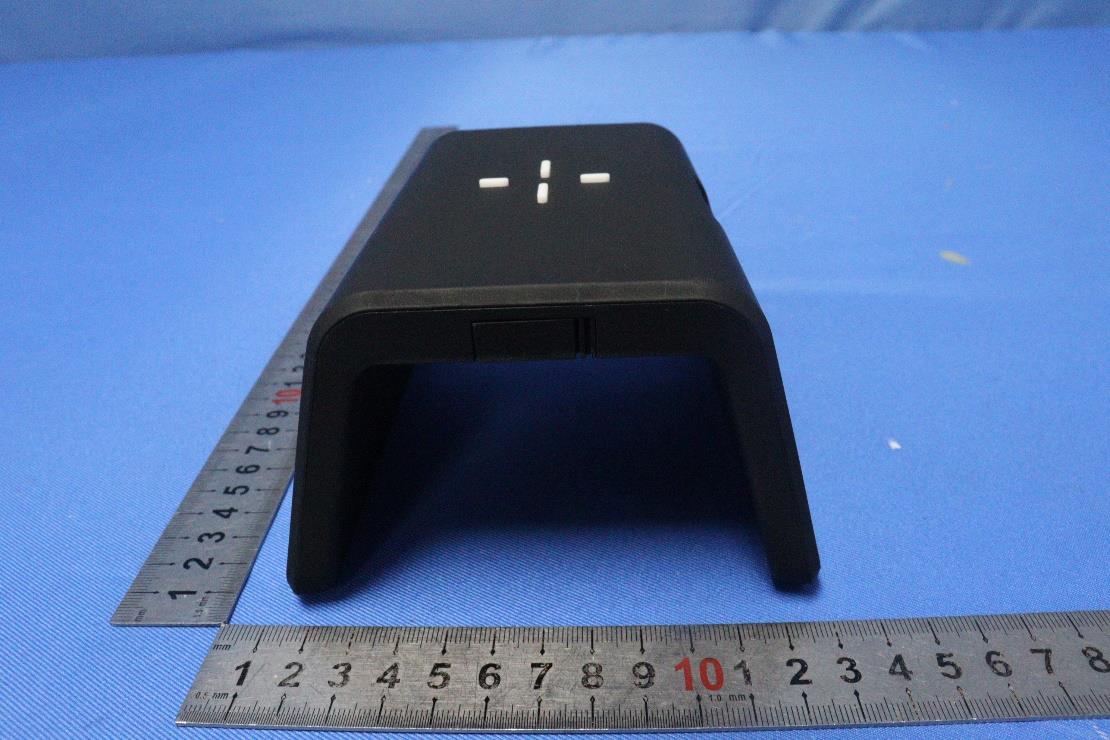

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Page: 1 of 5 External Photos for FYCR2205000185AT FCC ID: 2ATLB-SYW0258 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Page: 2 of 5 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Page: 3 of 5 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Page: 4 of 5 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Page: 5 of 5

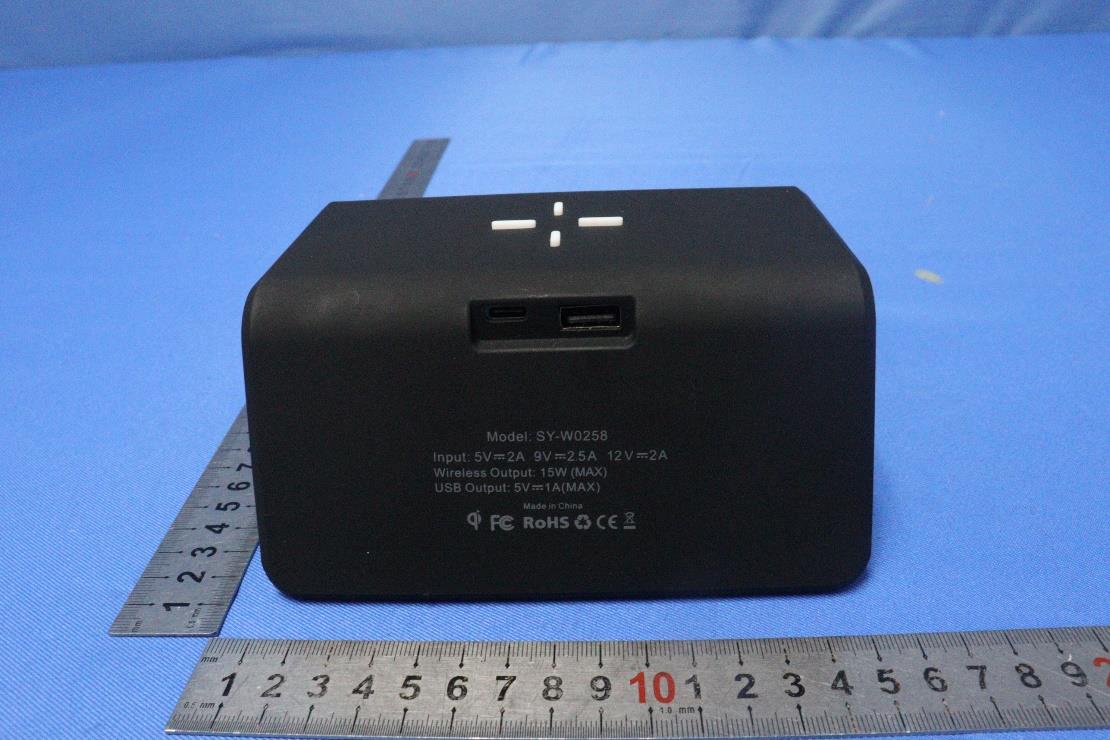

Input: 5 V 3 A 9V 3A Wireless Output: 15W (MAX) USB Output: 5V 1A (MAX) Made in China Model: SY W0258 12V 2A Manufacturer:Shenzhen Shuoyu Technology Co. , Ltd. FCC ID2ATLB-SYW0258 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label location

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Page: 1 of 4 Internal Photos for FYCR2205000185AT FCC ID: 2ATLB-SYW0258 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Page: 4 of 4

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Report No.: FYCR220500018503 Page: 1 of 12 EMC Technical Manager RF EXPOSURE EVALUATION REPORT Application No.: FYCR2205000185AT Applicant: Shenzhen Shuo Yu Technology co.,LTD Address of Applicant: 30F East Block, Wenhua Building, 1027 Shennan East Road, Luohu District, Shenzhen, Guangdong, China Manufacturer: Shenzhen Shuo Yu Technology co.,LTD Address of Manufacturer: 30F East Block, Wenhua Building, 1027 Shennan East Road, Luohu District, Shenzhen, Guangdong, China Factory: Shenzhen Shuo Yu Technology co.,LTD Address of Factory: 30F East Block, Wenhua Building, 1027 Shennan East Road, Luohu District, Shenzhen, Guangdong, China Equipment Under Test (EUT): EUT Name: Alarm Clock Wireless Charger Model No.: SYW0258 FCC ID: 2ATLB-SYW0258 Standard(s) : 47 CFR PART 1, Subpart I, Section 1.1310 47 CFR PART 2, Subpart J, Section 2.1091 Date of Receipt: 2022-05-20 Date of Evaluation: 2022-05-24 to 2022-06-02 Date of Issue: 2022-06-09 Evaluation Result: Pass* * In the configuration evaluated, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Report No.: FYCR220500018503 Page: 2 of 12 Revision Record Version Chapter Date Modifier Remark 01 2022-06-09 Original Authorized for issue by: Tree Zhan/Project Engineer Winkey Wang/Reviewer Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Report No.: FYCR220500018503 Page: 3 of 12 2 Evaluation Summary Radio Spectrum Matter Part Item Standard Method Requirement Result RF Exposure 47 CFR PART 1, Subpart I, Section 1.1310 KDB 680106 D01 TCB Workshop Presentation November 2019 RF Exposure CFR 47 Part 1.1310 Pass Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Report No.: FYCR220500018503 Page: 4 of 12 3 Contents Page 1 Cover Page ......................................................................................................................................... 1 2 Evaluation Summary .......................................................................................................................... 3 3 Contents ............................................................................................................................................. 4 4 General Information............................................................................................................................ 5 4.1 Details of E.U.T. ........................................................................................................................... 5 4.2 Description of Support Units ......................................................................................................... 5 4.3 Test modes description: ............................................................................................................... 6 4.4 Measurement Uncertainty ................................................................................................................... 6 5 Equipments Used during Test ........................................................................................................... 6 5.1 Evaluating Location ...................................................................................................................... 7 5.2 Facility ......................................................................................................................................... 7 5.3 Deviation from Standards ............................................................................................................. 8 5.4 Abnormalities from Standard Conditions ....................................................................................... 8 5.5 Test Block Diagram ...................................................................................................................... 8 6 Test Results ........................................................................................................................................ 9 6.1 RF Exposure test ......................................................................................................................... 9 6.1.1 E.U.T. Operation .....................................................................................................................10 6.1.2 Measurement Data..................................................................................................................11 7 Photographs- RF exposure Setup photos ........................................................................................12 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Report No.: FYCR220500018503 Page: 5 of 12 4 General Information 4.1 Details of E.U.T. Power supply: Input: DC 5V/3A, DC 9V/3A, DC 12V/2A 3V DC(3V x 1 "CR2032" Button Cell) Wireless Output: 15W (MAX) USB Output: DC 5V/1A (MAX) Cable(s): Type-C cable: 100cm unshielded Operation frequency: 110.2kHz to 128.8kHz Modulation type: Load modulation Antenna type: Loop Antenna 4.2 Description of Support Units Description Manufacturer Model No. Serial No. Adapter Huawei HW-05920CHQ K68247GBP14582 Mobile Phone Nexus MRA58K REF. No.SEA16P00 iPhone 8 Apple A1863 REF. No.SEA16J00 SAMSUNG Galaxy S8 SAMSUNG SM-G9500 REF. No.SEA16M01 Mobile Phone SAMSUNG SM-G9810 REF. No.SEA16K00 E-loading SGS N/A REF. No.SEA42A00 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch Report No.: FYCR220500018503 Page: 6 of 12 4.3 Test modes description: Pre-scan / Final test Mode Code Description Pre-scan 00 Charge mode_Keep the EUT charging(5W) Pre-scan 01 Charge mode_Keep the EUT charging(7.5W) Pre-scan 02 Charge mode_Keep the EUT charging(10W) Final test 03 Charge mode_Keep the EUT charging(15W) 4.4 Measurement Uncertainty Test Item Measurement Uncertainty RF Exposure Ev…
