2ATS5-TWBL22DIGITRACE ID CARD

copyright© 2020 Trackerwave Pvt. Ltd. USER MANUAL DIGITRACE ID CARD Model : TWBL22, TWBL6 No. 4/363, Block-3, 4 th floor, OMR Road, Kandanchavadi, Chennai- 600096, India. +91-70100 44935 www.trackerwave.com Trackerwave Coaster 1 INTRODUCTION ABOUT TRACKERWAVE PRODUCT INTRODUCTION Coaster (TWBL6) is a device used by patients, nurses and doctors and those who need updates on their work enabling automation of health care industry. Patients or hospital staff can use them to get precise on- time information displayed along with a buzzer or beep. Trackerwave Coaster is a two way communication device used to control the navigation process of queue messages in the facility, developed and manufactured by Trackerwave™ Pvt. Ltd. Coaster is a user-friendly notification device which shows patient name, token number, test name, test location, test description and status for health checkup based on the digital queue. The message centre functionality of the Ovitag RTLS system enables hospitals to send messages to a user, role or a staff in an intended location. Trackerwave Coaster 2 CONTENTS IN THE PACKAGE TECHNICAL SPECIFICATION ........................................ 4 INSTRUCTIONS FOR USE ............................................ 5 OPERATING INSTRUCTIONS ....................................... 7 OVITAG WEB APPLICATION ....................................... 8 CLEANING AND MAINTENANCE ................................ 12 SAFETY AND PRODUCT INFORMATION NOTES .............. 13 MATTERS NEEDING ATTENTION ............................... 13 CAUTION ................................ 错误!未定义书签。 WARRANTY INFORMATION ..................................... 13 SUPPORT ............................................................ 16 END USER LICENSE AGREEMENT ............................... 17 CERTIFICATIONS AND REGULATIONS The coaster device has undergone following compliance; RoHS compliance, CE certification, FC and ISO-27001-2013 standard. Trackerwave Coaster 3 Trackerwave Coaster 4 TECHNICAL SPECIFICATION S. No Parameter Specification 1. Radio Frequency BLE 2.4 GHz 2. Operating Tempertaure -10°C to +45°C 3. Storage Temperature -20°C to +70°C 4. Input Power Rechargable LiPo Battery 1200mah 5. Dimension 9.2cm x 5.5cm x 0.4cm 6. Weight 52 gram 7. Humidity 10% to 90% non-condensing 8. Waterproof Rating IP65 9. Battery Life 14 days to 20 days 10. Stand By Time 6 months 11. Battery Type LiPo, 1200mah 12. Recharge 2 Pin PoGo Trackerwave Coaster 5 13. Sterilization Wipes, Ethyl Oxide, Gamma, Plasma 14. Alert Sound & Vibration, LED, Display 15. Supply Voltage 1.7 to 3.7 V 16. Operating Voltage 3.3 V INSTRUCTIONS FOR USE Charging Schematic: Connect and charge the device as shown below.  Please charge your device fully before the first time you use it. Frequent charging is not required. Charge your device once every 7 days Trackerwave Coaster 6 and below 40% (battery level will be displayed in coaster by clicking on info button) LED Indication Yellow LED --> Device is charging Green LED --> fully charged Red LED --> Low Battery Note: Use recommended charging cable provided by the manufacturer. Use charging USB ports with current rating > 900mA and voltage ≥ 5V Wearable Position It is recommended to wear your coaster around your neck. Trackerwave Coaster 7 OPERATING INSTRUCTIONS  The coaster will be provided to patients who are without a smart phone.  Coaster is a user-friendly notification device which shows patient name, token number, test name, test location and status based on the digital queue.  Multilingual support which allows patients to select their convenient language. The language listed in the UI are limited to English, Tamil, Bengali and Hindi.  If a test is completed, the next test details will be displayed.  Whenever the test status changes, a beep sound will occur. Trackerwave Coaster 8  Once all the tests are completed please handover the device at the counter. Home button Coaster allows to traverse Home screen/ previous screen using Home button. Info button By clicking on info button, you can view the MAC ID, Battery level, System UP time. It also gives information about the particular test when the patient started the health test package. OVITAG WEB APPLICATION Ovitag allows management of Coaster via the web application. User access to the portal is restricted via authentication. For active directory integrated logins, please change/ reset the passwords as per the IT Practice/ Policy. Trackerwave Coaster 9 Enroll Patient A new patient (without UHID) can be temporarily enrolled using below screen. Click on Enroll New Patient button and fill the patient details and assign the floor for the next test and click Enroll button. Trackerwave Coaster 10 View Patient Details Click on the patient visit status to view the patient test status details, in the Ovitag > Health checkup page or click on the patient name in location view of Digital queue dashboard. View Patient test status (Pending, Waiting, Next, Ready to go) based on the digital queue. Message Centre 1. Click Ovitag > Health checkup in the application. 2. The list of messages sent to the coaster will be displayed with name, Coaster id, subject and response from the user. Trackerwave Coaster 11 3. Click Compose button to send an alert message to patient, staff, Group, Group by location. Patient An alert message will be sent to a specific patient Staff An alert message will be sent to a specific staff Group A Message will be sent to a group of users such as Super admin, Admin, Clinical staffs, Service engineer, Bio-med and porters. Group by Location A message will be sent to a group of users based on the location. Trackerwave Coaster 12 4. Type the message to be displayed on coaster and choose the response from the user (No_Reponse, Ok_Cancel and Yes_No) then click Send button. CLEANING AND MAINTENANCE 1. Keep the product clean. 2. Keep the product dry 3. Do not use household cleaners to clean the product. 4. Use an isopropyl alcohol (IPA) blend or…

Text truncated - open the document above for the full version.

QF094234 Page 1 of 1 Revision 0 Authority to Act as Agent Date: 2020-10-13 TUV Rheinland Group 762 Park Avenue Youngsville, NC 27596 To Whom It May Concern: I appoint TUV Rheinland (Shenzhen) Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with TRACKERWAVE PRIVATE LlMITED / No. 4, 363, BIock C, 3rd Floor, OMR Road, Kanthanchavadi, Chennai-600096, Tamilnadu, India. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 12 months By : V. Pradeep (Signature) (Print Name) Title : Director Telephone : +91 9840907544 On behalf of : TRACKERWAVE PRIVATE LlMITED (Company Name) TRACKERWAVE PRIVATE LlMITED

TRACKERWAVE PRIVATE LlMITED Confidentiality Letter Date: Subject: Confidentiality Request forFCC ID: 2ATS5-TWBL22 Pursuant toFCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subjectFCC/ICapplication be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual TRACKERWAVE PRIVATE LlMITED has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. Sincerely, By: V. Pradeep & Director (Signature/Title) (Print name) 2020-10-14

Differences Description We TRACKERWAVE PRIVATE LlMITED state: Product： DIGITRACE ID CARD Model Name： TWBL22, TWBL6 Brand Name： TRACKERWAVE FCC ID: 2ATS5-TWBL22 The electrical circuit design, layout, components used and internal wiring for above models are identical, Both TWBL22 and TWBL6 sharing same PCB. TWBL6 is a display enabled device. Signatory Date 2020-10-14 Signature Name: V. Pradeep Title: Manager Company: TRACKERWAVE PRIVATE LlMITED Address: No. 4, 363, BIock C, 3rd Floor, OMR Road, Kanthanchavadi, Chennai-600096, Tamilnadu, India

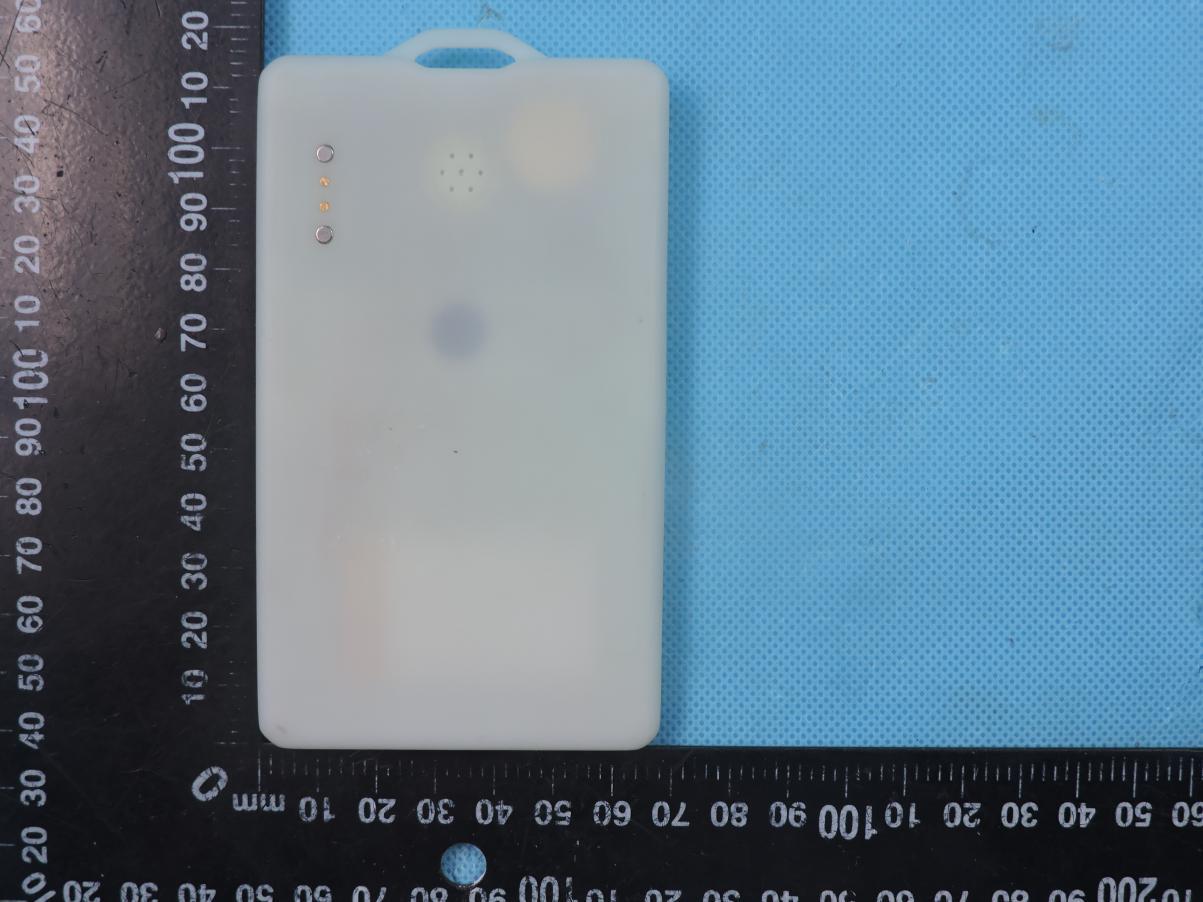

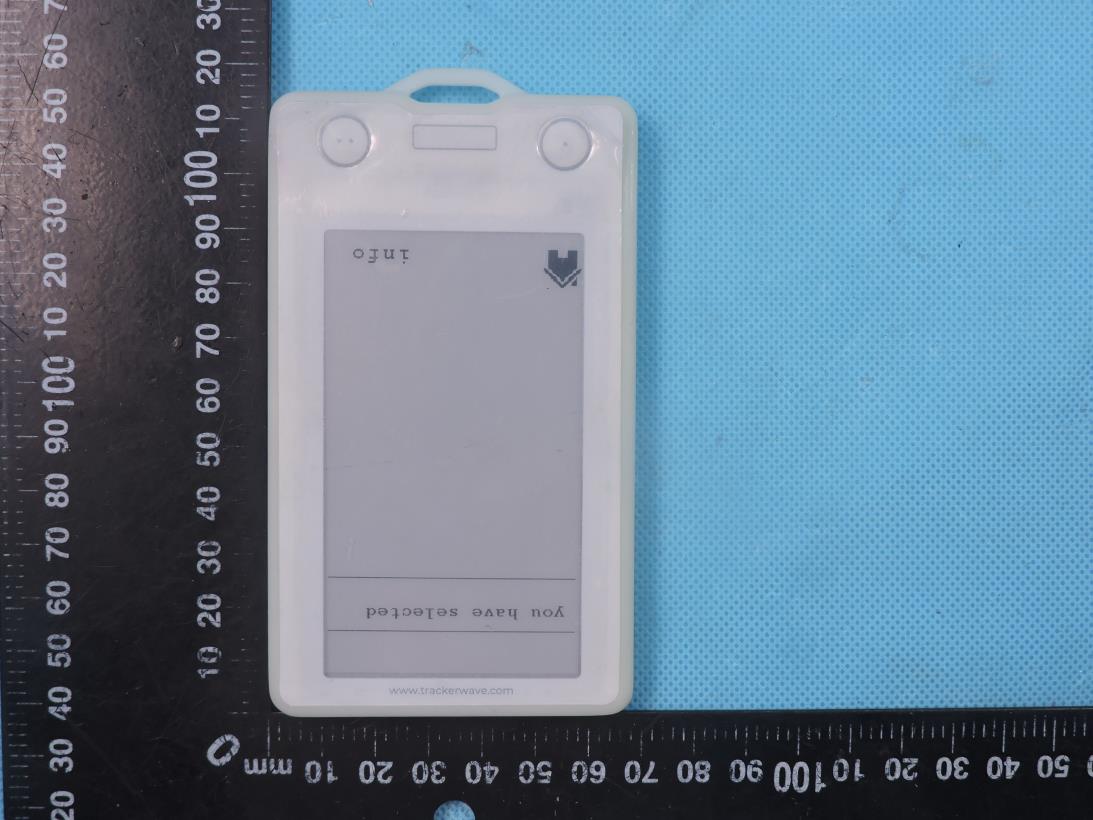

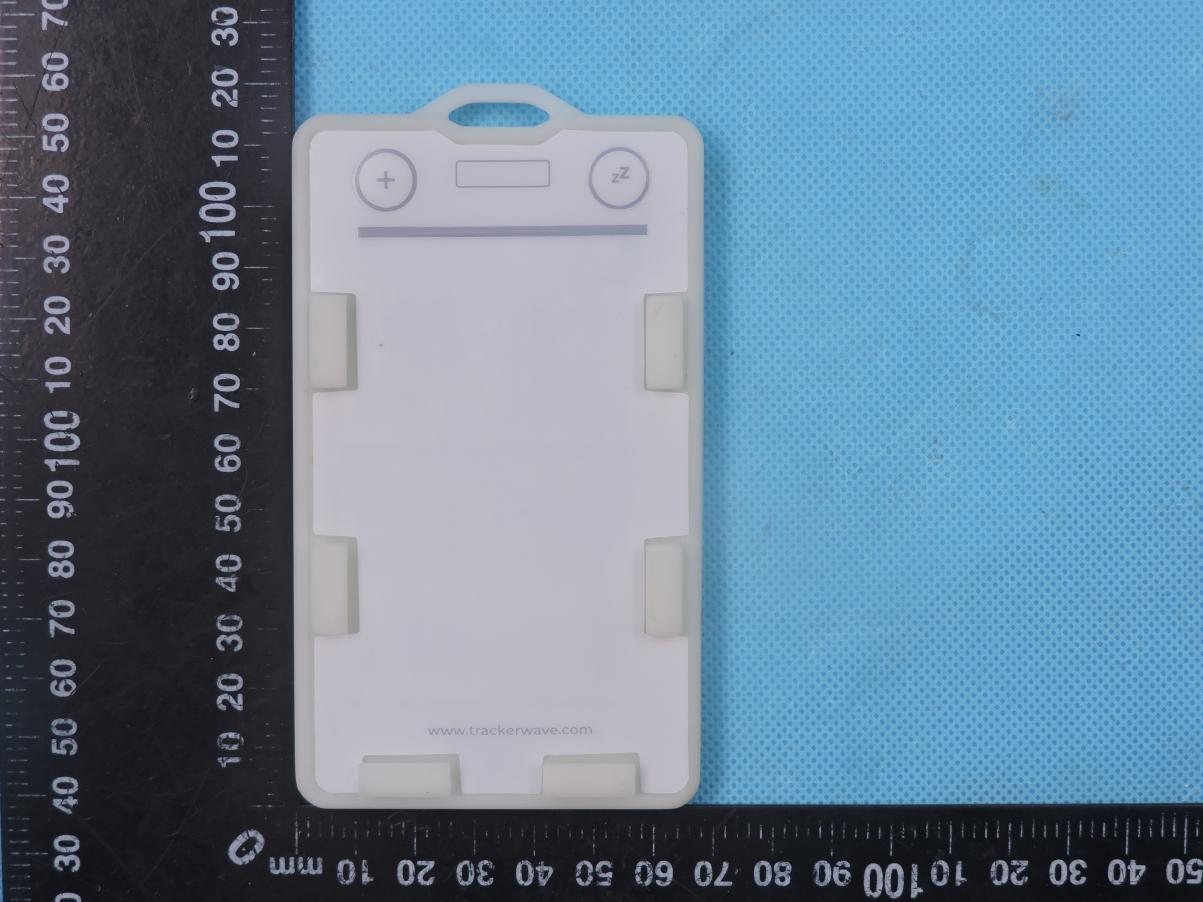

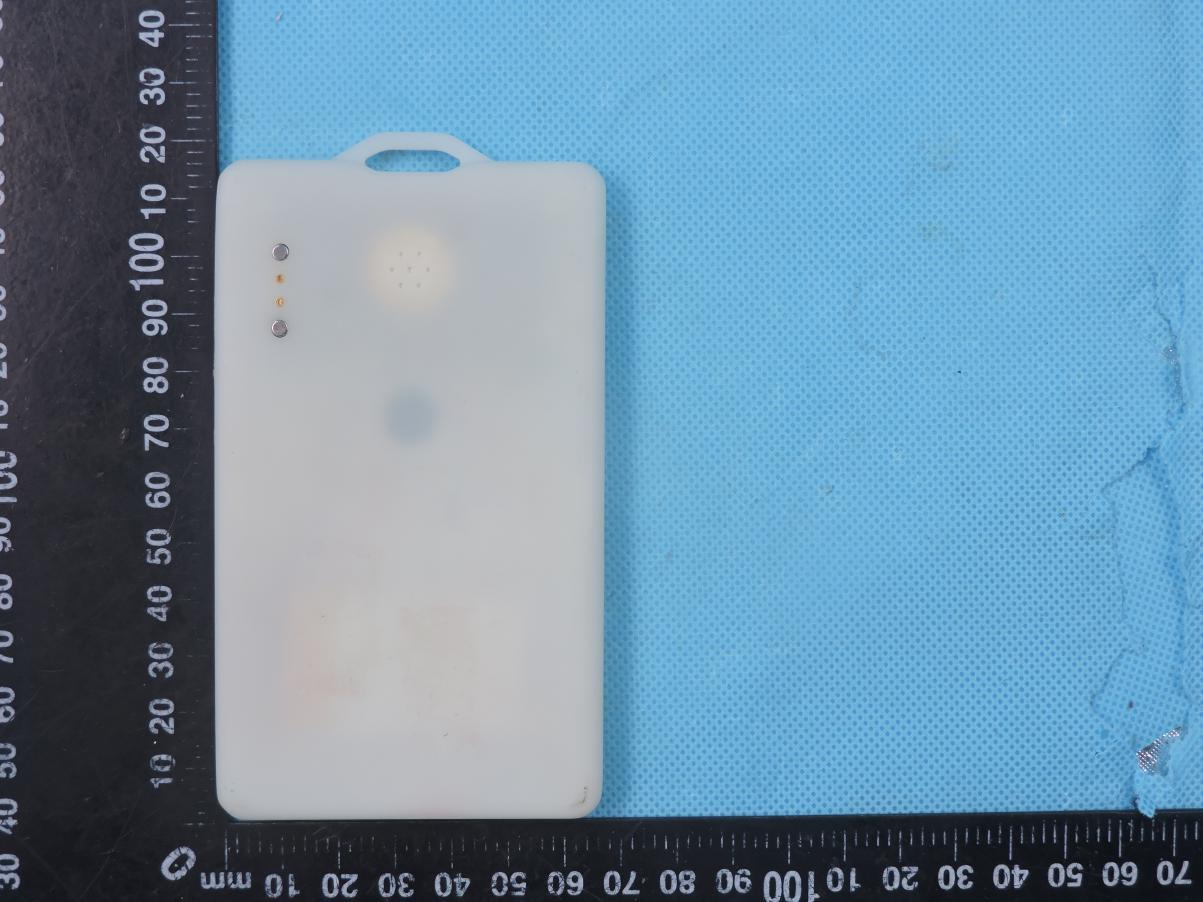

Page 1 of 7 Report No.: STS2008304 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 ( Model: TWBL22) Photo 2 ( Model: TWBL22) Page 2 of 7 Report No.: STS2008304 Photo 3 ( Model: TWBL22) Photo 4 ( Model: TWBL22) Page 3 of 7 Report No.: STS2008304 Photo 5 ( Model: TWBL22) Photo 6 ( Model: TWBL22) Page 4 of 7 Report No.: STS2008304 Photo 7 ( Model: TWBL6) Photo 8 ( Model: TWBL6) Page 5 of 7 Report No.: STS2008304 Photo 9 ( Model: TWBL6) Photo 10 ( Model: TWBL6) Page 6 of 7 Report No.: STS2008304 Photo 11 ( Model: TWBL6) Photo 12 ( Model: TWBL6) Page 7 of 7 Report No.: STS2008304 Photo 13

Page 1 of 3 Report No.: STS2008304 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 ( Model: TWBL22) Photo 2 ( Model: TWBL6) Page 2 of 3 Report No.: STS2008304 Photo 3 Photo 4 BT Antenna Page 3 of 3 Report No.: STS2008304 Photo 5 Photo 6

FCC ID : 2ATS5-TWBL22 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID : 2ATS5-TWBL22 Maximum measured transmitter power. BT5.0 BLE The Worst Case Mode 2402-2480MHz Detector PEAK GFSK -13±1dBm Remark: The worst case gain of the antenna is 3Bi. 3Bi logarithmic terms convert to numeric result is nearly 2.0 Mode Frequency (GHz) Maxinum Peak Conducted Output Power (dBm) Tune up Power (dBm) Tune up Power (mW) Result Limit GFSK 2.402 -12.82 -12 0.063 0.020 3 Threshold at which no SAR required is 0.020 ≤ 3.0for 1-g SAR, Separation distance is 5mm.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2008304W02 Issued for TRACKERWAVE PRIVATE LlMITED No. 4, 363, BIock C, 3rd Floor, OMR Road, Kanthanchavadi, Chennai-600096, Tamilnadu, India. Product Name: DIGITRACE ID CARD Brand Name: TRACKERWAVE Model Name: TWBL22 Series Model: TWBL6 FCC ID: 2ATS5-TWBL22 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 59 Report No.: STS2008304W02 TEST RESULT CERTIFICATION Applicant’s Name ................. : TRACKERWAVE PRIVATE LlMITED Address ................................. : No. 4, 363, BIock C, 3rd Floor, OMR Road, Kanthanchavadi, Chennai-600096, Tamilnadu, India. Manufacturer's Name .......... : TRACKERWAVE PRIVATE LlMITED Address ................................. : No. 4, 363, BIock C, 3rd Floor, OMR Road, Kanthanchavadi, Chennai-600096, Tamilnadu, India. Product Description Product Name ....................... : DIGITRACE ID CARD Brand Name ........................ : TRACKERWAVE Model Name .......................... : TWBL22 Series Model ......................... : TWBL6 Test Standards ..................... : FCC Part15.247 Test Procedure ...................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 08 Sept. 2020 Date (s) of performance of tests ............. : 08 Sept. 2020 ~ 21 Sept. 2020 Date of Issue .......................................... : 21 Sept. 2020 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 59 Report No.: STS2008304W02 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 TEST PROCEDURE 15 3.3 TEST SETUP 15 3.4 EUT OPERATING CONDITIONS 15 3.5 TEST RESULTS 16 4. RADIATED EMISSION MEASUREMENT 18 4.1 RADIATED EMISSION LIMITS 18 4.2 TEST PROCEDURE 20 4.3 TEST SETUP 21 4.4 EUT OPERATING CONDITIONS 21 4.5 FIELD STRENGTH CALCULATION 21 4.6 TEST RESULTS 23 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 36 5.1 LIMIT 36 5.2 TEST PROCEDURE 36 5.3 TEST SETUP 36 5.4 EUT OPERATION CONDITIONS 36 5.5 TEST RESULTS 37 6. POWER SPECTRAL DENSITY TEST 45 6.1 LIMIT 45 6.2 TEST PROCEDURE 45 6.3 TEST SETUP 45 Page 4 of 59 Report No.: STS2008304W02 Table of Contents 6.4 EUT OPERATION CONDITIONS 45 6.5 TEST RESULTS 46 7. BANDWIDTH TEST 50 7.1 LIMIT 50 7.2 TEST PROCEDURE 50 7.3 TEST SETUP 50 7.4 EUT OPERATION CONDITIONS 50 7.5 TEST RESULTS 51 8. PEAK OUTPUT POWER TEST 55 8.1 LIMIT 55 8.2 TEST PROCEDURE 55 8.3 TEST SETUP 55 8.4 EUT OPERATION CONDITIONS 55 8.5 TEST RESULTS 56 9. ANTENNA REQUIREMENT 58 9.1 STANDARD REQUIREMENT 58 9.2 EUT ANTENNA 58 10. EUT TEST PHOTO 59 Page 5 of 59 Report No.: STS2008304W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 21 Sept. 2020 STS2008304W02 ALL Initial Issue Page 6 of 59 Report No.: STS2008304W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209&15.247 (c) Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 59 Report No.: STS2008304W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±5.6dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-150KHz) ±3.37dB 7 Conducted Emission (150KHz-30MHz) ±3.83dB Page 8 of 59 Report No.: STS2008304W02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name DIGITRACE ID CARD Trade Name TRACKERWAVE Model Name TWBL22 Series Model TWBL6 Model Difference Both TWBL22 and TWBL6 sharing same PCB. TWBL6 is a display enabled dev…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2ATS5-TWBL22 DTS Setup photo Model name: TWBL22 DTS conduction DTS radiation L Page 2 of 2 FCC ID: 2ATS5-TWBL22 DTS radiation H
